LINCOLN MKS 2016 Owners Manual

Brake System
Action
Message
The brake fluid level is low and the brake system should be inspected immediately. See Brake
Fluid Check (page 254).
Brake Fluid Level Low
The brake system needs servicing. Stop the vehicle in a safe place. Contact an authorized dealer.
Check Brake System
The parking brake is set, the engine is running and you drive your vehicle more than 3 mph (5 km/h).If the warning stays on after the parking brake is released, contact an authorized dealer as soon as possible.
Park Brake Engaged
Collision Warning System Action
Message
There is a system malfunction with the collision warning system. The system will be disabled.Contact an authorized dealer as soon as possible.
Collision Warning Malfunction
The collision warning system radar is blocked because of poor radar visibility due to bad weatheror ice/mud/water in front of the radar. Driver can typically clean the sensor to resolve. Contact an authorized dealer as soon as possible.
Collision Warning Not Available Sensor
Blocked See Manual
There is a system malfunction with the collision warning system. The system will be disabled.Contact an authorized dealer as soon as possible.
Collision Warning Not Available
98
MKS (CLE) Canada/United States of America, enUSA, First Printing Information Displays

Doors and Locks
Action
Message
The door listed is not completely closed.
X Door Ajar
The luggage compartment is not completely closed.
Trunk Ajar
The driver’s door is opened, your vehicle is in park and the engine is on.
Engine ON
Fuel Action
Message
An early reminder of a low fuel condition.
Fuel Level Low
The fuel fill inlet may not be properly closed.
Check Fuel Fill Inlet
Keys and Intelligent Access Action
Message
A reminder to press the brake while starting your vehicle.
To START Press Brake
The key is not detected by the system. See Keyless Starting (page 127).
No Key Detected
The Start Stop button is pressed to shut off the engine and an Intelligent Access key is not detected inside your vehicle.
Restart Now or Key is Needed
Your vehicle is in the accessory ignition state.
Accessory Power is Active
99
MKS (CLE) Canada/United States of America, enUSA, First Printing Information Displays

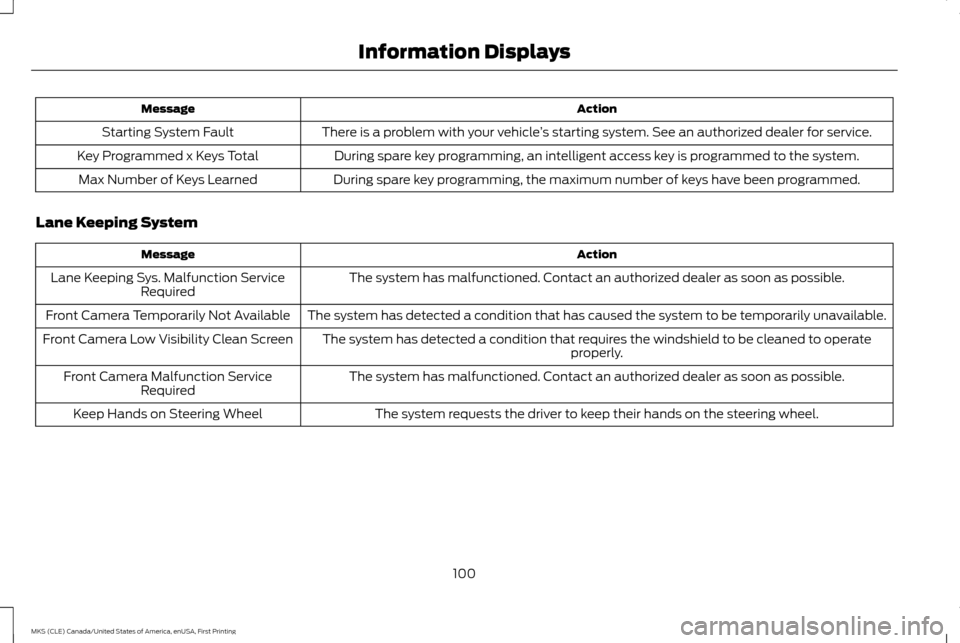

Action
Message
There is a problem with your vehicle ’s starting system. See an authorized dealer for service.
Starting System Fault
During spare key programming, an intelligent access key is programmed to the system.
Key Programmed x Keys Total
During spare key programming, the maximum number of keys have been programmed.
Max Number of Keys Learned
Lane Keeping System Action
Message
The system has malfunctioned. Contact an authorized dealer as soon as possible.
Lane Keeping Sys. Malfunction Service
Required
The system has detected a condition that has caused the system to be temporarily unavailable.
Front Camera Temporarily Not Available
The system has detected a condition that requires the windshield to be cleaned to operateproperly.
Front Camera Low Visibility Clean Screen
The system has malfunctioned. Contact an authorized dealer as soon as possible.
Front Camera Malfunction Service
Required
The system requests the driver to keep their hands on the steering wheel.
Keep Hands on Steering Wheel
100
MKS (CLE) Canada/United States of America, enUSA, First Printing Information Displays

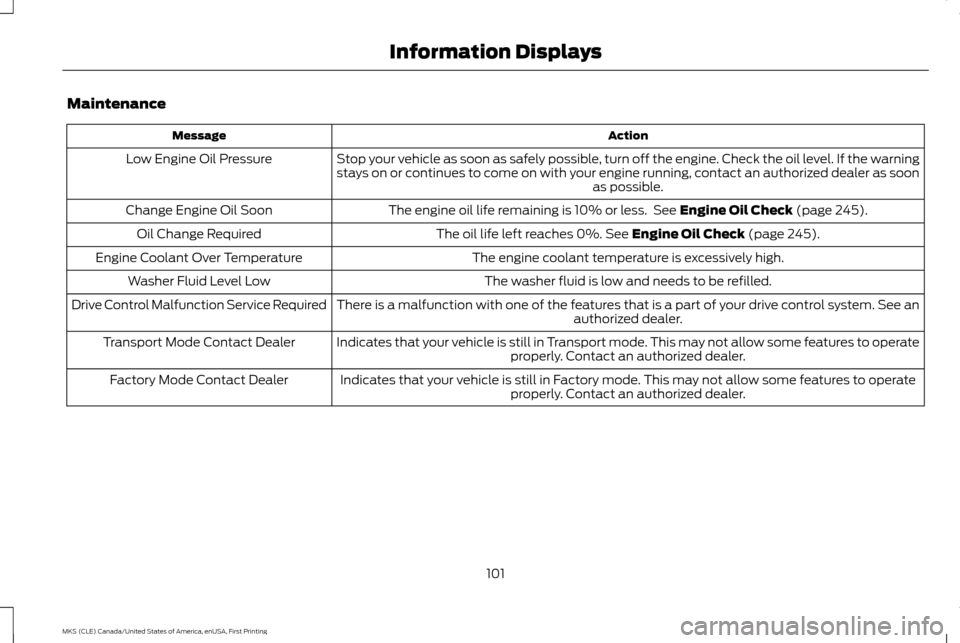

Maintenance
Action
Message
Stop your vehicle as soon as safely possible, turn off the engine. Check the oil level. If the warning
stays on or continues to come on with your engine running, contact an authorized dealer as soon as possible.
Low Engine Oil Pressure
The engine oil life remaining is 10% or less. See Engine Oil Check (page 245).
Change Engine Oil Soon
The oil life left reaches 0%.
See Engine Oil Check (page 245).
Oil Change Required
The engine coolant temperature is excessively high.
Engine Coolant Over Temperature
The washer fluid is low and needs to be refilled.
Washer Fluid Level Low
There is a malfunction with one of the features that is a part of your drive control system. See an authorized dealer.
Drive Control Malfunction Service Required
Indicates that your vehicle is still in Transport mode. This may not allow some features to operateproperly. Contact an authorized dealer.
Transport Mode Contact Dealer
Indicates that your vehicle is still in Factory mode. This may not allow some features to operateproperly. Contact an authorized dealer.
Factory Mode Contact Dealer
101
MKS (CLE) Canada/United States of America, enUSA, First Printing Information Displays

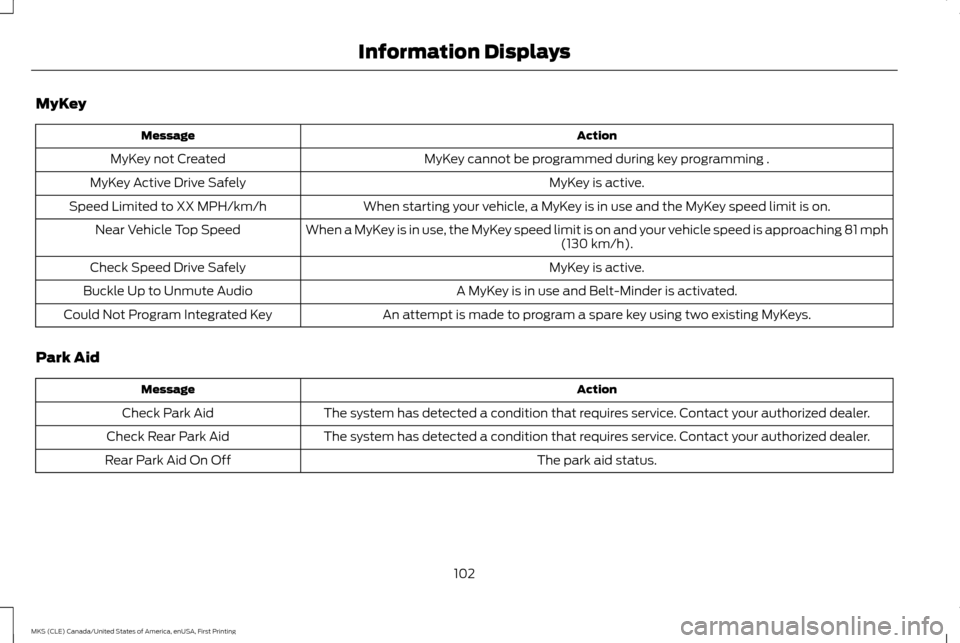

MyKey
Action
Message
MyKey cannot be programmed during key programming .
MyKey not Created
MyKey is active.
MyKey Active Drive Safely
When starting your vehicle, a MyKey is in use and the MyKey speed limit is on.
Speed Limited to XX MPH/km/h
When a MyKey is in use, the MyKey speed limit is on and your vehicle speed is approaching 81 mph (130 km/h).
Near Vehicle Top Speed
MyKey is active.
Check Speed Drive Safely
A MyKey is in use and Belt-Minder is activated.
Buckle Up to Unmute Audio
An attempt is made to program a spare key using two existing MyKeys.
Could Not Program Integrated Key
Park Aid Action
Message
The system has detected a condition that requires service. Contact your authorized dealer.
Check Park Aid
The system has detected a condition that requires service. Contact your authorized dealer.
Check Rear Park Aid
The park aid status.
Rear Park Aid On Off
102
MKS (CLE) Canada/United States of America, enUSA, First Printing Information Displays

Power Steering
Action
Message
The power steering system has detected a condition that requires service. See an authorized dealer.
Steering Fault Service Now
The power steering system is not working. Stop your vehicle a safe place. Contact an authorized dealer.
Service Power Steering Now
The power steering system has detected a condition within the power steering system or passiveentry or passive start system requires service. Contact an authorized dealer.
Steering Assist Fault Service Required
Seats Action
Message
Objects are by the passenger seat. After the objects are moved away from the seat, if the warningstays on or continues to come on contact an authorized dealer as soon as possible.
Occupant Sensor BLOCKED Remove
Objects Near Passenger Seat
103
MKS (CLE) Canada/United States of America, enUSA, First Printing Information Displays

Tire Pressure Monitoring System
Action
Message
One or more tires on your vehicle have low tire pressure. See Tire Pressure Monitoring System (page 286).
Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If the warning stays on or continues tocome on, contact an authorized dealer.
See Tire Pressure Monitoring System (page 286).
Tire Pressure Monitor Fault
A tire pressure sensor is malfunctioning, or your spare tire is in use. If the warning stays on or
continues to come on, contact an authorized dealer as soon as possible. See
Tire Pressure
Monitoring System (page 286).
Tire Pressure Sensor Fault
Transmission Action
Message
You switched the engine off and shift select lever is in any position other than park (P).
Shift to Park
104
MKS (CLE) Canada/United States of America, enUSA, First Printing Information Displays

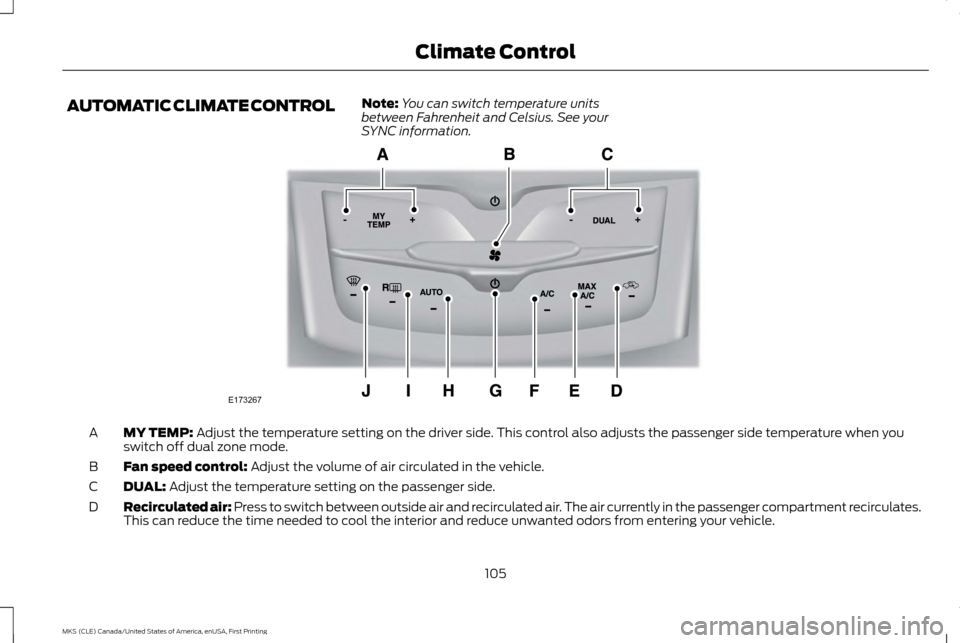

AUTOMATIC CLIMATE CONTROL
Note:
You can switch temperature units
between Fahrenheit and Celsius. See your
SYNC information. MY TEMP: Adjust the temperature setting on the driver side. This control also adjusts the passenger side temperature when you
switch off dual zone mode.
A
Fan speed control:
Adjust the volume of air circulated in the vehicle.
B
DUAL:
Adjust the temperature setting on the passenger side.
C
Recirculated air: Press to switch between outside air and recirculated air. The air currently in the passenger compartment recirculates.
This can reduce the time needed to cool the interior and reduce unwanted odors from entering your vehicle.
D
105
MKS (CLE) Canada/United States of America, enUSA, First Printing Climate ControlE173267

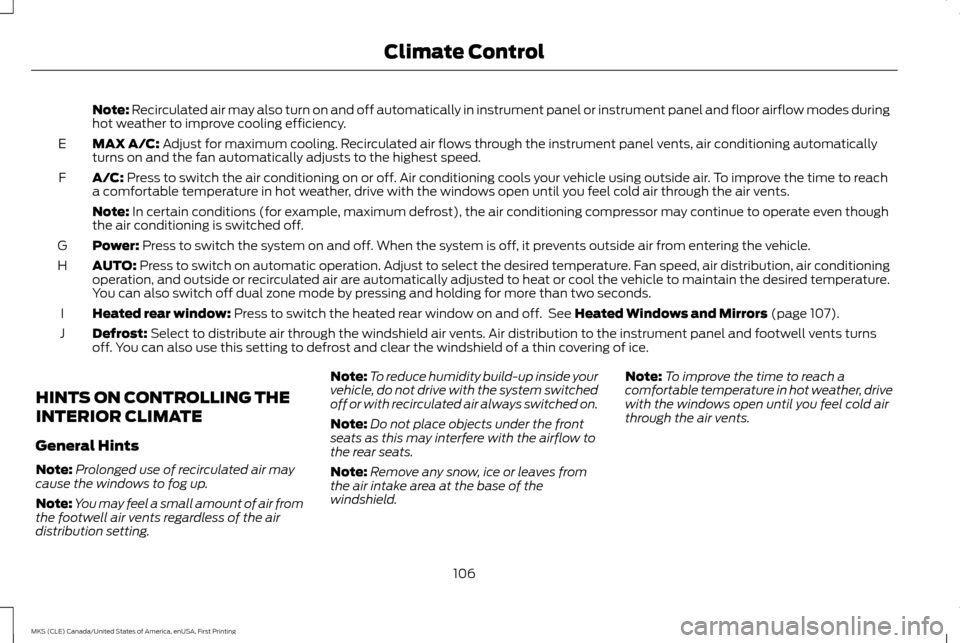

Note: Recirculated air may also turn on and off automatically in instrument panel or instrument panel and floor airflow modes during
hot weather to improve cooling efficiency.
MAX A/C:
Adjust for maximum cooling. Recirculated air flows through the instrument panel vents, air conditioning automatically
turns on and the fan automatically adjusts to the highest speed.
E
A/C:
Press to switch the air conditioning on or off. Air conditioning cools your vehicle using outside air. To improve the time to reach
a comfortable temperature in hot weather, drive with the windows open until you feel cold air through the air vents.
F
Note:
In certain conditions (for example, maximum defrost), the air conditioning compressor may continue to operate even though
the air conditioning is switched off.
Power:
Press to switch the system on and off. When the system is off, it prevents outside air from entering the vehicle.
G
AUTO:
Press to switch on automatic operation. Adjust to select the desired temperature. Fan speed, air distribution, air conditioning
operation, and outside or recirculated air are automatically adjusted to heat or cool the vehicle to maintain the desired temperature.
You can also switch off dual zone mode by pressing and holding for more than two seconds.
H
Heated rear window:
Press to switch the heated rear window on and off. See Heated Windows and Mirrors (page 107).
I
Defrost:
Select to distribute air through the windshield air vents. Air distribution to the instrument panel and footwell vents turns
off. You can also use this setting to defrost and clear the windshield of a thin covering of ice.
J
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note: Prolonged use of recirculated air may
cause the windows to fog up.
Note: You may feel a small amount of air from
the footwell air vents regardless of the air
distribution setting. Note:
To reduce humidity build-up inside your
vehicle, do not drive with the system switched
off or with recirculated air always switched on.
Note: Do not place objects under the front
seats as this may interfere with the airflow to
the rear seats.
Note: Remove any snow, ice or leaves from
the air intake area at the base of the
windshield. Note:
To improve the time to reach a
comfortable temperature in hot weather, drive
with the windows open until you feel cold air
through the air vents.
106
MKS (CLE) Canada/United States of America, enUSA, First Printing Climate Control

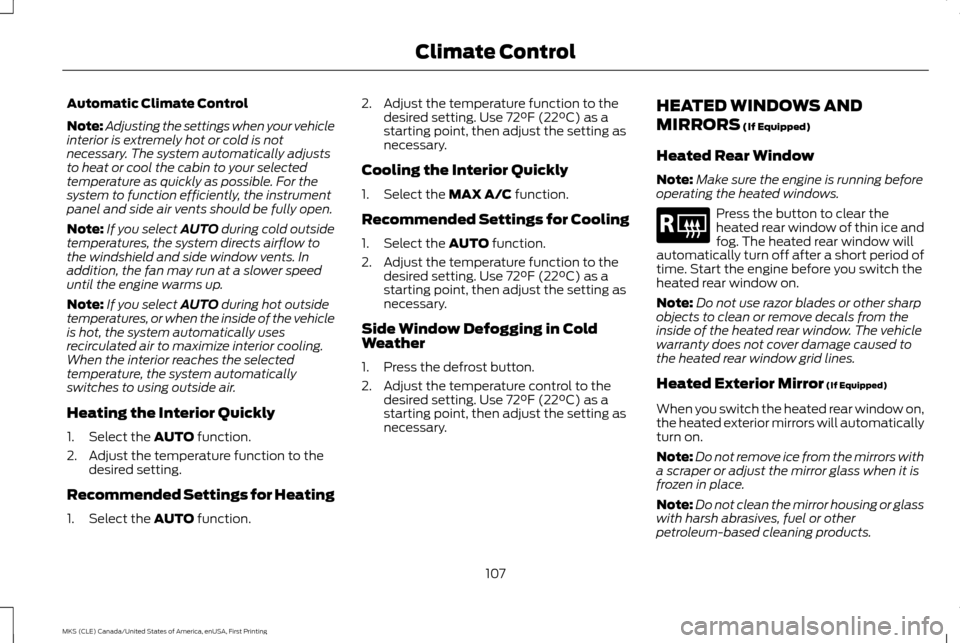

Automatic Climate Control
Note:
Adjusting the settings when your vehicle
interior is extremely hot or cold is not
necessary. The system automatically adjusts
to heat or cool the cabin to your selected
temperature as quickly as possible. For the
system to function efficiently, the instrument
panel and side air vents should be fully open.
Note: If you select AUTO during cold outside
temperatures, the system directs airflow to
the windshield and side window vents. In
addition, the fan may run at a slower speed
until the engine warms up.
Note: If you select
AUTO during hot outside
temperatures, or when the inside of the vehicle
is hot, the system automatically uses
recirculated air to maximize interior cooling.
When the interior reaches the selected
temperature, the system automatically
switches to using outside air.
Heating the Interior Quickly
1. Select the
AUTO function.
2. Adjust the temperature function to the desired setting.
Recommended Settings for Heating
1. Select the
AUTO function. 2. Adjust the temperature function to the
desired setting. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.
Cooling the Interior Quickly
1. Select the
MAX A/C function.
Recommended Settings for Cooling
1. Select the
AUTO function.
2. Adjust the temperature function to the desired setting. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.
Side Window Defogging in Cold
Weather
1. Press the defrost button.
2. Adjust the temperature control to the desired setting. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary. HEATED WINDOWS AND
MIRRORS
(If Equipped)
Heated Rear Window
Note: Make sure the engine is running before
operating the heated windows. Press the button to clear the
heated rear window of thin ice and
fog. The heated rear window will
automatically turn off after a short period of
time. Start the engine before you switch the
heated rear window on.
Note: Do not use razor blades or other sharp
objects to clean or remove decals from the
inside of the heated rear window. The vehicle
warranty does not cover damage caused to
the heated rear window grid lines.
Heated Exterior Mirror
(If Equipped)
When you switch the heated rear window on,
the heated exterior mirrors will automatically
turn on.
Note: Do not remove ice from the mirrors with
a scraper or adjust the mirror glass when it is
frozen in place.
Note: Do not clean the mirror housing or glass
with harsh abrasives, fuel or other
petroleum-based cleaning products.
107
MKS (CLE) Canada/United States of America, enUSA, First Printing Climate ControlE184884
