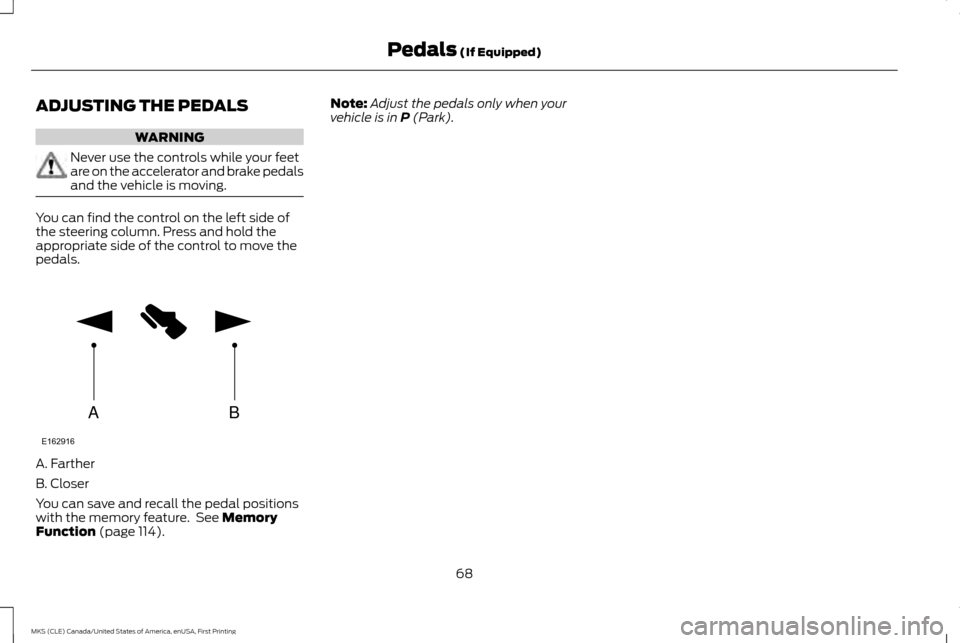

ADJUSTING THE PEDALS
WARNING
Never use the controls while your feet
are on the accelerator and brake pedals
and the vehicle is moving.
You can find the control on the left side of
the steering column. Press and hold the
appropriate side of the control to move the
pedals.
A. Farther
B. Closer
You can save and recall the pedal positions
with the memory feature. See Memory
Function (page 114). Note:
Adjust the pedals only when your
vehicle is in
P (Park).
68
MKS (CLE) Canada/United States of America, enUSA, First Printing Pedals
(If Equipped)AB
E162916

WINDSHIELD WIPERS
Rotate the end of the control away from you
to increase the speed of the wipers. Rotate
toward you to decrease the speed of the
wipers.
Note:
Fully defrost the windshield before
switching on the windshield wipers.
Note: Make sure you switch off the windshield
wipers before entering a car wash.
Note: Clean the windshield and wiper blades
if they begin to leave streaks or smears. If that
does not resolve the issue, install new wiper
blades. Note:
Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the windshield
washers before wiping a dry windshield.
AUTOWIPERS Adjust the rotary control to increase or
decrease the sensitivity of the rain sensor. On
the lowest sensitivity setting, the wipers turn
on when there is a large amount of moisture
on the windshield. On the highest sensitivity
setting, the wipers turn on when there is a
small amount of moisture on the windshield.Autowipers uses a rain sensor, located near
the interior mirror. The rain sensor monitors
the amount of moisture on the windshield. It
turns on the wipers and adjusts the wiper
speed by the amount of moisture that the
sensor detects on the windshield. You can
turn this feature on and off in the information
display. See General Information (page
89).
Keep the outside of the windshield clean. The
rain sensor is very sensitive. If the area around
the mirror is dirty, then the wipers may
operate if dirt, mist or insects hit the
windshield.
Note: Fully defrost the windshield before you
switch on the windshield wipers.
Note: Make sure you switch off the windshield
wipers before entering a car wash.
Note: Clean the windshield and wiper blades
if they begin to leave streaks or smears. If that
does not resolve the issue, install new wiper
blades.
Note: If you switch autolamps on in
conjunction with autowipers, your low beam
headlamps will turn on automatically when
the rain sensor turns on the windshield wipers
continuously.
69
MKS (CLE) Canada/United States of America, enUSA, First Printing Wipers and WashersE173262 E173262

Note:
Wet or winter driving conditions with
ice, snow or salty road mist can cause
inconsistent and unexpected wiping or
smearing.
In these conditions, you can do the following
to help keep your windshield clear:
• Lower the sensitivity of the autowipers
to reduce the amount of smearing.
• Adjust the rotary control to normal or
high-speed wipe.
• Switch off the autowipers.
WINDSHIELD WASHERS Press the end of the stalk to operate the
washer.
•
A brief press causes a single wipe without
washer fluid.
• A quick press and hold causes the wipers
to swipe three times with washer fluid.
• A long press and hold will operate the
wipers and washer fluid for a short time.
A wipe will occur a few seconds after
washing to clear any remaining washer fluid.
This feature can be switched on or off in the
information display. See General
Information (page 89).
Note: Do not operate the washers when the
washer reservoir is empty. This may cause the
washer pump to overheat.
70
MKS (CLE) Canada/United States of America, enUSA, First Printing Wipers and WashersE173263

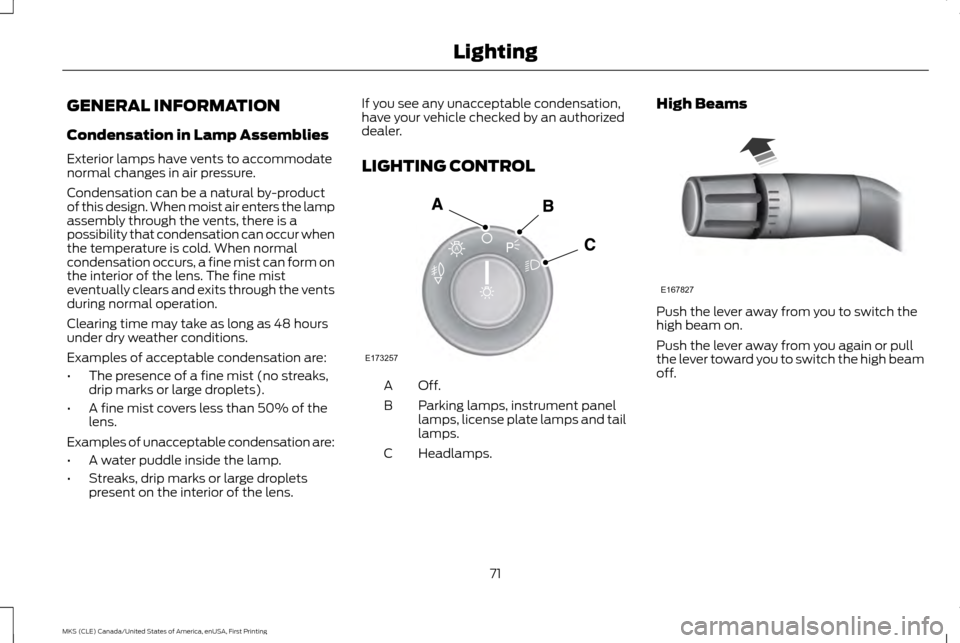

GENERAL INFORMATION
Condensation in Lamp Assemblies
Exterior lamps have vents to accommodate
normal changes in air pressure.
Condensation can be a natural by-product
of this design. When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can occur when
the temperature is cold. When normal
condensation occurs, a fine mist can form on
the interior of the lens. The fine mist
eventually clears and exits through the vents
during normal operation.
Clearing time may take as long as 48 hours
under dry weather conditions.
Examples of acceptable condensation are:
•
The presence of a fine mist (no streaks,
drip marks or large droplets).
• A fine mist covers less than 50% of the
lens.
Examples of unacceptable condensation are:
• A water puddle inside the lamp.
• Streaks, drip marks or large droplets
present on the interior of the lens. If you see any unacceptable condensation,
have your vehicle checked by an authorized
dealer.
LIGHTING CONTROL
Off.A
Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps.
B
Headlamps.
C High Beams
Push the lever away from you to switch the
high beam on.
Push the lever away from you again or pull
the lever toward you to switch the high beam
off.
71
MKS (CLE) Canada/United States of America, enUSA, First Printing LightingE173257
A E167827

Headlamp Flasher
Slightly pull the lever toward you and release
it to flash the headlamps.
AUTOLAMPS
WARNING
The autolamps switch position may not
activate the headlamps in all low
visibility conditions, such as daytime
fog. Make sure the headlamps are switched
to auto or on, as appropriate, during all low
visibility conditions. Failure to do so may
result in a crash. When the lighting control is in the autolamps
position, the headlamps automatically turn
on in low light situations or when the wipers
activate.
If equipped, the following also activate when
the lighting control is in the autolamps
position and you switch them on in the
information display:
•
Configurable daytime running lamps.
• Automatic high beam control.
• Adaptive headlamp control.
The headlamps remain on for a period of time
after you switch the ignition off. Use the
information display controls to adjust the
period of time that the headlamps remain
on. See Information Displays (page 89). Note:
With the headlamps in the autolamps
position, you cannot switch the high beam
headlamps on until the autolamps system
turns the low beam headlamps on.
Windshield Wiper Activated
Headlamps
The windshield wiper activated headlamps
turn on within 10 seconds when you switch
the windshield wipers on and the lighting
control is in the autolamps position. They
turn off approximately 60 seconds after you
switch the windshield wipers off.
The headlamps do not turn on by wiper
activation:
• During a mist wipe.
• When the wipers are on to clear washer
fluid during a wash condition.
• If the wipers are in intermittent mode.
Note: If you switch autolamps and autowipers
on, the headlamps will automatically turn on
when the windshield wipers continuously
operate.
72
MKS (CLE) Canada/United States of America, enUSA, First Printing LightingE163268 E173258
A

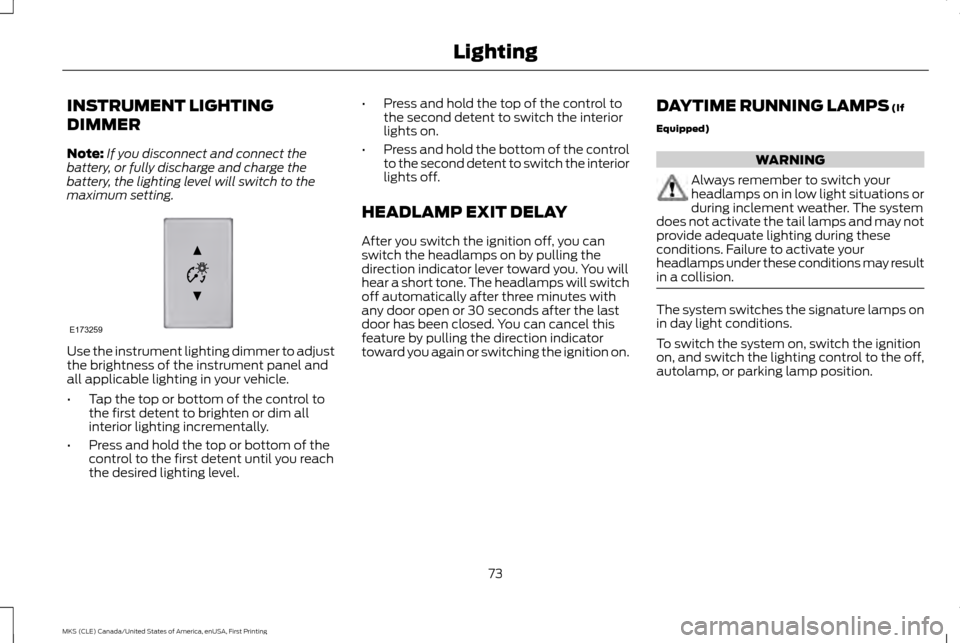

INSTRUMENT LIGHTING
DIMMER
Note:
If you disconnect and connect the
battery, or fully discharge and charge the
battery, the lighting level will switch to the
maximum setting. Use the instrument lighting dimmer to adjust
the brightness of the instrument panel and
all applicable lighting in your vehicle.
•
Tap the top or bottom of the control to
the first detent to brighten or dim all
interior lighting incrementally.
• Press and hold the top or bottom of the
control to the first detent until you reach
the desired lighting level. •
Press and hold the top of the control to
the second detent to switch the interior
lights on.
• Press and hold the bottom of the control
to the second detent to switch the interior
lights off.
HEADLAMP EXIT DELAY
After you switch the ignition off, you can
switch the headlamps on by pulling the
direction indicator lever toward you. You will
hear a short tone. The headlamps will switch
off automatically after three minutes with
any door open or 30 seconds after the last
door has been closed. You can cancel this
feature by pulling the direction indicator
toward you again or switching the ignition on. DAYTIME RUNNING LAMPS (If
Equipped) WARNING
Always remember to switch your
headlamps on in low light situations or
during inclement weather. The system
does not activate the tail lamps and may not
provide adequate lighting during these
conditions. Failure to activate your
headlamps under these conditions may result
in a collision. The system switches the signature lamps on
in day light conditions.
To switch the system on, switch the ignition
on, and switch the lighting control to the off,
autolamp, or parking lamp position.
73
MKS (CLE) Canada/United States of America, enUSA, First Printing LightingE173259

AUTOMATIC HIGH BEAM
CONTROL (If Equipped)
The system will automatically turn on your
high beams if it is dark enough and no other
traffic is present. When it detects the
headlights of an approaching vehicle, the tail
lamps of the preceding vehicle or street
lighting, the system will turn off the high
beams before they distract other drivers. The
low beams remain on.
Note: If it appears that automatic control of
the high beams is not functioning properly,
check the windshield in front of the camera
for a blockage. A clear view of the road is
required for proper system operation. Have
any windshield damage in the area of the
camera ’s field-of-view repaired.
Note: If the system detects a blockage such
as bird droppings, bug splatter, snow or ice,
and you do not observe changes, the system
will go into low beam mode until you clear the
blockage. A message may also appear in the
instrument cluster display noting the front
camera is blocked. Note:
Typical road dust, dirt and water spots
will not affect the performance of the
automatic high beam system. However, in cold
or inclement weather conditions, you will
notice a decrease in the availability of the high
beam system, especially at start up. If you
want to change the beam state independently
of the automatic control, you may switch the
high beams on or off using the lever. Automatic
control will resume when conditions are
correct.
Note: Modification of the vehicle ride height
such as using much larger tires, may degrade
feature performance.
A camera sensor, centrally mounted behind
the windshield of your vehicle, continuously
monitors conditions to decide when to turn
the high beams off and on.
Once the system is active, the high beams
will turn on if:
• The ambient light level is low enough.
• There is no traffic in front of the vehicle.
• The vehicle speed is greater than 32 mph
(52 km/h). T

he high beams will turn off if:
• The system detects the headlamps of an
approaching vehicle or the tail lamps of
a preceding vehicle.
• Vehicle speed falls below 27 mph
(44 km/h)
.
• The ambient light level is high enough
that high beams are not required.
• The system detects severe rain, snow or
fog.
• The camera is blocked.
Activating the System
Switch on the system using the information
display and autolamps. See Information
Displays (page 89
). Switch the lighting control to the autolamps
position.
74
MKS (CLE) Canada/United States of America, enUSA, First Printing Lighting

Manually Overriding the System
When the automatic control has activated
the high beams, pushing or pulling the stalk
will provide a temporary override to low
beam.
Use the information display menu to
permanently deactivate the system, or switch
the lighting control from autolamps to
headlamps. FRONT FOG LAMPS
Pull the lighting control toward you to switch
the fog lamps on.
You can switch the fog lamps on when the
lighting control is in any position except Off
and the high beams are not on.
ADAPTIVE HEADLAMPS
The headlamp beams move in the same
direction as the steering wheel. This provides
more visibility when driving around curves.
A. Without adaptive headlamps.
B. With adaptive headlamps.
The system only works with the lighting
control in the autolamp position.
Note:
There is a delay of two to five seconds
before the system operates when you drive
your vehicle.
75
MKS (CLE) Canada/United States of America, enUSA, First Printing LightingE167827 E193834
A E161714
B
A

Note:
The system is only active at speeds
above 3 mph (5 km/h).
The system has a power-up movement check
feature. When your start your vehicle, the
lamps track left to right, then back to center
to alert the driver that the system is working
properly.
DIRECTION INDICATORS •
To operate the left-hand direction
indicator, push the lever down until it
stops.
• To operate the right-hand direction
indicator, push the lever up until it stops.
• To manually cancel direction indicator
operation, push the lever again in either
direction.
Lane Change
To indicate a left or right lane change:
• Push the lever up or down to the first stop
position and release. The direction
indicator will flash three times and stop.
• Push the lever up or down to the first stop
position and hold. The direction indicator
will flash for as long as you hold the lever
in this position.
INTERIOR LAMPS
The lamps will switch on when you have met
one of the following conditions:
• You open any door.
• You press a remote control button.
• You press the outer edge of the clear lens
on the front row map lamp. Front Row Map Lamps
To switch on the map lamps, press the outer
edge of the clear lens.
The front row map lamp will automatically
turn on when:
•
Any door is opened.
• You press and hold the top of the
instrument lighting dimmer switch past
the first detent.
• You press any of the remote entry
controls and the ignition is in the off
position.
76
MKS (CLE) Canada/United States of America, enUSA, First Printing LightingE163272 E166237

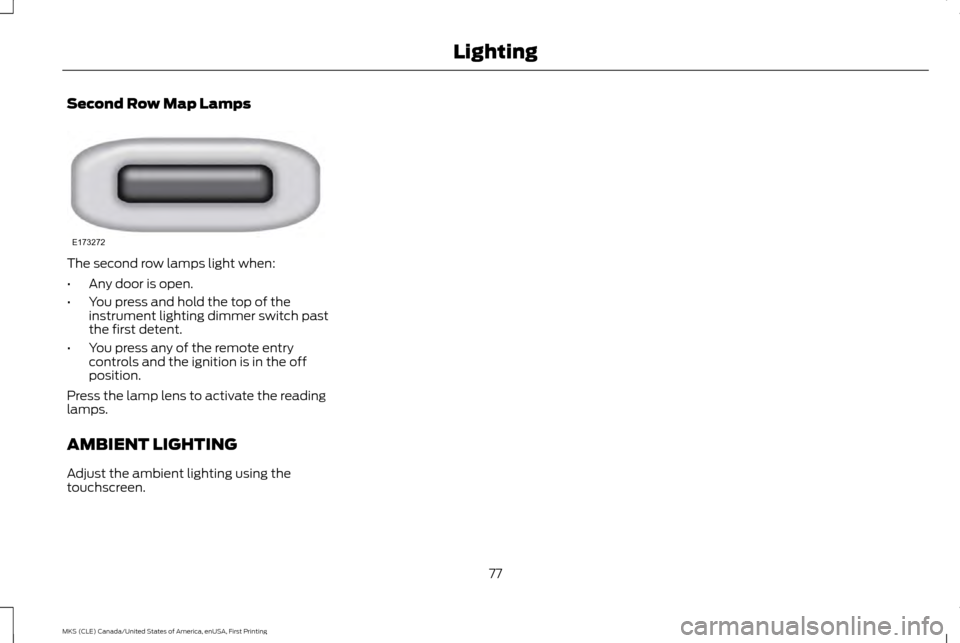

Second Row Map Lamps
The second row lamps light when:
•
Any door is open.
• You press and hold the top of the
instrument lighting dimmer switch past
the first detent.
• You press any of the remote entry
controls and the ignition is in the off
position.
Press the lamp lens to activate the reading
lamps.
AMBIENT LIGHTING
Adjust the ambient lighting using the
touchscreen.
77
MKS (CLE) Canada/United States of America, enUSA, First Printing LightingE173272
