stop start LINCOLN MKS 2016 Owner's Guide

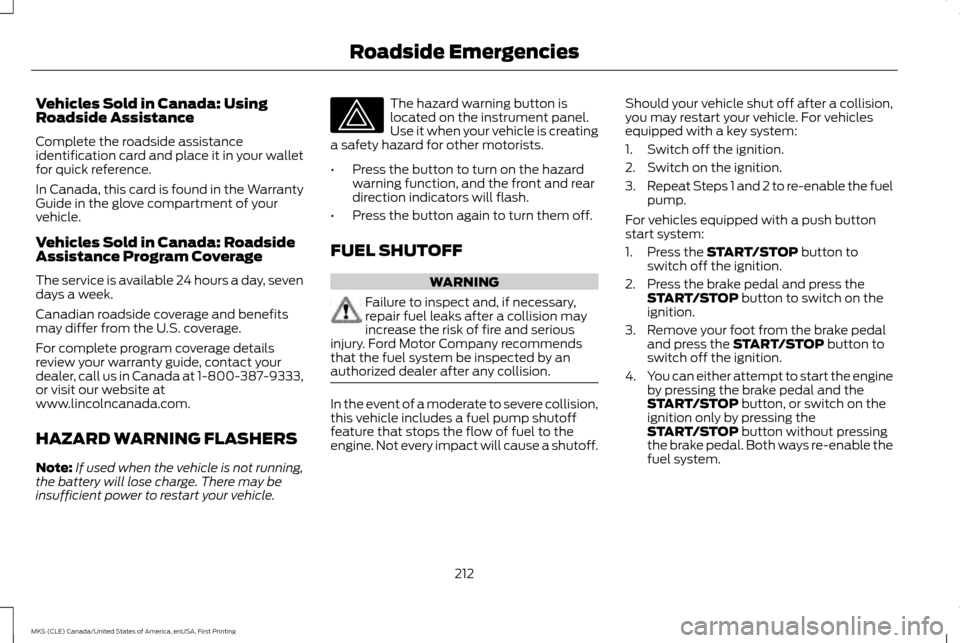

Vehicles Sold in Canada: Using
Roadside Assistance
Complete the roadside assistance
identification card and place it in your wallet
for quick reference.
In Canada, this card is found in the Warranty
Guide in the glove compartment of your
vehicle.
Vehicles Sold in Canada: Roadside
Assistance Program Coverage
The service is available 24 hours a day, seven
days a week.
Canadian roadside coverage and benefits
may differ from the U.S. coverage.
For complete program coverage details
review your warranty guide, contact your
dealer, call us in Canada at 1-800-387-9333,
or visit our website at
www.lincolncanada.com.
HAZARD WARNING FLASHERS
Note:
If used when the vehicle is not running,
the battery will lose charge. There may be
insufficient power to restart your vehicle. The hazard warning button is
located on the instrument panel.
Use it when your vehicle is creating
a safety hazard for other motorists.
• Press the button to turn on the hazard
warning function, and the front and rear
direction indicators will flash.
• Press the button again to turn them off.
FUEL SHUTOFF WARNING
Failure to inspect and, if necessary,
repair fuel leaks after a collision may
increase the risk of fire and serious
injury. Ford Motor Company recommends
that the fuel system be inspected by an
authorized dealer after any collision. In the event of a moderate to severe collision,
this vehicle includes a fuel pump shutoff
feature that stops the flow of fuel to the
engine. Not every impact will cause a shutoff.Should your vehicle shut off after a collision,
you may restart your vehicle. For vehicles
equipped with a key system:
1. Switch off the ignition.
2. Switch on the ignition.
3.
Repeat Steps 1 and 2 to re-enable the fuel
pump.
For vehicles equipped with a push button
start system:
1. Press the START/STOP button to
switch off the ignition.
2. Press the brake pedal and press the START/STOP
button to switch on the
ignition.
3. Remove your foot from the brake pedal and press the
START/STOP button to
switch off the ignition.
4. You can either attempt to start the engine
by pressing the brake pedal and the
START/STOP
button, or switch on the
ignition only by pressing the
START/STOP
button without pressing
the brake pedal. Both ways re-enable the
fuel system.
212
MKS (CLE) Canada/United States of America, enUSA, First Printing Roadside Emergencies

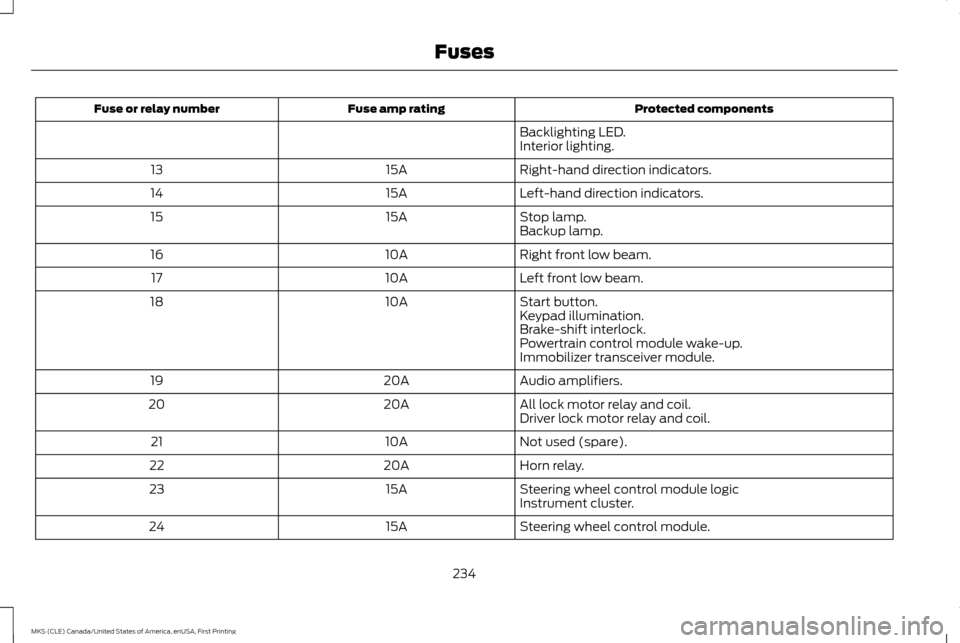

Protected components
Fuse amp rating
Fuse or relay number
Backlighting LED.
Interior lighting.
Right-hand direction indicators.
15A
13
Left-hand direction indicators.
15A
14
Stop lamp.
15A
15
Backup lamp.
Right front low beam.
10A
16
Left front low beam.
10A
17
Start button.
10A
18
Keypad illumination.
Brake-shift interlock.
Powertrain control module wake-up.
Immobilizer transceiver module.
Audio amplifiers.
20A
19
All lock motor relay and coil.
20A
20
Driver lock motor relay and coil.
Not used (spare).
10A
21
Horn relay.
20A
22
Steering wheel control module logic
15A
23
Instrument cluster.
Steering wheel control module.
15A
24
234
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses

The tire pressure sensors mounted
in the wheels (originally installed on
your vehicle) are not designed to be
used in aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor
Company may affect the operation
of your tire pressure monitoring
system.
If the tire pressure monitoring
system indicator is flashing, your
system is malfunctioning. Your
replacement tire might be
incompatible with your tire pressure
monitoring system, or some
component of the system may be
damaged.
Safety Practices
WARNINGS
If your vehicle is stuck in snow,
mud or sand, do not rapidly
spin the tires; spinning the tires can
tear the tire and cause an explosion.
A tire can explode in as little as three
to five seconds. WARNINGS
Do not spin the wheels at over
35 mph (56 km/h). The tires
may fail and injure a passenger or
bystander. Driving habits have a great deal to
do with your tire mileage and safety.
•
Observe posted speed limits
• Avoid fast starts, stops and turns
• Avoid potholes and objects on
the road
• Do not run over curbs or hit the
tire against a curb when parking
Highway Hazards
No matter how carefully you drive
there is always the possibility that
you may eventually have a flat tire
on the highway. Drive slowly to the
closest safe area out of traffic. This
may further damage the flat tire, but
your safety is more important. If you feel a sudden vibration or ride
disturbance while driving, or you
suspect your tire or vehicle has been
damaged, immediately reduce your
speed. Drive with caution until you
can safely pull off the road. Stop
and inspect the tires for damage. If
a tire is under-inflated or damaged,
deflate it, remove the wheel and
replace it with your spare tire and
wheel (if provided). If you cannot
detect a cause, have the vehicle
towed to the nearest repair facility
or tire dealer to have the vehicle
inspected.
Tire and Wheel Alignment
A bad jolt from hitting a curb or
pothole can cause the front end of
your vehicle to become misaligned
or cause damage to your tires. If
your vehicle seems to pull to one
side when you’re driving, the wheels
may be out of alignment. Have an
authorized dealer check the wheel
alignment periodically.
284
MKS (CLE) Canada/United States of America, enUSA, First Printing Wheels and Tires

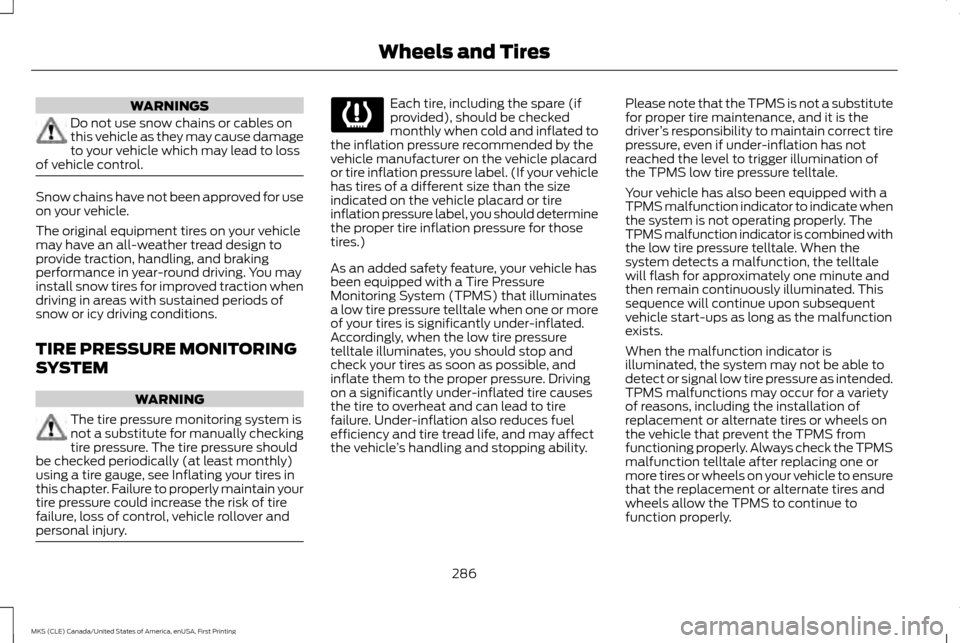

WARNINGS
Do not use snow chains or cables on
this vehicle as they may cause damage
to your vehicle which may lead to loss
of vehicle control. Snow chains have not been approved for use
on your vehicle.
The original equipment tires on your vehicle
may have an all-weather tread design to
provide traction, handling, and braking
performance in year-round driving. You may
install snow tires for improved traction when
driving in areas with sustained periods of
snow or icy driving conditions.
TIRE PRESSURE MONITORING
SYSTEM
WARNING
The tire pressure monitoring system is
not a substitute for manually checking
tire pressure. The tire pressure should
be checked periodically (at least monthly)
using a tire gauge, see Inflating your tires in
this chapter. Failure to properly maintain your
tire pressure could increase the risk of tire
failure, loss of control, vehicle rollover and
personal injury. Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle
has tires of a different size than the size
indicated on the vehicle placard or tire
inflation pressure label, you should determine
the proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates
a low tire pressure telltale when one or more
of your tires is significantly under-inflated.
Accordingly, when the low tire pressure
telltale illuminates, you should stop and
check your tires as soon as possible, and
inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect
the vehicle ’s handling and stopping ability. Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the
driver
’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The
TPMS malfunction indicator is combined with
the low tire pressure telltale. When the
system detects a malfunction, the telltale
will flash for approximately one minute and
then remain continuously illuminated. This
sequence will continue upon subsequent
vehicle start-ups as long as the malfunction
exists.
When the malfunction indicator is
illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of
replacement or alternate tires or wheels on
the vehicle that prevent the TPMS from
functioning properly. Always check the TPMS
malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
286
MKS (CLE) Canada/United States of America, enUSA, First Printing Wheels and Tires

S
Safety Canopy
™.................................................42
Safety Precautions............................................132
Scheduled Maintenance Record................332
Scheduled Maintenance
.................................321
Seatbelt Height Adjustment............................31
Seatbelt Reminder
.............................................33
Belt-Minder™............................................................. 33
Seatbelts................................................................28 Principle of Operation.............................................. 28
Seatbelt Warning Lamp and Indicator Chime...................................................................32
Conditions of operation.......................................... 32
Seats
......................................................................109
Security...................................................................63
Side Airbags...........................................................41
Sitting in the Correct Position......................109
Snow Chains See: Using Snow Chains...................................... 285
Special Notices
.....................................................12
New Vehicle Limited Warranty.............................. 12
On-board Diagnostics (OBD-II)............................ 12
Special Instructions................................................... 12
Special Operating Conditions Scheduled Maintenance...................................................328
Exceptions................................................................. 330
Speed Control See: Cruise Control................................................. 166
Stability Control
.................................................154
Principle of Operation............................................ 154Starting a Gasoline Engine
............................128
Automatic Engine Shutdown.............................. 129
Failure to Start.......................................................... 129
Fast Restart................................................................ 128
Guarding Against Exhaust Fumes..................... 130
Important Ventilating Information.................... 130
Stopping the Engine When Your Vehicle is Moving.................................................................... 130
Stopping the Engine When Your Vehicle is Stationary.............................................................. 129
Starting and Stopping the Engine
...............127
General Information................................................ 127
Steering................................................................186 Electric Power Steering......................................... 186
Steering Wheel....................................................65
Storage Compartments
..................................126
Sunroof See: Moonroof............................................................ 82
Sun Shades
............................................................81
Sun Visors...............................................................81
Illuminated Vanity Mirror......................................... 81
Supplementary Restraints System..............37 Principle of Operation.............................................. 37
Symbols Glossary..................................................7
T
Technical Specifications See: Capacities and Specifications.................296
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)............................218 Tire Care...............................................................270
Glossary of Tire Terminology............................... 271
Information About Uniform Tire Quality Grading................................................................... 270
Information Contained on the Tire Sidewall.................................................................. 272
Temperature A B C................................................... 271
Traction AA A B C..................................................... 271
Treadwear.................................................................. 270
Tire Pressure Monitoring System...............286 Changing Tires With a Tire Pressure Monitoring
System................................................................... 287
Understanding Your Tire Pressure Monitoring System .................................................................. 287
Tires See: Wheels and Tires........................................... 270
Towing a Trailer
..................................................201
Load Placement....................................................... 201
Towing the Vehicle on Four Wheels.........206 Emergency Towing................................................. 206
Recreational Towing.............................................. 207
Towing...................................................................201
Traction Control
.................................................153
Principle of Operation............................................ 153
Transmission Code Designation..................301
Transmission......................................................140
Transmission See: Transmission................................................... 140
Transporting the Vehicle...............................206
377
MKS (CLE) Canada/United States of America, enUSA, First Printing Index
