Page 331 of 430

LINCOLN MKT 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
25 10A Demand lamps/Interior lamps, 2nd
row power fold seats, Powertrain
control module (GTDI) wake-up,
3rd row seat relay
26 10A Instrument panel

Page 332 of 430

LINCOLN MKT 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI),
Front control interface module
47 30A Circuit
Breaker

Page 333 of 430

LINCOLN MKT 2010  Owners Manual The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 — Not used
2 — Not used
3 30A* Trailer tow brake controller
4 40A* Wiper relay (front and rear)

Page 334 of 430

LINCOLN MKT 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
14 10A** Brake on/off (BOO) switch,
Adaptive cruise relay
15 15A** Automatic high beams, Adaptive
cruise control
16 20A** Left HID headlamp
17 10A*

Page 335 of 430

LINCOLN MKT 2010  Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
39 Diode Fuel diode
40 Diode One touch integrated start diode
41 G8VA relay Trailer tow park lamp
42 G8VA relay Trailer tow stop/turn lamp (left)
4

Page 336 of 430

LINCOLN MKT 2010  Owners Manual CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the s

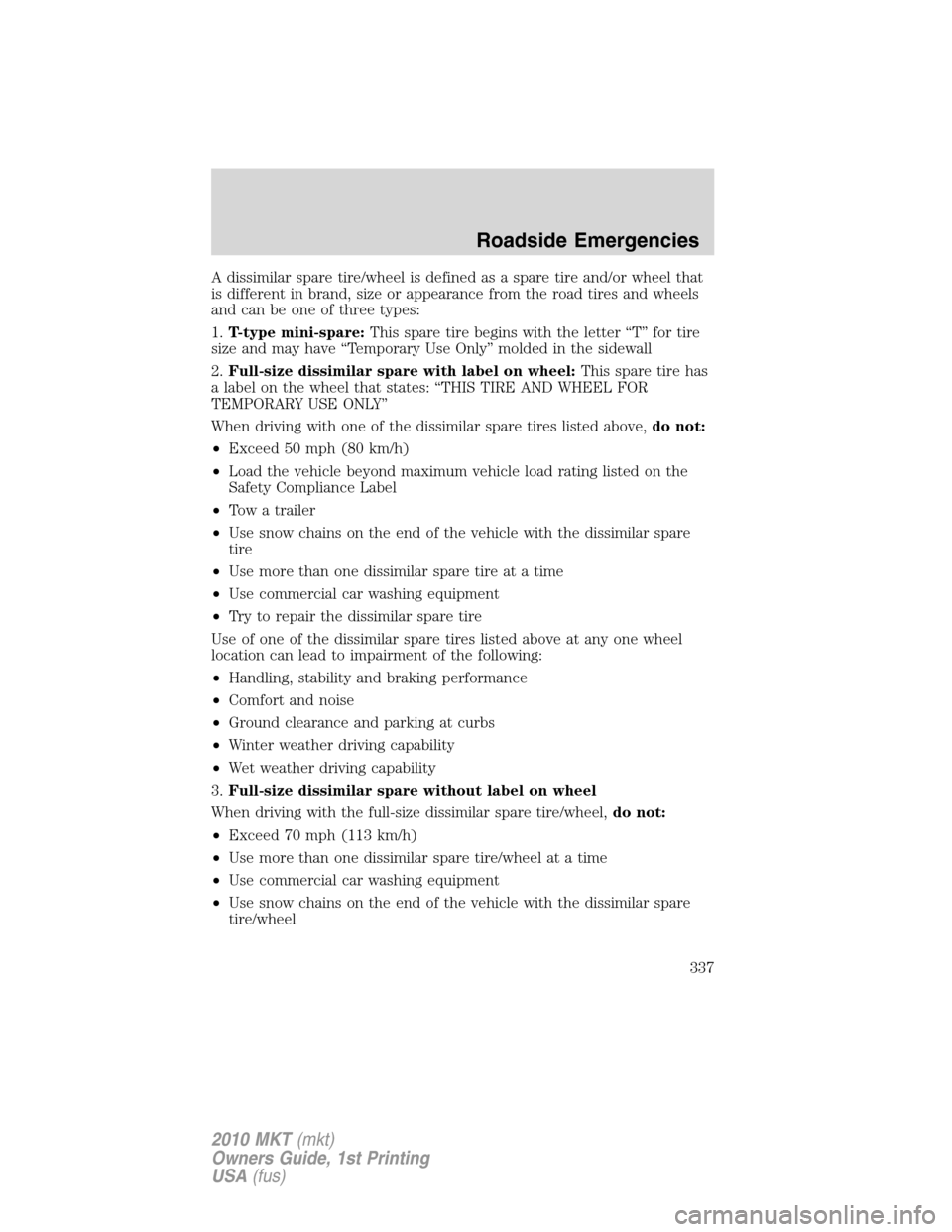

Page 337 of 430

LINCOLN MKT 2010  Owners Manual A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:T

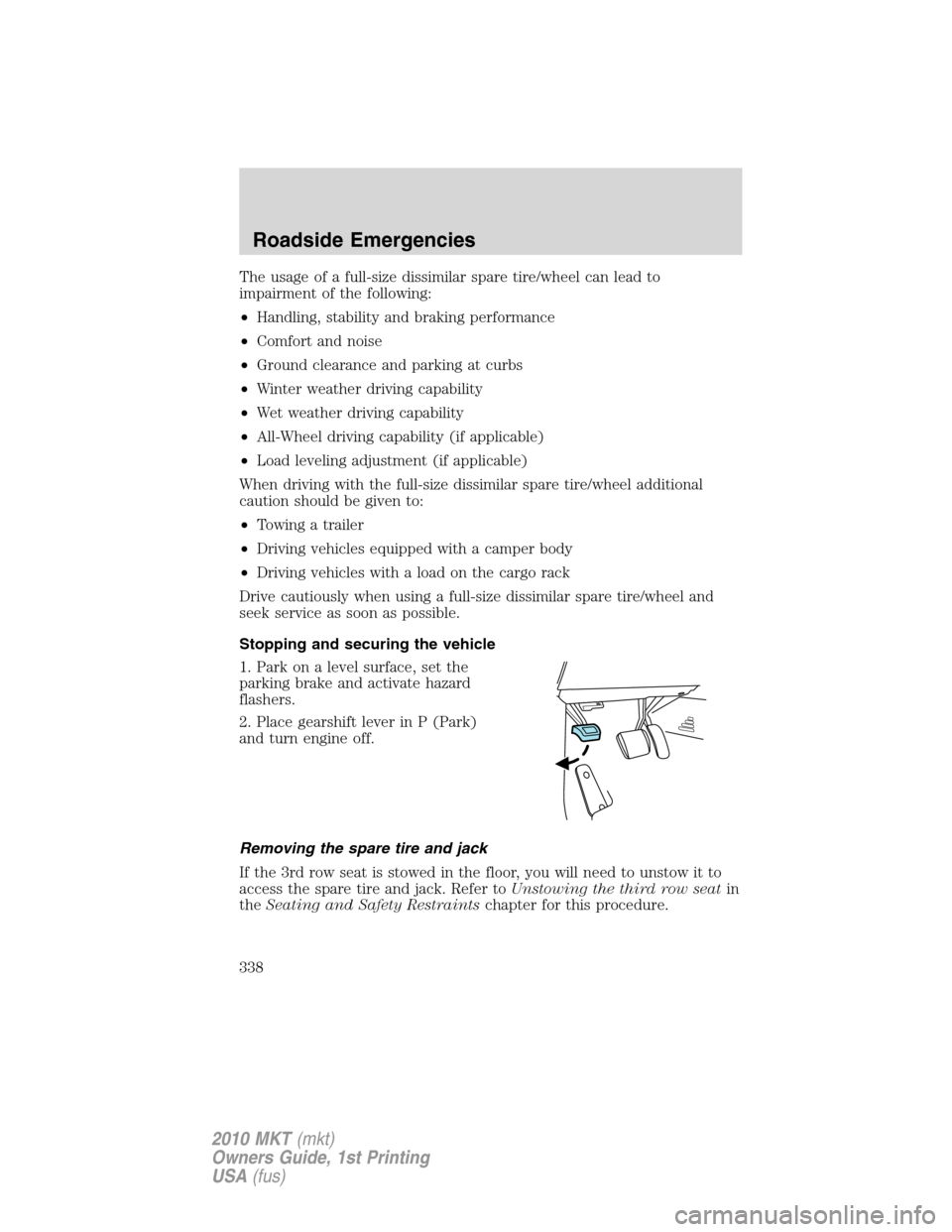

Page 338 of 430

LINCOLN MKT 2010  Owners Manual The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at cur

Page 339 of 430

LINCOLN MKT 2010  Owners Manual 1. Remove the carpeted floor panel
located in the rear of the vehicle,
remove the wing nut that secures
the spare tire by turning it
counterclockwise.
2. Lift and remove the spare tire
from the trunk.

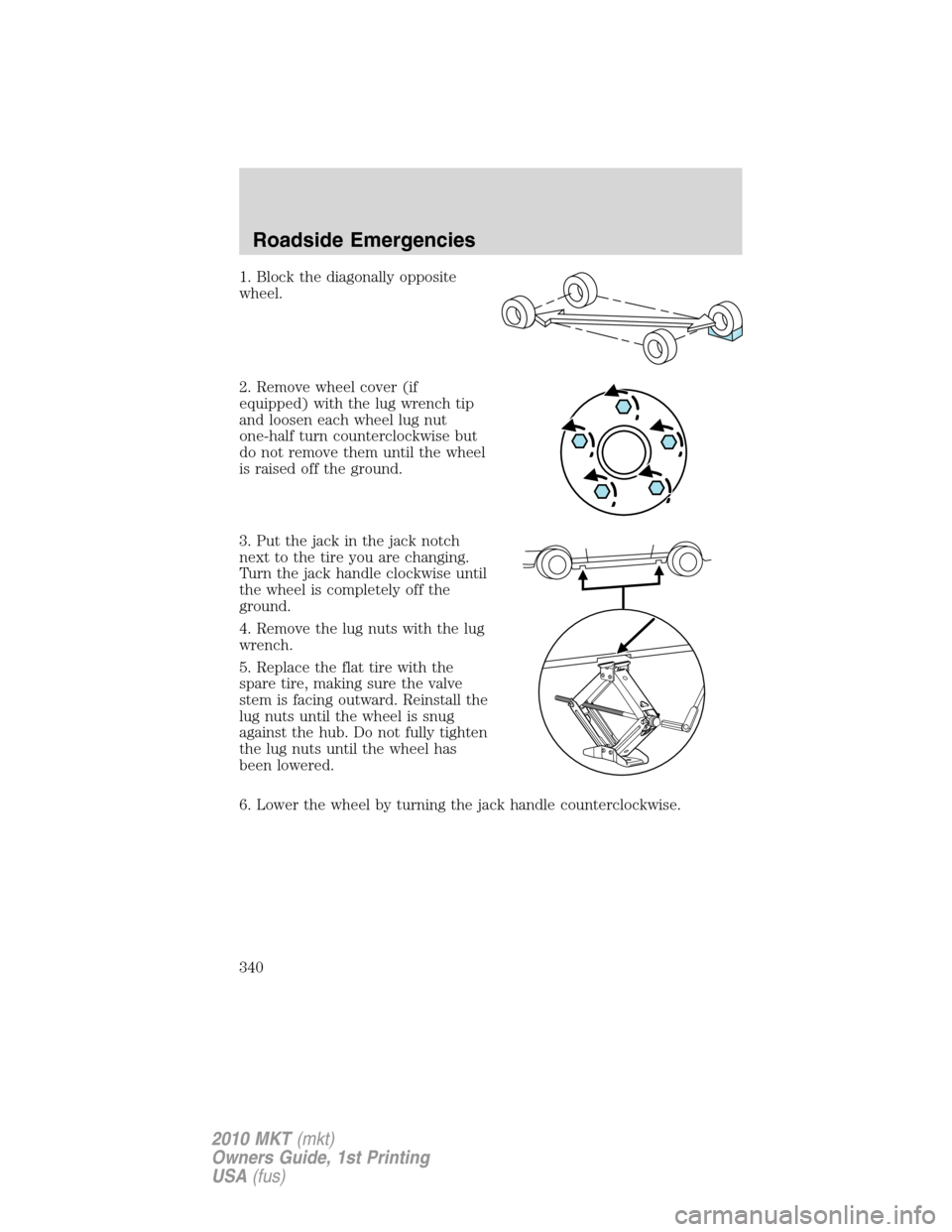

Page 340 of 430

LINCOLN MKT 2010  Owners Manual 1. Block the diagonally opposite
wheel.
2. Remove wheel cover (if
equipped) with the lug wrench tip
and loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
