6. Replace the air filter housing
cover and secure the clamps. Be
sure that the air cleaner cover tabs
are engaged into the slots of the air
cleaner housing.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
MOTORCRAFT PART NUMBERS
Component 3.7L V6 engine 3.5L V6 EcoBoost
engine
Engine air filter
elementFA-1884 FA-1884
Battery BXT-65-750 BXT-65-750
Oil filter FL-500-S FL-500-S
Spark Plugs SP-411
1SP-5121
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft
or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
411
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

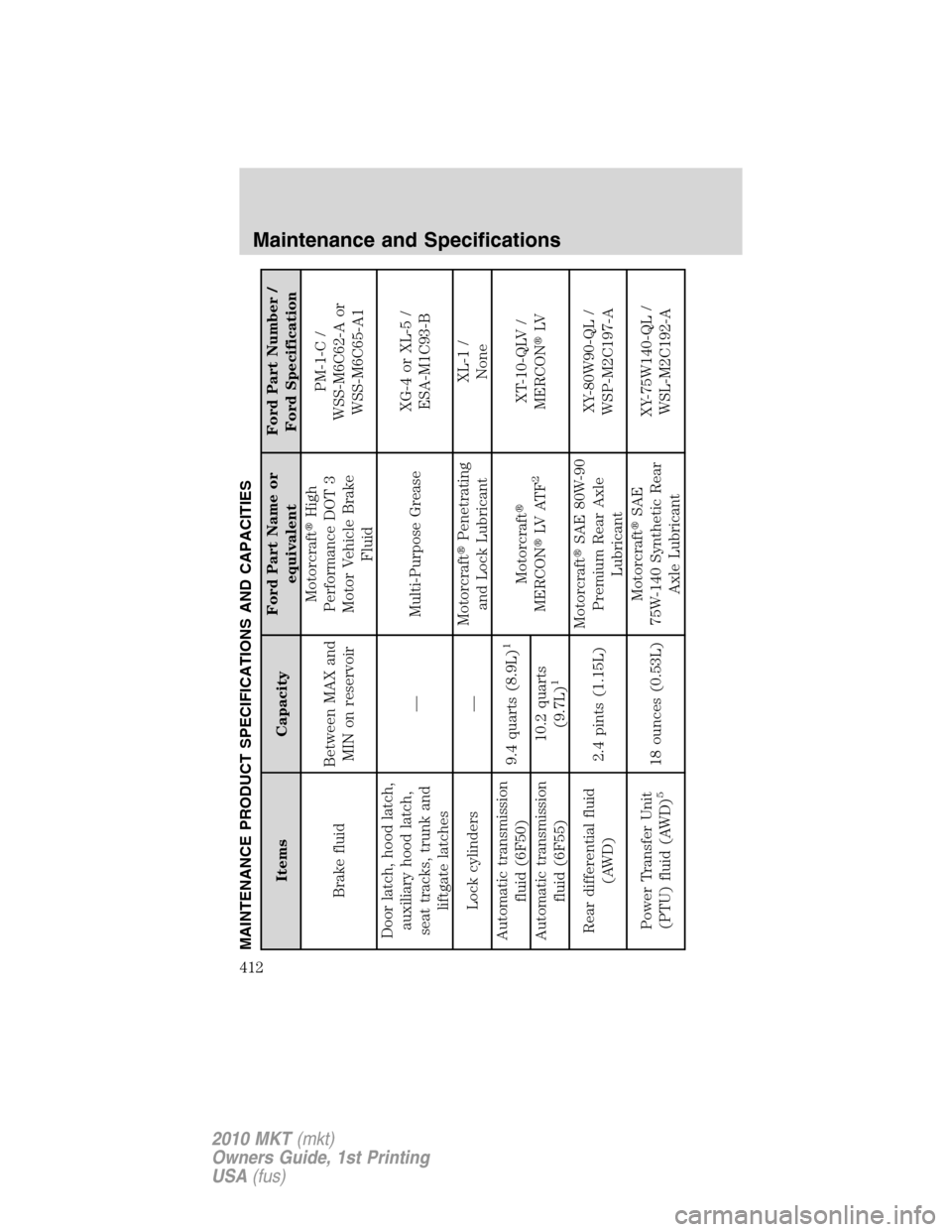

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidBetween MAX and
MIN on reservoirMotorcraft
High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches— Multi-Purpose GreaseXG-4 or XL-5 /
ESA-M1C93-B
Lock cylinders —Motorcraft
Penetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid (6F50)9.4 quarts (8.9L)
1
Motorcraft

MERCON
LV AT F
2
XT-10-QLV /
MERCON
LV
Automatic transmission
fluid (6F55)10.2 quarts
(9.7L)
1
Rear differential fluid
(AWD)2.4 pints (1.15L)Motorcraft
SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
5
18 ounces (0.53L)Motorcraft
SAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Maintenance and Specifications
412
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

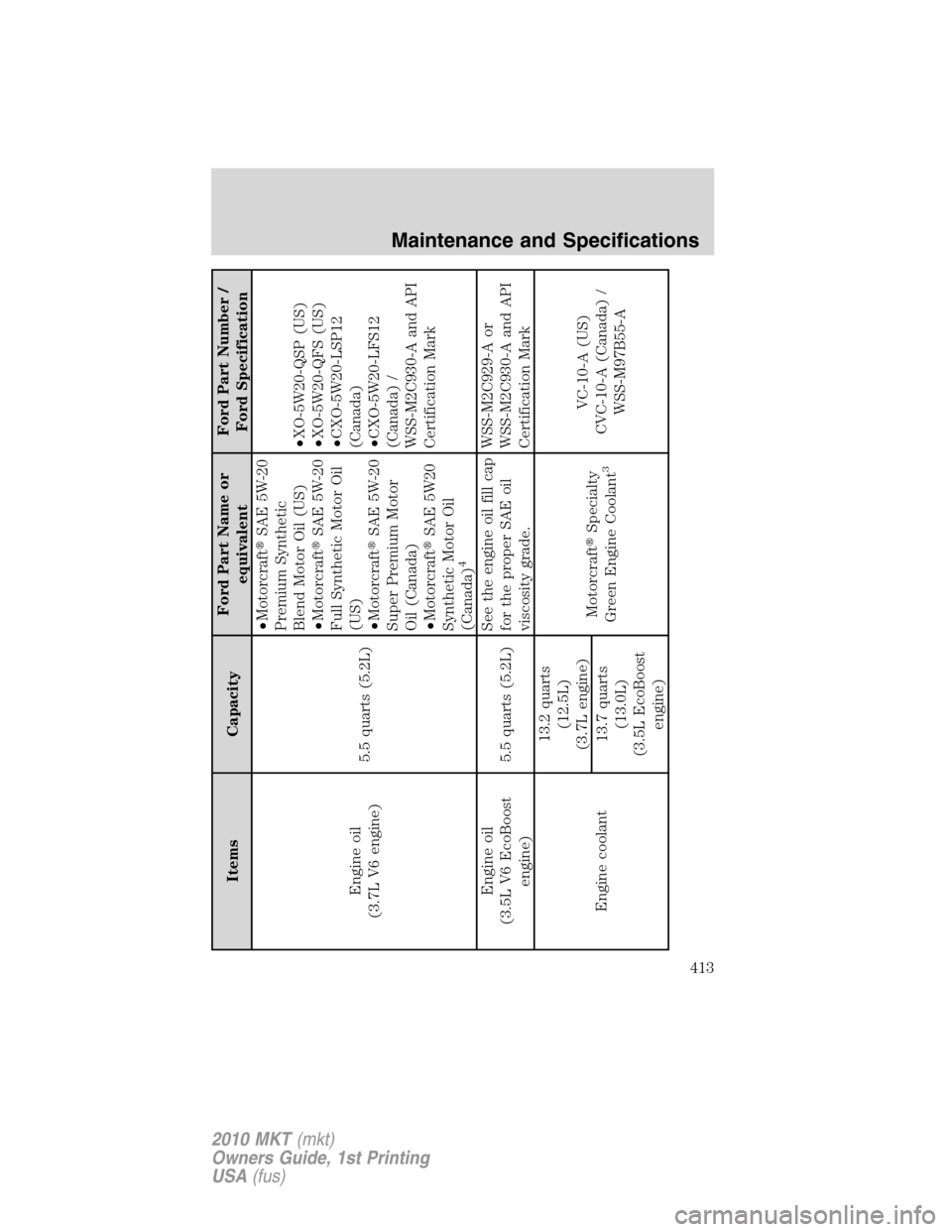

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil
(3.7L V6 engine)5.5 quarts (5.2L)•Motorcraft
SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•Motorcraft
SAE 5W-20
Full Synthetic Motor Oil
(US)
•Motorcraft
SAE 5W-20
Super Premium Motor
Oil (Canada)
•Motorcraft
SAE 5W20
Synthetic Motor Oil
(Canada)
4
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine oil
(3.5L V6 EcoBoost
engine)5.5 quarts (5.2L)See the engine oil fill cap
for the proper SAE oil
viscosity grade.WSS-M2C929-A or
WSS-M2C930-A and API
Certification Mark
Engine coolant13.2 quarts
(12.5L)
(3.7L engine)
Motorcraft
Specialty
Green Engine Coolant
3
VC-10-A (US)
CVC-10-A (Canada) /
WSS-M97B55-A 13.7 quarts
(13.0L)
(3.5L EcoBoost
engine)
Maintenance and Specifications
413
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Power steering fluid
(except EcoBoost
engine)Between MAX and
MIN on reservoirMotorcraft

MERCON
VATFXT-5-QM /
MERCON
V
Fuel tank18.6 gallons
(70.4L)——
Windshield washer fluidTop- off fluid as
neededMotorcraft
Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C929-A or WSS-M2C930-A and the API Certification
mark.5See your authorized dealer for fluid level checking or filling.
Maintenance and Specifications
414
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 3.7L V6 engine 3.5L V6 EcoBoost engine
Cubic inches 226 214
FuelSeeOctane
recommendations
earlier in this chapter.SeeOctane
recommendationsearlier
in this chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Spark plug gap0.052–0.056 inch
(1.32–1.42 mm)0.033–0.037 inch (.838–
.939 mm)
Ignition system Coil on plug Coil on plug
Compression
ratio10.3:1 10.0:1
Engine drivebelt routing
3.7L V6 engine
1. Short drivebelt is on first pulley groove closest to engine (except
vehicles with electric power assisted steering).
2. Long drivebelt is on second pulley groove farthest from engine.
3.5L V6 EcoBoost engine
Maintenance and Specifications
415
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

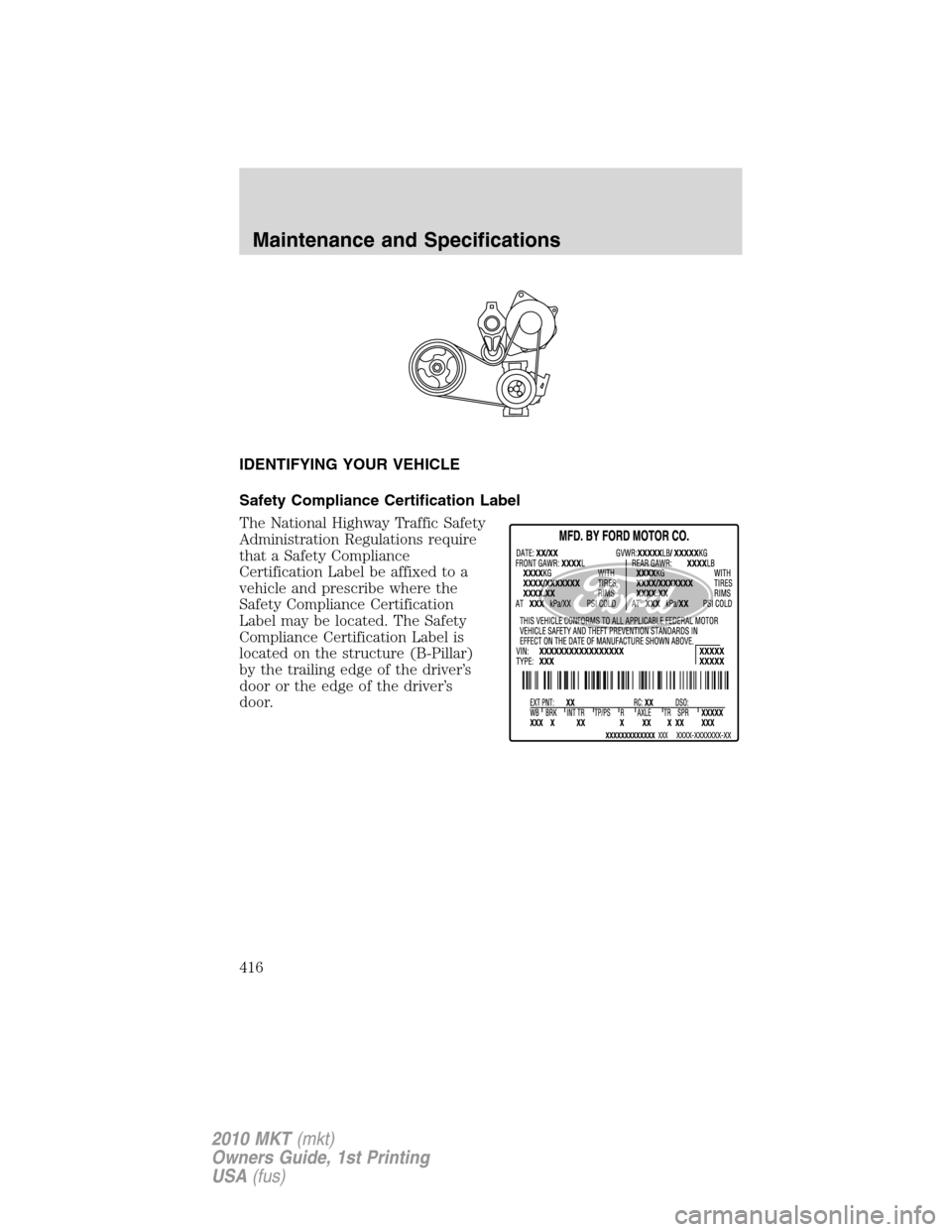

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
416
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

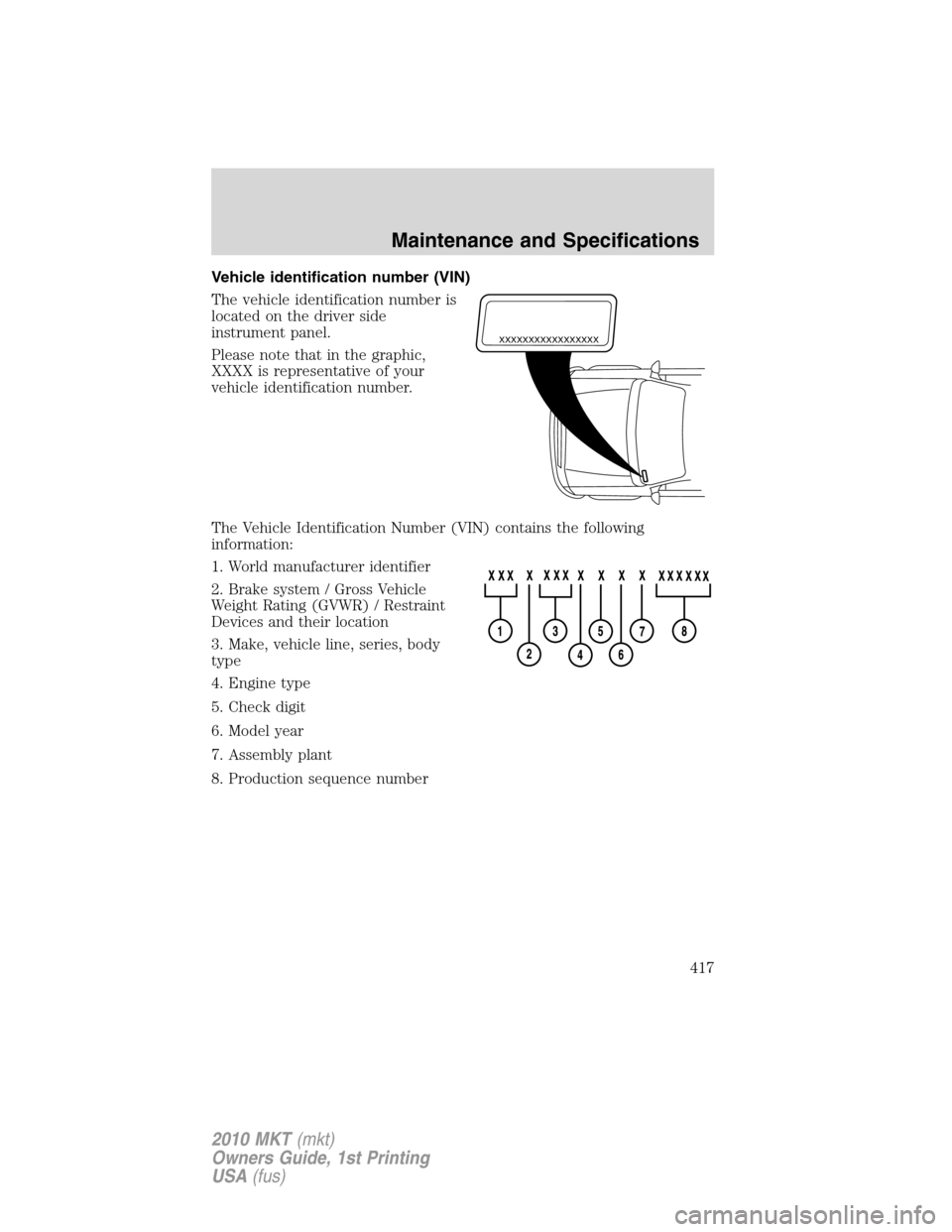

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
417
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

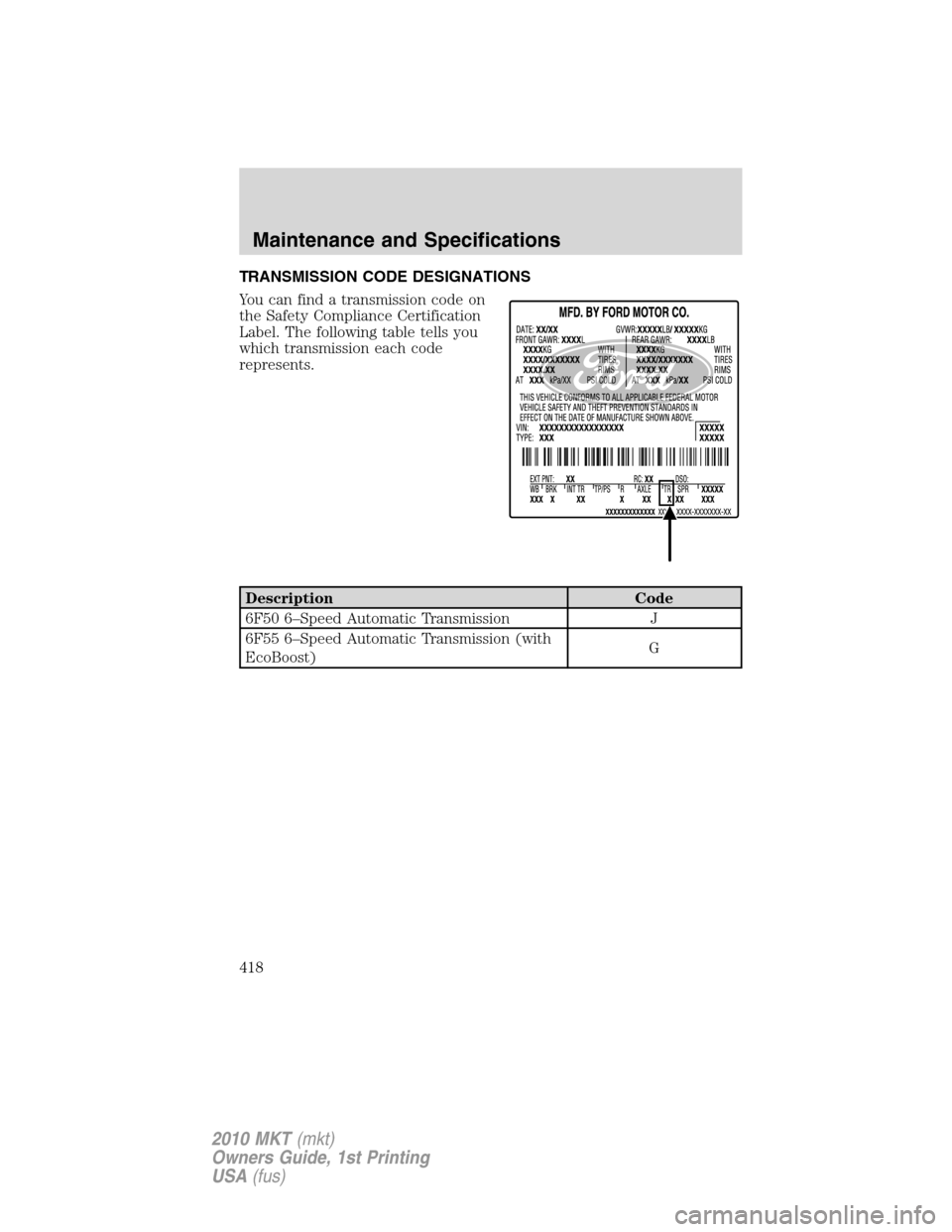

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6F50 6–Speed Automatic Transmission J
6F55 6–Speed Automatic Transmission (with
EcoBoost)G
Maintenance and Specifications
418
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

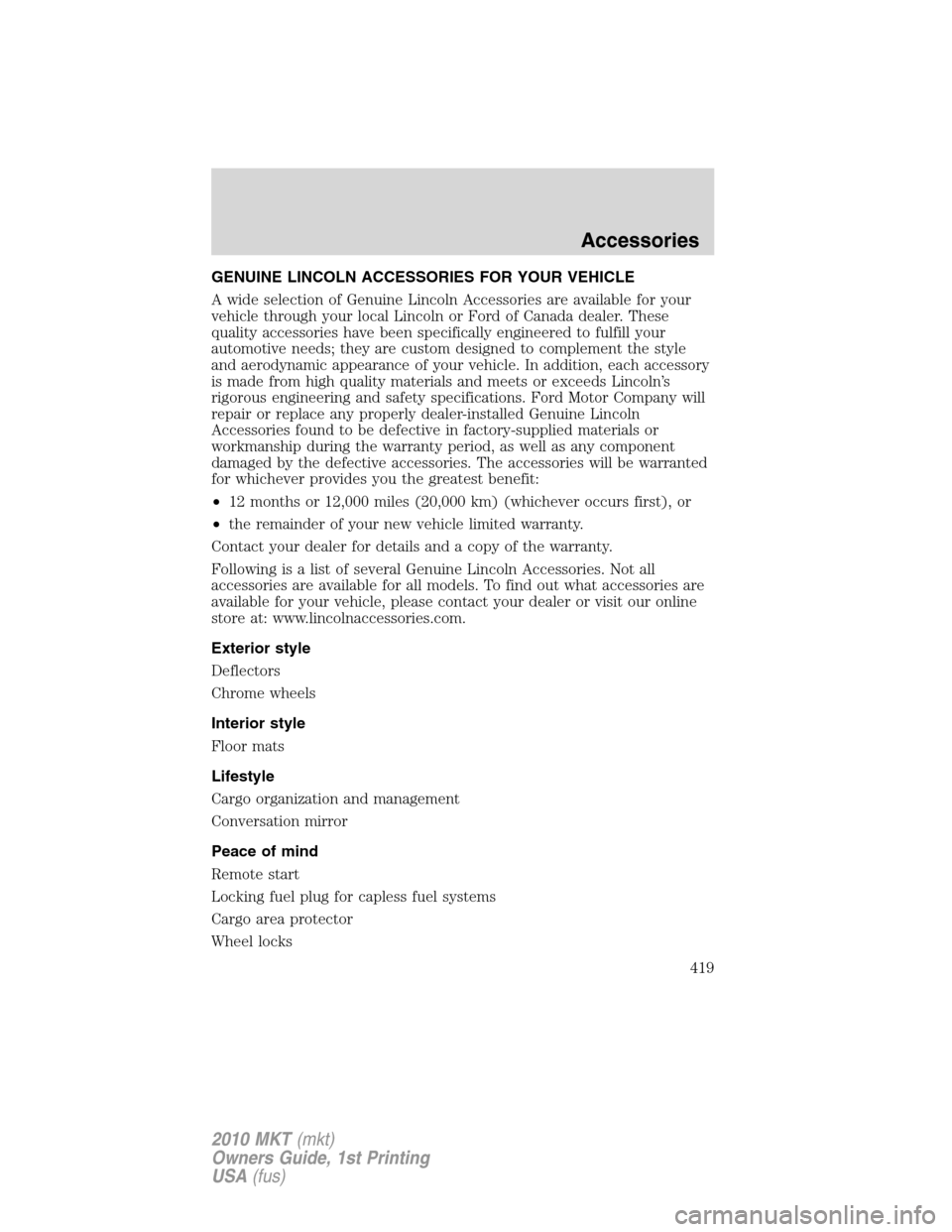

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Deflectors
Chrome wheels
Interior style
Floor mats
Lifestyle
Cargo organization and management
Conversation mirror
Peace of mind
Remote start
Locking fuel plug for capless fuel systems
Cargo area protector
Wheel locks
Accessories
419
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

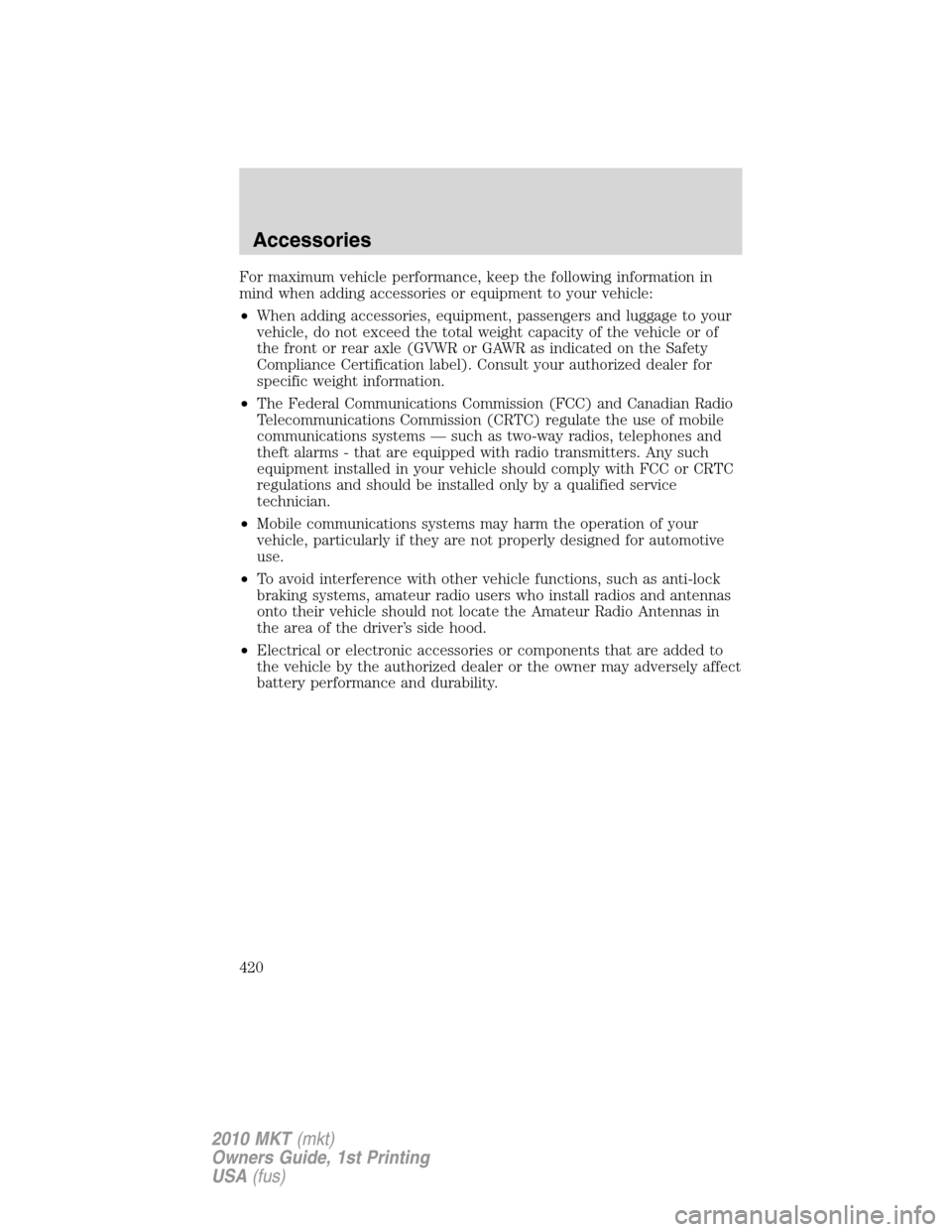

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
