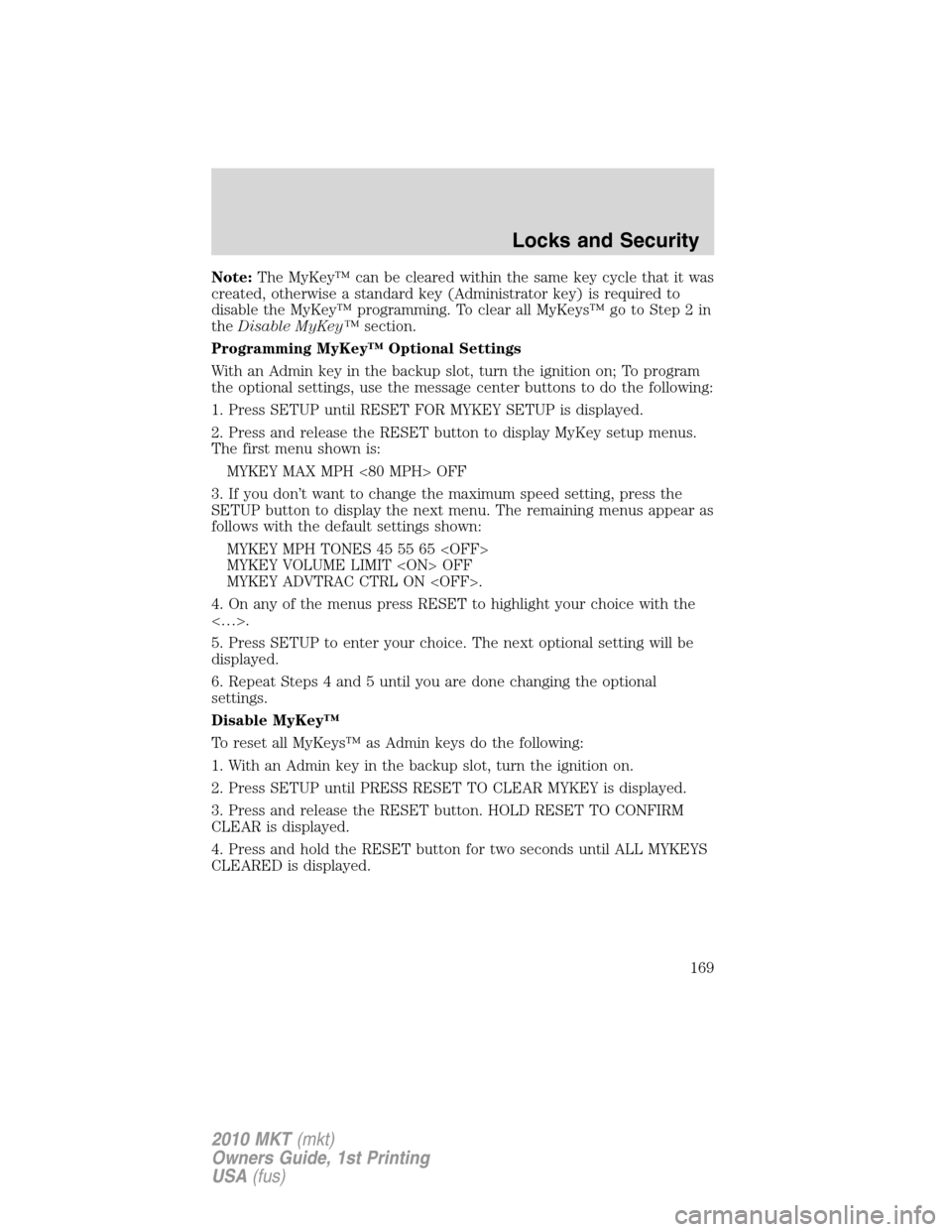

Note:The MyKey™ can be cleared within the same key cycle that it was
created, otherwise a standard key (Administrator key) is required to
disable the MyKey™ programming. To clear all MyKeys™ go to Step 2 in
theDisable MyKey™section.
Programming MyKey™ Optional Settings
With an Admin key in the backup slot, turn the ignition on; To program
the optional settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETUP is displayed.
2. Press and release the RESET button to display MyKey setup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional
settings.
Disable MyKey™
To reset all MyKeys™ as Admin keys do the following:
1. With an Admin key in the backup slot, turn the ignition on.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
Locks and Security
169
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

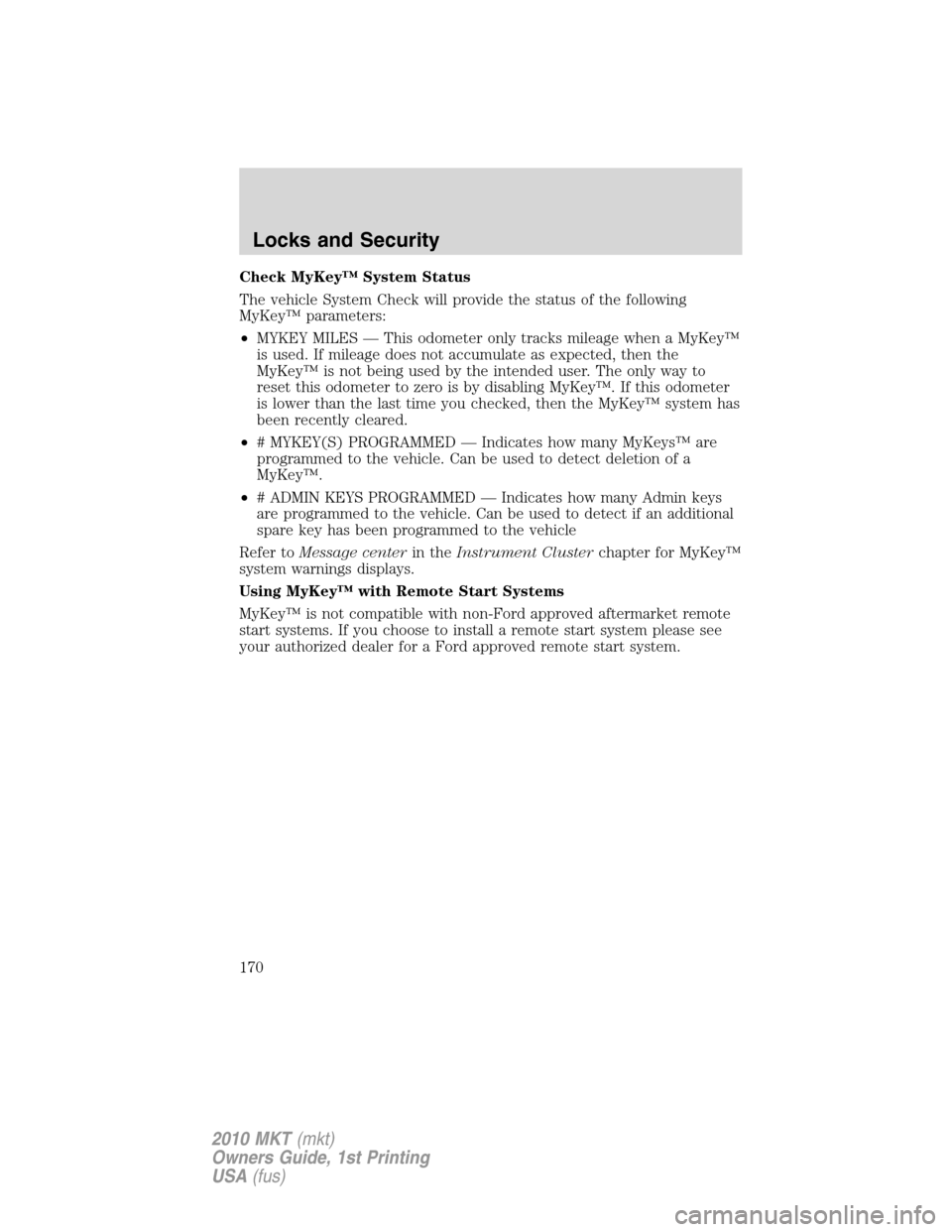

Check MyKey™ System Status
The vehicle System Check will provide the status of the following
MyKey™ parameters:
•MYKEY MILES — This odometer only tracks mileage when a MyKey™
is used. If mileage does not accumulate as expected, then the
MyKey™ is not being used by the intended user. The only way to
reset this odometer to zero is by disabling MyKey™. If this odometer
is lower than the last time you checked, then the MyKey™ system has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeys™ are
programmed to the vehicle. Can be used to detect deletion of a
MyKey™.
•# ADMIN KEYS PROGRAMMED — Indicates how many Admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle
Refer toMessage centerin theInstrument Clusterchapter for MyKey™
system warnings displays.
Using MyKey™ with Remote Start Systems
MyKey™ is not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
Locks and Security
170
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Intelligent Access Key (push button start)
•It is not possible to program the remote start system as MyKey™ on
vehicles equipped with Intelligent Access Key (push button start).
Therefore, you should treat the remote start fob as you would any
other admin key. When the vehicle is started using remote start, the
system will stall the engine when you either enter the vehicle or shift
the vehicle into gear. Prior to the engine stall, the vehicle will have
administrative privileges. When you restart the engine, the vehicle will
identify the user as an Admin or MyKey™ driver depending on the
settings of the actual key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKey™ System
Status menus will include the remote start system as an additional key in
the total count. See theCheck MyKey™ System Statussection.
Note:For all vehicles with remote start installed, it is possible to
program all ’real’ keys as MyKeys™, in which case, you will need to use
your remote start system to reset all MyKeys™ as Admin keys by doing
the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow steps 1-4 in theDisable MyKey™section.
Locks and Security
171
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

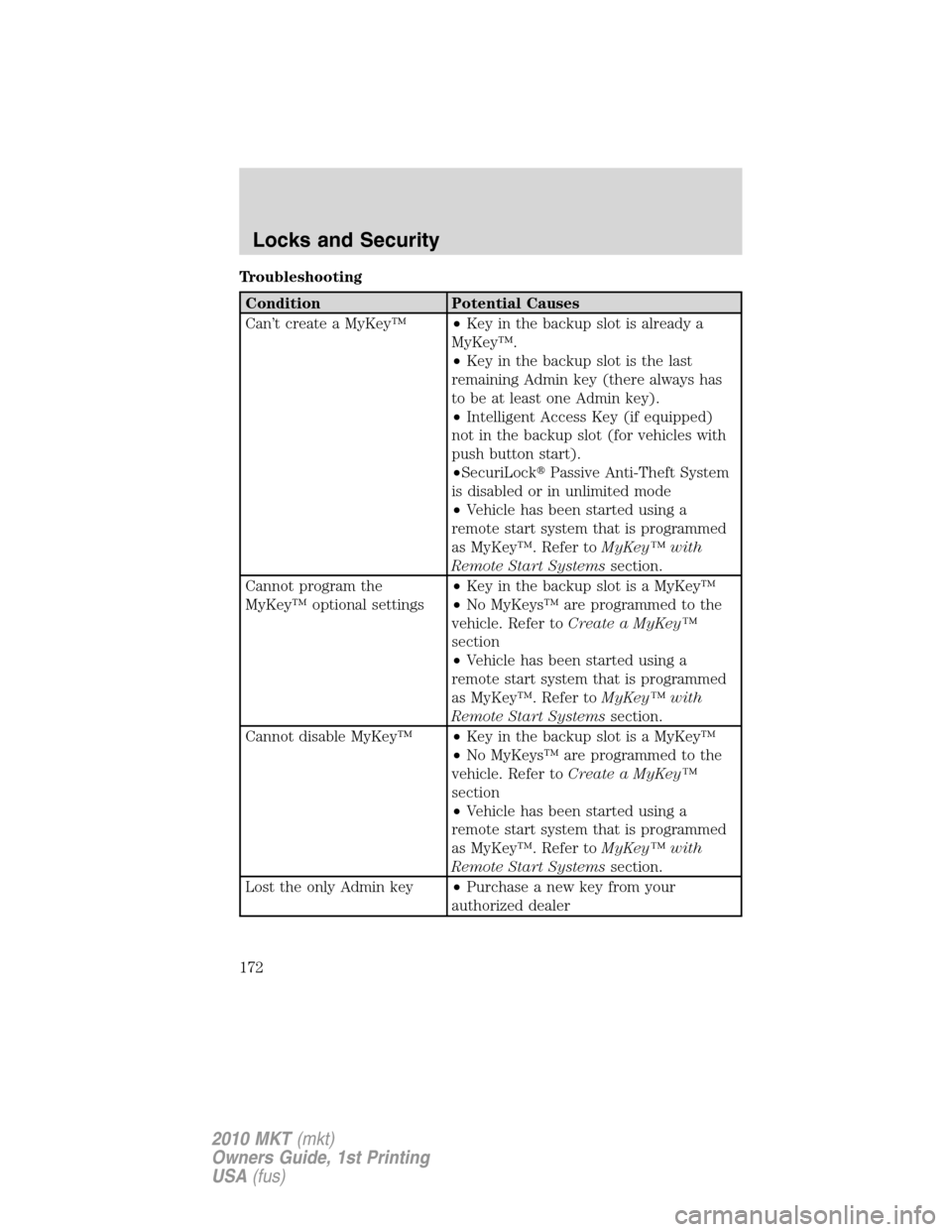

Troubleshooting
Condition Potential Causes
Can’t create a MyKey™•Key in the backup slot is already a
MyKey™.
•Key in the backup slot is the last
remaining Admin key (there always has
to be at least one Admin key).
•Intelligent Access Key (if equipped)
not in the backup slot (for vehicles with
push button start).
•SecuriLock
Passive Anti-Theft System
is disabled or in unlimited mode
•Vehicle has been started using a
remote start system that is programmed
as MyKey™. Refer toMyKey™ with
Remote Start Systemssection.
Cannot program the
MyKey™ optional settings•Key in the backup slot is a MyKey™
•No MyKeys™ are programmed to the
vehicle. Refer toCreate a MyKey™
section
•Vehicle has been started using a
remote start system that is programmed
as MyKey™. Refer toMyKey™ with
Remote Start Systemssection.
Cannot disable MyKey™•Key in the backup slot is a MyKey™
•No MyKeys™ are programmed to the
vehicle. Refer toCreate a MyKey™
section
•Vehicle has been started using a
remote start system that is programmed
as MyKey™. Refer toMyKey™ with
Remote Start Systemssection.
Lost the only Admin key•Purchase a new key from your
authorized dealer
Locks and Security
172
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

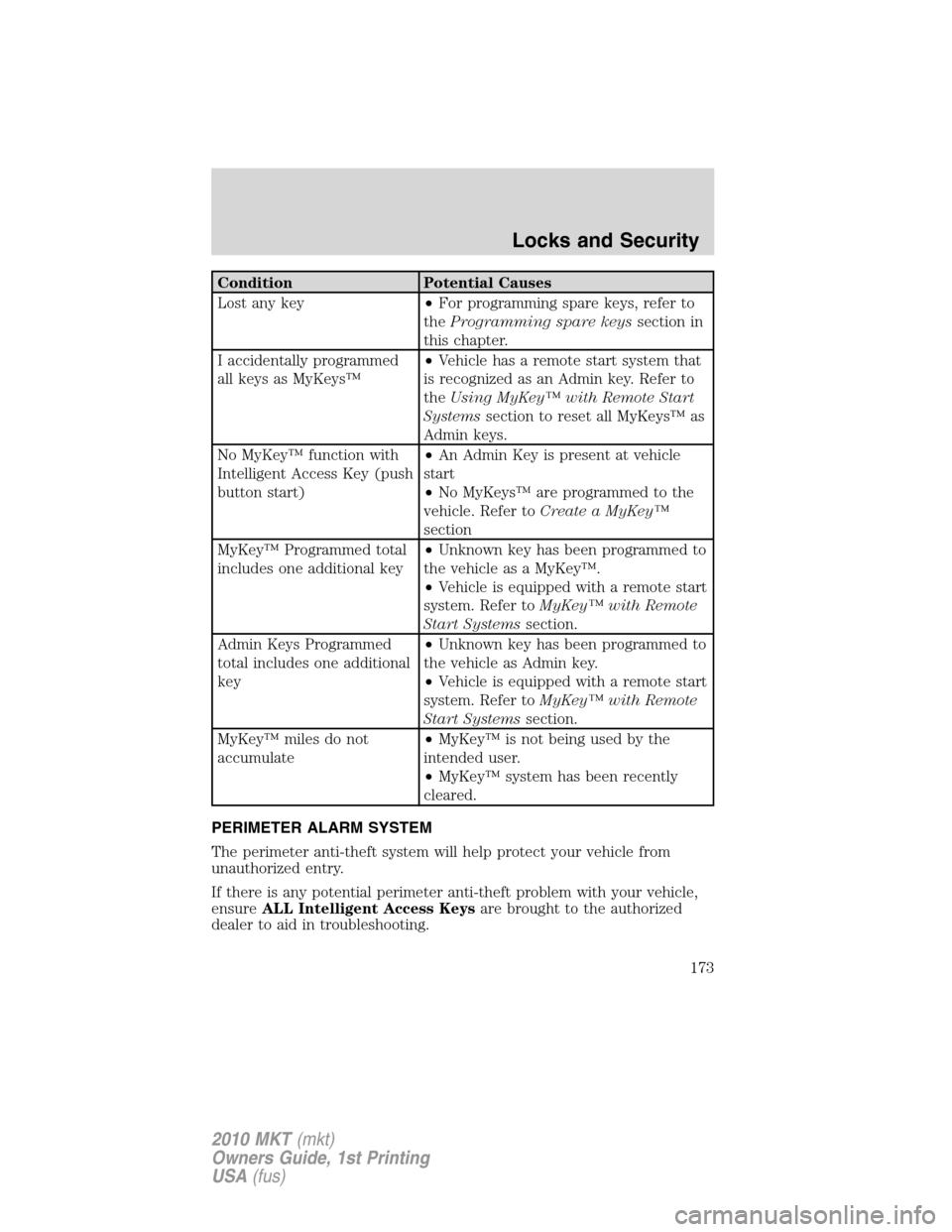

Condition Potential Causes
Lost any key•For programming spare keys, refer to
theProgramming spare keyssection in
this chapter.
I accidentally programmed
all keys as MyKeys™•Vehicle has a remote start system that
is recognized as an Admin key. Refer to
theUsing MyKey™ with Remote Start
Systemssection to reset all MyKeys™ as
Admin keys.
No MyKey™ function with
Intelligent Access Key (push
button start)•An Admin Key is present at vehicle
start
•No MyKeys™ are programmed to the
vehicle. Refer toCreate a MyKey™
section
MyKey™ Programmed total
includes one additional key•Unknown key has been programmed to
the vehicle as a MyKey™.
•Vehicle is equipped with a remote start
system. Refer toMyKey™ with Remote
Start Systemssection.
Admin Keys Programmed
total includes one additional
key•Unknown key has been programmed to
the vehicle as Admin key.
•Vehicle is equipped with a remote start
system. Refer toMyKey™ with Remote
Start Systemssection.
MyKey™ miles do not
accumulate•MyKey™ is not being used by the
intended user.
•MyKey™ system has been recently
cleared.
PERIMETER ALARM SYSTEM
The perimeter anti-theft system will help protect your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL Intelligent Access Keysare brought to the authorized
dealer to aid in troubleshooting.
Locks and Security
173
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the ignition is off. Any of the
following actions will prearm the alarm system:
•Press the
control on the transmitter.
When you press the lock control twice within three seconds on your
transmitter, the horn will chirp once to let you know that all doors, the
hood and the liftgate are closed. If any of these are not closed, the horn
will chirp twice to warn you that a door, the hood or the liftgate is still
open.
•Press the driver or passenger
power door lock control while the
door is open, then close the door.
•Press and hold the 7•8 and 9•
0 controls on the keyless entry
pad at the same time to lock the
doors (driver’s door must be
closed).
•Lock the door by turning the key
in the door key cylinder.
There is a 20 second countdown
when any of the above actions occur
before the vehicle becomes armed.
Each door, the hood or the liftgate
is armed individually, and if any are
open, they must be closed for that
entry point to enter the 20 second
countdown.
The turn signal lamps will flash once when all doors, the hood or the
liftgate are closed indicating the vehicle is locked and entering the
20 second countdown.
Locks and Security
174
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using your transmitter.
•Unlock the doors by using your keyless entry pad.
•Unlock the driver door or all doors using the Intelligent Access.
•Unlock the driver’s door with a key. Turn the key toward the rear of
the vehicle to make sure the alarm disarms.
•Turn ignition on.
•Press the
control on the transmitter. This will only shut off the
horn and parking lamps when the alarm is sounding. The alarm system
will still be armed.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if:
•Any door, the hood or the liftgate is opened without using the door
key, keypad or Intelligent Access Key.
•Turn the ignition on with an invalid SecuriLock
key.
Locks and Security
175
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

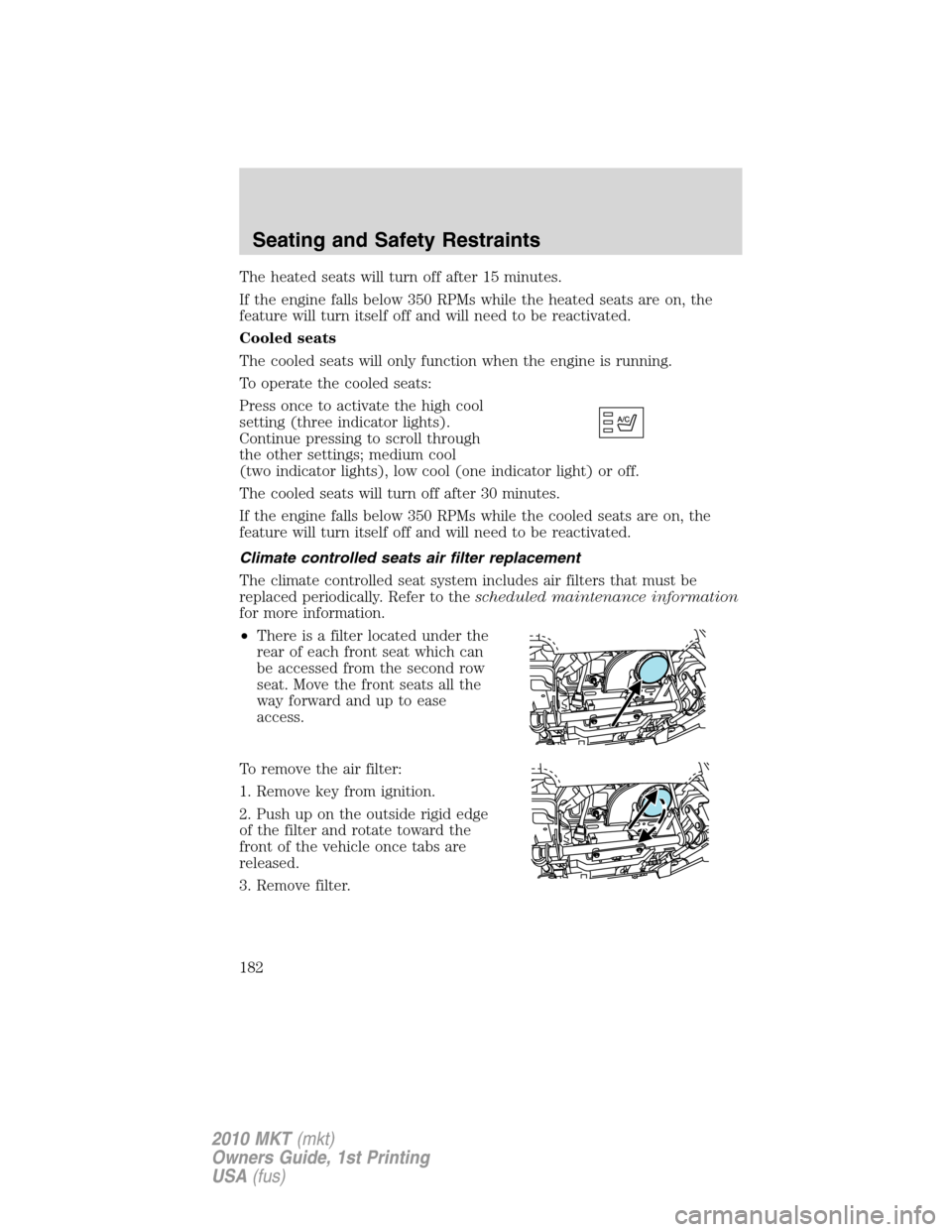

The heated seats will turn off after 15 minutes.
If the engine falls below 350 RPMs while the heated seats are on, the
feature will turn itself off and will need to be reactivated.
Cooled seats
The cooled seats will only function when the engine is running.
To operate the cooled seats:
Press once to activate the high cool
setting (three indicator lights).
Continue pressing to scroll through
the other settings; medium cool
(two indicator lights), low cool (one indicator light) or off.
The cooled seats will turn off after 30 minutes.
If the engine falls below 350 RPMs while the cooled seats are on, the
feature will turn itself off and will need to be reactivated.
Climate controlled seats air filter replacement
The climate controlled seat system includes air filters that must be
replaced periodically. Refer to thescheduled maintenance information
for more information.
•There is a filter located under the
rear of each front seat which can
be accessed from the second row
seat. Move the front seats all the
way forward and up to ease
access.
To remove the air filter:
1. Remove key from ignition.
2. Push up on the outside rigid edge
of the filter and rotate toward the
front of the vehicle once tabs are
released.
3. Remove filter.
Seating and Safety Restraints
182
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

To install the filter:
•Position the filter in it’s housing
making sure that the far forward
end is all the way up in the
housing then push in on the
center of the outside edge of the
filter and rotate up into the
housing until it clips into position.
Memory seat/power mirrors/adjustable pedals
(if equipped)/steering column
This system allows automatic
positioning of the driver seat,
outside rearview mirrors and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position one, move
the driver seat, exterior mirrors
and adjustable pedals to the
desired positions using the associated controls. Press and hold control
button 1 for at least two seconds. A tone will be heard when the
memory save is complete.
•To program position two, repeat the previous procedure using control
button 2.
A position can only be recalled when the transmission gearshift is in Park
(automatic transmission). A memory seat position may be programmed
at any time.
The memory seat positions are also recalled when you press your remote
entry transmitter
(unlock) control and the transmitter is
programmed to a memory seat position or when you enter a valid
customer code 1 or 2 on the keypad.
To program the memory seat to remote entry transmitter, refer to
Remote entry systemin theLocks and Security chapter..
Note: The seat will not travel to its final position if the key is not
in the ignition and the easy entry feature is enabled.
Seating and Safety Restraints
183
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

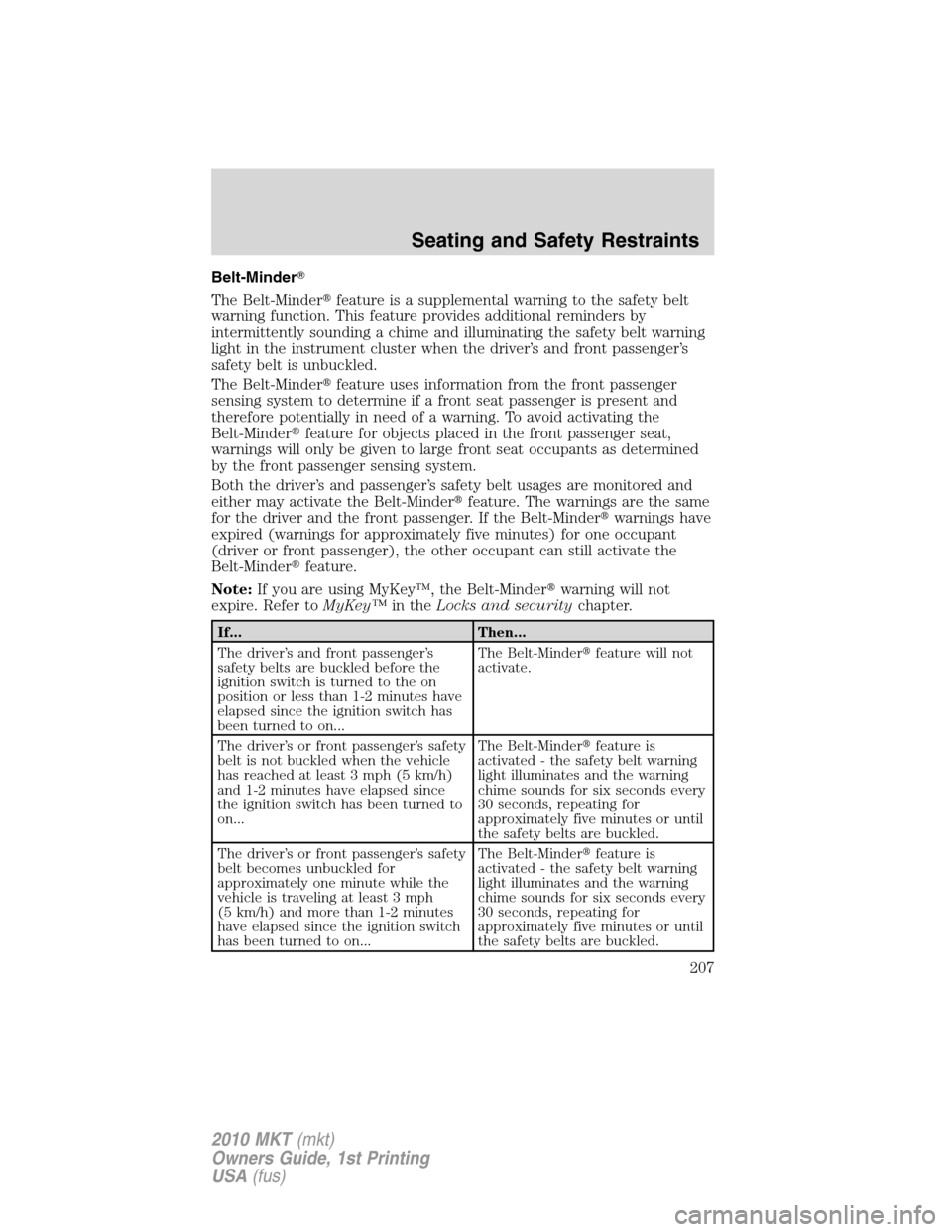

Belt-Minder
The Belt-Minder
feature is a supplemental warning to the safety belt
warning function. This feature provides additional reminders by
intermittently sounding a chime and illuminating the safety belt warning
light in the instrument cluster when the driver’s and front passenger’s
safety belt is unbuckled.
The Belt-Minder
feature uses information from the front passenger
sensing system to determine if a front seat passenger is present and
therefore potentially in need of a warning. To avoid activating the
Belt-Minder
feature for objects placed in the front passenger seat,
warnings will only be given to large front seat occupants as determined
by the front passenger sensing system.
Both the driver’s and passenger’s safety belt usages are monitored and
either may activate the Belt-Minder
feature. The warnings are the same
for the driver and the front passenger. If the Belt-Minder
warnings have
expired (warnings for approximately five minutes) for one occupant
(driver or front passenger), the other occupant can still activate the
Belt-Minder
feature.
Note:If you are using MyKey™, the Belt-Minder
warning will not
expire. Refer toMyKey™in theLocks and securitychapter.
If... Then...
The driver’s and front passenger’s
safety belts are buckled before the
ignition switch is turned to the on
position or less than 1-2 minutes have
elapsed since the ignition switch has
been turned to on...The Belt-Minder
feature will not
activate.
The driver’s or front passenger’s safety
belt is not buckled when the vehicle
has reached at least 3 mph (5 km/h)
and 1-2 minutes have elapsed since
the ignition switch has been turned to
on...The Belt-Minder
feature is
activated - the safety belt warning
light illuminates and the warning
chime sounds for six seconds every
30 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
The driver’s or front passenger’s safety
belt becomes unbuckled for
approximately one minute while the
vehicle is traveling at least 3 mph
(5 km/h) and more than 1-2 minutes
have elapsed since the ignition switch
has been turned to on...The Belt-Minder
feature is
activated - the safety belt warning
light illuminates and the warning
chime sounds for six seconds every
30 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
Seating and Safety Restraints
207
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
