Jukebox LINCOLN MKT 2010 Owners Manual

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Message center 18
Entertainment Systems 32
Setting the clock 40
AM/FM 41
CD 44
Playing a DVD in the system 45
Jukebox features 46
Accessing the help screen 51
Auxiliary input jack (Line in) 59
USB port 61
Satellite radio (if equipped) 64
Family entertainment system 67
Navigation system 88
SYNC
88
Climate Controls 89
Navigation system based climate control 89
Rear window defroster 95
Lights 96
Headlamps 96
Turn signal control 103
Bulb replacement 105
Driver Controls 109
Windshield wiper/washer control 109
Steering wheel adjustment 111
Power windows 117
Mirrors 119
Speed control 122
Adaptive cruise control 124
Table of Contents
1
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

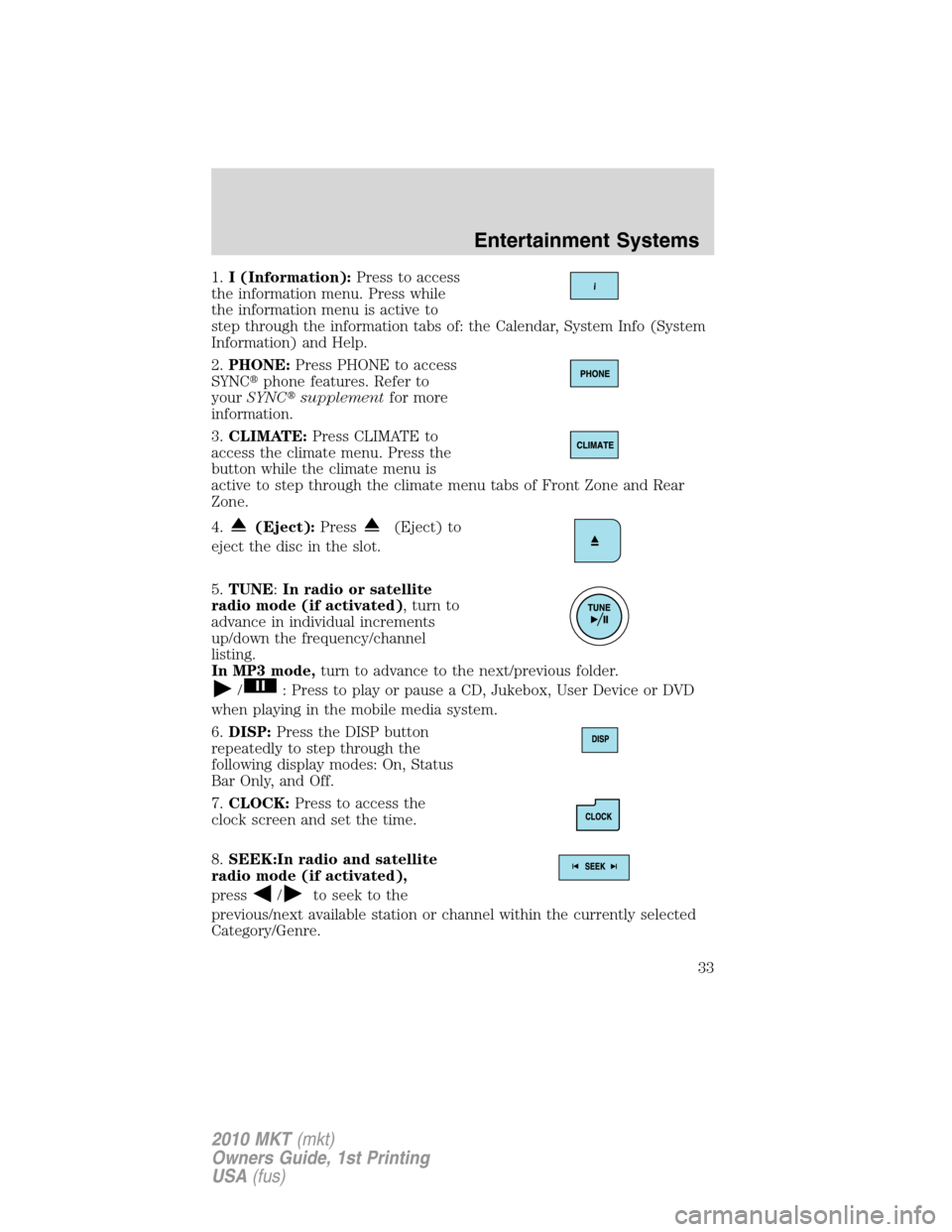

1.I (Information):Press to access
the information menu. Press while
the information menu is active to
step through the information tabs of: the Calendar, System Info (System
Information) and Help.
2.PHONE:Press PHONE to access
SYNC
phone features. Refer to
yourSYNC
supplementfor more
information.
3.CLIMATE:Press CLIMATE to
access the climate menu. Press the
button while the climate menu is
active to step through the climate menu tabs of Front Zone and Rear
Zone.
4.
(Eject):Press(Eject) to
eject the disc in the slot.
5.TUNE:In radio or satellite
radio mode (if activated), turn to
advance in individual increments
up/down the frequency/channel
listing.
In MP3 mode,turn to advance to the next/previous folder.
/: Press to play or pause a CD, Jukebox, User Device or DVD
when playing in the mobile media system.
6.DISP:Press the DISP button
repeatedly to step through the
following display modes: On, Status
Bar Only, and Off.
7.CLOCK:Press to access the
clock screen and set the time.
8.SEEK:In radio and satellite
radio mode (if activated),
press
/to seek to the
previous/next available station or channel within the currently selected
Category/Genre.
Entertainment Systems
33
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

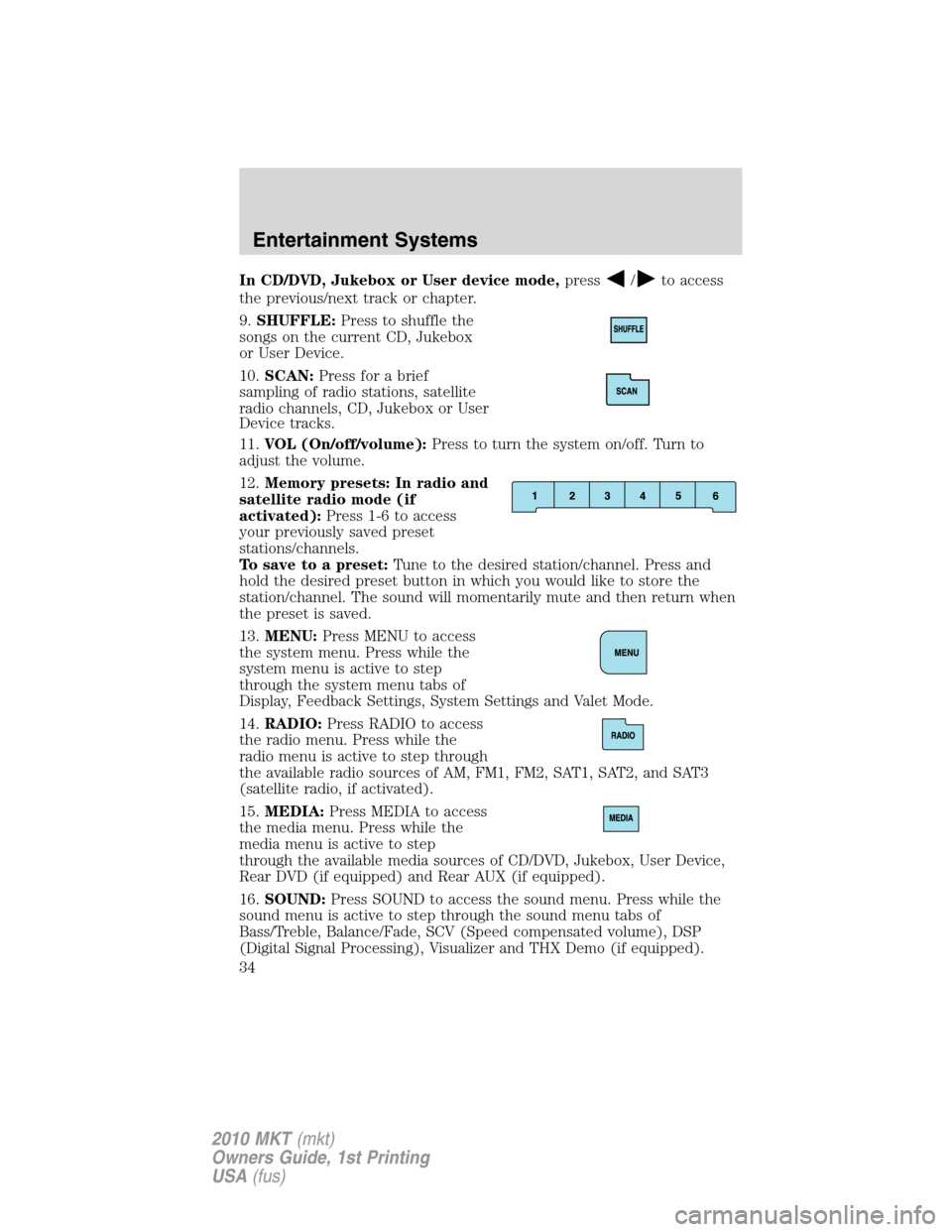

In CD/DVD, Jukebox or User device mode,press/to access
the previous/next track or chapter.
9.SHUFFLE:Press to shuffle the
songs on the current CD, Jukebox
or User Device.
10.SCAN:Press for a brief
sampling of radio stations, satellite
radio channels, CD, Jukebox or User
Device tracks.
11.VOL (On/off/volume):Press to turn the system on/off. Turn to
adjust the volume.
12.Memory presets: In radio and
satellite radio mode (if
activated):Press 1-6 to access
your previously saved preset
stations/channels.
To save to a preset:Tune to the desired station/channel. Press and
hold the desired preset button in which you would like to store the
station/channel. The sound will momentarily mute and then return when
the preset is saved.
13.MENU:Press MENU to access
the system menu. Press while the
system menu is active to step
through the system menu tabs of
Display, Feedback Settings, System Settings and Valet Mode.
14.RADIO:Press RADIO to access
the radio menu. Press while the
radio menu is active to step through
the available radio sources of AM, FM1, FM2, SAT1, SAT2, and SAT3
(satellite radio, if activated).
15.MEDIA:Press MEDIA to access
the media menu. Press while the
media menu is active to step
through the available media sources of CD/DVD, Jukebox, User Device,
Rear DVD (if equipped) and Rear AUX (if equipped).
16.SOUND:Press SOUND to access the sound menu. Press while the
sound menu is active to step through the sound menu tabs of
Bass/Treble, Balance/Fade, SCV (Speed compensated volume), DSP
(Digital Signal Processing), Visualizer and THX Demo (if equipped).
Entertainment Systems
34
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

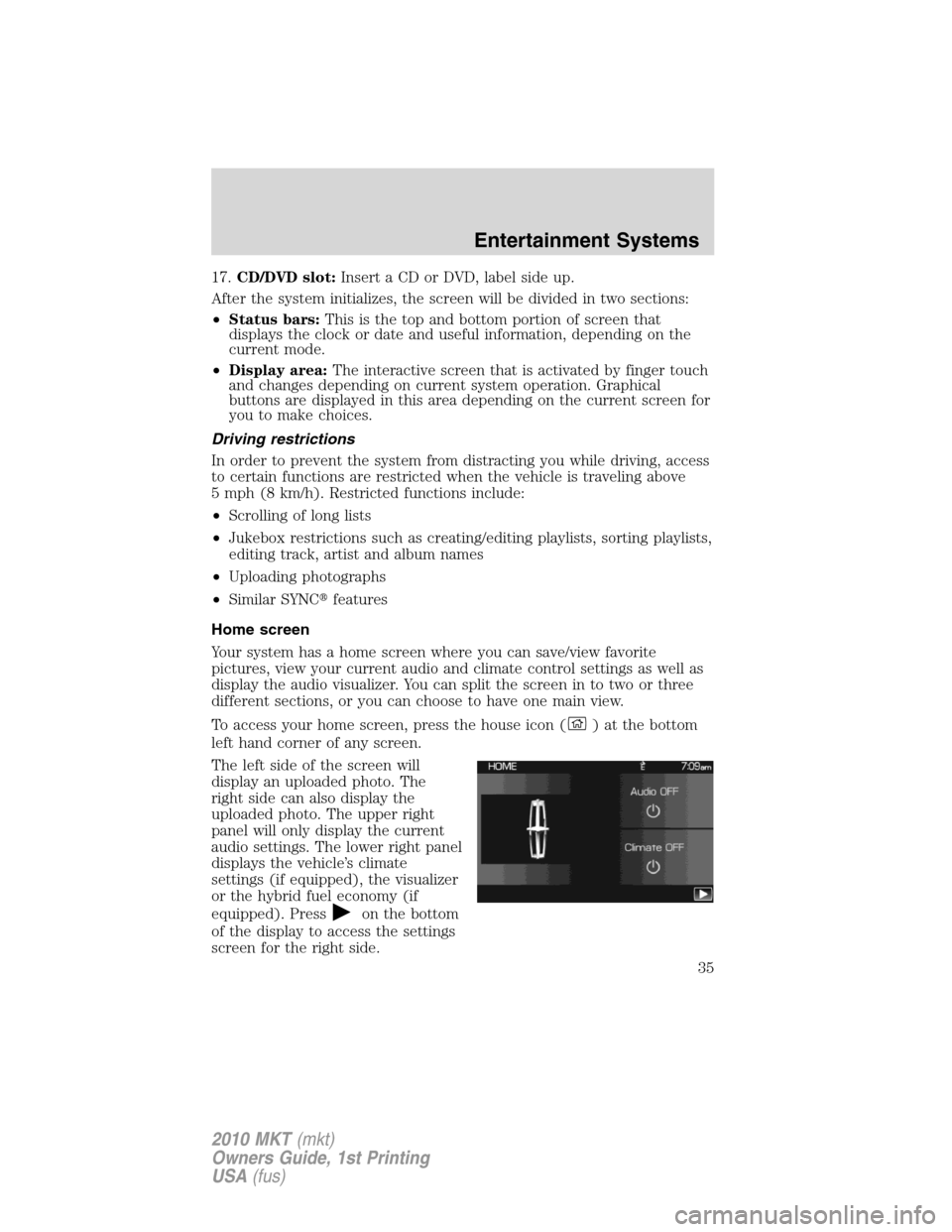

17.CD/DVD slot:Insert a CD or DVD, label side up.
After the system initializes, the screen will be divided in two sections:
•Status bars:This is the top and bottom portion of screen that
displays the clock or date and useful information, depending on the
current mode.
•Display area:The interactive screen that is activated by finger touch
and changes depending on current system operation. Graphical
buttons are displayed in this area depending on the current screen for
you to make choices.
Driving restrictions
In order to prevent the system from distracting you while driving, access
to certain functions are restricted when the vehicle is traveling above
5 mph (8 km/h). Restricted functions include:
•Scrolling of long lists
•Jukebox restrictions such as creating/editing playlists, sorting playlists,
editing track, artist and album names
•Uploading photographs
•Similar SYNC
features
Home screen
Your system has a home screen where you can save/view favorite
pictures, view your current audio and climate control settings as well as
display the audio visualizer. You can split the screen in to two or three
different sections, or you can choose to have one main view.
To access your home screen, press the house icon (
)atthebottom
left hand corner of any screen.
The left side of the screen will
display an uploaded photo. The
right side can also display the
uploaded photo. The upper right
panel will only display the current
audio settings. The lower right panel
displays the vehicle’s climate
settings (if equipped), the visualizer
or the hybrid fuel economy (if
equipped). Press
on the bottom
of the display to access the settings
screen for the right side.
Entertainment Systems
35
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

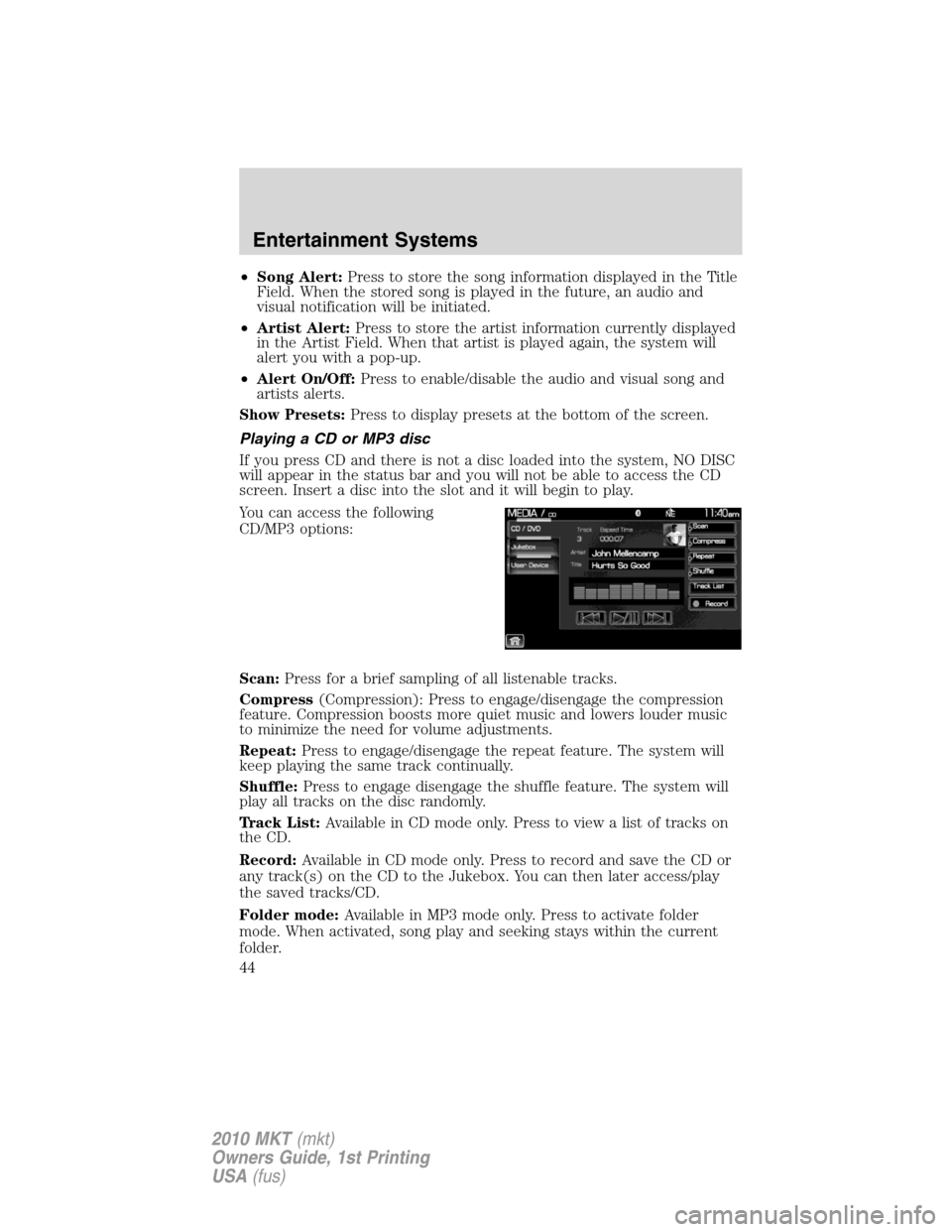

•Song Alert:Press to store the song information displayed in the Title
Field. When the stored song is played in the future, an audio and
visual notification will be initiated.
•Artist Alert:Press to store the artist information currently displayed
in the Artist Field. When that artist is played again, the system will
alert you with a pop-up.
•Alert On/Off:Press to enable/disable the audio and visual song and
artists alerts.
Show Presets:Press to display presets at the bottom of the screen.
Playing a CD or MP3 disc
If you press CD and there is not a disc loaded into the system, NO DISC
will appear in the status bar and you will not be able to access the CD
screen. Insert a disc into the slot and it will begin to play.
You can access the following
CD/MP3 options:
Scan:Press for a brief sampling of all listenable tracks.
Compress(Compression): Press to engage/disengage the compression
feature. Compression boosts more quiet music and lowers louder music
to minimize the need for volume adjustments.
Repeat:Press to engage/disengage the repeat feature. The system will
keep playing the same track continually.
Shuffle:Press to engage disengage the shuffle feature. The system will
play all tracks on the disc randomly.
Track List:Available in CD mode only. Press to view a list of tracks on
the CD.
Record:Available in CD mode only. Press to record and save the CD or
any track(s) on the CD to the Jukebox. You can then later access/play
the saved tracks/CD.
Folder mode:Available in MP3 mode only. Press to activate folder
mode. When activated, song play and seeking stays within the current
folder.
Entertainment Systems
44
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

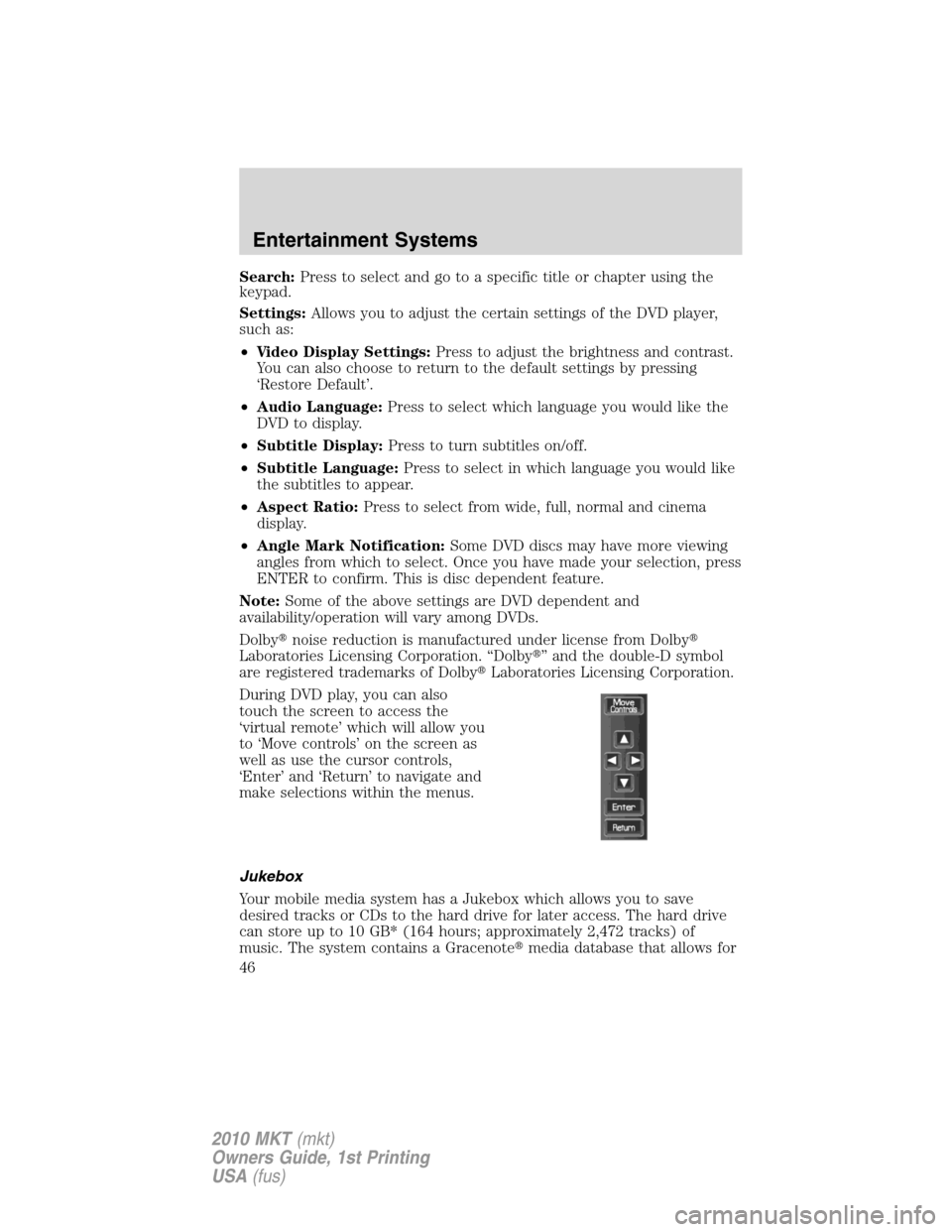

Search:Press to select and go to a specific title or chapter using the
keypad.
Settings:Allows you to adjust the certain settings of the DVD player,
such as:
•Video Display Settings:Press to adjust the brightness and contrast.
You can also choose to return to the default settings by pressing
‘Restore Default’.
•Audio Language:Press to select which language you would like the
DVD to display.
•Subtitle Display:Press to turn subtitles on/off.
•Subtitle Language:Press to select in which language you would like
the subtitles to appear.
•Aspect Ratio:Press to select from wide, full, normal and cinema
display.
•Angle Mark Notification:Some DVD discs may have more viewing
angles from which to select. Once you have made your selection, press
ENTER to confirm. This is disc dependent feature.
Note:Some of the above settings are DVD dependent and
availability/operation will vary among DVDs.
Dolby
noise reduction is manufactured under license from Dolby

Laboratories Licensing Corporation. “Dolby
” and the double-D symbol
are registered trademarks of Dolby
Laboratories Licensing Corporation.
During DVD play, you can also
touch the screen to access the
‘virtual remote’ which will allow you
to ‘Move controls’ on the screen as
well as use the cursor controls,
‘Enter’ and ‘Return’ to navigate and
make selections within the menus.
Jukebox
Your mobile media system has a Jukebox which allows you to save
desired tracks or CDs to the hard drive for later access. The hard drive
can store up to 10 GB* (164 hours; approximately 2,472 tracks) of
music. The system contains a Gracenote
media database that allows for
Entertainment Systems
46
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

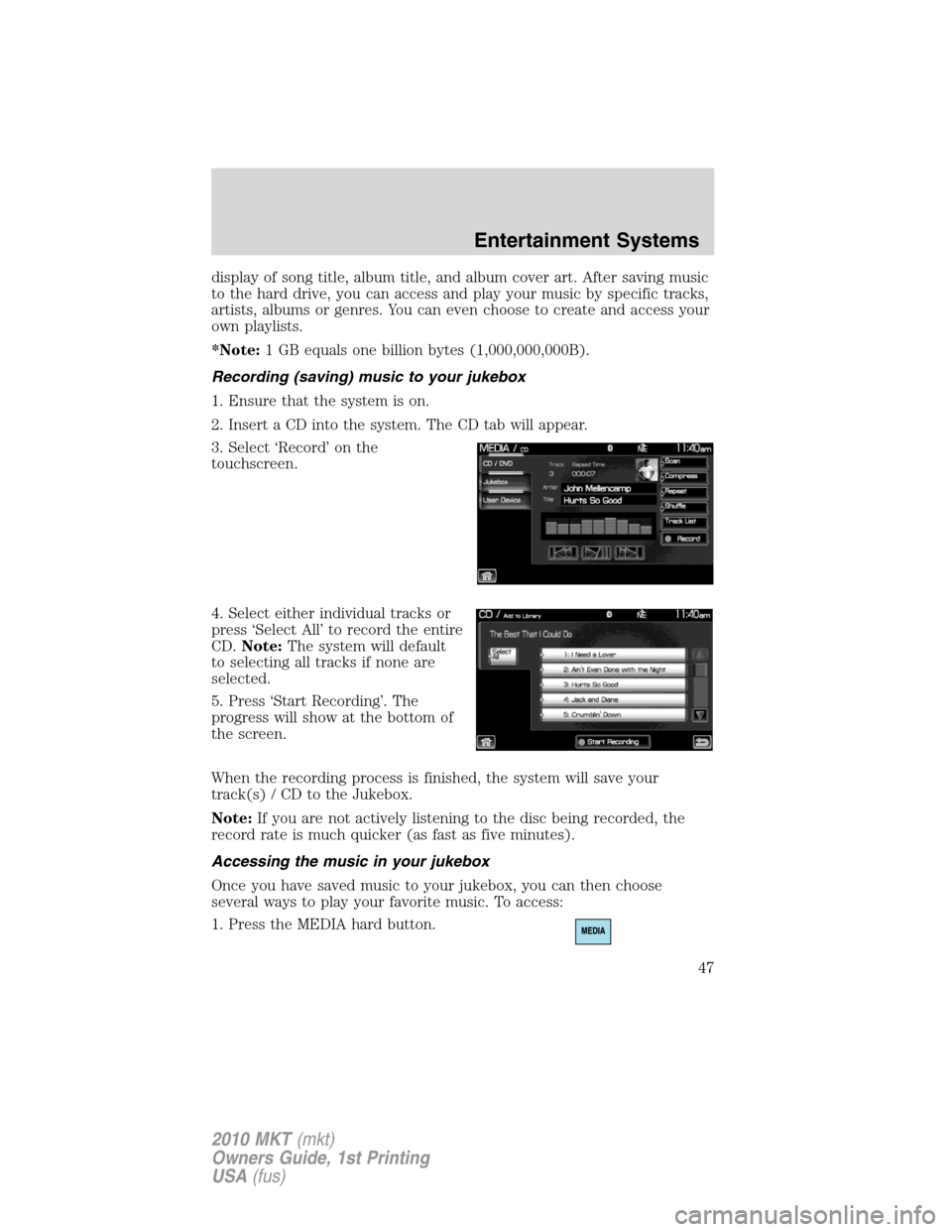

display of song title, album title, and album cover art. After saving music
to the hard drive, you can access and play your music by specific tracks,
artists, albums or genres. You can even choose to create and access your
own playlists.
*Note:1 GB equals one billion bytes (1,000,000,000B).
Recording (saving) music to your jukebox
1. Ensure that the system is on.
2. Insert a CD into the system. The CD tab will appear.
3. Select ‘Record’ on the
touchscreen.
4. Select either individual tracks or
press ‘Select All’ to record the entire
CD.Note:The system will default
to selecting all tracks if none are
selected.
5. Press ‘Start Recording’. The
progress will show at the bottom of
the screen.
When the recording process is finished, the system will save your
track(s) / CD to the Jukebox.
Note:If you are not actively listening to the disc being recorded, the
record rate is much quicker (as fast as five minutes).
Accessing the music in your jukebox
Once you have saved music to your jukebox, you can then choose
several ways to play your favorite music. To access:
1. Press the MEDIA hard button.
Entertainment Systems
47
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

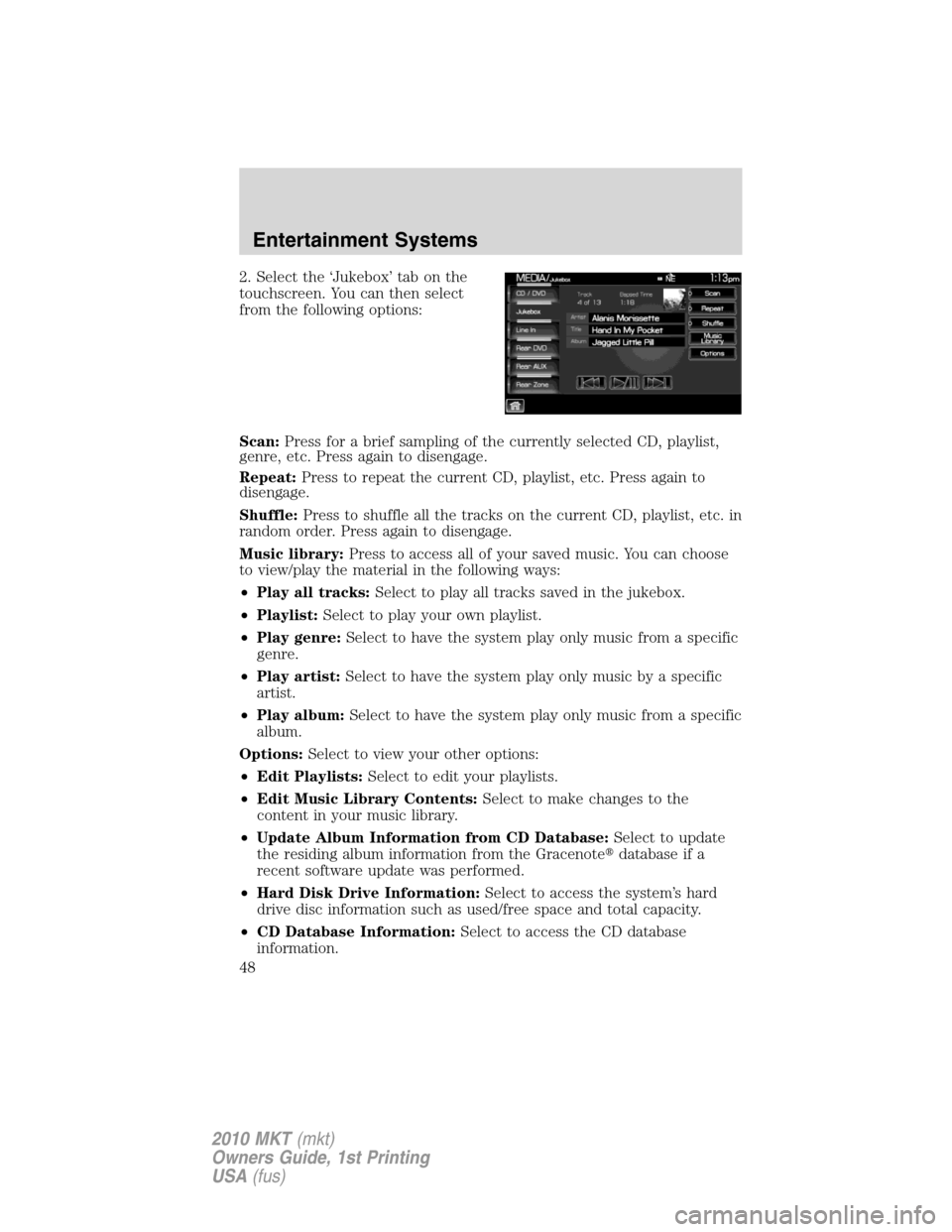

2. Select the ‘Jukebox’ tab on the
touchscreen. You can then select
from the following options:
Scan:Press for a brief sampling of the currently selected CD, playlist,
genre, etc. Press again to disengage.
Repeat:Press to repeat the current CD, playlist, etc. Press again to
disengage.
Shuffle:Press to shuffle all the tracks on the current CD, playlist, etc. in
random order. Press again to disengage.
Music library:Press to access all of your saved music. You can choose
to view/play the material in the following ways:
•Play all tracks:Select to play all tracks saved in the jukebox.
•Playlist:Select to play your own playlist.
•Play genre:Select to have the system play only music from a specific
genre.
•Play artist:Select to have the system play only music by a specific
artist.
•Play album:Select to have the system play only music from a specific
album.
Options:Select to view your other options:
•Edit Playlists:Select to edit your playlists.
•Edit Music Library Contents:Select to make changes to the
content in your music library.
•Update Album Information from CD Database:Select to update
the residing album information from the Gracenote
database if a
recent software update was performed.
•Hard Disk Drive Information:Select to access the system’s hard
drive disc information such as used/free space and total capacity.
•CD Database Information:Select to access the CD database
information.
Entertainment Systems
48
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

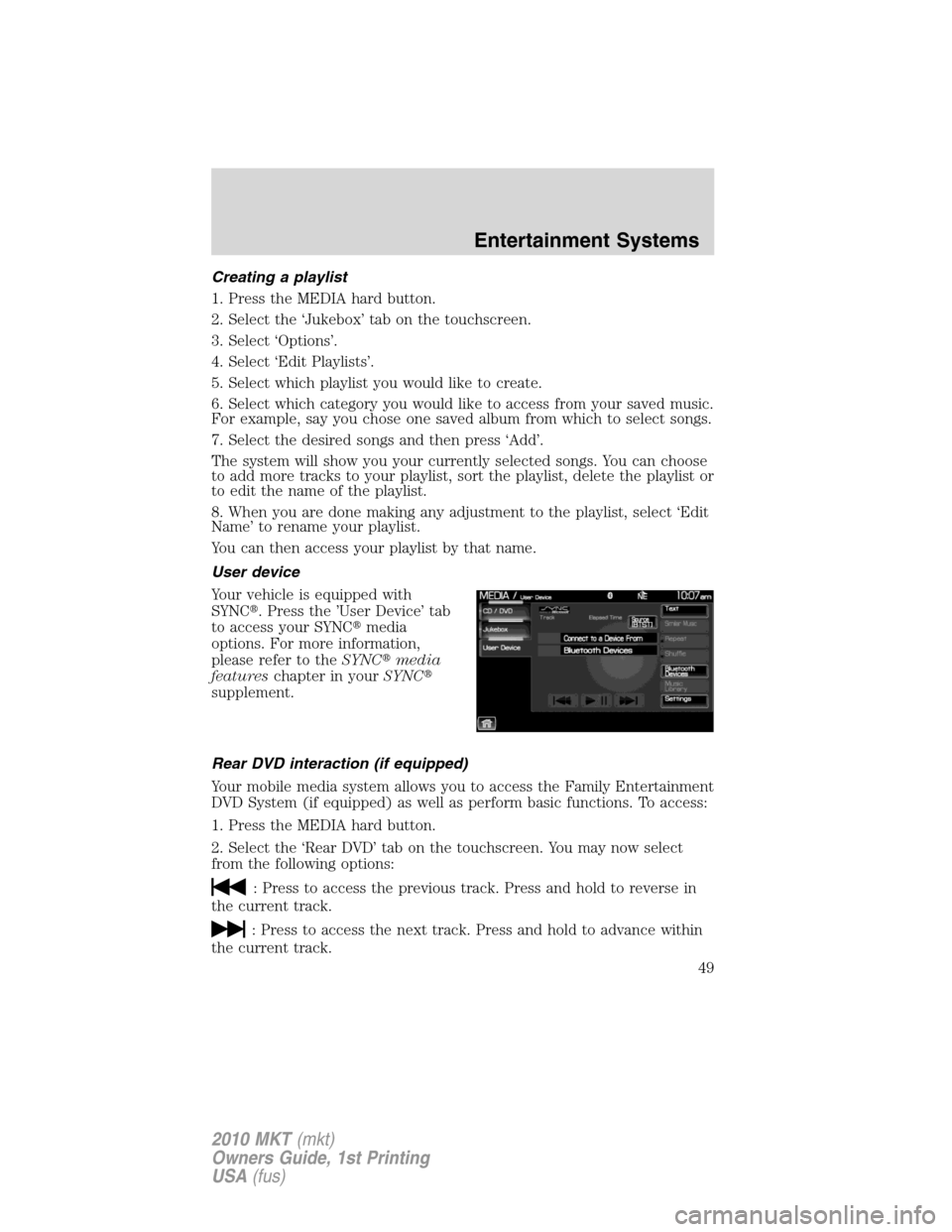

Creating a playlist
1. Press the MEDIA hard button.
2. Select the ‘Jukebox’ tab on the touchscreen.
3. Select ‘Options’.
4. Select ‘Edit Playlists’.
5. Select which playlist you would like to create.
6. Select which category you would like to access from your saved music.
For example, say you chose one saved album from which to select songs.
7. Select the desired songs and then press ‘Add’.
The system will show you your currently selected songs. You can choose
to add more tracks to your playlist, sort the playlist, delete the playlist or
to edit the name of the playlist.
8. When you are done making any adjustment to the playlist, select ‘Edit
Name’ to rename your playlist.
You can then access your playlist by that name.
User device
Your vehicle is equipped with
SYNC
. Press the ’User Device’ tab
to access your SYNC
media
options. For more information,
please refer to theSYNC
media
featureschapter in yourSYNC

supplement.
Rear DVD interaction (if equipped)
Your mobile media system allows you to access the Family Entertainment
DVD System (if equipped) as well as perform basic functions. To access:
1. Press the MEDIA hard button.
2. Select the ‘Rear DVD’ tab on the touchscreen. You may now select
from the following options:
: Press to access the previous track. Press and hold to reverse in
the current track.
: Press to access the next track. Press and hold to advance within
the current track.
Entertainment Systems
49
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

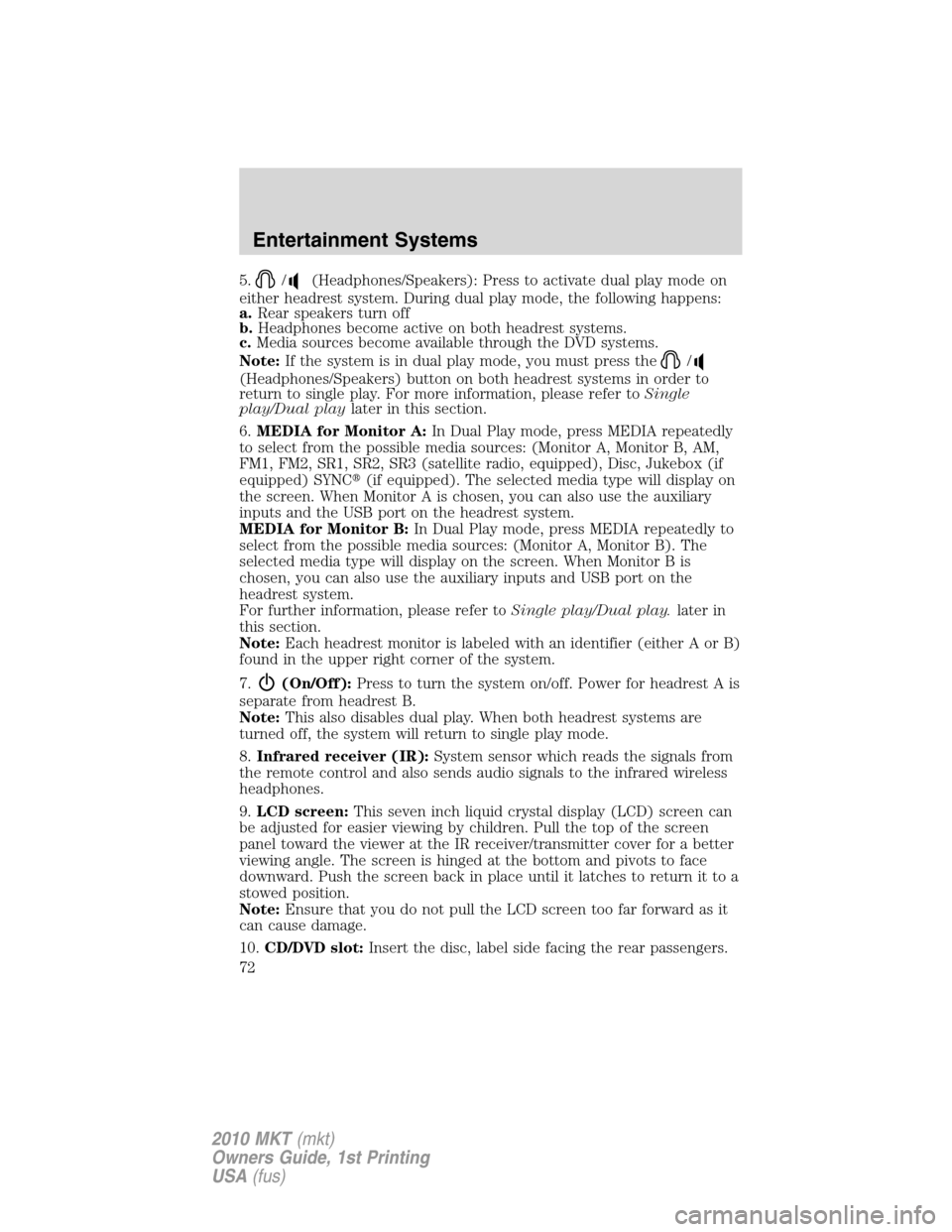

5./(Headphones/Speakers): Press to activate dual play mode on
either headrest system. During dual play mode, the following happens:
a.Rear speakers turn off
b.Headphones become active on both headrest systems.
c.Media sources become available through the DVD systems.
Note:If the system is in dual play mode, you must press the
/
(Headphones/Speakers) button on both headrest systems in order to
return to single play. For more information, please refer toSingle
play/Dual playlater in this section.
6.MEDIA for Monitor A:In Dual Play mode, press MEDIA repeatedly
to select from the possible media sources: (Monitor A, Monitor B, AM,
FM1, FM2, SR1, SR2, SR3 (satellite radio, equipped), Disc, Jukebox (if
equipped) SYNC
(if equipped). The selected media type will display on
the screen. When Monitor A is chosen, you can also use the auxiliary
inputs and the USB port on the headrest system.
MEDIA for Monitor B:In Dual Play mode, press MEDIA repeatedly to
select from the possible media sources: (Monitor A, Monitor B). The
selected media type will display on the screen. When Monitor B is
chosen, you can also use the auxiliary inputs and USB port on the
headrest system.
For further information, please refer toSingle play/Dual play.later in
this section.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
7.
(On/Off):Press to turn the system on/off. Power for headrest A is
separate from headrest B.
Note:This also disables dual play. When both headrest systems are
turned off, the system will return to single play mode.
8.Infrared receiver (IR):System sensor which reads the signals from
the remote control and also sends audio signals to the infrared wireless
headphones.
9.LCD screen:This seven inch liquid crystal display (LCD) screen can
be adjusted for easier viewing by children. Pull the top of the screen
panel toward the viewer at the IR receiver/transmitter cover for a better
viewing angle. The screen is hinged at the bottom and pivots to face
downward. Push the screen back in place until it latches to return it to a
stowed position.
Note:Ensure that you do not pull the LCD screen too far forward as it
can cause damage.
10.CD/DVD slot:Insert the disc, label side facing the rear passengers.
Entertainment Systems
72
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
