battery replacement LINCOLN MKT 2010 Owners Manual

Battery replacement
Batteries are supplied with the
remote control unit. Since all
batteries have a limited shelf life,
replace them when the unit fails to
control the DVD player.
Remove the screw and unlatch the battery cover to access the batteries.
The remote control unit uses two AAA batteries which are supplied with
the unit.
Headphones
Wireless headphones
WARNING:The driver should never use the headphones while
driving the vehicle. Using headphones may prevent the driver
from hearing audible warnings such as horns or emergency sirens,
which could result in a crash causing serious injury. Give your full
attention to driving and to the road.
Your FES system is equipped with two sets of battery powered, infrared
wireless headphones. Two AAA batteries are needed to operate the
headphones. (Batteries are included.)
Entertainment Systems
76
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

2. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
3. Insert the new battery. Refer to
the instructions inside the IA key
for the correct orientation of the
battery. Press the battery down to
ensure that the battery is fully
seated in the battery housing cavity.
4. Snap the battery cover back onto the transmitter and install the
backup key.
Note:Replacement of the battery willnotcause the IA key to become
deprogrammed from your vehicle. They should operate normally after
battery replacement.
Replacing lost Intelligent Access Keys (IA keys)
If you would like to have your IA keys reprogrammed because you lost
one, or would like to buy additional transmitters you can either
reprogram them yourself, or takeall transmittersto your authorized
dealer for reprogramming.
How to reprogram your Intelligent Access Keys (IA keys)
To program a new IA keys yourself, refer toSecuriLock
passive
anti-theftsection of this chapter.Note:At least two already
programmed transmitters are required to perform this procedure
yourself.
Illuminated entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the IA key or the keyless entry keypad is used to unlock
the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is turned on, or
•the
control on the transmitter is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•if equipped with IA key, the vehicle is locked using the key in the
driver door cylinder, or
•after 25 seconds of illumination.
Locks and Security
161
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
Roadside Emergencies
325
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

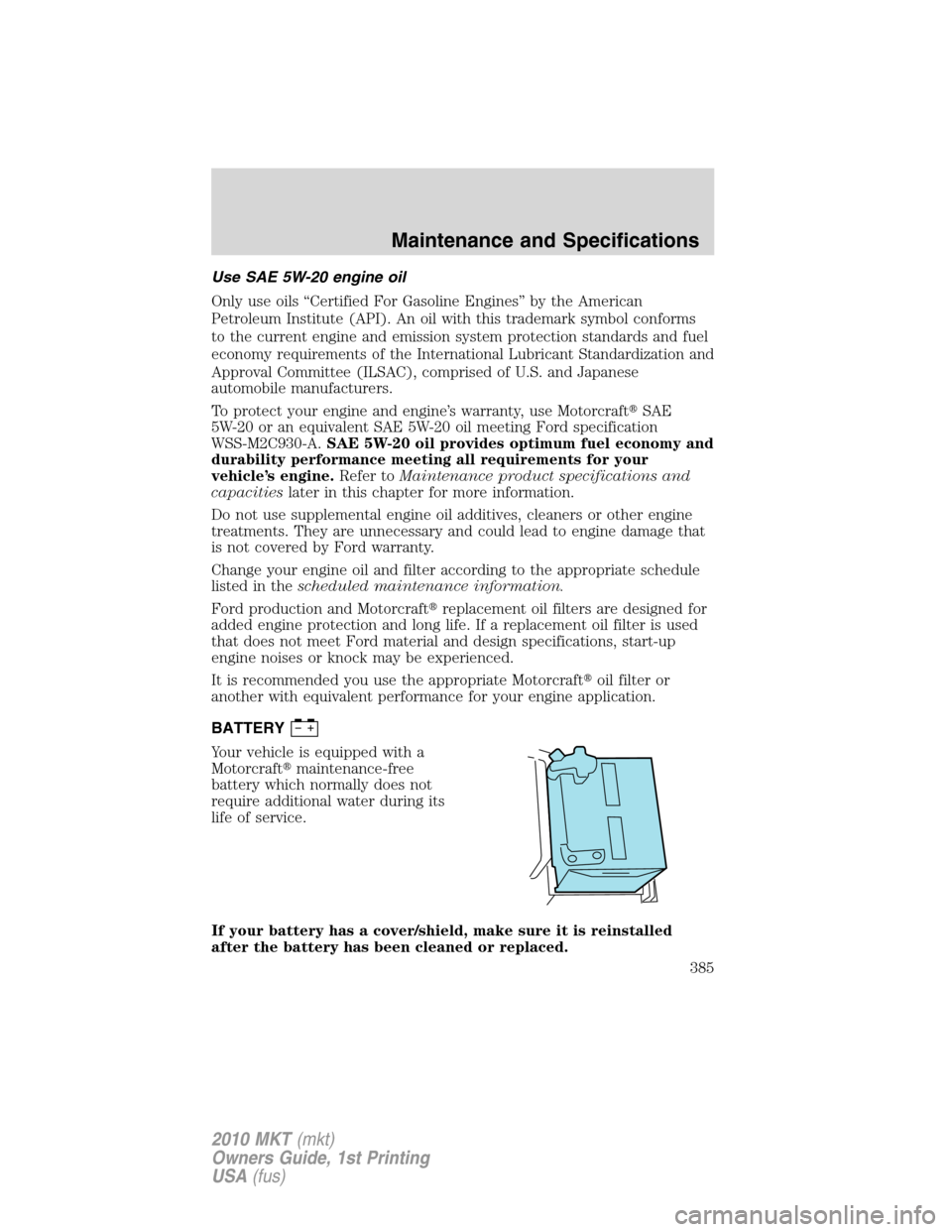

Use SAE 5W-20 engine oil
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use Motorcraft
SAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this chapter for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraft
replacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft
oil filter or
another with equivalent performance for your engine application.
BATTERY
Your vehicle is equipped with a
Motorcraft
maintenance-free
battery which normally does not
require additional water during its
life of service.
If your battery has a cover/shield, make sure it is reinstalled
after the battery has been cleaned or replaced.
Maintenance and Specifications
385
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

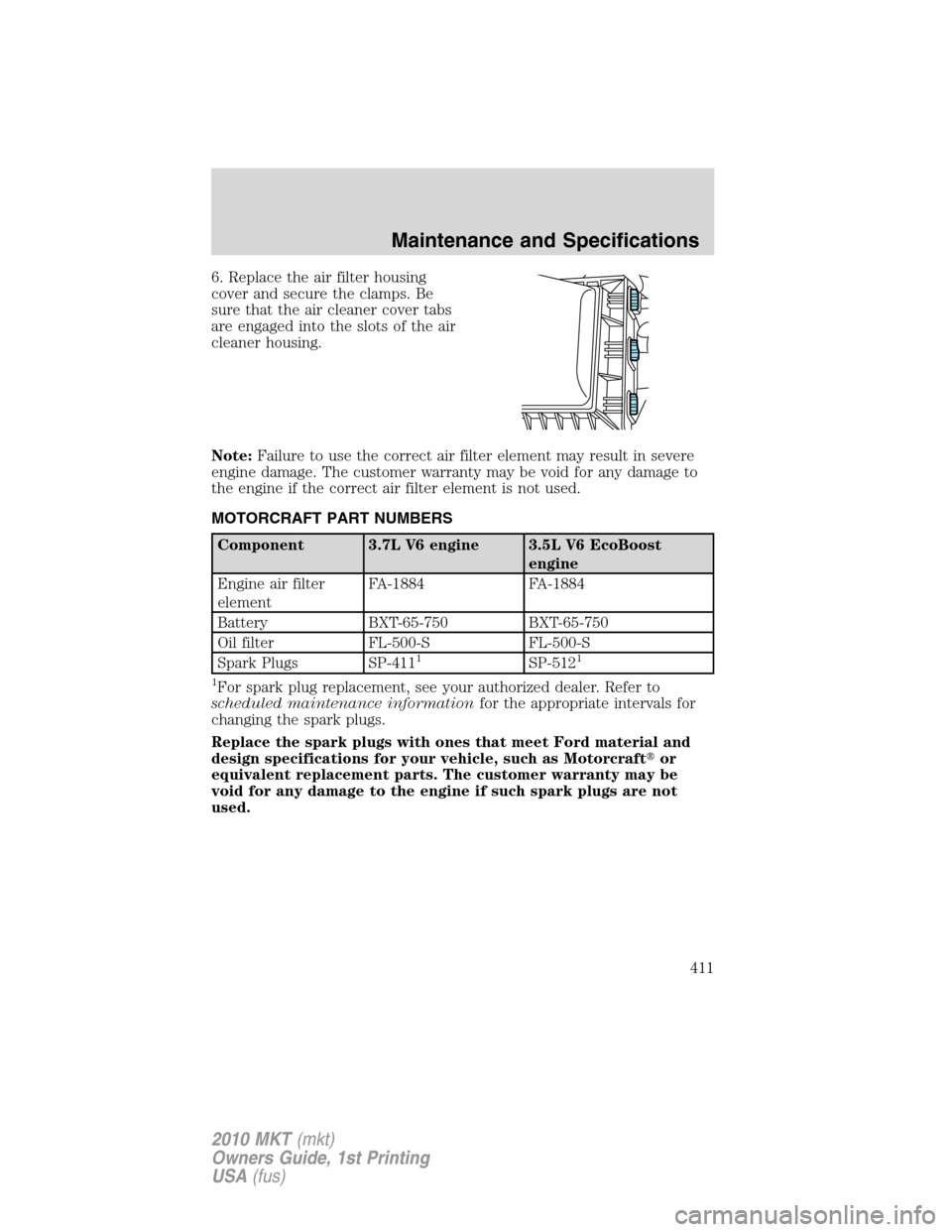

6. Replace the air filter housing
cover and secure the clamps. Be
sure that the air cleaner cover tabs
are engaged into the slots of the air
cleaner housing.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
MOTORCRAFT PART NUMBERS
Component 3.7L V6 engine 3.5L V6 EcoBoost
engine
Engine air filter
elementFA-1884 FA-1884
Battery BXT-65-750 BXT-65-750
Oil filter FL-500-S FL-500-S
Spark Plugs SP-411
1SP-5121
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft
or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
411
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

A
Accessing the help screen .........51
Accessing the music in your
jukebox ........................................47
Accessing your calendar ............51
Accessory delay ........................119
Active Park Assist .....................305
Adaptive Cruise Control ...........124
AdvanceTrac ..............................287
Air cleaner filter ...............409–411
Air conditioning ..........................89
Airbag supplemental restraint
system ........................211, 220, 222
and child safety seats ............213
description ..............211, 220, 222
disposal ....................................225
driver airbag ............213, 220, 223
indicator light .................219, 225
operation .................213, 220, 223
passenger airbag .....213, 220, 223
side airbag ...............................220
All Wheel Drive (AWD),
driving off road .........................318
Ambient mood/lighting .............105
AM/FM .........................................41
Antifreeze
(see Engine coolant) ................388
Anti-lock brake system
(see Brakes) ..............................286
Anti-theft system ..............165, 173
arming the system ..................174
disarming a triggered
system .....................................175
triggering .................................175
Audio system (see Radio) .........32Automatic transaxle
fluid, refill capacities ..............412
fluid, specification ..................412
Automatic transmission
driving an automatic
overdrive .................................296
fluid, adding ............................408
fluid, checking ........................408
Selectshift (SST) ....................298
Auxiliary input jack (Line in) ....59
B
Battery .......................................385
acid, treating emergencies .....385
jumping a disabled battery ....353
maintenance-free ....................385
replacement, specifications ...411
servicing ..................................385
Belt-Minder
.............................207
Blind Spot Information
System .......................................312
Blind Spot Spotter Mirror ........310
Booster seats .............................240
Brakes ........................................285
anti-lock ...................................286
anti-lock brake system (ABS)
warning light ...........................286
fluid, checking and adding ....407
fluid, refill capacities ..............412
fluid, specifications .................412
lubricant specifications ..........412
parking ....................................286
shift interlock ..........................295
Bulbs ..........................................105
C
Capacities for refilling fluids ....412
Index
424
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
