LINCOLN MKT 2010 SYNC Supplement Manual

Radio controlSteering wheel
controlFunction
MENU N/A Press while in an active call to
access SYNC
active call options.
Refer toActive call menu options
in theSYNC
phone features
chapter.
Press MENU while in media to
access SYNC
MEDIA MENU. Refer
to theSYNC
media features
chapter for further information.
AUX N/A Press repeatedly to cycle through
available auxiliary sources. For
further information, refer toUsing
your media menuin theSYNC

media featureschapter.
TEXT N/A When the > indicator appears, press
to advance the text in the radio
display. Press repeatedly to view
additional phone contact information
or media information.
REV, REW,
N/A Press and hold to reverse within a
track.
FF, FWD,
N/A Press and hold to advance within a
track .
SHUFFLE (if
available)N/A Press and release to shuffle current
music content.
/
(Play/Pause)N/A Press to play / pause the currently
playing music.
SYNCsystem controls
10SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

QUICK START — HOW TO GET GOING
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The drivers primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Pairing your phone through your system
Note:This is a speed dependent feature and will not work if your
vehicle is traveling at speeds greater than 3 mph (5 km/h).
The first thing you will need to do to get going is to pair your
Bluetooth
enabled cellular phone with SYNC
.
1. Press the PHONE hard button.
2. The screen will read NO PHONE
CONNECTED. Press the ‘Settings’
tab on the touchscreen.
3. Press ‘Add’.
4. IfBluetoothis on, SYNC
will
begin the pairing process between
yourBluetoothenabled phone or
device and SYNC
.
Note:Please refer to your phone’s user guide for specific pairing
instructions.
5. SYNC
will give you a six digit Pass-key (PIN) that you will need to
enter into your phone or device when prompted.
When the pairing is complete, PAIRING SUCCESSFUL and thenDEVICE
NAMECONNECTED will appear on the screen.
SYNCphone features (if equipped)
11SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

6. Press YES or NO when SYNC
prompts you to set the phone as the
FAVORITE PHONE.
As a ‘favorite phone’, SYNC
will search for this phone upon each
connection cycle. If a phone is not set as a primary, it will still be stored
in the device listing to enable you to reconnect to it at any time.
7. If supported by yourBluetoothenabled cellular phone, SYNC
will
prompt you to download your phone book/call history. Press YES or NO.
Note:Selecting YES will tell SYNC
to re-download the phone book and
call history information from yourBluetoothenabled cellular phone (if
supported) EVERY time your phone reconnects to SYNC
. If you have
made any changes to your phone book/call history in SYNC
, they will be
overwritten with the new download.
SYNC
will confirm when the phone book and call history are
downloaded.
Making a call using your system
Making a phone call using SYNC
is easy.
Press PHONE and select from one of the following:
•Use the keypad on the ‘Phone’
tab to manually enter a phone
number and press SEND.
OR
•Select the ‘Phonebook’ tab (if the
desired number is saved in the
downloaded phone book
information).
•Use the quick sort buttons to
browse to the desired contact.
•Select the desired contact and
press
‘Dial’.
Note:This is a phone dependent feature.
SYNCphone features (if equipped)
12SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

OR
•Select the ‘Call History’ tab (if the
desired number is saved in the
downloaded call history
information).
•Select the desired contact and
press
‘Dial’.
Note:This is a phone dependent feature.
Making a call using voice commands
1. Press
or VOICE. A tone will sound and the system will say “Main
menu”.
2. Say “Phone”.
3. When prompted, say, “Call or say “Dial”
and the desired number.
To erase the last spoken digit,say “Delete”.
To erase all spoken digits,say “Clear”.
4. Once the desired number/contact is on the screen, either say “Call” or
“Dial”. SYNC
will attempt to connect to the desired number.
Note:Once the call is placed, it will be logged into your outgoing call
history folder.
USING PHONE FEATURES WITH YOUR MOBILE MEDIA SYSTEM
While SYNC
has a variety of features, many of them are dependent on
your phone’s functionality. To ensure that you have a compatible phone
or to check which features are compatible with SYNC
, please check
your phone’s user guide and also visit www.SyncMyRide.com.
Hands-free calling is one of the main features of SYNC
. SYNC
works in
conjunction with yourBluetoothenabled cellular phone and your system
to offer many options. To access:
1. Press the PHONE hard button.
SYNCphone features (if equipped)
13SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

2. On the phone screen you can
choose from:
•SEND:Press to receive an
incoming call, make an outgoing
call, or to redial.
•END:Press to end or ignore a
call.
•PRIVACY MODE:Press to
activate privacy mode. During an
active phone call with SYNC
, you can choose to transfer the call to
yourBluetoothenabled cellular phone for a private conversation.
Note:This is a phone dependent feature.
•HOLD CALL:Press to put an active call on hold to have a private
conversation within your vehicle cabin. Press again to take off hold.
Note:This is a phone dependent feature.
•JOIN CALLS:Press to join two active calls.
Note:This is a phone dependent feature.
•Digit entry:Press the numbers to manually enter a phone number to
call.
•Signal/battery strength and roaming status
Note:This is a phone dependent feature.
•
: Press to see additional numbers or information (if available).
•
: ThisBluetoothicon illuminates when aBluetoothenabled phone
is connected to SYNC
.
SAVING A CONTACT OR A PHONE NUMBER AS A QUICK DIAL
After you have connected yourBluetoothenabled cellular phone and
downloaded your phone book/call history, SYNC
allows you to save 10
frequently called numbers for quick access.
1. Press the PHONE hard button on the mobile media system.
SYNCphone features (if equipped)
14SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

2. Select the ‘Phone Book’ or ‘Call
History’ tab.
3. Select the phone number or the
contact you wish to save to the
Quick Dial screen.
4. Press ‘Save’.
5. Select the Quick Dial location in
which you wish to store the contact.
6. Press ‘Set/Replace’ at the bottom
of the screen to save the contact’s
number to the chosen Quick Dial
location.
The system will confirm when the
number of the contact is
successfully stored.
USING THE PHONE BOOK FEATURE
Note:This is a speed dependent feature. The vehicle must be moving
less than 3 mph (5 km/h) to use this feature.
SYNC
enables you to view the contacts downloaded from your
Bluetoothenabled cellular phone. To access:
1. Press the PHONE hard button.
2. Select the ‘Phonebook’ tab to
access the phone numbers of the
contacts downloaded from your
Bluetoothenabled cellular phone.
Note:SYNC
will categorize your
contacts alphabetically in the Quick
Sort buttons on the right of the
screen. The buttons will be
highlighted if there are contacts
stored in that category. Press the
highlighted category to access those listings.
For your safety, while you are driving, SYNC
limits the number of
viewable contacts. However, all contacts are always available through
voice commands.
SYNCphone features (if equipped)
15SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

Note:If supported by your phone, SYNC
will assign location icons for
the numbers (i.e., cellular number, home number, work number).
USING YOUR CALL HISTORY
If yourBluetoothenabled cellular phone supports phone book/call
history downloads viaBluetooth,SYNC
will provide these numbers
sorted in the CALL HISTORY tab. If yourBluetoothenabled cellular
phone does NOT support phone book/call history downloads via
Bluetooth,then SYNC
will log all calls made through SYNC
in the
CALL HISTORY tab.
1. Press the PHONE hard button.
2. Select the ‘Call History’ tab which
allows you to have quick access to
recent call activity.
Press OUTGOING to view your outgoing calls.
Press INCOMING to view your incoming calls.
Press MISSED to view your missed calls.
SYSTEM SETTINGS
SYNC
allows you to connect, add, delete or set specified phones as a
favorite as well as change advanced settings.
To access:
1. Press the PHONE hard button.
SYNCphone features (if equipped)
16SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

2. Select the ‘Settings’ tab and then
choose the desired device.
You can now choose from the
following options:
Connect
Add
Delete
Set as Fav (Favorite)
Advanced
Please refer to the following sections for more information on these
features.
Adding a new phone to SYNC
Note:This is a speed dependent feature. For your safety, this procedure
cannot be completed if the vehicle is traveling at speeds faster than
3 mph (5 km/h).
Note:SYNC
can store up to 12 previously paired phones.
This feature allows you to add (pair) a newBluetoothenabled phone to
SYNC
. To access:
1. Press the PHONE hard button.
2. Select the ‘Settings’ tab on the
touchscreen.
3. Select ‘Add’.
4. When prompted on your phone’s display, enter the PIN provided by
SYNC
.
Depending on your phone’s capability, you may be prompted with
additional options from your phone or SYNC
such as downloading the
phone book/call history and setting a favorite.
SYNCphone features (if equipped)
17SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

Connecting a previously paired phone to SYNC
1. Press the PHONE hard button.
2. Select the ‘Settings’ tab on the
touchscreen.
3. Select the desired device.
4. Select ‘Connect’.
SYNC
will confirm it is connecting
to the selected phone.
Note:When SYNC
connects the newly selected phone, it will
disconnect any previously connected phone.
Deleting a phone from SYNC
This feature allows you to delete a previously paired phone from SYNC
.
Note:Deleting your phone will remove all information relevant to that
phone such as phone book/call history, text messages, etc.
1. Press the PHONE hard button.
2. Select the ‘Settings’ tab on the
touchscreen.
3. Select the desired phone.
4. Press ‘Delete’. The system will
ask you to confirm.
Setting a phone as your favorite
SYNC
allows you to set a phone as your favorite. This will then be the
primary phone that SYNC
reconnects to after each ignition cycle. To
access:
1. Press the PHONE hard button.
SYNCphone features (if equipped)
18SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)

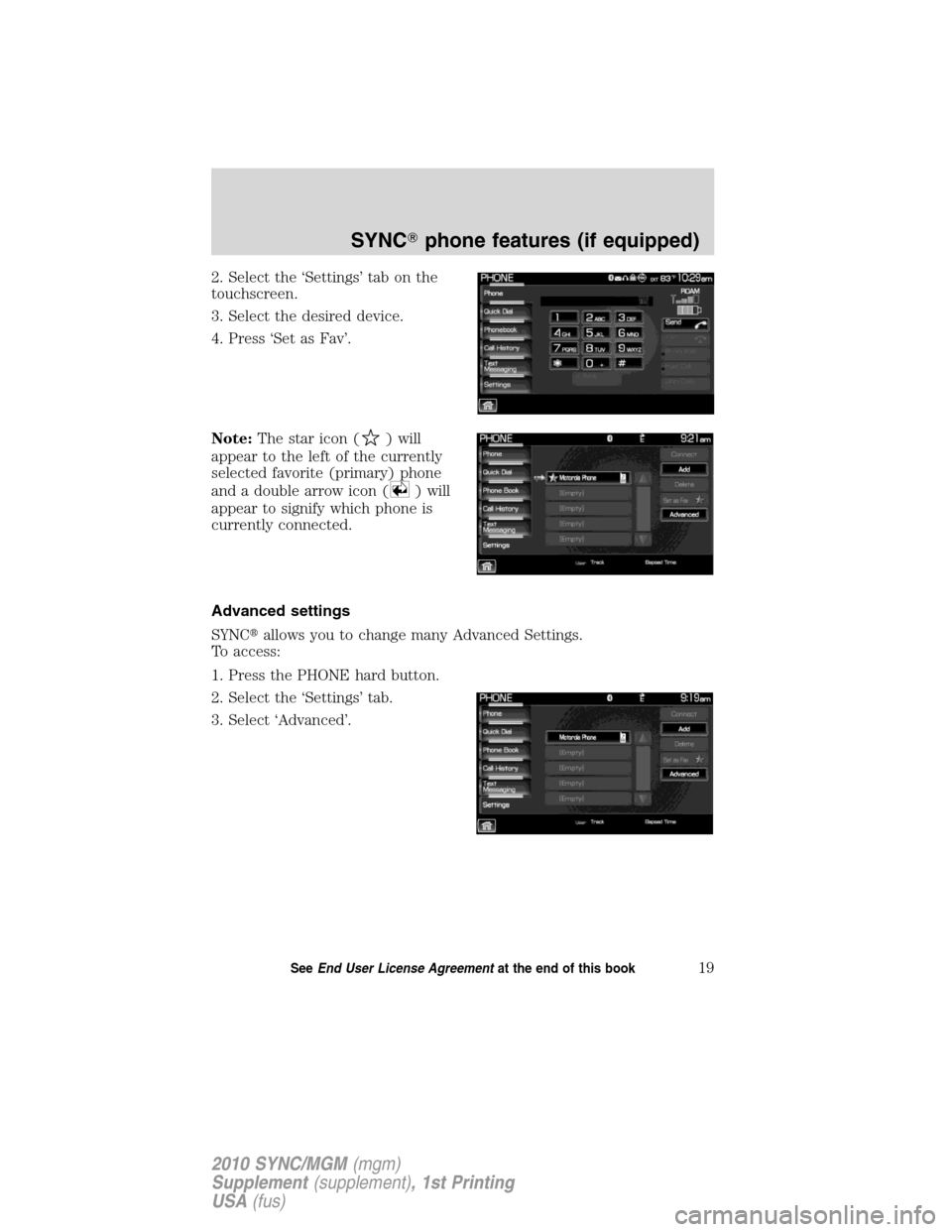

2. Select the ‘Settings’ tab on the
touchscreen.
3. Select the desired device.
4. Press ‘Set as Fav’.
Note:The star icon (
) will
appear to the left of the currently
selected favorite (primary) phone
and a double arrow icon (
) will
appear to signify which phone is
currently connected.
Advanced settings
SYNC
allows you to change many Advanced Settings.
To access:
1. Press the PHONE hard button.
2. Select the ‘Settings’ tab.
3. Select ‘Advanced’.
SYNCphone features (if equipped)
19SeeEnd User License Agreementat the end of this book
2010 SYNC/MGM(mgm)
Supplement(supplement), 1st Printing
USA(fus)
