•Touch-up raw or primed metal to prevent rust.
•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Re-wax as necessary when the vehicle is
washed. See theCleaningchapter for more information.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add MotorcraftGas Stabilizer or
equivalent meeting Ford material specification ESE-M99C112-A to the
vehicle fuel system whenever actual or expected storage periods exceed
30 days. Follow the instructions on the additive label. The vehicle should
then be operated at idle speed to circulate the additive throughout the
fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Maintenance and Specifications
411
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

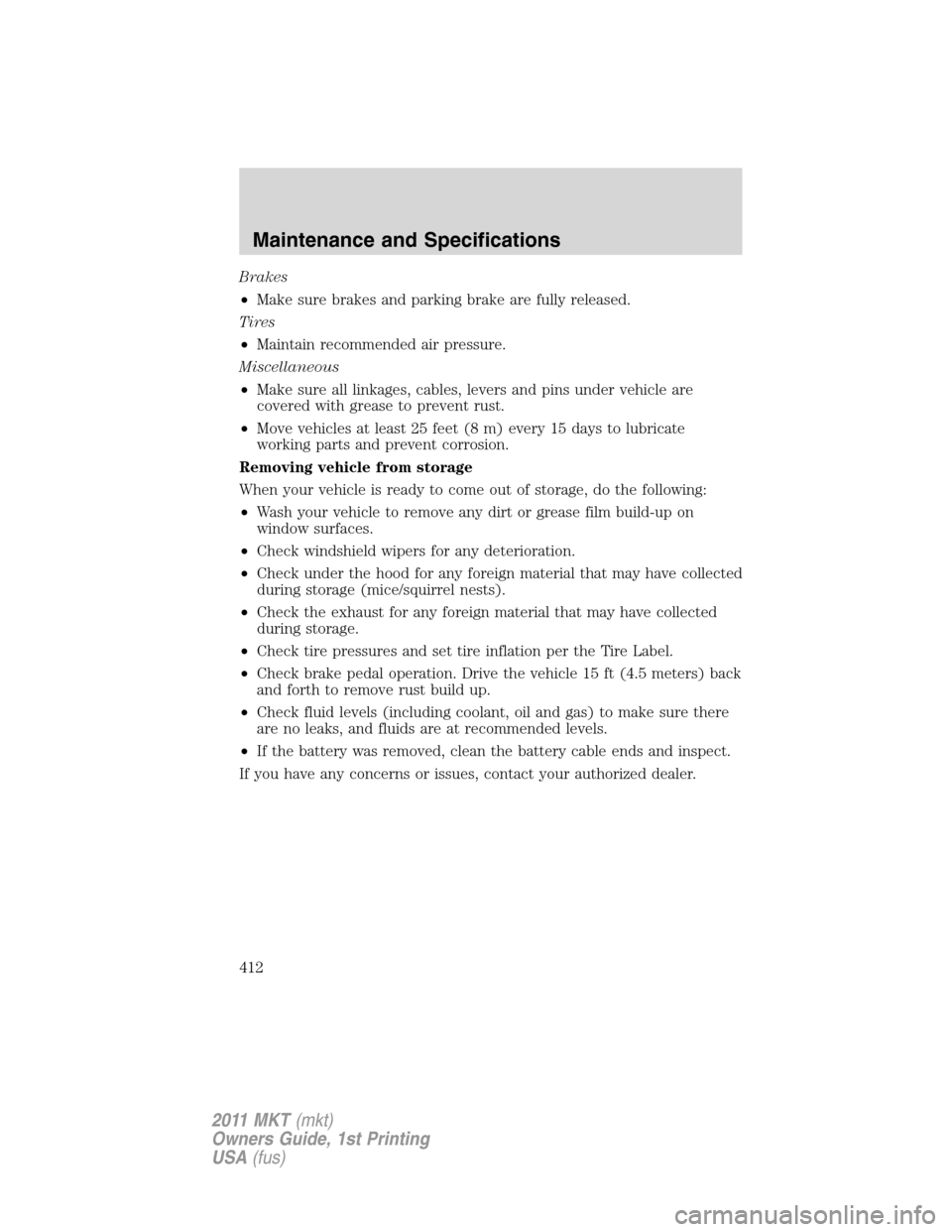

Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
Maintenance and Specifications
412
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component 3.7L V6 Engine 3.5L V6 EcoBoostâ„¢
Engine
Engine air filter
elementFA-1884 FA-1884
Battery BXT-65-750 BXT-65-750
Oil filter FL-500-S FL-500-S
Spark Plugs SP-411
1SP-512-A1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
413
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

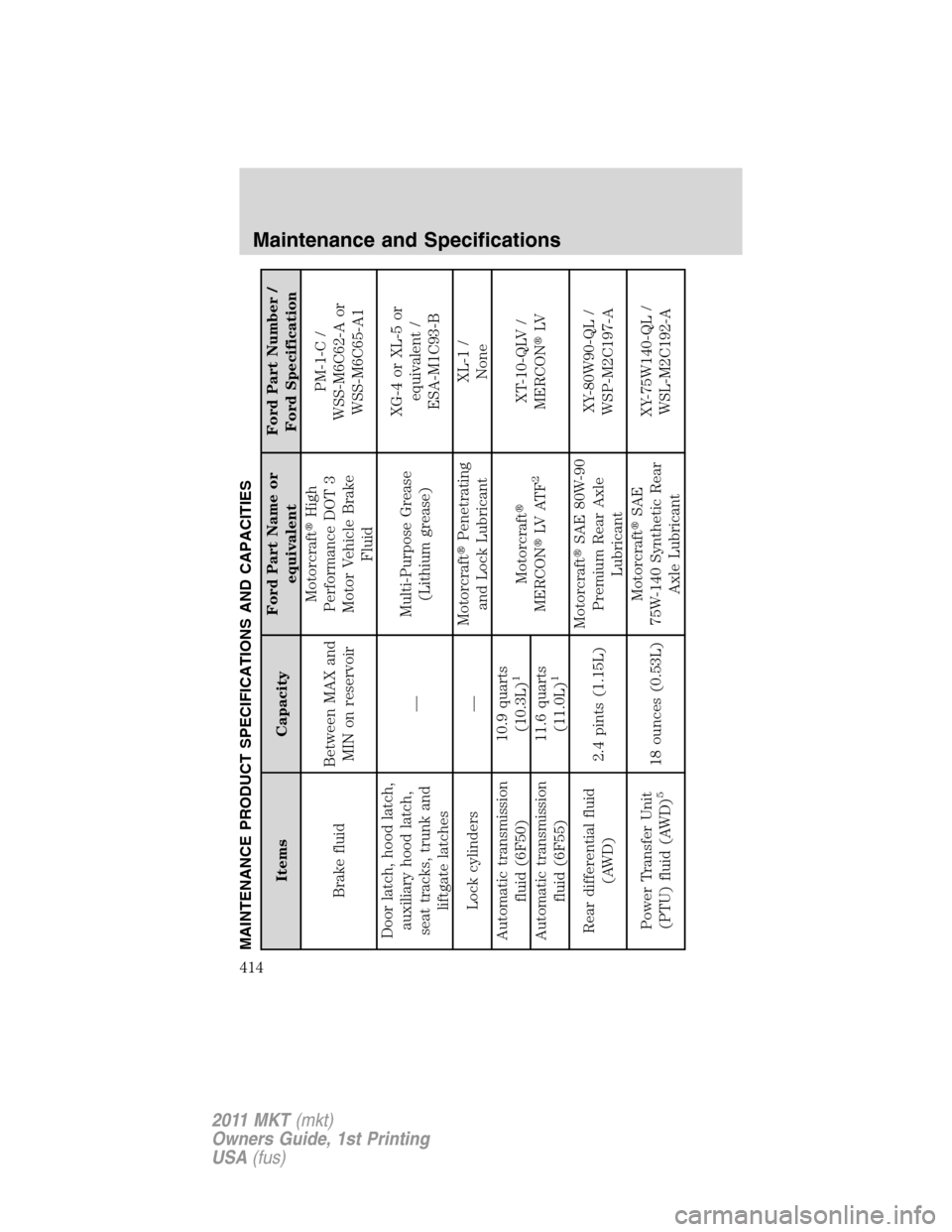

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidBetween MAX and
MIN on reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid (6F50)10.9 quarts
(10.3L)
1
Motorcraft
MERCONLV AT F
2
XT-10-QLV /
MERCONLV
Automatic transmission
fluid (6F55)11.6 quarts
(11.0L)
1
Rear differential fluid
(AWD)2.4 pints (1.15L)MotorcraftSAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
5
18 ounces (0.53L)MotorcraftSAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Maintenance and Specifications
414
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

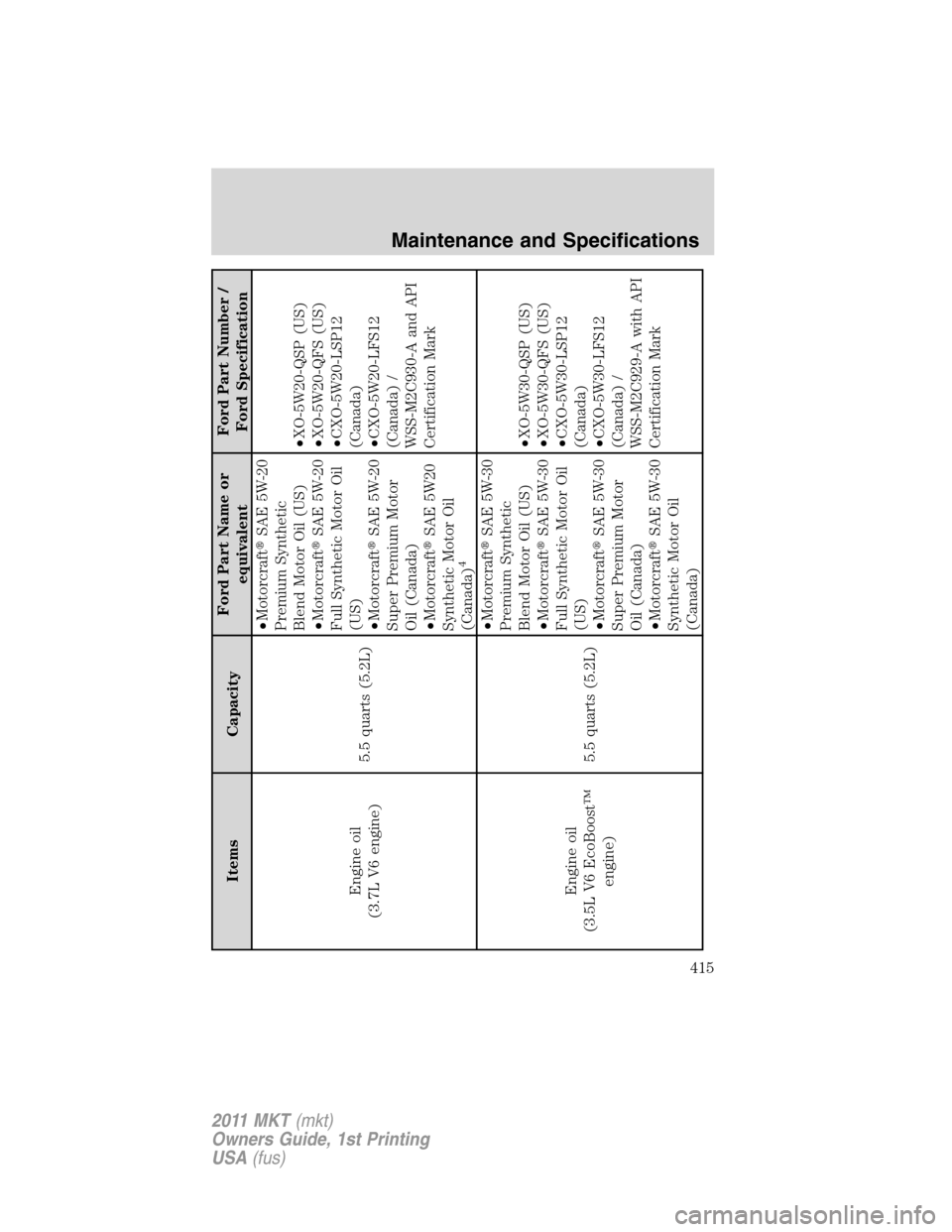

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil
(3.7L V6 engine)5.5 quarts (5.2L)•MotorcraftSAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W20
Synthetic Motor Oil
(Canada)
4
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine oil
(3.5L V6 EcoBoostâ„¢
engine)5.5 quarts (5.2L)•MotorcraftSAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-30
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-30
Super Premium Motor
Oil (Canada)
•MotorcraftSAE 5W-30
Synthetic Motor Oil
(Canada)•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12
(Canada)
•CXO-5W30-LFS12
(Canada) /
WSS-M2C929-A with API
Certification Mark
Maintenance and Specifications
415
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant13.2 quarts
(12.5L)
(3.7L engine)
6
MotorcraftSpecialty
Green Engine Coolant
3
VC-10-A2 (US)
CVC-10-A (Canada) /
WSS-M97B55-A
Power steering fluid
(except EcoBoostâ„¢
engine)Between MAX and
MIN on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Fuel tank18.6 gallons
(70.4L)——
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)MotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A (3.7L V6 engine) or WSS-M2C929-A (3.5L V6
EcoBoostâ„¢ engine) and the API Certification mark.5See your authorized dealer for fluid level checking or filling.63.5L EcoBoostâ„¢ engine coolant capacity- 13.7 quarts (13.0L)
Maintenance and Specifications
416
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

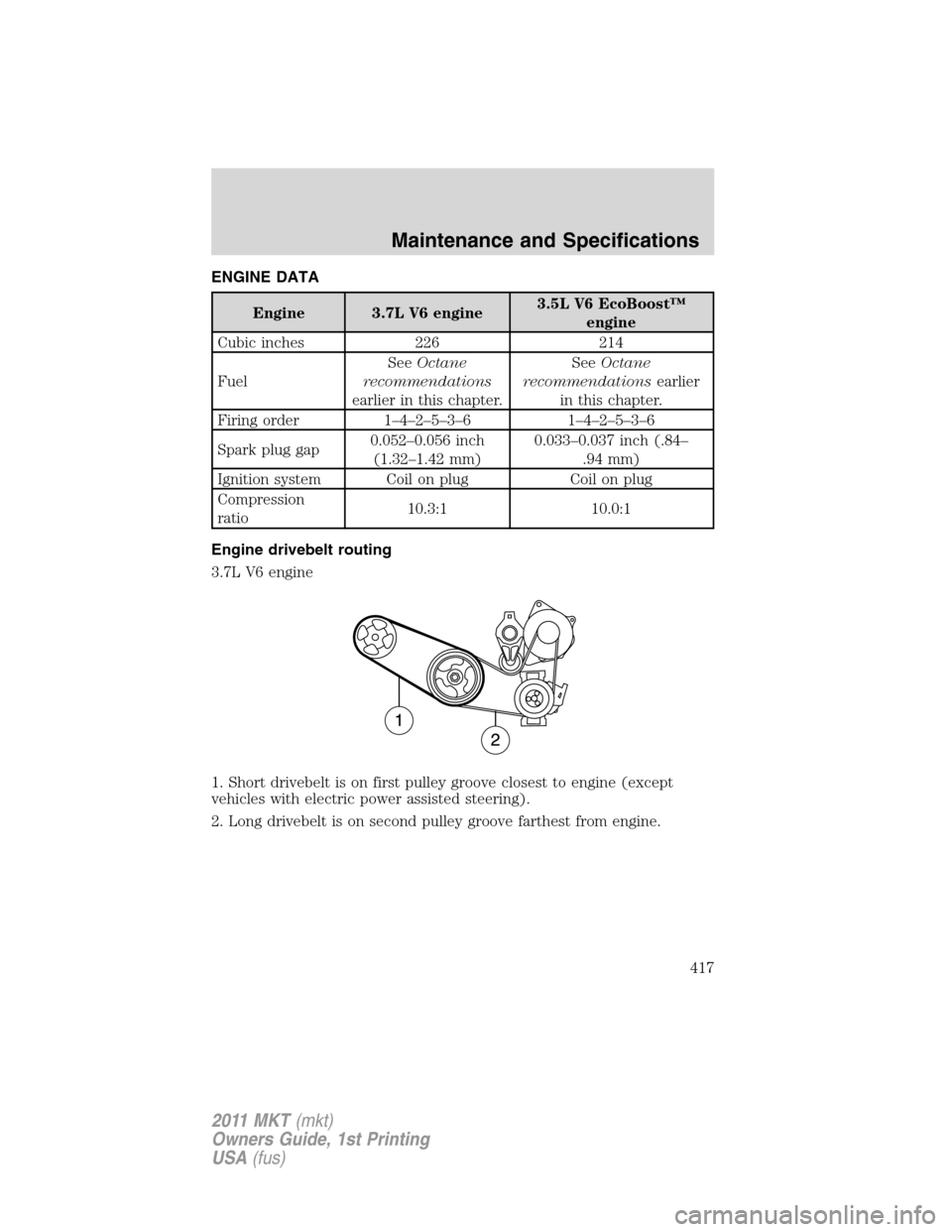

ENGINE DATA
Engine 3.7L V6 engine3.5L V6 EcoBoostâ„¢
engine
Cubic inches 226 214
FuelSeeOctane
recommendations
earlier in this chapter.SeeOctane
recommendationsearlier
in this chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Spark plug gap0.052–0.056 inch
(1.32–1.42 mm)0.033–0.037 inch (.84–
.94 mm)
Ignition system Coil on plug Coil on plug
Compression
ratio10.3:1 10.0:1
Engine drivebelt routing
3.7L V6 engine
1. Short drivebelt is on first pulley groove closest to engine (except
vehicles with electric power assisted steering).
2. Long drivebelt is on second pulley groove farthest from engine.
Maintenance and Specifications
417
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

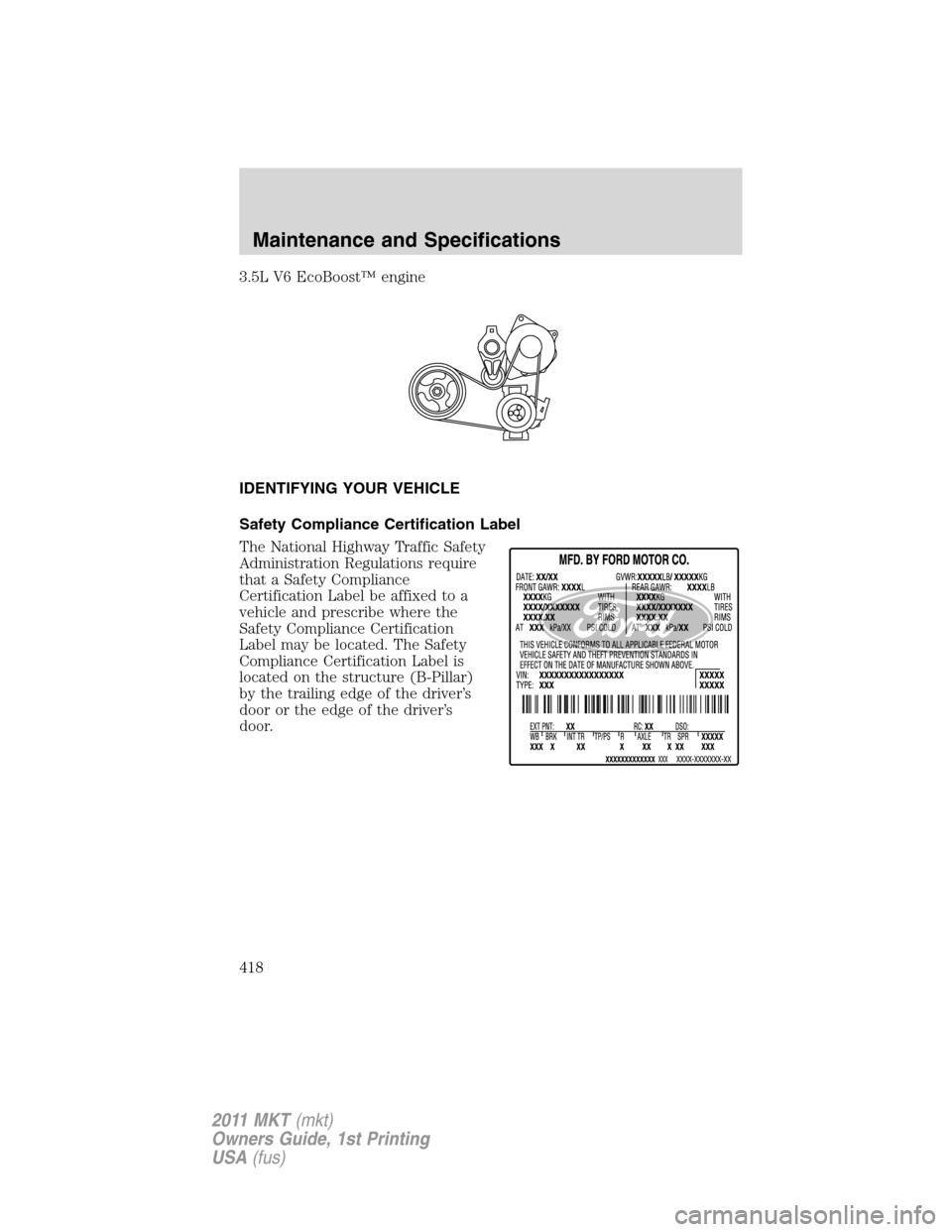

3.5L V6 EcoBoostâ„¢ engine
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
418
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
419
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

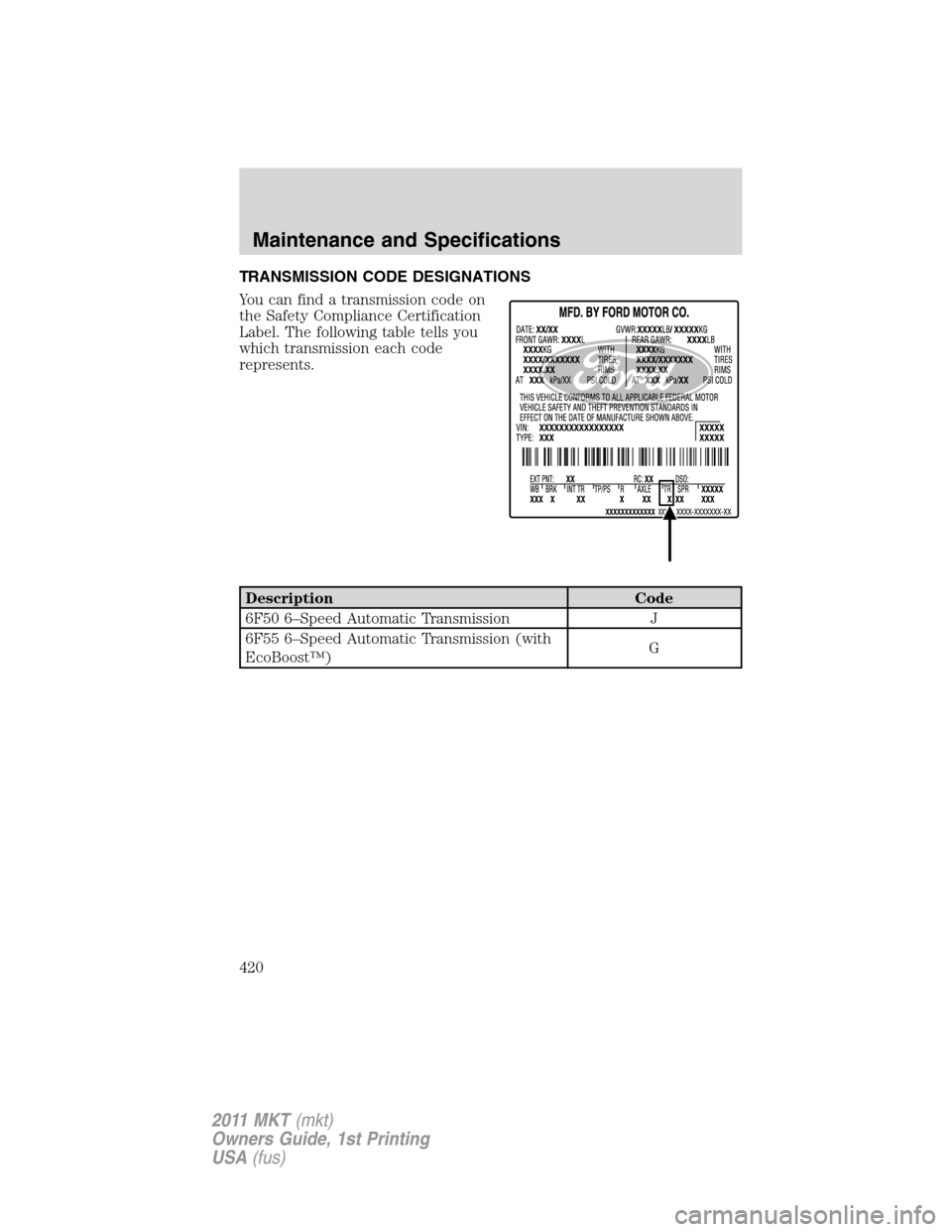

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6F50 6–Speed Automatic Transmission J
6F55 6–Speed Automatic Transmission (with
EcoBoostâ„¢)G
