sensor LINCOLN MKT 2011 Service Manual

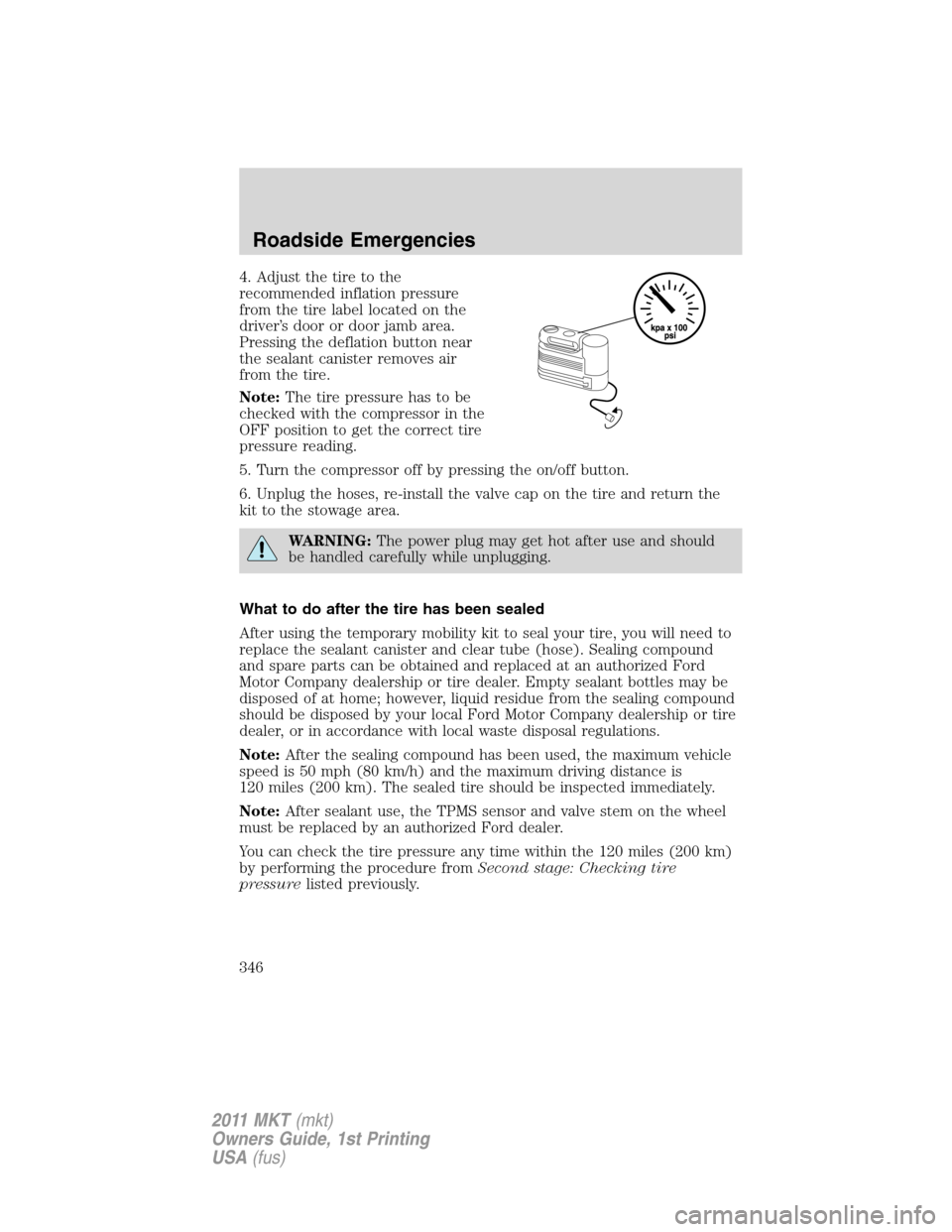

4. Adjust the tire to the
recommended inflation pressure
from the tire label located on the
driver’s door or door jamb area.
Pressing the deflation button near
the sealant canister removes air
from the tire.
Note:The tire pressure has to be
checked with the compressor in the
OFF position to get the correct tire
pressure reading.
5. Turn the compressor off by pressing the on/off button.
6. Unplug the hoses, re-install the valve cap on the tire and return the
kit to the stowage area.
WARNING:The power plug may get hot after use and should
be handled carefully while unplugging.
What to do after the tire has been sealed
After using the temporary mobility kit to seal your tire, you will need to
replace the sealant canister and clear tube (hose). Sealing compound
and spare parts can be obtained and replaced at an authorized Ford
Motor Company dealership or tire dealer. Empty sealant bottles may be
disposed of at home; however, liquid residue from the sealing compound
should be disposed by your local Ford Motor Company dealership or tire
dealer, or in accordance with local waste disposal regulations.
Note:After the sealing compound has been used, the maximum vehicle
speed is 50 mph (80 km/h) and the maximum driving distance is
120 miles (200 km). The sealed tire should be inspected immediately.
Note:After sealant use, the TPMS sensor and valve stem on the wheel
must be replaced by an authorized Ford dealer.
You can check the tire pressure any time within the 120 miles (200 km)
by performing the procedure fromSecond stage: Checking tire
pressurelisted previously.
Roadside Emergencies
346
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

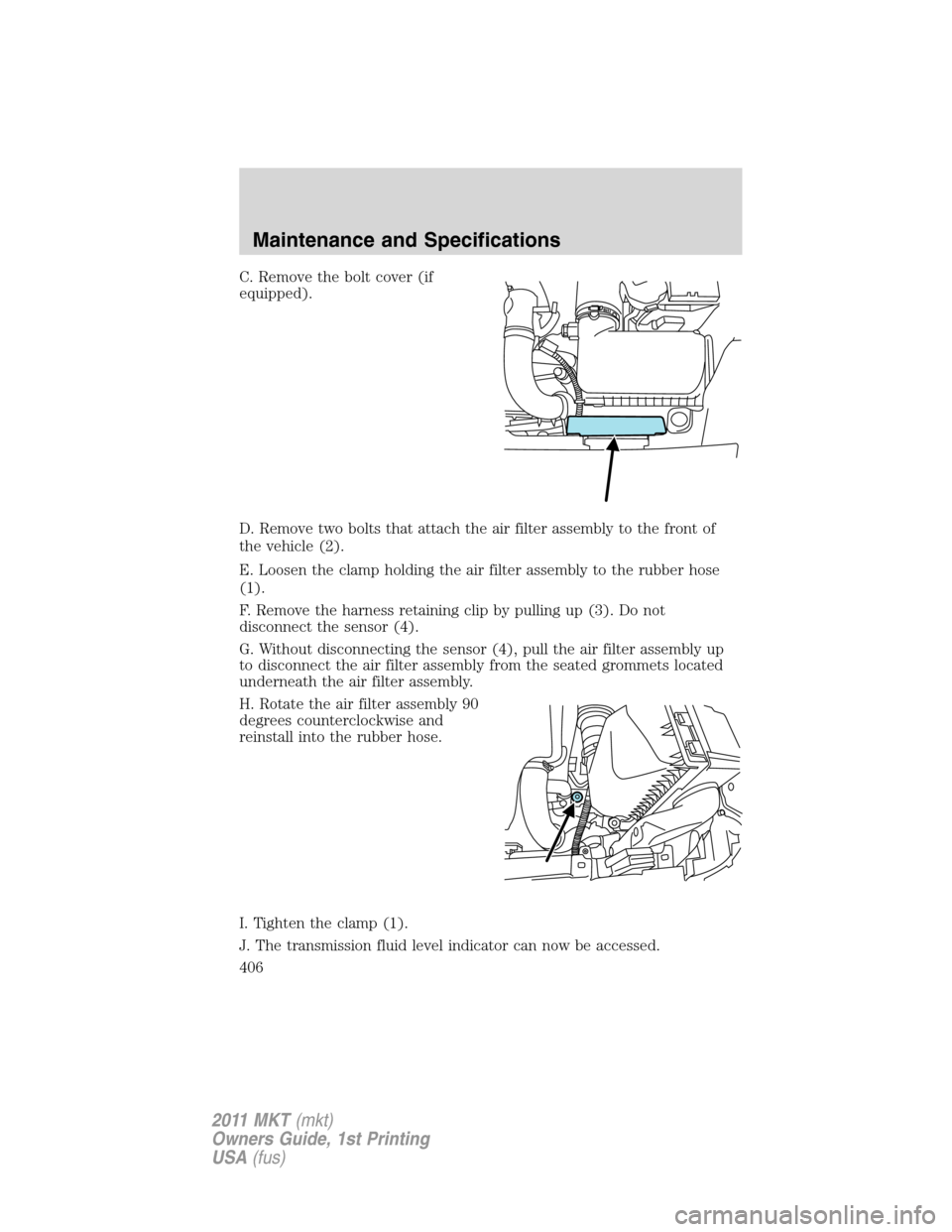

C. Remove the bolt cover (if
equipped).
D. Remove two bolts that attach the air filter assembly to the front of
the vehicle (2).
E. Loosen the clamp holding the air filter assembly to the rubber hose
(1).
F. Remove the harness retaining clip by pulling up (3). Do not
disconnect the sensor (4).
G. Without disconnecting the sensor (4), pull the air filter assembly up
to disconnect the air filter assembly from the seated grommets located
underneath the air filter assembly.
H. Rotate the air filter assembly 90
degrees counterclockwise and
reinstall into the rubber hose.
I. Tighten the clamp (1).
J. The transmission fluid level indicator can now be accessed.
Maintenance and Specifications
406
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

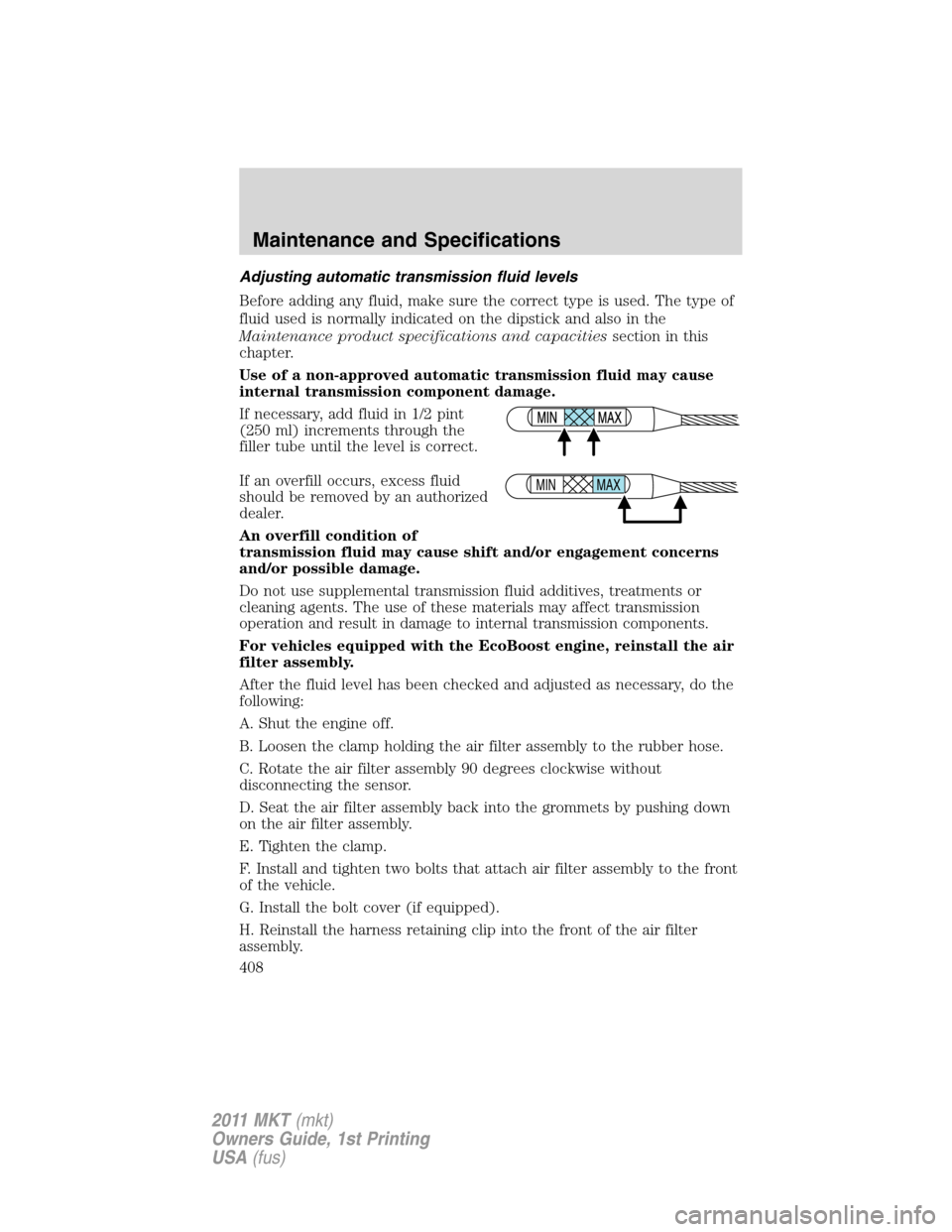

Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance product specifications and capacitiessection in this
chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint
(250 ml) increments through the
filler tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
For vehicles equipped with the EcoBoost engine, reinstall the air
filter assembly.
After the fluid level has been checked and adjusted as necessary, do the
following:
A. Shut the engine off.
B. Loosen the clamp holding the air filter assembly to the rubber hose.
C. Rotate the air filter assembly 90 degrees clockwise without
disconnecting the sensor.
D. Seat the air filter assembly back into the grommets by pushing down
on the air filter assembly.
E. Tighten the clamp.
F. Install and tighten two bolts that attach air filter assembly to the front
of the vehicle.
G. Install the bolt cover (if equipped).
H. Reinstall the harness retaining clip into the front of the air filter
assembly.
MAX MIN
Maintenance and Specifications
408
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

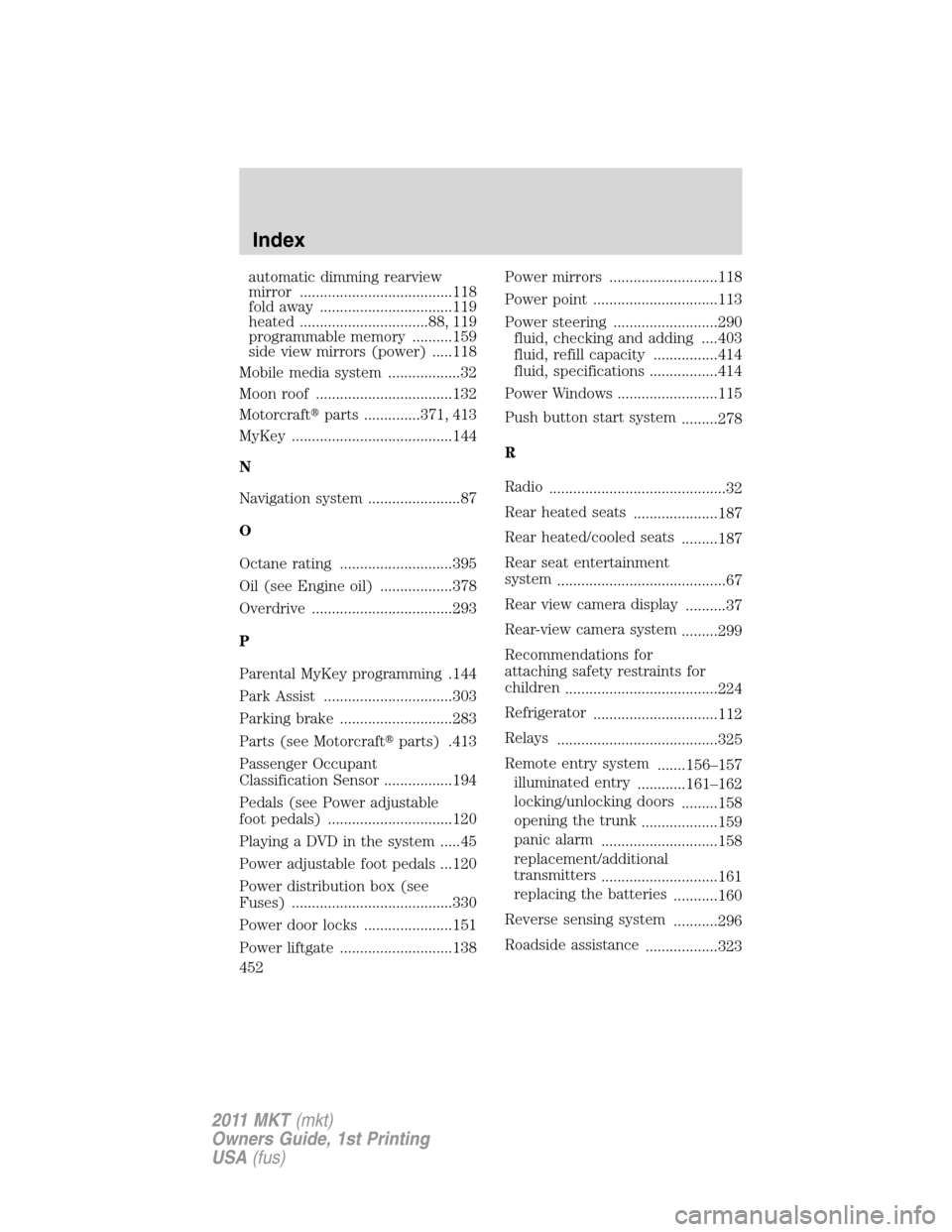

automatic dimming rearview
mirror ......................................118
fold away .................................119
heated ................................88, 119
programmable memory ..........159
side view mirrors (power) .....118
Mobile media system ..................32
Moon roof ..................................132
Motorcraftparts ..............371, 413
MyKey ........................................144
N
Navigation system .......................87
O
Octane rating ............................395
Oil (see Engine oil) ..................378
Overdrive ...................................293
P
Parental MyKey programming .144
Park Assist ................................303
Parking brake ............................283
Parts (see Motorcraftparts) .413
Passenger Occupant
Classification Sensor .................194
Pedals (see Power adjustable
foot pedals) ...............................120
Playing a DVD in the system .....45
Power adjustable foot pedals ...120
Power distribution box (see
Fuses) ........................................330
Power door locks ......................151
Power liftgate ............................138Power mirrors ...........................118
Power point ...............................113
Power steering ..........................290
fluid, checking and adding ....403
fluid, refill capacity ................414
fluid, specifications .................414
Power Windows .........................115
Push button start system
.........278
R
Radio
............................................32
Rear heated seats
.....................187
Rear heated/cooled seats
.........187
Rear seat entertainment
system
..........................................67
Rear view camera display
..........37
Rear-view camera system
.........299
Recommendations for
attaching safety restraints for
children
......................................224
Refrigerator
...............................112
Relays
........................................325
Remote entry system
.......156–157
illuminated entry
............161–162
locking/unlocking doors
.........158
opening the trunk
...................159
panic alarm
.............................158
replacement/additional
transmitters
.............................161
replacing the batteries
...........160
Reverse sensing system
...........296
Roadside assistance
..................323
Index
452
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

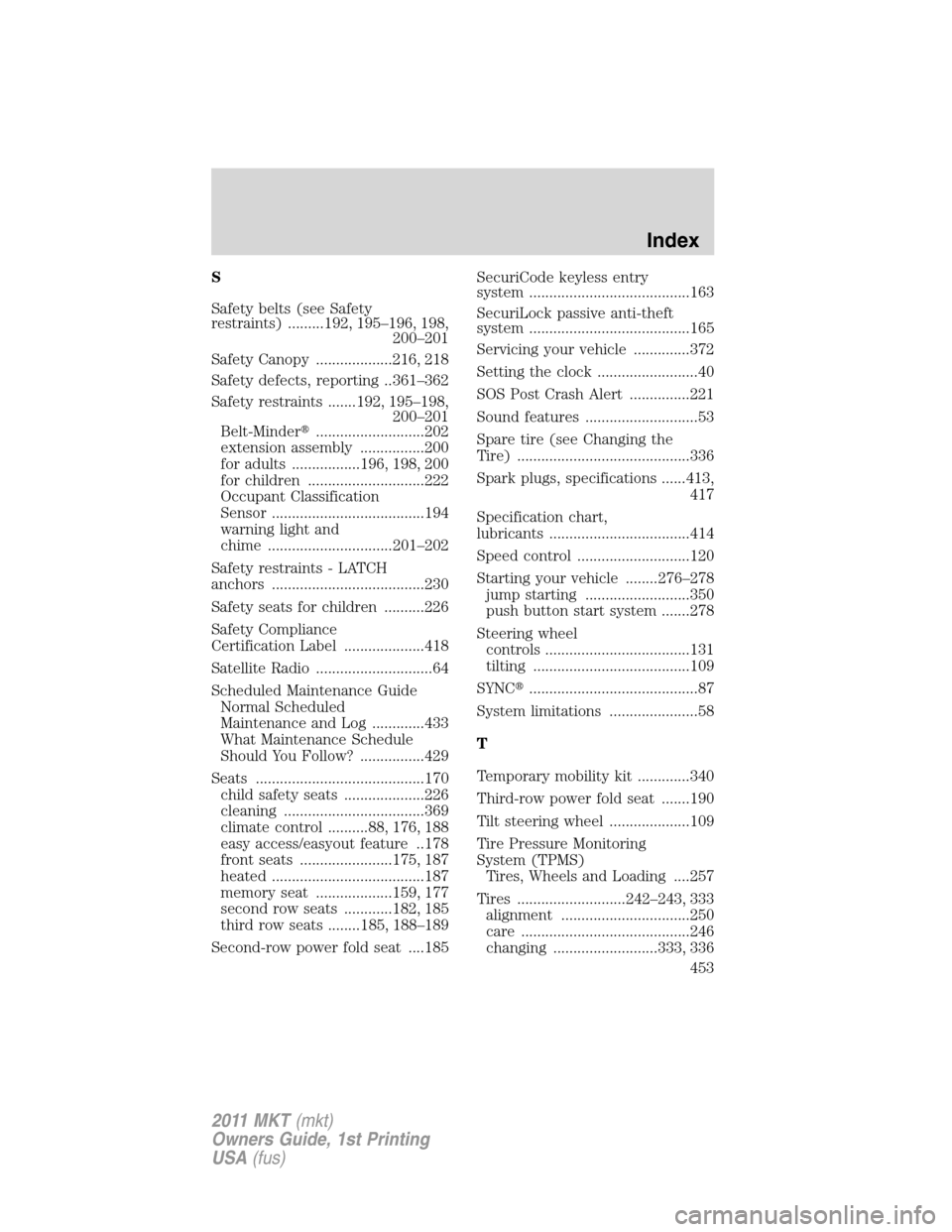

S
Safety belts (see Safety
restraints) .........192, 195–196, 198,
200–201
Safety Canopy ...................216, 218
Safety defects, reporting ..361–362
Safety restraints .......192, 195–198,
200–201
Belt-Minder...........................202
extension assembly ................200
for adults .................196, 198, 200
for children .............................222
Occupant Classification
Sensor ......................................194
warning light and
chime ...............................201–202
Safety restraints - LATCH
anchors ......................................230
Safety seats for children ..........226
Safety Compliance
Certification Label ....................418
Satellite Radio .............................64
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............433
What Maintenance Schedule
Should You Follow? ................429
Seats ..........................................170
child safety seats ....................226
cleaning ...................................369
climate control ..........88, 176, 188
easy access/easyout feature ..178
front seats .......................175, 187
heated ......................................187
memory seat ...................159, 177
second row seats ............182, 185
third row seats ........185, 188–189
Second-row power fold seat ....185SecuriCode keyless entry
system ........................................163
SecuriLock passive anti-theft
system ........................................165
Servicing your vehicle ..............372
Setting the clock .........................40
SOS Post Crash Alert ...............221
Sound features ............................53
Spare tire (see Changing the
Tire) ...........................................336
Spark plugs, specifications ......413,
417
Specification chart,
lubricants ...................................414
Speed control ............................120
Starting your vehicle ........276–278
jump starting ..........................350
push button start system .......278
Steering wheel
controls ....................................131
tilting .......................................109
SYNC..........................................87
System limitations ......................58
T
Temporary mobility kit .............340
Third-row power fold seat .......190
Tilt steering wheel ....................109
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....257
Tires ...........................242–243, 333
alignment ................................250
care ..........................................246
changing ..........................333, 336
Index
453
2011 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
