LINCOLN MKT 2012 Owners Manual

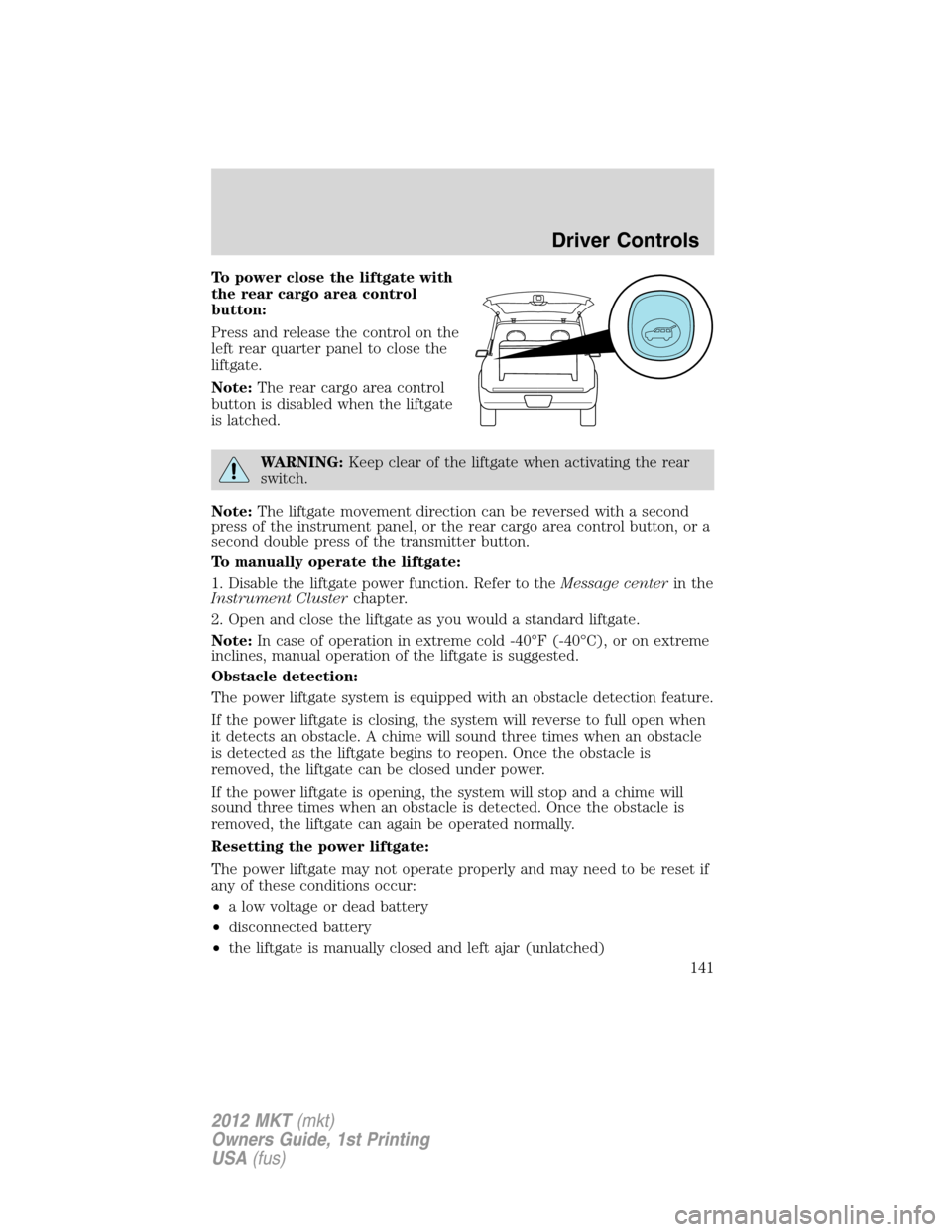

To power close the liftgate with
the rear cargo area control
button:
Press and release the control on the
left rear quarter panel to close the
liftgate.
Note:The rear cargo area control
button is disabled when the liftgate
is latched.
WARNING:Keep clear of the liftgate when activating the rear
switch.
Note:The liftgate movement direction can be reversed with a second
press of the instrument panel, or the rear cargo area control button, or a
second double press of the transmitter button.
To manually operate the liftgate:
1. Disable the liftgate power function. Refer to theMessage centerin the
Instrument Clusterchapter.
2. Open and close the liftgate as you would a standard liftgate.
Note:In case of operation in extreme cold -40°F (-40°C), or on extreme
inclines, manual operation of the liftgate is suggested.
Obstacle detection:
The power liftgate system is equipped with an obstacle detection feature.
If the power liftgate is closing, the system will reverse to full open when
it detects an obstacle. A chime will sound three times when an obstacle
is detected as the liftgate begins to reopen. Once the obstacle is
removed, the liftgate can be closed under power.
If the power liftgate is opening, the system will stop and a chime will
sound three times when an obstacle is detected. Once the obstacle is
removed, the liftgate can again be operated normally.
Resetting the power liftgate:
The power liftgate may not operate properly and may need to be reset if
any of these conditions occur:
•a low voltage or dead battery
•disconnected battery
•the liftgate is manually closed and left ajar (unlatched)
Driver Controls
141
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

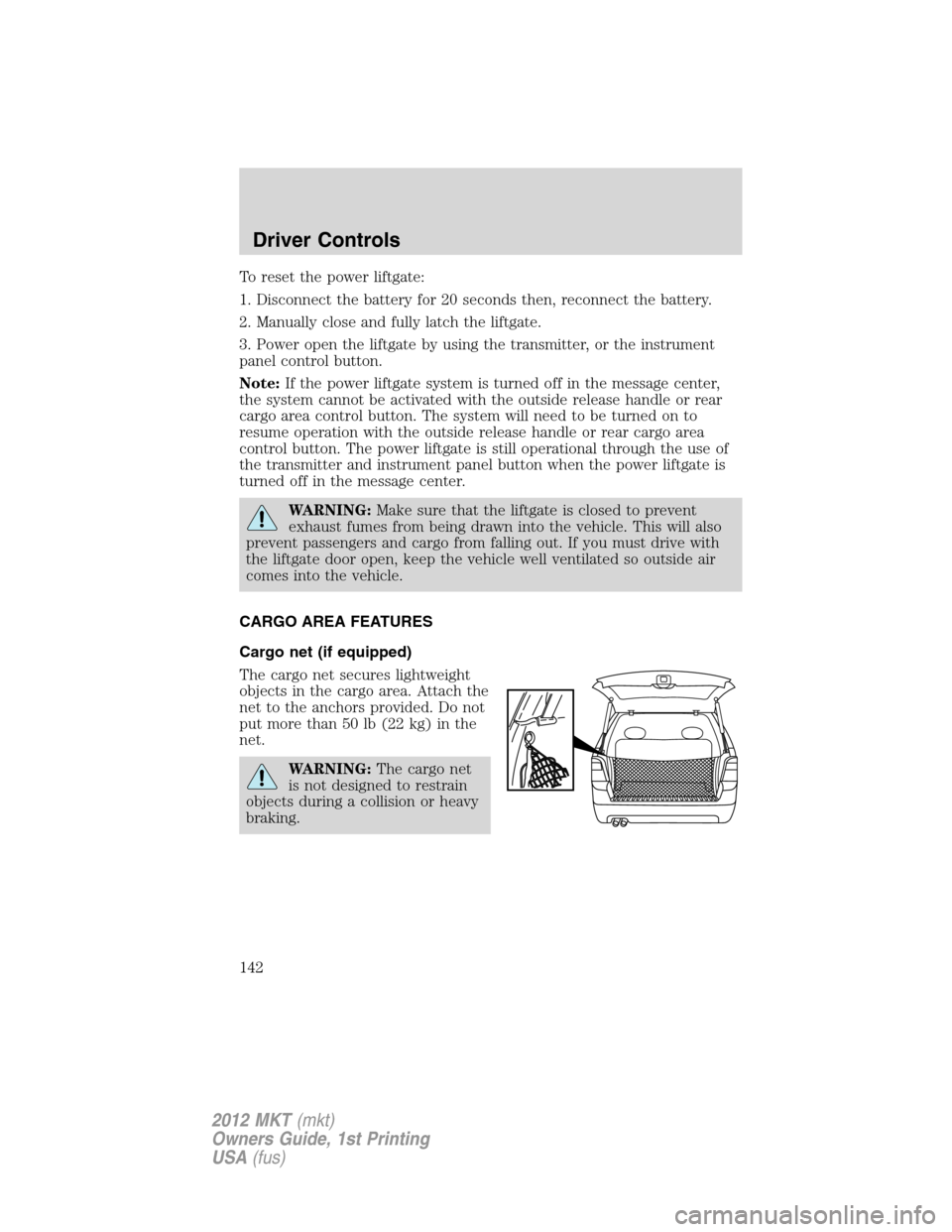

To reset the power liftgate:
1. Disconnect the battery for 20 seconds then, reconnect the battery.
2. Manually close and fully latch the liftgate.
3. Power open the liftgate by using the transmitter, or the instrument
panel control button.
Note:If the power liftgate system is turned off in the message center,
the system cannot be activated with the outside release handle or rear
cargo area control button. The system will need to be turned on to
resume operation with the outside release handle or rear cargo area
control button. The power liftgate is still operational through the use of
the transmitter and instrument panel button when the power liftgate is
turned off in the message center.
WARNING:Make sure that the liftgate is closed to prevent
exhaust fumes from being drawn into the vehicle. This will also
prevent passengers and cargo from falling out. If you must drive with
the liftgate door open, keep the vehicle well ventilated so outside air
comes into the vehicle.
CARGO AREA FEATURES
Cargo net (if equipped)
The cargo net secures lightweight
objects in the cargo area. Attach the
net to the anchors provided. Do not
put more than 50 lb (22 kg) in the
net.
WARNING:The cargo net
is not designed to restrain
objects during a collision or heavy
braking.
Driver Controls
142
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

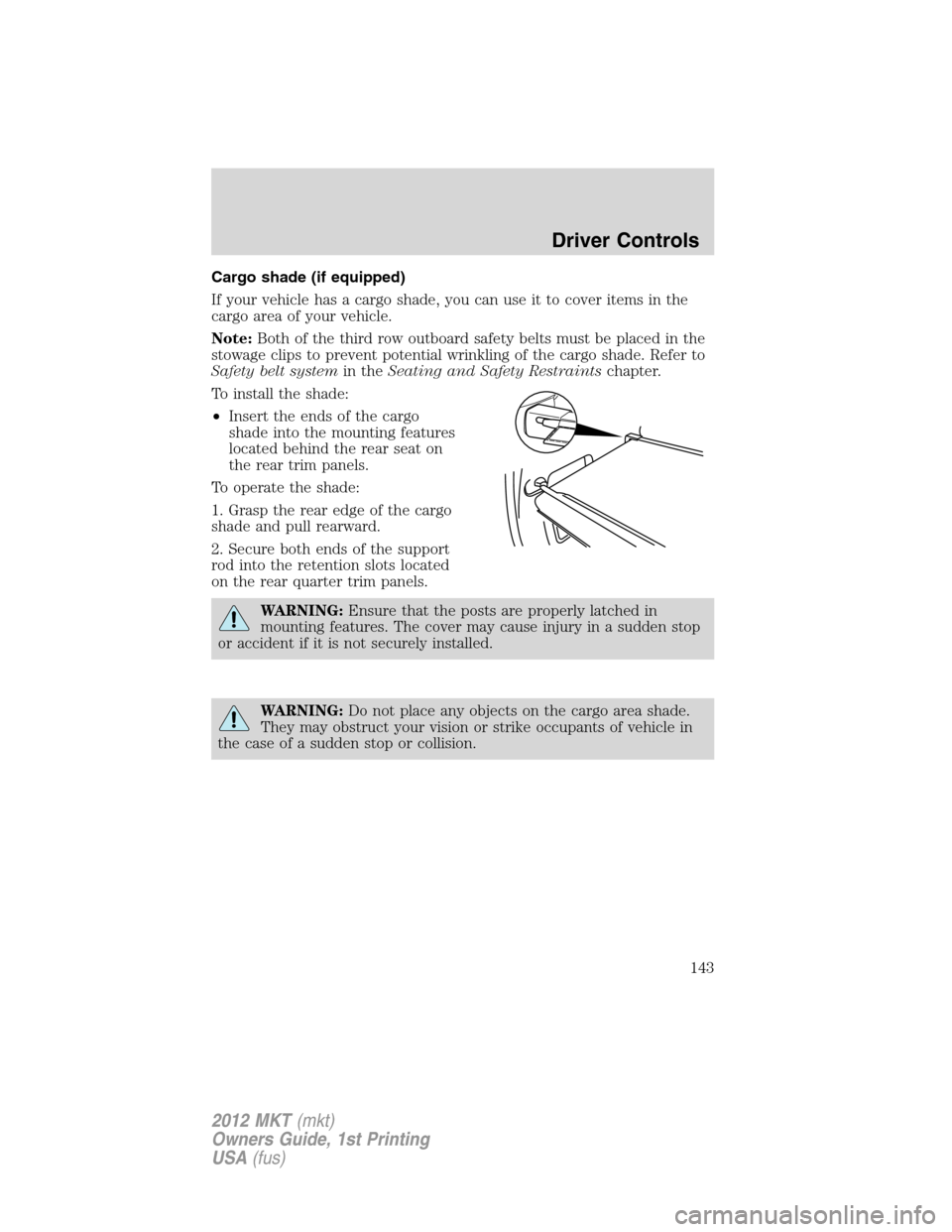

Cargo shade (if equipped)
If your vehicle has a cargo shade, you can use it to cover items in the
cargo area of your vehicle.
Note:Both of the third row outboard safety belts must be placed in the
stowage clips to prevent potential wrinkling of the cargo shade. Refer to
Safety belt systemin theSeating and Safety Restraintschapter.
To install the shade:
•Insert the ends of the cargo
shade into the mounting features
located behind the rear seat on
the rear trim panels.
To operate the shade:
1. Grasp the rear edge of the cargo
shade and pull rearward.
2. Secure both ends of the support
rod into the retention slots located
on the rear quarter trim panels.
WARNING:Ensure that the posts are properly latched in
mounting features. The cover may cause injury in a sudden stop
or accident if it is not securely installed.
WARNING:Do not place any objects on the cargo area shade.
They may obstruct your vision or strike occupants of vehicle in
the case of a sudden stop or collision.
Driver Controls
143
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

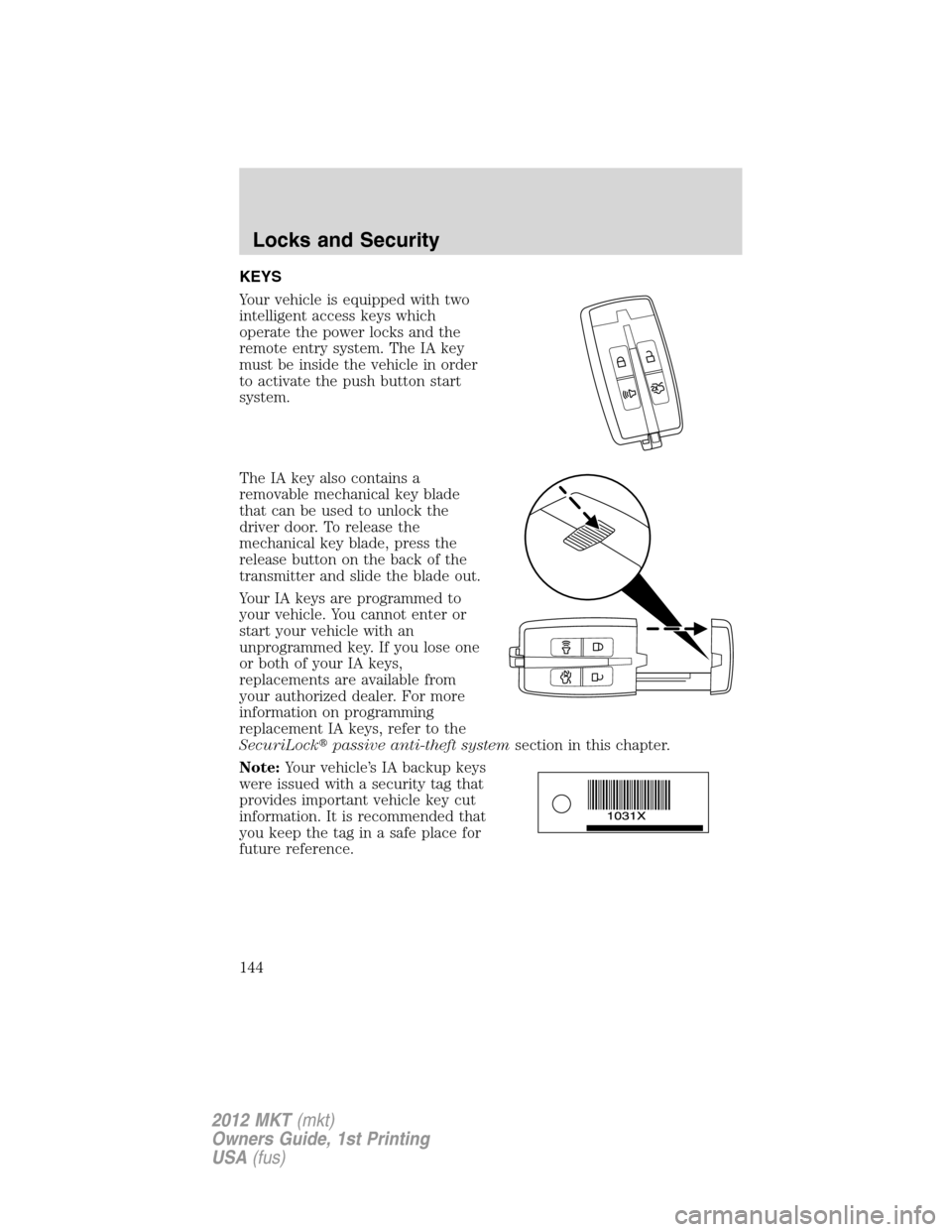

KEYS
Your vehicle is equipped with two
intelligent access keys which
operate the power locks and the
remote entry system. The IA key
must be inside the vehicle in order
to activate the push button start
system.
The IA key also contains a
removable mechanical key blade
that can be used to unlock the
driver door. To release the
mechanical key blade, press the
release button on the back of the
transmitter and slide the blade out.
Your IA keys are programmed to
your vehicle. You cannot enter or
start your vehicle with an
unprogrammed key. If you lose one
or both of your IA keys,
replacements are available from
your authorized dealer. For more
information on programming
replacement IA keys, refer to the
SecuriLockpassive anti-theft systemsection in this chapter.
Note:Your vehicle’s IA backup keys
were issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
Locks and Security
144
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

MYKEY
The MyKeyfeature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey. The key will remain restricted
until MyKeyis cleared. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey, program optional MyKeysettings, and clear the MyKey
feature. When the MyKeyfeature is enabled the user can use system
check in the message center to see how many MyKeysand admin keys
are programmed to the vehicle, and see the total distance the vehicle has
been driven with the MyKeyactive.
MyKeyrestricted features
Standard settings – these settings cannot be changed
•Belt-Minder cannot be disabled. The audio system will be muted
whenever Belt-Minderis activated until the safety belts are buckled.
Refer to theSeating and Safety Restraintschapter for a detailed
description of Belt-Minderoperation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•The following systems, if equipped, cannot be turned off: reverse
sensing system, blind spot information system (BLIS) with cross
traffic alert and collision warning system.
Optional settings – these settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the audio system display when
attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKeyuser will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud or sand.
Locks and Security
145
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Create a MyKey
To program MyKeyon one of the keys programmed to the vehicle,
insert the key that you want to make a MyKeyinto the ignition. For
vehicles equipped with push button start, put the intelligent access key
in the backup slot; see theDrivingchapter for the location of the
backup slot. Turn the ignition on. Use the message center buttons to do
the following:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyOptional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith Remote Start Systemssection.
Note:The MyKeycan be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKeyprogramming. To clear all MyKeysgo to Step 2 in the
Clear MyKeysection.
Programming MyKeyOptional Settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKey setup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
Locks and Security
146
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional
settings.
Clear MyKey
To reset all MyKeysas admin keys, do the following:
1. Turn the vehicle on using the admin key.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
Check MyKeysystem status
The vehicle system check will provide the status of the following MyKey
parameters:
•MYKEY MILES — This odometer only tracks mileage when a MyKey
is used. If mileage does not accumulate as expected, then the MyKey
is not being used by the intended user. The only way to reset this
odometer to zero is by clearing MyKey. If this odometer is lower than
the last time you checked, then the MyKeysystem has been recently
cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeysare
programmed to the vehicle. Can be used to detect deletion of a
MyKey.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle.
Refer toMessage centerin theInstrument Clusterchapter for MyKey
system warnings displays.
Locks and Security
147
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Using MyKeywith remote start systems
MyKeyis not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
Vehicles equipped with traditional keys:
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional admin key with
its associated privileges. Owners of vehicles equipped with traditional
keys should program the remote start system as a MyKeyin addition to
the key that they have already programmed as a MyKey. To program
the remote start system as MyKey, do the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow Steps 1-4 in theCreate a MyKeysection.
Vehicles equipped with an intelligent access key (push button
start)
•It is not possible to program the remote start system as a MyKeyon
vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any
other admin key. When the vehicle is started using remote start, the
system will stall the engine when you either enter the vehicle or shift
the vehicle into gear. Prior to the engine stall, the vehicle will have
administrative privileges. When you restart the engine, the vehicle will
identify the user as an admin or MyKeydriver depending on the
settings of the actual key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus will include the remote start system as an additional key in
the total count. See theCheck MyKeysystem statussection.
Note:For all vehicles with remote start installed, it is possible to
program all ’real’ keys as MyKeys, in which case, you will need to use
your remote start system to reset all MyKeysas admin keys by doing
the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow Steps 1-4 in theClear MyKeysection.
Locks and Security
148
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

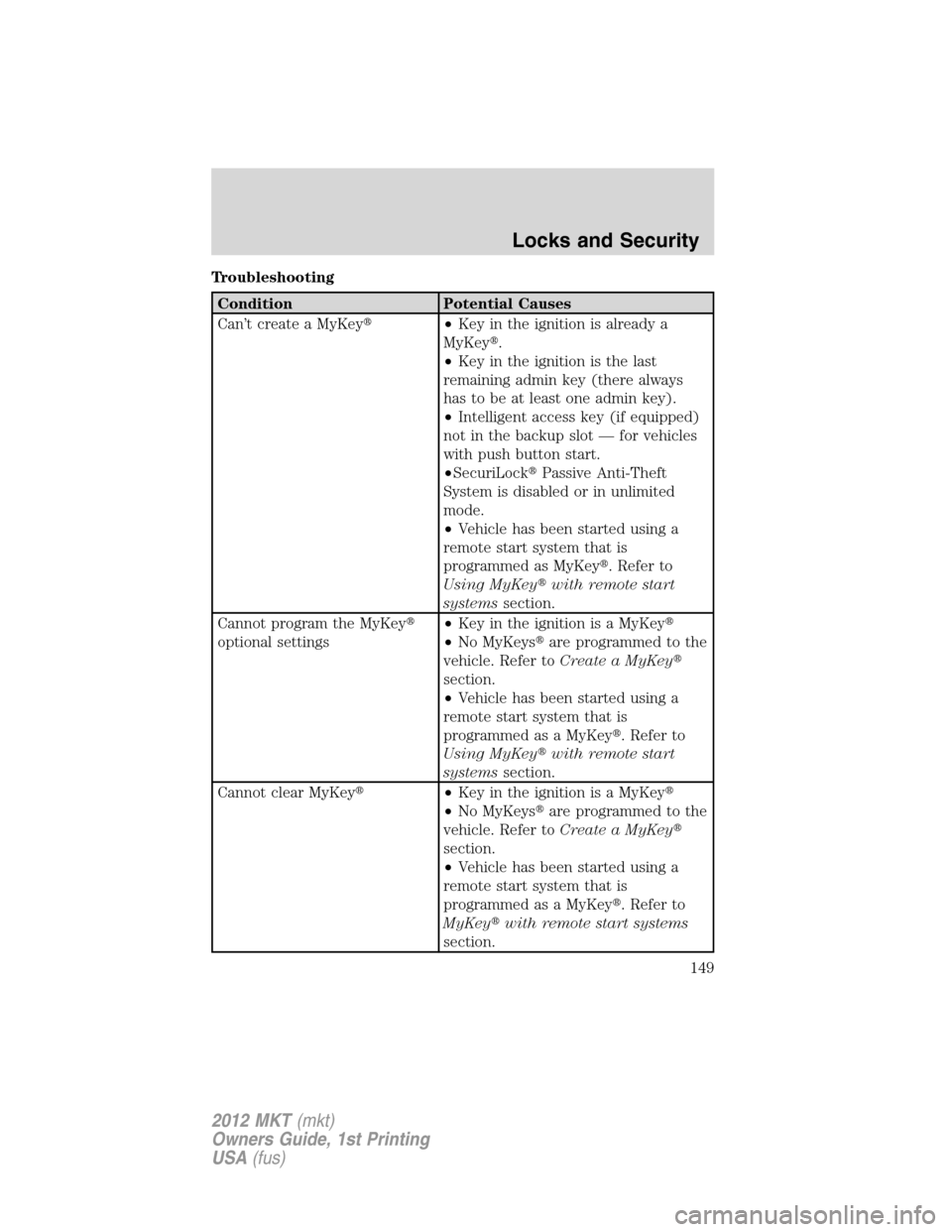

Troubleshooting
Condition Potential Causes
Can’t create a MyKey•Key in the ignition is already a
MyKey.
•Key in the ignition is the last
remaining admin key (there always
has to be at least one admin key).
•Intelligent access key (if equipped)
not in the backup slot — for vehicles
with push button start.
•SecuriLockPassive Anti-Theft
System is disabled or in unlimited
mode.
•Vehicle has been started using a
remote start system that is
programmed as MyKey. Refer to
Using MyKeywith remote start
systemssection.
Cannot program the MyKey
optional settings•Key in the ignition is a MyKey
•No MyKeysare programmed to the
vehicle. Refer toCreate a MyKey
section.
•Vehicle has been started using a
remote start system that is
programmed as a MyKey. Refer to
Using MyKeywith remote start
systemssection.
Cannot clear MyKey•Key in the ignition is a MyKey
•No MyKeysare programmed to the
vehicle. Refer toCreate a MyKey
section.
•Vehicle has been started using a
remote start system that is
programmed as a MyKey. Refer to
MyKeywith remote start systems
section.
Locks and Security
149
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

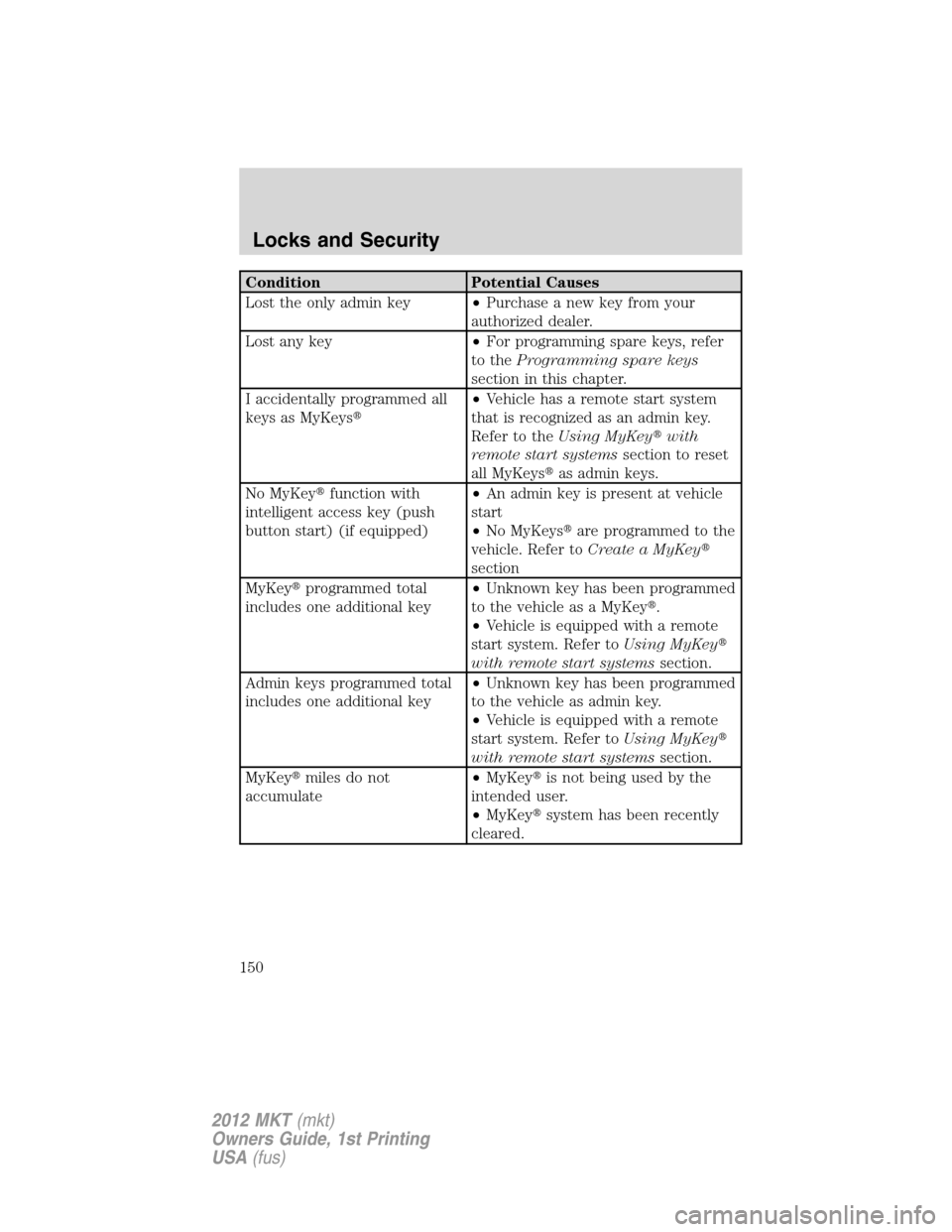

Condition Potential Causes
Lost the only admin key•Purchase a new key from your
authorized dealer.
Lost any key•For programming spare keys, refer
to theProgramming spare keys
section in this chapter.
I accidentally programmed all
keys as MyKeys•Vehicle has a remote start system
that is recognized as an admin key.
Refer to theUsing MyKeywith
remote start systemssection to reset
all MyKeysas admin keys.
No MyKeyfunction with
intelligent access key (push
button start) (if equipped)•An admin key is present at vehicle
start
•No MyKeysare programmed to the
vehicle. Refer toCreate a MyKey
section
MyKeyprogrammed total
includes one additional key•Unknown key has been programmed
to the vehicle as a MyKey.
•Vehicle is equipped with a remote
start system. Refer toUsing MyKey
with remote start systemssection.
Admin keys programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as admin key.
•Vehicle is equipped with a remote
start system. Refer toUsing MyKey
with remote start systemssection.
MyKeymiles do not
accumulate•MyKeyis not being used by the
intended user.
•MyKeysystem has been recently
cleared.
Locks and Security
150
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
