LINCOLN MKT 2012 Owners Manual

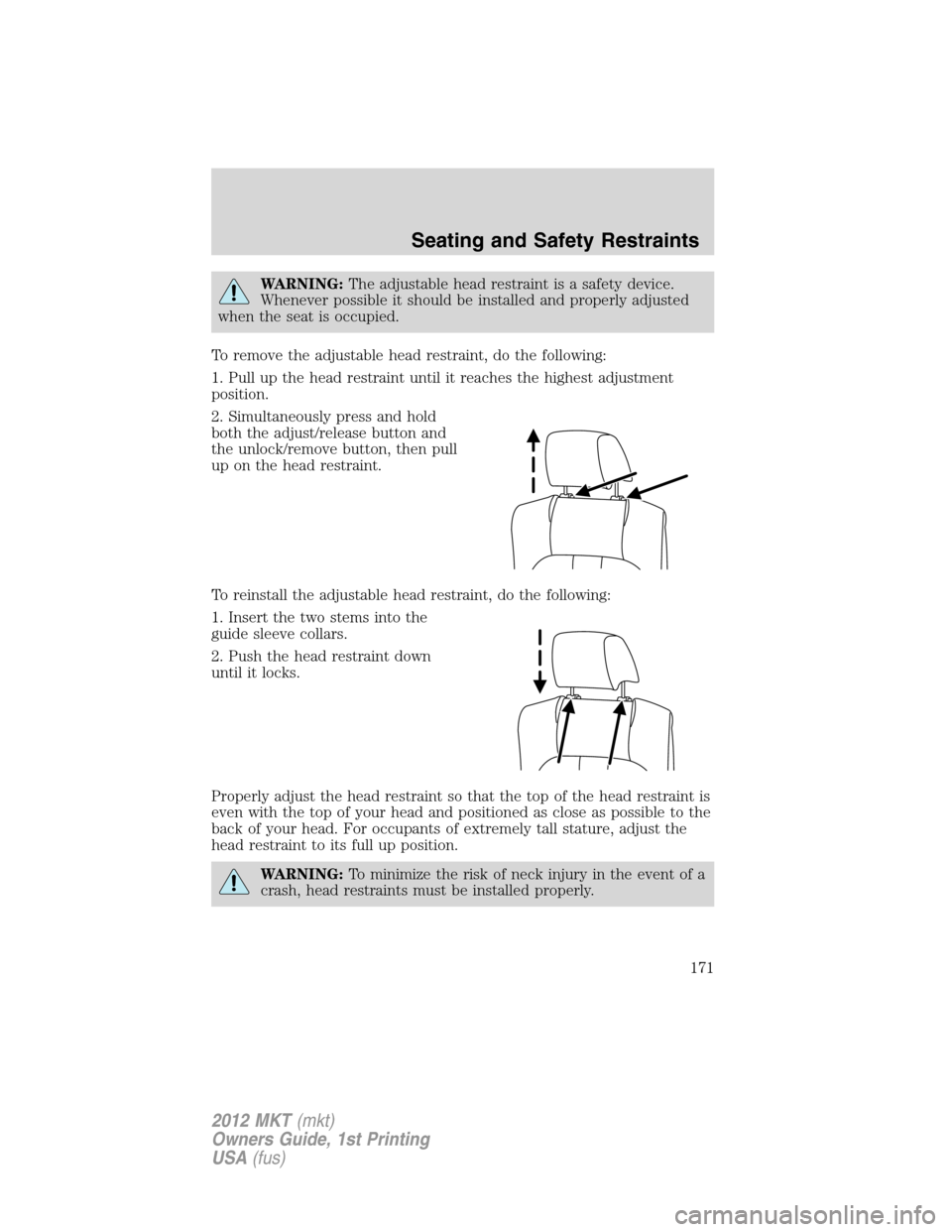

WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it reaches the highest adjustment
position.
2. Simultaneously press and hold
both the adjust/release button and
the unlock/remove button, then pull
up on the head restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.
Seating and Safety Restraints
171
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

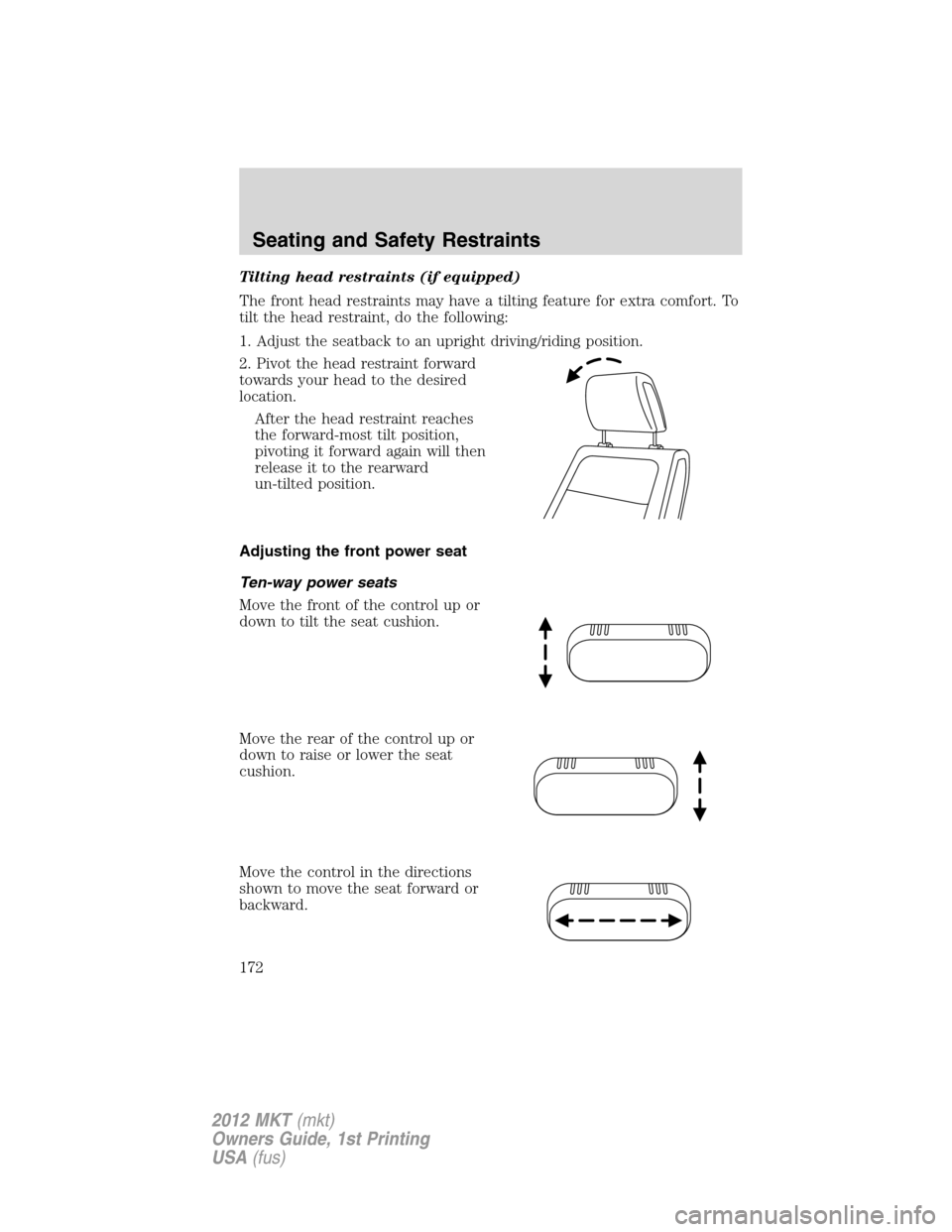

Tilting head restraints (if equipped)
The front head restraints may have a tilting feature for extra comfort. To
tilt the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Pivot the head restraint forward
towards your head to the desired
location.
After the head restraint reaches
the forward-most tilt position,
pivoting it forward again will then
release it to the rearward
un-tilted position.
Adjusting the front power seat
Ten-way power seats
Move the front of the control up or
down to tilt the seat cushion.
Move the rear of the control up or
down to raise or lower the seat
cushion.
Move the control in the directions
shown to move the seat forward or
backward.
Seating and Safety Restraints
172
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

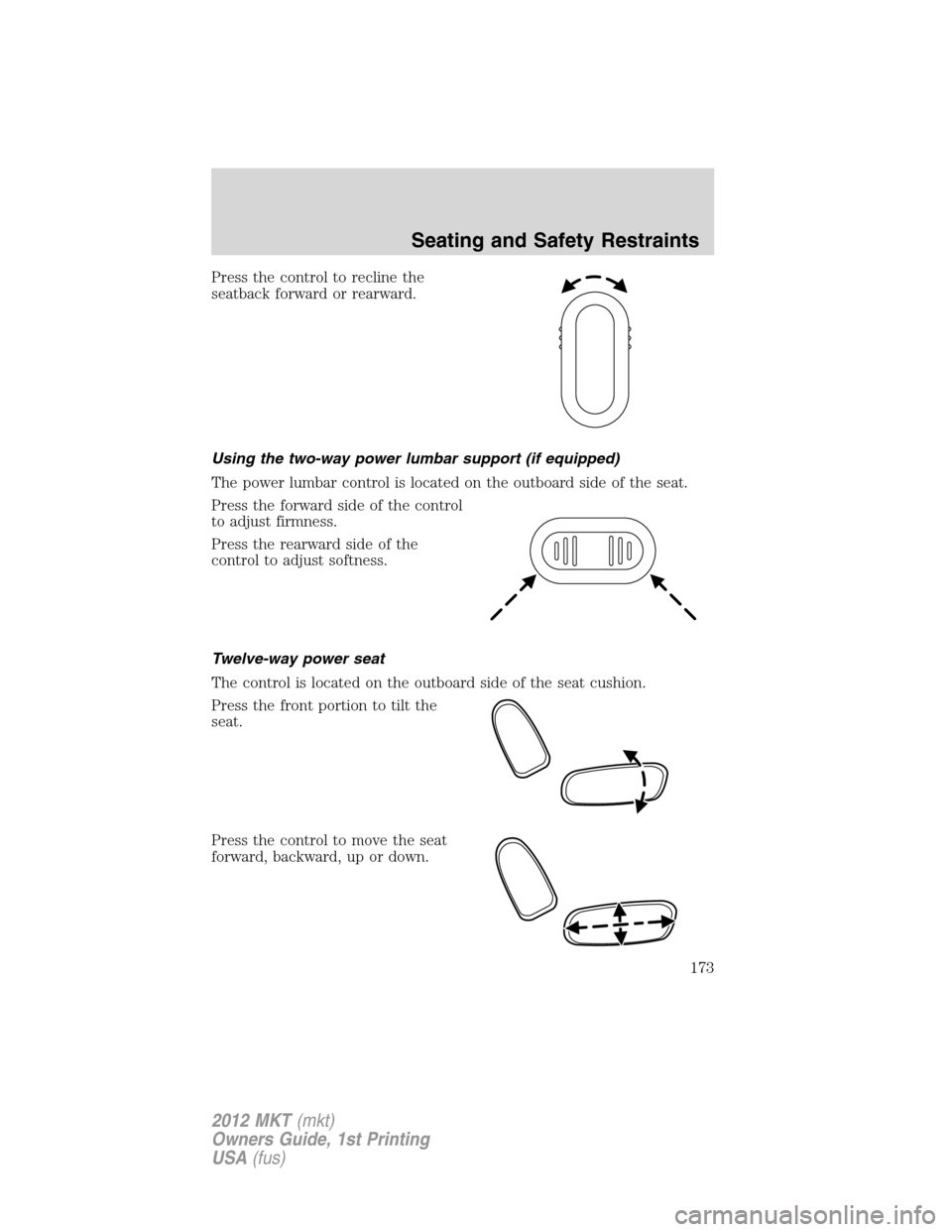

Press the control to recline the
seatback forward or rearward.
Using the two-way power lumbar support (if equipped)
The power lumbar control is located on the outboard side of the seat.
Press the forward side of the control
to adjust firmness.
Press the rearward side of the
control to adjust softness.
Twelve-way power seat
The control is located on the outboard side of the seat cushion.
Press the front portion to tilt the
seat.
Press the control to move the seat
forward, backward, up or down.
Seating and Safety Restraints
173
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

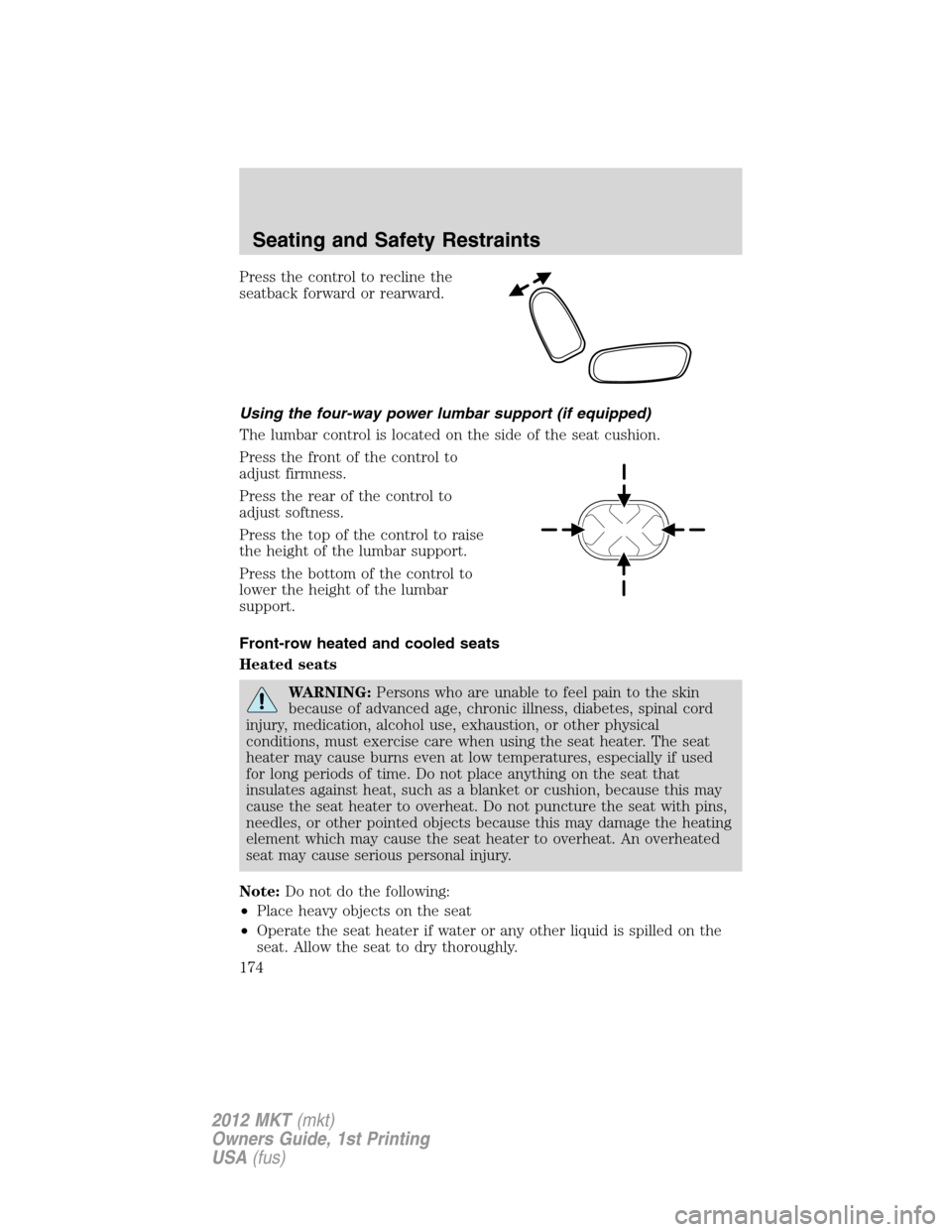

Press the control to recline the
seatback forward or rearward.
Using the four-way power lumbar support (if equipped)
The lumbar control is located on the side of the seat cushion.
Press the front of the control to
adjust firmness.
Press the rear of the control to
adjust softness.
Press the top of the control to raise
the height of the lumbar support.
Press the bottom of the control to
lower the height of the lumbar
support.
Front-row heated and cooled seats
Heated seats
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
Seating and Safety Restraints
174
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

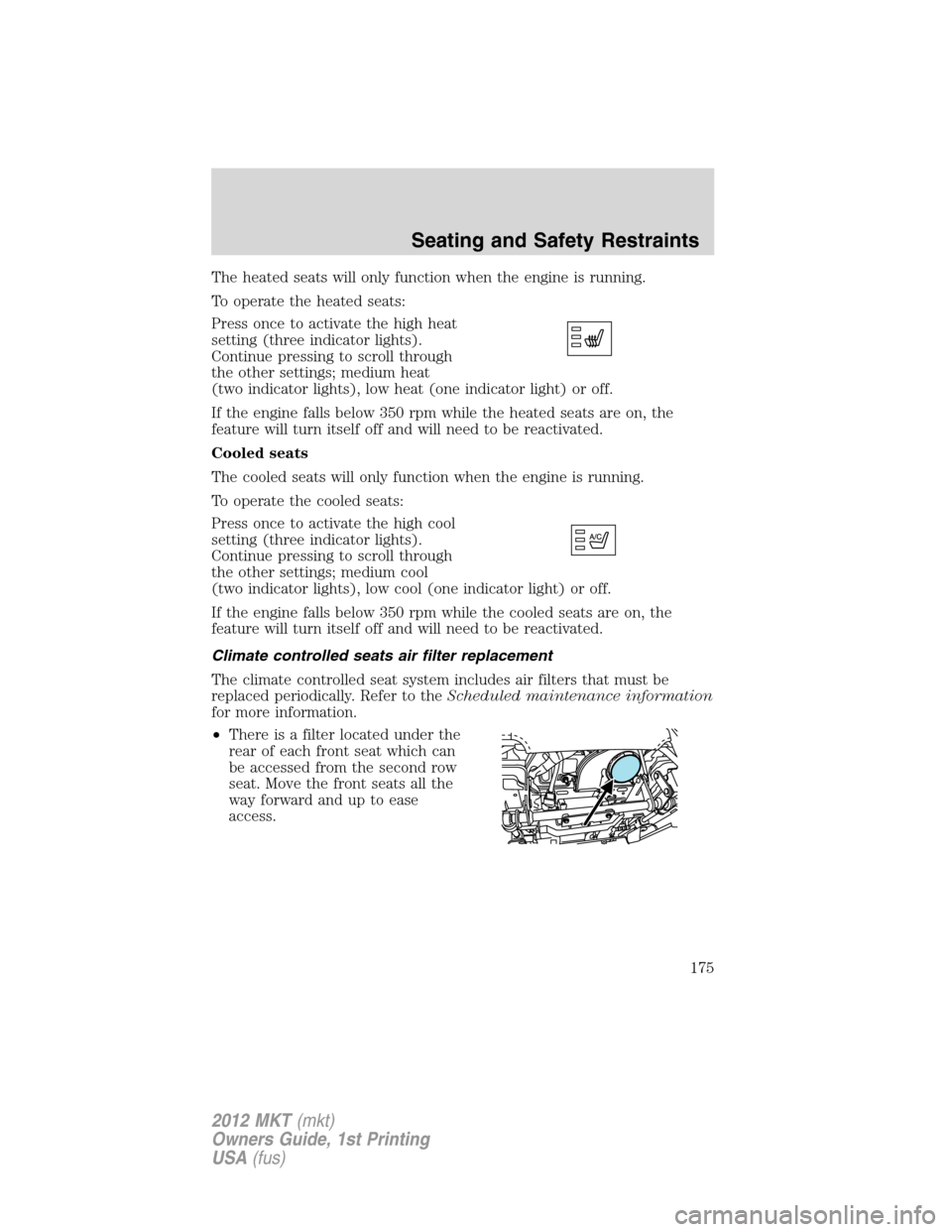

The heated seats will only function when the engine is running.
To operate the heated seats:
Press once to activate the high heat
setting (three indicator lights).
Continue pressing to scroll through
the other settings; medium heat
(two indicator lights), low heat (one indicator light) or off.
If the engine falls below 350 rpm while the heated seats are on, the
feature will turn itself off and will need to be reactivated.
Cooled seats
The cooled seats will only function when the engine is running.
To operate the cooled seats:
Press once to activate the high cool
setting (three indicator lights).
Continue pressing to scroll through
the other settings; medium cool
(two indicator lights), low cool (one indicator light) or off.
If the engine falls below 350 rpm while the cooled seats are on, the
feature will turn itself off and will need to be reactivated.
Climate controlled seats air filter replacement
The climate controlled seat system includes air filters that must be
replaced periodically. Refer to theScheduled maintenance information
for more information.
•There is a filter located under the
rear of each front seat which can
be accessed from the second row
seat. Move the front seats all the
way forward and up to ease
access.
Seating and Safety Restraints
175
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

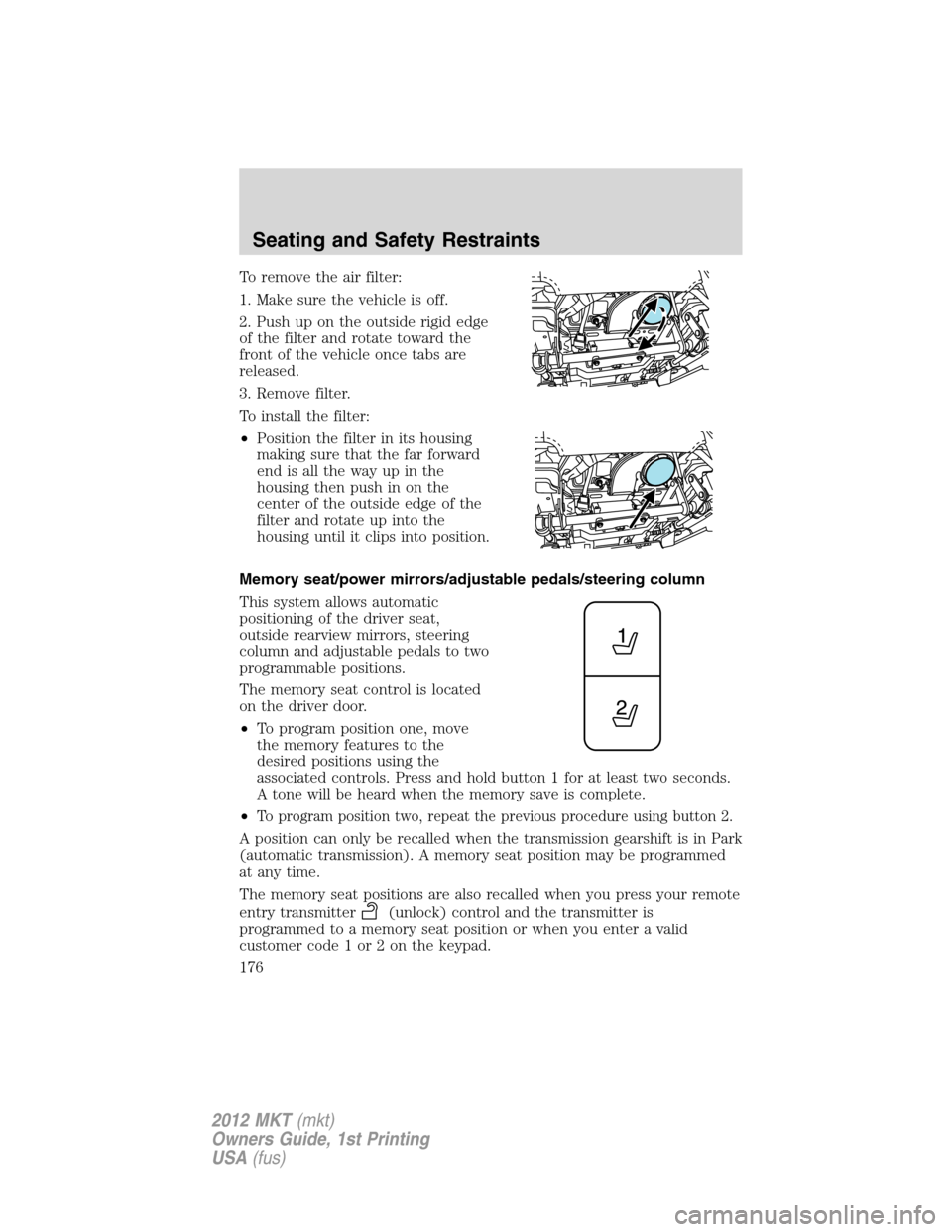

To remove the air filter:
1. Make sure the vehicle is off.
2. Push up on the outside rigid edge
of the filter and rotate toward the
front of the vehicle once tabs are
released.
3. Remove filter.
To install the filter:
•Position the filter in its housing
making sure that the far forward
end is all the way up in the
housing then push in on the
center of the outside edge of the
filter and rotate up into the
housing until it clips into position.
Memory seat/power mirrors/adjustable pedals/steering column
This system allows automatic
positioning of the driver seat,
outside rearview mirrors, steering
column and adjustable pedals to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position one, move
the memory features to the
desired positions using the
associated controls. Press and hold button 1 for at least two seconds.
A tone will be heard when the memory save is complete.
•
To program position two, repeat the previous procedure using button 2.
A position can only be recalled when the transmission gearshift is in Park
(automatic transmission). A memory seat position may be programmed
at any time.
The memory seat positions are also recalled when you press your remote
entry transmitter
(unlock) control and the transmitter is
programmed to a memory seat position or when you enter a valid
customer code 1 or 2 on the keypad.
Seating and Safety Restraints
176
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

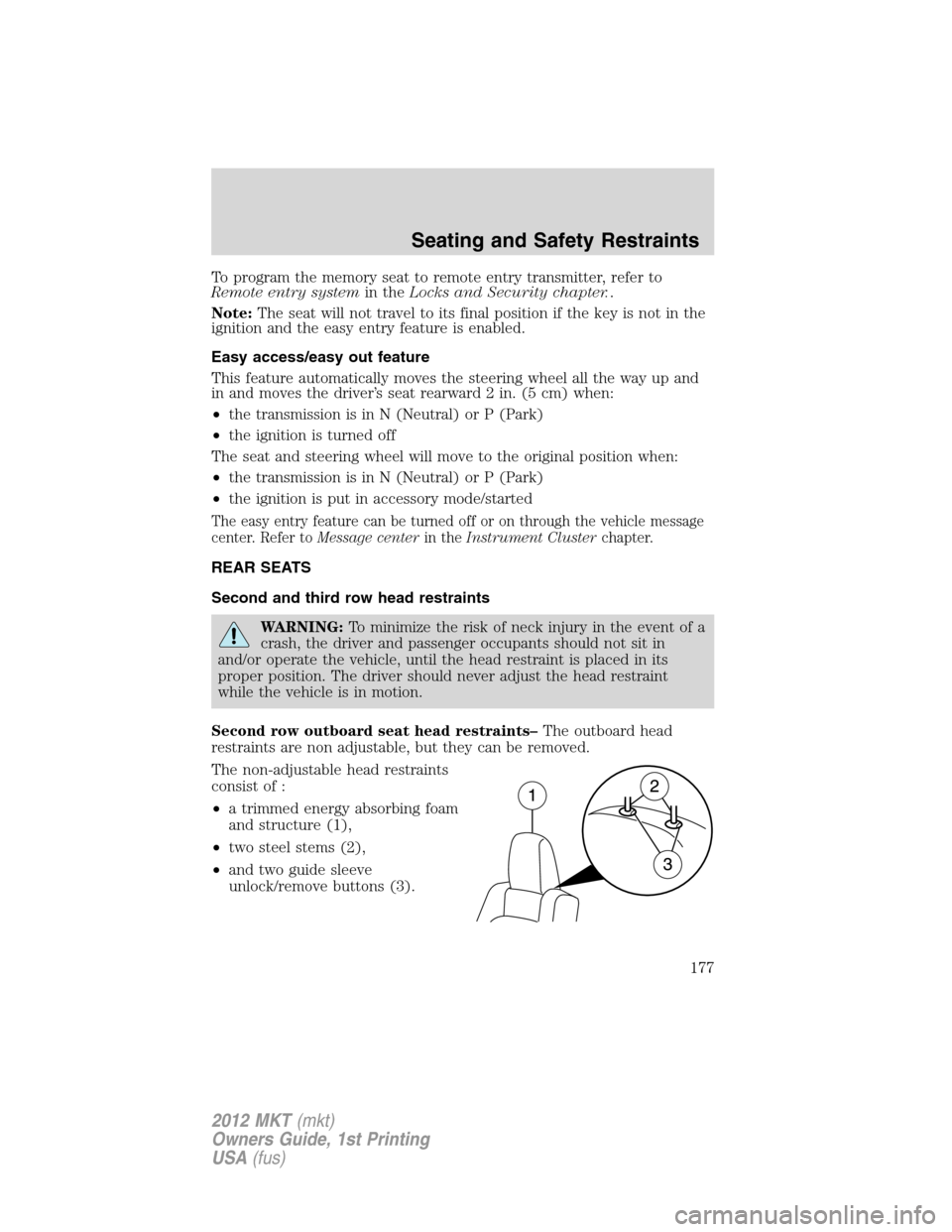

To program the memory seat to remote entry transmitter, refer to
Remote entry systemin theLocks and Security chapter..
Note:The seat will not travel to its final position if the key is not in the
ignition and the easy entry feature is enabled.
Easy access/easy out feature
This feature automatically moves the steering wheel all the way up and
in and moves the driver’s seat rearward 2 in. (5 cm) when:
•the transmission is in N (Neutral) or P (Park)
•the ignition is turned off
The seat and steering wheel will move to the original position when:
•the transmission is in N (Neutral) or P (Park)
•the ignition is put in accessory mode/started
The easy entry feature can be turned off or on through the vehicle message
center. Refer toMessage centerin theInstrument Clusterchapter.
REAR SEATS
Second and third row head restraints
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
Second row outboard seat head restraints–The outboard head
restraints are non adjustable, but they can be removed.
The non-adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•and two guide sleeve
unlock/remove buttons (3).
Seating and Safety Restraints
177
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

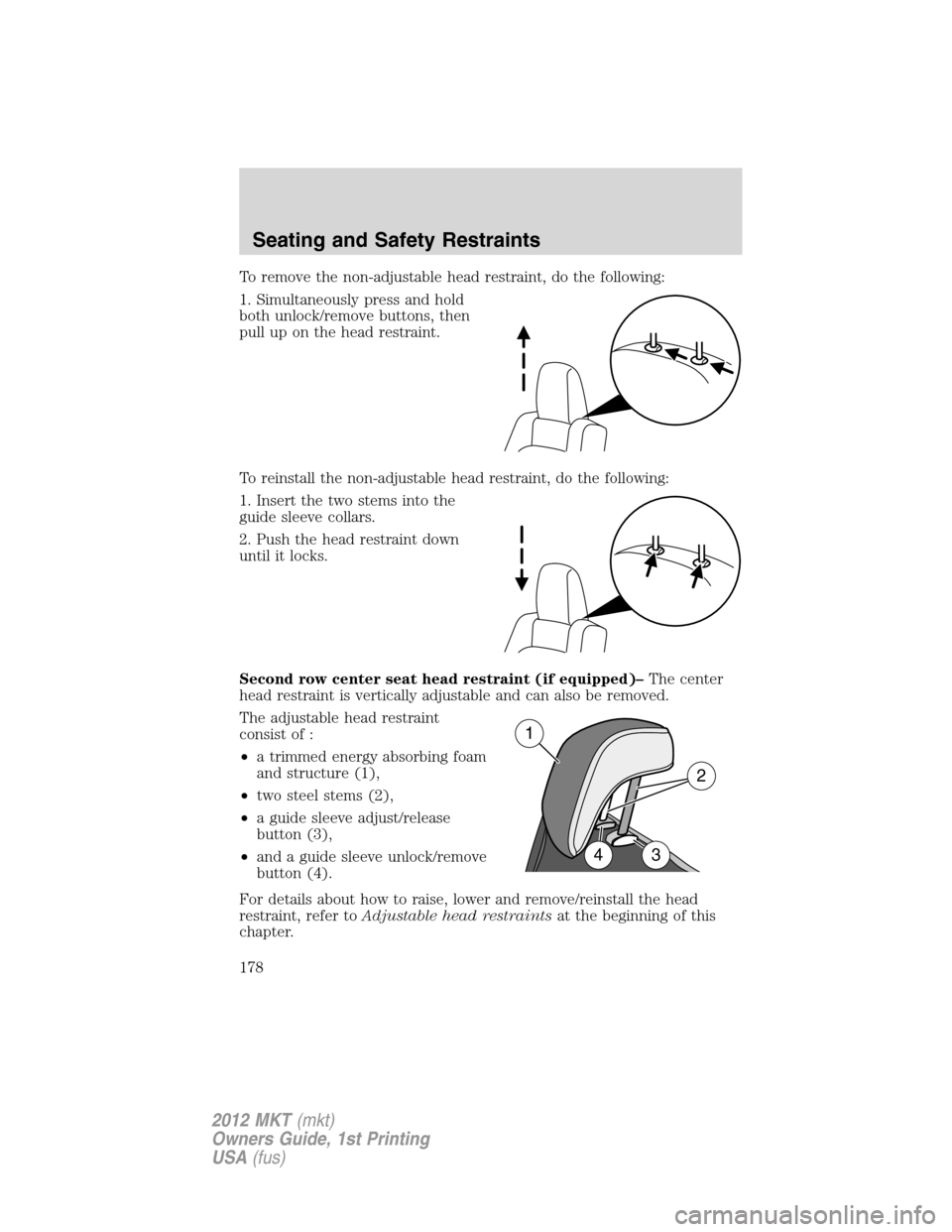

To remove the non-adjustable head restraint, do the following:
1. Simultaneously press and hold
both unlock/remove buttons, then
pull up on the head restraint.
To reinstall the non-adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Second row center seat head restraint (if equipped)–The center
head restraint is vertically adjustable and can also be removed.
The adjustable head restraint
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust/release
button (3),
•and a guide sleeve unlock/remove
button (4).
For details about how to raise, lower and remove/reinstall the head
restraint, refer toAdjustable head restraintsat the beginning of this
chapter.
1
34
2
Seating and Safety Restraints
178
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

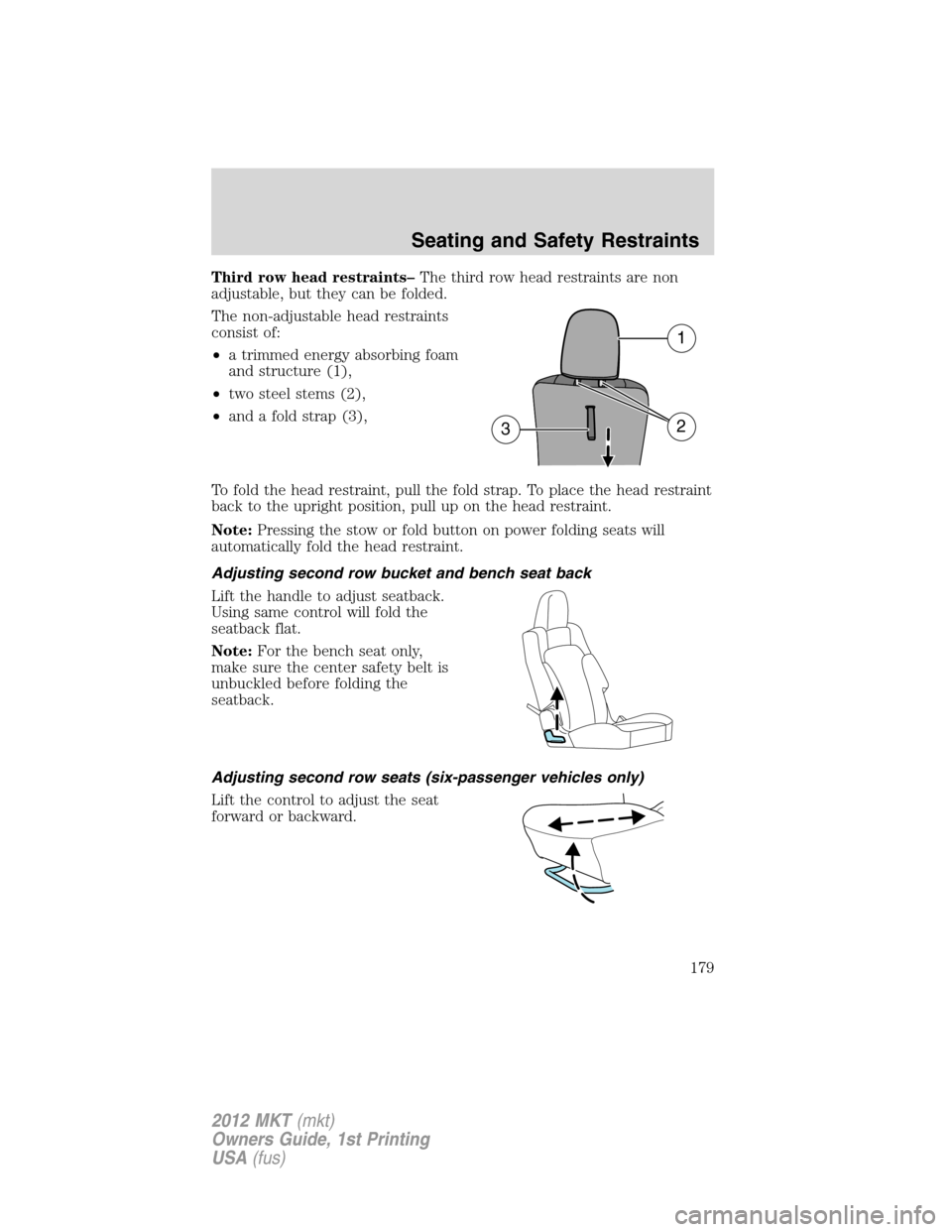

Third row head restraints–The third row head restraints are non
adjustable, but they can be folded.
The non-adjustable head restraints
consist of:
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•and a fold strap (3),
To fold the head restraint, pull the fold strap. To place the head restraint
back to the upright position, pull up on the head restraint.
Note:Pressing the stow or fold button on power folding seats will
automatically fold the head restraint.
Adjusting second row bucket and bench seat back
Lift the handle to adjust seatback.
Using same control will fold the
seatback flat.
Note:For the bench seat only,
make sure the center safety belt is
unbuckled before folding the
seatback.
Adjusting second row seats (six-passenger vehicles only)
Lift the control to adjust the seat
forward or backward.
1
32
Seating and Safety Restraints
179
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

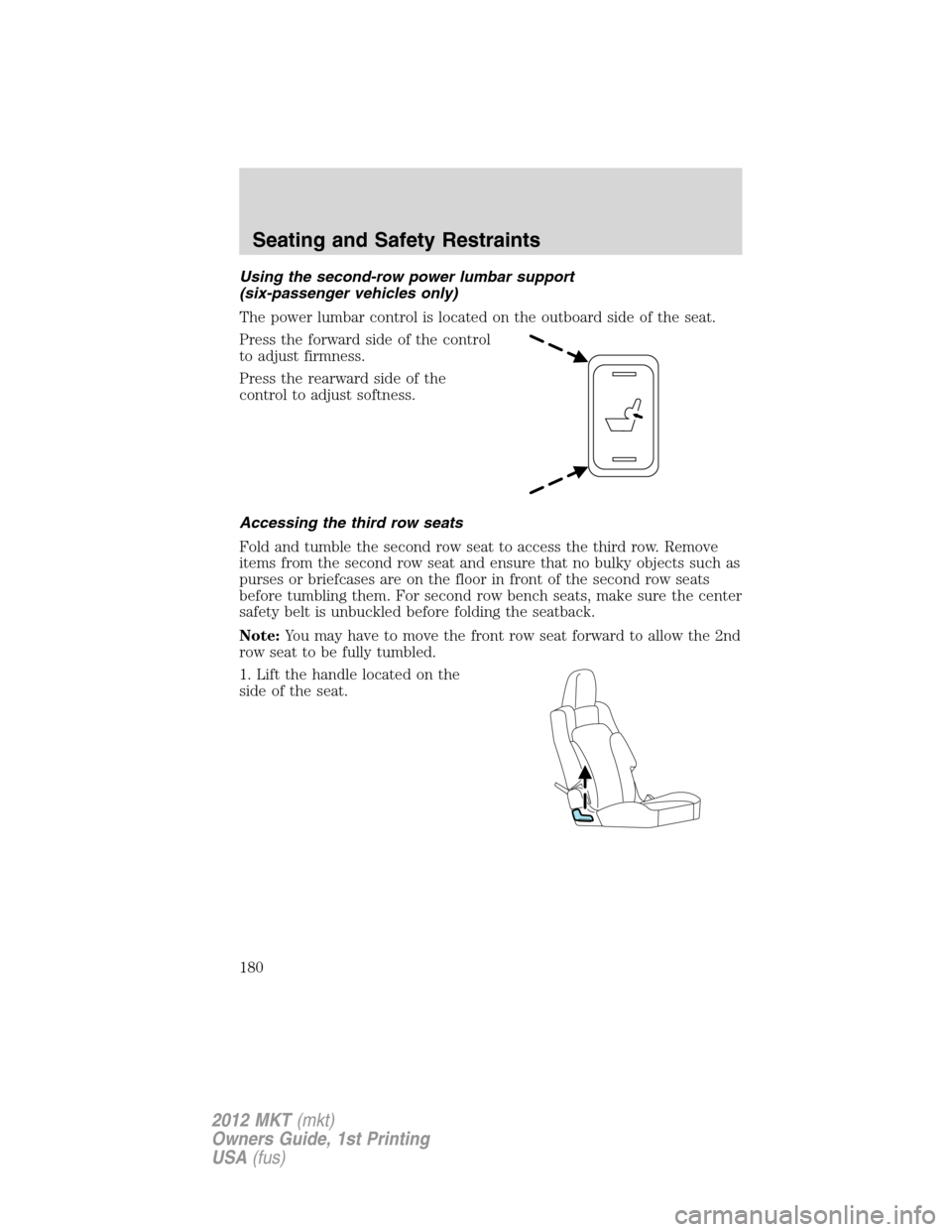

Using the second-row power lumbar support
(six-passenger vehicles only)
The power lumbar control is located on the outboard side of the seat.
Press the forward side of the control
to adjust firmness.
Press the rearward side of the
control to adjust softness.
Accessing the third row seats
Fold and tumble the second row seat to access the third row. Remove
items from the second row seat and ensure that no bulky objects such as
purses or briefcases are on the floor in front of the second row seats
before tumbling them. For second row bench seats, make sure the center
safety belt is unbuckled before folding the seatback.
Note:You may have to move the front row seat forward to allow the 2nd
row seat to be fully tumbled.
1. Lift the handle located on the
side of the seat.
