LINCOLN MKT 2014 Owners Manual

TECHNICAL SPECIFICATIONS
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluid
1
Between MAX and
MIN on reservoirMotorcraft DOT 4 LV
High Performance Motor
Vehicle Brake FluidPM-20 /
WSS-M6C65-A2 and ISO
4925 Class 6
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid
2,3
9.0 quarts (8.5L)
(6F35)
Motorcraft
MERCON LV ATFXT-10-QLV /
MERCON™ LV 10.9 quarts
(10.3L)
(6F50)
11.6 quarts
(11.0L)
(6F55)
Rear differential (AWD)
fluid1.3 pints (0.615L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
4
18 ounces (0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
360Capacities and Specifications
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil
5
6.0 quarts (5.7L)
(3.7L V6 engine)Motorcraft SAE 5W-20
Motor Oil or equivalentWSS-M2C945-A
6.0 quarts (5.7L)
(3.5L V6 EcoBoost
engine)Motorcraft SAE 5W-30
Motor Oil or equivalentWSS-M2C946-A
5.7 quarts (5.4L)
(2.0L EcoBoost
engine)•Motorcraft SAE 5W-30
Motor Oil or equivalentWSS-M2C946-A
Engine coolant
6
13.2 quarts
(12.5L)
3.7L V6 engine
Motorcraft Orange
Antifreeze/Coolant
Prediluted•VC-3DIL-B (US)
•CVC-3DIL-B (Canada) /
WSS-M97B44-D2 13.7 quarts
(13.0L)
3.5L V6 EcoBoost
engine
11.6 quarts
(11.0L)
2.0L EcoBoost
engine
Fuel tank18.6 gallons
(70.4L)——
Capacities and Specifications361
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification

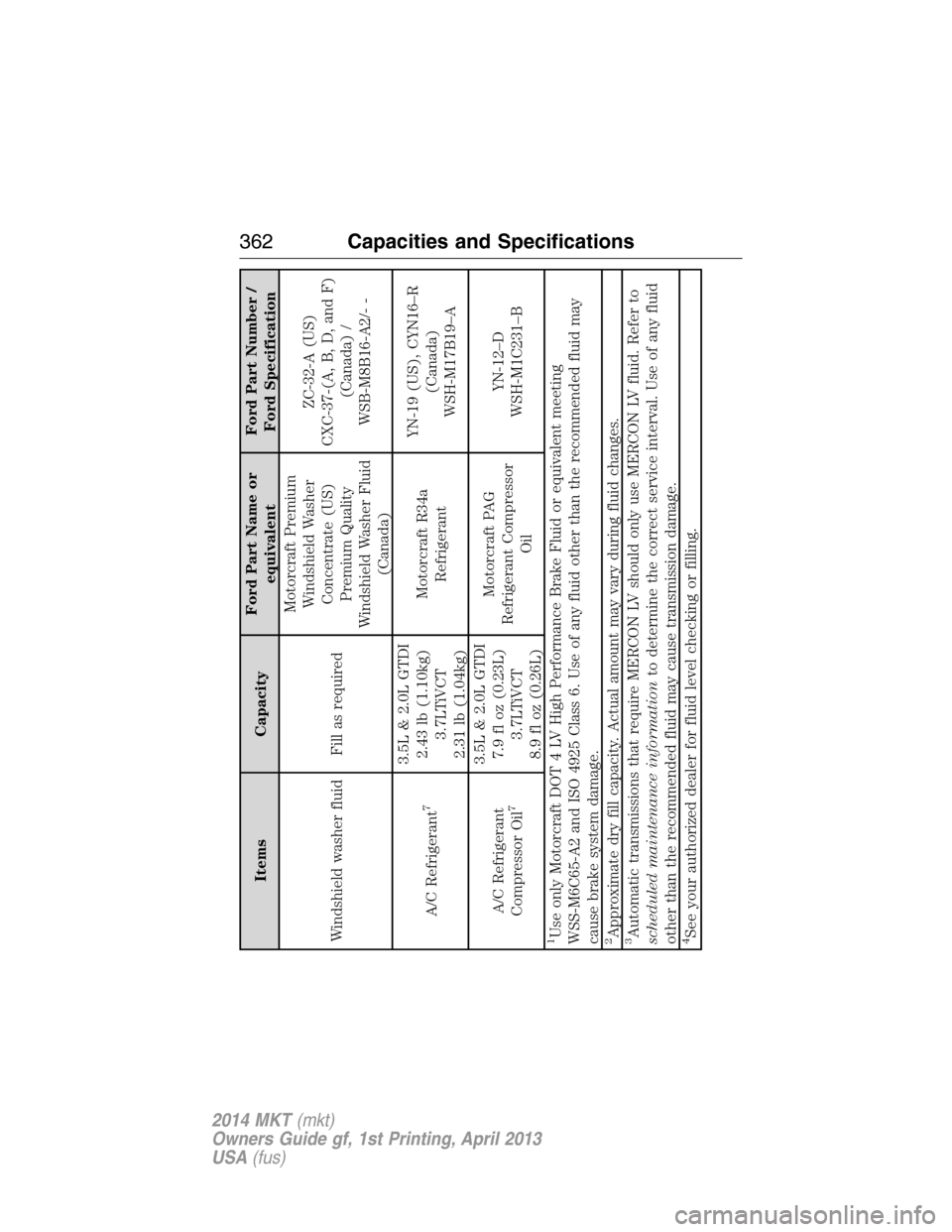

Windshield washer fluid Fill as requiredMotorcraft Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
A/C Refrigerant
7
3.5L & 2.0L GTDI
2.43 lb (1.10kg)
3.7LTiVCT
2.31 lb (1.04kg)Motorcraft R34a
RefrigerantYN-19 (US), CYN16–R
(Canada)
WSH-M17B19–A
A/C Refrigerant
Compressor Oil
7
3.5L & 2.0L GTDI
7.9 fl oz (0.23L)
3.7LTiVCT
8.9 fl oz (0.26L)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D
WSH-M1C231–B
1Use only Motorcraft DOT 4 LV High Performance Brake Fluid or equivalent meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause brake system damage.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.
362Capacities and Specifications
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification

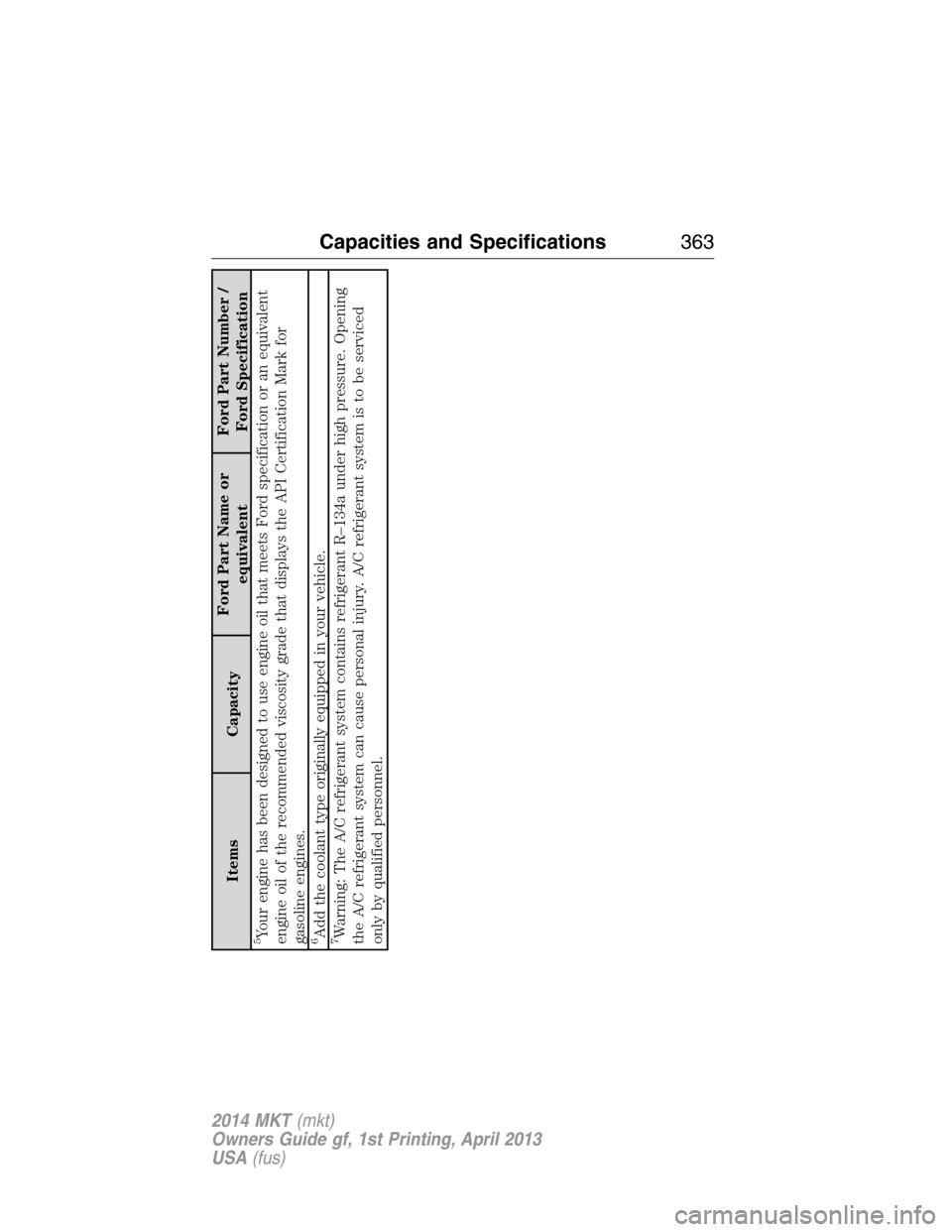

5Your engine has been designed to use engine oil that meets Ford specification or an equivalent
engine oil of the recommended viscosity grade that displays the API Certification Mark for
gasoline engines.6Add the coolant type originally equipped in your vehicle.7Warning: The A/C refrigerant system contains refrigerant R–134a under high pressure. Opening
the A/C refrigerant system can cause personal injury. A/C refrigerant system is to be serviced
only by qualified personnel.
Capacities and Specifications363
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

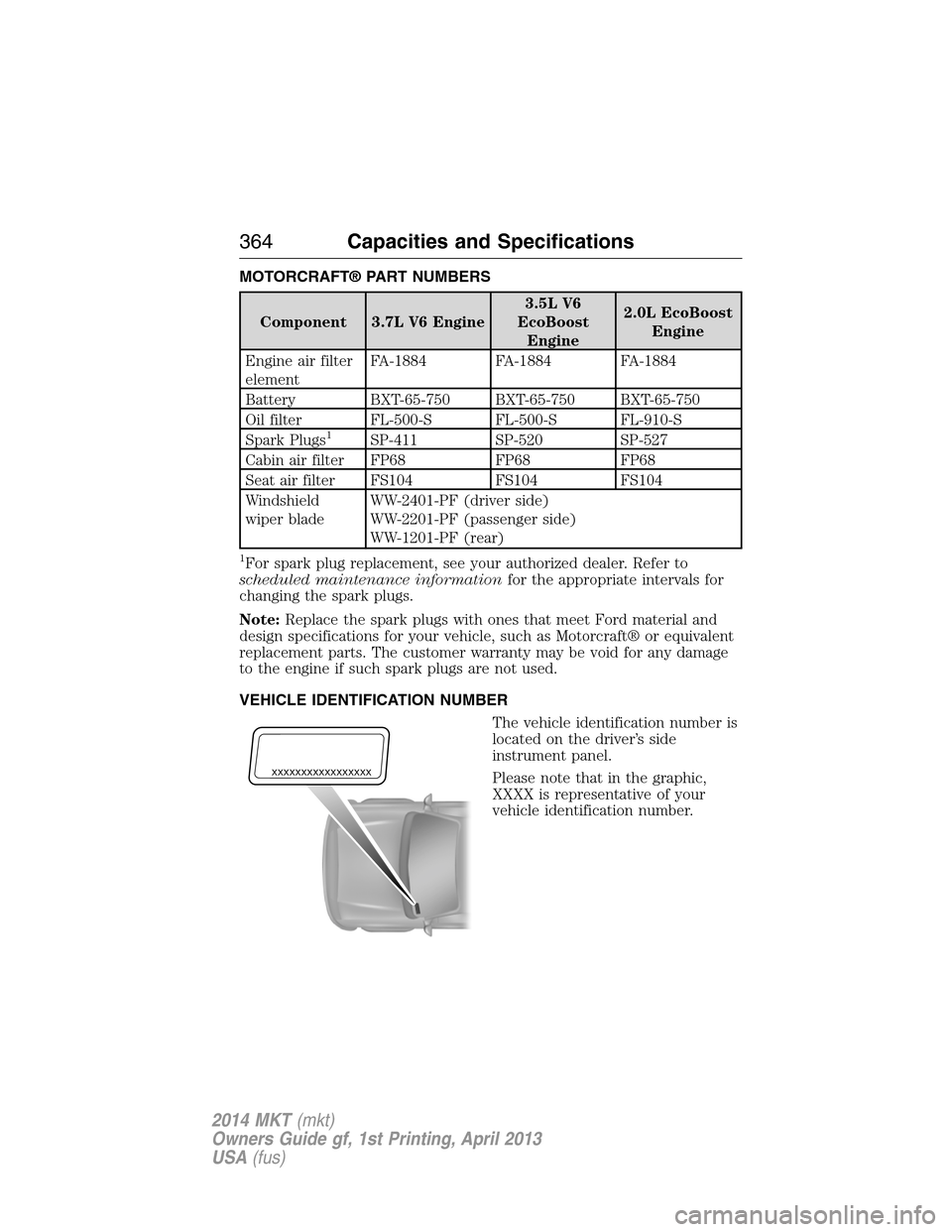

MOTORCRAFT® PART NUMBERS
Component 3.7L V6 Engine3.5L V6
EcoBoost
Engine2.0L EcoBoost
Engine
Engine air filter
elementFA-1884 FA-1884 FA-1884
Battery BXT-65-750 BXT-65-750 BXT-65-750
Oil filter FL-500-S FL-500-S FL-910-S
Spark Plugs
1SP-411 SP-520 SP-527
Cabin air filter FP68 FP68 FP68
Seat air filter FS104 FS104 FS104
Windshield
wiper bladeWW-2401-PF (driver side)
WW-2201-PF (passenger side)
WW-1201-PF (rear)
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft® or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
364Capacities and Specifications
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

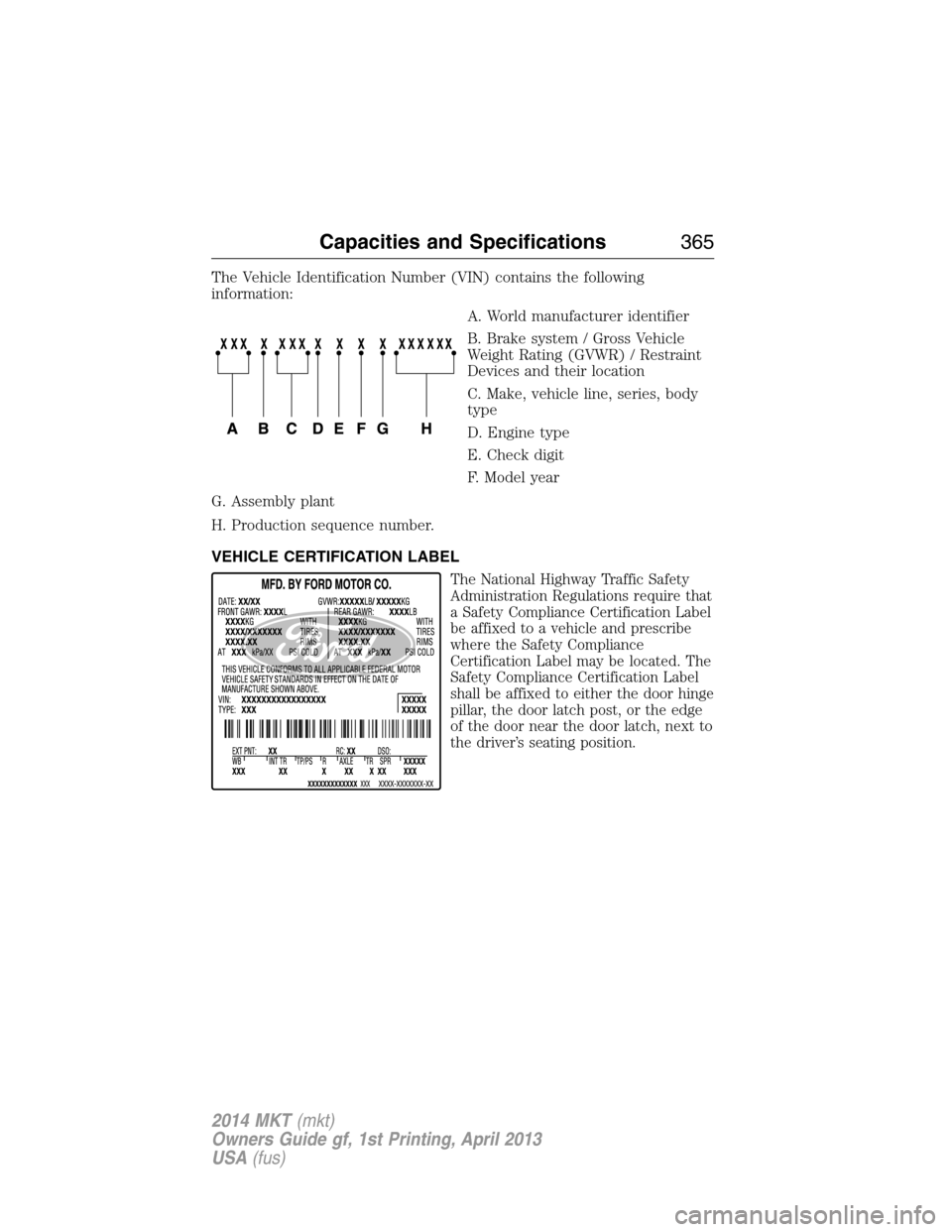

The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require that
a Safety Compliance Certification Label
be affixed to a vehicle and prescribe
where the Safety Compliance
Certification Label may be located. The
Safety Compliance Certification Label
shall be affixed to either the door hinge
pillar, the door latch post, or the edge
of the door near the door latch, next to
the driver’s seating position.
Capacities and Specifications365
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

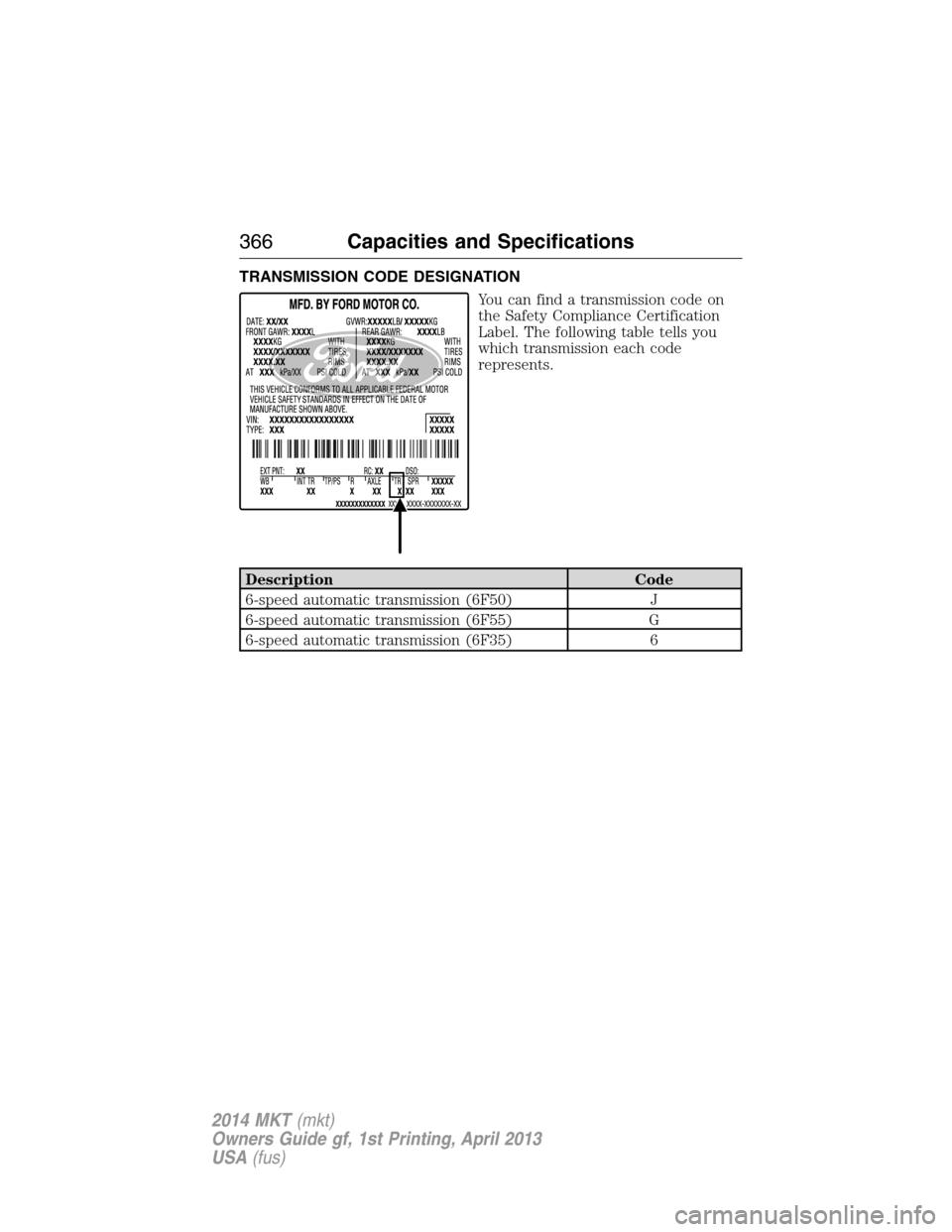

TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) G
6-speed automatic transmission (6F35) 6
366Capacities and Specifications
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

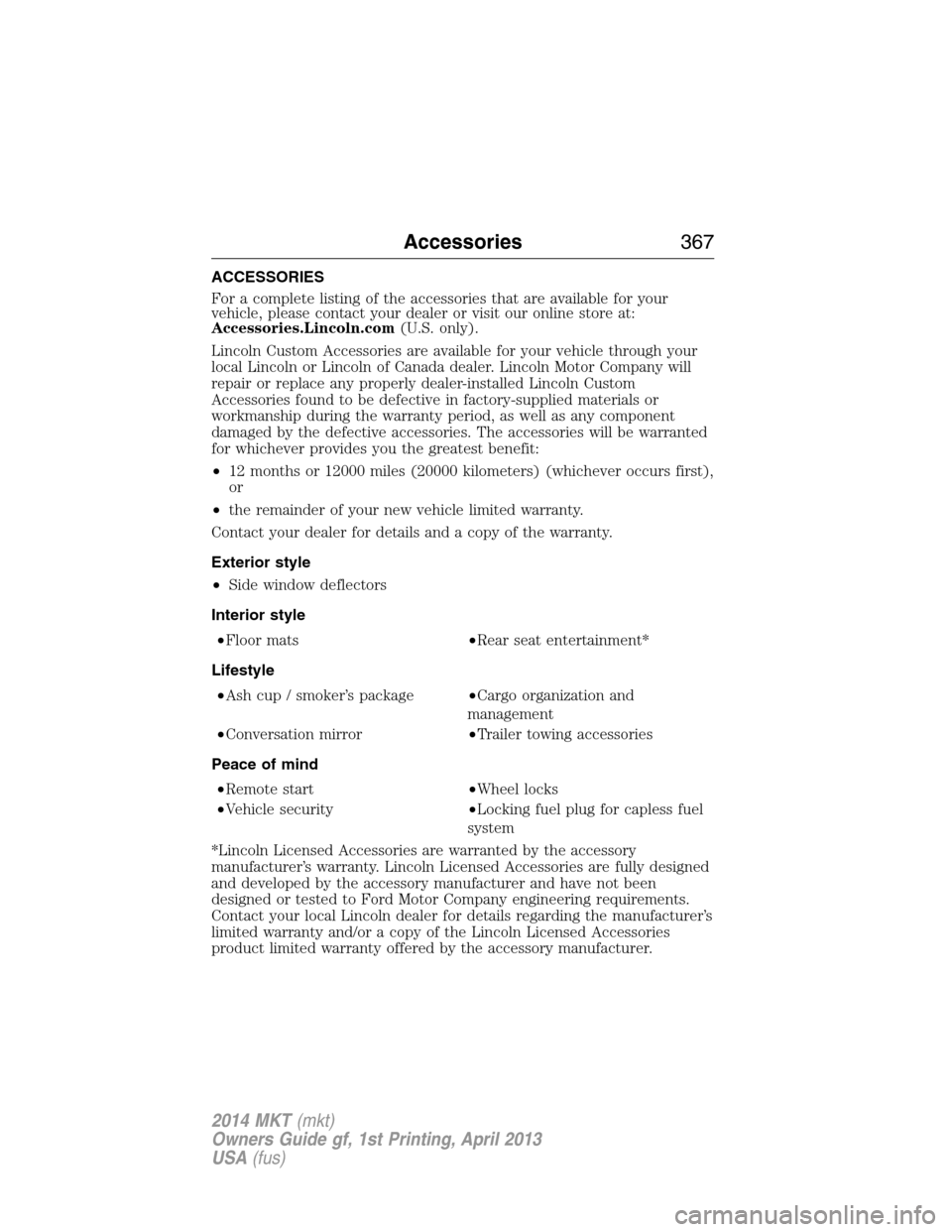

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact your dealer or visit our online store at:
Accessories.Lincoln.com(U.S. only).
Lincoln Custom Accessories are available for your vehicle through your
local Lincoln or Lincoln of Canada dealer. Lincoln Motor Company will
repair or replace any properly dealer-installed Lincoln Custom
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12000 miles (20000 kilometers) (whichever occurs first),
or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Exterior style
•Side window deflectors
Interior style
•Floor mats•Rear seat entertainment*
Lifestyle
•Ash cup / smoker’s package•Cargo organization and
management
•Conversation mirror•Trailer towing accessories
Peace of mind
•Remote start•Wheel locks
•Vehicle security•Locking fuel plug for capless fuel
system
*Lincoln Licensed Accessories are warranted by the accessory
manufacturer’s warranty. Lincoln Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your local Lincoln dealer for details regarding the manufacturer’s
limited warranty and/or a copy of the Lincoln Licensed Accessories
product limited warranty offered by the accessory manufacturer.
Accessories367
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

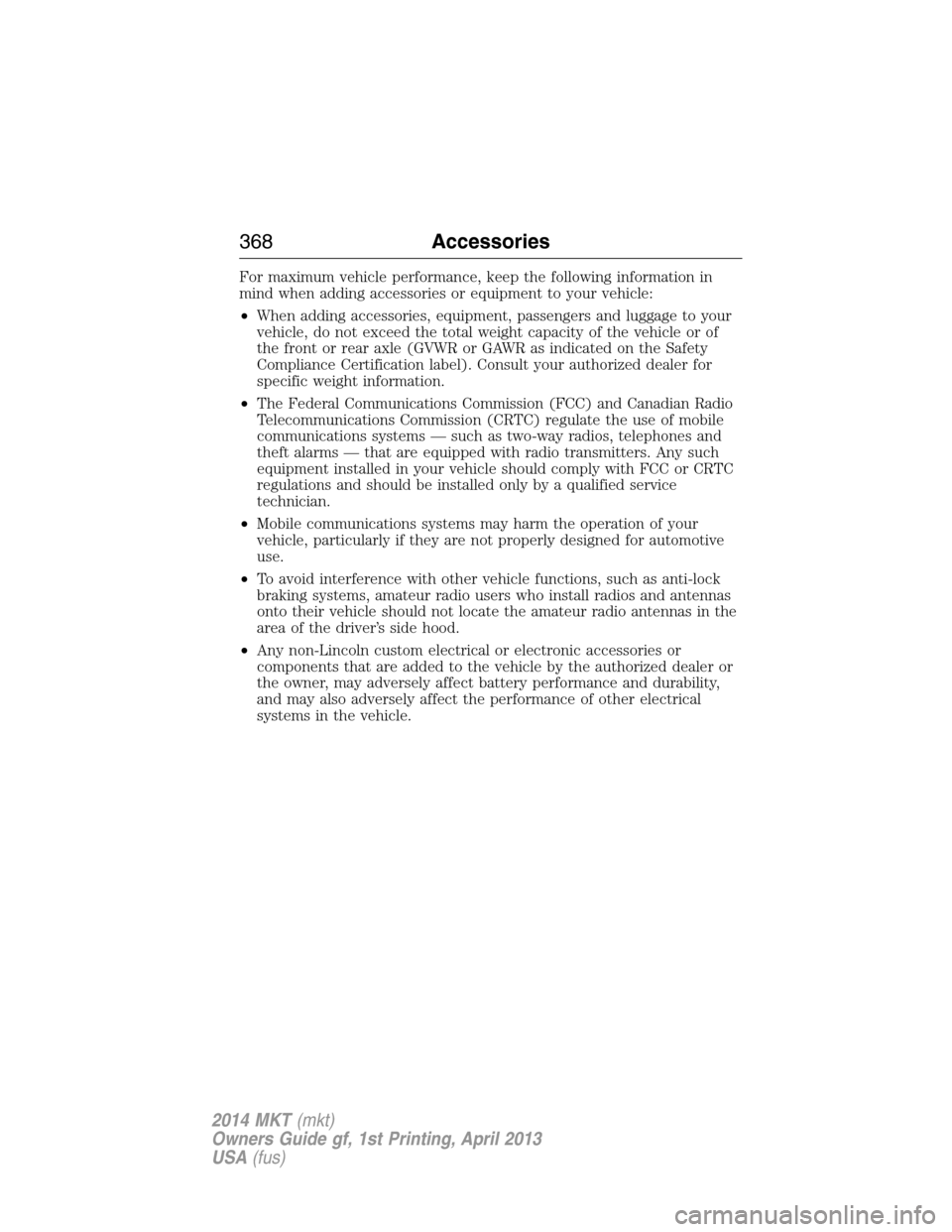

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms — that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the amateur radio antennas in the
area of the driver’s side hood.
•Any non-Lincoln custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner, may adversely affect battery performance and durability,
and may also adversely affect the performance of other electrical
systems in the vehicle.
368Accessories
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

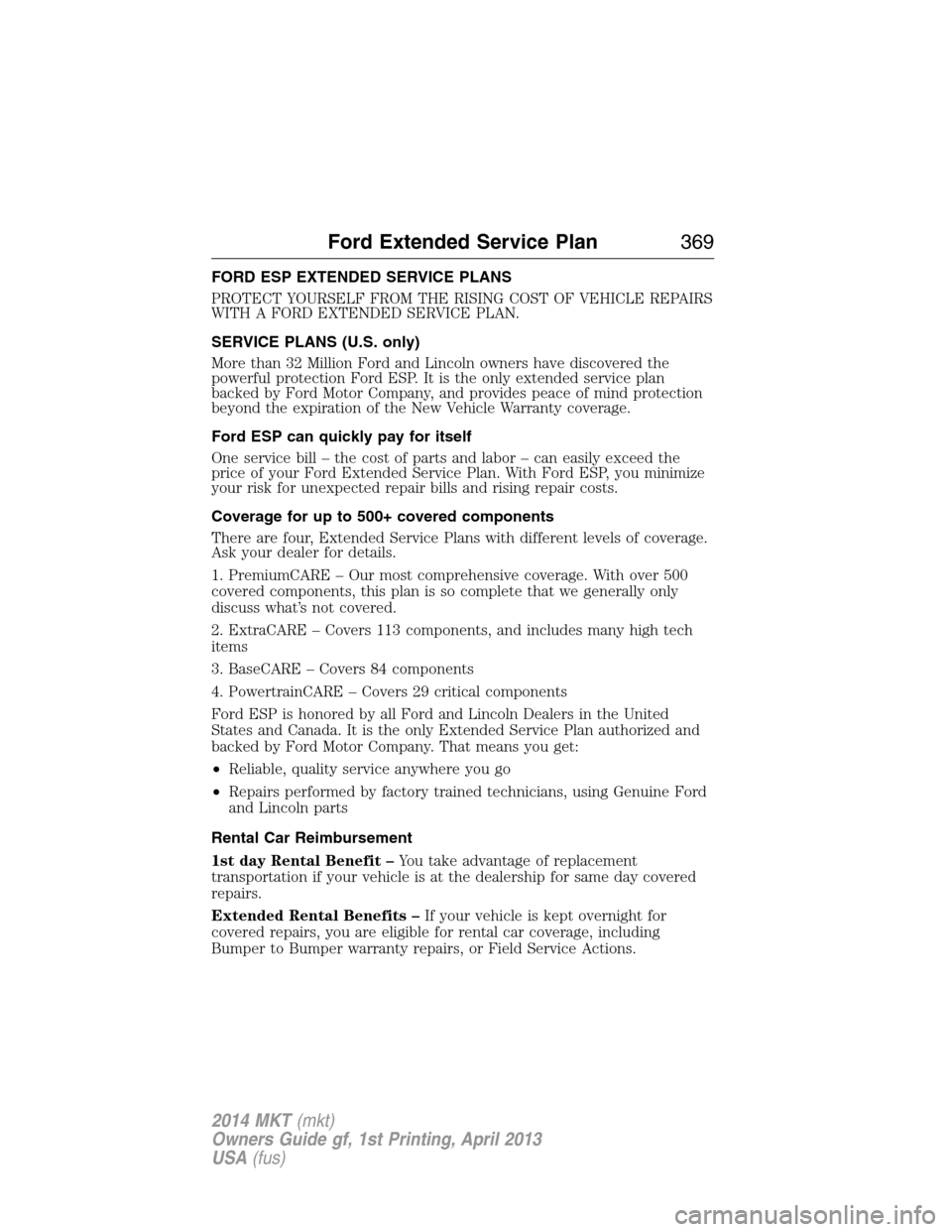

FORD ESP EXTENDED SERVICE PLANS
PROTECT YOURSELF FROM THE RISING COST OF VEHICLE REPAIRS
WITH A FORD EXTENDED SERVICE PLAN.
SERVICE PLANS (U.S. only)
More than 32 Million Ford and Lincoln owners have discovered the
powerful protection Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides peace of mind protection
beyond the expiration of the New Vehicle Warranty coverage.
Ford ESP can quickly pay for itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford Extended Service Plan. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Coverage for up to 500+ covered components
There are four, Extended Service Plans with different levels of coverage.
Ask your dealer for details.
1. PremiumCARE – Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered.
2. ExtraCARE – Covers 113 components, and includes many high tech
items
3. BaseCARE – Covers 84 components
4. PowertrainCARE – Covers 29 critical components
Ford ESP is honored by all Ford and Lincoln Dealers in the United
States and Canada. It is the only Extended Service Plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go
•Repairs performed by factory trained technicians, using Genuine Ford
and Lincoln parts
Rental Car Reimbursement
1st day Rental Benefit –You take advantage of replacement
transportation if your vehicle is at the dealership for same day covered
repairs.
Extended Rental Benefits –If your vehicle is kept overnight for
covered repairs, you are eligible for rental car coverage, including
Bumper to Bumper warranty repairs, or Field Service Actions.
Ford Extended Service Plan369
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
