brake sensor LINCOLN MKT 2014 Quick Reference Guide

Heated and Cooled Front Seats:
To access, press the Climate
corner on the touchscreen. For
heated front seats, press

repeatedly to cycle through the
various heat modes and off. For
cooled front seats, press

repeatedly to cycle through the
various cooling modes and off.
Second-Row Heated and
Cooled Seats*: These controls
are located on the rear of
the floor console. Press
continuously to cycle through
the various heat modes and off.
Press
repeatedly to cycle
through the various cooling
modes and off.
PowerFold® Third-Row Seat*:
The third-row seat features a
power, one-touch operation that
allows you to adjust the seats
with the touch of a button. The
buttons are located behind the
third-row seats on the left-hand
quarter trim panel. To use, press
the RH/BOTH/LH button to
select the right seat, the left
seat or both seats you want to
move. Then select the desired
seat position.
Press the STOW button to
stow the seat into the
tub floor.
Press the FOLD button (the
top portion of the button) to
fold the seat back down.
Press the TAILGATE button
(the bottom portion of the
button) to put the seat into
the tailgate position.
Press the NORMAL button to
return the seat to the normal
seating position.
Note: The power folding seats
work only when the vehicle is in
P (Park) and the tailgate is open. Panoramic Vista Roof®
and Power Sunshades*:
To open the sunshades, press
and release the overhead
moonroof switch . Press
again to open the moonroof.
The moonroof will stop short of
the fully opened position. This
position may help to reduce wind
noise. Press and release the
control again to fully open. To
close, pull the switch
down.
The glass panel will stop at the
first position. Pull again and hold
to fully close the glass panel and
the sunshades. To vent from a
closed position, press the TILT
button. To close from a venting
position, pull the TILT button.
Convenience
Console Refrigerator/Freezer*:
Before using, flip the console
lid forward and then remove
the cover (make sure to reinstall
the cover to help maintain the
temperature). For the refrigerator,
press the COOL control. In this
mode, the system will cool to
approximately 41°F (5°C). For
the Freezer, press the FREEZE
control. The system will cool to
approximately 23°F (-5°C). Press
the selected control again to turn
the system off.
Note: Ford recommends only
using this feature when the
engine is running to avoid
draining your vehicle’s battery.
Memory Function*: Allows one
touch recall of memory positions
for the driver seat, power mirrors,
steering column and power
adjustable foot pedals. Use the
memory controls located on the
driver’s door to program and
then recall memory positions.
To program position 1, press and
hold the 1 button until you hear a
tone. Use this same procedure
to set positions 2 and 3 using
the respective buttons. You can
now use these controls to recall
the set memory positions.
Remote Start: Allows you to start
the engine from outside your
vehicle using your transmitter. To
start, press
and then press
twice within three seconds. Once
inside, apply the brake while
pressing the ENGINE START/
STOP button. Shift into D (Drive)
and go. If you have an integrated
keyhead transmitter, simply
insert the key into the ignition and turn the ignition on as you
normally would before driving.
To turn the engine off from
outside the vehicle after using
your remote start, press
once.
Intelligent Access (IA)
Remote Entry Icons: Press

once to lock all doors. Press
again within three seconds to
confirm all doors are locked.
Press
once to unlock the
driver’s door. Press again within
three seconds to unlock all doors.
Press
to activate the panic
alarm. Press again or turn on
the ignition to deactivate.
Press
twice within three
seconds to open the liftgate.
Car finder: Press
twice within
three seconds to locate your
vehicle. The horn will sound
and the lamps will flash. Intelligent Access (IA) Key:
Note: Your intelligent access key
must be within 3 feet (1 meter)
of the vehicle for intelligent
access to function properly.
To unlock and open the driver
door, pull the front exterior door
handle. To lock the doors, touch
the sensor button on the door
handle. To unlock and open

the liftgate, press the exterior
liftgate release button
above the license plate.
The intelligent access key also
contains a mechanical key blade,
which can be used to unlock
the driver door if necessary.
10 11
* if equipped
2014 MKTComfort

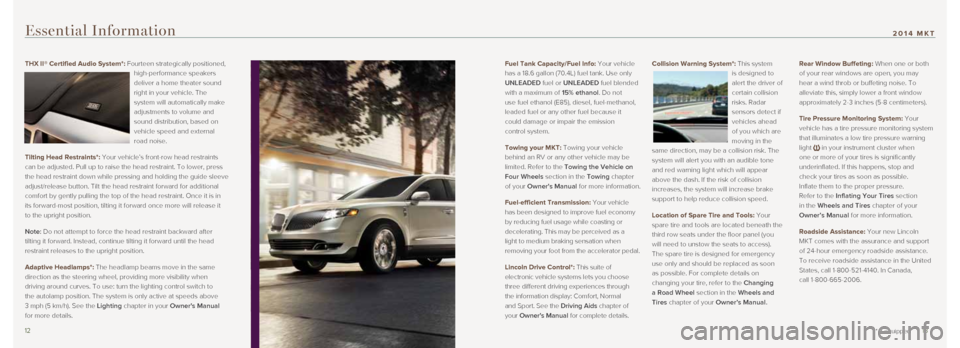

Fuel Tank Capacity/Fuel Info: Your vehicle
has a 18.6 gallon (70.4L) fuel tank. Use only
UNLEADED fuel or UNLEADED fuel blended
with a maximum of 15% ethanol. Do not
use fuel ethanol (E85), diesel, fuel-methanol,
leaded fuel or any other fuel because it
could damage or impair the emission
control system.
Towing your MKT: Towing your vehicle
behind an RV or any other vehicle may be
limited. Refer to the Towing the Vehicle on
Four Wheels section in the Towing chapter
of your Owner's Manual for more information.
Fuel-efficient Transmission: Your vehicle
has been designed to improve fuel economy
by reducing fuel usage while coasting or
decelerating. This may be perceived as a
light to medium braking sensation when
removing your foot from the accelerator pedal.
Lincoln Drive Control*: This suite of
electronic vehicle systems lets you choose
three different driving experiences through
the information display: Comfort, Normal
and Sport. See the Driving Aids chapter of
your Owner's Manual for complete details. Collision Warning System*: This system
is designed to
alert the driver of
certain collision
risks. Radar
sensors detect if
vehicles ahead
of you which are
moving in the
same direction, may be a collision risk. The
system will alert you with an audible tone
and red warning light which will appear
above the dash. If the risk of collision
increases, the system will increase brake
support to help reduce collision speed.
Location of Spare Tire and Tools: Your
spare tire and tools are located beneath the
third row seats under the floor panel (you
will need to unstow the seats to access).
The spare tire is designed for emergency
use only and should be replaced as soon
as possible. For complete details on
changing your tire, refer to the Changing
a Road Wheel section in the Wheels and
Tires chapter of your Owner’s Manual. Rear Window Buffeting: When one or both
of your rear windows are open, you may
hear a wind throb or buffeting noise. To
alleviate this, simply lower a front window
approximately 2-3 inches (5-8 centimeters).
Tire Pressure Monitoring System: Your
vehicle has a tire pressure monitoring system
that illuminates a low tire pressure warning
light
in your instrument cluster when
one or more of your tires is significantly
underinflated. If this happens, stop and
check your tires as soon as possible.
Inflate them to the proper pressure.
Refer to the Inflating Your Tires section
in the Wheels and Tires chapter of your
Owner’s Manual for more information.
Roadside Assistance: Your new Lincoln
MKT comes with the assurance and support
of 24-hour emergency roadside assistance.
To receive roadside assistance in the United
States, call 1-800-521-4140. In Canada,
call 1-800-665-2006.
Essential Information
THX II® Certified Audio System*: Fourteen strategically positioned, high-performance speakers
deliver a home theater sound
right in your vehicle. The
system will automatically make
adjustments to volume and
sound distribution, based on
vehicle speed and external
road noise.
Tilting Head Restraints*: Your vehicle’s front-row head restraints
can be adjusted. Pull up to raise the head restraint. To lower, press
the head restraint down while pressing and holding the guide sleeve
adjust/release button. Tilt the head restraint forward for additional
comfort by gently pulling the top of the head restraint. Once it is in
its forward-most position, tilting it forward once more will release it \

to the upright position.
Note: Do not attempt to force the head restraint backward after
tilting it forward. Instead, continue tilting it forward until the head
restraint releases to the upright position.
Adaptive Headlamps*: The headlamp beams move in the same
direction as the steering wheel, providing more visibility when
driving around curves. To use: turn the lighting control switch to
the autolamp position. The system is only active at speeds above
3 mph (5 km/h). See the Lighting chapter in your Owner's Manual
for more details.
12 13* if equipped
2014 MKT
