LINCOLN MKT 2015 Owners Manual

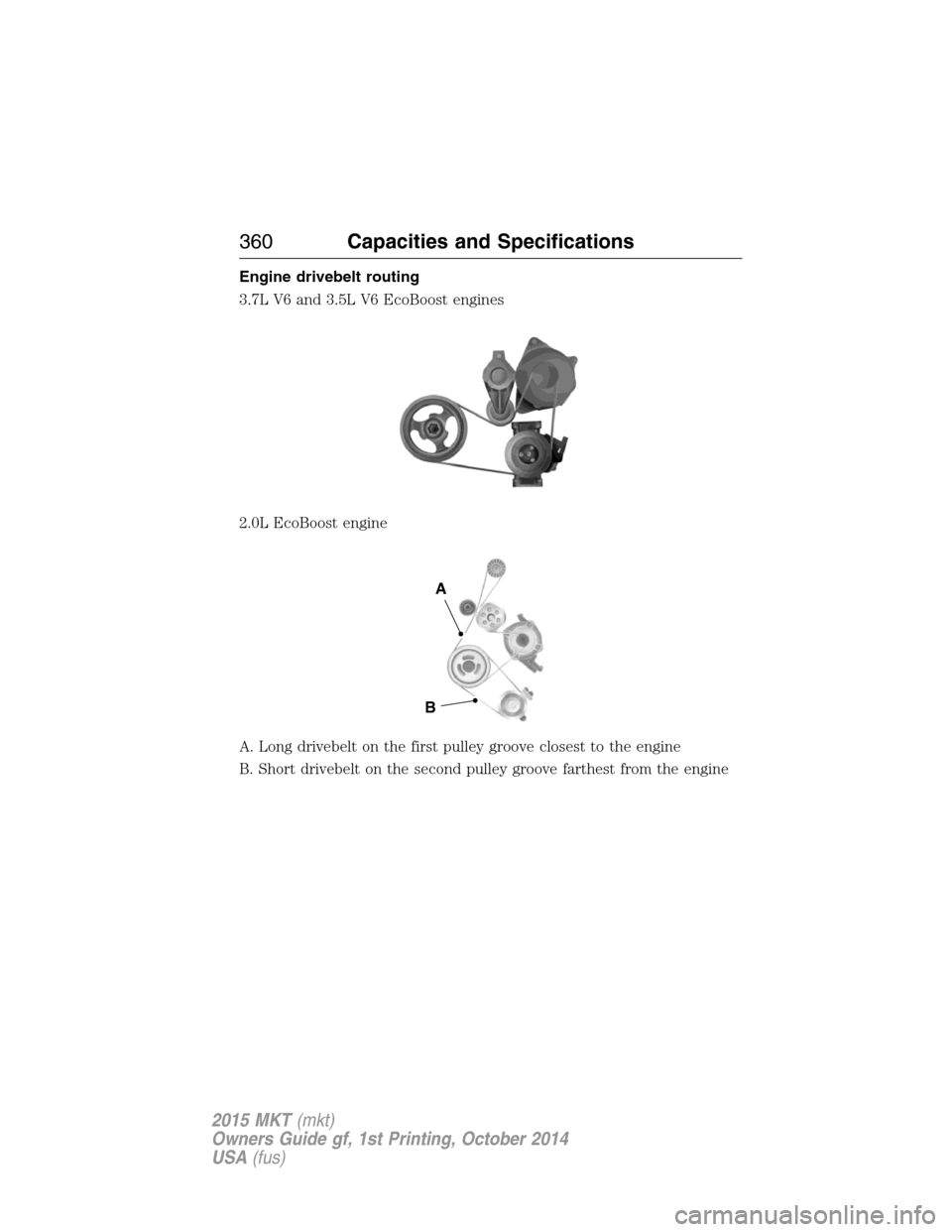

Engine drivebelt routing
3.7L V6 and 3.5L V6 EcoBoost engines
2.0L EcoBoost engine
A. Long drivebelt on the first pulley groove closest to the engine
B. Short drivebelt on the second pulley groove farthest from the engine
A
B
360Capacities and Specifications
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

TECHNICAL SPECIFICATIONS
Items CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluid
1
Between MAX and
MIN on reservoirMotorcraft DOT 4 Low
Viscosity High
Performance Motor
Vehicle Brake FluidPM-20 / WSS-M6C65-A2
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches—Multi-Purpose Grease
(Lithium grease)XL-5 / ESA-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid
2,3
6F35 transmission
9.0 qt (8.5L)
Motorcraft MERCON LV
Automatic Transmission
FluidXT-10-QLVC (U.S.);
CXT-10-LV12 (Canada) /
WSS-M2C938-A
MERCON LV 6F50 transmission
10.9 qt (10.3L)
6F55 transmission
11.6 qt (11.0L)
Rear differential fluid
(All Wheel Drive)2.43 pt
(1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (All Wheel
Drive)
4
18 oz (0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL(U.S.)
/ WSL-M2C192-A
CXY-75W140–1L
(Canada)
/ WSL-M2C192-A
Capacities and Specifications361
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification

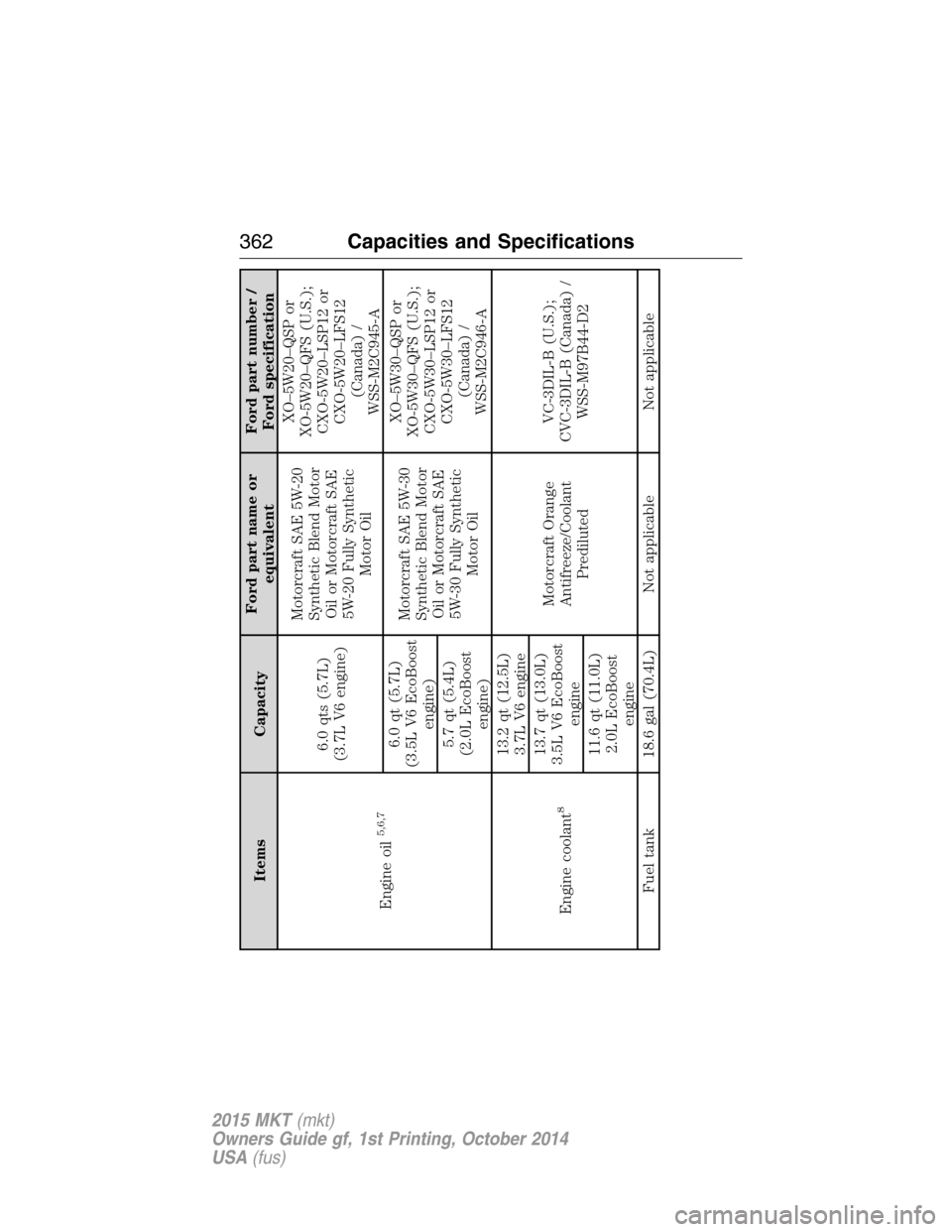

Engine oil
5,6,7
6.0 qts (5.7L)
(3.7L V6 engine)Motorcraft SAE 5W-20
Synthetic Blend Motor
Oil or Motorcraft SAE
5W-20 Fully Synthetic
Motor OilXO–5W20–QSP or
XO-5W20–QFS (U.S.);
CXO-5W20–LSP12 or
CXO-5W20–LFS12
(Canada) /
WSS-M2C945-A
6.0 qt (5.7L)
(3.5L V6 EcoBoost
engine)Motorcraft SAE 5W-30
Synthetic Blend Motor
Oil or Motorcraft SAE
5W-30 Fully Synthetic
Motor OilXO–5W30–QSP or
XO-5W30–QFS (U.S.);
CXO-5W30–LSP12 or
CXO-5W30–LFS12
(Canada) /
WSS-M2C946-A 5.7 qt (5.4L)
(2.0L EcoBoost
engine)
Engine coolant
8
13.2 qt (12.5L)
3.7L V6 engine
Motorcraft Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (U.S.);
CVC-3DIL-B (Canada) /
WSS-M97B44-D2 13.7 qt (13.0L)
3.5L V6 EcoBoost
engine
11.6 qt (11.0L)
2.0L EcoBoost
engine
Fuel tank 18.6 gal (70.4L) Not applicable Not applicable
362Capacities and Specifications
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification
Windshield washer fluid Fill as requiredMotorcraft Premium
Windshield Washer
Concentrate with
Bitterant (US);
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-B2 (U.S.)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2
A/C refrigerant
9
3.5L & 2.0L
Ecoboost engines
2.44 lb (1.11kg)
3.7L V6 engines
2.31 lb (1.05kg)Motorcraft R34a
RefrigerantYN-19 (U.S.); CYN–16–R
(Canada) /
WSH-M17B19–A
A/C refrigerant
compressor oil
9
3.5L & 2.0L
EcoBoost engines
7.9 fl oz (0.23L)
3.7L V6 engines
8.9 fl oz (0.26L)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D /
WSH-M1C231–B
1Ford recommends using Motorcraft (Ford) DOT 4 Low Viscosity High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake
fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may
result in brake system damage and possible failure.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Capacities and Specifications363
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification

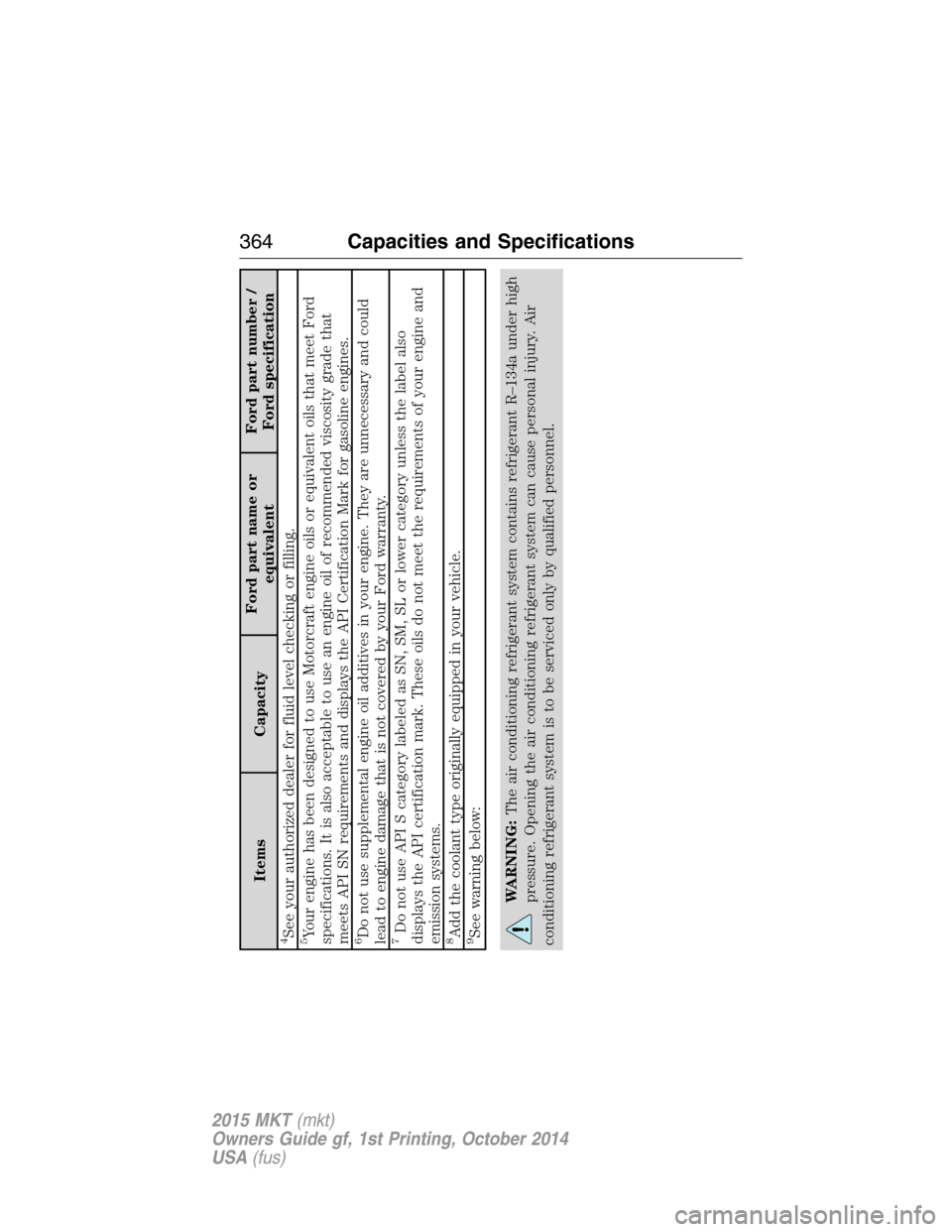

4See your authorized dealer for fluid level checking or filling.5Your engine has been designed to use Motorcraft engine oils or equivalent oils that meet Ford
specifications. It is also acceptable to use an engine oil of recommended viscosity grade that
meets API SN requirements and displays the API Certification Mark for gasoline engines.6Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage that is not covered by your Ford warranty.7Do not use API S category labeled as SN, SM, SL or lower category unless the label also
displays the API certification mark. These oils do not meet the requirements of your engine and
emission systems.8Add the coolant type originally equipped in your vehicle.9See warning below:
WARNING:The air conditioning refrigerant system contains refrigerant R–134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury. Air
conditioning refrigerant system is to be serviced only by qualified personnel.
364Capacities and Specifications
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

MOTORCRAFT® PART NUMBERS
Component 3.7L V6 Engine3.5L V6
EcoBoost
Engine2.0L EcoBoost
Engine
Engine air filter
elementFA-1884 FA-1884 FA-1884
Battery BXT-65-650 BXT-65-650 BXT-65-750
Oil filter FL-500-S FL-500-S FL-910-S
Spark plugs SP-520 SP-534 SP-537
Cabin air filter FP68 FP68 FP68
Seat air filter FS106 FS106 FS106
Windshield
wiper bladeWW-2429 (driver side)
WW-2235 (passenger side)
WW-1202 (rear)
We recommend Motorcraft replacement parts available at your Lincoln
dealer or at fordparts.com for scheduled maintenance. These parts meet
or exceed Ford Motor Company’s specifications and are engineered for
your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage
related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets
industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the
spark plugs at the appropriate intervals. Refer toscheduled
maintenance information.
Capacities and Specifications365
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

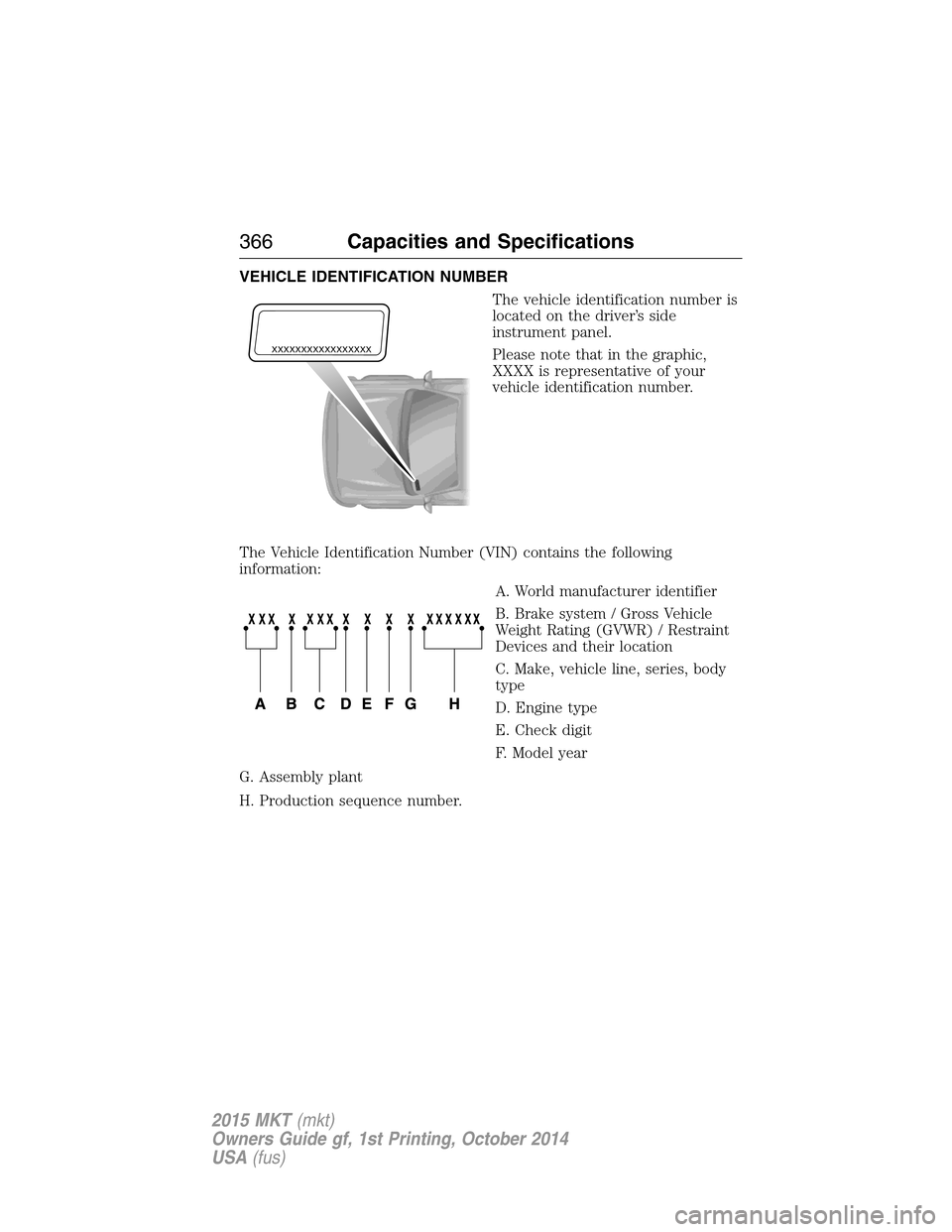

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
366Capacities and Specifications
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

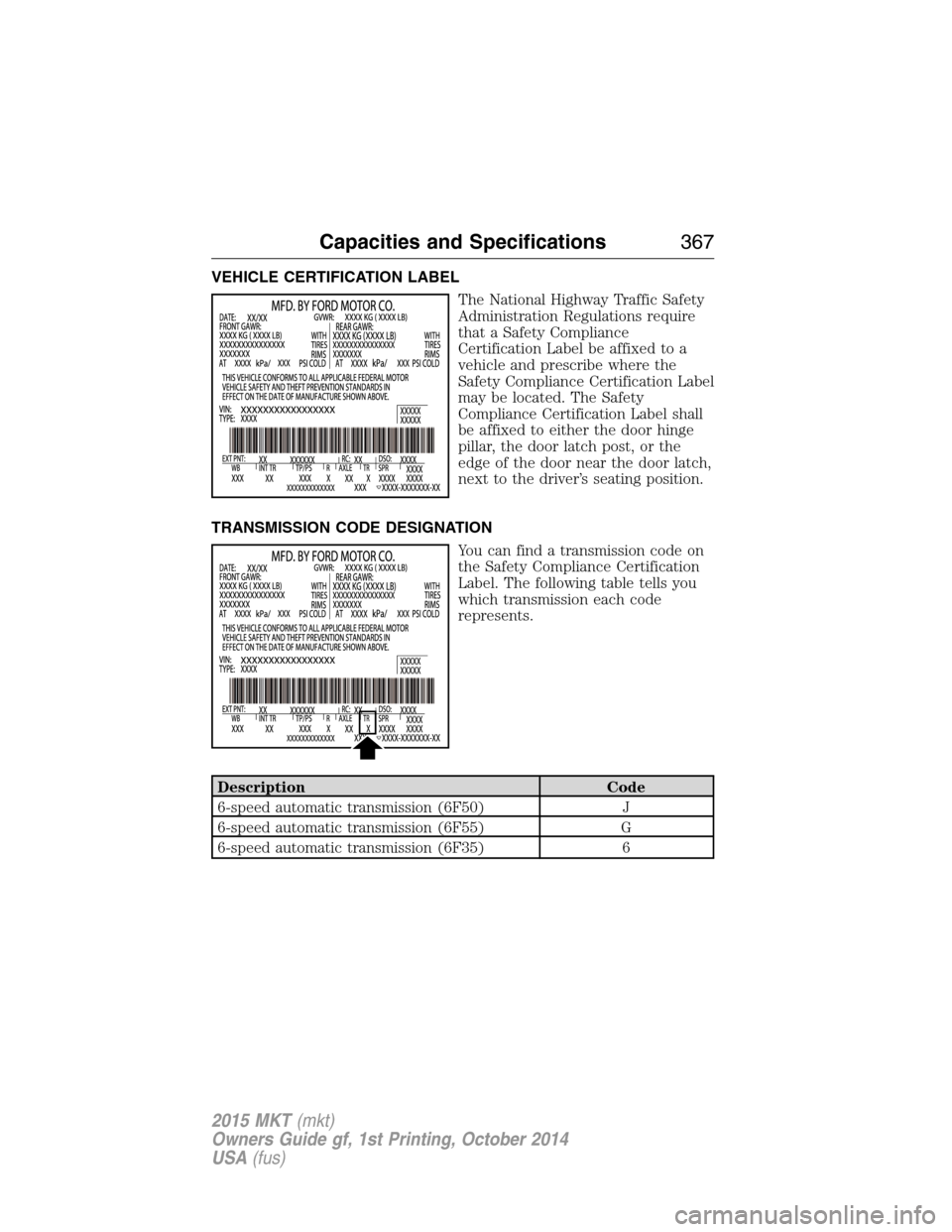

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification Label
may be located. The Safety
Compliance Certification Label shall
be affixed to either the door hinge
pillar, the door latch post, or the
edge of the door near the door latch,
next to the driver’s seating position.
TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) G
6-speed automatic transmission (6F35) 6
Capacities and Specifications367
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

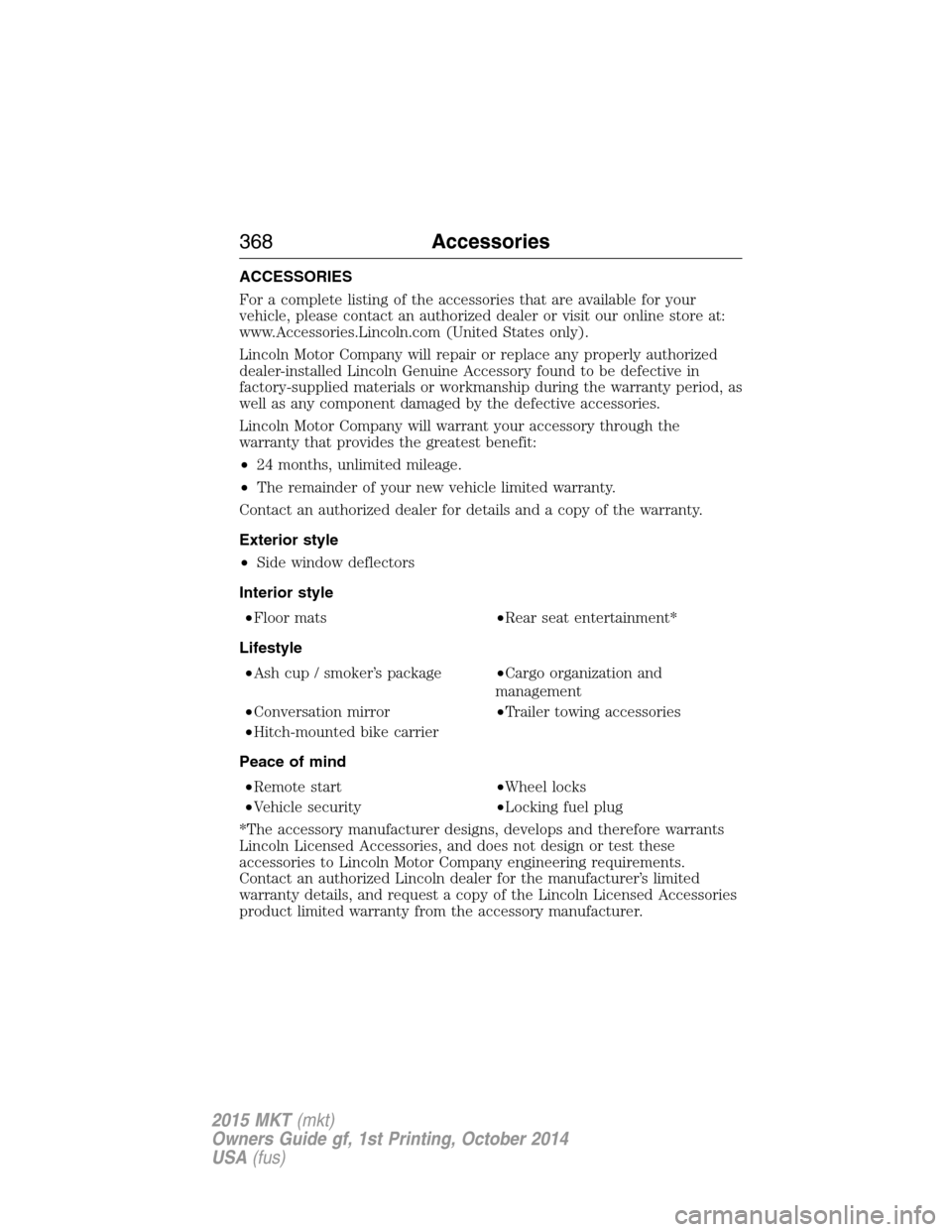

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact an authorized dealer or visit our online store at:
www.Accessories.Lincoln.com (United States only).
Lincoln Motor Company will repair or replace any properly authorized
dealer-installed Lincoln Genuine Accessory found to be defective in
factory-supplied materials or workmanship during the warranty period, as
well as any component damaged by the defective accessories.
Lincoln Motor Company will warrant your accessory through the
warranty that provides the greatest benefit:
•24 months, unlimited mileage.
•The remainder of your new vehicle limited warranty.
Contact an authorized dealer for details and a copy of the warranty.
Exterior style
•Side window deflectors
Interior style
•Floor mats•Rear seat entertainment*
Lifestyle
•Ash cup / smoker’s package•Cargo organization and
management
•Conversation mirror•Trailer towing accessories
•Hitch-mounted bike carrier
Peace of mind
•Remote start•Wheel locks
•Vehicle security•Locking fuel plug
*The accessory manufacturer designs, develops and therefore warrants
Lincoln Licensed Accessories, and does not design or test these
accessories to Lincoln Motor Company engineering requirements.
Contact an authorized Lincoln dealer for the manufacturer’s limited
warranty details, and request a copy of the Lincoln Licensed Accessories
product limited warranty from the accessory manufacturer.
368Accessories
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

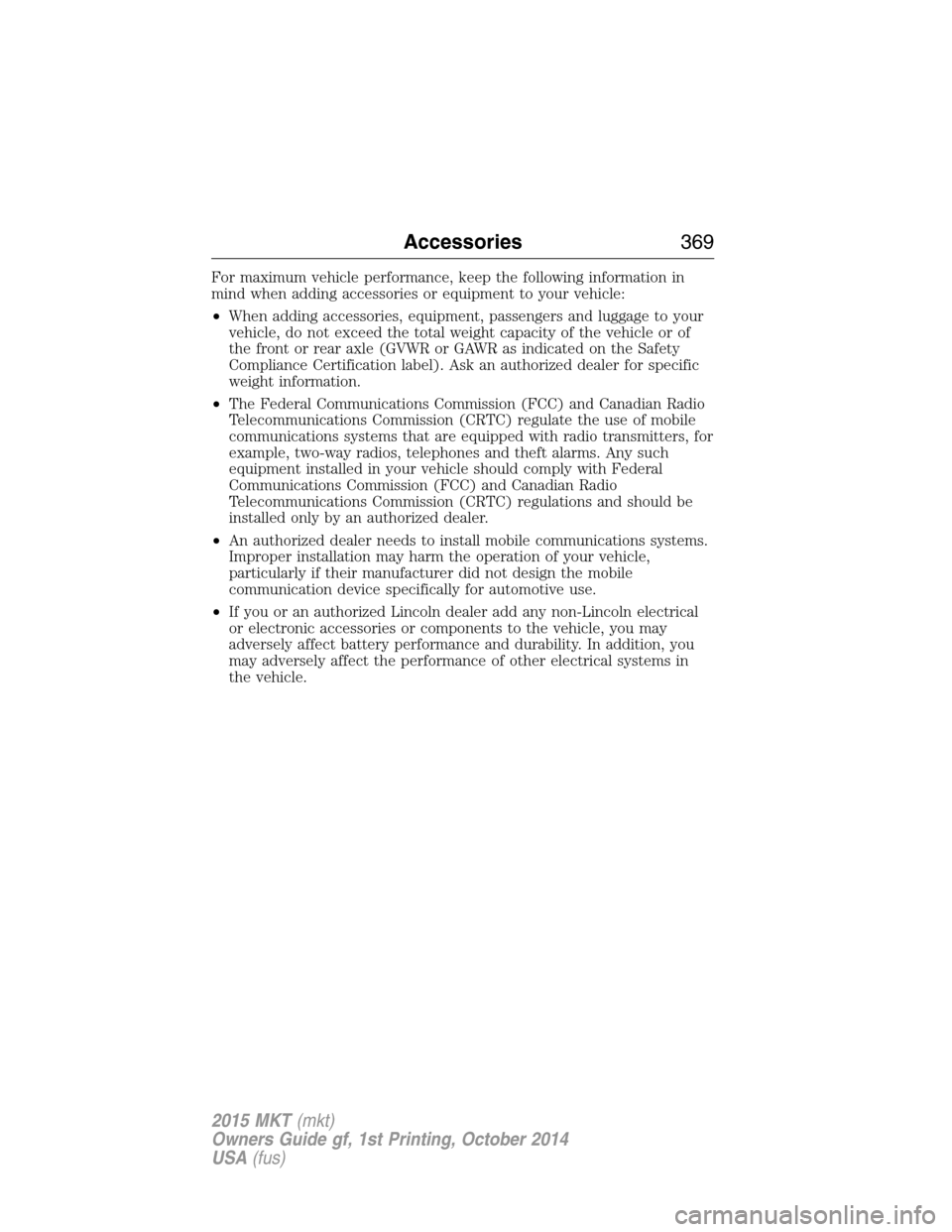

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Ask an authorized dealer for specific
weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems that are equipped with radio transmitters, for
example, two-way radios, telephones and theft alarms. Any such
equipment installed in your vehicle should comply with Federal
Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulations and should be
installed only by an authorized dealer.
•An authorized dealer needs to install mobile communications systems.
Improper installation may harm the operation of your vehicle,
particularly if their manufacturer did not design the mobile
communication device specifically for automotive use.
•If you or an authorized Lincoln dealer add any non-Lincoln electrical
or electronic accessories or components to the vehicle, you may
adversely affect battery performance and durability. In addition, you
may adversely affect the performance of other electrical systems in
the vehicle.
Accessories369
