LINCOLN MKT 2016 Owners Manual

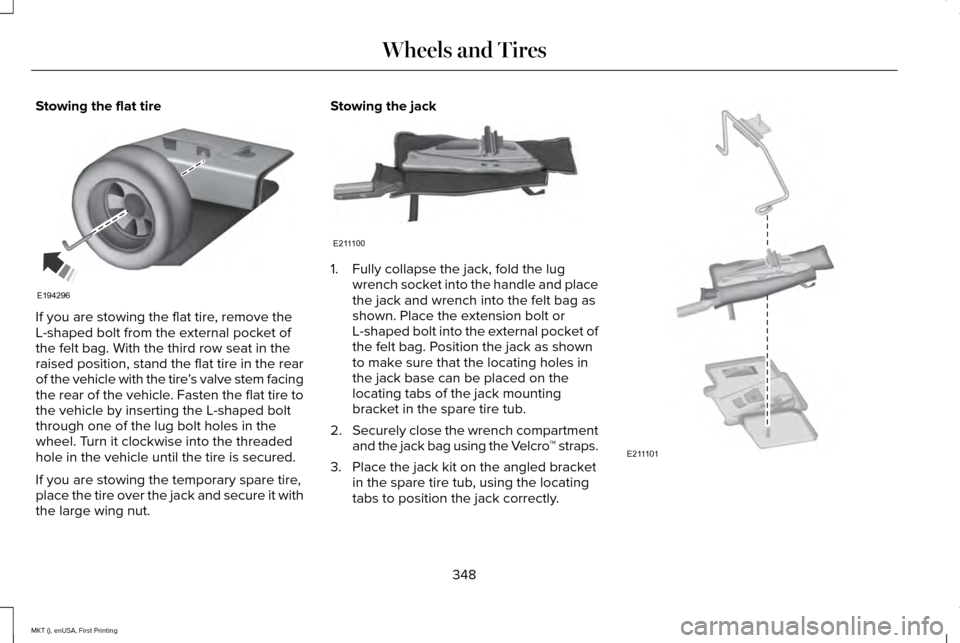

Stowing the flat tire
If you are stowing the flat tire, remove the
L-shaped bolt from the external pocket of
the felt bag. With the third row seat in the
raised position, stand the flat tire in the rear
of the vehicle with the tire
’s valve stem facing
the rear of the vehicle. Fasten the flat tire to
the vehicle by inserting the L-shaped bolt
through one of the lug bolt holes in the
wheel. Turn it clockwise into the threaded
hole in the vehicle until the tire is secured.
If you are stowing the temporary spare tire,
place the tire over the jack and secure it with
the large wing nut. Stowing the jack
1. Fully collapse the jack, fold the lug
wrench socket into the handle and place
the jack and wrench into the felt bag as
shown. Place the extension bolt or
L-shaped bolt into the external pocket of
the felt bag. Position the jack as shown
to make sure that the locating holes in
the jack base can be placed on the
locating tabs of the jack mounting
bracket in the spare tire tub.
2. Securely close the wrench compartment
and the jack bag using the Velcro ™ straps.
3. Place the jack kit on the angled bracket in the spare tire tub, using the locating
tabs to position the jack correctly. 348
MKT (), enUSA, First Printing Wheels and TiresE194296 E211100 E211101

4. Insert the straight end of the jack
retention bracket through the eyelet of
the angled bracket and swing the
retention bracket over the jack. With the jack in place, place the looped end of the
retention bracket over the threaded stud
in the trunk floor and secure it with the
plastic wing nut.

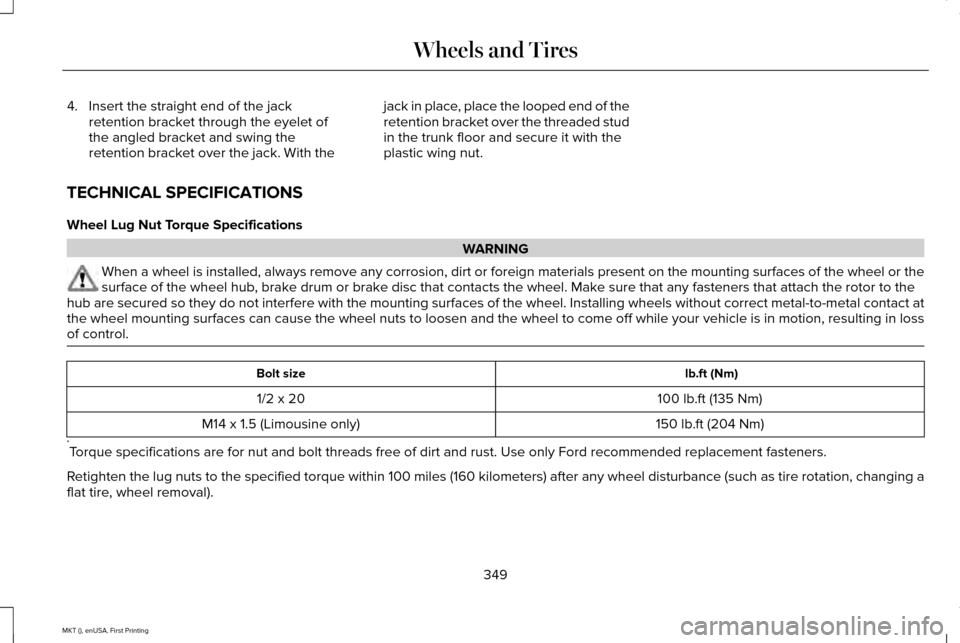

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign \
materials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the
hub are secured so they do not interfere with the mounting surfaces of t\
he wheel. Installing wheels without correct metal-to-metal contact at
the wheel mounting surfaces can cause the wheel nuts to loosen and the w\
heel to come off while your vehicle is in motion, resulting in loss
of control. lb.ft (Nm)
Bolt size
100 lb.ft (135 Nm)
1/2 x 20
150 lb.ft (204 Nm)
M14 x 1.5 (Limousine only)
* Torque specifications are for nut and bolt threads free of dirt and rust.\
Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kil\
ometers) after any wheel disturbance (such as tire rotation, changing \
a
flat tire, wheel removal).
349
MKT (), enUSA, First Printing Wheels and Tires

Wheel pilot bore
A
Inspect the wheel pilot hole and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.
350
MKT (), enUSA, First Printing Wheels and TiresE145950

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
2.0L EcoBoost
Engine
122
Cubic inches
1-3-4-2
Firing order
Coil on plug
Ignition system
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap
9.3:1
Compression ratio
351
MKT (), enUSA, First Printing Capacities and Specifications

Drivebelt Routing
The long drivebelt is on the first
pulley groove closest to engine.
A.
The short drivebelt is on the
second pulley groove farthest from
engine.
B.
ENGINE SPECIFICATIONS - 3.5L ECOBOOST™ 3.5L EcoBoost
Engine
214
Cubic inches
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
0.030 in (0.76 mm) - 0.033 in (0.84 mm)
Spark plug gap
10:1
Compression ratio
352
MKT (), enUSA, First Printing Capacities and SpecificationsE161383
A
B

Drivebelt Routing

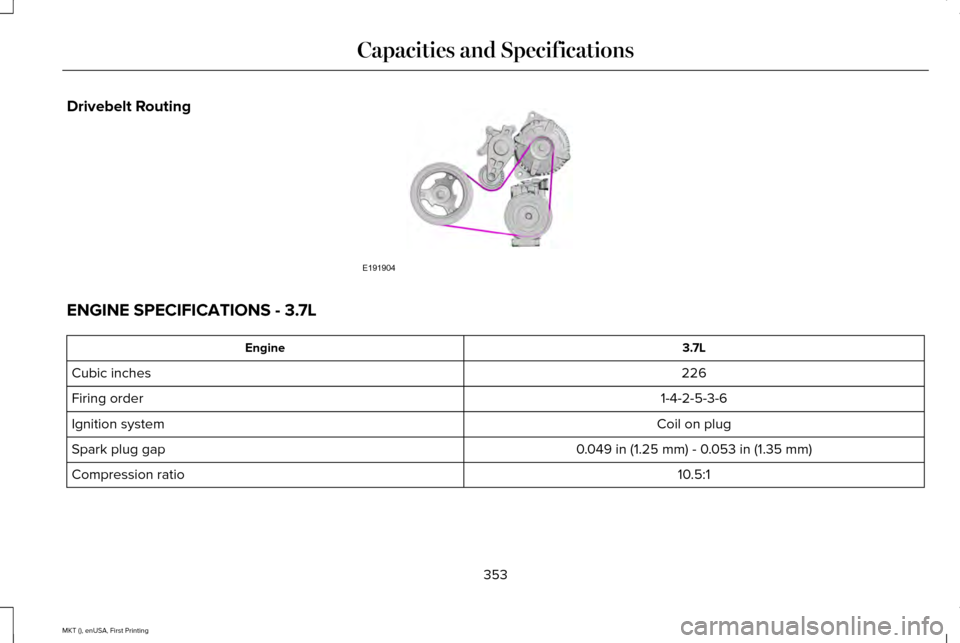

ENGINE SPECIFICATIONS - 3.7L
3.7L
Engine
226
Cubic inches
1-4-2-5-3-6
Firing order
Coil on plug
Ignition system
0.049 in (1.25 mm) - 0.053 in (1.35 mm)
Spark plug gap
10.5:1
Compression ratio
353
MKT (), enUSA, First Printing Capacities and SpecificationsE191904

Drivebelt Routing
MOTORCRAFT PARTS - 2.0L ECOBOOST™
2.0L EcoBoost Engine
Component
FA-1884
Air filter element
FL-910-S
Oil filter
BXT-65-650
Battery
SP-537
Spark plugs
FP-68
Cabin air filter
WW-2429 (driver side)
Windshield wiper blade
WW-2235 (passenger side)
354
MKT (), enUSA, First Printing Capacities and SpecificationsE191904

2.0L EcoBoost Engine
Component
WW-1202 (rear window)
We recommend Motorcraft replacement parts available at an authorized deal\
er or at fordparts.com for scheduled maintenance. These parts
meet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and
durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance
(page 387).
355
MKT (), enUSA, First Printing Capacities and Specifications

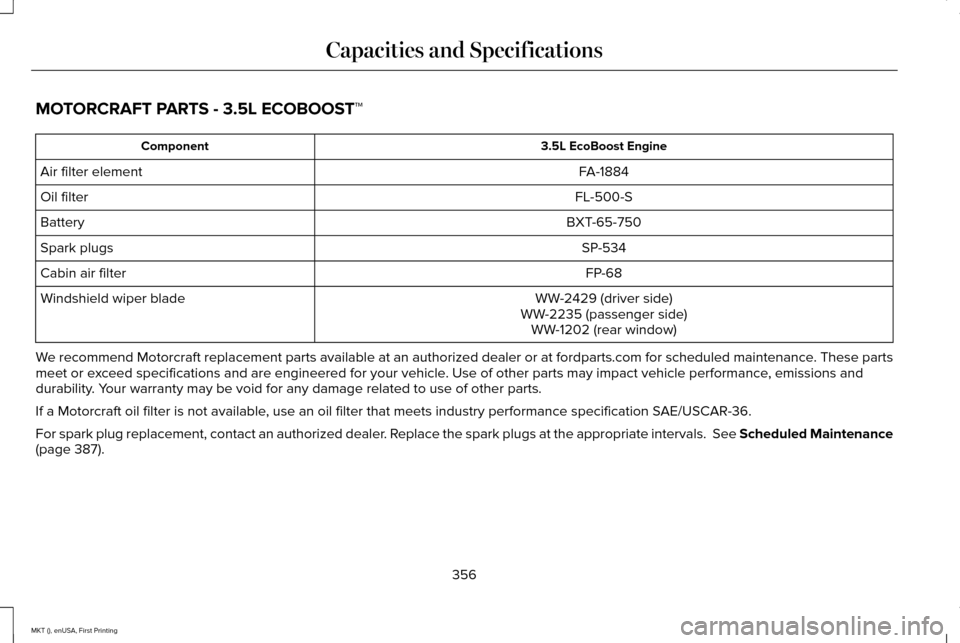

MOTORCRAFT PARTS - 3.5L ECOBOOST™
3.5L EcoBoost Engine
Component
FA-1884
Air filter element
FL-500-S
Oil filter
BXT-65-750
Battery
SP-534
Spark plugs
FP-68
Cabin air filter
WW-2429 (driver side)
Windshield wiper blade
WW-2235 (passenger side)WW-1202 (rear window)
We recommend Motorcraft replacement parts available at an authorized deal\
er or at fordparts.com for scheduled maintenance. These parts
meet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and
durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance
(page 387).
356
MKT (), enUSA, First Printing Capacities and Specifications

MOTORCRAFT PARTS - 3.7L
3.7L Engine
Component
FA-1884
Air filter element
FL-500-S
Oil filter
BXT-65-750
Battery
SP-520
Spark plugs
FP-68
Cabin air filter
WW-2429 (driver side)
Windshield wiper blade
WW-2235 (passenger side)WW-1202 (rear window)
We recommend Motorcraft replacement parts available at an authorized deal\
er or at fordparts.com for scheduled maintenance. These parts
meet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and
durability. Your warranty may be void for any damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance
(page 387).
