audio LINCOLN MKT 2018 Owners Manual

Liftgate
Power Liftgate..................................................78
Security
Passive Anti-Theft System.............................81
Anti-Theft Alarm..............................................83
Steering Wheel
Adjusting the Steering Wheel......................84

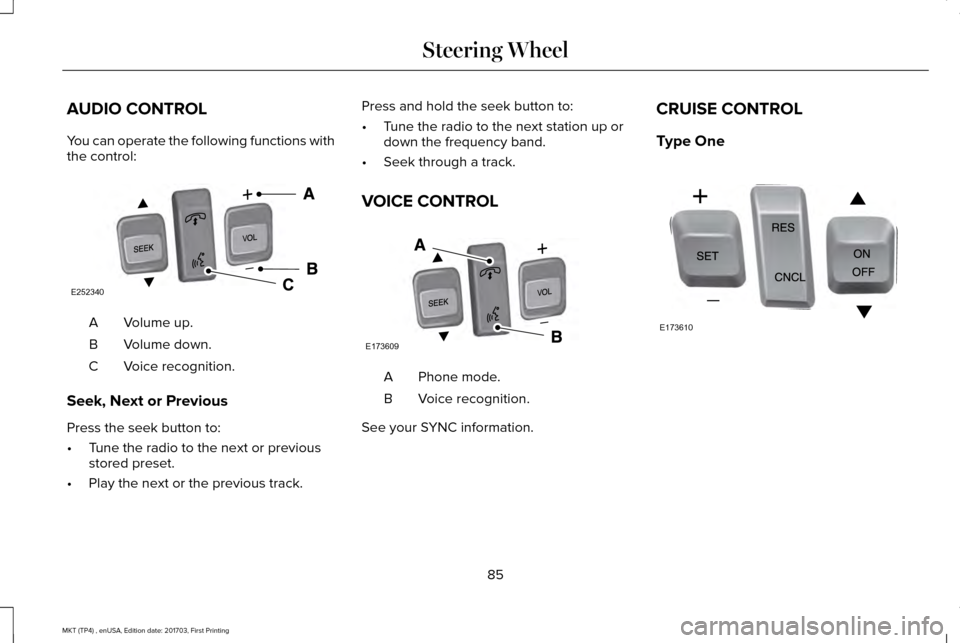

Audio Control
..................................................85
Voice Control
...................................................85
Cruise Control
.................................................85
Information Display Control
.........................86
Heated Steering Wheel................................86
Pedals
Adjusting the Pedals......................................87
Wipers and Washers
Windshield Wipers.........................................88
Autowipers.......................................................88
Windshield Washers
......................................89
Rear Window Wiper and Washers..............89 Lighting
General Information
.......................................90
Lighting Control..............................................90
Autolamps ..........................................................
91
Instrument Lighting Dimmer........................92
Headlamp Exit Delay.....................................93
Daytime Running Lamps...............................93
Automatic High Beam Control
....................94
Front Fog Lamps.............................................95
Adaptive Headlamps
.....................................95
Direction Indicators
........................................96
Interior Lamps
..................................................96
Ambient Lighting
.............................................97
Windows and Mirrors
Power Windows
..............................................98
Global Opening and Closing.......................99
Exterior Mirrors
................................................99
Interior Mirror
..................................................101
Sun Visors
........................................................101
Moonroof.........................................................102 Instrument Cluster
Gauges.............................................................104
Warning Lamps and Indicators..................105
Audible Warnings and Indicators
..............108
Information Displays
General Information
.....................................109
Information Messages
..................................116
Climate Control
Automatic Climate Control
.........................129
Hints on Controlling the Interior Climate
..........................................................131
Rear Passenger Climate Controls
.............132
Heated Windows and Mirrors
....................133
Cabin Air Filter
...............................................133
Remote Start
...................................................134
Seats
Sitting in the Correct Position....................135
Head Restraints
.............................................135
Power Seats....................................................138
Memory Function
..........................................140
2
MKT (TP4) , enUSA, Edition date: 201703, First Printing Table of Contents

Changing a Bulb...........................................305
Bulb Specification Chart.............................307
Changing the Engine Air Filter.................309
Vehicle Care
General Information......................................310
Cleaning Products........................................310
Cleaning the Exterior.....................................311
Waxing..............................................................312
Cleaning the Engine.....................................312
Cleaning the Windows and Wiper Blades..........................................................313
Cleaning the Interior
.....................................313
Cleaning the Instrument Panel and Instrument Cluster Lens..........................315
Cleaning Leather Seats...............................316
Repairing Minor Paint Damage..................316
Cleaning the Wheels
....................................316
Vehicle Storage
..............................................317
Body Styling Kits............................................319
Wheels and Tires
General Information.....................................320 Tire Care
.........................................................322
Using Snow Chains......................................335
Tire Pressure Monitoring System.............336
Changing a Road Wheel............................340
Technical Specifications.............................348
Capacities and Specifications
Engine Specifications - 3.5L Ecoboost™..................................................350
Engine Specifications - 3.7L........................351
Motorcraft Parts - 3.5L Ecoboost™...........352
Motorcraft Parts - 3.7L
.................................353
Vehicle Identification Number
..................354
Vehicle Certification Label
.........................354
Transmission Code Designation..............355
Capacities and Specifications - 3.5L Ecoboost™
..................................................356
Capacities and Specifications - 3.7L........362

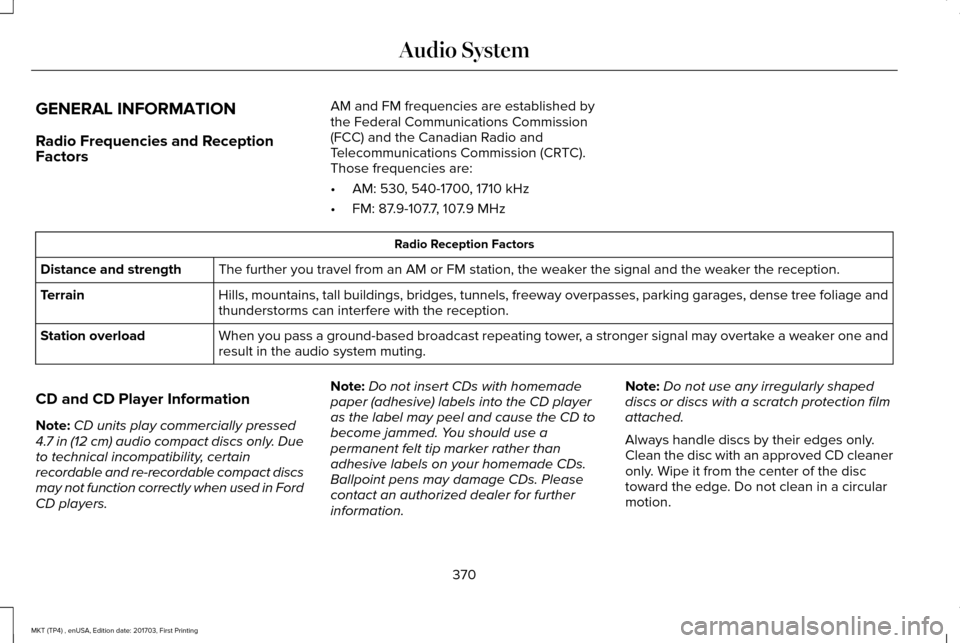

Audio System
General Information
.....................................370
Audio Unit
........................................................371
USB Port
..........................................................374 SYNC™ 3
General Information
.....................................375
Home Screen
................................................392
Using Voice Recognition............................394
Entertainment................................................404
Climate.............................................................417
Phone...............................................................421
Navigation......................................................429
Apps
.................................................................440
Settings...........................................................443
SYNC™ 3 Troubleshooting...........................461
Accessories
Accessories....................................................478
Lincoln Protect
Lincoln Protect..............................................480
Scheduled Maintenance
General Maintenance Information...........483
Normal Scheduled Maintenance..............487
Special Operating Conditions Scheduled Maintenance
...............................................491
5
MKT (TP4) , enUSA, Edition date: 201703, First Printing Table of Contents

Direction Indicators. See Direction Indicators (page 96).
C
Information display control.
See Information Display Control (page 86).
D
Instrument cluster.
See Instrument Cluster (page 104).
E
Information display control.
See Information Display Control (page 86).
F
Audio system.
See Audio System (page 370).
G
Hazard flasher switch.
See Hazard Flashers (page 254).
H
Information and entertainment display.
I
Passenger airbag indicator light.
See Front Passenger Sensing System (page 53).
J
Climate controls.
See Climate Control (page 129).
K
Keyless start button.
See Keyless Starting (page 162).
L
Audio control.
See Audio Control (page 85).
M
Horn.N
Steering wheel adjustment.
See Adjusting the Steering Wheel (page 84).
O
Cruise control switches.
See Using Cruise Control (page 208).
P
Hood release.
See Opening and Closing the Hood (page 287).
Q
Instrument panel dimmer control.
See Instrument Lighting Dimmer (page 92).
R
Lighting control.
See Lighting Control (page 90).
S
17
MKT (TP4) , enUSA, Edition date: 201703, First Printing At a Glance

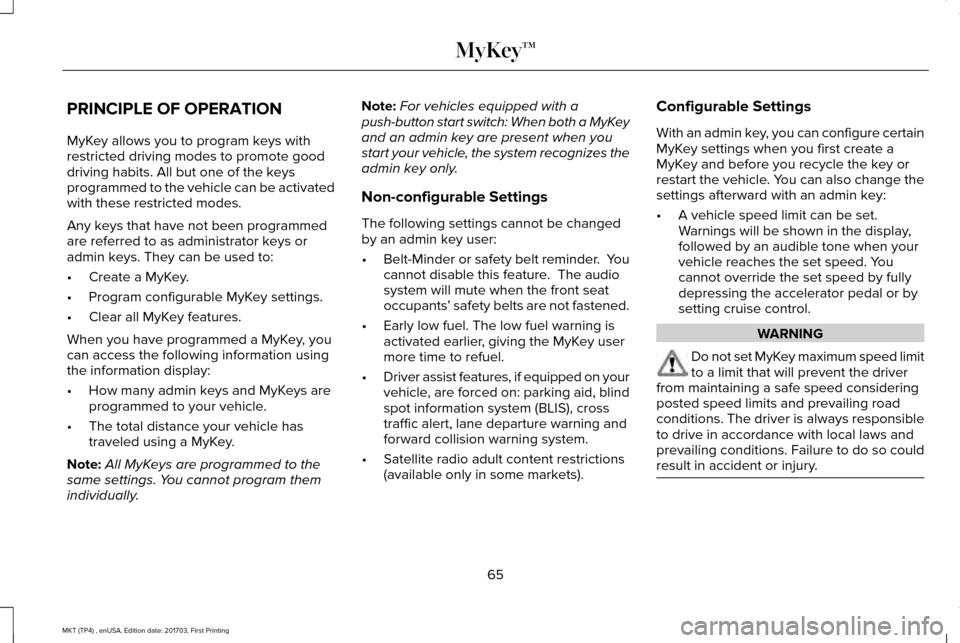

PRINCIPLE OF OPERATION
MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. All but one of the keys
programmed to the vehicle can be activated
with these restricted modes.
Any keys that have not been programmed
are referred to as administrator keys or
admin keys. They can be used to:
•
Create a MyKey.
• Program configurable MyKey settings.
• Clear all MyKey features.
When you have programmed a MyKey, you
can access the following information using
the information display:
• How many admin keys and MyKeys are
programmed to your vehicle.
• The total distance your vehicle has
traveled using a MyKey.
Note: All MyKeys are programmed to the
same settings. You cannot program them
individually. Note:
For vehicles equipped with a
push-button start switch: When both a MyKey
and an admin key are present when you
start your vehicle, the system recognizes the
admin key only.
Non-configurable Settings
The following settings cannot be changed
by an admin key user:
• Belt-Minder or safety belt reminder. You
cannot disable this feature. The audio
system will mute when the front seat
occupants ’ safety belts are not fastened.
• Early low fuel. The low fuel warning is
activated earlier, giving the MyKey user
more time to refuel.
• Driver assist features, if equipped on your
vehicle, are forced on: parking aid, blind
spot information system (BLIS), cross
traffic alert, lane departure warning and
forward collision warning system.
• Satellite radio adult content restrictions
(available only in some markets). Configurable Settings
With an admin key, you can configure certain
MyKey settings when you first create a
MyKey and before you recycle the key or
restart the vehicle. You can also change the
settings afterward with an admin key:
•
A vehicle speed limit can be set.
Warnings will be shown in the display,
followed by an audible tone when your
vehicle reaches the set speed. You
cannot override the set speed by fully
depressing the accelerator pedal or by
setting cruise control. WARNING
Do not set MyKey maximum speed limit
to a limit that will prevent the driver
from maintaining a safe speed considering
posted speed limits and prevailing road
conditions. The driver is always responsible
to drive in accordance with local laws and
prevailing conditions. Failure to do so could
result in accident or injury. 65
MKT (TP4) , enUSA, Edition date: 201703, First Printing MyKey™

•

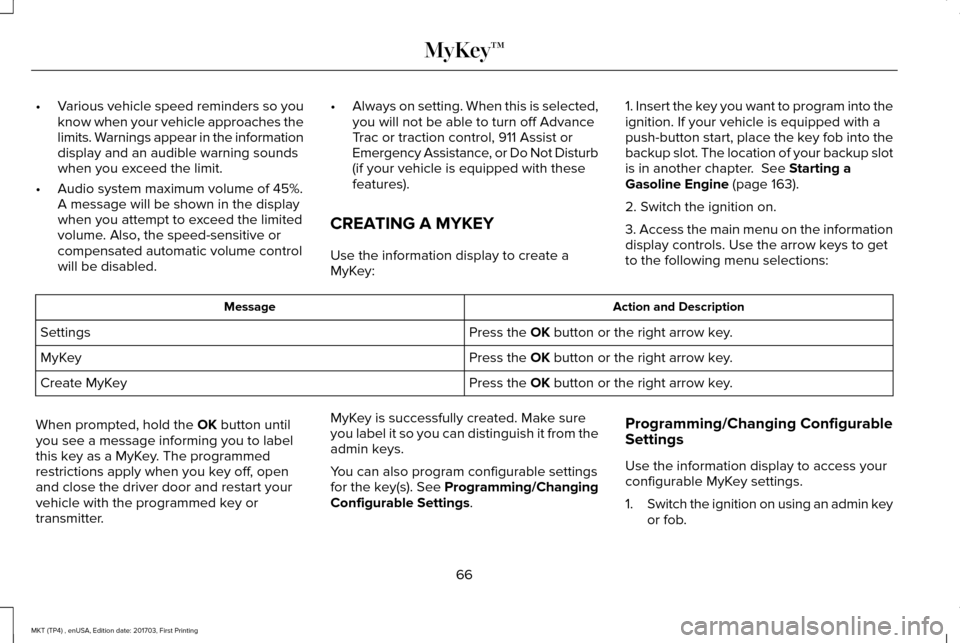

Various vehicle speed reminders so you
know when your vehicle approaches the
limits. Warnings appear in the information
display and an audible warning sounds
when you exceed the limit.
• Audio system maximum volume of 45%.
A message will be shown in the display
when you attempt to exceed the limited
volume. Also, the speed-sensitive or
compensated automatic volume control
will be disabled. •
Always on setting. When this is selected,
you will not be able to turn off Advance
Trac or traction control, 911 Assist or
Emergency Assistance, or Do Not Disturb
(if your vehicle is equipped with these
features).
CREATING A MYKEY
Use the information display to create a
MyKey: 1. Insert the key you want to program into the
ignition. If your vehicle is equipped with a
push-button start, place the key fob into the
backup slot. The location of your backup slot
is in another chapter. See Starting a
Gasoline Engine (page 163).
2. Switch the ignition on.
3. Access the main menu on the information
display controls. Use the arrow keys to get
to the following menu selections: Action and Description
Message
Press the
OK button or the right arrow key.
Settings
Press the
OK button or the right arrow key.
MyKey
Press the
OK button or the right arrow key.
Create MyKey
When prompted, hold the
OK button until
you see a message informing you to label
this key as a MyKey. The programmed
restrictions apply when you key off, open
and close the driver door and restart your
vehicle with the programmed key or
transmitter. MyKey is successfully created. Make sure
you label it so you can distinguish it from the
admin keys.
You can also program configurable settings
for the key(s). See Programming/Changing
Configurable Settings
.
Programming/Changing Configurable
Settings
Use the information display to access your
configurable MyKey settings.
1.
Switch the ignition on using an admin key
or fob.
66
MKT (TP4) , enUSA, Edition date: 201703, First Printing MyKey™

AUDIO CONTROL
You can operate the following functions with
the control:
Volume up.
A
Volume down.
B
Voice recognition.
C
Seek, Next or Previous
Press the seek button to:
• Tune the radio to the next or previous
stored preset.
• Play the next or the previous track. Press and hold the seek button to:
•
Tune the radio to the next station up or
down the frequency band.
• Seek through a track.
VOICE CONTROL Phone mode.
A
Voice recognition.
B
See your SYNC information. CRUISE CONTROL
Type One
85
MKT (TP4) , enUSA, Edition date: 201703, First Printing Steering WheelE252340
V E173609
V E173610

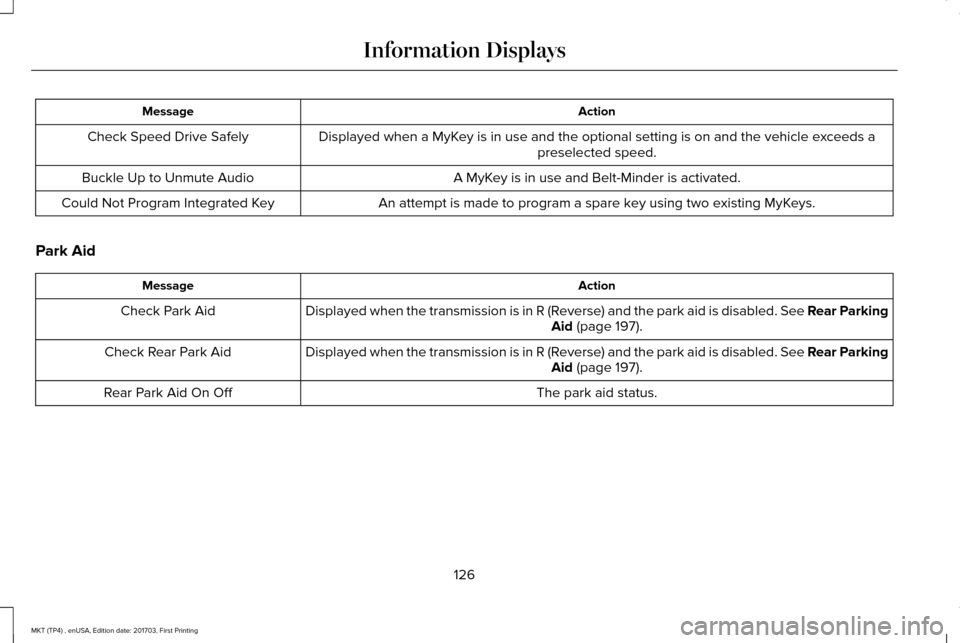

Action
Message
Displayed when a MyKey is in use and the optional setting is on and the vehicle exceeds a preselected speed.
Check Speed Drive Safely
A MyKey is in use and Belt-Minder is activated.
Buckle Up to Unmute Audio
An attempt is made to program a spare key using two existing MyKeys.
Could Not Program Integrated Key
Park Aid Action
Message
Displayed when the transmission is in R (Reverse) and the park aid is disabled. See Rear Parking Aid (page 197).
Check Park Aid
Displayed when the transmission is in R (Reverse) and the park aid is disabled. See Rear Parking Aid
(page 197).
Check Rear Park Aid
The park aid status.
Rear Park Aid On Off
126
MKT (TP4) , enUSA, Edition date: 201703, First Printing Information Displays

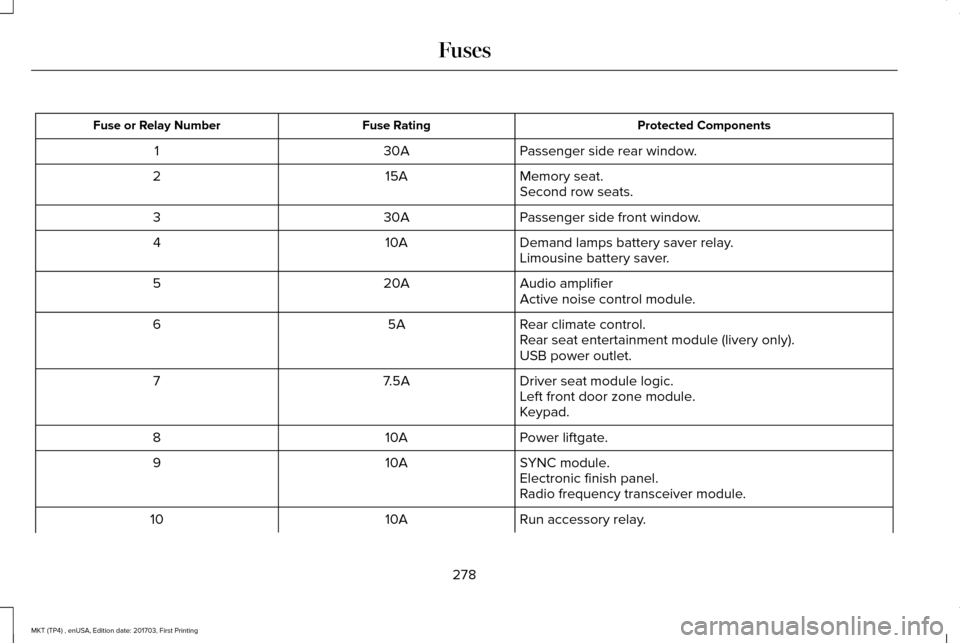

Protected Components
Fuse Rating
Fuse or Relay Number
Passenger side rear window.
30A
1
Memory seat.
15A
2
Second row seats.
Passenger side front window.
30A
3
Demand lamps battery saver relay.
10A
4
Limousine battery saver.
Audio amplifier
20A
5
Active noise control module.
Rear climate control.
5A
6
Rear seat entertainment module (livery only).
USB power outlet.
Driver seat module logic.
7.5A
7
Left front door zone module.
Keypad.
Power liftgate.
10A
8
SYNC module.
10A
9
Electronic finish panel.
Radio frequency transceiver module.
Run accessory relay.
10A
10
278
MKT (TP4) , enUSA, Edition date: 201703, First Printing Fuses

Because your vehicle
’s engine is
electronically-controlled by a computer,
some engine control settings are maintained
by power from the battery. Some engine
computer settings, like the idle trim and fuel
trim strategy, optimize the driveability and
performance of the engine. The clock and
radio station presets are also maintained in
memory by power from the low-voltage
battery. These settings are erased when a
technician disconnects and connects the
low-voltage battery.
To restore the settings, do the following:
Note: Until you switch the ignition to the on
position, you will receive a message in your
information display stating that your vehicle
is not in park.
1. Apply the parking brake.
2. Shift into park (P) or neutral (N).
3. Switch off all accessories.
4. Press the brake pedal and start your vehicle. 5. Run the engine until it reaches normal
operating temperature. While the engine
is warming up, complete the following:
Reset the clock. See Audio Unit (page
371). Reset the power windows
bounce-back feature. See Power
Windows (page 98). Reset the radio
station presets. See Audio Unit (page
371).
6. Allow the engine to idle for at least one minute.
7. Drive the vehicle at least 10 mi (16 km) to
completely relearn the idle trim and fuel
trim strategy.
Note: If you do not allow the engine to
relearn the idle and fuel trim strategy, the
idle quality of your vehicle may be adversely
affected until the engine computer
eventually relearns the idle trim and fuel trim
strategy.
Note: Certain features may not operate if
the battery monitor system is not reset with
a scan tool following a jump start or battery
replacement. Normal electrical accessory
operation should resume after your vehicle
is left undisturbed for 8 hours. Make sure that you dispose of old batteries
in an environmentally friendly way. Seek
advice from your local authority about
recycling old batteries.
If storing your vehicle for more than 30 days
without recharging the battery, we
recommend that you disconnect the battery
cables to maintain battery charge for quick
starting.
CHECKING THE WIPER BLADES
Run the tip of your fingers over the edge of
the blade to check for roughness.
Clean the wiper blades with washer fluid or
water applied with a soft sponge or cloth.
302
MKT (TP4) , enUSA, Edition date: 201703, First Printing MaintenanceE142463

GENERAL INFORMATION
Radio Frequencies and Reception
Factors
AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•
AM: 530, 540-1700, 1710 kHz
• FM: 87.9-107.7, 107.9 MHz Radio Reception Factors
The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.
Distance and strength
Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, \
parking garages, dense tree foliage and
thunderstorms can interfere with the reception.
Terrain
When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.
Station overload
CD and CD Player Information
Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Note:
Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed. You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs. Please
contact an authorized dealer for further
information. Note:
Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.
Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only. Wipe it from the center of the disc
toward the edge. Do not clean in a circular
motion.
370
MKT (TP4) , enUSA, Edition date: 201703, First Printing Audio System
