CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cupholders
2. Tissue box holder (if equipped)
(located on underside of console
lid)
3. Rear power point
4. Utility compartment with a
Secondary storage bin with coin
holder slots (on hinges inside utility
compartment), power point, AIJ
(Audio Input Jack), and a Multi
Position Bin Divider (2 positions vertical / 1 position horizontal)
Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located
on the instrument panel.
A second auxiliary power point is
located in the center console utility
compartment.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of 12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and relaysin theRoadside Emergencieschapter for information
on checking and replacing fuses.
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
78

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
37 10A Climate control
38 20A THX System
39 20A Radio
40 20A Not used (Spare)
41 15A Delayed accessory function for
radio and lock switch illumination
42 10A Not used (Spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic, Climate control
relay feed
46 7.5A Occupant Classification Sensor
(OCS), Passenger Airbag
Deactivation Indicator (PADI)
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
241

The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 — Blower motor relay
3 — Not used
4 — Not used
5 40A** Cooling fan (vehicles with trailer
tow)
60A** Cooling fan (vehicles without
trailer tow)
6 40A** Cooling fan (trailer tow only)
7 30A** Rear heated seats
8 10A* Alternator
9 20A* Trailer tow parking lamps
10 — Not used
11 — Trailer tow parking lamp relay
12 — Not used
13 — Not used
14 — Not used
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
242

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
15 40A** ABS pump motor
16 30A** Front heated seats
17 20A** Cigar lighter/Power point
18 30A** Panorama moon roof
19 — Fuel pump diode
20 — PCM relay
21 7.5A* PCM – Keep alive power (KA)
22 — Trailer tow left stop/turn lamp
relay
23 — Not used
24 15A* Trailer tow left stop/turn lamp
25 — Rear seat release relay
26 — Fuel pump relay
27 10A* Rear seat release
28 15A* Heated mirror
29 — Heated mirror relay
30 15A* VPWR1–PCM
31 10A* VPWR3–PCM
32 10A* VPWR2–PCM
33 15A* VPWR4–PCM
34 — Not used
35 10A* A/C clutch
36 — Not used
37 — A/C clutch relay
38 — Rear window defroster relay
39 40A** Rear window defroster
40 — Not used
41 30A** Starter
42 — Starter relay
43 — Backup lamp relay
44 10A* Backup lamps
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
243

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
45 — Not used
46 15A* Trailer tow right stop/turn lamp
47 — Trailer tow right stop/turn lamp
relay
48 — Run/Start relay
49 10A* PCM ISPR
50 10A* ABS Run/Start
51 5A* Adaptive lighting
52 5A* Fuel pump relay coil
53 30A** SPDJB Run/Start
54 — Not used
55 — Not used
56 — A/C clutch diode
57 40A** ABS valves
58 30A** Front wipers
59 30A** Power liftgate
60 30A** Driver power seat
61 30A** Passenger power seat
62 — Not used
63 40A** Blower motor
64 20A** Cigar lighter/Power point
65 20A** Cigar lighter/Power point
66 20A** Cigar lighter/Power point
67 — Not used
68 15A* Fuel pump
69 — Not used
70 — Not used
71 10A* Stop lamps
72 — Not used
* Mini Fuses ** Cartridge Fuses
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
244

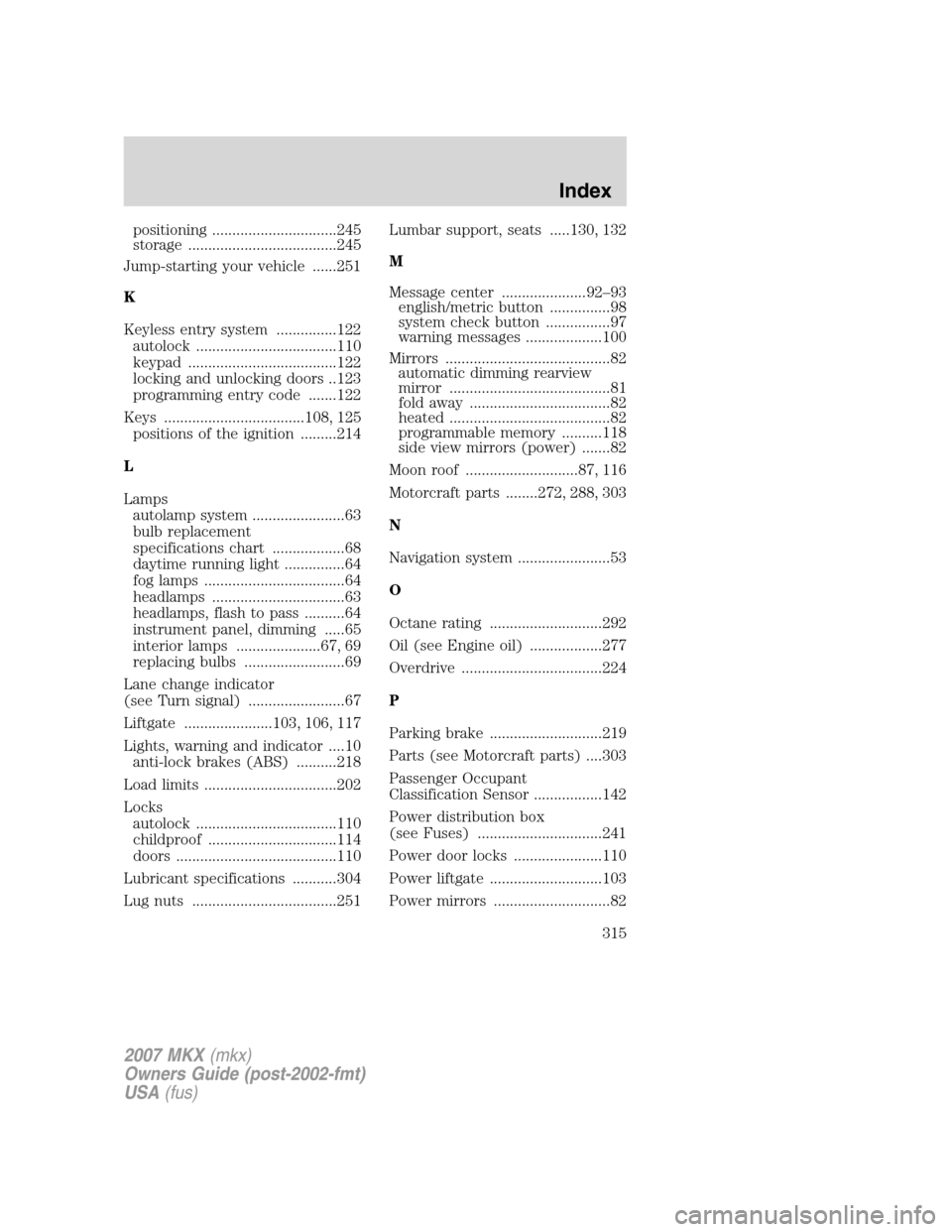

positioning ...............................245
storage .....................................245
Jump-starting your vehicle ......251
K
Keyless entry system ...............122
autolock ...................................110
keypad .....................................122
locking and unlocking doors ..123
programming entry code .......122
Keys ...................................108, 125
positions of the ignition .........214
L
Lamps
autolamp system .......................63
bulb replacement
specifications chart ..................68
daytime running light ...............64
fog lamps ...................................64
headlamps .................................63
headlamps, flash to pass ..........64
instrument panel, dimming .....65
interior lamps .....................67, 69
replacing bulbs .........................69
Lane change indicator
(see Turn signal) ........................67
Liftgate ......................103, 106, 117
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........218
Load limits .................................202
Locks
autolock ...................................110
childproof ................................114
doors ........................................110
Lubricant specifications ...........304
Lug nuts ....................................251Lumbar support, seats .....130, 132
M
Message center .....................92–93
english/metric button ...............98
system check button ................97
warning messages ...................100
Mirrors .........................................82
automatic dimming rearview
mirror ........................................81
fold away ...................................82
heated ........................................82
programmable memory ..........118
side view mirrors (power) .......82
Moon roof ............................87, 116
Motorcraft parts ........272, 288, 303
N
Navigation system .......................53
O
Octane rating ............................292
Oil (see Engine oil) ..................277
Overdrive ...................................224
P
Parking brake ............................219
Parts (see Motorcraft parts) ....303
Passenger Occupant
Classification Sensor .................142
Power distribution box
(see Fuses) ...............................241
Power door locks ......................110
Power liftgate ............................103
Power mirrors .............................82
