Page 9 of 328
Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
9
Page 117 of 328
The IKT allows you to:
•remotely unlock the vehicle doors.
•remotely lock all the vehicle doors.
•remotely open the power liftgate (if equipped).
•activate the personal alarm.
•arm and disarm the perimeter anti-theft system.
•operate the illuminated entry feature.
The remote entry lock/unlock feature operates in any ignition position
except while the key is held in the 4 (START) position. The panic
feature operates with the key in the 1 (LOCK) position.
If there are problems with the remote entry system, make sure to take
ALL Integrated Keyhead Transmitterswith you to the authorized
dealer in order to aid in troubleshooting the problem.
Unlocking the doors/two stage unlock
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
2. Press
and release again within three seconds to unlock all the
doors.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
to the 3 (RUN) position.
The inside lights will not turn off if:
•they have been turned on using the dimmer control or
•any door is open.
The battery saver feature will turn off the interior lamps 10 minutes after
the ignition is turned to the 1 (LOCK) position.
Two stage unlocking may be disabled or re-enabled by simultaneously
pressing the
andcontrols on the IKT for four seconds (disabling
two stage unlock allows all vehicle doors to unlock simultaneously). The
turn lamps will flash twice to indicate that two-stage unlock was enabled
or disabled.
Opening front windows and panoramic roof (if equipped)
Pressand hold for more than two seconds in order to begin opening
the two front windows and venting the panoramic roof (if equipped).
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
117
Page 118 of 328
•Thecontrol can then be released and the windows and panoramic
roof will complete the opening operation.
•If any other remote entry transmitter control is pressed during the
opening operation, both windows and panoramic roof movement will
stop.
Note:The ignition must be in the 1 (LOCK) position and the accessory
delay feature must be not activated in order for this feature to operate.
Locking the doors
1. Pressand release to lock all the doors. The turn lamps will flash.
2. Press
and release again within three seconds to confirm that all
the doors are closed.Note:The doors will lock again, the horn will chirp
and the turn lamps will flash once if all the doors and liftgate are closed.
Note:If any door or the liftgate is not closed, or if the hood is not
closed in vehicles equipped with the perimeter alarm feature, the horn
will chirp twice and the lamps will not flash.
Opening the power liftgate (if equipped)
Presstwice within 3 seconds to fully unlatch and open the liftgate.
Make sure all persons are clear of the liftgate area before using
power liftgate control.
In order to fully lower and latch the liftgate, press the control twice.
If the liftgate stops mid travel, it may have detected an obstacle, Check
to ensure the liftgate swing zone is free from obstruction and reset the
power assist by manually closing the liftgate. Normal operation can then
be resumed.
Make sure the liftgate is closed to prevent exhaust fumes from
being drawn into the vehicle. This will also prevent passengers
and cargo from falling out. If you must drive with the liftgate open,
keep the vents open so outside air comes into the vehicle.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of 3 minutes. Press again or turn the ignition to
the 3 (RUN) position to deactivate, or wait for the alarm to timeout in 3
minutes.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
118

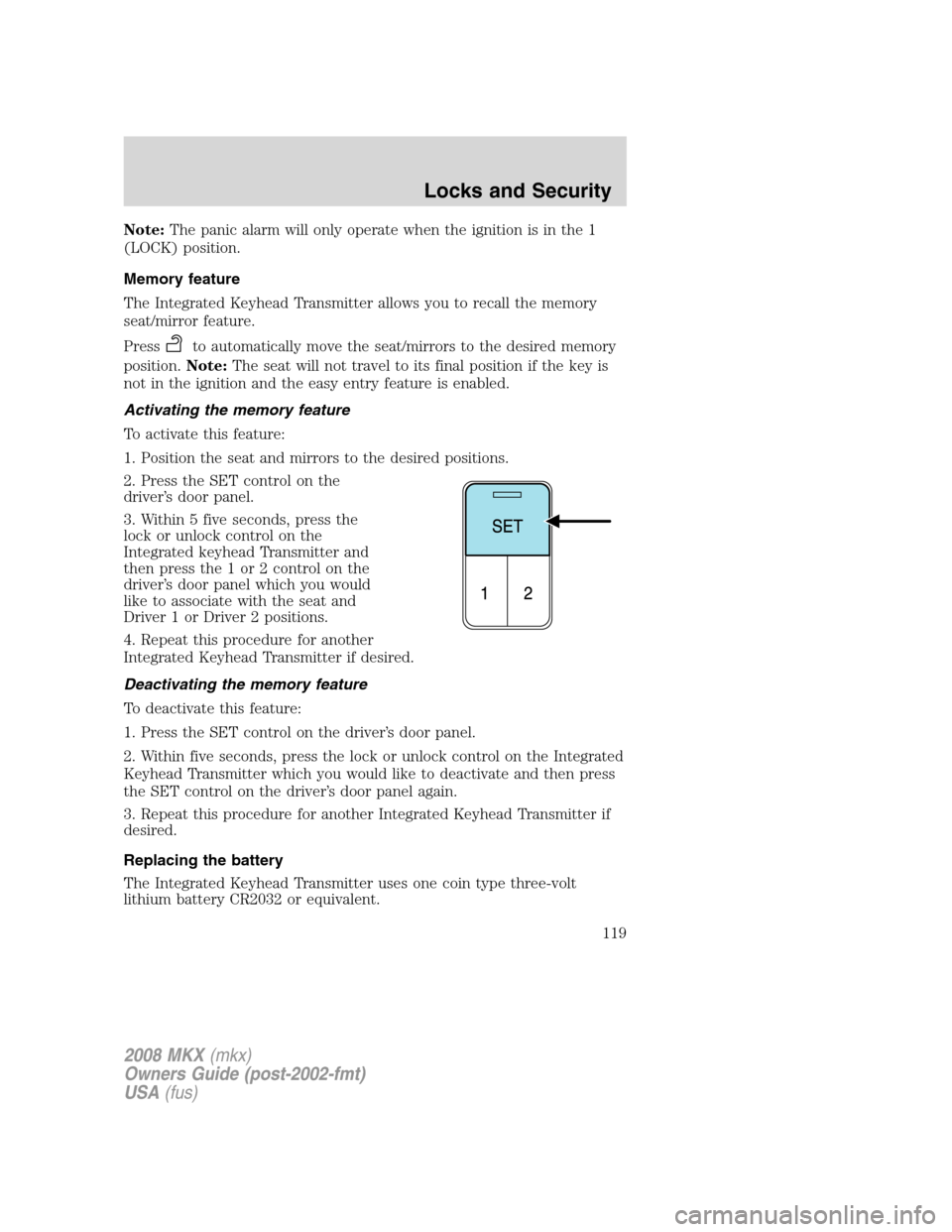

Page 119 of 328
Note:The panic alarm will only operate when the ignition is in the 1
(LOCK) position.
Memory feature
The Integrated Keyhead Transmitter allows you to recall the memory
seat/mirror feature.
Press
to automatically move the seat/mirrors to the desired memory
position.Note:The seat will not travel to its final position if the key is
not in the ignition and the easy entry feature is enabled.
Activating the memory feature
To activate this feature:
1. Position the seat and mirrors to the desired positions.
2. Press the SET control on the
driver’s door panel.
3. Within 5 five seconds, press the
lock or unlock control on the
Integrated keyhead Transmitter and
then press the 1 or 2 control on the
driver’s door panel which you would
like to associate with the seat and
Driver 1 or Driver 2 positions.
4. Repeat this procedure for another
Integrated Keyhead Transmitter if desired.
Deactivating the memory feature
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within five seconds, press the lock or unlock control on the Integrated
Keyhead Transmitter which you would like to deactivate and then press
the SET control on the driver’s door panel again.
3. Repeat this procedure for another Integrated Keyhead Transmitter if
desired.
Replacing the battery
The Integrated Keyhead Transmitter uses one coin type three-volt
lithium battery CR2032 or equivalent.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
119
Page 128 of 328
PERIMETER ALARM SYSTEM
The perimeter anti-theft system will help protect your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL Integrated Keyhead Transmittersare brought to the
authorized dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the key is in the 1(LOCK)
position, or is removed from the ignition. Either of the following actions
will prearm the alarm system:
•Press the
control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
When you press the lock control twice within three seconds on the
remote entry transmitter portion of your IKT, the horn will chirp once
to let you know that all doors, the hood and the liftgate are closed. If
any of these are not closed, the horn will chirp twice to warn you that
a door, the hood or the liftgate is still open.
•Press the driver or passenger
interior door lock control while
the door is open, then close the
door.
•Press the 7•8 and 9•0
controls on the keyless entry pad
(if equipped) at the same time to
lock the doors (driver’s door must
be closed).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
128
Page 129 of 328
Each door, the hood, and the liftgate is armed individually, and if any are
open, they must be closed before the open entry point (door, hood, or
liftgate) can enter the 20 second countdown.
The turn signal lamps will flash once when all doors, the hood and the
liftgate are closed indicating the vehicle is locked and entering the 20
second countdown.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter portion of
your Integrated Keyhead Transmitter.
•Unlock the doors by using your keyless entry pad (if equipped).
•Unlock the driver’s door with a key. Turn the key full rearward
(toward the rear of the vehicle) to ensure the alarm disarms.
•Turn ignition to the 3 (ON) position with a valid SecuriLock™ key or
Integrated Keyhead Transmitter (IKT).
•Press the panic control on the remote entry transmitter portion of
your IKT. This will only shut off the horn and turn lamps when the
alarm is sounding. The alarm system will still be armed.
Pressing the power door UNLOCK control within the 20 second
prearmed mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if:
•Any door, the hood or the liftgate is opened without using the door
key, keypad or the remote entry transmitter portion of your IKT.
•The ignition is turned to the 3 (ON) position with an invalid
SecuriLock™ key or IKT.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
129
Page 233 of 328
the driver to disable the system only when the ignition is ON and the
gear selector is in R (Reverse). Refer toMessage centerin theDriver
Controlschapter for more information.
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
ALL WHEEL DRIVE (AWD) SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a full-time All Wheel Drive (AWD)
system. With the AWD option, power will be delivered to the front
wheels and distributed to the rear wheels as needed. The AWD system is
active all the time and requires no input from the operator.
All components of the AWD system are sealed for life and require no
maintenance.
If your vehicle is equipped with AWD, a spare tire of a different size
other than the tire provided should never be used. A dissimilar spare tire
size (other than the spare tire provided) or major dissimilar tire sizes
between the front and rear axles could cause the AWD system to stop
functioning and default to front wheel drive and could damage the
system.
Note:Your AWD vehicle is not intended for severe off-road use. The
AWD feature gives your vehicle some limited off-road capabilities in
which driving surfaces are relatively level, obstruction-free and otherwise
similar to normal on-road driving conditions. Operating your vehicle
under other than those conditions could subject the vehicle to excessive
stress which might result in damage which is not covered under your
warranty.
Driving off-highway with AWD vehicles
AWD vehicles are equipped for driving on sand, snow, mud and rough
roads and have operating characteristics that are somewhat different
from conventional vehicles, both on and off the highway.
When driving at slow speeds off-highway under high outside
temperatures, use L (Low) gear when possible. L (Low) gear operation
will maximize the engine and transmission cooling capability.
Under severe operating conditions, the A/C may cycle on and off to
protect overheating of the engine.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
233
Page 317 of 328
Peace of mind
Mobile-Ease™ hands-free communication system
TripTunes™ advanced portable audio solution
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
317
Page 322 of 328
fluid, specifications .................311
Power Windows ...........................80
R
Radio ............................................17
Rear seat entertainment
system ..........................................30
Relays ........................................243
Remote entry system .......115, 117
illuminated entry ............121–122
locking/unlocking
doors ................................117–118
opening the trunk ...................118
panic alarm .............................118
replacement/additional
transmitters .............................120
replacing the batteries ...........119
Reverse sensing system ...........231
Roadside assistance ..................240
S
Safety Belt Maintenance ..........151
Safety belts (see Safety
restraints) ..................141, 145–149
Safety Canopy ...................166, 169
Safety defects, reporting ..........271
Safety restraints ........141, 145–149
Belt-Minder...........................152
extension assembly ................150
for adults .........................146–148
for children .....................172–173
Occupant Classification
Sensor ......................................143
safety belt maintenance .........151
warning light and
chime ...............................151–152
Safety seats for children ..........176Safety Compliance
Certification Label ....................314
Satellite Radio Information ........28
Seats ..........................................130
child safety seats ....................176
climate control ........................135
easy access/easyout feature ..134
front seats .......................130, 134
heated ......................................140
memory seat ...................119, 134
SecuriLock passive anti-theft
system ........................................124
Servicing your vehicle ..............279
Spare tire
(see Changing the Tire) ...........253
Spark plugs, specifications ......310,
313
Specification chart,
lubricants ...................................311
Speed control ..............................83
Starting your vehicle ........217–219
jump starting ..........................257
Steering wheel
controls ......................................86
tilting .........................................76
SYNC ............................................59
T
Tilt steering wheel ......................76
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....201
Tires ...........................186–187, 250
alignment ................................194
care ..........................................190
changing ..........................250, 253
checking the pressure ............190
2008 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Index
322
