When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a collision, which may result in
serious personal injury.
Maintenance and Specifications
283
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuel filler cap
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise until at least a few clicks are heard.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or “check fuel cap” message may not reset immediately; it may
take several driving cycles for the check fuel cap light
or “check fuel
cap” message to turn off. A driving cycle consists of an engine start-up
(after four or more hours with the engine off) followed by city and
highway driving.
Continuing to drive with the check fuel cap light
or “check fuel cap”
message on may cause the service engine soon
light to turn on as
well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a collision, which may result in
personal injury.
Maintenance and Specifications
286
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

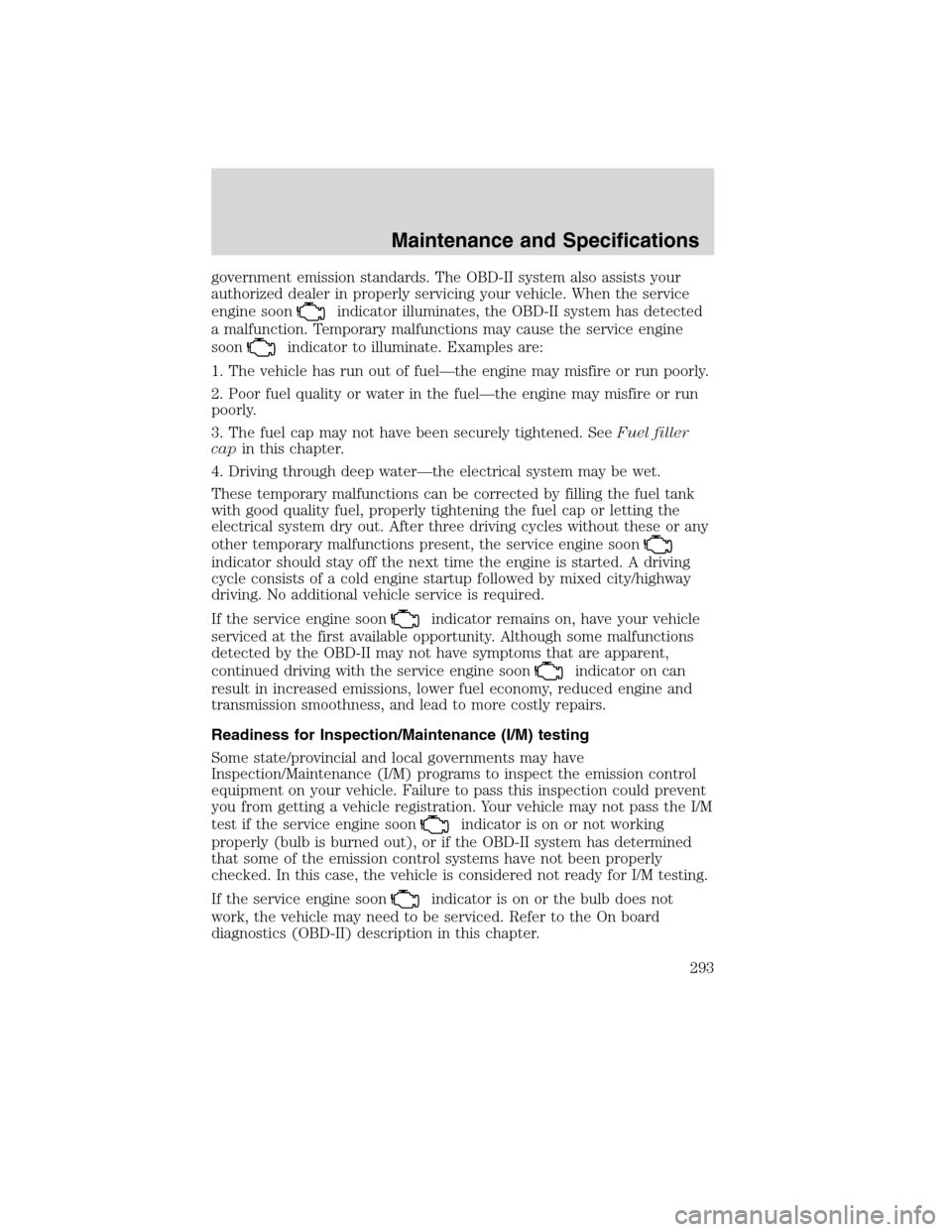

government emission standards. The OBD-II system also assists your
authorized dealer in properly servicing your vehicle. When the service
engine soon
indicator illuminates, the OBD-II system has detected
a malfunction. Temporary malfunctions may cause the service engine
soon
indicator to illuminate. Examples are:
1. The vehicle has run out of fuel—the engine may misfire or run poorly.
2. Poor fuel quality or water in the fuel—the engine may misfire or run
poorly.
3. The fuel cap may not have been securely tightened. SeeFuel filler
capin this chapter.
4. Driving through deep water—the electrical system may be wet.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly tightening the fuel cap or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, the service engine soon
indicator should stay off the next time the engine is started. A driving
cycle consists of a cold engine startup followed by mixed city/highway
driving. No additional vehicle service is required.
If the service engine soon
indicator remains on, have your vehicle
serviced at the first available opportunity. Although some malfunctions
detected by the OBD-II may not have symptoms that are apparent,
continued driving with the service engine soon
indicator on can
result in increased emissions, lower fuel economy, reduced engine and
transmission smoothness, and lead to more costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the service engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If the service engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
Maintenance and Specifications
293
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid. Refer toscheduled maintenance
information.
Maintenance and Specifications
294
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

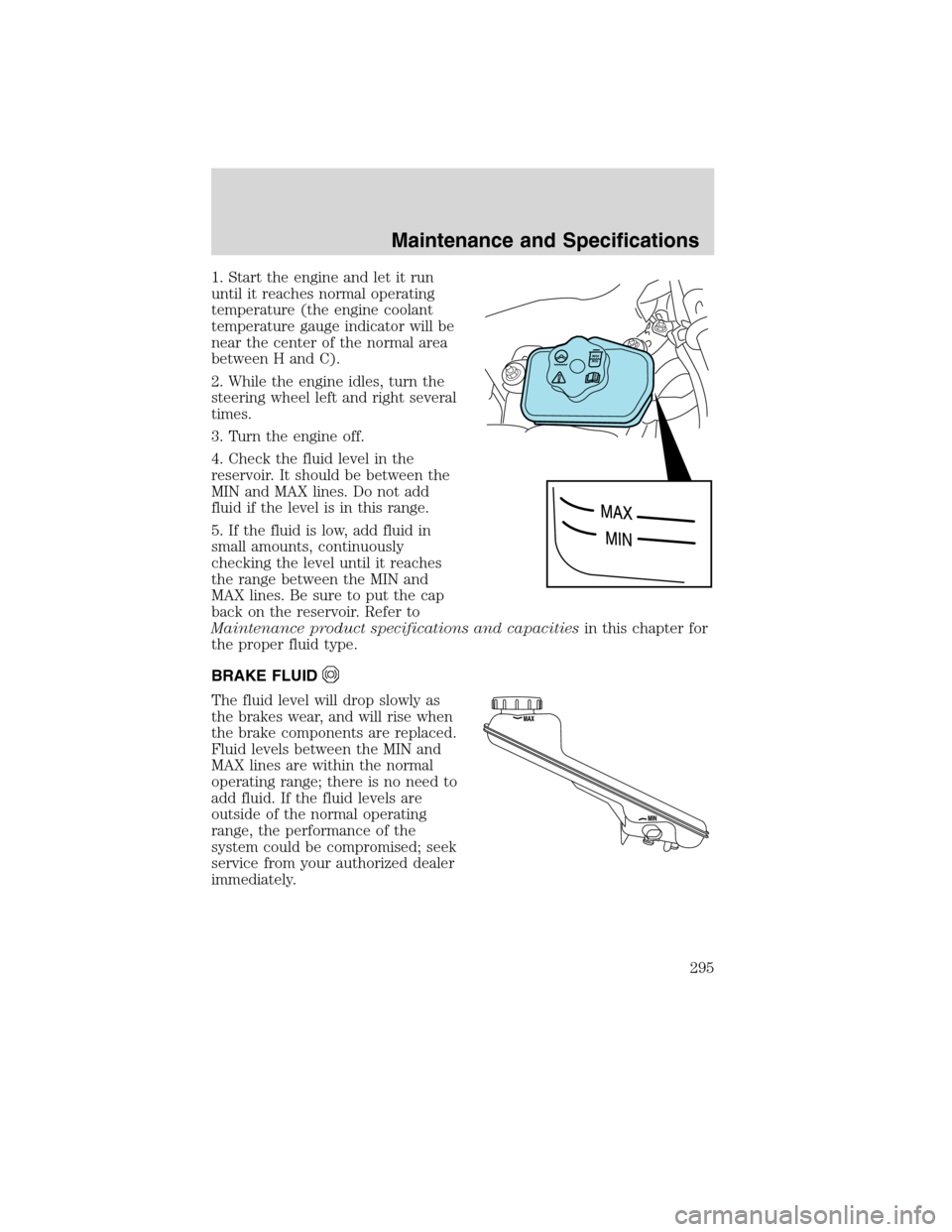

1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in
small amounts, continuously
checking the level until it reaches
the range between the MIN and
MAX lines. Be sure to put the cap
back on the reservoir. Refer to
Maintenance product specifications and capacitiesin this chapter for
the proper fluid type.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
Maintenance and Specifications
295
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

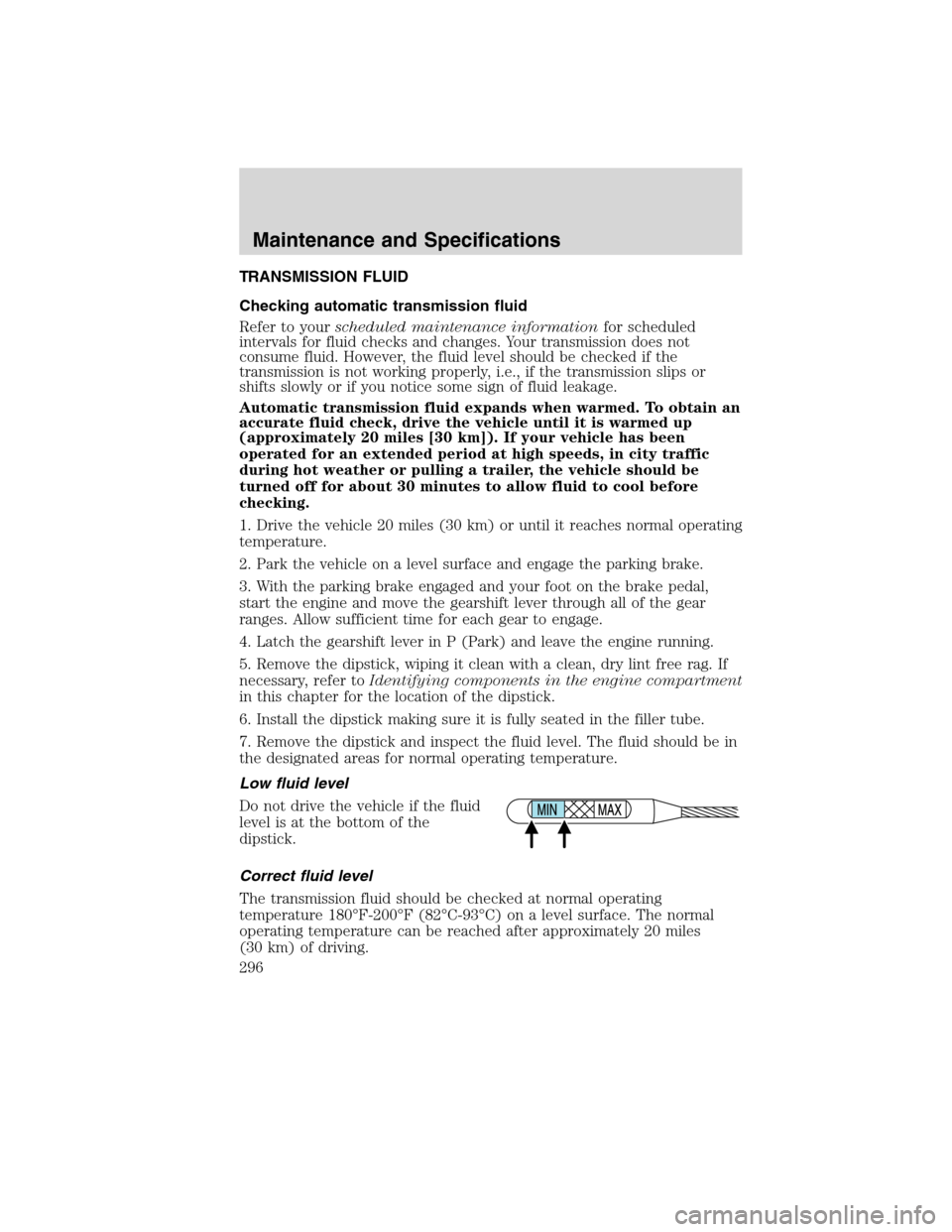

TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated areas for normal operating temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the
dipstick.
Correct fluid level
The transmission fluid should be checked at normal operating
temperature 180°F-200°F (82°C-93°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
Maintenance and Specifications
296
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

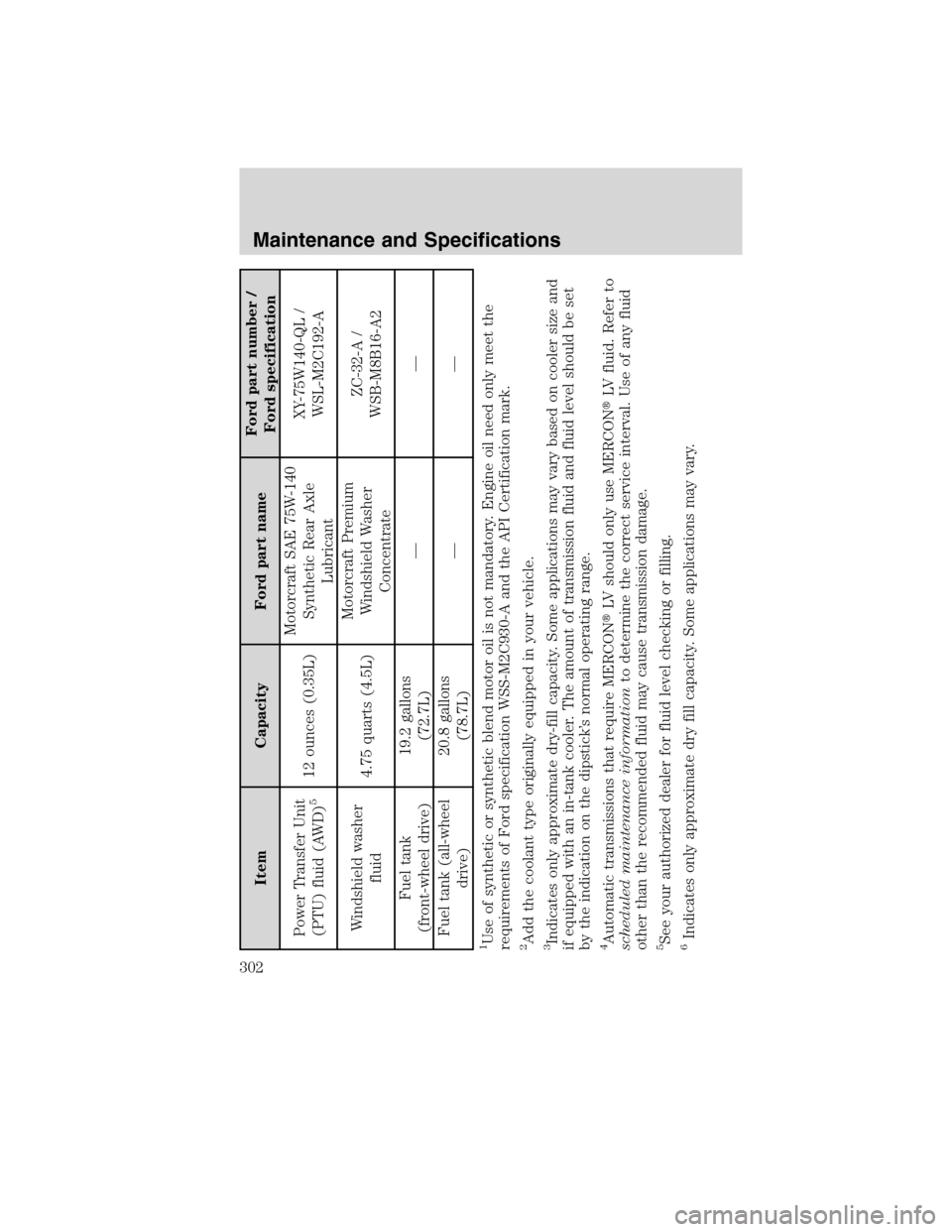

Item Capacity Ford part nameFord part number /
Ford specification
Power Transfer Unit
(PTU) fluid (AWD)
5
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer
fluid4.75 quarts (4.5L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
(front-wheel drive)19.2 gallons
(72.7L)——
Fuel tank (all-wheel
drive)20.8 gallons
(78.7L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5See your authorized dealer for fluid level checking or filling.6Indicates only approximate dry fill capacity. Some applications may vary.
Maintenance and Specifications
302
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

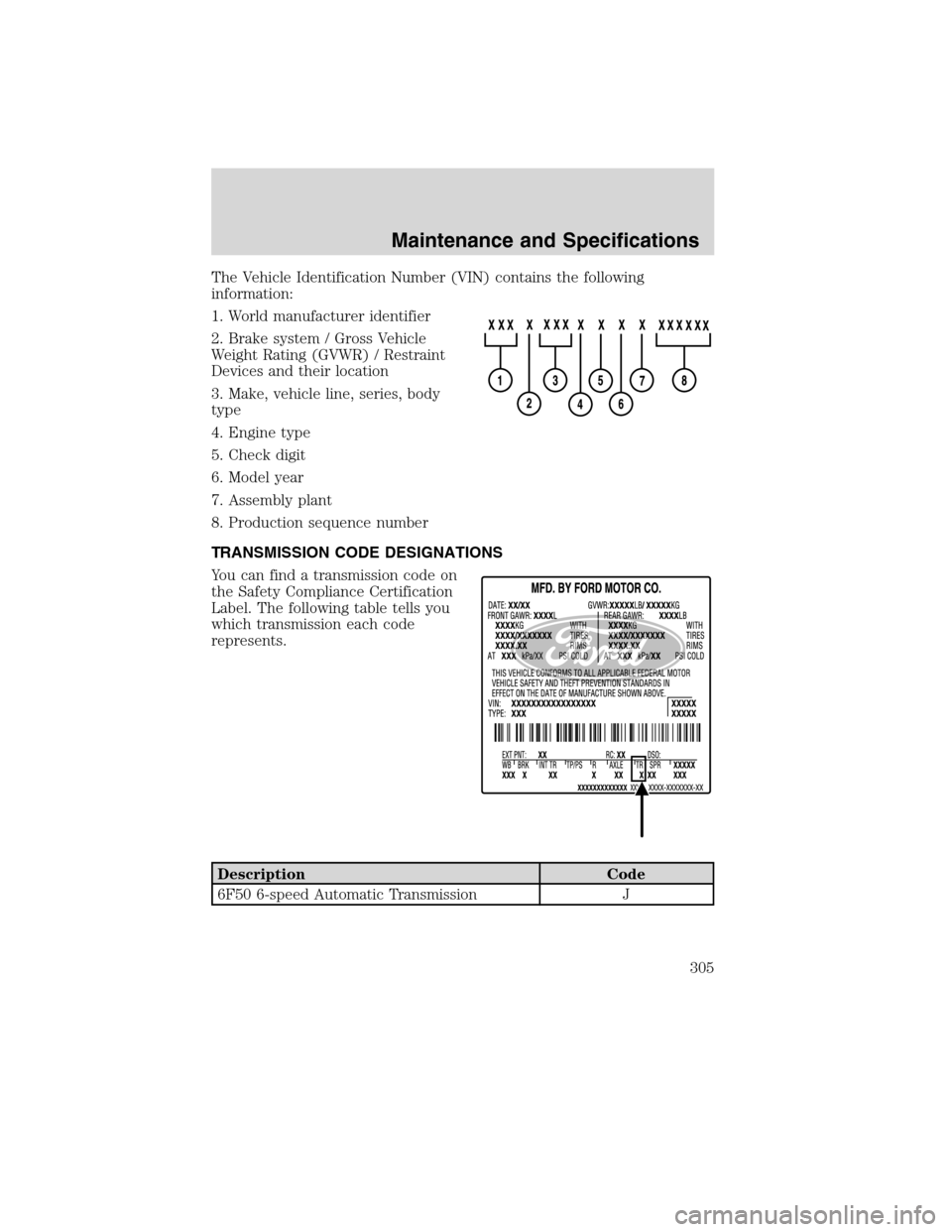

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6F50 6-speed Automatic Transmission J
Maintenance and Specifications
305
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

A
Accessory delay ..........................63
AdvanceTrac ..............................209
Air cleaner filter ...............297–299
Air conditioning ..........................40
Airbag supplemental restraint
system ........................134, 143, 146
and child safety seats ............136
description ..............134, 143, 146
disposal ....................................149
driver airbag ............136, 144, 147
indicator light .........143, 145, 148
operation .................136, 144, 147
passenger airbag .....136, 144, 147
side airbag ...............................143
All Wheel Drive (AWD),
driving off road .........................222
Ambient mood/lighting ...............49
Antifreeze
(see Engine coolant) ................278
Anti-lock brake system
(see Brakes) ..............................207
Anti-theft system ..............100, 104
arming the system ..................104
disarming a triggered
system .....................................105
Audio system (see Radio) .........25
Automatic transmission
driving an automatic
overdrive .................................216
fluid, adding ............................296
fluid, checking ........................296
fluid, refill capacities ..............300
fluid, specification ..................300
Auxiliary input jack (Line in) ....32
Auxiliary power point .................60Axle
lubricant specifications ..........300
B
Battery .......................................276
acid, treating emergencies .....276
jumping a disabled battery ....246
maintenance-free ....................276
replacement, specifications ...299
servicing ..................................276
Belt-Minder.............................130
Blind Spot Spotter Mirror ........221
Booster seats .............................163
Brakes ........................................207
anti-lock ...................................207
anti-lock brake system
(ABS) warning light ...............208
fluid, checking and adding ....295
fluid, refill capacities ..............300
fluid, specifications .................300
lubricant specifications ..........300
parking ....................................208
shift interlock ..........................214
Bulbs ............................................50
C
Capacities for refilling fluids ....300
Car2U garage door opener .........74
Cargo management system ........84
Cargo net .....................................85
Cell phone use ..............................8
Changing a tire .................239, 242
Child safety seats ......................155
attaching with tether
straps .......................................161
in front seat ............................155
Index
311
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

in rear seat ..............................155
LATCH .....................................158
recommendations ...................152
Child safety seats - booster
seats ...........................................163
Cleaning your vehicle
engine compartment ..............262
instrument panel ....................264
interior .............................264–265
plastic parts ............................262
safety belts ..............................264
washing ....................................260
waxing .....................................261
wheels ......................................261
wiper blades ............................263
Climate control (see Air
conditioning or Heating) ............40
Clock ............................................27
Compass, electronic
set zone adjustment .................20
Console ........................................60
overhead ....................................59
Controls
power seat ...............................110
steering column ........................67
Convertible
cleaning ...................................263
Coolant
checking and adding ..............278
refill capacities ................281, 300
specifications ..........................300
Cruise control
(see Speed control) ....................65
Cupholder(s) .............................118
Customer Assistance ................229
Ford Extended Service
Plan ..........................................308Getting assistance outside the
U.S. and Canada .....................257
Getting roadside
assistance ................................229
Getting the service
you need .................................253
Ordering additional owner’s
literature .................................258
Utilizing the
Mediation/Arbitration
Program ...................................257
D
Daytime running lamps
(see Lamps) ................................46
Dipstick
automatic transmission
fluid ..........................................296
engine oil .................................272
Driving under special
conditions ..................218, 223, 226
sand .........................................224
snow and ice ...........................226
through water .................225, 228
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................246
Emission control system ..........291
Engine ........................................303
cleaning ...................................262
coolant .....................................278
fail-safe cooling .......................282
idle speed control ...................276
lubrication specifications .......300
refill capacities ........................300
service points ..................269–270
starting after a collision .........231
Index
312
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
