To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press and pull the switches to open
and close windows.
•Press down (to the first detent)
and hold the switch to open.
•Pull up (to the first detent) and
hold the switch to close.
One-touch down (front windows only)
Allows the driver and passenger’s
window to open fully without
holding the control down. Press the
switch completely down to the
second detent and release quickly.
The window will open fully.
Momentarily press the switch to any
position to stop the window
operation.
A
U
T
OA
U
T
O
Driver Controls
61
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

One-touch up (front windows only)
Allows the driver and passenger’s
window to close fully without
holding the control up. Pull the
switch completely up to the second
detent and release quickly. The
window will close fully. Momentarily
press the switch to any position to
stop the window operation.
Global open windows
Press
and hold for more than two seconds in order to begin opening
the two front windows and venting the panoramic roof (if equipped).
•The
control can then be released and the windows and panoramic
roof will complete the opening operation.
•If
oris pressed during the opening operation, both windows
and panoramic roof movement will stop.
Note:The ignition must be in the off position and the accessory delay
feature must be not activated in order for this feature to operate.
Note:This feature can be disabled or enabled by your authorized dealer.
Bounce-Back
When the window is moving upward and an obstacle or a rough road
condition interferes with the window’s movement, the window will
automatically reverse direction and move down. This is known as
“bounce-back”. If the ignition is turned off (without accessory delay
being active) during bounce-back, the window will move down until the
bounce-back position is reached.
Security override
To override a bounce-back condition, within two seconds after the
window reaches the bounce-back position, pull and hold the switch up
andthe window will travel up with no bounce-back or pinch
protection.If the switch is released before the window is fully closed,
the window will stop. For example, this can be used to overcome the
resistance of ice on the window or seals.
Driver Controls
62
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Window lock
The window lock feature allows only
the driver and front passenger to
operate the power windows.
To lock out all the window controls
(except for the driver and front
passenger) press the right side of
the control. Press the left side to
restore the window controls.
Accessory delay
With accessory delay, the audio system, power windows, and moon roof
(if equipped) operate for up to 10 minutes after the ignition switch is
turned from the on to the off position or until either front door is
opened.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
Automatic dimming interior rear view mirror
Your vehicle is equipped with an interior rear view mirror and a driver’s
side exterior mirror that have auto-dimming function. The electronic
day/night mirrors will change from the normal (high reflective) state to
the non-glare (darkened) state when bright lights (glare) reach the
interior mirror. When the interior mirror detects bright light from behind
the vehicle, the interior rear view mirror and the driver’s side exterior
mirror will automatically adjust (darken) to minimize glare.
The mirrors will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Driver Controls
63
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Blind spot mirrors (if equipped)
Your vehicle my be equipped with blind spot mirrors. SeeBlind spot
mirrorsin theDrivingchapter.
Fold-away mirrors
Pull the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Driver Controls
64
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

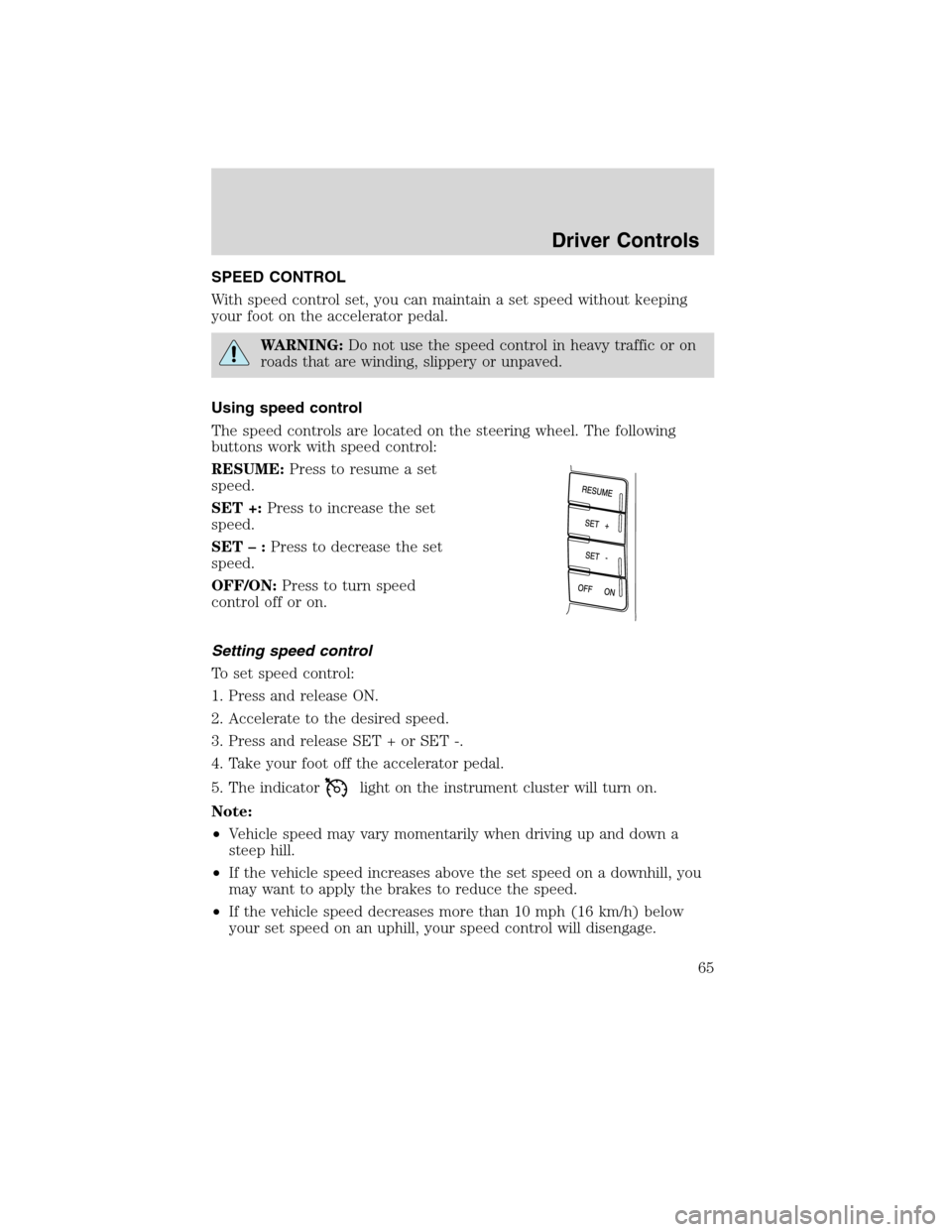

SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Using speed control
The speed controls are located on the steering wheel. The following
buttons work with speed control:
RESUME:Press to resume a set
speed.
SET +:Press to increase the set
speed.
SET–:Press to decrease the set
speed.
OFF/ON:Press to turn speed
control off or on.
Setting speed control
To set speed control:
1. Press and release ON.
2. Accelerate to the desired speed.
3. Press and release SET + or SET -.
4. Take your foot off the accelerator pedal.
5. The indicator
light on the instrument cluster will turn on.
Note:
•Vehicle speed may vary momentarily when driving up and down a
steep hill.
•If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
•If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
Driver Controls
65
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

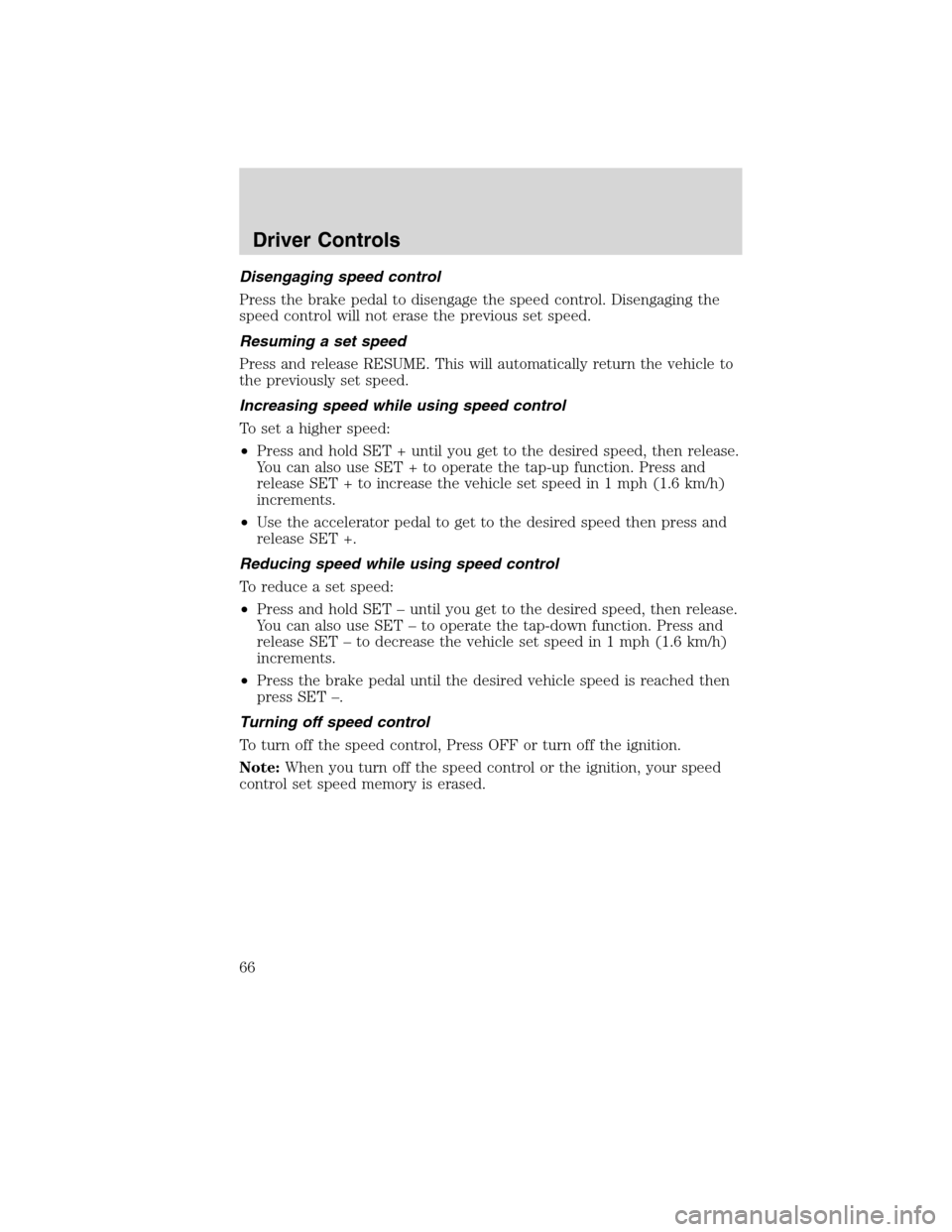

Disengaging speed control
Press the brake pedal to disengage the speed control. Disengaging the
speed control will not erase the previous set speed.
Resuming a set speed
Press and release RESUME. This will automatically return the vehicle to
the previously set speed.
Increasing speed while using speed control
To set a higher speed:
•Press and hold SET + until you get to the desired speed, then release.
You can also use SET + to operate the tap-up function. Press and
release SET + to increase the vehicle set speed in 1 mph (1.6 km/h)
increments.
•Use the accelerator pedal to get to the desired speed then press and
release SET +.
Reducing speed while using speed control
To reduce a set speed:
•Press and hold SET – until you get to the desired speed, then release.
You can also use SET – to operate the tap-down function. Press and
release SET – to decrease the vehicle set speed in 1 mph (1.6 km/h)
increments.
•Press the brake pedal until the desired vehicle speed is reached then
press SET –.
Turning off speed control
To turn off the speed control, Press OFF or turn off the ignition.
Note:When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
Driver Controls
66
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

STEERING WHEEL CONTROLS
These controls allow you to operate some radio control features.
Radio control features
– VOL + (Volume):Press to
decrease or increase the volume.
(Seek):Press to select
the previous/next radio station
preset, CD track or satellite radio
station preset depending on which
media mode you are in.
MEDIA:Press repeatedly to select:
•AM, FM1, FM2 or CD
•SAT1, SAT2 or SAT3 (Satellite radio mode)
•LINE IN (Auxiliary input jack)
SYNCsystem hands free
control features
Press
briefly to use the voice
command feature. You will hear a
tone and LISTENING will appear in
the radio display. Press and
hold
to exit voice command.
Press
to activate phone mode or
answer a phone call. Press VOL + or
to adjust volume. Press and
hold
to end a call or exit phone mode.
Press
to scroll through various menus and selections. Press
OK to confirm your selection.
For further information on the SYNCsystem, refer to theSYNC
supplement.
Driver Controls
67
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Navigation system/SYNChands
free control features (if
equipped)
Press
control briefly until the
voice
icon appears on the
Navigation display to use the voice
command feature.
Press
to activate phone mode or
answer a phone call. Press VOL + or
to adjust volume. Press and
hold
to exit phone mode or end a call.
For further information on the Navigation system/SYNCsystem, refer to
theNavigationandSYNCsupplements.
PANORAMIC VISTA ROOF™ AND POWER SUNSHADES
(IF EQUIPPED)
The panoramic Vista Roof™ and power sunshade controls are located on
the overhead console.
WARNING:Do not let children play with the panoramic Vista
Roof™ and power sunshade or leave children unattended in the
vehicle. They may seriously hurt themselves.
WARNING:When closing the panoramic Vista Roof™ and
power sunshade, you should verify that it is free of obstructions
and ensure that children and/or pets are not in the proximity of the
panoramic Vista Roof™ and power sunshade opening.
Note:Do not attempt to move the panoramic power sunshades manually
or sunshade damage or malfunction may occur. The sunshade track clips
are designed to release the sunshade crossbar in order to prevent
damage to the system. If this occurs the sunshade crossbar ends may
just need to be slid back into position to regain proper function. See
your authorized dealer for proper panoramic Vista Roof™ or sunshade
operating, diagnostic or repair instructions.
Note:The same
control operates both the sunshades and the
panoramic Vista Roof™.
Driver Controls
68
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

The panoramic Vista Roof™ and power sunshade are equipped with an
automatic, one-touch, express opening feature. To stop motion at any
time during the one-touch operation, press the control a second time.
To open power sunshades and
panoramic Vista Roof™:Press
and release the
control to
open the sunshade. The front and
rear sunshades open simultaneously.
Note:Vista Roof™ will only open
after power sunshades are
completely open. Power sunshades
will only close after Vista Roof™ is completely closed.
To open the panoramic Vista Roof™ press and release the
control.
The panoramic Vista Roof™ will open to the “comfort” position. Press
and release the control again to fully open. To stop the one-touch open
feature press the control again.
Note:The “comfort” position helps to alleviate rumbling wind noise
which may happen in the vehicle with the roof fully opened.
To close the panoramic Vista Roof™ and power sunshades:Pull
the
control down and release. The glass panel will stop at the
“express close” position. Firmly pull the control again and hold to fully
close the Vista Roof™. Pull the control down and release to close the
sunshades to the “express close” position. Firmly pull the control again
and hold to fully close the front and rear sunshades.
To vent the panoramic Vista
Roof™:From the closed position,
press and release the TILT control.
To close, pull and hold the TILT
control down.
Note:If the panoramic Vista Roof™
is excessively operated, the glass
and shade motors will automatically
go into a fail-safe jog mode (manual intermittent operation) to prevent
overheating and/or damage to the motor. The motors will revert back to
normal operation after a period of idle time.
Driver Controls
69
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

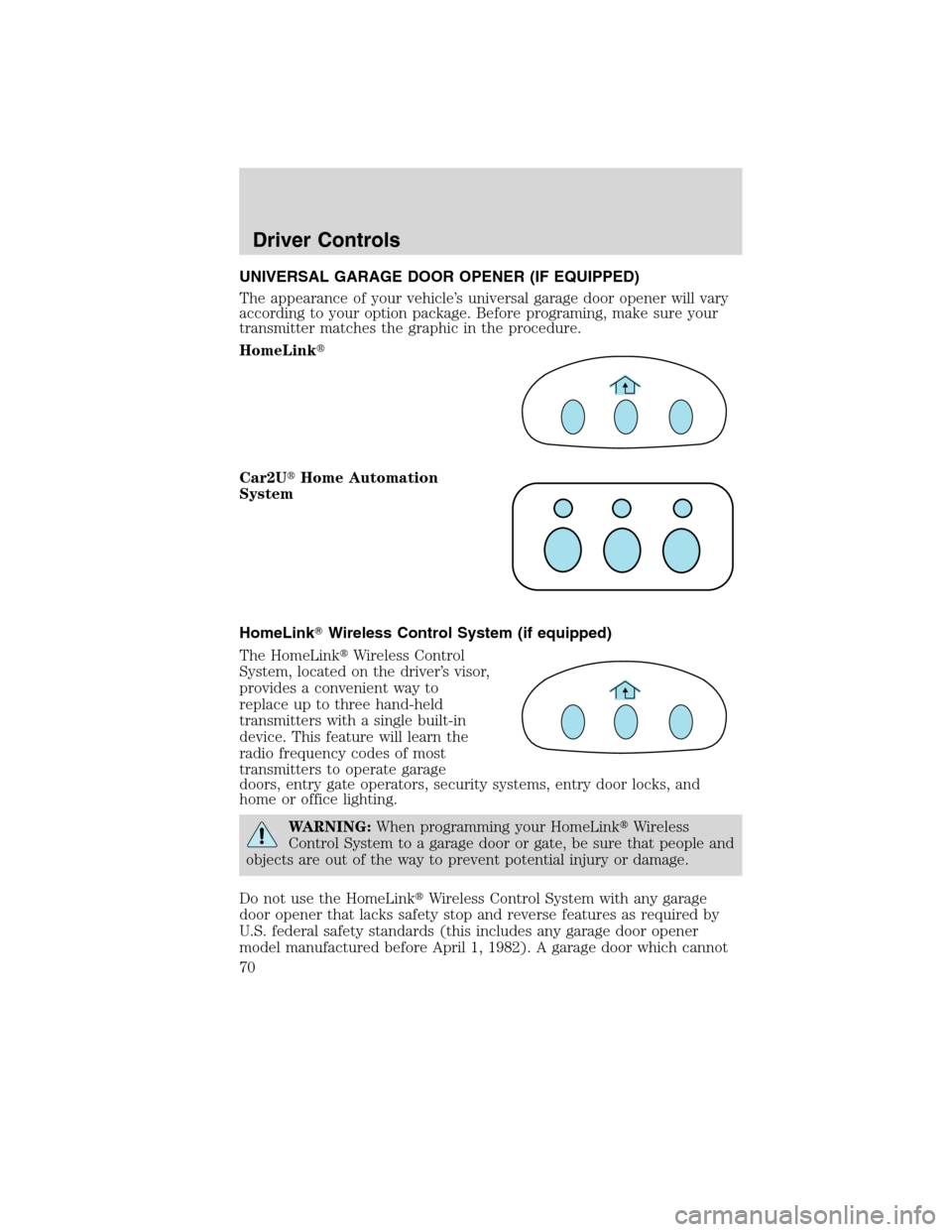

UNIVERSAL GARAGE DOOR OPENER (IF EQUIPPED)
The appearance of your vehicle’s universal garage door opener will vary
according to your option package. Before programing, make sure your
transmitter matches the graphic in the procedure.
HomeLink
Car2UHome Automation
System
HomeLinkWireless Control System (if equipped)
The HomeLinkWireless Control
System, located on the driver’s visor,
provides a convenient way to
replace up to three hand-held
transmitters with a single built-in
device. This feature will learn the
radio frequency codes of most
transmitters to operate garage
doors, entry gate operators, security systems, entry door locks, and
home or office lighting.
WARNING:When programming your HomeLinkWireless
Control System to a garage door or gate, be sure that people and
objects are out of the way to prevent potential injury or damage.
Do not use the HomeLinkWireless Control System with any garage
door opener that lacks safety stop and reverse features as required by
U.S. federal safety standards (this includes any garage door opener
model manufactured before April 1, 1982). A garage door which cannot
Driver Controls
70
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
