LINCOLN MKX 2011 Owners Manual

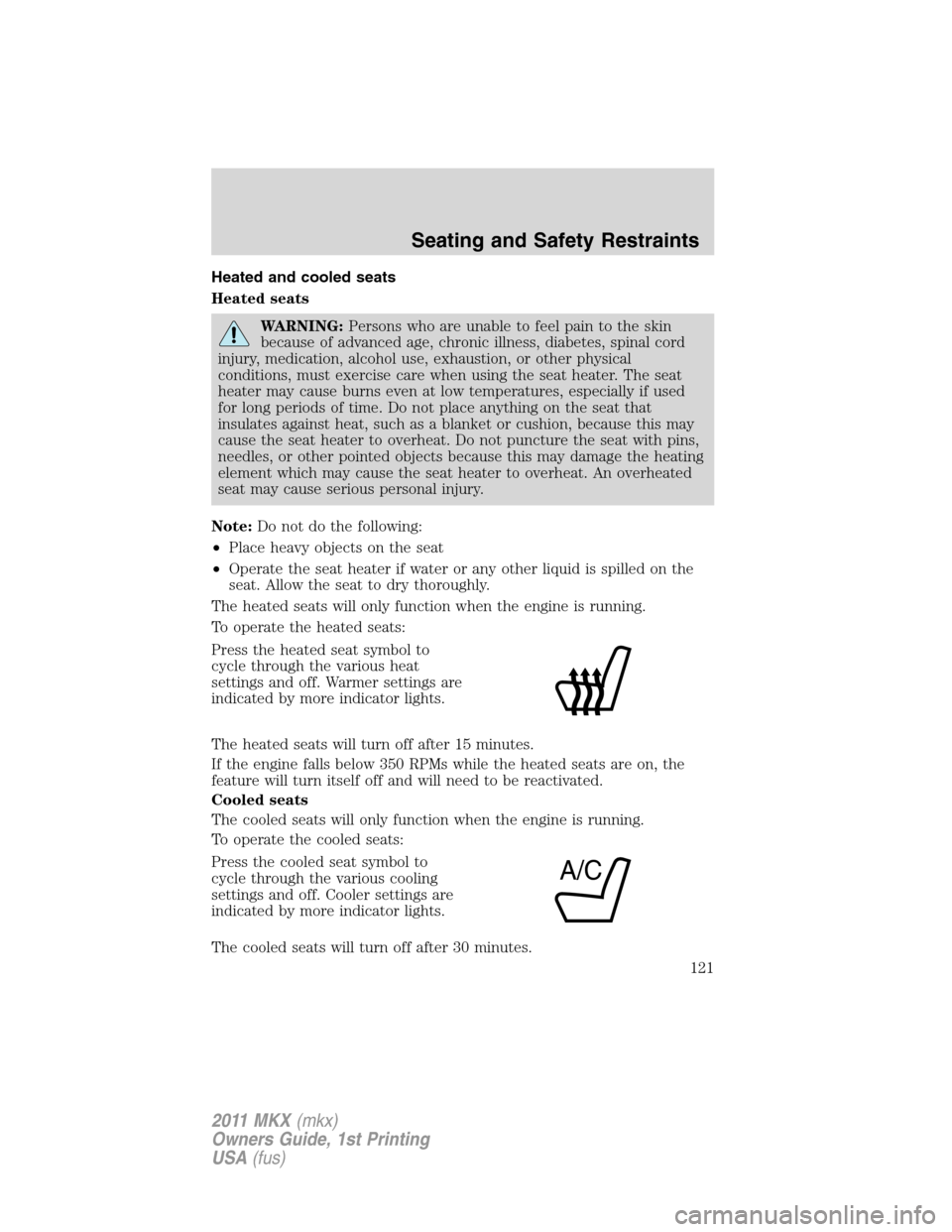

Heated and cooled seats
Heated seats
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The heated seats will only function when the engine is running.
To operate the heated seats:
Press the heated seat symbol to
cycle through the various heat
settings and off. Warmer settings are
indicated by more indicator lights.
The heated seats will turn off after 15 minutes.
If the engine falls below 350 RPMs while the heated seats are on, the
feature will turn itself off and will need to be reactivated.
Cooled seats
The cooled seats will only function when the engine is running.
To operate the cooled seats:
Press the cooled seat symbol to
cycle through the various cooling
settings and off. Cooler settings are
indicated by more indicator lights.
The cooled seats will turn off after 30 minutes.
A/C
Seating and Safety Restraints
121
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

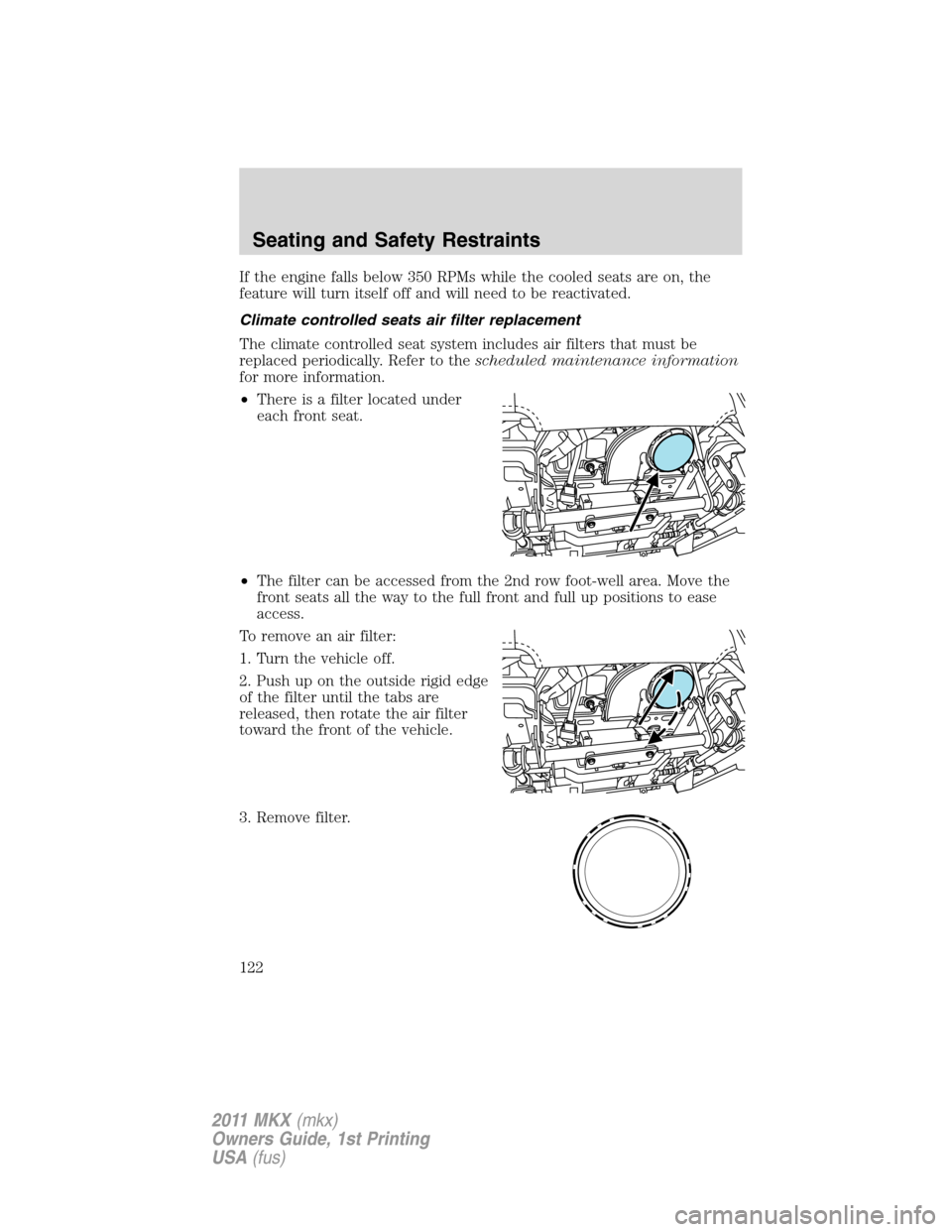

If the engine falls below 350 RPMs while the cooled seats are on, the
feature will turn itself off and will need to be reactivated.
Climate controlled seats air filter replacement
The climate controlled seat system includes air filters that must be
replaced periodically. Refer to thescheduled maintenance information
for more information.
•There is a filter located under
each front seat.
•The filter can be accessed from the 2nd row foot-well area. Move the
front seats all the way to the full front and full up positions to ease
access.
To remove an air filter:
1. Turn the vehicle off.
2. Push up on the outside rigid edge
of the filter until the tabs are
released, then rotate the air filter
toward the front of the vehicle.
3. Remove filter.
Seating and Safety Restraints
122
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

To install a filter:
1. First, position the filter in its
housing making sure that the far
forward end is all the way up in the
housing.
2. Push in on the center of the
outside edge of the filter and rotate
up into the housing until it clips into
position.
Memory feature
This system allows automatic
positioning of the driver seat, power
mirrors and power tilt/telescopic
steering column (if equipped) to
two programmable positions.
The memory seat control is located
on the instrument panel.
•To program position 1, move the
appropriate features to the
desired position using the
associated controls. Press and hold button 1 for at least two seconds.
A chime will sound confirming that a memory position has been set.
•To program position 2, repeat the previous procedure using button 2.
A memory position may be programmed at any time.
To program the memory feature to a remote entry transmitter, refer to
Remote entry systemin theLocks and Securitychapter.
A programmed memory position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
The memory positions are also recalled when you press your remote
entry transmitter
(unlock) control (if the transmitter is programmed
to a memory position) or, when you enter a valid personal entry code
that is programmed to a memory position. The mirrors will move to the
programmed position and the seat will move to the easy entry position.
The seat will move to the final position when the key is in the ignition (if
easy entry feature is enabled).
Seating and Safety Restraints
123
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

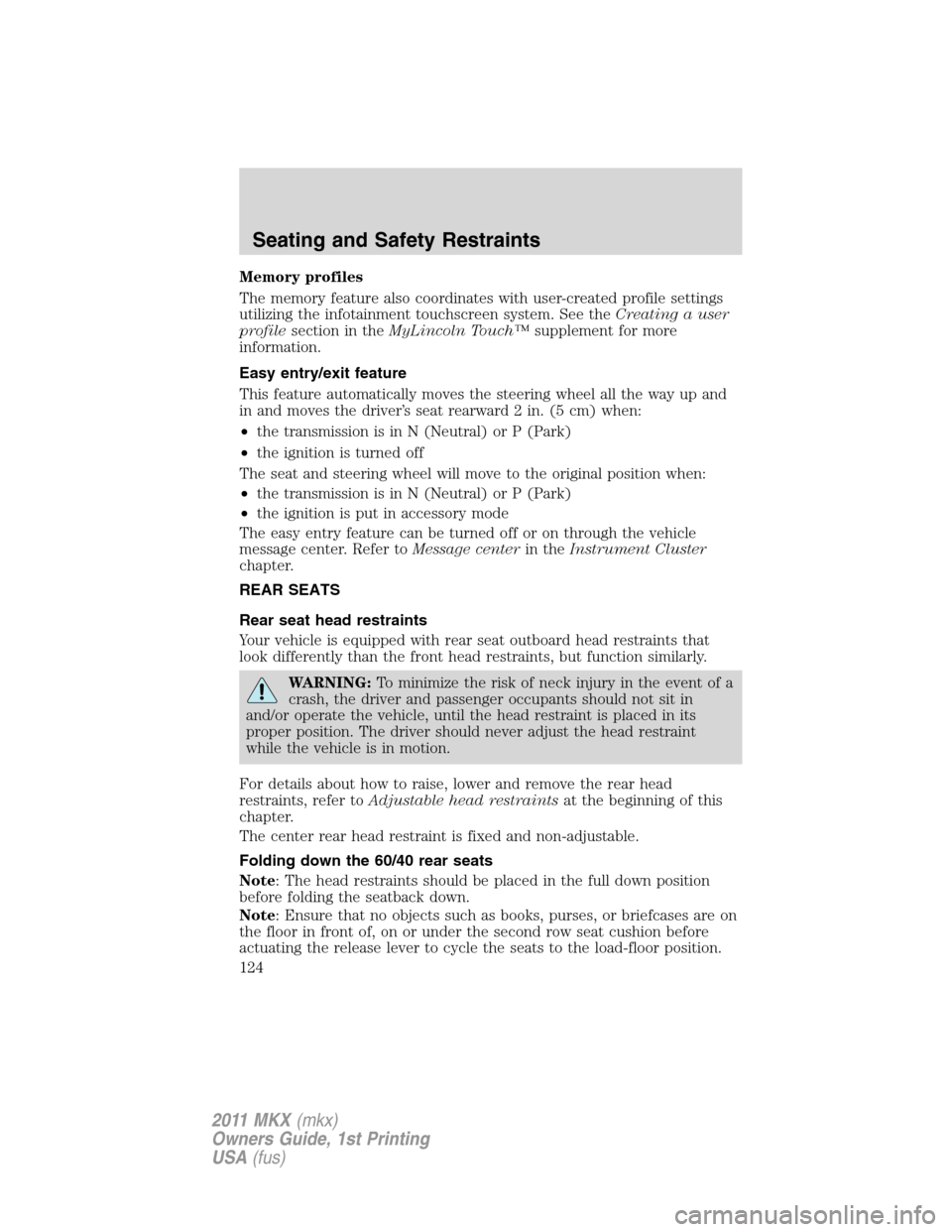

Memory profiles
The memory feature also coordinates with user-created profile settings
utilizing the infotainment touchscreen system. See theCreating a user
profilesection in theMyLincoln Touch™supplement for more
information.
Easy entry/exit feature
This feature automatically moves the steering wheel all the way up and
in and moves the driver’s seat rearward 2 in. (5 cm) when:
•the transmission is in N (Neutral) or P (Park)
•the ignition is turned off
The seat and steering wheel will move to the original position when:
•the transmission is in N (Neutral) or P (Park)
•the ignition is put in accessory mode
The easy entry feature can be turned off or on through the vehicle
message center. Refer toMessage centerin theInstrument Cluster
chapter.
REAR SEATS
Rear seat head restraints
Your vehicle is equipped with rear seat outboard head restraints that
look differently than the front head restraints, but function similarly.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
For details about how to raise, lower and remove the rear head
restraints, refer toAdjustable head restraintsat the beginning of this
chapter.
The center rear head restraint is fixed and non-adjustable.
Folding down the 60/40 rear seats
Note: The head restraints should be placed in the full down position
before folding the seatback down.
Note: Ensure that no objects such as books, purses, or briefcases are on
the floor in front of, on or under the second row seat cushion before
actuating the release lever to cycle the seats to the load-floor position.
Seating and Safety Restraints
124
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

WARNING:To prevent possible damage to the seat or safety
belts, ensure that the safety belts are not buckled when moving
the seat to the load floor position.
2nd row manual folding seat
To fold down the rear seat, pull up
on the lever on the outboard side of
the seat cushion and let the
seatback rotate downward into the
load floor position.
2nd row EasyFold™ seatback release (if equipped)
WARNING:Ensure that the seat is unoccupied when folding it
down. Folding the seat while occupied could result in damage to
the seat or injury.
Note:The power feature is operational when the vehicle is in park and
the liftgate has been open for less than 10 minutes.
The control buttons are located on the left-hand rear quarter trim panel
(accessible from the liftgate area).
Seating and Safety Restraints
125
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

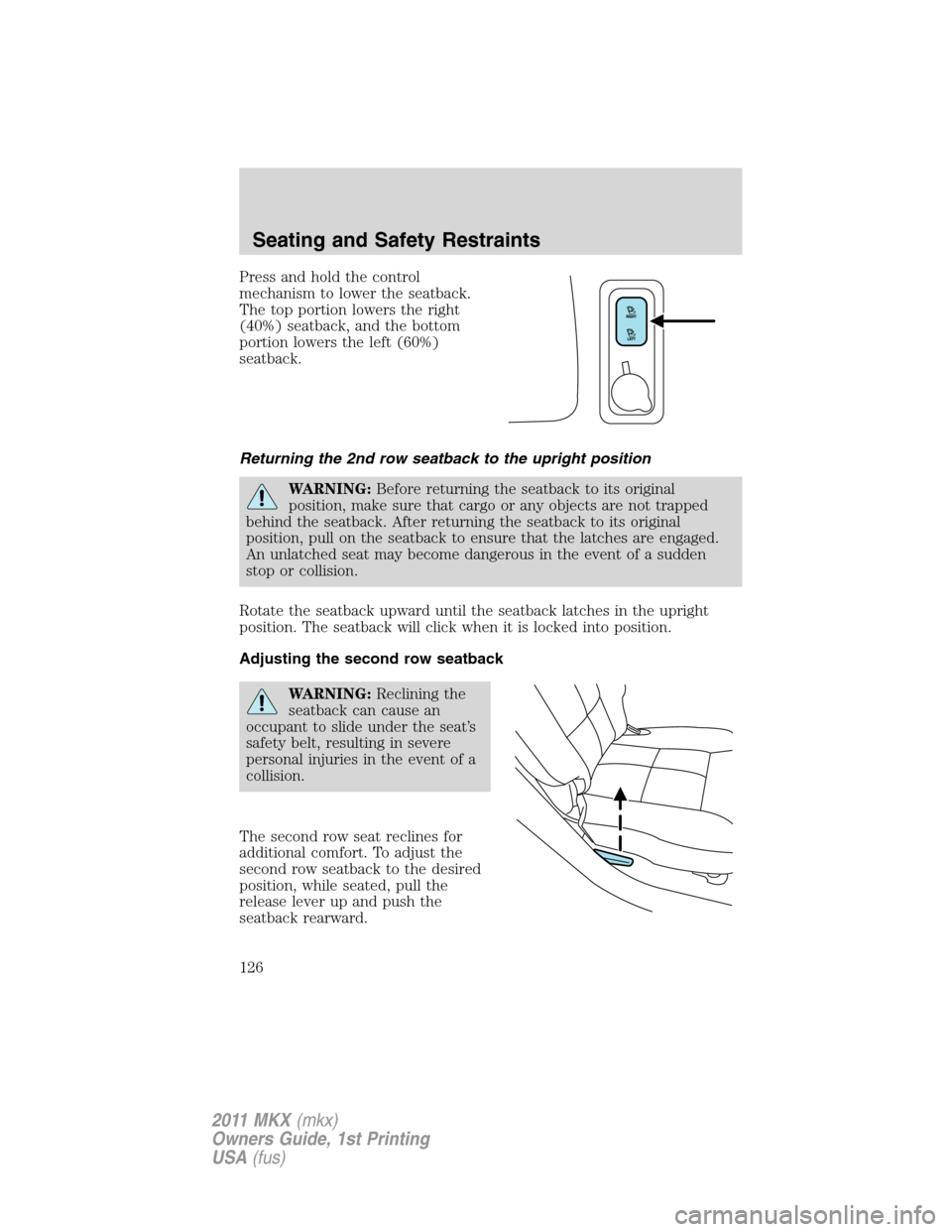

Press and hold the control
mechanism to lower the seatback.
The top portion lowers the right
(40%) seatback, and the bottom
portion lowers the left (60%)
seatback.
Returning the 2nd row seatback to the upright position
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that the latches are engaged.
An unlatched seat may become dangerous in the event of a sudden
stop or collision.
Rotate the seatback upward until the seatback latches in the upright
position. The seatback will click when it is locked into position.
Adjusting the second row seatback
WARNING:Reclining the
seatback can cause an
occupant to slide under the seat’s
safety belt, resulting in severe
personal injuries in the event of a
collision.
The second row seat reclines for
additional comfort. To adjust the
second row seatback to the desired
position, while seated, pull the
release lever up and push the
seatback rearward.
Seating and Safety Restraints
126
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

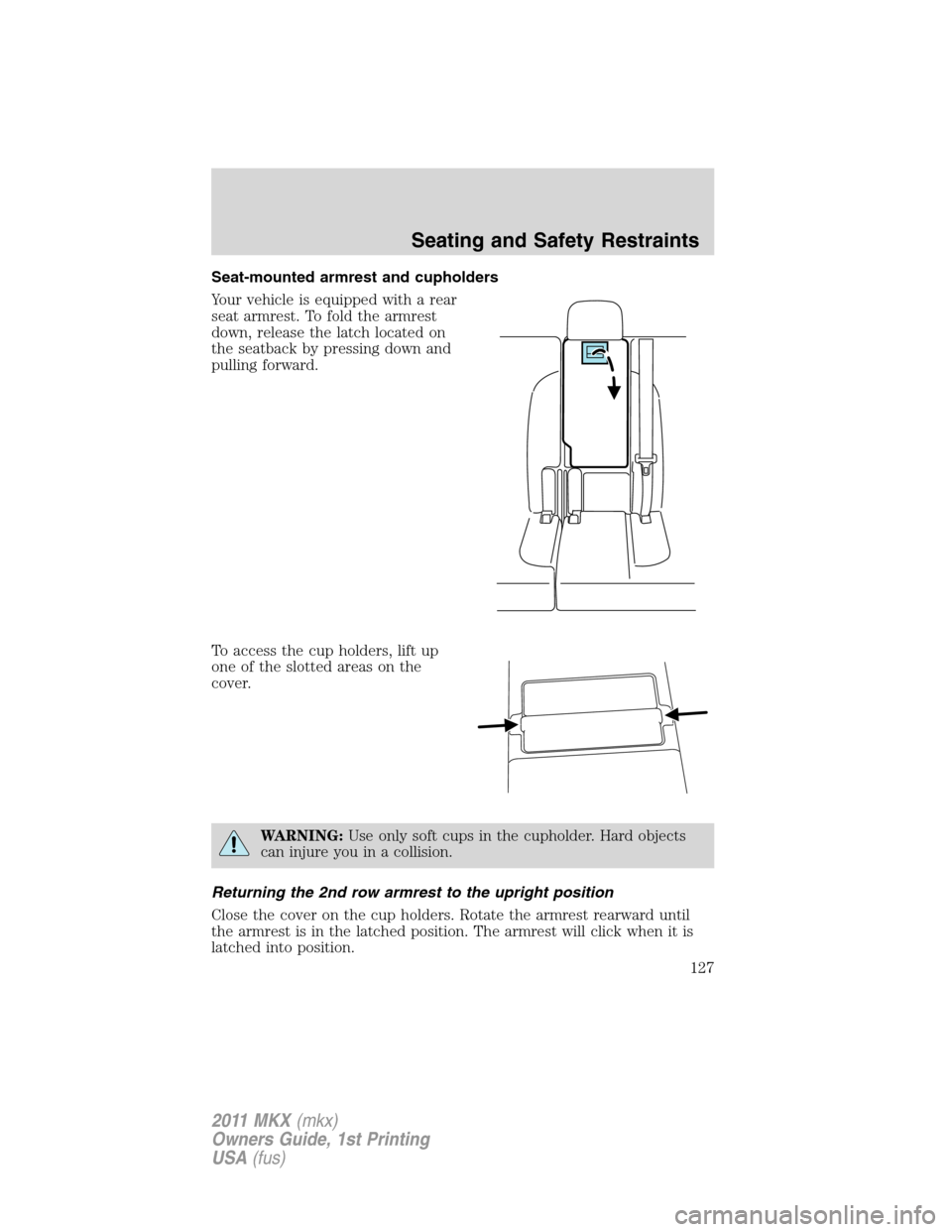

Seat-mounted armrest and cupholders
Your vehicle is equipped with a rear
seat armrest. To fold the armrest
down, release the latch located on
the seatback by pressing down and
pulling forward.
To access the cup holders, lift up
one of the slotted areas on the
cover.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
Returning the 2nd row armrest to the upright position
Close the cover on the cup holders. Rotate the armrest rearward until
the armrest is in the latched position. The armrest will click when it is
latched into position.
Seating and Safety Restraints
127
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

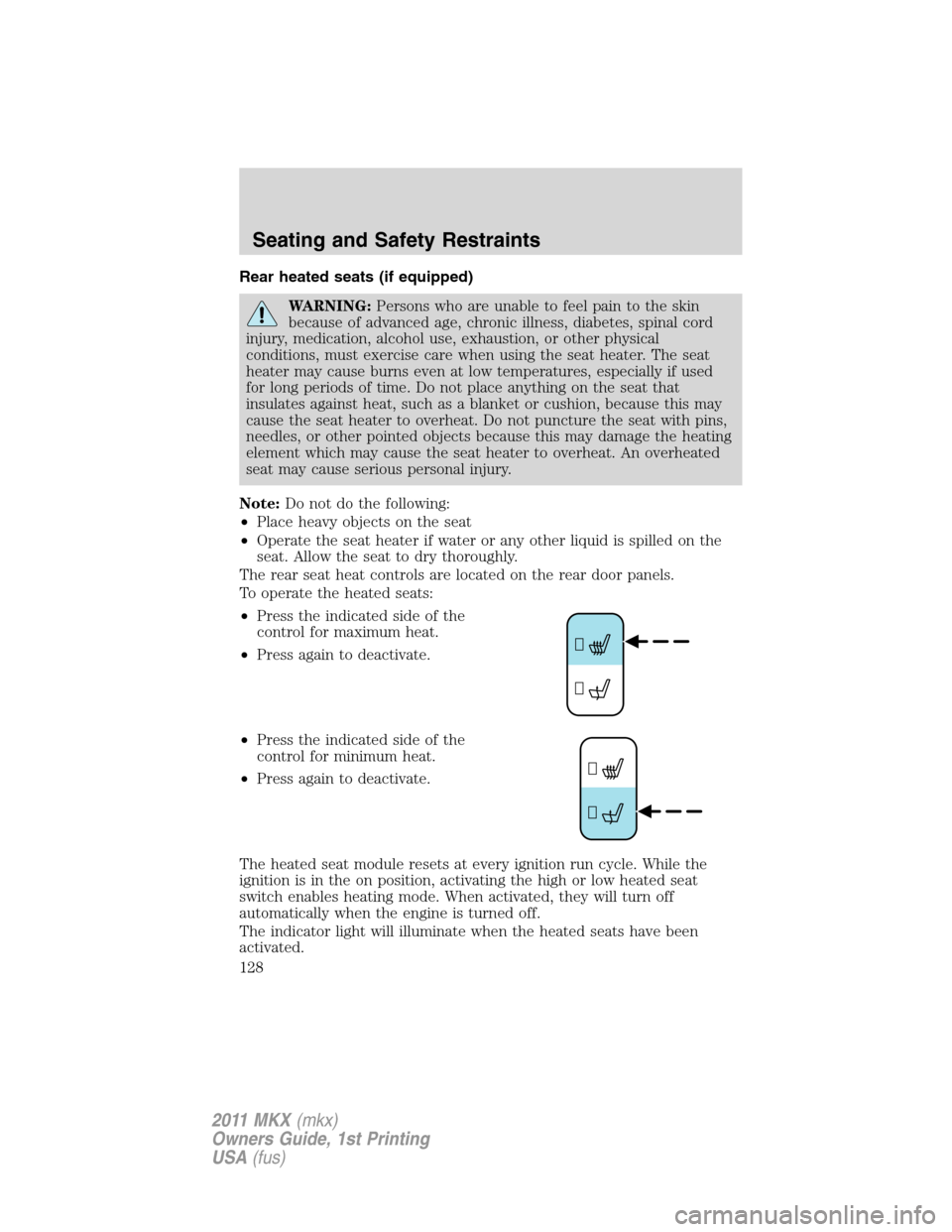

Rear heated seats (if equipped)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The rear seat heat controls are located on the rear door panels.
To operate the heated seats:
•Press the indicated side of the
control for maximum heat.
•Press again to deactivate.
•Press the indicated side of the
control for minimum heat.
•Press again to deactivate.
The heated seat module resets at every ignition run cycle. While the
ignition is in the on position, activating the high or low heated seat
switch enables heating mode. When activated, they will turn off
automatically when the engine is turned off.
The indicator light will illuminate when the heated seats have been
activated.
Seating and Safety Restraints
128
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

SAFETY RESTRAINTS
Personal Safety System™
The Personal Safety System provides an improved overall level of frontal
crash protection to front seat occupants and is designed to help further
reduce the risk of airbag-related injuries. The system is able to analyze
different occupant conditions and crash severity before activating the
appropriate safety devices to help better protect a range of occupants in
a variety of frontal crash situations.
Your vehicle’s Personal Safety System consists of:
•Driver and passenger dual-stage airbag supplemental restraints.
•Front outboard safety belts with pretensioners, energy management
retractors (first row only), and safety belt usage sensors.
•Driver’s seat position sensor.
•Front passenger sensing system
•Passenger airbag off/on indicator lamp
•Front crash severity sensors.
•Restraints Control Module (RCM) with impact and safing sensors.
•Restraint system warning light and backup tone.
•The electrical wiring for the airbags, crash sensor(s), safety belt
pretensioners, front safety belt usage sensors, driver seat position
sensor, front passenger sensing system, and indicator lights.
How does the Personal Safety System work?
The Personal Safety System can adapt the deployment strategy of your
vehicle’s safety devices according to crash severity and occupant
conditions. A collection of crash and occupant sensors provides
information to the Restraints Control Module (RCM). During a crash, the
RCM may activate the safety belt pretensioners and/or either one or both
stages of the dual-stage airbag supplemental restraints based on crash
severity and occupant conditions.
The fact that the pretensioners or airbags did not activate for both front
seat occupants in a collision does not mean that something is wrong with
the system. Rather, it means the Personal Safety System determined the
accident conditions (crash severity, belt usage, etc.) were not
appropriate to activate these safety devices. Front airbags are designed
to activate only in frontal and near-frontal collisions (not rollovers, side
impacts or rear impacts) unless the collision causes sufficient
Seating and Safety Restraints
129
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

longitudinal deceleration. The pretensioners are designed to activate in
frontal and near-frontal collisions, and in rollovers and side collisions
when the Safety Canopyis activated.
Driver and passenger dual-stage airbag supplemental restraints
The dual-stage airbags offer the capability to tailor the level of airbag
inflation energy. A lower, less forceful energy level is provided for more
common, moderate-severity impacts. A higher energy level is used for
the most severe impacts. Refer toAirbag supplemental restraints
(SRS)section in this chapter.
Front crash severity sensor
The front crash severity sensor enhances the ability to detect the
severity of an impact. Positioned up front, it provides valuable
information early in the crash event on the severity of the impact. This
allows your Personal Safety System to distinguish between different
levels of crash severity and modify the deployment strategy of the
dual-stage airbags and safety belt pretensioners.
Driver’s seat position sensor
The driver’s seat position sensor allows your Personal Safety System to
tailor the deployment level of the driver dual-stage airbag based on seat
position. The system is designed to help protect smaller drivers sitting
close to the driver airbag by providing a lower airbag output level.
Front passenger sensing system
For airbags to do their job they must inflate with great force, and this
force can pose a potentially deadly risk to occupants that are very close
to the airbag when it begins to inflate. For some occupants, this occurs
because they are initially sitting very close to the airbag. For other
occupants, this occurs when the occupant is not properly restrained by
safety belts or child safety seats and they move forward during pre-crash
braking. The most effective way to reduce the risk of unnecessary
injuries is to make sure all occupants are properly restrained. Accident
statistics suggest that children are much safer when properly restrained
in the rear seating positions than in the front.
WARNING:Air bags can kill or injure a child in a child seat.
NEVERplace a rear-facing child seat in front of an active air
bag. If you must use a forward-facing child seat in the front seat, move
the seat all the way back.
Seating and Safety Restraints
130
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
