fuel filter LINCOLN MKX 2011 Owners Manual

Maintenance and Specifications 294
Engine compartment 296
Engine oil 298
Battery 301
Engine coolant 304
Fuel information 309
Air filter(s) 324
Part numbers 328
Maintenance product specifications and capacities 329
Engine data 332
Accessories 335
Ford Extended Service Plan 337
Scheduled Maintenance Guide 341
Normal scheduled maintenance and log 347
Index 361
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2010 Ford Motor Company
Table of Contents
3
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Use SAE 5W-20 engine oil
Only use oils certified for gasoline engines by the American Petroleum
Institute (API). An oil with this trademark symbol conforms to the
current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use MotorcraftSAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this chapter for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraftreplacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraftoil filter or
another with equivalent performance for your engine application.
BATTERY
Your vehicle is equipped with a
Motorcraftmaintenance-free
battery which normally does not
require additional water during its
life of service.
Maintenance and Specifications
301
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

4. Check the coolant level and replenish if low.
WARNING:Fail-safe mode is for use during emergencies only.
Operate the vehicle in fail-safe mode only as long as necessary to
bring the vehicle to rest in a safe location and seek immediate repairs.
When in fail-safe mode, the vehicle will have limited power, will not be
able to maintain high-speed operation, and may completely shut down
without warning, potentially losing engine power, power steering assist,
and power brake assist, which may increase the possibility of a crash
resulting in serious injury.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler door (Easy Fuel™ “no cap”
fuel system), do not refuel until the sound stops. Otherwise, fuel may
spray out, which could cause serious personal injury.
WARNING:Automotive fuels can cause serious injury or death
if misused or mishandled.
Maintenance and Specifications
309
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add MotorcraftGas Stabilizer or
equivalent meeting Ford material specification ESE-M99C112-A to the
vehicle fuel system whenever actual or expected storage periods exceed
30 days. Follow the instructions on the additive label. The vehicle should
then be operated at idle speed to circulate the additive throughout the
fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Maintenance and Specifications
326
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

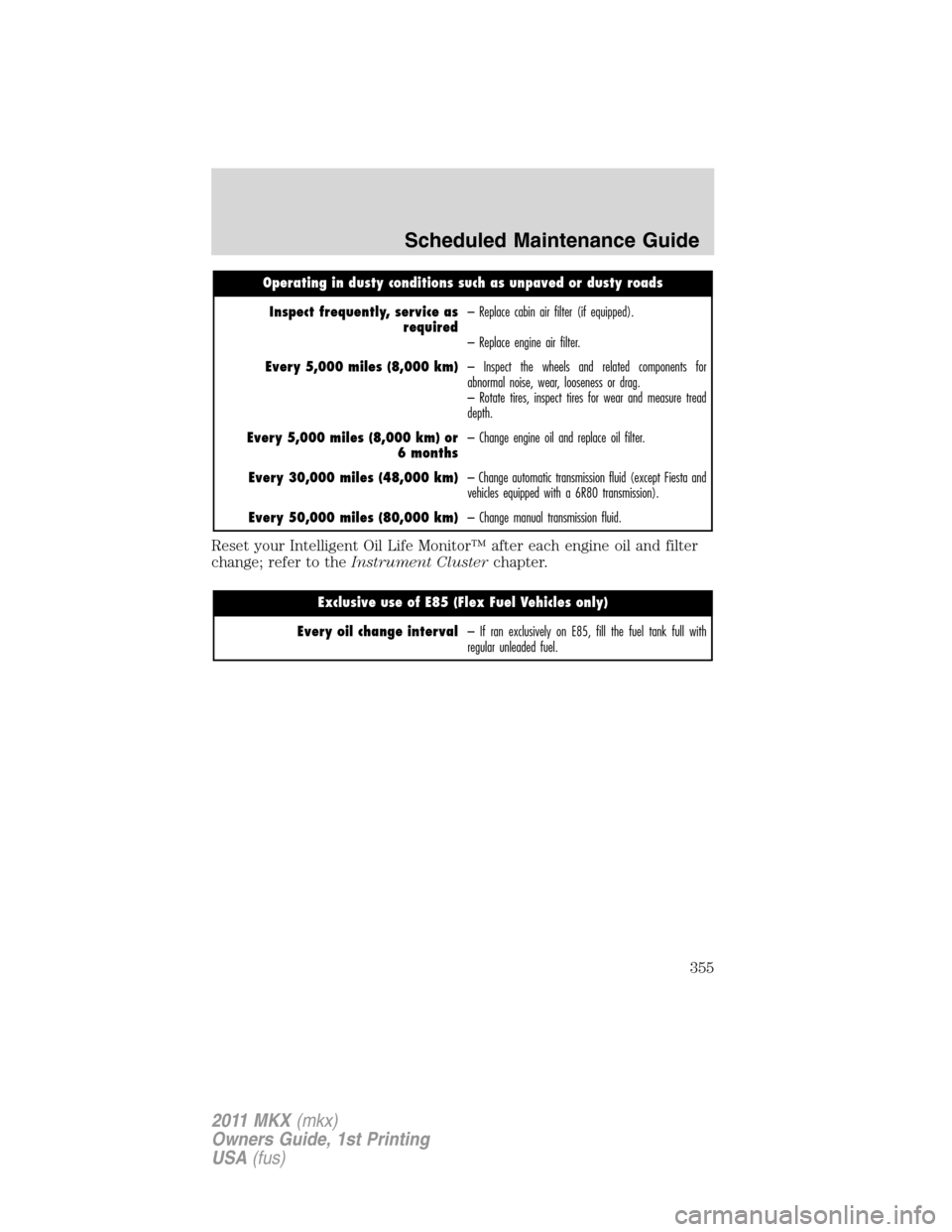

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
Every 5,000 miles (8,000 km)– Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
– Rotate tires, inspect tires for wear and measure tread
depth.
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta and
vehicles equipped with a 6R80 transmission).
Every 50,000 miles (80,000 km)– Change manual transmission fluid.
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter.
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change interval– If ran exclusively on E85, fill the fuel tank full with
regular unleaded fuel.
Scheduled Maintenance Guide
355
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

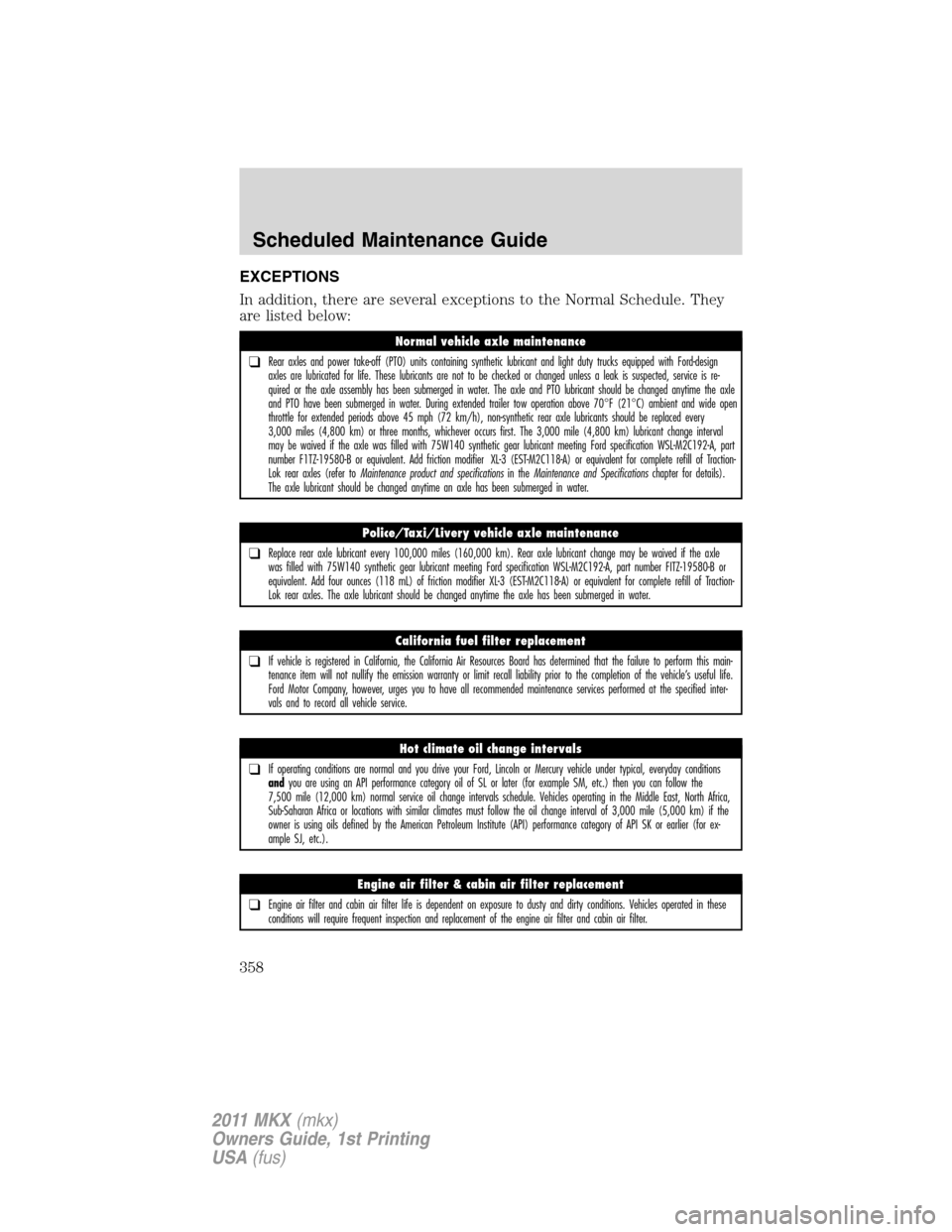

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval
may be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
358
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

dipstick ....................................298
filter, specifications ........300, 328
recommendations ...................300
refill capacities ........................329
specifications ..........................329
Event data recording ....................7
Exhaust fumes ..........................214
F
Fail safe cooling ........................308
Fleet MyKey programming ........91
Floor mats .............................83–84
Fluid capacities .........................329
Fog lamps ....................................46
Four-Wheel Drive vehicles
driving off road .......................247
Fuel ............................................309
calculating fuel economy .......315
cap ...........................................311
capacity ...................................329
choosing the right fuel ...........312
detergent in fuel .....................313
filler funnel .............................314
filling your vehicle with
fuel ...........................309, 311, 316
filter, specifications ........309, 328
fuel pump shut-off ..................255
improving fuel economy ........315
octane rating ...................313, 332
quality ......................................313
running out of fuel .........272, 314
safety information relating to
automotive fuels .....................309
Fuses ..................................256–257G
Garage door opener ....................79
Gas cap (see Fuel cap) ............311
Gas mileage
(see Fuel economy) .................315
Gauges .........................................17
H
Hazard flashers .........................255
Head restraints .........................124
Headlamps ...................................44
aiming ..................................47–48
autolamp system .......................45
bulb specifications ....................51
daytime running lights .............46
flash to pass ..............................46
high beam .................................46
replacing bulbs .........................52
turning on and off ....................44
Heated steering wheel ................41
Heating
heating and air conditioning
system .......................................36
Hill start assist ..........................228
Homelink wireless control
system ..........................................80
Hood ..........................................295
I
Ignition ...............................210, 332
Illuminated visor mirror .............61
Infant seats
(see Safety seats) .....................163
Inspection/maintenance (I/M)
testing ........................................320
Index
363
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
