high beam LINCOLN MKX 2011 Owners Manual

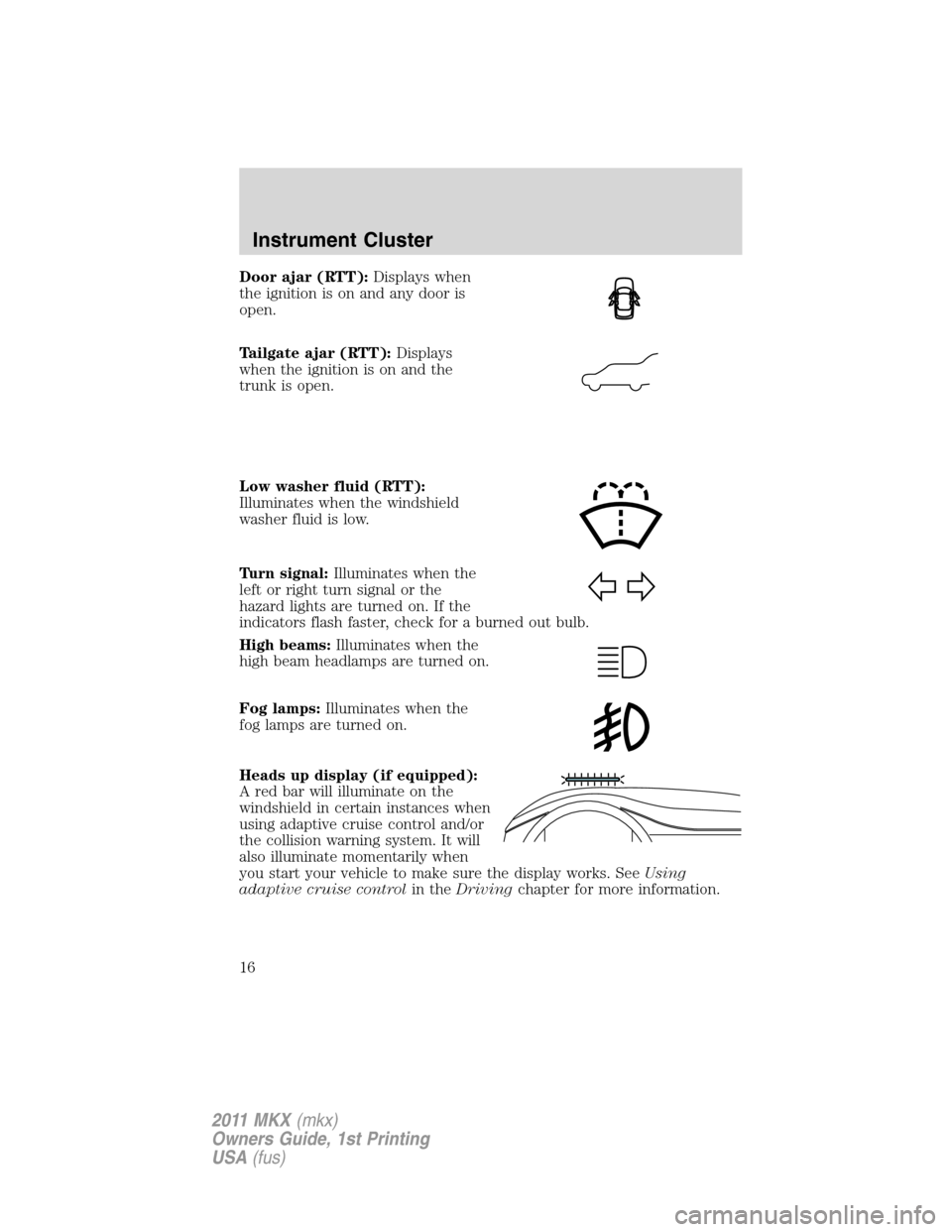

Door ajar (RTT):Displays when
the ignition is on and any door is
open.
Tailgate ajar (RTT):Displays
when the ignition is on and the
trunk is open.
Low washer fluid (RTT):
Illuminates when the windshield
washer fluid is low.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Fog lamps:Illuminates when the
fog lamps are turned on.
Heads up display (if equipped):
A red bar will illuminate on the
windshield in certain instances when
using adaptive cruise control and/or
the collision warning system. It will
also illuminate momentarily when
you start your vehicle to make sure the display works. SeeUsing
adaptive cruise controlin theDrivingchapter for more information.
Instrument Cluster
16
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

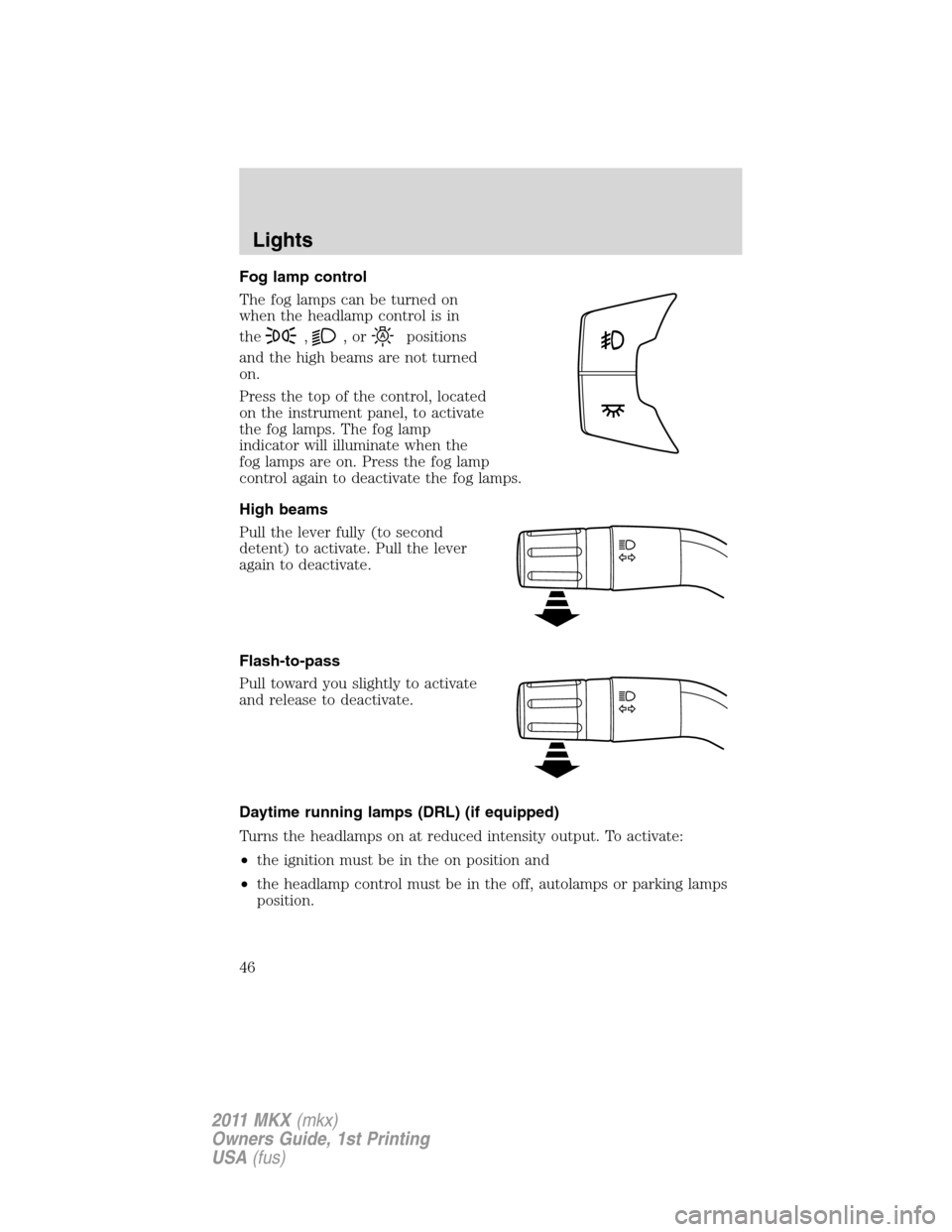

Fog lamp control
The fog lamps can be turned on
when the headlamp control is in
the
,,orpositions
and the high beams are not turned
on.
Press the top of the control, located
on the instrument panel, to activate
the fog lamps. The fog lamp
indicator will illuminate when the
fog lamps are on. Press the fog lamp
control again to deactivate the fog lamps.
High beams
Pull the lever fully (to second
detent) to activate. Pull the lever
again to deactivate.
Flash-to-pass
Pull toward you slightly to activate
and release to deactivate.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on at reduced intensity output. To activate:
•the ignition must be in the on position and
•the headlamp control must be in the off, autolamps or parking lamps
position.
Lights
46
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

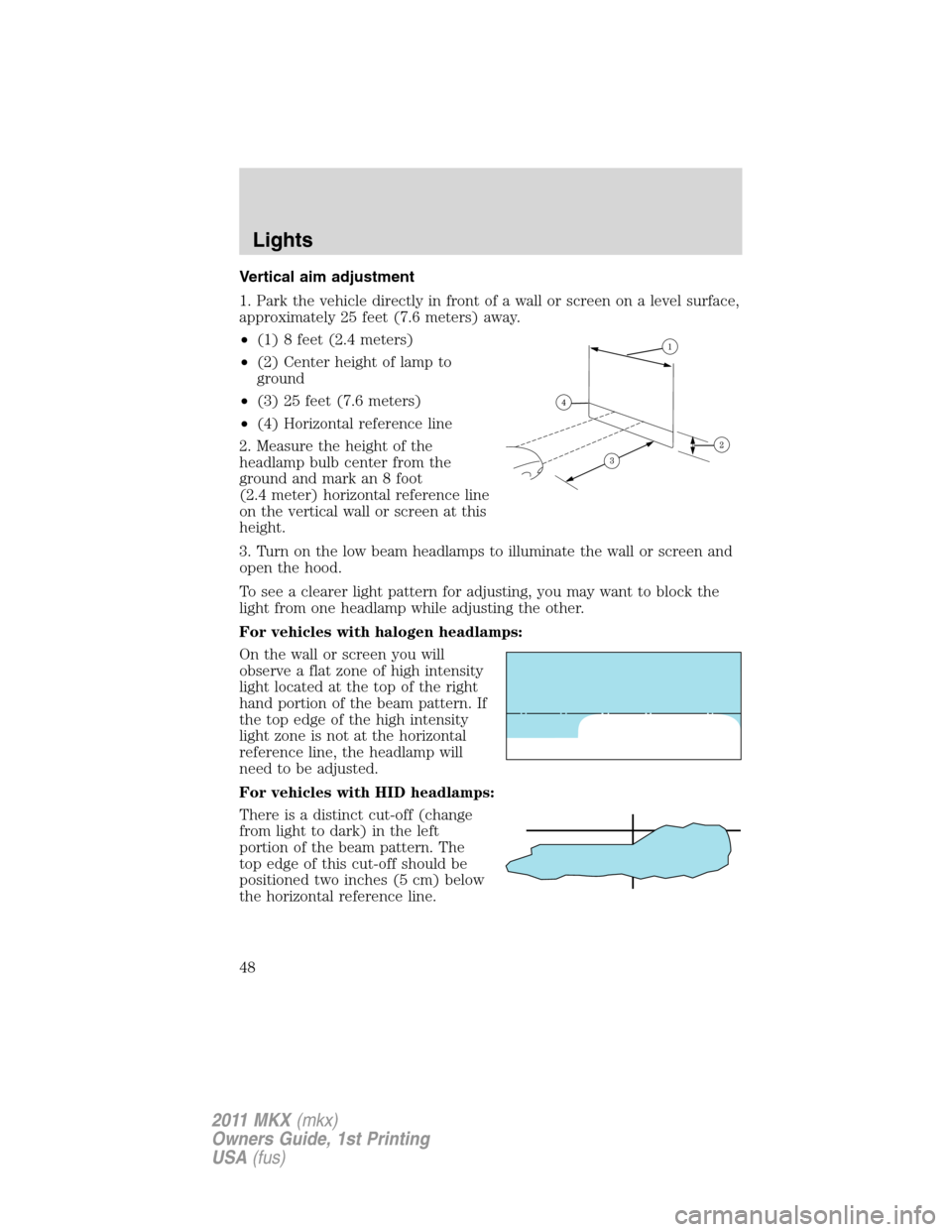

Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
For vehicles with halogen headlamps:
On the wall or screen you will
observe a flat zone of high intensity
light located at the top of the right
hand portion of the beam pattern. If
the top edge of the high intensity
light zone is not at the horizontal
reference line, the headlamp will
need to be adjusted.
For vehicles with HID headlamps:
There is a distinct cut-off (change
from light to dark) in the left
portion of the beam pattern. The
top edge of this cut-off should be
positioned two inches (5 cm) below
the horizontal reference line.
Lights
48
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

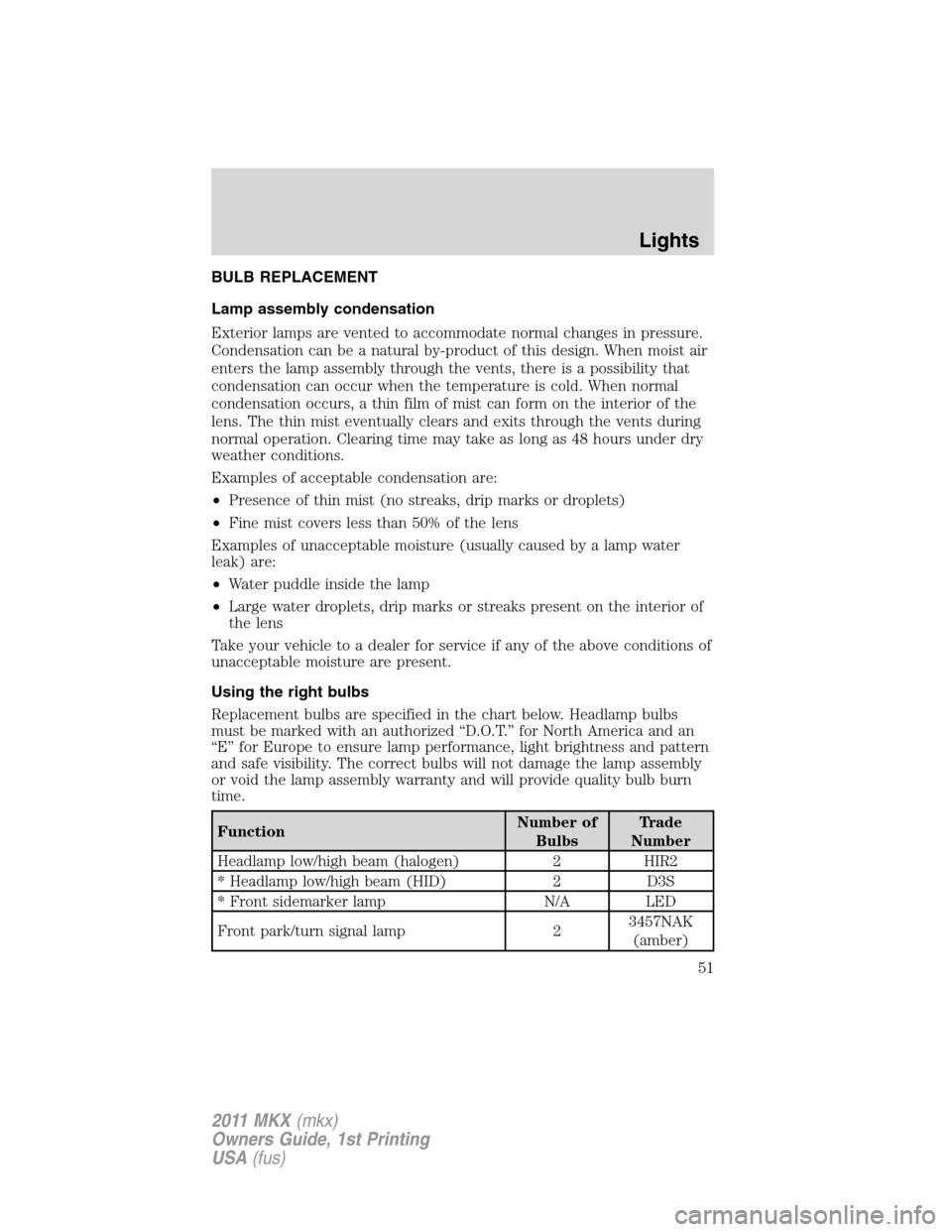

BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
•Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
FunctionNumber of
BulbsTrade
Number
Headlamp low/high beam (halogen) 2 HIR2
* Headlamp low/high beam (HID) 2 D3S
* Front sidemarker lamp N/A LED
Front park/turn signal lamp 23457NAK
(amber)
Lights
51
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

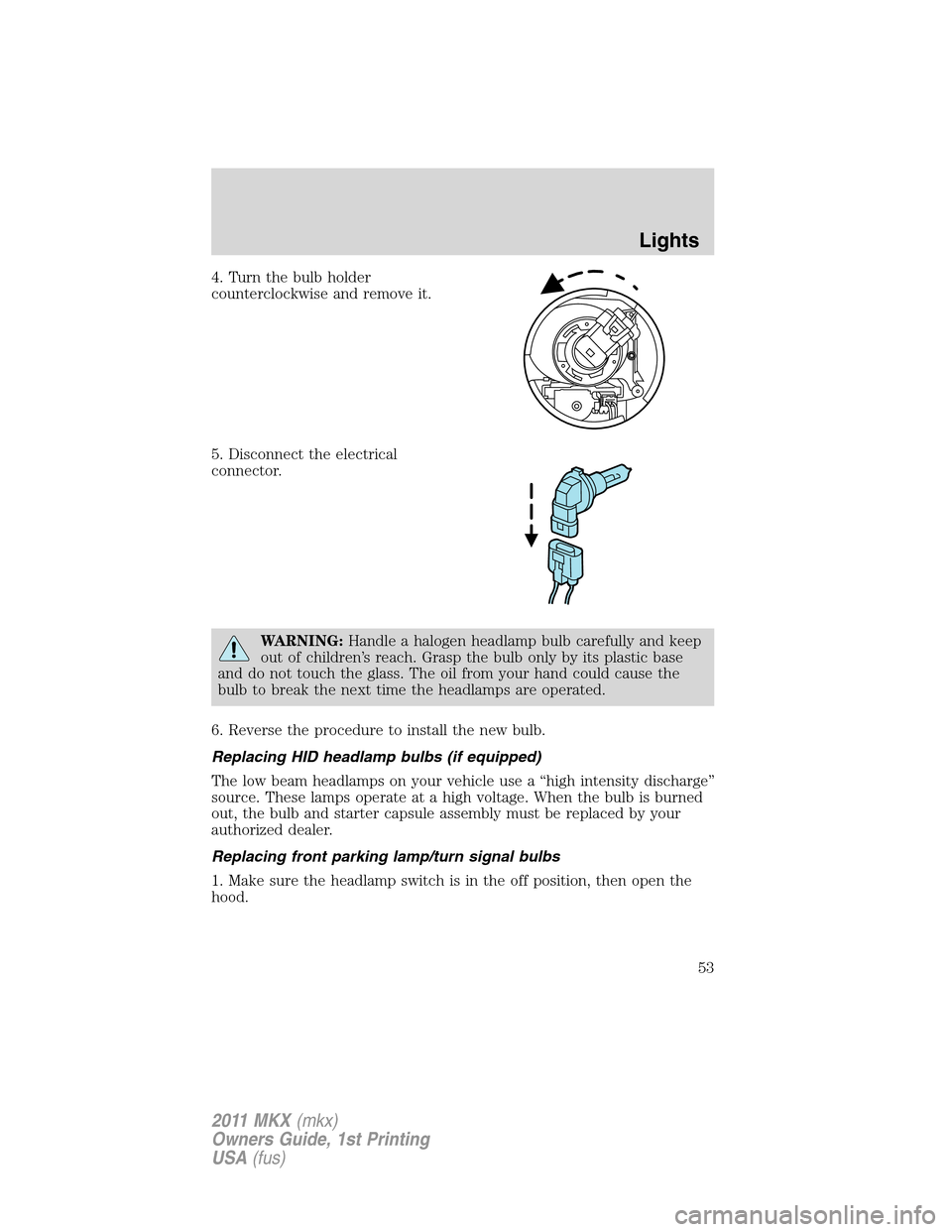

4. Turn the bulb holder
counterclockwise and remove it.
5. Disconnect the electrical
connector.
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
6. Reverse the procedure to install the new bulb.
Replacing HID headlamp bulbs (if equipped)
The low beam headlamps on your vehicle use a “high intensity discharge”
source. These lamps operate at a high voltage. When the bulb is burned
out, the bulb and starter capsule assembly must be replaced by your
authorized dealer.
Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp switch is in the off position, then open the
hood.
Lights
53
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

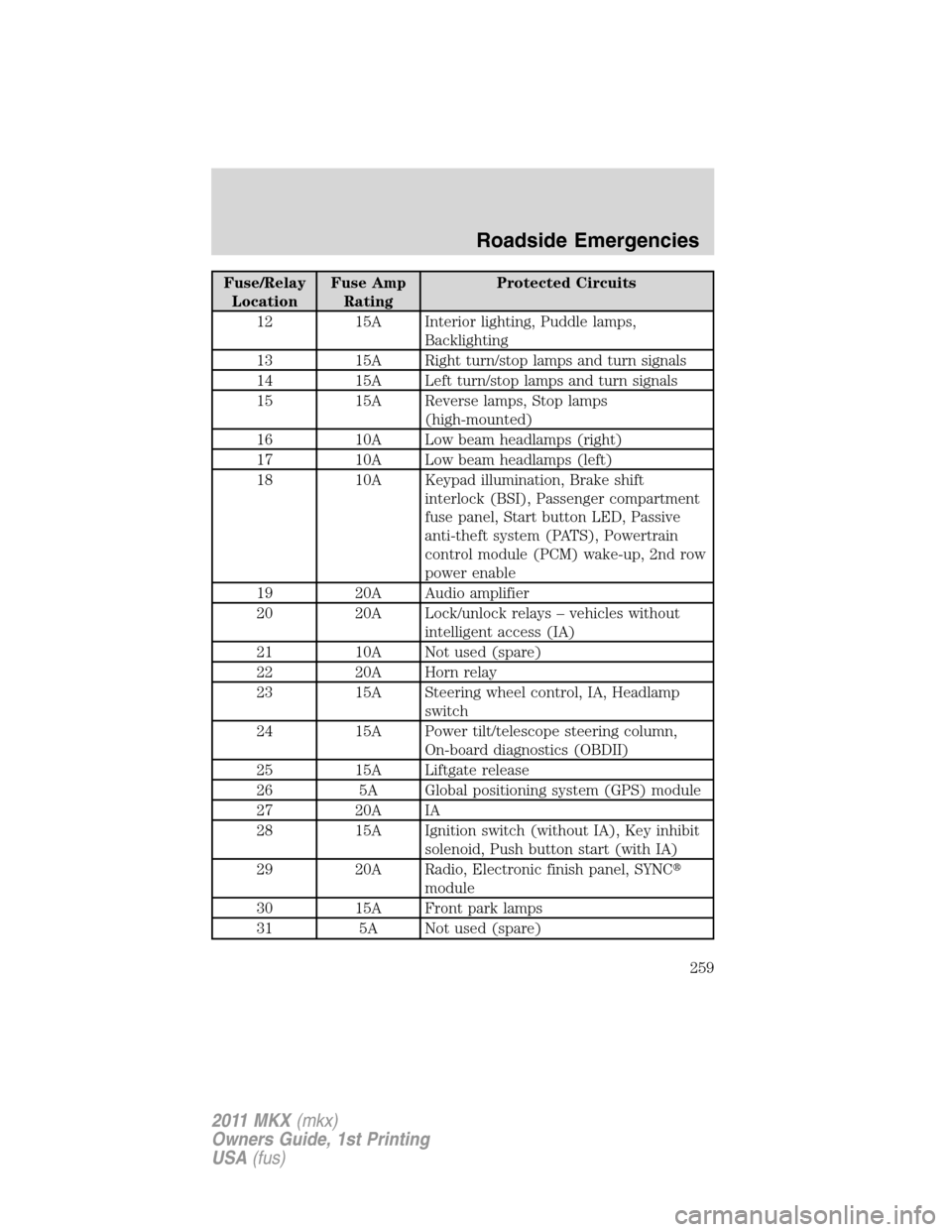

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 15A Interior lighting, Puddle lamps,
Backlighting
13 15A Right turn/stop lamps and turn signals
14 15A Left turn/stop lamps and turn signals
15 15A Reverse lamps, Stop lamps
(high-mounted)
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A Keypad illumination, Brake shift
interlock (BSI), Passenger compartment
fuse panel, Start button LED, Passive
anti-theft system (PATS), Powertrain
control module (PCM) wake-up, 2nd row
power enable
19 20A Audio amplifier
20 20A Lock/unlock relays – vehicles without
intelligent access (IA)
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control, IA, Headlamp
switch
24 15A Power tilt/telescope steering column,
On-board diagnostics (OBDII)
25 15A Liftgate release
26 5A Global positioning system (GPS) module
27 20A IA
28 15A Ignition switch (without IA), Key inhibit
solenoid, Push button start (with IA)
29 20A Radio, Electronic finish panel, SYNC
module
30 15A Front park lamps
31 5A Not used (spare)
Roadside Emergencies
259
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

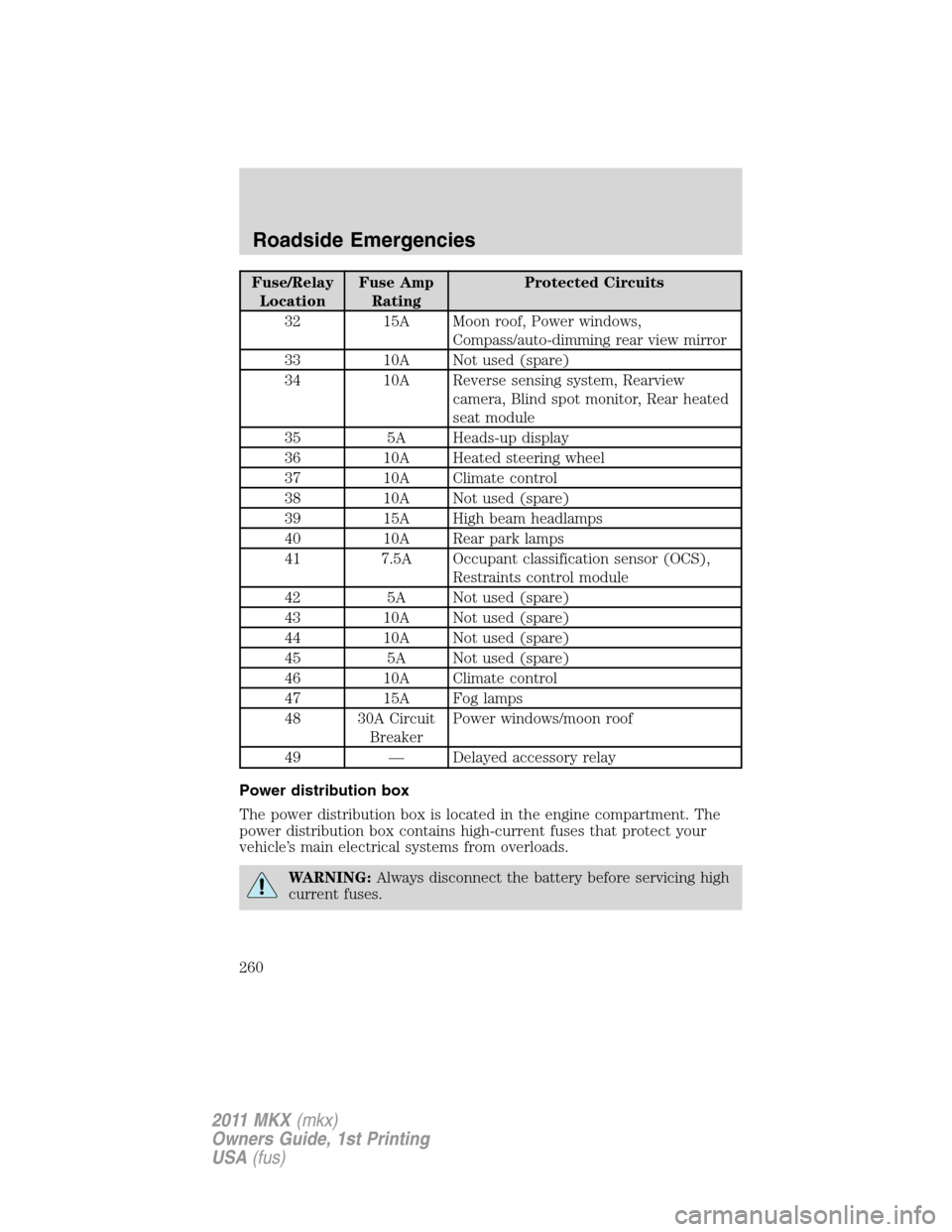

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
32 15A Moon roof, Power windows,
Compass/auto-dimming rear view mirror
33 10A Not used (spare)
34 10A Reverse sensing system, Rearview
camera, Blind spot monitor, Rear heated
seat module
35 5A Heads-up display
36 10A Heated steering wheel
37 10A Climate control
38 10A Not used (spare)
39 15A High beam headlamps
40 10A Rear park lamps
41 7.5A Occupant classification sensor (OCS),
Restraints control module
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control
47 15A Fog lamps
48 30A Circuit
BreakerPower windows/moon roof
49 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
Roadside Emergencies
260
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

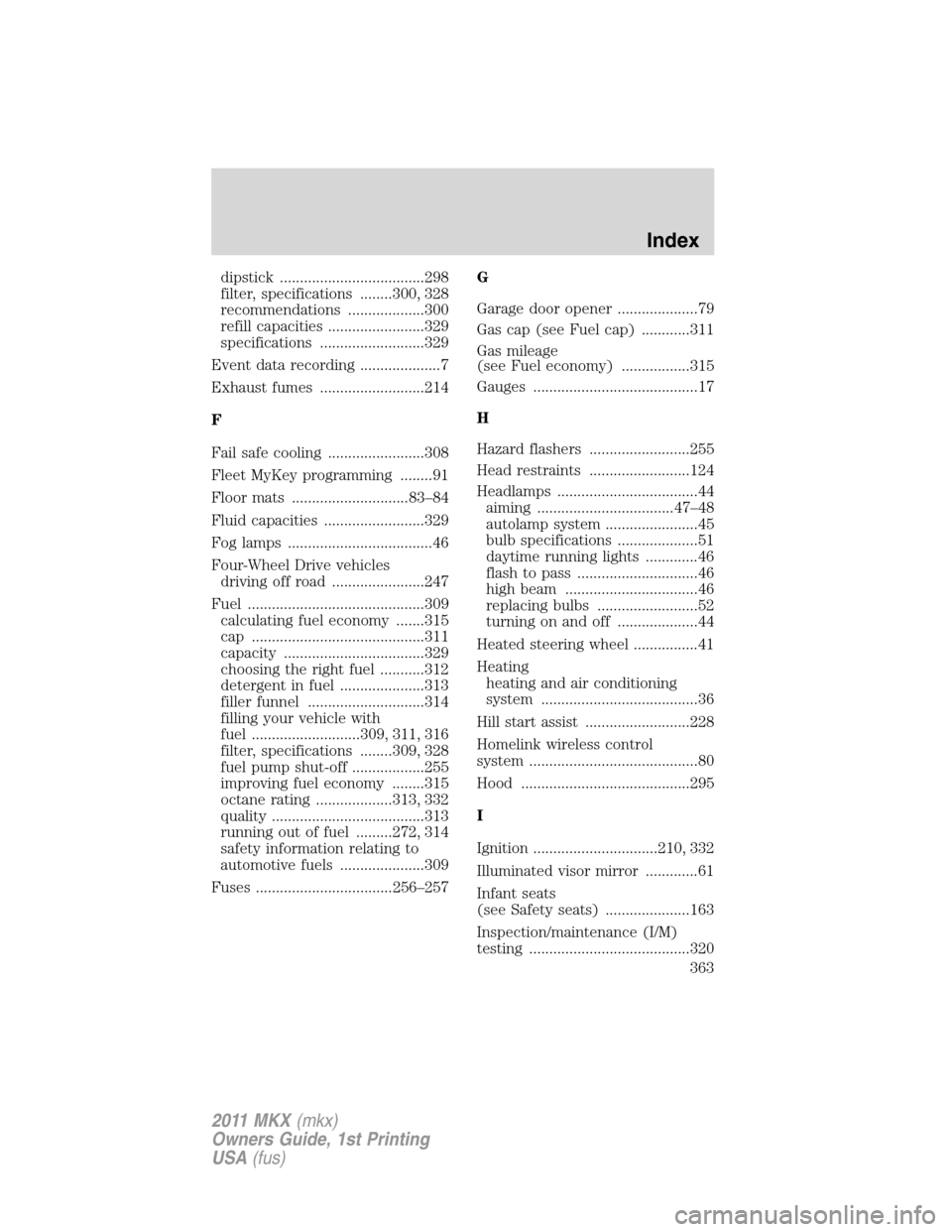

dipstick ....................................298
filter, specifications ........300, 328
recommendations ...................300
refill capacities ........................329
specifications ..........................329
Event data recording ....................7
Exhaust fumes ..........................214
F
Fail safe cooling ........................308
Fleet MyKey programming ........91
Floor mats .............................83–84
Fluid capacities .........................329
Fog lamps ....................................46
Four-Wheel Drive vehicles
driving off road .......................247
Fuel ............................................309
calculating fuel economy .......315
cap ...........................................311
capacity ...................................329
choosing the right fuel ...........312
detergent in fuel .....................313
filler funnel .............................314
filling your vehicle with
fuel ...........................309, 311, 316
filter, specifications ........309, 328
fuel pump shut-off ..................255
improving fuel economy ........315
octane rating ...................313, 332
quality ......................................313
running out of fuel .........272, 314
safety information relating to
automotive fuels .....................309
Fuses ..................................256–257G
Garage door opener ....................79
Gas cap (see Fuel cap) ............311
Gas mileage
(see Fuel economy) .................315
Gauges .........................................17
H
Hazard flashers .........................255
Head restraints .........................124
Headlamps ...................................44
aiming ..................................47–48
autolamp system .......................45
bulb specifications ....................51
daytime running lights .............46
flash to pass ..............................46
high beam .................................46
replacing bulbs .........................52
turning on and off ....................44
Heated steering wheel ................41
Heating
heating and air conditioning
system .......................................36
Hill start assist ..........................228
Homelink wireless control
system ..........................................80
Hood ..........................................295
I
Ignition ...............................210, 332
Illuminated visor mirror .............61
Infant seats
(see Safety seats) .....................163
Inspection/maintenance (I/M)
testing ........................................320
Index
363
2011 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
