LINCOLN MKX 2012 My Lincoln Touch Manual
Manufacturer: LINCOLN, Model Year: 2012, Model line: MKX, Model: LINCOLN MKX 2012Pages: 102, PDF Size: 0.66 MB
Page 1 of 102

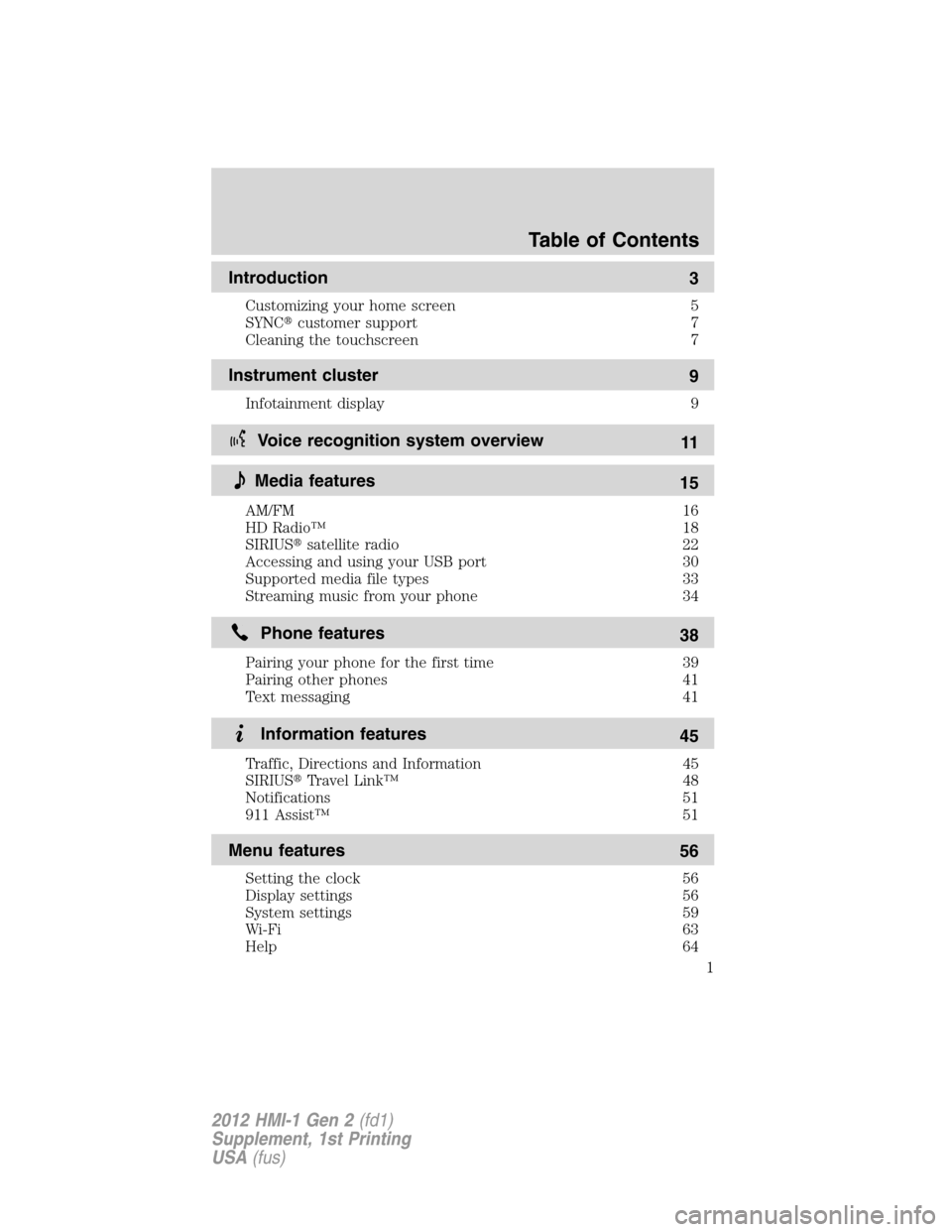

Introduction
3
Customizing your home screen 5
SYNCcustomer support 7
Cleaning the touchscreen 7
Instrument cluster
9
Infotainment display 9
Voice recognition system overview
11
Media features
15
AM/FM 16
HD Radio™ 18
SIRIUSsatellite radio 22
Accessing and using your USB port 30
Supported media file types 33
Streaming music from your phone 34
Phone features
38
Pairing your phone for the first time 39
Pairing other phones 41
Text messaging 41
Information features
45
Traffic, Directions and Information 45
SIRIUSTravel Link™ 48
Notifications 51
911 Assist™ 51
Menu features
56
Setting the clock 56
Display settings 56
System settings 59
Wi-Fi 63
Help 64
Table of Contents
1
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

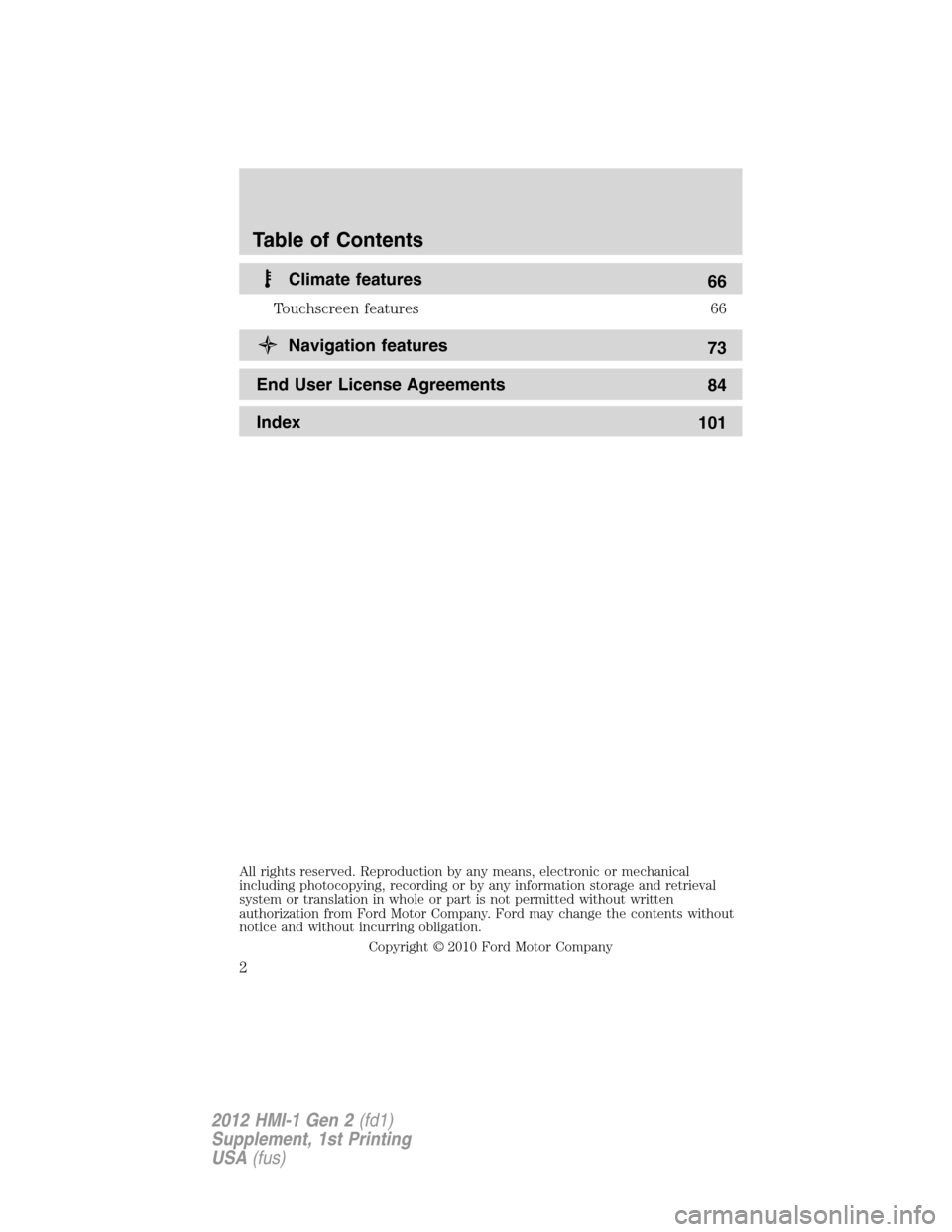

Page 2 of 102
Climate features
66
Touchscreen features 66
Navigation features
73
End User License Agreements
84
Index
101
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2010 Ford Motor Company
Table of Contents
2
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 3 of 102

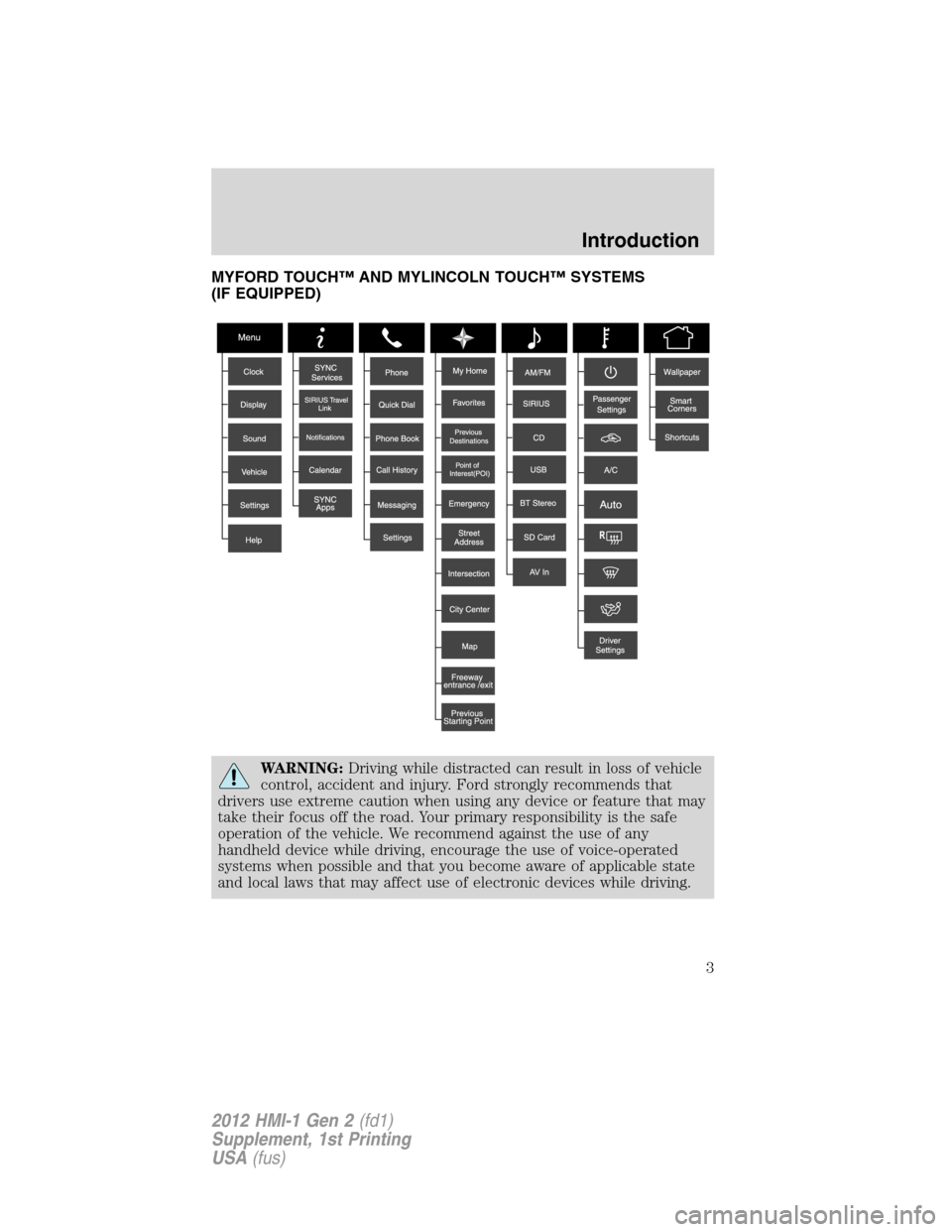

MYFORD TOUCH™ AND MYLINCOLN TOUCH™ SYSTEMS
(IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Introduction
3
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 4 of 102

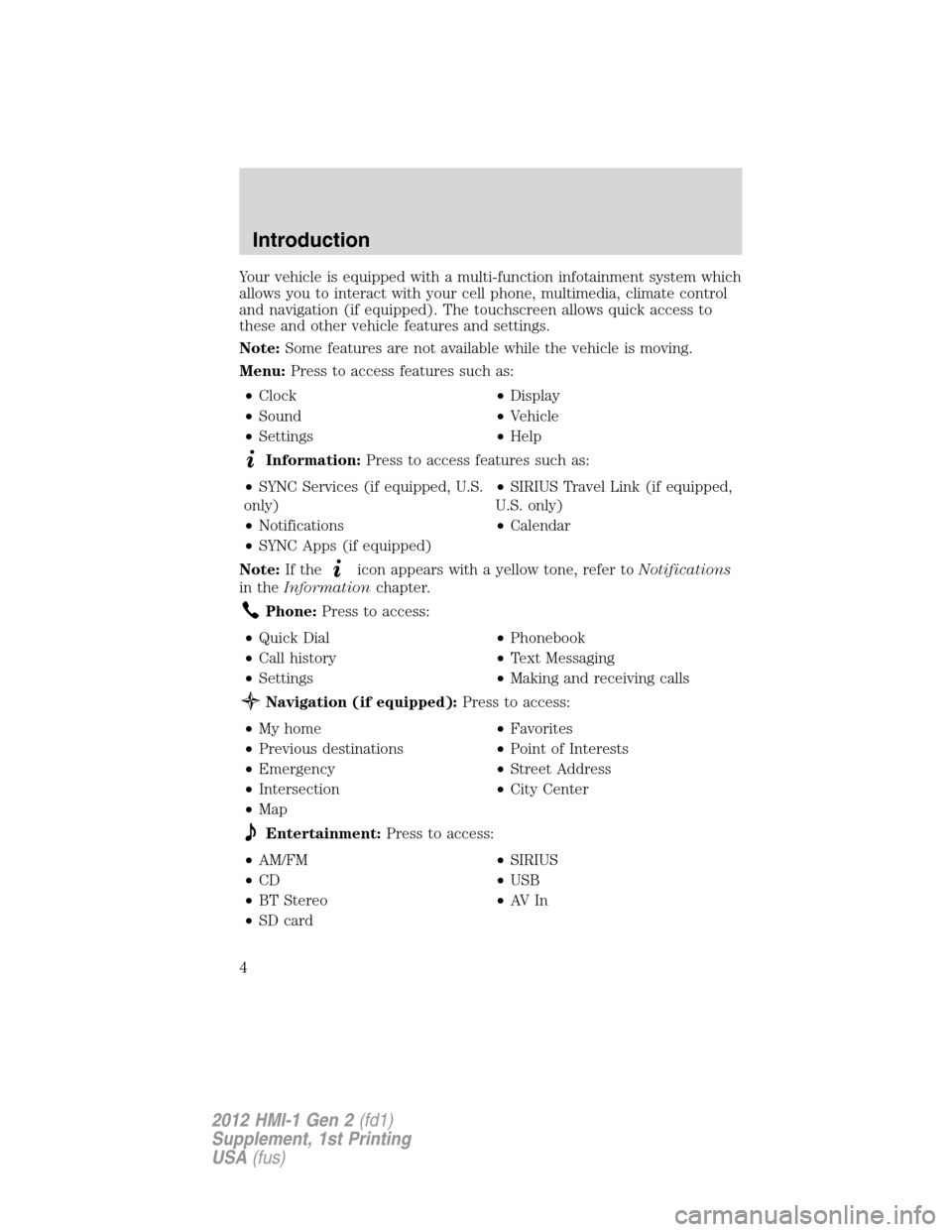

Your vehicle is equipped with a multi-function infotainment system which
allows you to interact with your cell phone, multimedia, climate control
and navigation (if equipped). The touchscreen allows quick access to
these and other vehicle features and settings.
Note:Some features are not available while the vehicle is moving.
Menu:Press to access features such as:
•Clock•Display
•Sound•Vehicle
•Settings•Help
Information:Press to access features such as:
•SYNC Services (if equipped, U.S.
only)•SIRIUS Travel Link (if equipped,
U.S. only)
•Notifications•Calendar
•SYNC Apps (if equipped)
Note:If the
icon appears with a yellow tone, refer toNotifications
in theInformationchapter.
Phone:Press to access:
•Quick Dial•Phonebook
•Call history•Text Messaging
•Settings•Making and receiving calls
Navigation (if equipped):Press to access:
•My home•Favorites
•Previous destinations•Point of Interests
•Emergency•Street Address
•Intersection•City Center
•Map
Entertainment:Press to access:
•AM/FM•SIRIUS
•CD•USB
•BT Stereo•AV I n
•SD card
Introduction
4
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 5 of 102

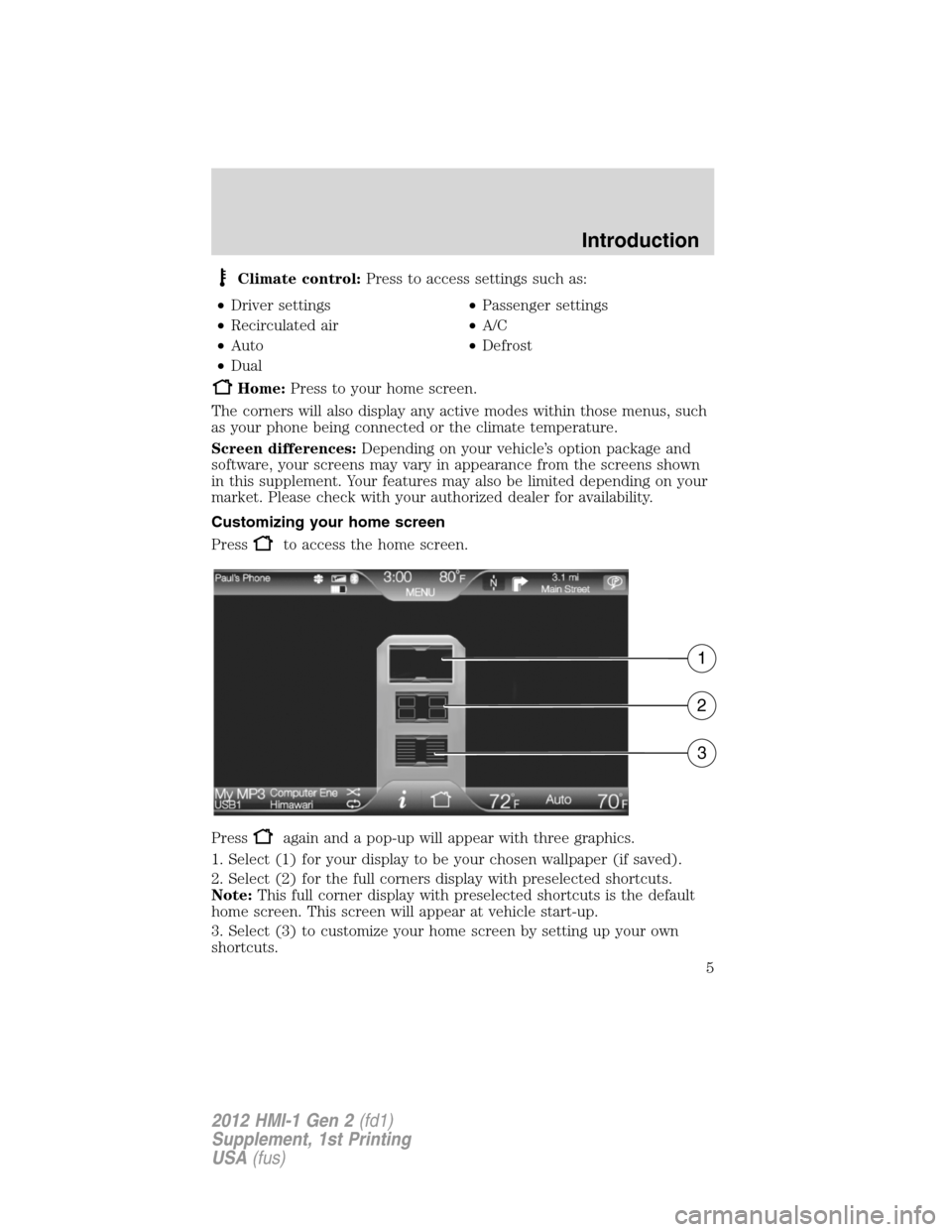

Climate control:Press to access settings such as:
•Driver settings•Passenger settings
•Recirculated air•A/C
•Auto•Defrost
•Dual
Home:Press to your home screen.
The corners will also display any active modes within those menus, such
as your phone being connected or the climate temperature.
Screen differences:Depending on your vehicle’s option package and
software, your screens may vary in appearance from the screens shown
in this supplement. Your features may also be limited depending on your
market. Please check with your authorized dealer for availability.
Customizing your home screen
Press
to access the home screen.
Press
again and a pop-up will appear with three graphics.
1. Select (1) for your display to be your chosen wallpaper (if saved).
2. Select (2) for the full corners display with preselected shortcuts.
Note:This full corner display with preselected shortcuts is the default
home screen. This screen will appear at vehicle start-up.
3. Select (3) to customize your home screen by setting up your own
shortcuts.
1
2
3
Introduction
5
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 6 of 102

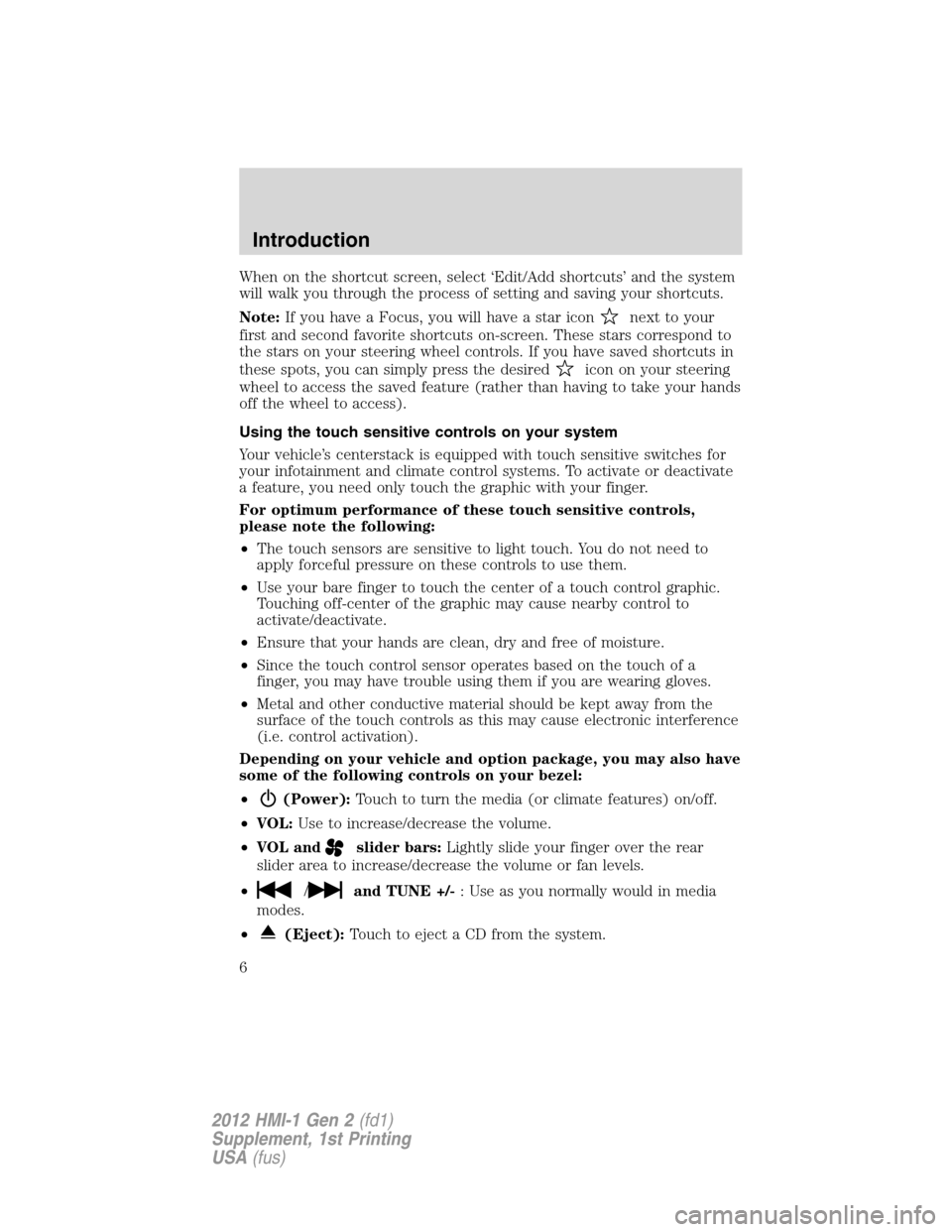

When on the shortcut screen, select ‘Edit/Add shortcuts’ and the system
will walk you through the process of setting and saving your shortcuts.
Note:If you have a Focus, you will have a star icon
next to your
first and second favorite shortcuts on-screen. These stars correspond to
the stars on your steering wheel controls. If you have saved shortcuts in
these spots, you can simply press the desired
icon on your steering
wheel to access the saved feature (rather than having to take your hands
off the wheel to access).
Using the touch sensitive controls on your system
Your vehicle’s centerstack is equipped with touch sensitive switches for
your infotainment and climate control systems. To activate or deactivate
a feature, you need only touch the graphic with your finger.
For optimum performance of these touch sensitive controls,
please note the following:
•The touch sensors are sensitive to light touch. You do not need to
apply forceful pressure on these controls to use them.
•Use your bare finger to touch the center of a touch control graphic.
Touching off-center of the graphic may cause nearby control to
activate/deactivate.
•Ensure that your hands are clean, dry and free of moisture.
•Since the touch control sensor operates based on the touch of a
finger, you may have trouble using them if you are wearing gloves.
•Metal and other conductive material should be kept away from the
surface of the touch controls as this may cause electronic interference
(i.e. control activation).
Depending on your vehicle and option package, you may also have
some of the following controls on your bezel:
•
(Power):Touch to turn the media (or climate features) on/off.
•VOL:Use to increase/decrease the volume.
•VOL and
slider bars:Lightly slide your finger over the rear
slider area to increase/decrease the volume or fan levels.
•
/and TUNE +/-: Use as you normally would in media
modes.
•
(Eject):Touch to eject a CD from the system.
Introduction
6
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 7 of 102

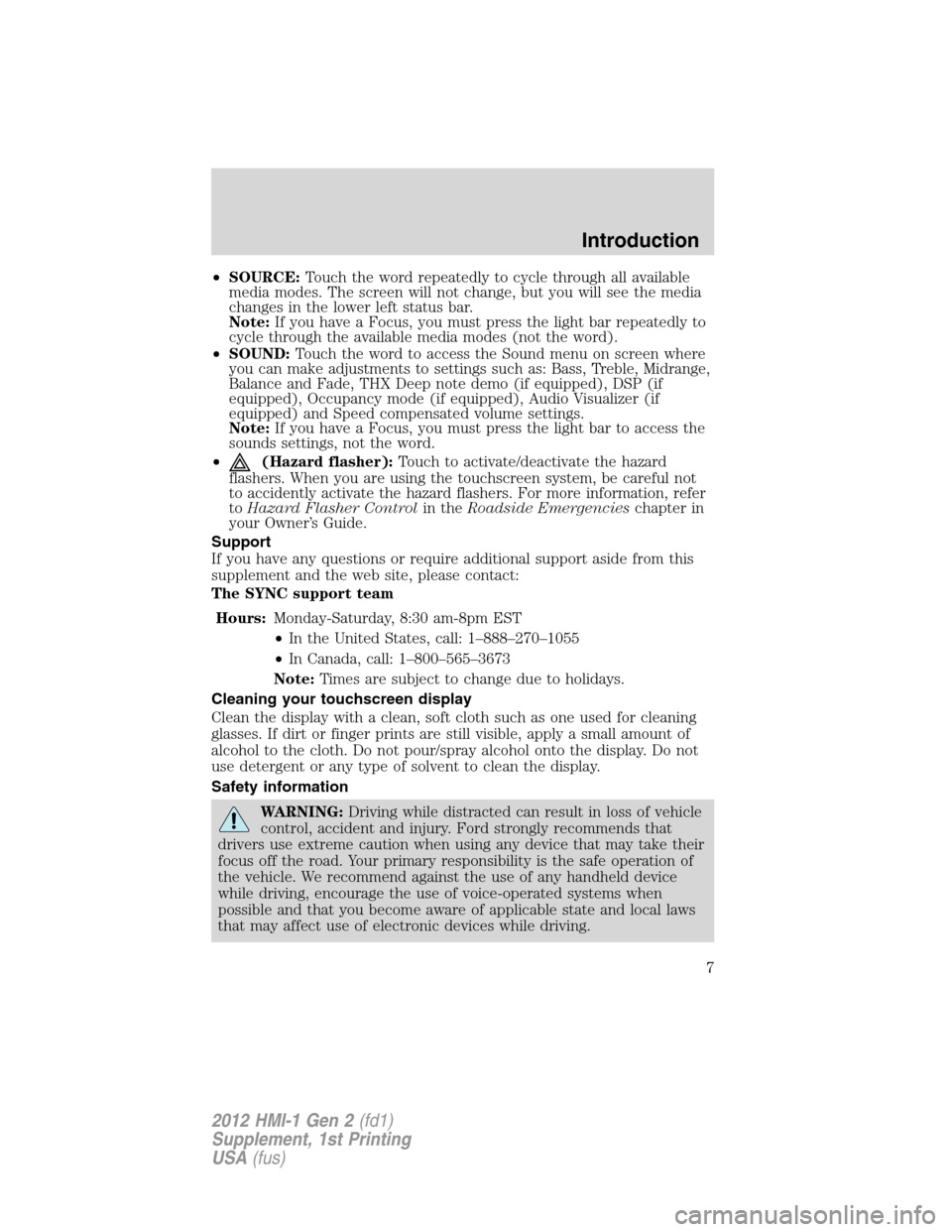

•SOURCE:Touch the word repeatedly to cycle through all available
media modes. The screen will not change, but you will see the media
changes in the lower left status bar.
Note:If you have a Focus, you must press the light bar repeatedly to
cycle through the available media modes (not the word).
•SOUND:Touch the word to access the Sound menu on screen where
you can make adjustments to settings such as: Bass, Treble, Midrange,
Balance and Fade, THX Deep note demo (if equipped), DSP (if
equipped), Occupancy mode (if equipped), Audio Visualizer (if
equipped) and Speed compensated volume settings.
Note:If you have a Focus, you must press the light bar to access the
sounds settings, not the word.
•
(Hazard flasher):Touch to activate/deactivate the hazard
flashers. When you are using the touchscreen system, be careful not
to accidently activate the hazard flashers. For more information, refer
toHazard Flasher Controlin theRoadside Emergencieschapter in
your Owner’s Guide.
Support
If you have any questions or require additional support aside from this
supplement and the web site, please contact:
The SYNC support team
Hours:Monday-Saturday, 8:30 am-8pm EST
•In the United States, call: 1–888–270–1055
•In Canada, call: 1–800–565–3673
Note:Times are subject to change due to holidays.
Cleaning your touchscreen display
Clean the display with a clean, soft cloth such as one used for cleaning
glasses. If dirt or finger prints are still visible, apply a small amount of
alcohol to the cloth. Do not pour/spray alcohol onto the display. Do not
use detergent or any type of solvent to clean the display.
Safety information
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Introduction
7
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 8 of 102

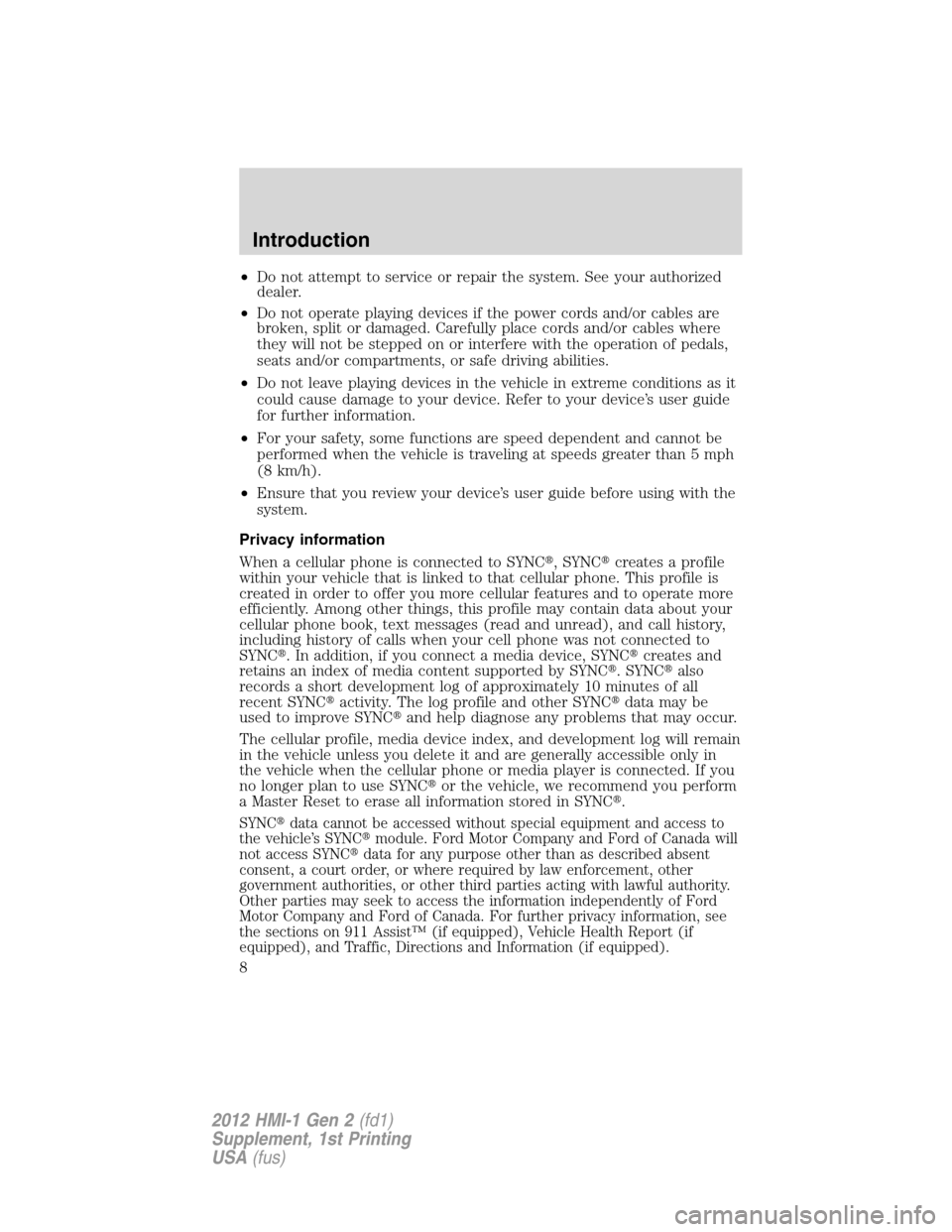

•Do not attempt to service or repair the system. See your authorized
dealer.
•Do not operate playing devices if the power cords and/or cables are
broken, split or damaged. Carefully place cords and/or cables where
they will not be stepped on or interfere with the operation of pedals,
seats and/or compartments, or safe driving abilities.
•Do not leave playing devices in the vehicle in extreme conditions as it
could cause damage to your device. Refer to your device’s user guide
for further information.
•For your safety, some functions are speed dependent and cannot be
performed when the vehicle is traveling at speeds greater than 5 mph
(8 km/h).
•Ensure that you review your device’s user guide before using with the
system.
Privacy information
When a cellular phone is connected to SYNC, SYNCcreates a profile
within your vehicle that is linked to that cellular phone. This profile is
created in order to offer you more cellular features and to operate more
efficiently. Among other things, this profile may contain data about your
cellular phone book, text messages (read and unread), and call history,
including history of calls when your cell phone was not connected to
SYNC. In addition, if you connect a media device, SYNCcreates and
retains an index of media content supported by SYNC. SYNCalso
records a short development log of approximately 10 minutes of all
recent SYNCactivity. The log profile and other SYNCdata may be
used to improve SYNCand help diagnose any problems that may occur.
The cellular profile, media device index, and development log will remain
in the vehicle unless you delete it and are generally accessible only in
the vehicle when the cellular phone or media player is connected. If you
no longer plan to use SYNCor the vehicle, we recommend you perform
a Master Reset to erase all information stored in SYNC.
SYNCdata cannot be accessed without special equipment and access to
the vehicle’s SYNCmodule. Ford Motor Company and Ford of Canada will
not access SYNCdata for any purpose other than as described absent
consent, a court order, or where required by law enforcement, other
government authorities, or other third parties acting with lawful authority.
Other parties may seek to access the information independently of Ford
Motor Company and Ford of Canada. For further privacy information, see
the sections on 911 Assist™ (if equipped), Vehicle Health Report (if
equipped), and Traffic, Directions and Information (if equipped).
Introduction
8
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 9 of 102
ACCESSING AND ADJUSTING MODES THROUGH YOUR
INFOTAINMENT DISPLAY (IF EQUIPPED)
Your vehicle may have an infotainment display located on the right side
of your instrument cluster. The display allows you to view and make
minor adjustments to your active modes without taking your hands off
the wheel. For example:
•In phone mode, you can accept or reject an incoming call.
•In Entertainment mode, you can view what is playing and make some
adjustments.
•You can also access and make adjustments in Navigation mode (if
equipped) and Climate mode.
Use the OK and arrow buttons on
the right side of your steering wheel
to scroll through your available
modes:
•
Entertainment
•
Phone
•
Navigation (if equipped)
•
Climate
Note:If your vehicle is not equipped with navigation,Compasswill
appear in the display instead ofNavigation. If you press
to go into
theCompassmenu, you can see the compass graphic.
•Press
/to scroll through the modes.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
Instrument cluster
9
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
Page 10 of 102

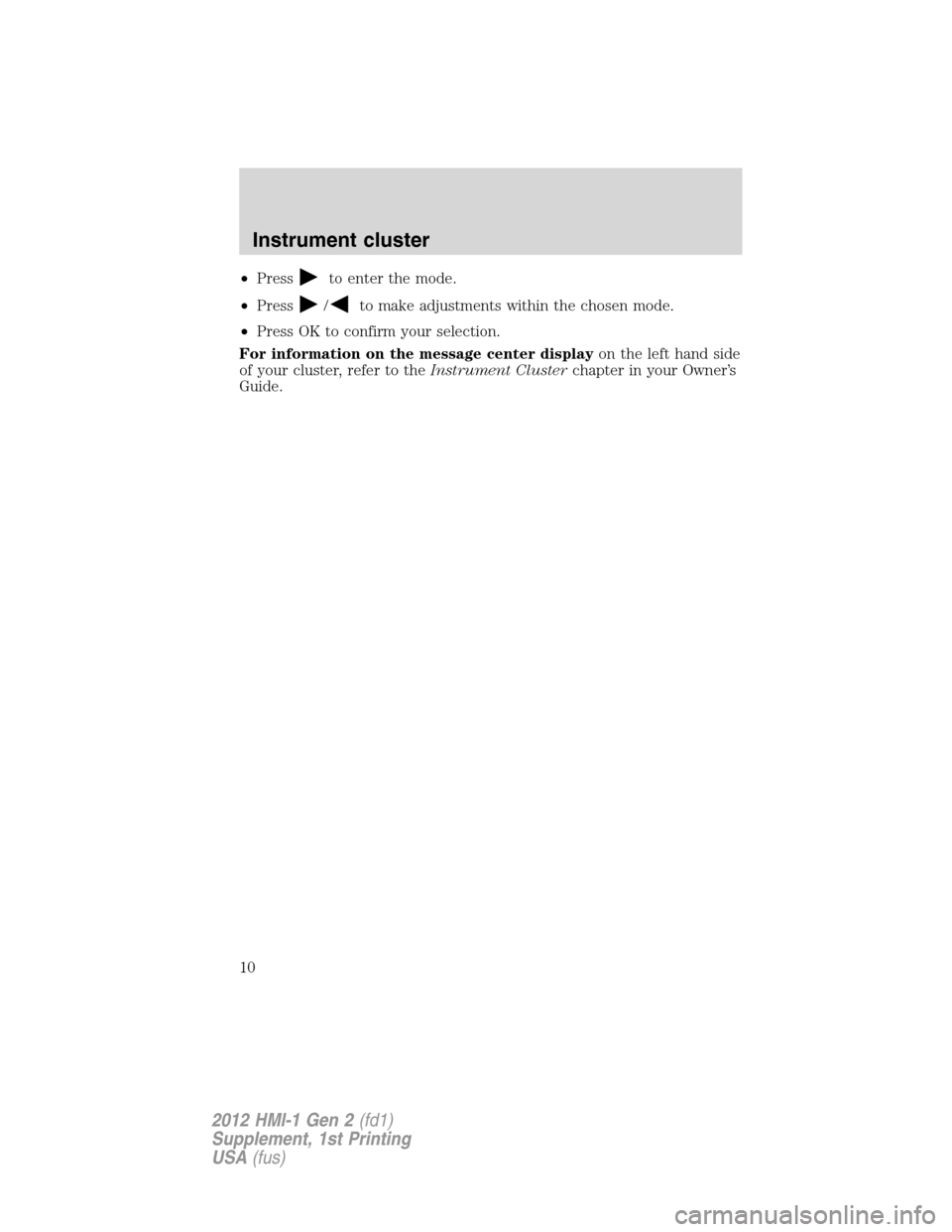

•Pressto enter the mode.
•Press
/to make adjustments within the chosen mode.
•Press OK to confirm your selection.
For information on the message center displayon the left hand side
of your cluster, refer to theInstrument Clusterchapter in your Owner’s
Guide.
Instrument cluster
10
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
