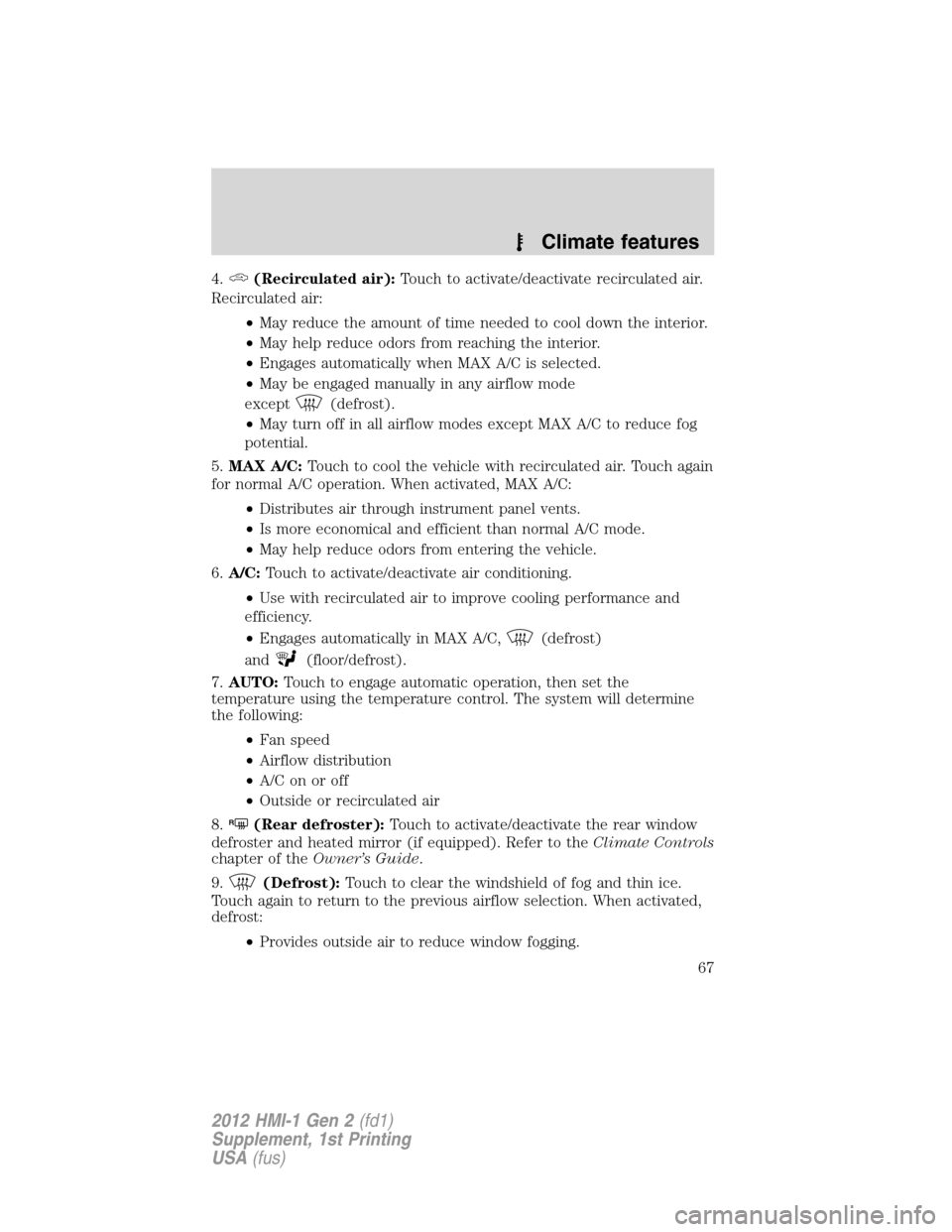

4.(Recirculated air):Touch to activate/deactivate recirculated air.
Recirculated air:
•May reduce the amount of time needed to cool down the interior.
•May help reduce odors from reaching the interior.
•Engages automatically when MAX A/C is selected.
•May be engaged manually in any airflow mode
except
(defrost).
•May turn off in all airflow modes except MAX A/C to reduce fog
potential.
5.MAX A/C:Touch to cool the vehicle with recirculated air. Touch again
for normal A/C operation. When activated, MAX A/C:
•Distributes air through instrument panel vents.
•Is more economical and efficient than normal A/C mode.
•May help reduce odors from entering the vehicle.
6.A/C:Touch to activate/deactivate air conditioning.
•Use with recirculated air to improve cooling performance and
efficiency.
•Engages automatically in MAX A/C,
(defrost)
and
(floor/defrost).
7.AUTO:Touch to engage automatic operation, then set the
temperature using the temperature control. The system will determine
the following:
•Fan speed
•Airflow distribution
•A/Conoroff
•Outside or recirculated air
8.
R(Rear defroster):Touch to activate/deactivate the rear window
defroster and heated mirror (if equipped). Refer to theClimate Controls
chapter of theOwner’s Guide.
9.
(Defrost):Touch to clear the windshield of fog and thin ice.
Touch again to return to the previous airflow selection. When activated,
defrost:
•Provides outside air to reduce window fogging.
Climate features
67
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

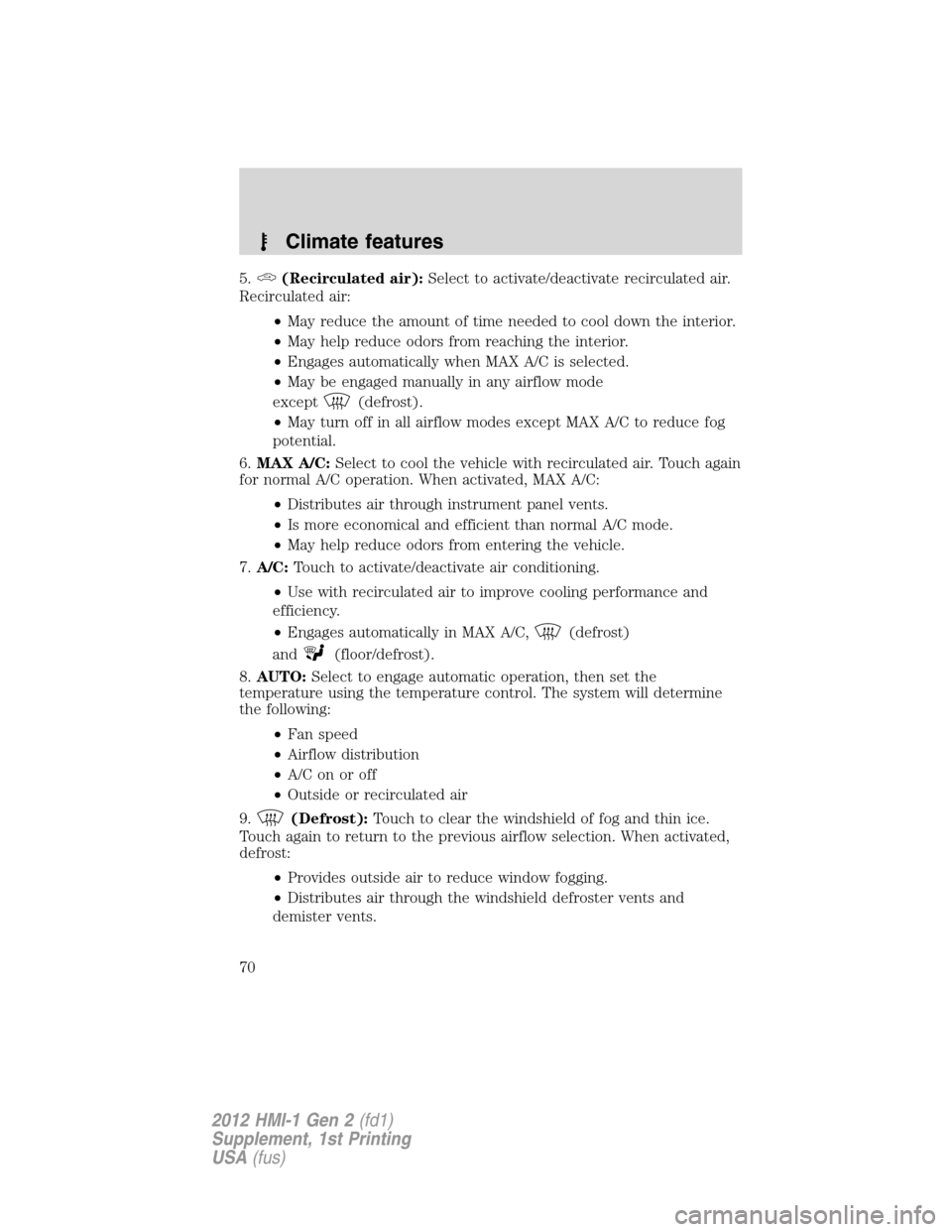

5.(Recirculated air):Select to activate/deactivate recirculated air.
Recirculated air:
•May reduce the amount of time needed to cool down the interior.
•May help reduce odors from reaching the interior.
•Engages automatically when MAX A/C is selected.
•May be engaged manually in any airflow mode
except
(defrost).
•May turn off in all airflow modes except MAX A/C to reduce fog
potential.
6.MAX A/C:Select to cool the vehicle with recirculated air. Touch again
for normal A/C operation. When activated, MAX A/C:
•Distributes air through instrument panel vents.
•Is more economical and efficient than normal A/C mode.
•May help reduce odors from entering the vehicle.
7.A/C:Touch to activate/deactivate air conditioning.
•Use with recirculated air to improve cooling performance and
efficiency.
•Engages automatically in MAX A/C,
(defrost)
and
(floor/defrost).
8.AUTO:Select to engage automatic operation, then set the
temperature using the temperature control. The system will determine
the following:
•Fan speed
•Airflow distribution
•A/Conoroff
•Outside or recirculated air
9.
(Defrost):Touch to clear the windshield of fog and thin ice.
Touch again to return to the previous airflow selection. When activated,
defrost:
•Provides outside air to reduce window fogging.
•Distributes air through the windshield defroster vents and
demister vents.
Climate features
70
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

MAP MODE
To access map mode, press the green bar in the upper right area of the
touchscreen. The map screen will display.
Your system offers advanced map viewing comprised of both 2D city
maps as well as 3D landmarks (when available).
2D city mapsshow detailed outlines of buildings, visible land use and
land elements and detailed railway infrastructure for the most essential
cities around the globe. These 2D city maps also contain primary
features such as town blocks, building footprints, and railways.
3D landmarkswill appear when available on your current map. When in
3D map mode, these are clear, visible objects which are typically
recognizable and have a certain tourist value.
You can adjust how your map
appears. Press the arrow icon
repeatedly on the upper left side of
the screen to choose between:
•Heading up:Select for direction
of forward travel to always be the
upward direction on screen.
Available for map scales up to 2.5
mi (5 km). For scales above that, the setting for Heading-Up is
remembered, but the map is shown in North-Up only. If the scale
returns below this level, then the Heading-Up setting is restored.
•North up:In this mode, the
northern direction is always the
upward direction on screen.
•3D map mode:This map view
provides an elevated perspective
of the map. The viewing angle
can be adjusted and the map can
be rotated 180 degrees by dragging your finger along the circle tool
that appears in the center of the map.
Navigation features
78
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
