USB mobile broadband
Instead of using Wi-Fi, your system can also use a USB mobile broadband
connection to access the internet. This screen allows you to set up what
will be your typical area for your USB mobile broadband connection. You
can select the following:
•Country
•Carrier
•Phone number
•User name
•Password
Note:You must activate your mobile broadband device on your PC prior
to connecting it to the system.
Note:USB mobile broadband settings may not be displayed if the device
is already activated.
Prioritize connection methods
This screen allows you to choose your connection methods and change
them as needed. You can select to Change Order and have the system
either always attempt to connecting using a USB mobile broadband or
using Wi-Fi.
Bluetoothsettings
This screen will show you what device is currently paired with the
system as well as giving you your typicalBluetoothoptions to connect,
disconnect, set as favorite, delete and add device.
Bluetoothis a registered trademark of the Bluetooth SIG.
HELP!
Your touchscreen system has a help feature which you can access at any
time.
To access:
1. Press Menu > Help.
2. From this screen you can access:
•Where am I?:Select to view the vehicle’s current location. If your
vehicle is equipped with navigation, you will see your location on a
map. If your vehicle is not equipped with navigation, or if your SD
card is not inserted, you will receive your vehicle’s latitude and
longitude.
Menu features
64
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

NAVIGATION FEATURES (IF EQUIPPED)
Note:Your navigation SD card MUST be in the SD card slot in order for
you to access the navigation features.
Your navigation system is comprised of two main features, destination
mode and map mode.
To set a destination, press Dest in the upper right hand corner of the
touchscreen. Then, refer toSetting a destinationwhich follows.
To view the navigation map and the vehicle’s current location,
touch the green bar in the upper right hand corner of the touchscreen.
Or, you can also press Dest > Map. Refer toMap modelater in this
section.
To order replacement SD navigation cards,see your authorized
dealer.
Note:Your SD card slot is spring loaded. To remove the SD card, simply
press the card in and the system will eject the card. Do not attempt to
pull the card to remove it as this could cause damage.
SETTING A DESTINATION
To set a destination:
1. Press ‘Dest’ on the top right corner of the screen.
2. Choose to set a destination using any of the following:
•My Home•Street Address
•Favorites•Intersection
•Previous Destinations•City Center
•Point of Interest (POI)•Map
•Emergency•Previous Starting Point
•Freeway Entrance/Exit
3. Follow the highlighted text fields to enter any necessary information.
Note that any order of entry is acceptable. For address destination entry,
the Go! button will appear once all the necessary information has been
entered. Pressing the Go! button will trigger the display of the address
location on the map.
4. Select ‘Set as Dest’ to make this your destination. You can choose to
‘Set as Waypoint’ to have the system route to this point on the way to
your current destination. You can also choose to save the destination as a
Favorite.
Note:Any Avoid Areas which have been selected are also considered in
route calculation.
Navigation features
73
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

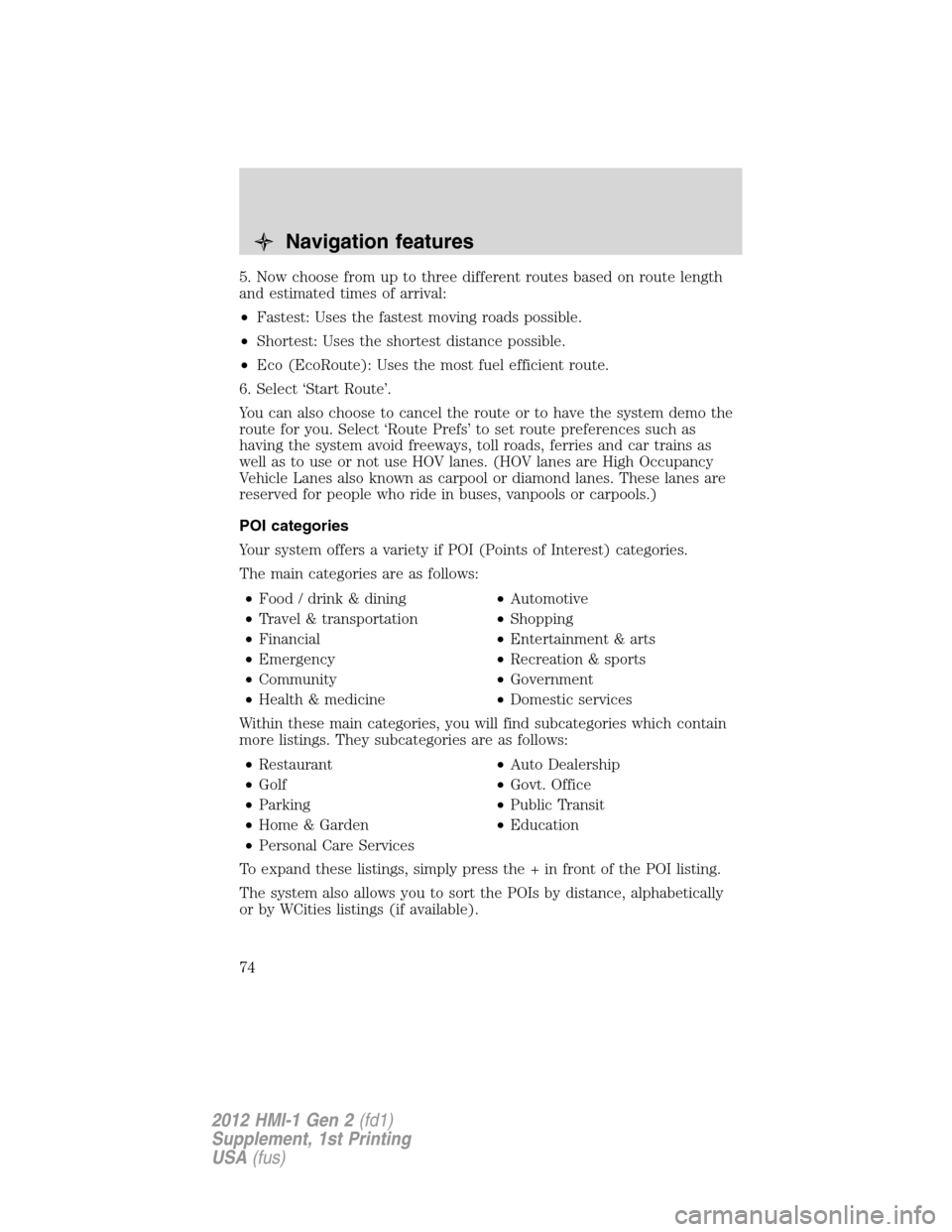

5. Now choose from up to three different routes based on route length
and estimated times of arrival:
•Fastest: Uses the fastest moving roads possible.
•Shortest: Uses the shortest distance possible.
•Eco (EcoRoute): Uses the most fuel efficient route.
6. Select ‘Start Route’.
You can also choose to cancel the route or to have the system demo the
route for you. Select ‘Route Prefs’ to set route preferences such as
having the system avoid freeways, toll roads, ferries and car trains as
well as to use or not use HOV lanes. (HOV lanes are High Occupancy
Vehicle Lanes also known as carpool or diamond lanes. These lanes are
reserved for people who ride in buses, vanpools or carpools.)
POI categories
Your system offers a variety if POI (Points of Interest) categories.
The main categories are as follows:
•Food / drink & dining•Automotive
•Travel & transportation•Shopping
•Financial•Entertainment & arts
•Emergency•Recreation & sports
•Community•Government
•Health & medicine•Domestic services
Within these main categories, you will find subcategories which contain
more listings. They subcategories are as follows:
•Restaurant•Auto Dealership
•Golf•Govt. Office
•Parking•Public Transit
•Home & Garden•Education
•Personal Care Services
To expand these listings, simply press the + in front of the POI listing.
The system also allows you to sort the POIs by distance, alphabetically
or by WCities listings (if available).
Navigation features
74
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

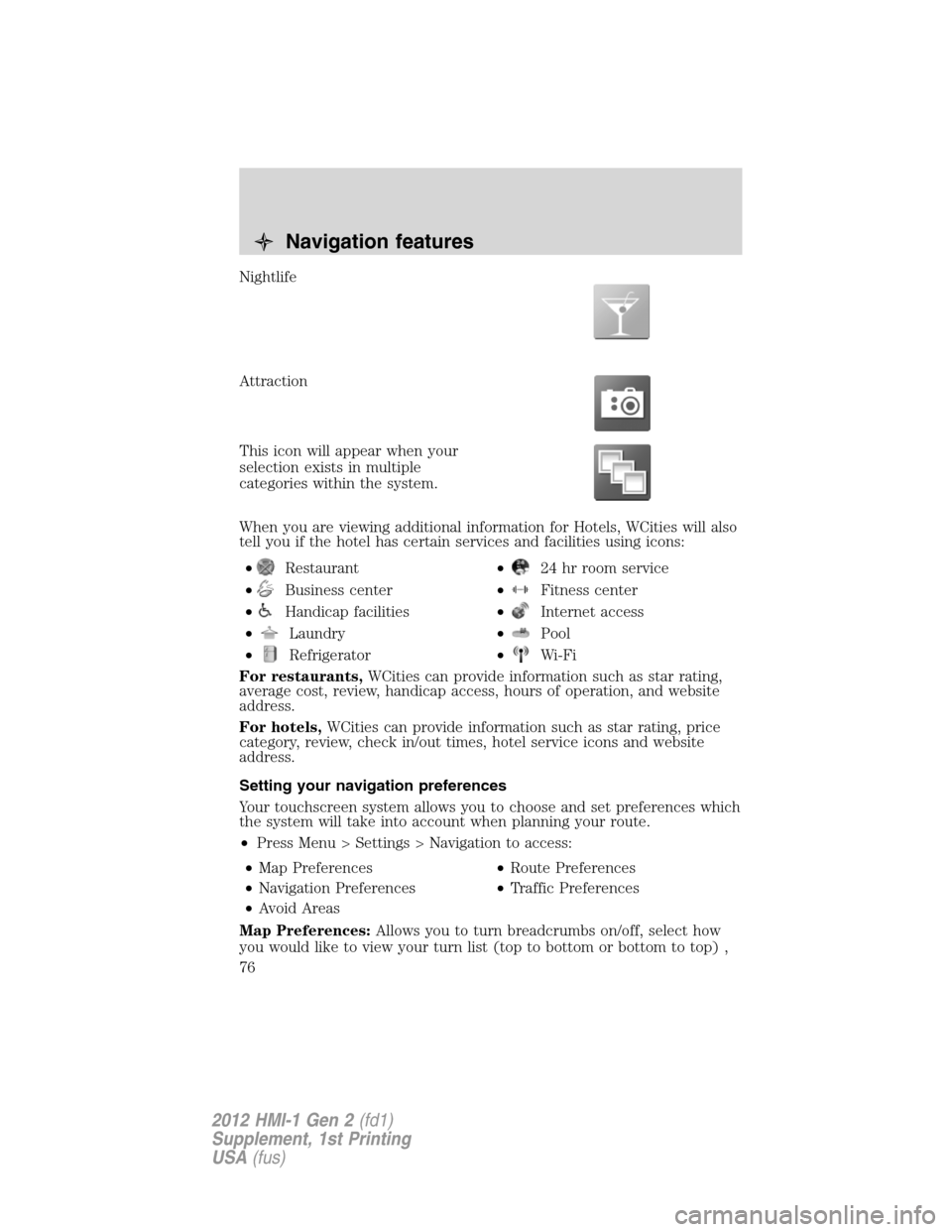

Nightlife
Attraction
This icon will appear when your
selection exists in multiple
categories within the system.
When you are viewing additional information for Hotels, WCities will also
tell you if the hotel has certain services and facilities using icons:
•
Restaurant•24 hr room service
•
Business center•Fitness center
•
Handicap facilities•Internet access
•
Laundry•Pool
•
Refrigerator•Wi-Fi
For restaurants,WCities can provide information such as star rating,
average cost, review, handicap access, hours of operation, and website
address.
For hotels,WCities can provide information such as star rating, price
category, review, check in/out times, hotel service icons and website
address.
Setting your navigation preferences
Your touchscreen system allows you to choose and set preferences which
the system will take into account when planning your route.
•Press Menu > Settings > Navigation to access:
•Map Preferences•Route Preferences
•Navigation Preferences•Traffic Preferences
•Avoid Areas
Map Preferences:Allows you to turn breadcrumbs on/off, select how
you would like to view your turn list (top to bottom or bottom to top) ,
Navigation features
76
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

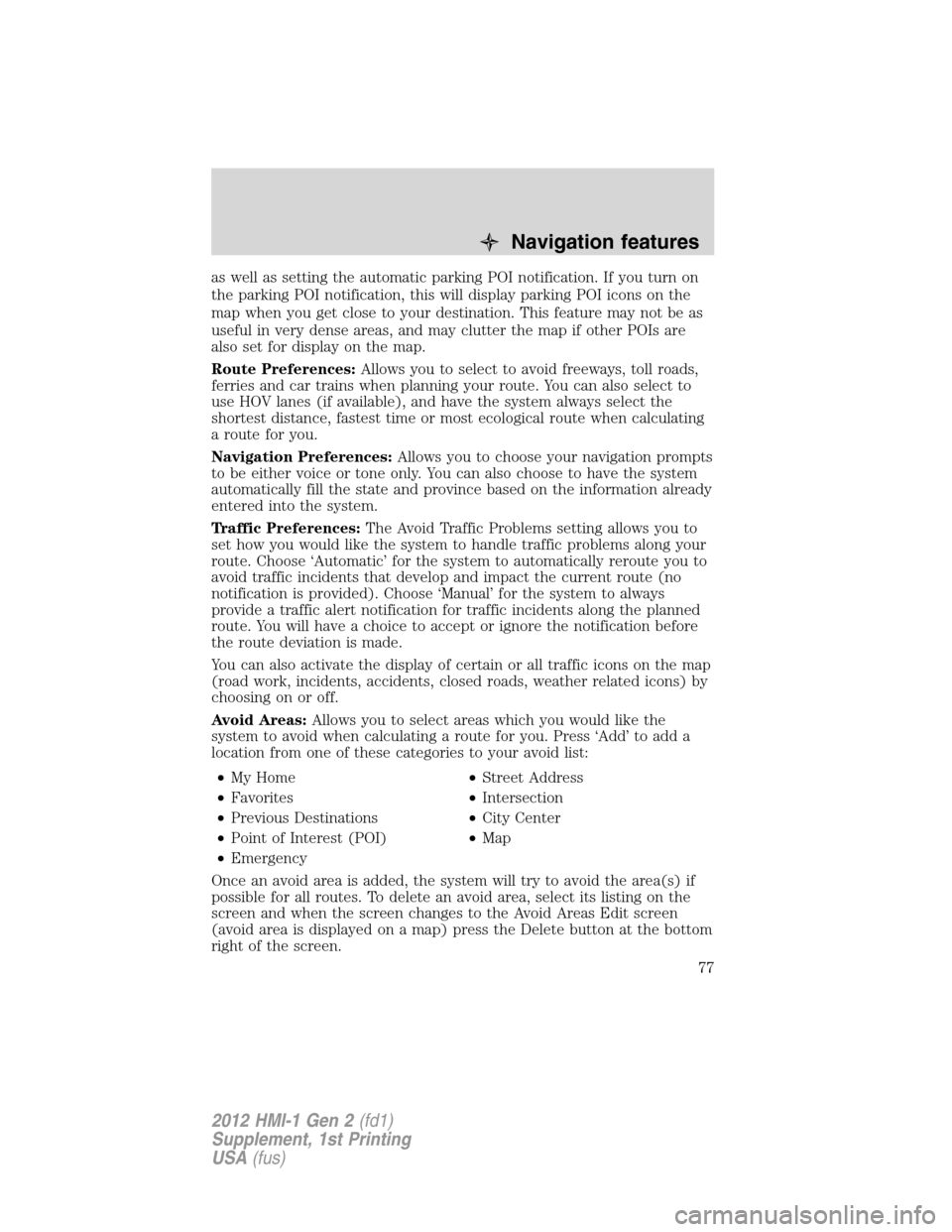

as well as setting the automatic parking POI notification. If you turn on
the parking POI notification, this will display parking POI icons on the
map when you get close to your destination. This feature may not be as
useful in very dense areas, and may clutter the map if other POIs are
also set for display on the map.
Route Preferences:Allows you to select to avoid freeways, toll roads,
ferries and car trains when planning your route. You can also select to
use HOV lanes (if available), and have the system always select the
shortest distance, fastest time or most ecological route when calculating
a route for you.
Navigation Preferences:Allows you to choose your navigation prompts
to be either voice or tone only. You can also choose to have the system
automatically fill the state and province based on the information already
entered into the system.
Traffic Preferences:The Avoid Traffic Problems setting allows you to
set how you would like the system to handle traffic problems along your
route. Choose ‘Automatic’ for the system to automatically reroute you to
avoid traffic incidents that develop and impact the current route (no
notification is provided). Choose ‘Manual’ for the system to always
provide a traffic alert notification for traffic incidents along the planned
route. You will have a choice to accept or ignore the notification before
the route deviation is made.
You can also activate the display of certain or all traffic icons on the map
(road work, incidents, accidents, closed roads, weather related icons) by
choosing on or off.
Avoid Areas:Allows you to select areas which you would like the
system to avoid when calculating a route for you. Press ‘Add’ to add a
location from one of these categories to your avoid list:
•My Home•Street Address
•Favorites•Intersection
•Previous Destinations•City Center
•Point of Interest (POI)•Map
•Emergency
Once an avoid area is added, the system will try to avoid the area(s) if
possible for all routes. To delete an avoid area, select its listing on the
screen and when the screen changes to the Avoid Areas Edit screen
(avoid area is displayed on a map) press the Delete button at the bottom
right of the screen.
Navigation features
77
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

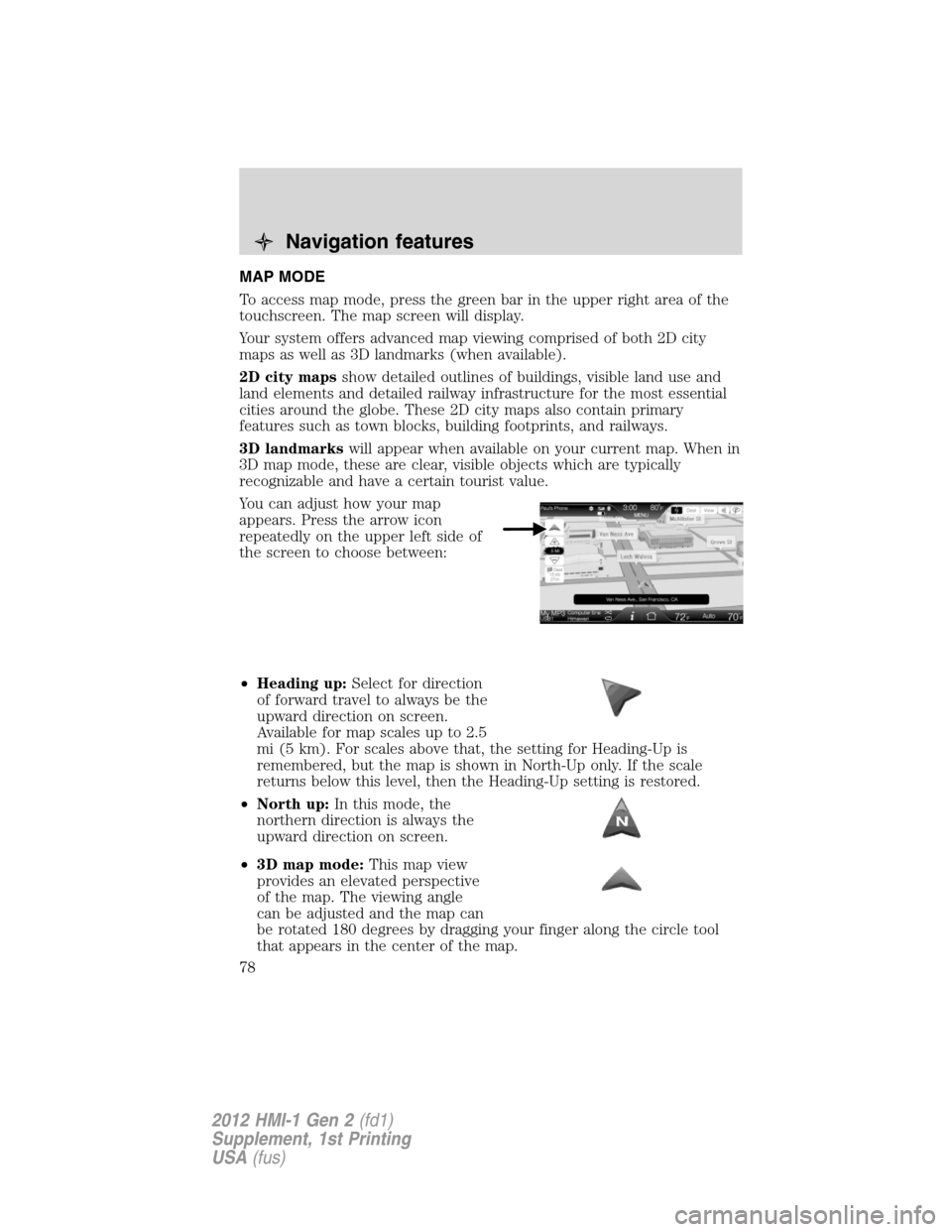

MAP MODE
To access map mode, press the green bar in the upper right area of the
touchscreen. The map screen will display.
Your system offers advanced map viewing comprised of both 2D city
maps as well as 3D landmarks (when available).
2D city mapsshow detailed outlines of buildings, visible land use and
land elements and detailed railway infrastructure for the most essential
cities around the globe. These 2D city maps also contain primary
features such as town blocks, building footprints, and railways.
3D landmarkswill appear when available on your current map. When in
3D map mode, these are clear, visible objects which are typically
recognizable and have a certain tourist value.
You can adjust how your map
appears. Press the arrow icon
repeatedly on the upper left side of
the screen to choose between:
•Heading up:Select for direction
of forward travel to always be the
upward direction on screen.
Available for map scales up to 2.5
mi (5 km). For scales above that, the setting for Heading-Up is
remembered, but the map is shown in North-Up only. If the scale
returns below this level, then the Heading-Up setting is restored.
•North up:In this mode, the
northern direction is always the
upward direction on screen.
•3D map mode:This map view
provides an elevated perspective
of the map. The viewing angle
can be adjusted and the map can
be rotated 180 degrees by dragging your finger along the circle tool
that appears in the center of the map.
Navigation features
78
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

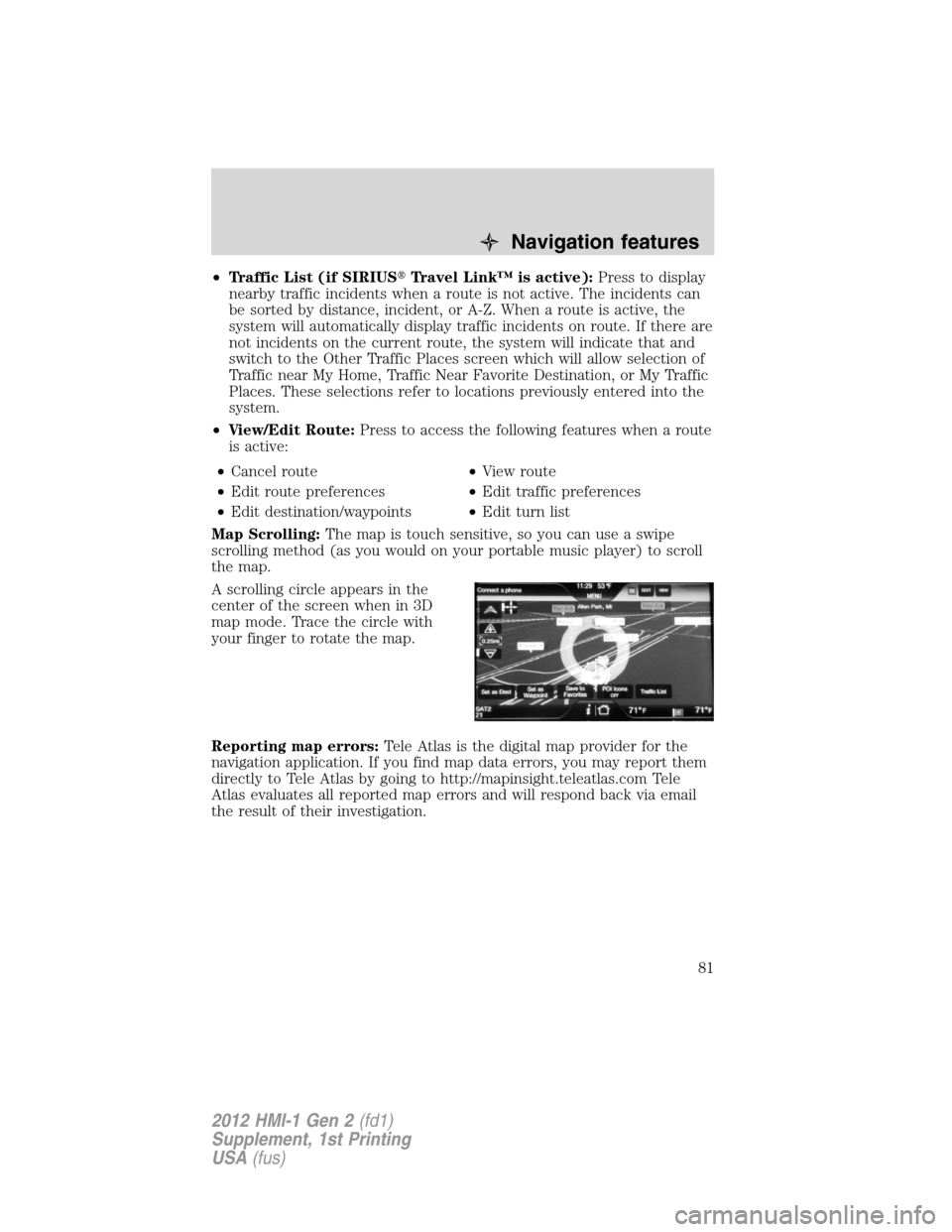

•Traffic List (if SIRIUSTravel Link™ is active):Press to display
nearby traffic incidents when a route is not active. The incidents can
be sorted by distance, incident, or A-Z. When a route is active, the
system will automatically display traffic incidents on route. If there are
not incidents on the current route, the system will indicate that and
switch to the Other Traffic Places screen which will allow selection of
Traffic near My Home, Traffic Near Favorite Destination, or My Traffic
Places. These selections refer to locations previously entered into the
system.
•View/Edit Route:Press to access the following features when a route
is active:
•Cancel route•View route
•Edit route preferences•Edit traffic preferences
•Edit destination/waypoints•Edit turn list
Map Scrolling:The map is touch sensitive, so you can use a swipe
scrolling method (as you would on your portable music player) to scroll
the map.
A scrolling circle appears in the
center of the screen when in 3D
map mode. Trace the circle with
your finger to rotate the map.
Reporting map errors:Tele Atlas is the digital map provider for the
navigation application. If you find map data errors, you may report them
directly to Tele Atlas by going to http://mapinsight.teleatlas.com Tele
Atlas evaluates all reported map errors and will respond back via email
the result of their investigation.
Navigation features
81
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

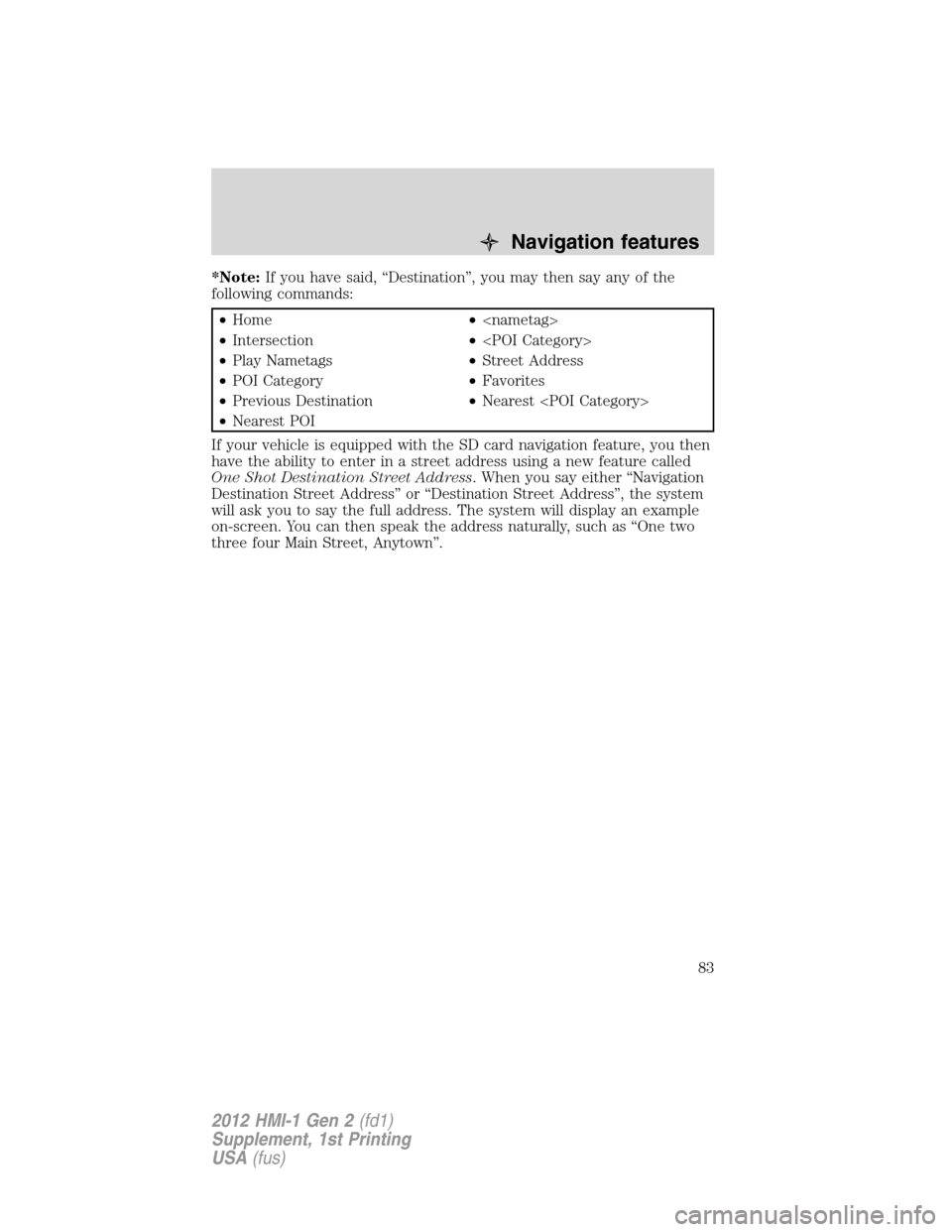

*Note:If you have said, “Destination”, you may then say any of the
following commands:
•Home•
•Intersection•
•Play Nametags•Street Address
•POI Category•Favorites
•Previous Destination•Nearest
•Nearest POI
If your vehicle is equipped with the SD card navigation feature, you then
have the ability to enter in a street address using a new feature called
One Shot Destination Street Address. When you say either “Navigation
Destination Street Address” or “Destination Street Address”, the system
will ask you to say the full address. The system will display an example
on-screen. You can then speak the address naturally, such as “One two
three four Main Street, Anytown”.
Navigation features
83
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

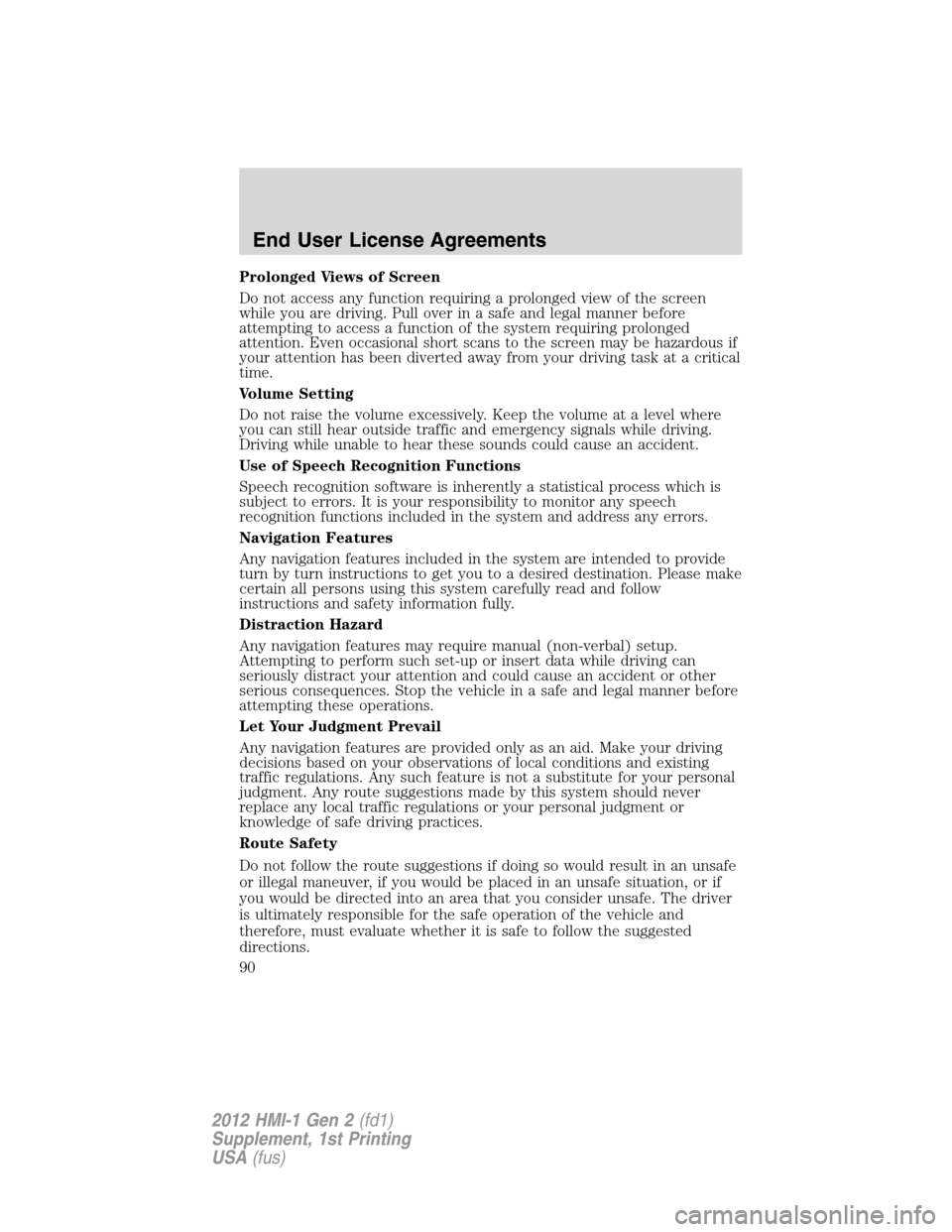

Prolonged Views of Screen
Do not access any function requiring a prolonged view of the screen
while you are driving. Pull over in a safe and legal manner before
attempting to access a function of the system requiring prolonged
attention. Even occasional short scans to the screen may be hazardous if
your attention has been diverted away from your driving task at a critical
time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where
you can still hear outside traffic and emergency signals while driving.
Driving while unable to hear these sounds could cause an accident.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is
subject to errors. It is your responsibility to monitor any speech
recognition functions included in the system and address any errors.
Navigation Features
Any navigation features included in the system are intended to provide
turn by turn instructions to get you to a desired destination. Please make
certain all persons using this system carefully read and follow
instructions and safety information fully.
Distraction Hazard
Any navigation features may require manual (non-verbal) setup.
Attempting to perform such set-up or insert data while driving can
seriously distract your attention and could cause an accident or other
serious consequences. Stop the vehicle in a safe and legal manner before
attempting these operations.
Let Your Judgment Prevail
Any navigation features are provided only as an aid. Make your driving
decisions based on your observations of local conditions and existing
traffic regulations. Any such feature is not a substitute for your personal
judgment. Any route suggestions made by this system should never
replace any local traffic regulations or your personal judgment or
knowledge of safe driving practices.
Route Safety
Do not follow the route suggestions if doing so would result in an unsafe
or illegal maneuver, if you would be placed in an unsafe situation, or if
you would be directed into an area that you consider unsafe. The driver
is ultimately responsible for the safe operation of the vehicle and
therefore, must evaluate whether it is safe to follow the suggested
directions.
End User License Agreements
90
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

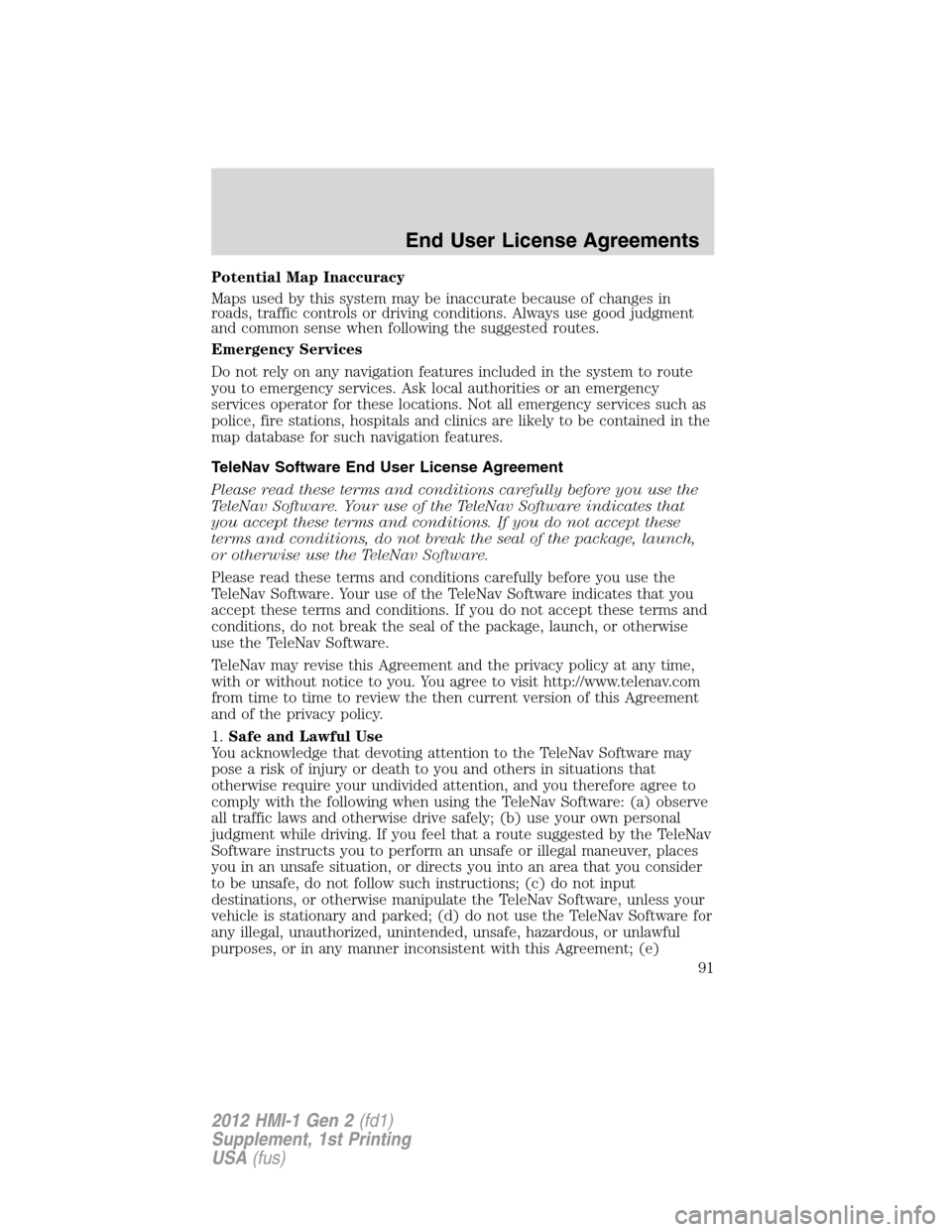

Potential Map Inaccuracy
Maps used by this system may be inaccurate because of changes in
roads, traffic controls or driving conditions. Always use good judgment
and common sense when following the suggested routes.
Emergency Services
Do not rely on any navigation features included in the system to route
you to emergency services. Ask local authorities or an emergency
services operator for these locations. Not all emergency services such as
police, fire stations, hospitals and clinics are likely to be contained in the
map database for such navigation features.
TeleNav Software End User License Agreement
Please read these terms and conditions carefully before you use the
TeleNav Software. Your use of the TeleNav Software indicates that
you accept these terms and conditions. If you do not accept these
terms and conditions, do not break the seal of the package, launch,
or otherwise use the TeleNav Software.
Please read these terms and conditions carefully before you use the
TeleNav Software. Your use of the TeleNav Software indicates that you
accept these terms and conditions. If you do not accept these terms and
conditions, do not break the seal of the package, launch, or otherwise
use the TeleNav Software.
TeleNav may revise this Agreement and the privacy policy at any time,
with or without notice to you. You agree to visit http://www.telenav.com
from time to time to review the then current version of this Agreement
and of the privacy policy.
1.Safe and Lawful Use
You acknowledge that devoting attention to the TeleNav Software may
pose a risk of injury or death to you and others in situations that
otherwise require your undivided attention, and you therefore agree to
comply with the following when using the TeleNav Software: (a) observe
all traffic laws and otherwise drive safely; (b) use your own personal
judgment while driving. If you feel that a route suggested by the TeleNav
Software instructs you to perform an unsafe or illegal maneuver, places
you in an unsafe situation, or directs you into an area that you consider
to be unsafe, do not follow such instructions; (c) do not input
destinations, or otherwise manipulate the TeleNav Software, unless your
vehicle is stationary and parked; (d) do not use the TeleNav Software for
any illegal, unauthorized, unintended, unsafe, hazardous, or unlawful
purposes, or in any manner inconsistent with this Agreement; (e)
End User License Agreements
91
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
