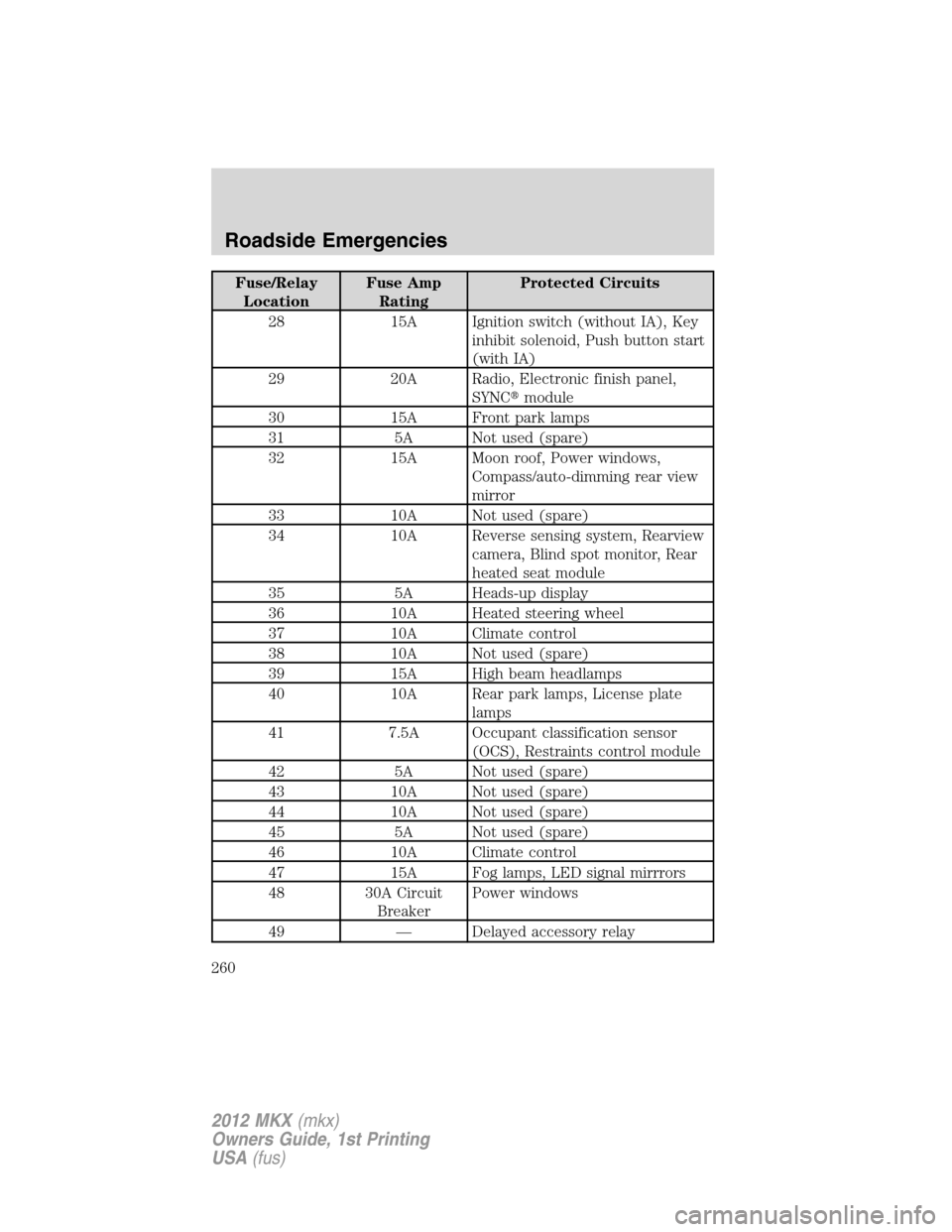

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
28 15A Ignition switch (without IA), Key
inhibit solenoid, Push button start
(with IA)
29 20A Radio, Electronic finish panel,
SYNCmodule
30 15A Front park lamps
31 5A Not used (spare)
32 15A Moon roof, Power windows,
Compass/auto-dimming rear view
mirror
33 10A Not used (spare)
34 10A Reverse sensing system, Rearview
camera, Blind spot monitor, Rear
heated seat module
35 5A Heads-up display
36 10A Heated steering wheel
37 10A Climate control
38 10A Not used (spare)
39 15A High beam headlamps
40 10A Rear park lamps, License plate
lamps
41 7.5A Occupant classification sensor
(OCS), Restraints control module
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control
47 15A Fog lamps, LED signal mirrrors
48 30A Circuit
BreakerPower windows
49 — Delayed accessory relay
Roadside Emergencies
260
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
34 — Blower motor relay
35 — Not used
36 — Rear seat relay
37 — Right trailer tow (TT) stop/turn
lamps relay
38 — Not used
39 40A** Cooling fan (vehicles with TT)
60A** Cooling fan (vehicles without TT)
40 40A** Cooling fan (TT only)
41 — Not used
42 30A** Passenger seat
43 25A** ABS valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirror
51 — Not used
52 — Not used
53 — Left TT stop/turn lamps relay
54 — Not used
55 — Wiper relay
56 — Not used
57 20A* Left high-intensity discharge
(HID) headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 — Not used
61 10A* Rear seat release
Roadside Emergencies
263
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
62 10A* A/C clutch
63 15A* TT stop/turn lamps relay
64 20A* Rear wiper motor
65 15A* Fuel pump
66 — Powertrain control module
(PCM) relay
67 20A* Vehicle power (VPWR) #2
68 15A* VPWR #4
69 15A* VPWR #1
70 10A* A/C relay, All-wheel drive module
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — A/C clutch diode
76 — Not used
77 — TT park lamps relay
78 20A* Right HID headlamps
79 5A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* TT park lamps
85 — Not used
86 7.5A* PCM keep-alive, PCM relay
87 5A* Run/start relay
88 — Run/start relay
89 5A* Adaptive lighting
90 10A* PCM
91 10A* Adaptive cruise control
Roadside Emergencies
264
2012 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)

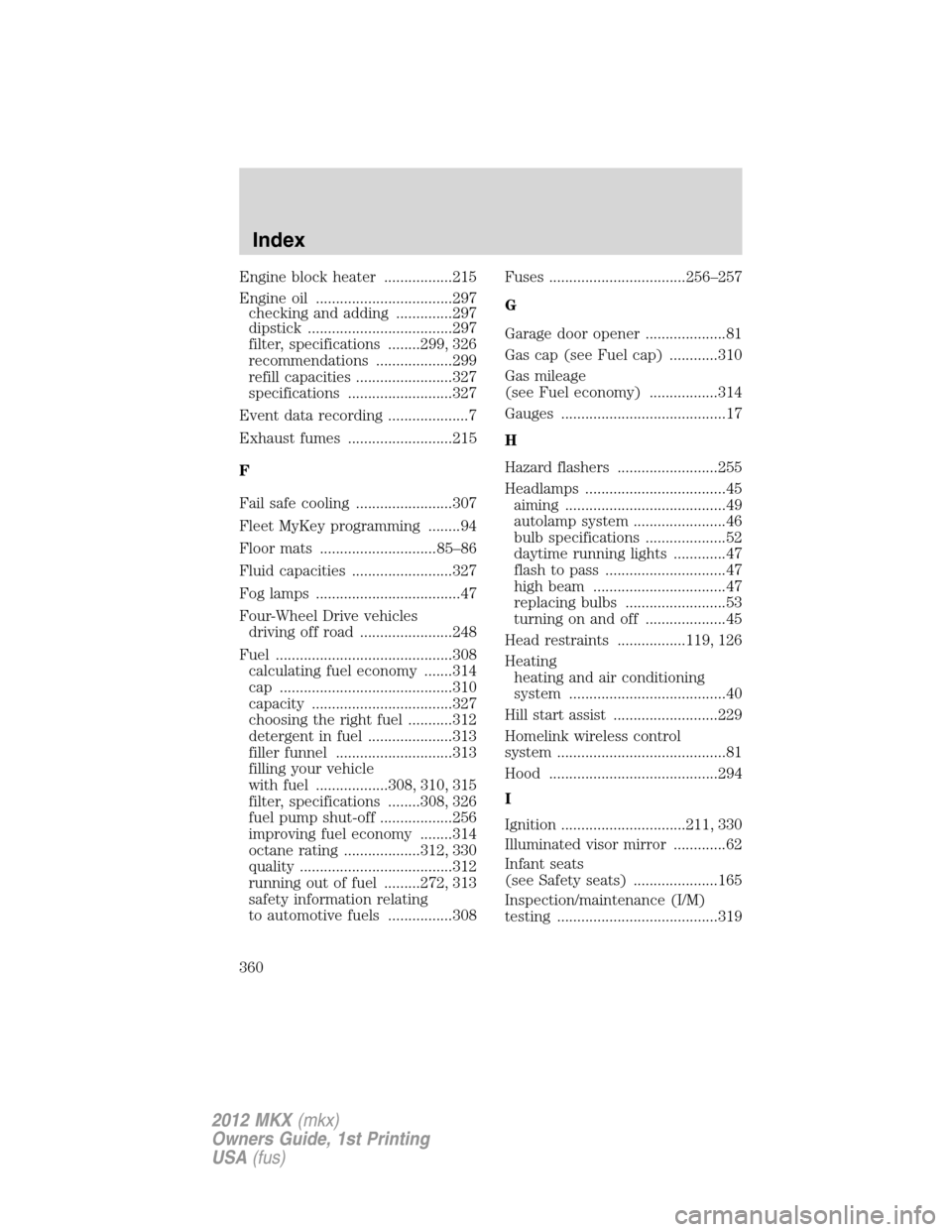

Engine block heater .................215
