LINCOLN MKX 2013 Owners Manual

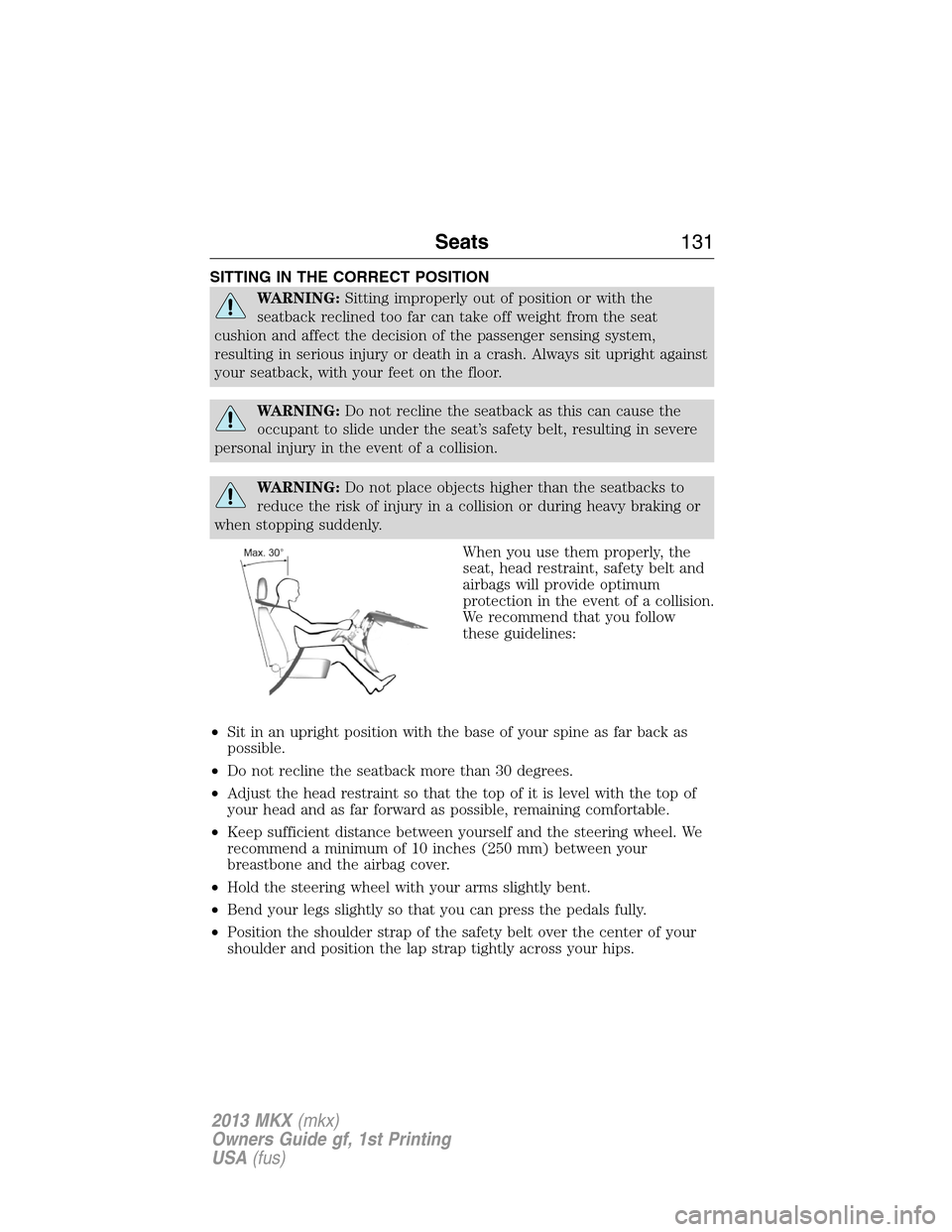

SITTING IN THE CORRECT POSITION
WARNING:Sitting improperly out of position or with the
seatback reclined too far can take off weight from the seat
cushion and affect the decision of the passenger sensing system,
resulting in serious injury or death in a crash. Always sit upright against
your seatback, with your feet on the floor.
WARNING:Do not recline the seatback as this can cause the
occupant to slide under the seat’s safety belt, resulting in severe
personal injury in the event of a collision.
WARNING:Do not place objects higher than the seatbacks to
reduce the risk of injury in a collision or during heavy braking or
when stopping suddenly.
When you use them properly, the
seat, head restraint, safety belt and
airbags will provide optimum
protection in the event of a collision.
We recommend that you follow
these guidelines:
•Sit in an upright position with the base of your spine as far back as
possible.
•Do not recline the seatback more than 30 degrees.
•Adjust the head restraint so that the top of it is level with the top of
your head and as far forward as possible, remaining comfortable.
•Keep sufficient distance between yourself and the steering wheel. We
recommend a minimum of 10 inches (250 mm) between your
breastbone and the airbag cover.
•Hold the steering wheel with your arms slightly bent.
•Bend your legs slightly so that you can press the pedals fully.
•Position the shoulder strap of the safety belt over the center of your
shoulder and position the lap strap tightly across your hips.
Seats131
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

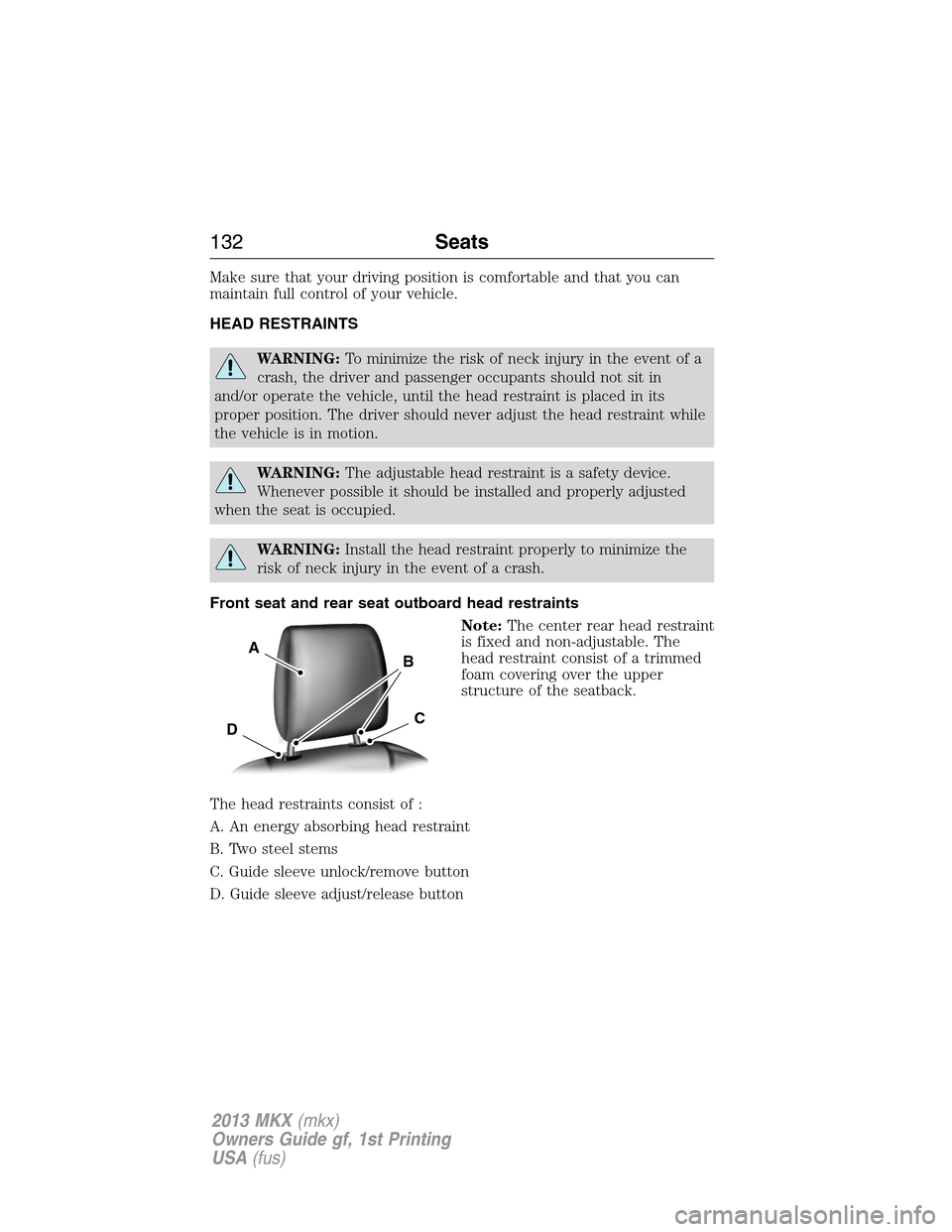

Make sure that your driving position is comfortable and that you can
maintain full control of your vehicle.
HEAD RESTRAINTS
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint while
the vehicle is in motion.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
WARNING:Install the head restraint properly to minimize the
risk of neck injury in the event of a crash.
Front seat and rear seat outboard head restraints
Note:The center rear head restraint
is fixed and non-adjustable. The
head restraint consist of a trimmed
foam covering over the upper
structure of the seatback.
The head restraints consist of :
A. An energy absorbing head restraint
B. Two steel stems
C. Guide sleeve unlock/remove button
D. Guide sleeve adjust/release button
A
C
B
D
132Seats
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

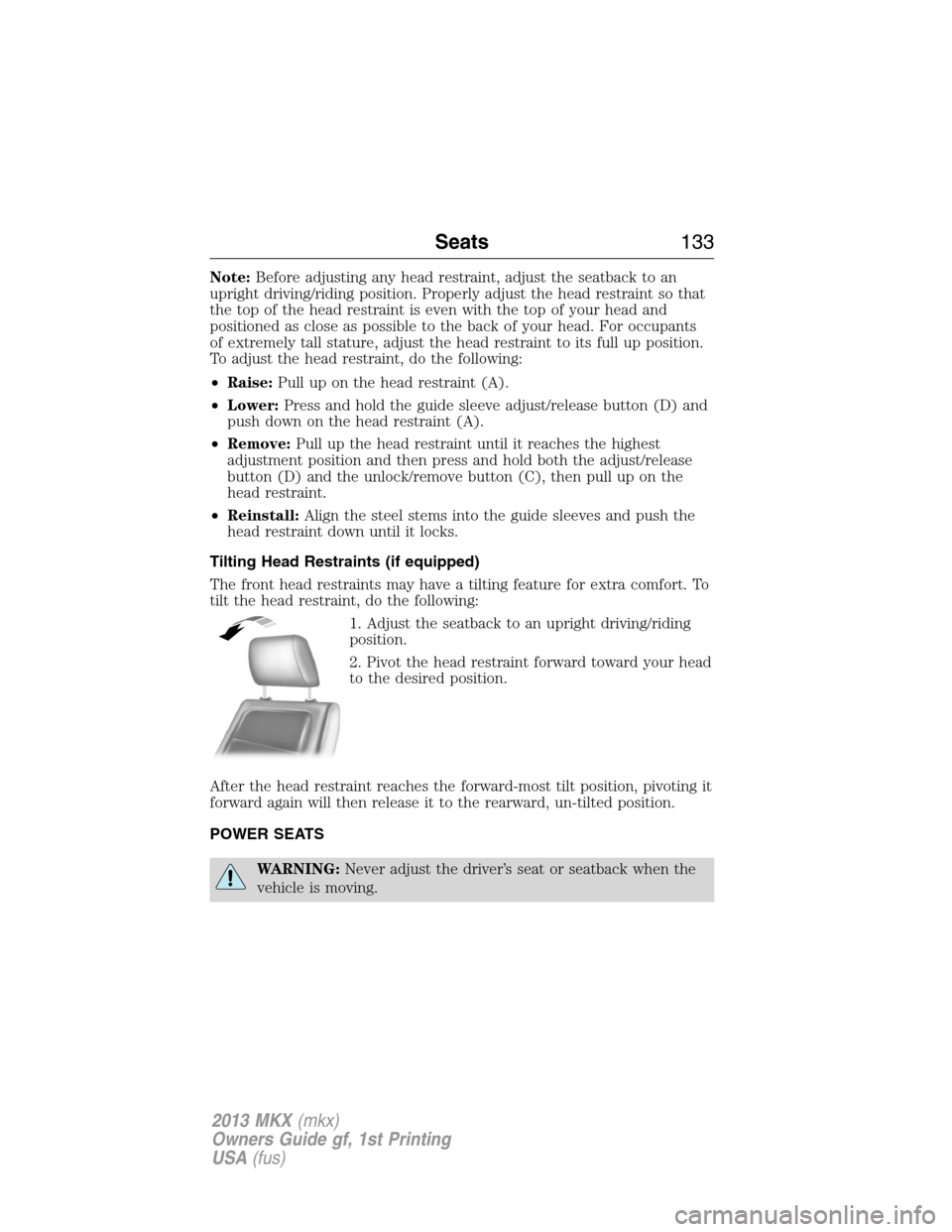

Note:Before adjusting any head restraint, adjust the seatback to an
upright driving/riding position. Properly adjust the head restraint so that
the top of the head restraint is even with the top of your head and
positioned as close as possible to the back of your head. For occupants
of extremely tall stature, adjust the head restraint to its full up position.
To adjust the head restraint, do the following:
•Raise:Pull up on the head restraint (A).
•Lower:Press and hold the guide sleeve adjust/release button (D) and
push down on the head restraint (A).
•Remove:Pull up the head restraint until it reaches the highest
adjustment position and then press and hold both the adjust/release
button (D) and the unlock/remove button (C), then pull up on the
head restraint.
•Reinstall:Align the steel stems into the guide sleeves and push the
head restraint down until it locks.
Tilting Head Restraints (if equipped)
The front head restraints may have a tilting feature for extra comfort. To
tilt the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding
position.
2. Pivot the head restraint forward toward your head
to the desired position.
After the head restraint reaches the forward-most tilt position, pivoting it
forward again will then release it to the rearward, un-tilted position.
POWER SEATS
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
Seats133
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback.
Power lumbar
134Seats
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

MEMORY FUNCTION
The memory control, located on the instrument panel, allows
automatic positioning of the driver seat, power mirrors and
power tilt/telescopic steering column (if equipped) to two
programmable positions.
Programming a memory position
Note:A memory position may be programmed at any time.
•To program position 1, move the memory features to the desired
positions using the associated controls. Press and hold button 1 for at
least two seconds. A chime will sound confirming that a memory
position has been set.
•To program position 2, repeat the previous procedure using button 2.
Recalling a memory position
A programmed memory position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
Press the desired memory control to recall a memory position.
Recalling a memory position with the remote control
The memory positions are also recalled when you press unlock on your
remote control (if the transmitter is programmed to a memory position)
or, when you enter a valid personal entry code that is programmed to a
memory position. If the easy entry feature is enabled, the seat will first
move to the easy entry position. The seat will move to the final position
when the key is in the ignition or when the push button start system is
put in accessory mode/started.
To program the memory feature to a remote control, refer toKeys and
remote control.
21
Seats135
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

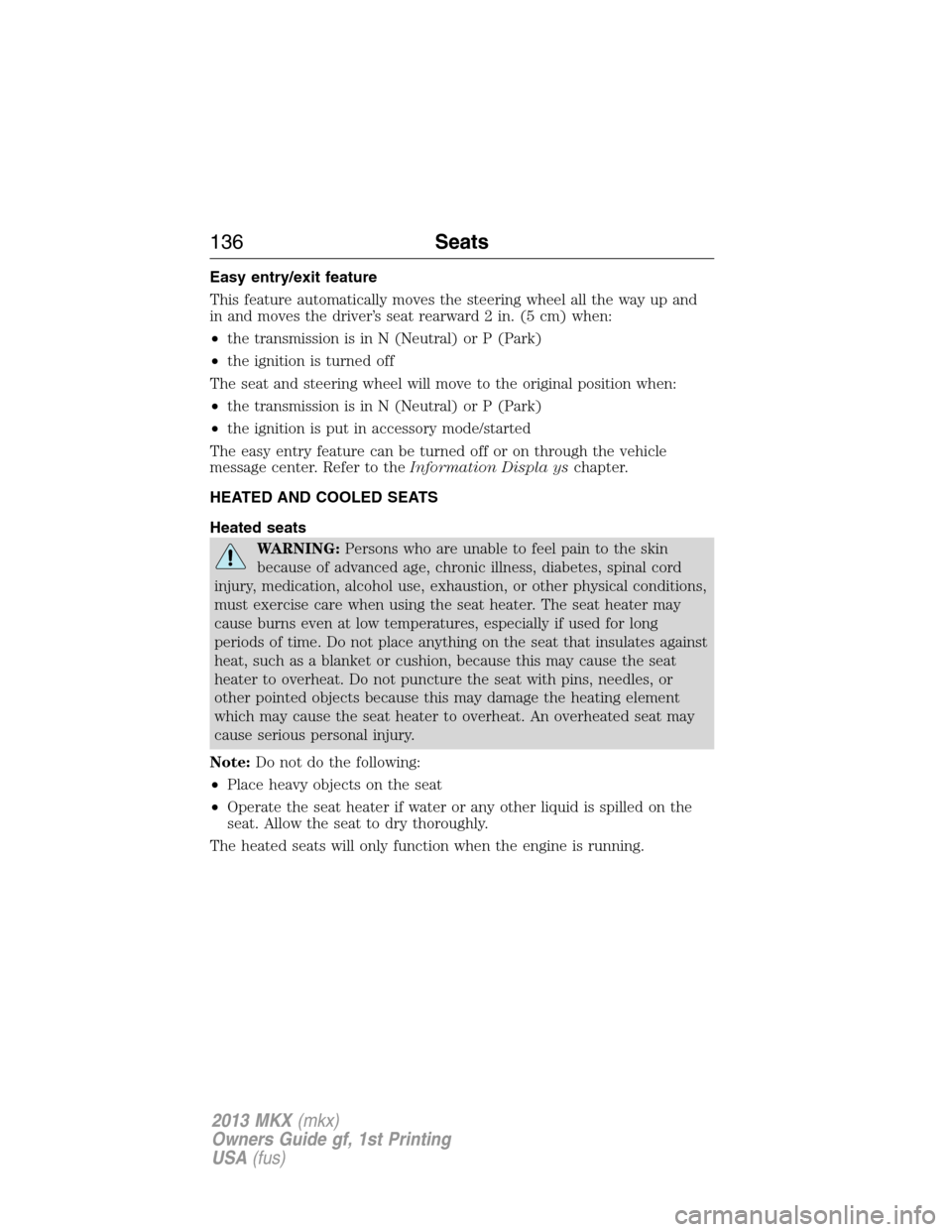

Easy entry/exit feature
This feature automatically moves the steering wheel all the way up and
in and moves the driver’s seat rearward 2 in. (5 cm) when:
•the transmission is in N (Neutral) or P (Park)
•the ignition is turned off
The seat and steering wheel will move to the original position when:
•the transmission is in N (Neutral) or P (Park)
•the ignition is put in accessory mode/started
The easy entry feature can be turned off or on through the vehicle
message center. Refer to theInformation Displa yschapter.
HEATED AND COOLED SEATS
Heated seats
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The heated seats will only function when the engine is running.
136Seats
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

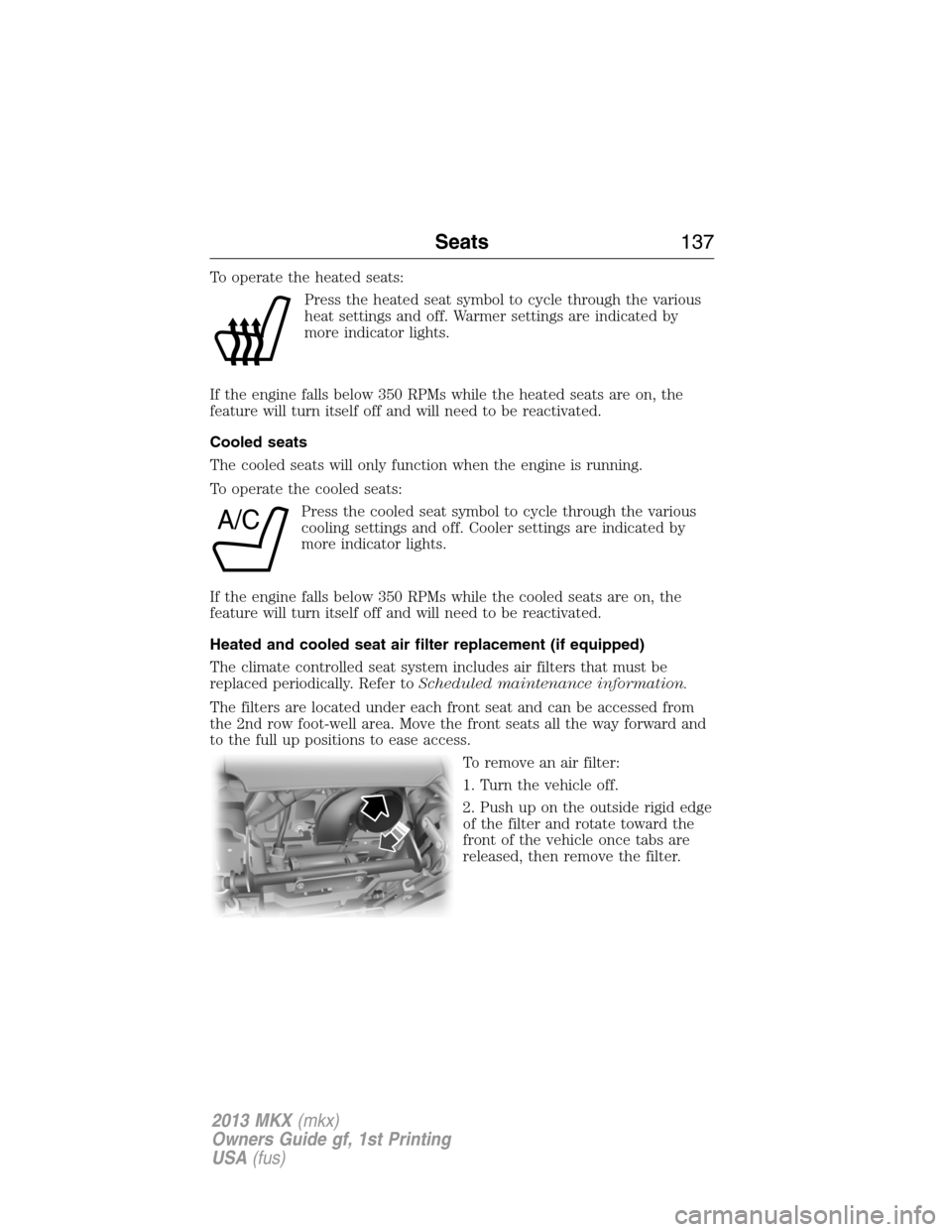

To operate the heated seats:
Press the heated seat symbol to cycle through the various
heat settings and off. Warmer settings are indicated by
more indicator lights.
If the engine falls below 350 RPMs while the heated seats are on, the
feature will turn itself off and will need to be reactivated.
Cooled seats
The cooled seats will only function when the engine is running.
To operate the cooled seats:
Press the cooled seat symbol to cycle through the various
cooling settings and off. Cooler settings are indicated by
more indicator lights.
If the engine falls below 350 RPMs while the cooled seats are on, the
feature will turn itself off and will need to be reactivated.
Heated and cooled seat air filter replacement (if equipped)
The climate controlled seat system includes air filters that must be
replaced periodically. Refer toScheduled maintenance information.
The filters are located under each front seat and can be accessed from
the 2nd row foot-well area. Move the front seats all the way forward and
to the full up positions to ease access.
To remove an air filter:
1. Turn the vehicle off.
2. Push up on the outside rigid edge
of the filter and rotate toward the
front of the vehicle once tabs are
released, then remove the filter.
A/C
Seats137
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

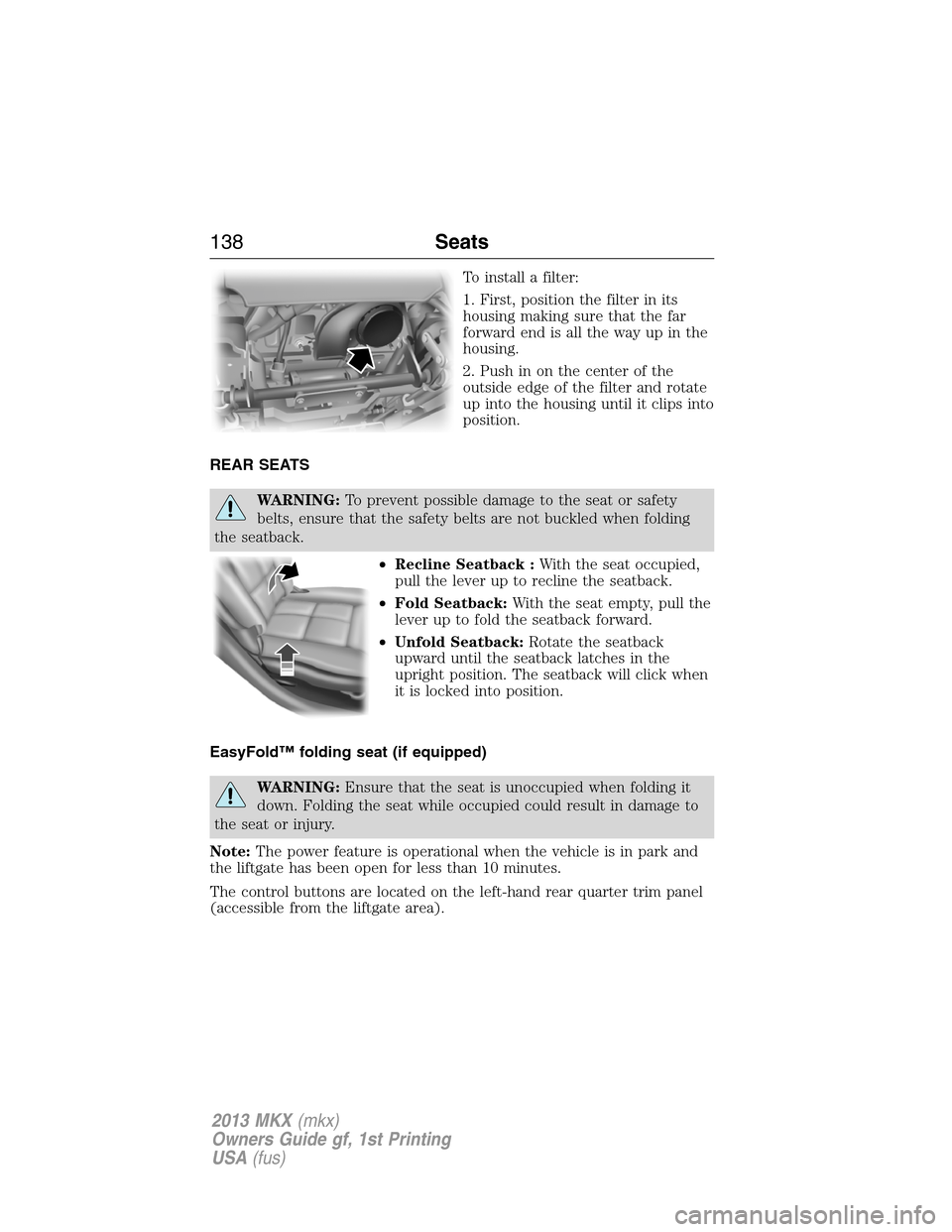

To install a filter:
1. First, position the filter in its
housing making sure that the far
forward end is all the way up in the
housing.
2. Push in on the center of the
outside edge of the filter and rotate
up into the housing until it clips into
position.
REAR SEATS
WARNING:To prevent possible damage to the seat or safety
belts, ensure that the safety belts are not buckled when folding
the seatback.
•Recline Seatback :With the seat occupied,
pull the lever up to recline the seatback.
•Fold Seatback:With the seat empty, pull the
lever up to fold the seatback forward.
•Unfold Seatback:Rotate the seatback
upward until the seatback latches in the
upright position. The seatback will click when
it is locked into position.
EasyFold™ folding seat (if equipped)
WARNING:Ensure that the seat is unoccupied when folding it
down. Folding the seat while occupied could result in damage to
the seat or injury.
Note:The power feature is operational when the vehicle is in park and
the liftgate has been open for less than 10 minutes.
The control buttons are located on the left-hand rear quarter trim panel
(accessible from the liftgate area).
138Seats
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

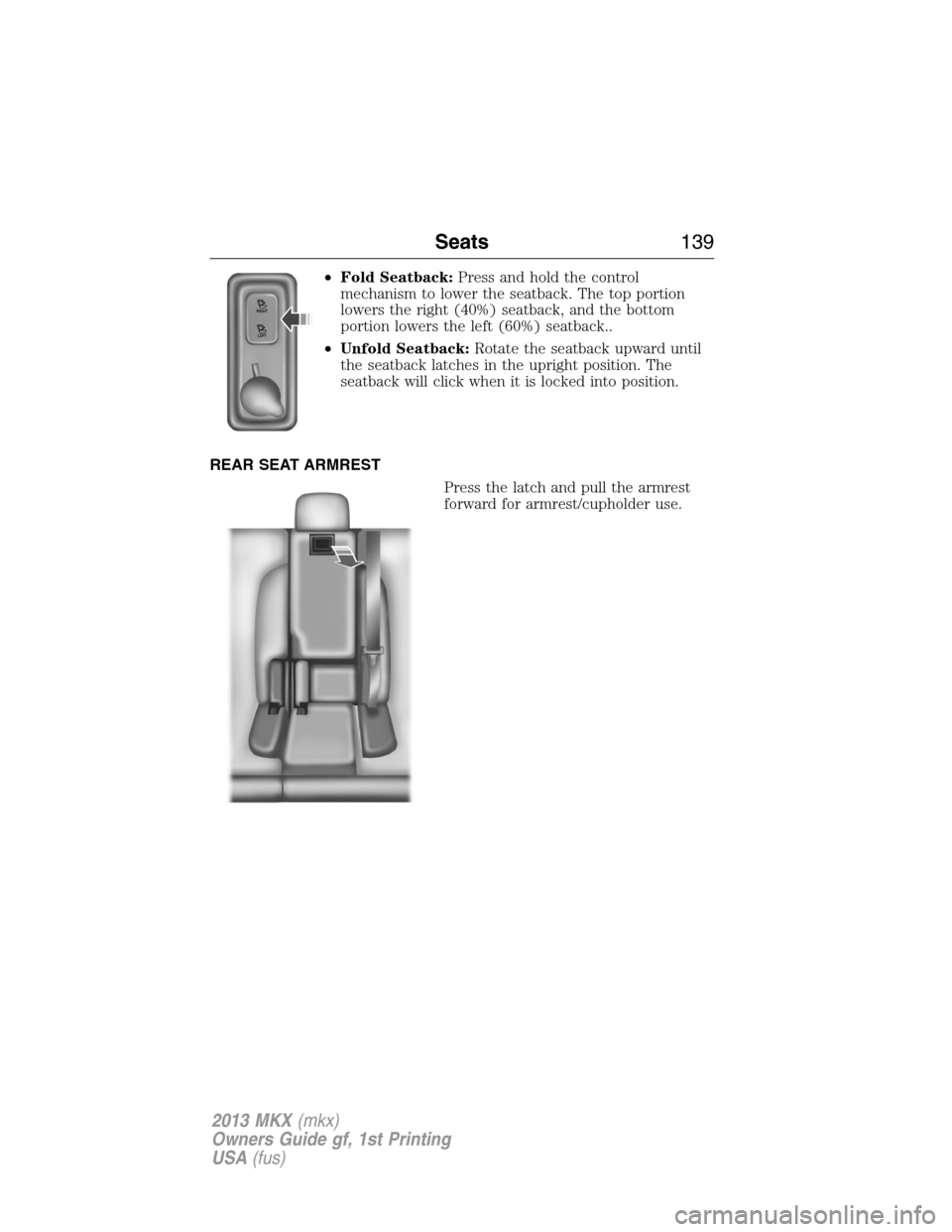

•Fold Seatback:Press and hold the control
mechanism to lower the seatback. The top portion
lowers the right (40%) seatback, and the bottom
portion lowers the left (60%) seatback..
•Unfold Seatback:Rotate the seatback upward until
the seatback latches in the upright position. The
seatback will click when it is locked into position.
REAR SEAT ARMREST
Press the latch and pull the armrest
forward for armrest/cupholder use.
LEFT RIGHT
Seats139
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

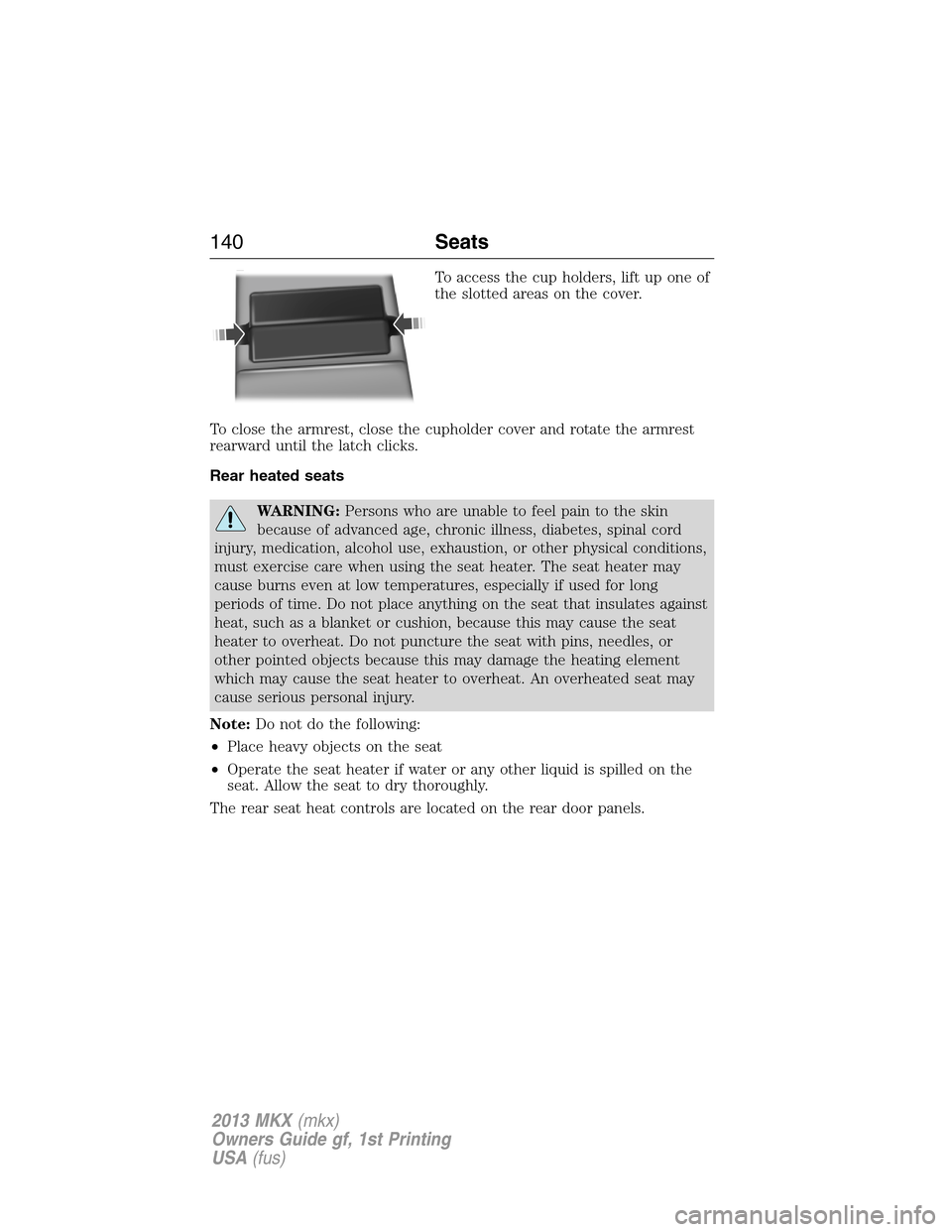

To access the cup holders, lift up one of
the slotted areas on the cover.
To close the armrest, close the cupholder cover and rotate the armrest
rearward until the latch clicks.
Rear heated seats
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The rear seat heat controls are located on the rear door panels.
140Seats
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
