LINCOLN MKX 2013 Owners Manual

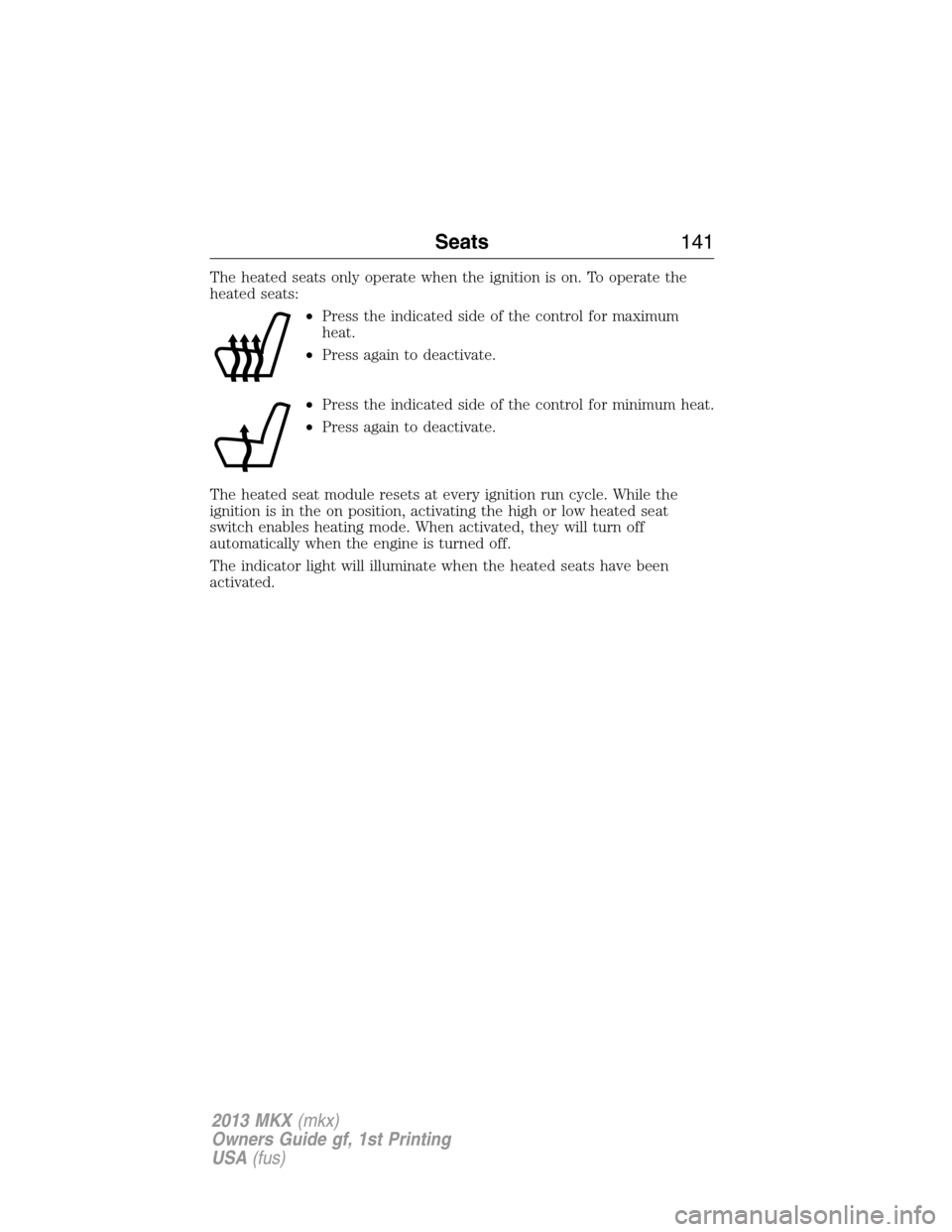

The heated seats only operate when the ignition is on. To operate the
heated seats:
•Press the indicated side of the control for maximum
heat.
•Press again to deactivate.
•Press the indicated side of the control for minimum heat.
•Press again to deactivate.
The heated seat module resets at every ignition run cycle. While the
ignition is in the on position, activating the high or low heated seat
switch enables heating mode. When activated, they will turn off
automatically when the engine is turned off.
The indicator light will illuminate when the heated seats have been
activated.
Seats141
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

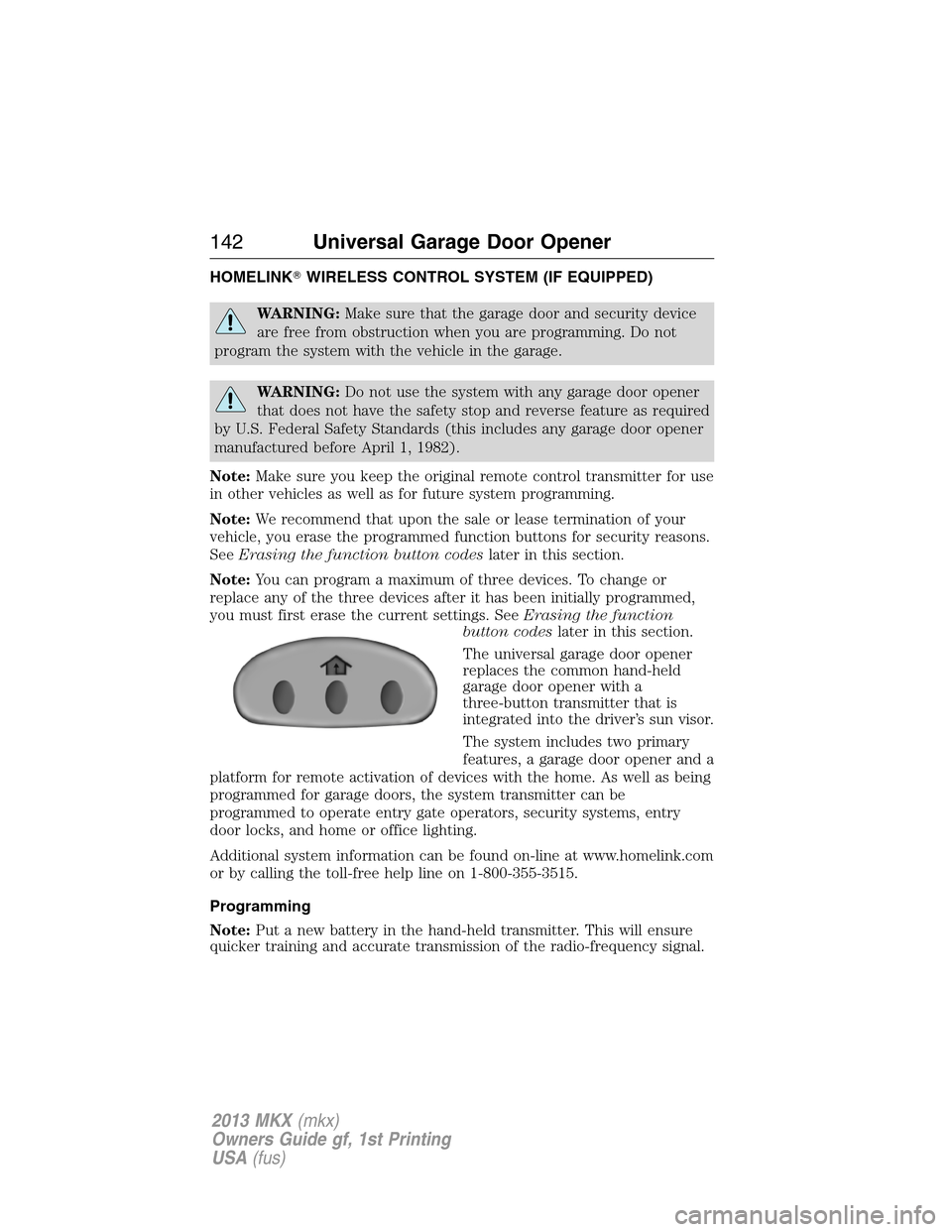

HOMELINKWIRELESS CONTROL SYSTEM (IF EQUIPPED)
WARNING:Make sure that the garage door and security device
are free from obstruction when you are programming. Do not
program the system with the vehicle in the garage.
WARNING:Do not use the system with any garage door opener
that does not have the safety stop and reverse feature as required
by U.S. Federal Safety Standards (this includes any garage door opener
manufactured before April 1, 1982).
Note:Make sure you keep the original remote control transmitter for use
in other vehicles as well as for future system programming.
Note:We recommend that upon the sale or lease termination of your
vehicle, you erase the programmed function buttons for security reasons.
SeeErasing the function button codeslater in this section.
Note:You can program a maximum of three devices. To change or
replace any of the three devices after it has been initially programmed,
you must first erase the current settings. SeeErasing the function
button codeslater in this section.
The universal garage door opener
replaces the common hand-held
garage door opener with a
three-button transmitter that is
integrated into the driver’s sun visor.
The system includes two primary
features, a garage door opener and a
platform for remote activation of devices with the home. As well as being
programmed for garage doors, the system transmitter can be
programmed to operate entry gate operators, security systems, entry
door locks, and home or office lighting.
Additional system information can be found on-line at www.homelink.com
or by calling the toll-free help line on 1-800-355-3515.
Programming
Note:Put a new battery in the hand-held transmitter. This will ensure
quicker training and accurate transmission of the radio-frequency signal.
142Universal Garage Door Opener
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

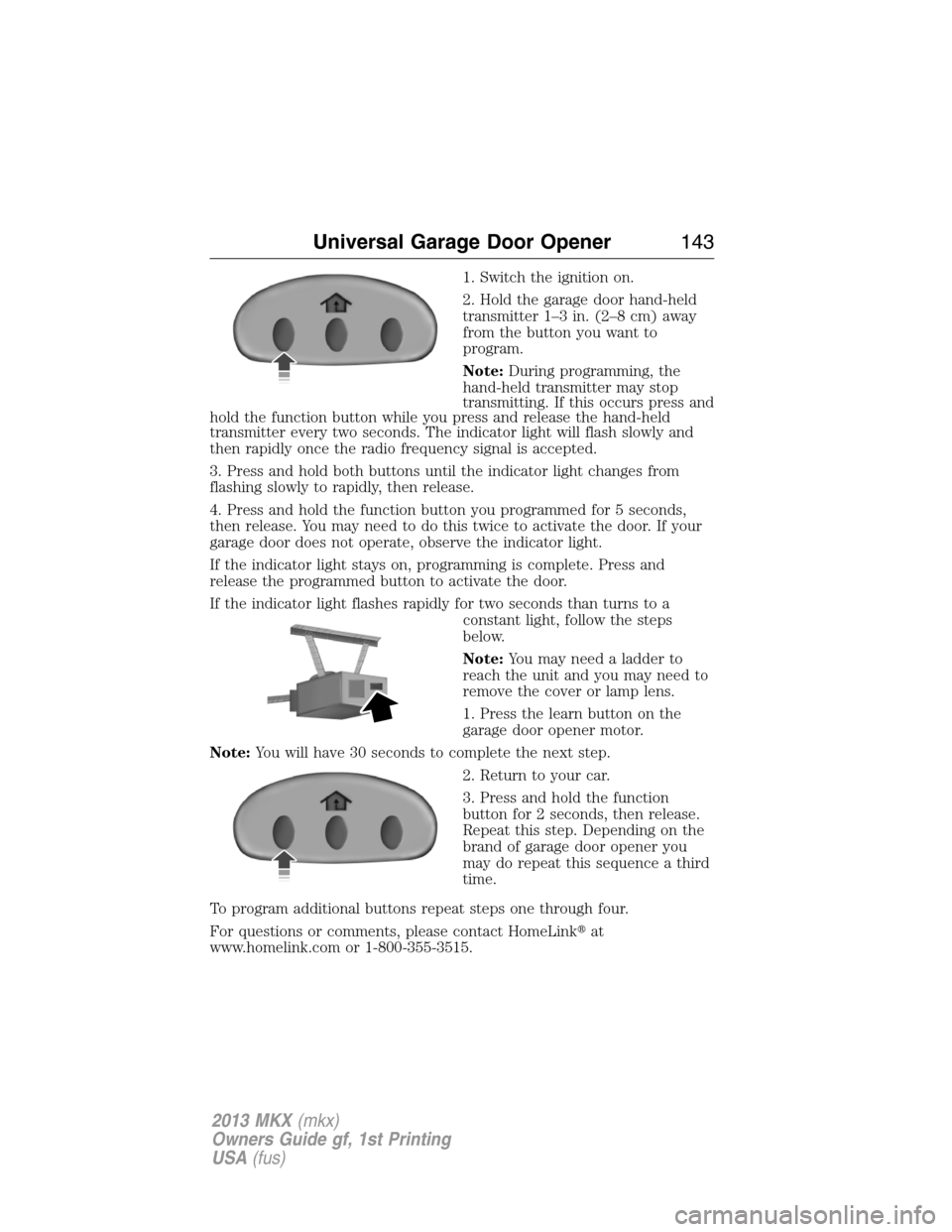

1. Switch the ignition on.
2. Hold the garage door hand-held
transmitter 1–3 in. (2–8 cm) away
from the button you want to
program.
Note:During programming, the
hand-held transmitter may stop
transmitting. If this occurs press and
hold the function button while you press and release the hand-held
transmitter every two seconds. The indicator light will flash slowly and
then rapidly once the radio frequency signal is accepted.
3. Press and hold both buttons until the indicator light changes from
flashing slowly to rapidly, then release.
4. Press and hold the function button you programmed for 5 seconds,
then release. You may need to do this twice to activate the door. If your
garage door does not operate, observe the indicator light.
If the indicator light stays on, programming is complete. Press and
release the programmed button to activate the door.
If the indicator light flashes rapidly for two seconds than turns to a
constant light, follow the steps
below.
Note:You may need a ladder to
reach the unit and you may need to
remove the cover or lamp lens.
1. Press the learn button on the
garage door opener motor.
Note:You will have 30 seconds to complete the next step.
2. Return to your car.
3. Press and hold the function
button for 2 seconds, then release.
Repeat this step. Depending on the
brand of garage door opener you
may do repeat this sequence a third
time.
To program additional buttons repeat steps one through four.
For questions or comments, please contact HomeLinkat
www.homelink.com or 1-800-355-3515.
Universal Garage Door Opener143
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

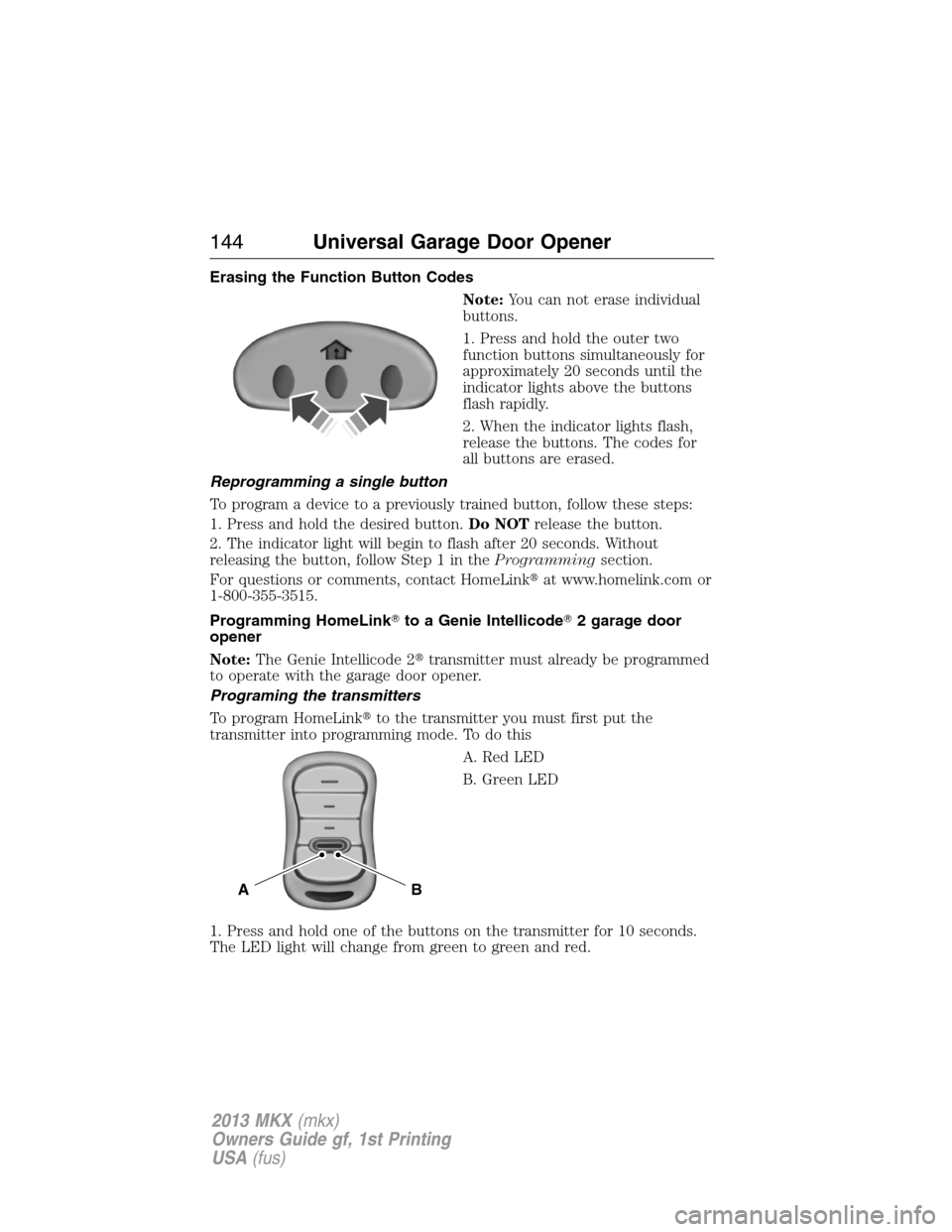

Erasing the Function Button Codes
Note:You can not erase individual
buttons.
1. Press and hold the outer two
function buttons simultaneously for
approximately 20 seconds until the
indicator lights above the buttons
flash rapidly.
2. When the indicator lights flash,
release the buttons. The codes for
all buttons are erased.
Reprogramming a single button
To program a device to a previously trained button, follow these steps:
1. Press and hold the desired button.Do NOTrelease the button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the button, follow Step 1 in theProgrammingsection.
For questions or comments, contact HomeLinkat www.homelink.com or
1-800-355-3515.
Programming HomeLinkto a Genie Intellicode2 garage door
opener
Note:The Genie Intellicode 2transmitter must already be programmed
to operate with the garage door opener.
Programing the transmitters
To program HomeLinkto the transmitter you must first put the
transmitter into programming mode. To do this
A. Red LED
B. Green LED
1. Press and hold one of the buttons on the transmitter for 10 seconds.
The LED light will change from green to green and red.
BA
144Universal Garage Door Opener
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

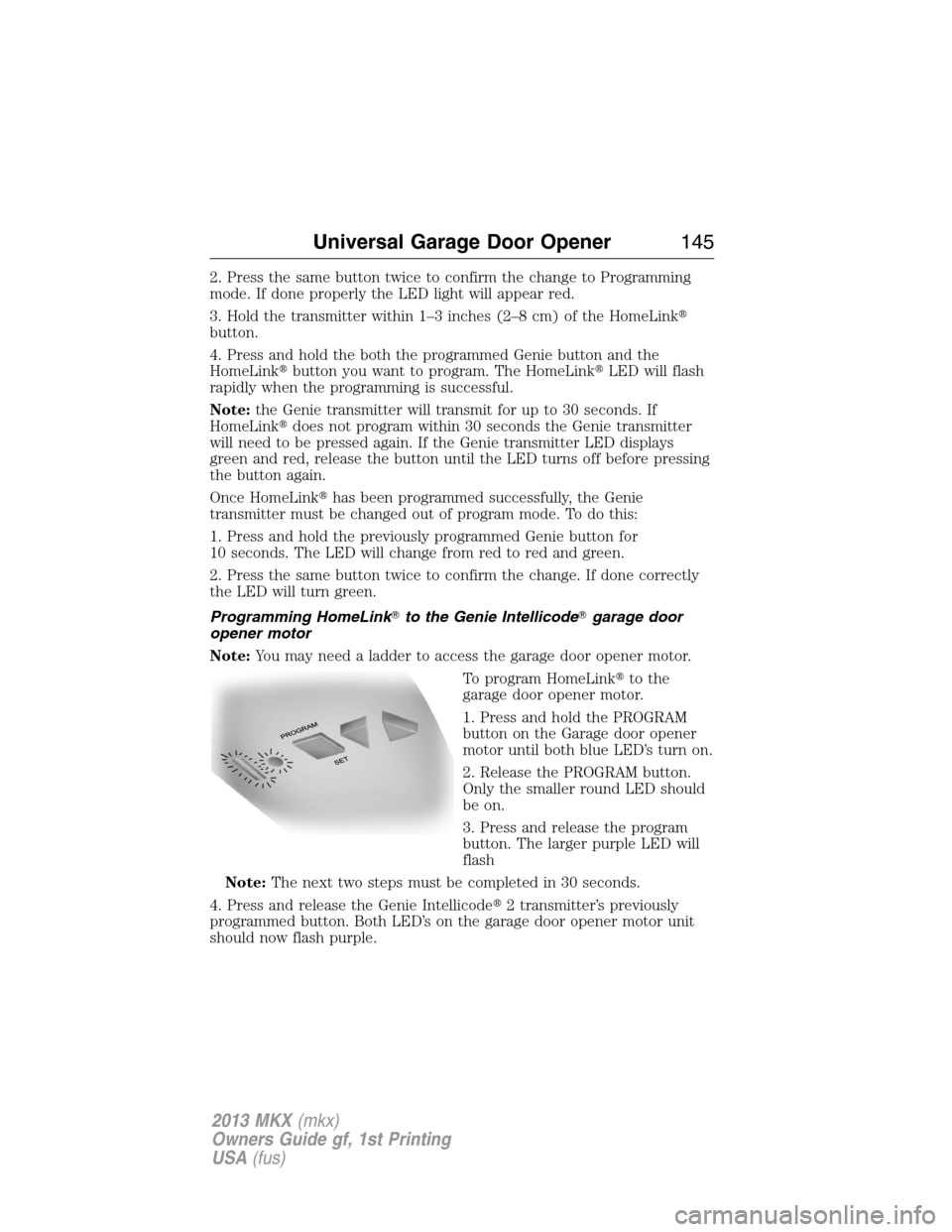

2. Press the same button twice to confirm the change to Programming
mode. If done properly the LED light will appear red.
3. Hold the transmitter within 1–3 inches (2–8 cm) of the HomeLink
button.
4. Press and hold the both the programmed Genie button and the
HomeLinkbutton you want to program. The HomeLinkLED will flash
rapidly when the programming is successful.
Note:the Genie transmitter will transmit for up to 30 seconds. If
HomeLinkdoes not program within 30 seconds the Genie transmitter
will need to be pressed again. If the Genie transmitter LED displays
green and red, release the button until the LED turns off before pressing
the button again.
Once HomeLinkhas been programmed successfully, the Genie
transmitter must be changed out of program mode. To do this:
1. Press and hold the previously programmed Genie button for
10 seconds. The LED will change from red to red and green.
2. Press the same button twice to confirm the change. If done correctly
the LED will turn green.
Programming HomeLinkto the Genie Intellicodegarage door
opener motor
Note:You may need a ladder to access the garage door opener motor.
To program HomeLinkto the
garage door opener motor.
1. Press and hold the PROGRAM
button on the Garage door opener
motor until both blue LED’s turn on.
2. Release the PROGRAM button.
Only the smaller round LED should
be on.
3. Press and release the program
button. The larger purple LED will
flash
Note:The next two steps must be completed in 30 seconds.
4. Press and release the Genie Intellicode2 transmitter’s previously
programmed button. Both LED’s on the garage door opener motor unit
should now flash purple.
Universal Garage Door Opener145
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

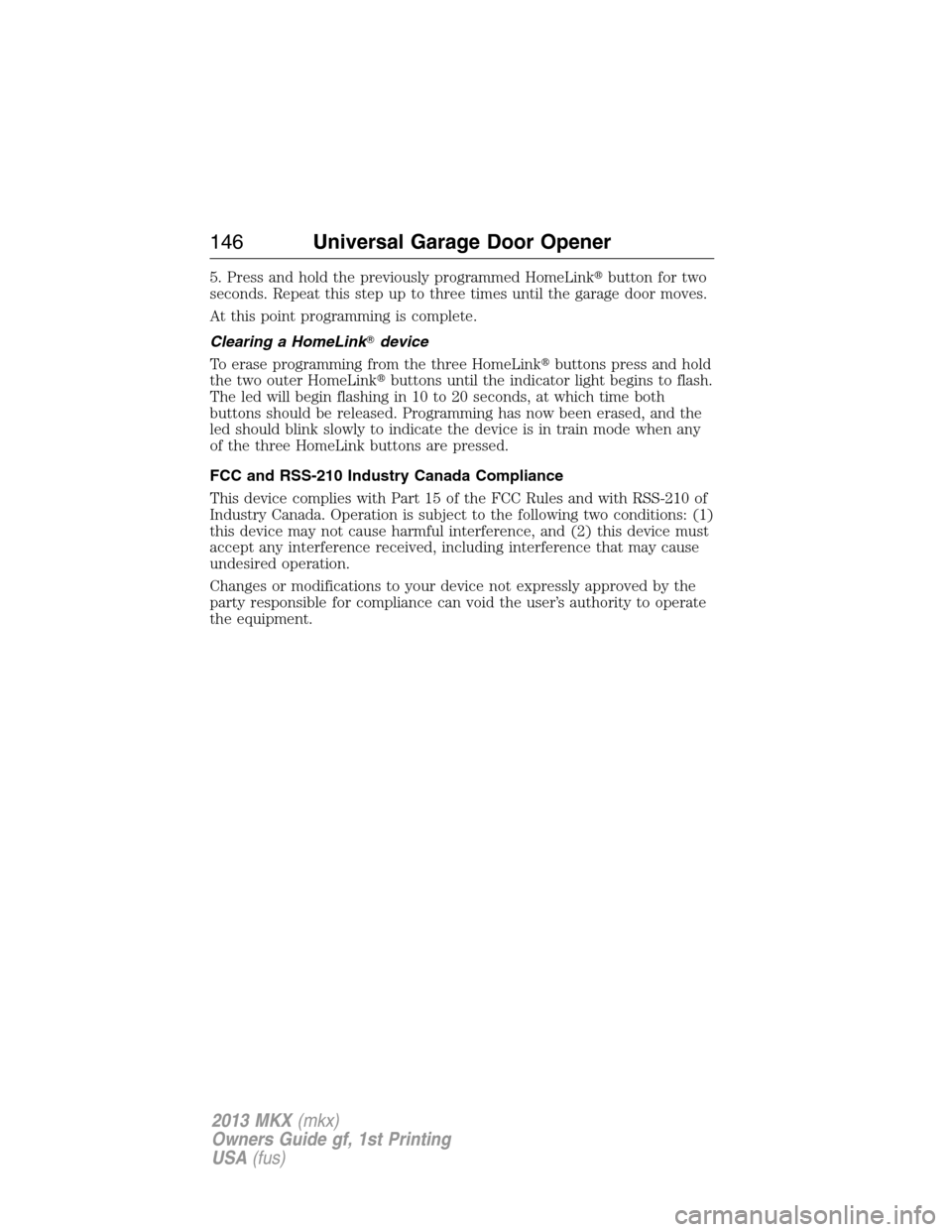

5. Press and hold the previously programmed HomeLinkbutton for two
seconds. Repeat this step up to three times until the garage door moves.
At this point programming is complete.
Clearing a HomeLinkdevice
To erase programming from the three HomeLinkbuttons press and hold
the two outer HomeLinkbuttons until the indicator light begins to flash.
The led will begin flashing in 10 to 20 seconds, at which time both
buttons should be released. Programming has now been erased, and the
led should blink slowly to indicate the device is in train mode when any
of the three HomeLink buttons are pressed.
FCC and RSS-210 Industry Canada Compliance
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Changes or modifications to your device not expressly approved by the
party responsible for compliance can void the user’s authority to operate
the equipment.
146Universal Garage Door Opener
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

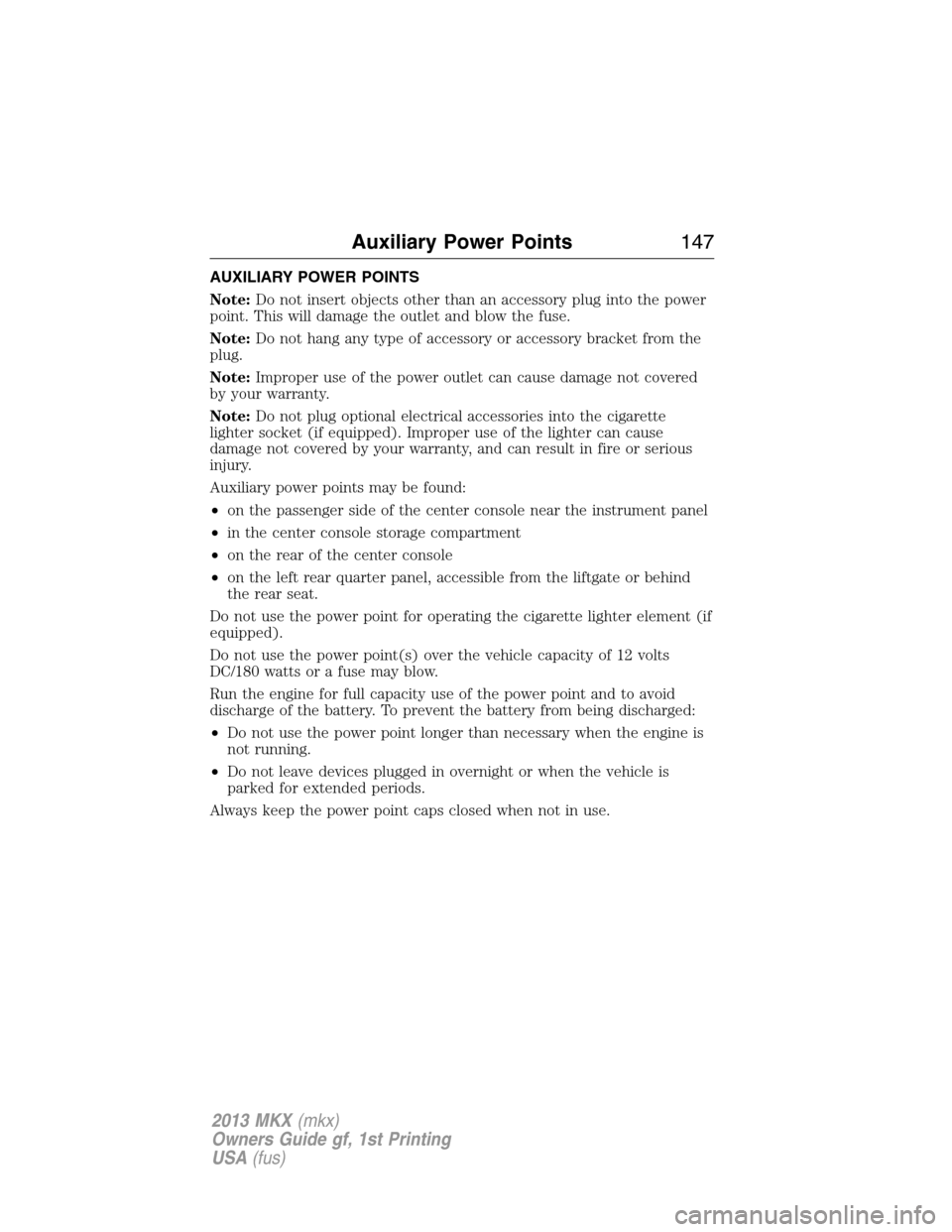

AUXILIARY POWER POINTS
Note:Do not insert objects other than an accessory plug into the power
point. This will damage the outlet and blow the fuse.
Note:Do not hang any type of accessory or accessory bracket from the
plug.
Note:Improper use of the power outlet can cause damage not covered
by your warranty.
Note:Do not plug optional electrical accessories into the cigarette
lighter socket (if equipped). Improper use of the lighter can cause
damage not covered by your warranty, and can result in fire or serious
injury.
Auxiliary power points may be found:
•on the passenger side of the center console near the instrument panel
•in the center console storage compartment
•on the rear of the center console
•on the left rear quarter panel, accessible from the liftgate or behind
the rear seat.
Do not use the power point for operating the cigarette lighter element (if
equipped).
Do not use the power point(s) over the vehicle capacity of 12 volts
DC/180 watts or a fuse may blow.
Run the engine for full capacity use of the power point and to avoid
discharge of the battery. To prevent the battery from being discharged:
•Do not use the power point longer than necessary when the engine is
not running.
•Do not leave devices plugged in overnight or when the vehicle is
parked for extended periods.
Always keep the power point caps closed when not in use.
Auxiliary Power Points147
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

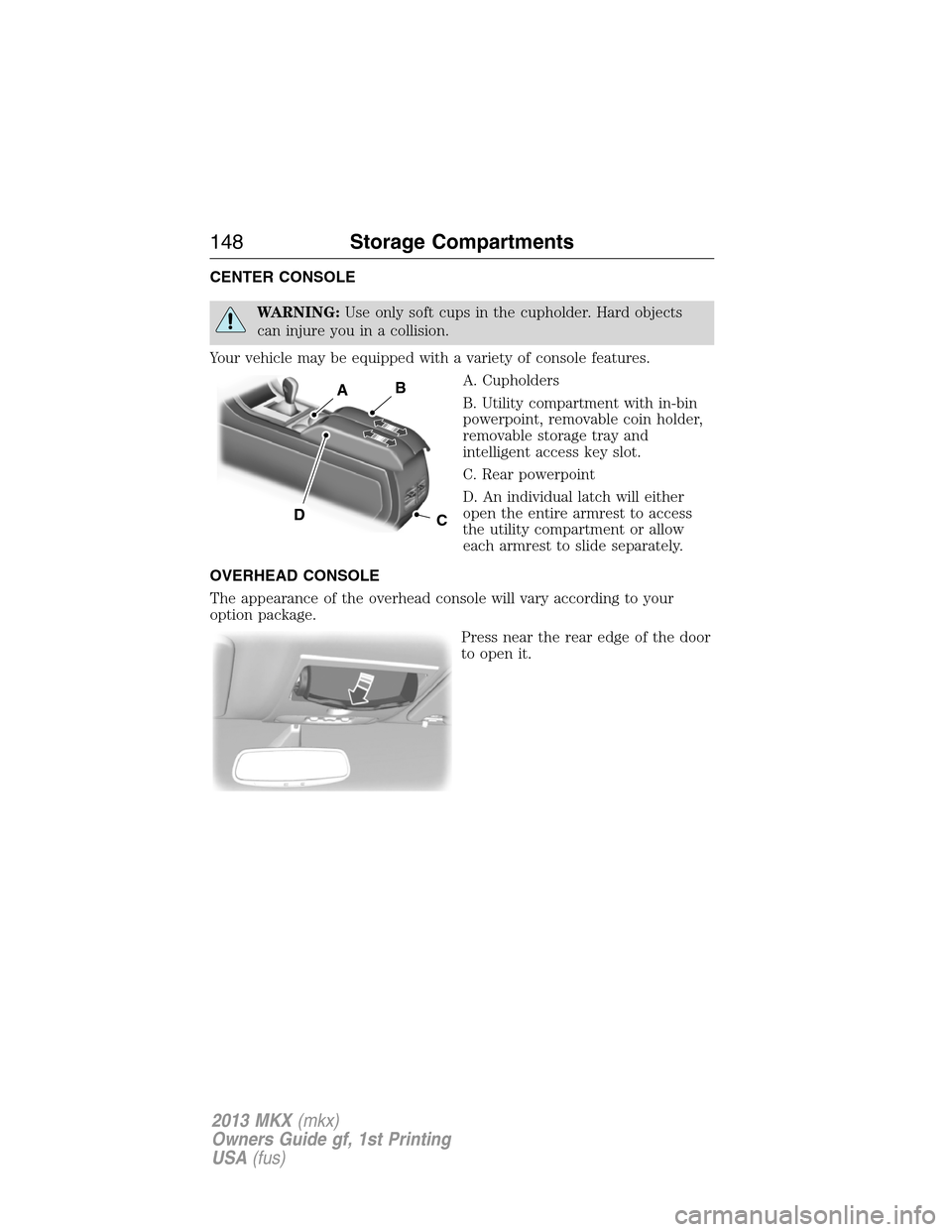

CENTER CONSOLE
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
Your vehicle may be equipped with a variety of console features.
A. Cupholders
B. Utility compartment with in-bin
powerpoint, removable coin holder,
removable storage tray and
intelligent access key slot.
C. Rear powerpoint
D. An individual latch will either
open the entire armrest to access
the utility compartment or allow
each armrest to slide separately.
OVERHEAD CONSOLE
The appearance of the overhead console will vary according to your
option package.
Press near the rear edge of the door
to open it.
AB
CD
148Storage Compartments
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

GENERAL INFORMATION
WARNING:Extended idling at high engine speeds can produce
very high temperatures in the engine and exhaust system,
creating the risk of fire or other damage.
WARNING:Do not park, idle, or drive your vehicle on dry grass
or other dry ground cover. The emission system heats up the
engine compartment and exhaust system, which can start a fire.
WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
WARNING:If you smell exhaust fumes inside your vehicle, have
your vehicle checked by an authorized dealer immediately. Do not
drive if you smell exhaust fumes.
If you disconnect the battery, your vehicle may exhibit some unusual
driving characteristics for approximately 5 miles (8 km) after you
connect it. This is because the engine management system must realign
itself with the engine. You may disregard any unusual driving
characteristics during this period.
This system meets all Canadian interference-causing equipment standard
requirements regulating the impulse electrical field strength of radio
noise.
When starting your engine, avoid pressing the accelerator pedal before
and during operation. Only use the accelerator pedal when you have
difficulty starting the engine.
IGNITION
1. Off – Press and release the start button without applying the brake
pedal when your vehicle is in on mode or when the engine is running,
and there is no vehicle speed. This position shuts the engine and all
electrical accessories off.
Note:In order to switch off the engine while the vehicle is in motion,
press and hold the start button for approximately one second or press
the start button three times within two seconds. Then, shift to neutral
and use the brakes to bring the vehicle to a safe stop. After the vehicle
has stopped, turn the engine off and shift to park.
Starting and Stopping the Engine149
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

2. Accessory– Press and release the start button without applying the
brake pedal. This allows electrical accessories such as the radio to
operate while the engine is not running.
3. On – Press and release the start button once from accessory mode or
twice from off without applying the brake pedal. This will power your
vehicle’s electrical system and the warning lights in the instrument
cluster will illuminate, but the engine will remain off.
4. Start – Press the start button (for any length of time) while applying
the brake pedal. This cranks the engine.
KEYLESS STARTING
WARNING:The keyless starting system may not function if the
key is close to metal objects or electronic devices such as mobile
phones.
Note:A valid passive key must be located inside the vehicle to switch
the ignition on and start the engine.
To turn the ignition on, press the start button once. It
is located on the instrument panel to the right of the
steering wheel. All electrical circuits and accessories are
operational, and warning lamps and indicators will
illuminate.
To start the vehicle, do the following:
1. Make sure the transmission is in P (Park).
2. Fully press the brake pedal.
3. Press the start button.
To turn the ignition off, press the start button when the vehicle is on or
the engine is running.
The passive starting system will not function if:
•the passive key frequencies are jammed.
•the passive key battery is dead.
START
STOP ENGINE
150Starting and Stopping the Engine
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
