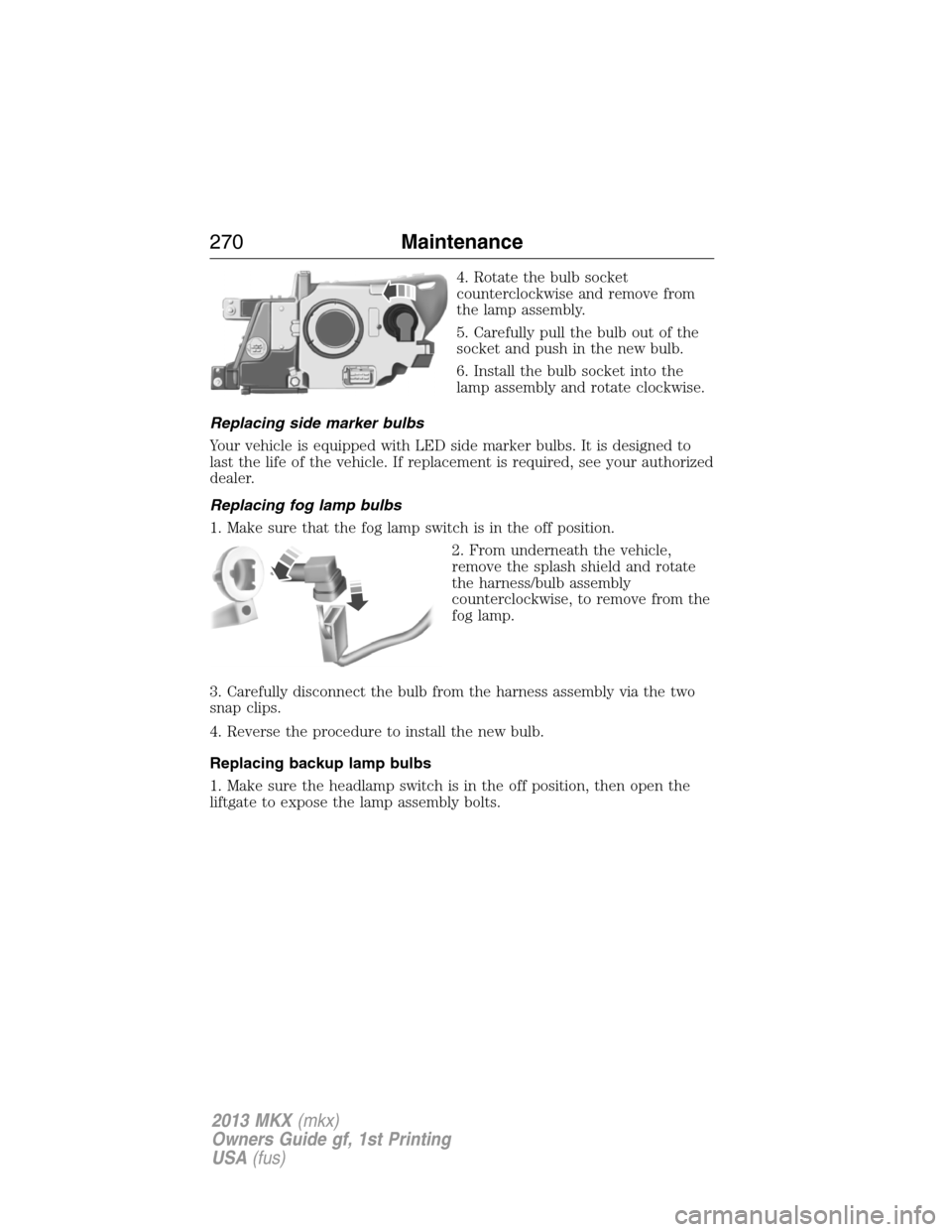

4. Rotate the bulb socket
counterclockwise and remove from
the lamp assembly.
5. Carefully pull the bulb out of the
socket and push in the new bulb.
6. Install the bulb socket into the
lamp assembly and rotate clockwise.
Replacing side marker bulbs
Your vehicle is equipped with LED side marker bulbs. It is designed to
last the life of the vehicle. If replacement is required, see your authorized
dealer.
Replacing fog lamp bulbs
1. Make sure that the fog lamp switch is in the off position.
2. From underneath the vehicle,
remove the splash shield and rotate
the harness/bulb assembly
counterclockwise, to remove from the
fog lamp.
3. Carefully disconnect the bulb from the harness assembly via the two
snap clips.
4. Reverse the procedure to install the new bulb.
Replacing backup lamp bulbs
1. Make sure the headlamp switch is in the off position, then open the
liftgate to expose the lamp assembly bolts.
270Maintenance
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

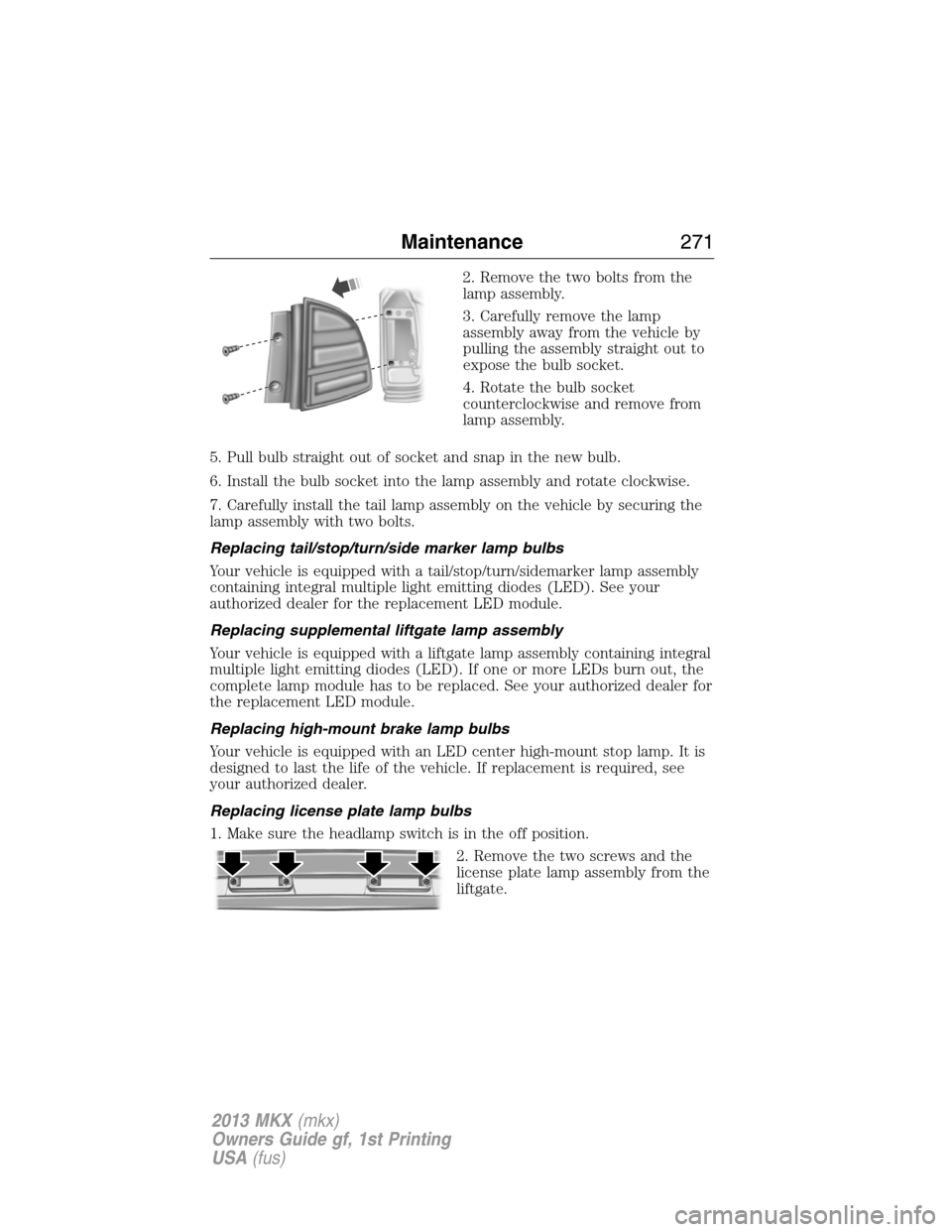

2. Remove the two bolts from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket.
4. Rotate the bulb socket
counterclockwise and remove from
lamp assembly.
5. Pull bulb straight out of socket and snap in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle by securing the
lamp assembly with two bolts.
Replacing tail/stop/turn/side marker lamp bulbs
Your vehicle is equipped with a tail/stop/turn/sidemarker lamp assembly
containing integral multiple light emitting diodes (LED). See your
authorized dealer for the replacement LED module.
Replacing supplemental liftgate lamp assembly
Your vehicle is equipped with a liftgate lamp assembly containing integral
multiple light emitting diodes (LED). If one or more LEDs burn out, the
complete lamp module has to be replaced. See your authorized dealer for
the replacement LED module.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is in the off position.
2. Remove the two screws and the
license plate lamp assembly from the
liftgate.
Maintenance271
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

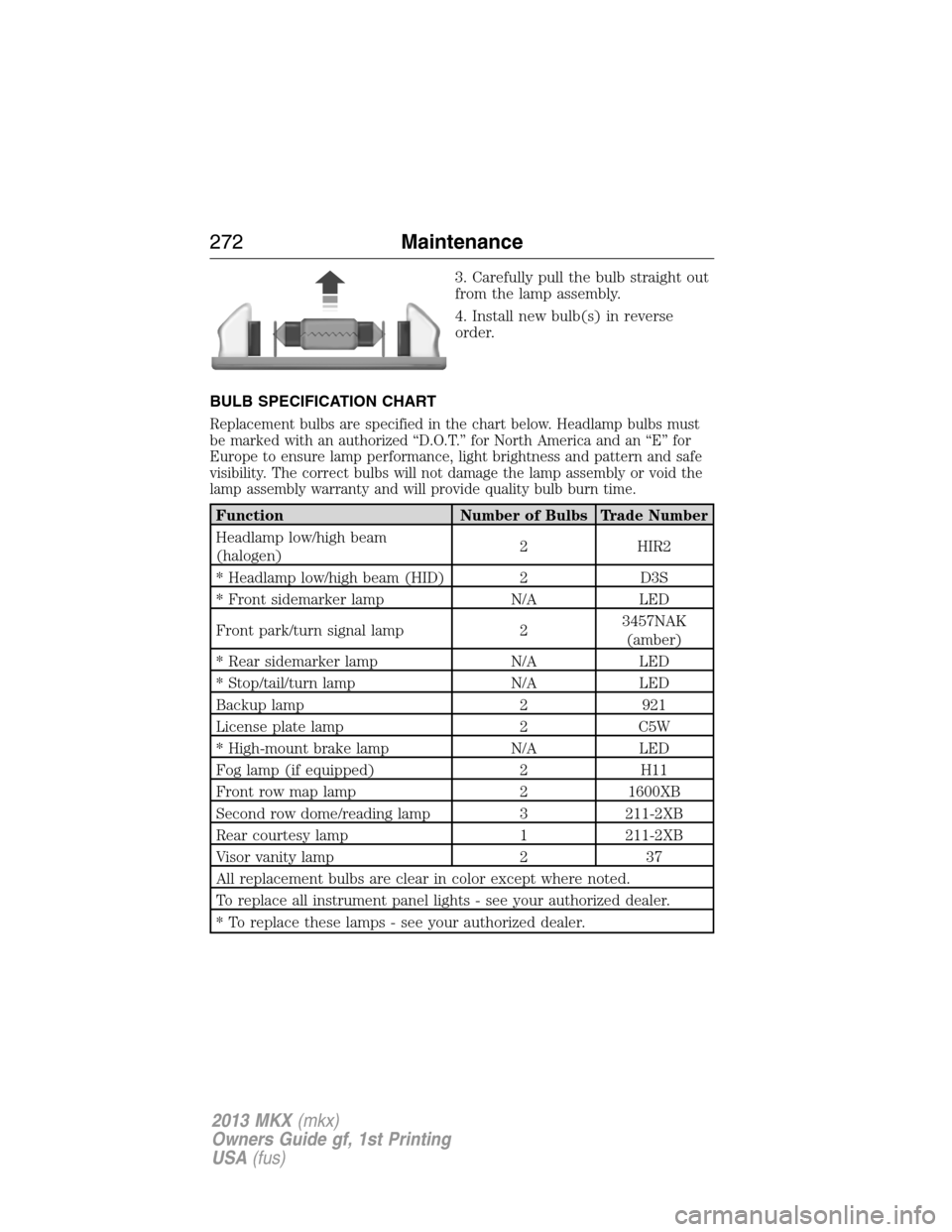

3. Carefully pull the bulb straight out
from the lamp assembly.
4. Install new bulb(s) in reverse
order.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs must
be marked with an authorized “D.O.T.” for North America and an “E” for
Europe to ensure lamp performance, light brightness and pattern and safe
visibility. The correct bulbs will not damage the lamp assembly or void the
lamp assembly warranty and will provide quality bulb burn time.
Function Number of Bulbs Trade Number
Headlamp low/high beam
(halogen)2 HIR2
* Headlamp low/high beam (HID) 2 D3S
* Front sidemarker lamp N/A LED
Front park/turn signal lamp 23457NAK
(amber)
* Rear sidemarker lamp N/A LED
* Stop/tail/turn lamp N/A LED
Backup lamp 2 921
License plate lamp 2 C5W
* High-mount brake lamp N/A LED
Fog lamp (if equipped) 2 H11
Front row map lamp 2 1600XB
Second row dome/reading lamp 3 211-2XB
Rear courtesy lamp 1 211-2XB
Visor vanity lamp 2 37
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer.
* To replace these lamps - see your authorized dealer.
272Maintenance
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

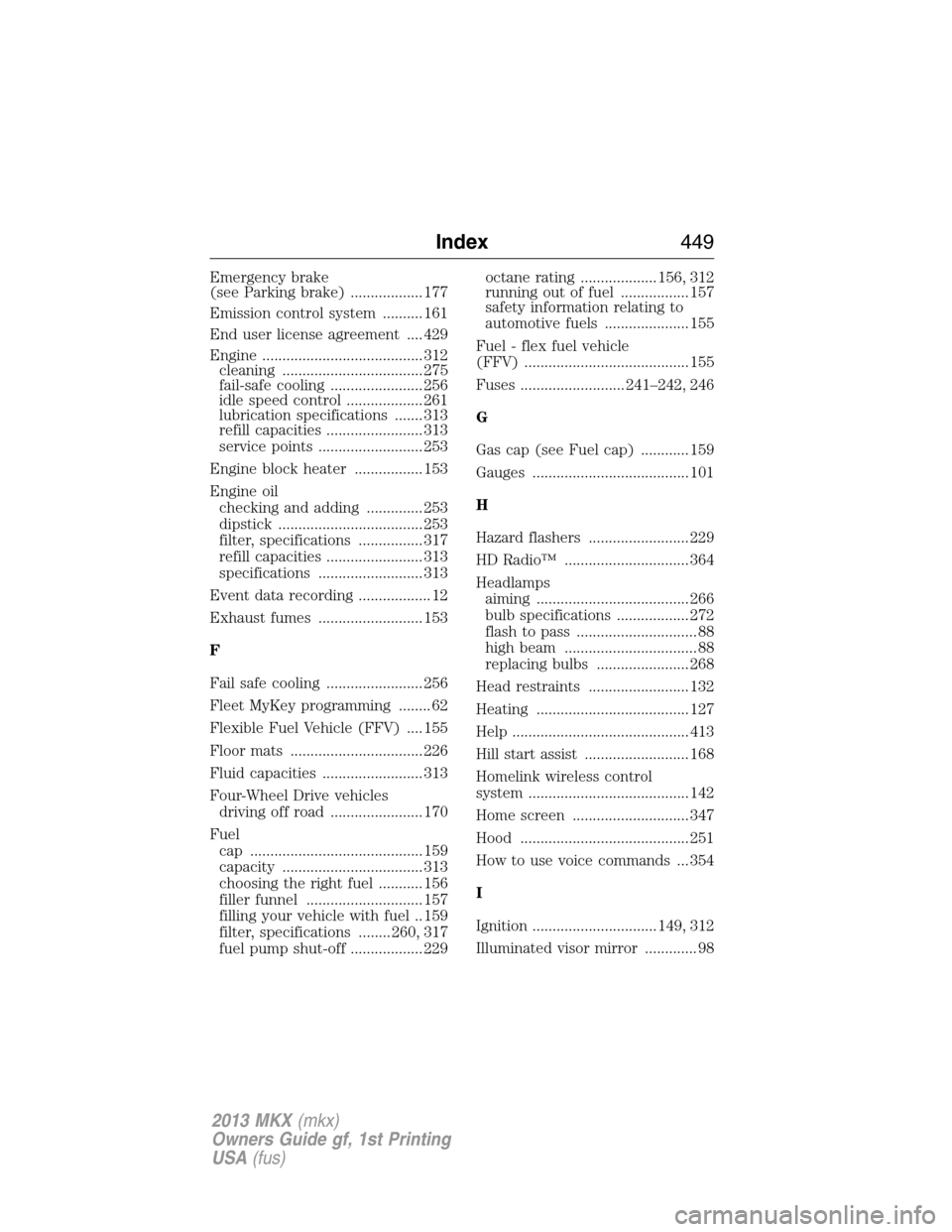

Emergency brake
(see Parking brake) .................. 177
Emission control system .......... 161
End user license agreement .... 429
Engine ........................................ 312
cleaning ................................... 275
fail-safe cooling ....................... 256
idle speed control ................... 261
lubrication specifications ....... 313
refill capacities ........................ 313
service points .......................... 253
Engine block heater ................. 153
Engine oil
checking and adding .............. 253
dipstick .................................... 253
filter, specifications ................ 317
refill capacities ........................ 313
specifications .......................... 313
Event data recording .................. 12
Exhaust fumes .......................... 153
F
Fail safe cooling ........................ 256
Fleet MyKey programming ........ 62
Flexible Fuel Vehicle (FFV) .... 155
Floor mats ................................. 226
Fluid capacities ......................... 313
Four-Wheel Drive vehicles
driving off road ....................... 170
Fuel
cap ........................................... 159
capacity ................................... 313
choosing the right fuel ........... 156
filler funnel ............................. 157
filling your vehicle with fuel .. 159
filter, specifications ........ 260, 317
fuel pump shut-off .................. 229octane rating ................... 156, 312
running out of fuel ................. 157
safety information relating to
automotive fuels ..................... 155
Fuel - flex fuel vehicle
(FFV) ......................................... 155
Fuses .......................... 241–242, 246
G
Gas cap (see Fuel cap) ............ 159
Gauges ....................................... 101
H
Hazard flashers ......................... 229
HD Radio™ ............................... 364
Headlamps
aiming ...................................... 266
bulb specifications .................. 272
flash to pass .............................. 88
high beam ................................. 88
replacing bulbs ....................... 268
Head restraints ......................... 132
Heating ...................................... 127
Help ............................................ 413
Hill start assist .......................... 168
Homelink wireless control
system ........................................ 142
Home screen ............................. 347
Hood .......................................... 251
How to use voice commands ... 354
I
Ignition ............................... 149, 312
Illuminated visor mirror ............. 98
Index449
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Information displays ................. 107
Infotainment display ................. 352
Inspection/maintenance (I/M)
testing ........................................ 163
Instrument panel
cleaning ................................... 277
cluster ...................................... 101
Intelligent Access Key ................ 56
J
Jack ............................................ 305
positioning ............................... 305
storage ..................................... 305
Jump-starting your vehicle ...... 230
K
Keyless entry system
autolock ..................................... 70
keypad ....................................... 75
locking and unlocking doors .... 77
programming entry code ......... 75
Keys ............................................. 78
positions of the ignition ......... 149
L
Lamps
bulb replacement
specifications chart ................ 272
headlamps, flash to pass .......... 88
interior lamps ..................... 92–93
replacing bulbs ....................... 268
LATCH anchors ........................... 26
Liftgate .......................... 69, 72, 209
Lights, warning and indicator .. 101
Listening to music .................... 360
Loading pictures ....................... 406Load limits ................................. 209
Locks
autolock ..................................... 70
childproof .................................. 30
doors .......................................... 68
Lubricant specifications ........... 313
Lug nuts .................................... 310
M
Making and receiving calls ....... 388
MAP DVD - Loading and
Unloading .................................. 388
Map icons .................................. 424
Map mode .................................. 423
Map preferences ....................... 422
Map updates .............................. 427
Message center ......................... 107
warning messages ................... 114
Mirrors ................................... 95, 97
fold away ................................... 96
programmable memory ............ 58
side view mirrors (power) ....... 95
Moon roof .................................... 98
Motorcraftparts .............. 273, 317
MyFord Touch™ system .......... 345
MyKey .......................................... 62
MyLincoln Touch™ system ...... 125
N
Navigation features ................... 417
Navigation voice commands .... 427
Notifications .............................. 401
O
Octane rating ............................ 156
450Index
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
