headlamp LINCOLN MKX 2013 Owners Manual

MyKey 62
Settings, MyKey.......................................62
Creating.............................................63
Clearing.............................................63
System status.........................................64
Remote start, MyKey...................................64
Troubleshooting, MyKey.................................66
Locks 68
Locking and unlocking..................................68
SecuriCode™ keyless entry keypad.........................75
Security 78
SecuriLockpassive anti-theft system.......................78
Anti-theft alarm.......................................80
Steering Wheel 81
Adjusting the steering wheel..............................81
Steering wheel controls..................................83
Wipers and Washers 86
Windshield wipers......................................86
Rain-sensing wipers....................................86
Windshield washers.....................................87
Rear-window wiper and washer............................87
Lighting 88
Lighting control.......................................88
Autolamps...........................................89
Instrument lighting dimmer...............................89
Headlamp exit delay....................................90
Daytime running lamps..................................90
Front fog lamps.......................................91
Adaptive headlamps....................................91
Directionindicators ....................................92
Interior lamps.........................................92
2Table of Contents
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Customer Assistance 233
Reporting safety defects (U.S. only)........................239
Reporting safety defects (Canada only).....................240
Fuses 241
Changing a fuse......................................241
Fuses and relays......................................241
Fuse specification chart.................................242
Maintenance 250
General information...................................250
Opening and closing the hood............................251
Under hood overview..................................252
Engine oil dipstick....................................253
Engine oil check......................................253
Engine coolant check..................................254
Automatic transmission fluid check........................258
Brake fluid check.....................................260
Fuel filter...........................................260
Washer fluid check....................................261
Changing the vehicle battery.............................261
Checking the wiper blades...............................263
Changing the wiper blades...............................264
Air filter(s)..........................................265
Adjusting the headlamps................................266
Changing a bulb......................................267
Bulb specification chart.................................272
6Table of Contents
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Note:The doors will not autounlock if the vehicle has been electronically
locked after the ignition is turned off and before the driver door is
opened.
Deactivating or Activating
Note:The autolock and autounlock features can be activated or
deactivated independently of each other.
These features can be activated or deactivated:
•through your authorized dealer
•by using the information display.
Illuminated Entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the intelligent access key or the keyless entry keypad is
used to unlock the vehicle.
The system will turn off the lights if:
•the ignition is turned on
•the lock button on the remote control is pressed
•the vehicle is locked using the keyless entry keypad
•after 25 seconds of illumination.
The lights will not turn off if:
•they have been turned on with the dimmer control
•any door is open.
Illuminated Exit
The interior dome lamps, parking lamps and puddle lamps (if equipped)
will illuminate when all doors are closed and the ignition is turned off.
The lights will turn off if all the doors remain closed and:
•25 seconds elapse
•the START/STOP button is pressed.
Battery Saver
If the courtesy lamps, dome lamps or headlamps are left on, the battery
saver will shut them off 10 minutes after the ignition has been turned off.
Accessory Mode Battery Saver for Intelligent Access Keys
If you shut off the engine and leave the ignition in the on or accessory
mode, the ignition will shut off after 30 minutes.
Locks71
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

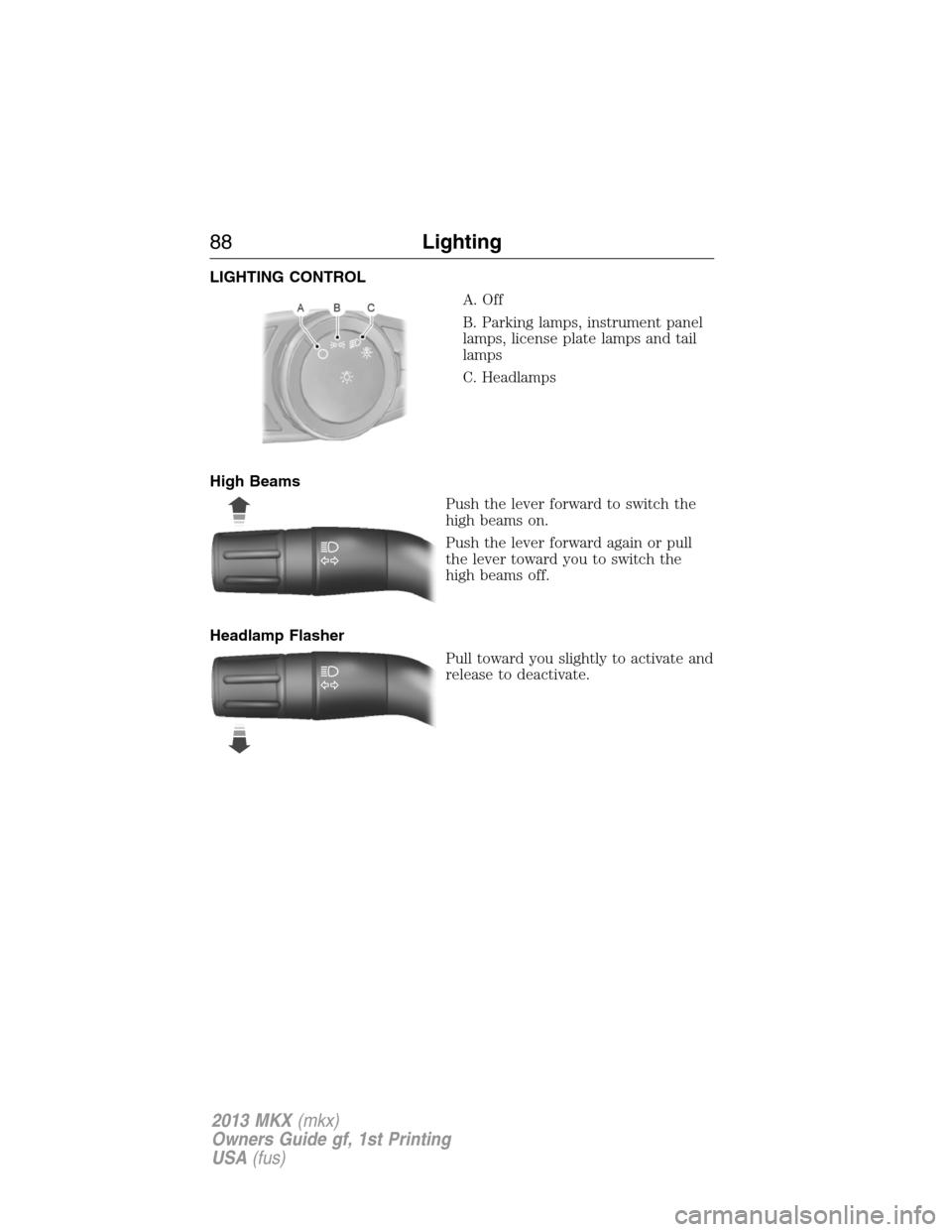

LIGHTING CONTROL
A. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams
Push the lever forward to switch the
high beams on.
Push the lever forward again or pull
the lever toward you to switch the
high beams off.
Headlamp Flasher
Pull toward you slightly to activate and
release to deactivate.
88Lighting
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

AUTOLAMPS
WARNING:In severe weather conditions, it may be necessary to
switch your headlamps on manually.
Note:If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature.When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The headlamps will remain on for a
period of time after you switch the
ignition off. You can adjust the time
delay using the message center in
the instrument cluster. See
Information displays.
INSTRUMENT LIGHTING DIMMER
Press repeatedly or press and hold
until the desired level is reached.
Note:In the uplevel message center
only, a message will pop up that will
show incrementally where the
dimmer is in relation to the dimming
steps. These steps will also vary for
daytime and night time dimming.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer will set the illuminated components to the
maximum setting automatically.
Lighting89
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

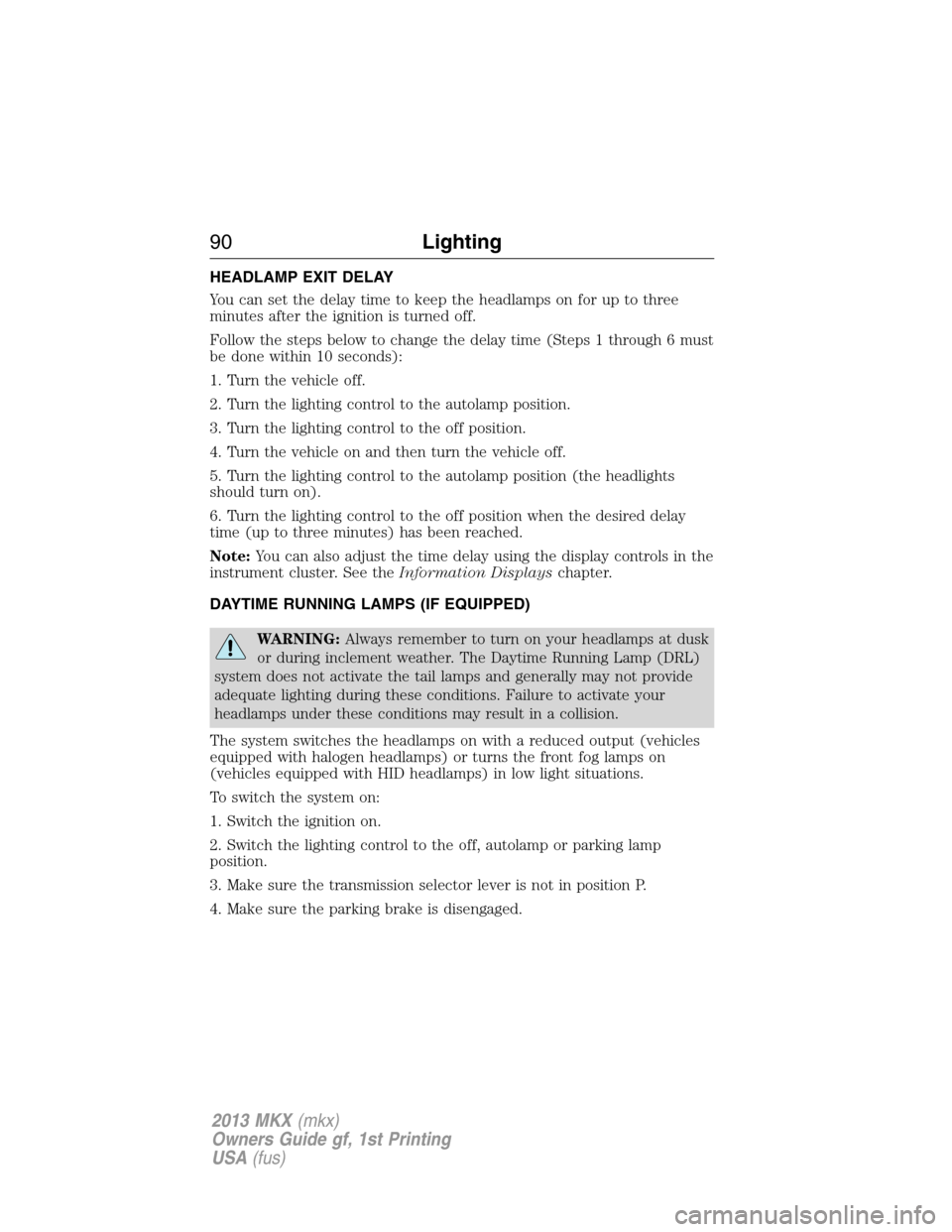

HEADLAMP EXIT DELAY
You can set the delay time to keep the headlamps on for up to three
minutes after the ignition is turned off.
Follow the steps below to change the delay time (Steps 1 through 6 must
be done within 10 seconds):
1. Turn the vehicle off.
2. Turn the lighting control to the autolamp position.
3. Turn the lighting control to the off position.
4. Turn the vehicle on and then turn the vehicle off.
5. Turn the lighting control to the autolamp position (the headlights
should turn on).
6. Turn the lighting control to the off position when the desired delay
time (up to three minutes) has been reached.
Note:You can also adjust the time delay using the display controls in the
instrument cluster. See theInformation Displayschapter.
DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at dusk
or during inclement weather. The Daytime Running Lamp (DRL)
system does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
The system switches the headlamps on with a reduced output (vehicles
equipped with halogen headlamps) or turns the front fog lamps on
(vehicles equipped with HID headlamps) in low light situations.
To switch the system on:
1. Switch the ignition on.
2. Switch the lighting control to the off, autolamp or parking lamp
position.
3. Make sure the transmission selector lever is not in position P.
4. Make sure the parking brake is disengaged.
90Lighting
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

FRONT FOG LAMPS
The fog lamps can be turned on when the
lighting control is in the headlamps, parking
lamps or autolamps positions and the high
beams are not turned on.
ADAPTIVE HEADLAMPS (if equipped)
The headlamp beams move in the same direction as the steering wheel
which provides more visibility when driving around curves.
A. Without adaptive headlamps
B. With adaptive headlamps
Note:
The system has a power-up movement check feature. When the
vehicle is started, the lamps track left to right, then back to center to alert
the driver that the system is working properly. There is a delay of two to
five seconds before the adaptive headlamp system will operate when the
vehicle is driven, as the system is inactive below 3 mph (5 km/h).
B
A
Lighting91
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Charging system (RTT)
Illuminates when the battery is not charging properly. If it stays
on while the engine is running, there may be a malfunction with
the charging system. Contact your authorized dealer as soon as
possible. This indicates a problem with the electrical system or a related
component.
Door ajar (RTT)
Displays when the ignition is on and any door is not completely
closed.
Engine oil pressure (RTT)
Illuminates when the oil pressure falls below the normal range.
Engine coolant temperature (RTT)
Illuminates when the engine coolant temperature is high. Stop
the vehicle as soon as possible, switch off the engine and let
cool.
Grade assist (if equipped) (RTT)
Illuminates when grade assist is turned on.
Heads up display (if equipped)
A red beam of lights will illuminate on the windshield in certain
instances when using adaptive cruise control and/or the collision
warning system. It will also illuminate momentarily when you
start your vehicle to make sure the display works.
High beams
Illuminates when the high-beam headlamps are on.
Low fuel (RTT)
Illuminates when the fuel level in the fuel tank is at or near
empty.
Instrument Cluster103
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

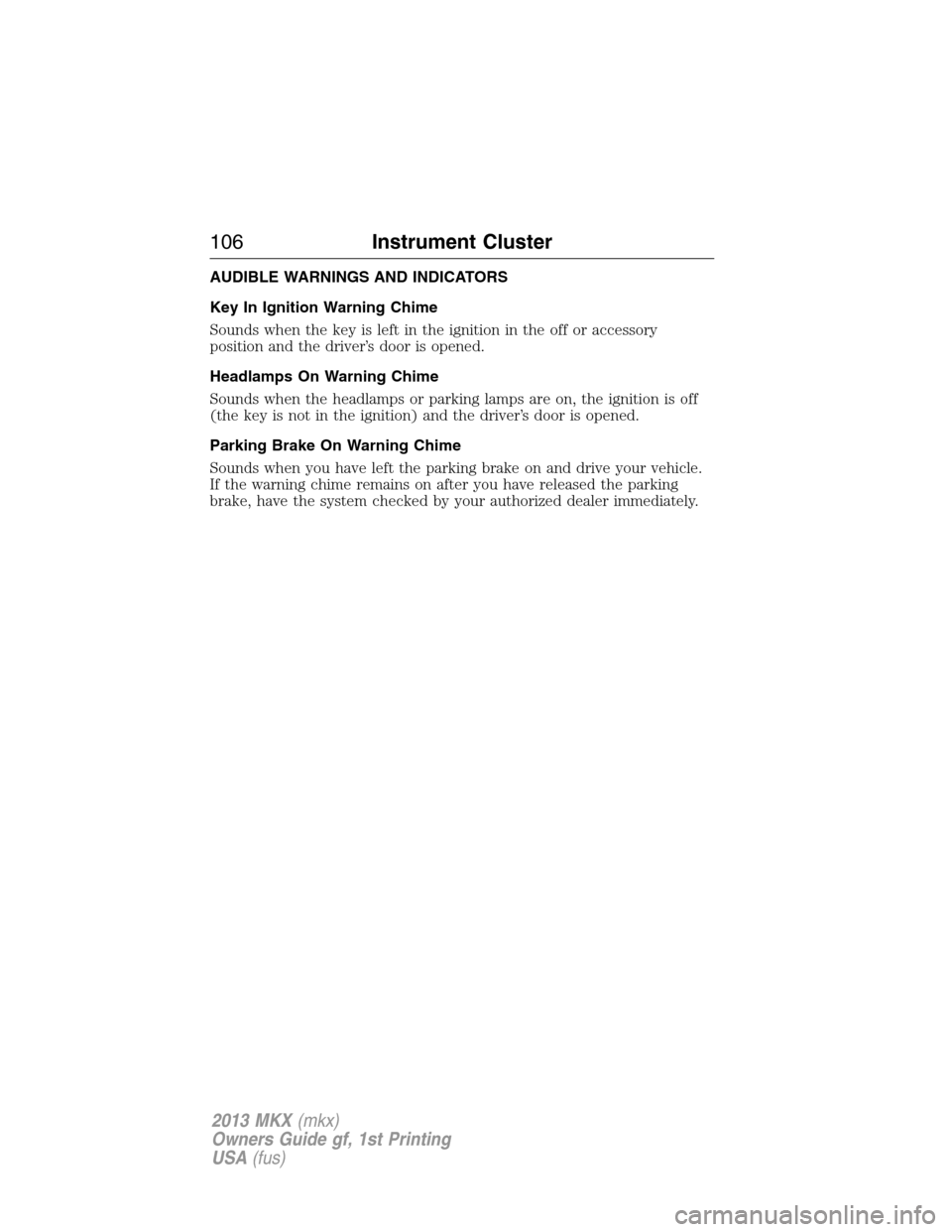

AUDIBLE WARNINGS AND INDICATORS
Key In Ignition Warning Chime
Sounds when the key is left in the ignition in the off or accessory
position and the driver’s door is opened.
Headlamps On Warning Chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(the key is not in the ignition) and the driver’s door is opened.
Parking Brake On Warning Chime
Sounds when you have left the parking brake on and drive your vehicle.
If the warning chime remains on after you have released the parking
brake, have the system checked by your authorized dealer immediately.
106Instrument Cluster
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)

Once the vehicle has started, the vehicle will remain running until being
turned off by the start button, even if the passive key is no longer found
in the vehicle. Whenever a door is opened and then closed while the
vehicle is running, the system will search for a passive key inside the
vehicle. If the passive key is no longer present in the vehicle, you will not
be able to restart your vehicle outside of the fast restart time.
Your vehicle may have remote start capability. Refer toRemote startin
theKeys and Remote Controlchapter.
STARTING A GASOLINE ENGINE
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
•Make sure all occupants buckle their safety belts.
•Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is set.
•Make sure the gearshift is in P (Park).
Some warning lights will briefly illuminate.
Note:Do not touch the accelerator pedal.
1. Select park or neutral.
2. Fully press the brake pedal.
3. Press the start button. The engine may continue cranking for up to
15 seconds or until the vehicle starts.
Note:If the engine does not start on the first try, wait for a short period
of time and try again.
If you have difficulty starting the engine when the temperature is below
-13°F (-25°C), press the accelerator pedal slightly and try again.
If the engine does not start after three attempts, wait 10 seconds and
follow this flooded engine procedure.
1. Select park or neutral.
2. Fully press the accelerator pedal and hold it there.
3. Fully press the brake pedal.
4. Start the engine.
152Starting and Stopping the Engine
2013 MKX(mkx)
Owners Guide gf, 1st Printing
USA(fus)
