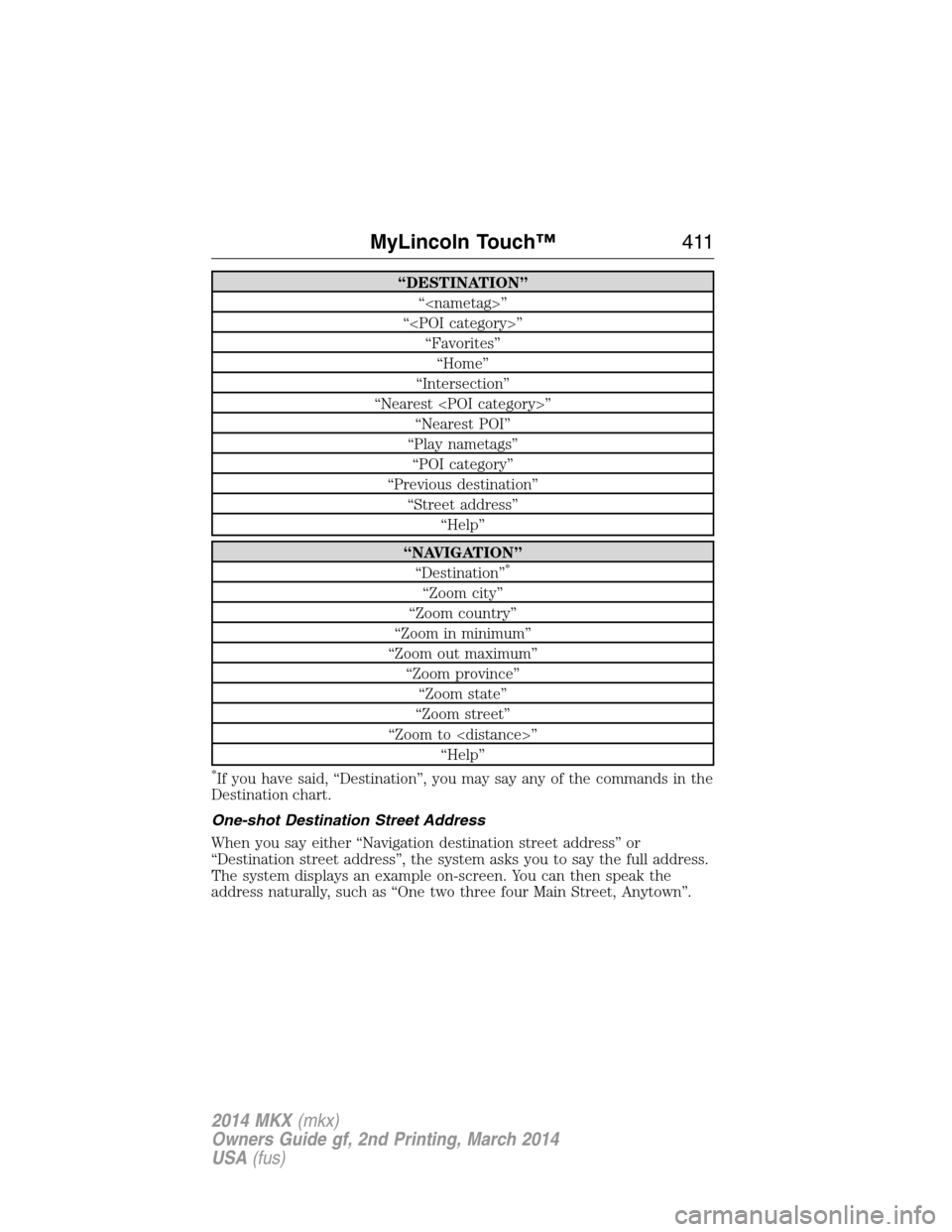

“DESTINATION”
“”
“”
“Favorites”
“Home”
“Intersection”
“Nearest ”
“Nearest POI”
“Play nametags”
“POI category”
“Previous destination”
“Street address”
“Help”
“NAVIGATION”
“Destination”*
“Zoom city”
“Zoom country”
“Zoom in minimum”
“Zoom out maximum”
“Zoom province”
“Zoom state”
“Zoom street”
“Zoom to ”
“Help”
*If you have said, “Destination”, you may say any of the commands in the
Destination chart.
One-shot Destination Street Address
When you say either “Navigation destination street address” or
“Destination street address”, the system asks you to say the full address.
The system displays an example on-screen. You can then speak the
address naturally, such as “One two three four Main Street, Anytown”.
MyLincoln Touch™411
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

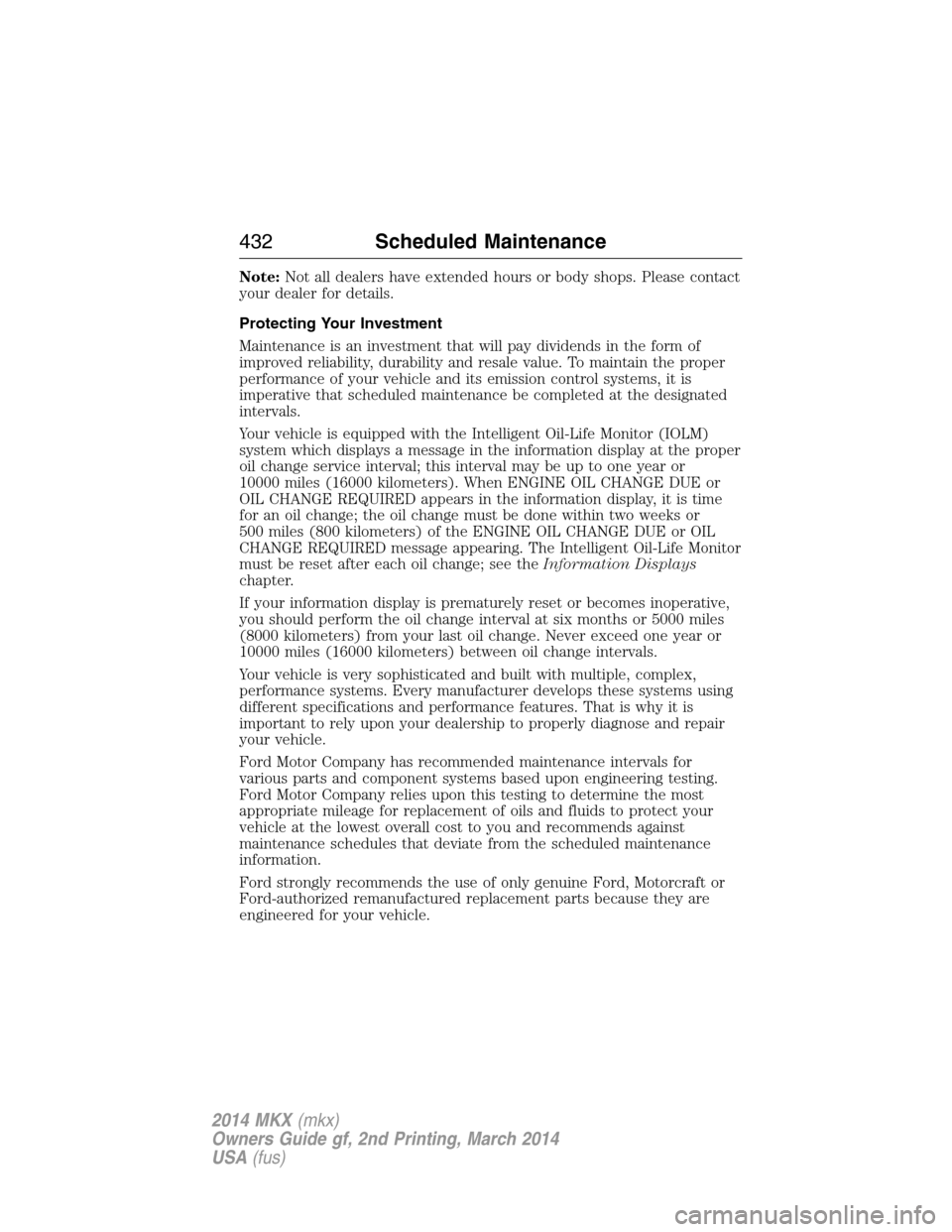

Note:Not all dealers have extended hours or body shops. Please contact
your dealer for details.
Protecting Your Investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Your vehicle is equipped with the Intelligent Oil-Life Monitor (IOLM)
system which displays a message in the information display at the proper
oil change service interval; this interval may be up to one year or
10000 miles (16000 kilometers). When ENGINE OIL CHANGE DUE or
OIL CHANGE REQUIRED appears in the information display, it is time
for an oil change; the oil change must be done within two weeks or
500 miles (800 kilometers) of the ENGINE OIL CHANGE DUE or OIL
CHANGE REQUIRED message appearing. The Intelligent Oil-Life Monitor
must be reset after each oil change; see theInformation Displays
chapter.
If your information display is prematurely reset or becomes inoperative,
you should perform the oil change interval at six months or 5000 miles
(8000 kilometers) from your last oil change. Never exceed one year or
10000 miles (16000 kilometers) between oil change intervals.
Your vehicle is very sophisticated and built with multiple, complex,
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That is why it is
important to rely upon your dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
Ford strongly recommends the use of only genuine Ford, Motorcraft or
Ford-authorized remanufactured replacement parts because they are
engineered for your vehicle.
432Scheduled Maintenance
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

NORMAL SCHEDULED MAINTENANCE AND LOG
Intelligent Oil-Life Monitor®
Your vehicle is equipped with an Intelligent Oil-Life Monitor that
determines when the engine oil needs to be changed based on how your
vehicle is used. By using several important factors in its calculations, the
monitor helps reduce the cost of owning your vehicle and reduce
environmental waste at the same time. This means you won’t have to
remember to change the oil on a mileage-based schedule; the vehicle lets
you know when an oil change is due by displaying ENGINE OIL
CHANGE DUE or OIL CHANGE REQUIRED in the information display.
The following table is intended to provide examples of vehicle use and
its impact on engine oil change intervals; it is provided as a guideline
only. Actual engine oil change intervals depend on several factors and
generally decrease with severity of use.
When to expect the OIL CHANGE REQUIRED message
Interval Vehicle use and examples
7500-10000 miles
(12000-16000 km)Normal
– Normal commuting with highway driving
– No, or moderate, load or towing
– Flat to moderately hilly roads
– No extended idling
5000-7499 miles
(8000-11999 km)Severe
– Moderate to heavy load or towing
– Mountainous or off-road conditions
– Extended idling
– Extended hot or cold operation
3000-4999 miles
(4800-7999 km)Extreme
– Maximum load or towing
– Extreme hot or cold operation
436Scheduled Maintenance
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

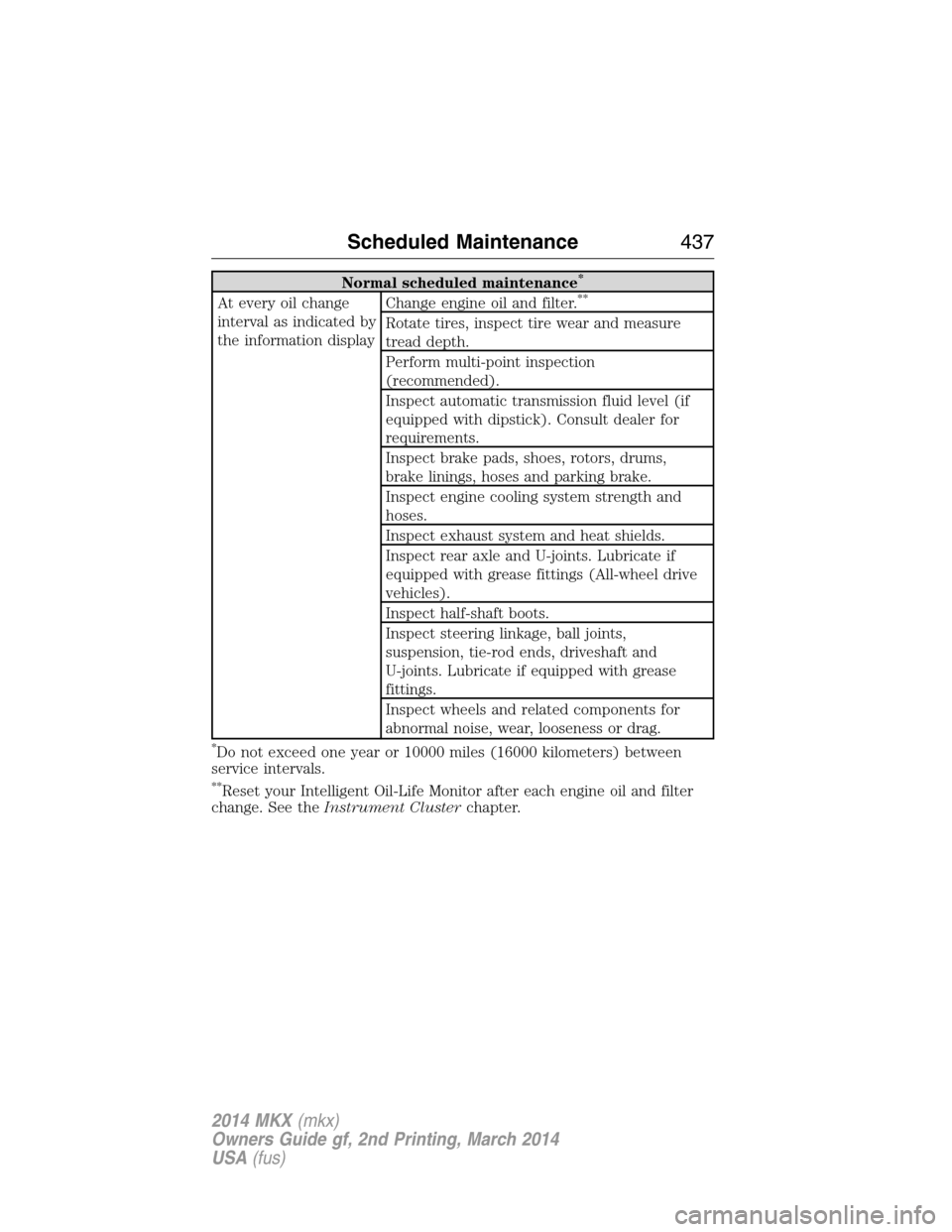

Normal scheduled maintenance*
At every oil change
interval as indicated by
the information displayChange engine oil and filter.**
Rotate tires, inspect tire wear and measure
tread depth.
Perform multi-point inspection
(recommended).
Inspect automatic transmission fluid level (if
equipped with dipstick). Consult dealer for
requirements.
Inspect brake pads, shoes, rotors, drums,
brake linings, hoses and parking brake.
Inspect engine cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect rear axle and U-joints. Lubricate if
equipped with grease fittings (All-wheel drive
vehicles).
Inspect half-shaft boots.
Inspect steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and
U-joints. Lubricate if equipped with grease
fittings.
Inspect wheels and related components for
abnormal noise, wear, looseness or drag.
*Do not exceed one year or 10000 miles (16000 kilometers) between
service intervals.
**Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
Scheduled Maintenance437
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

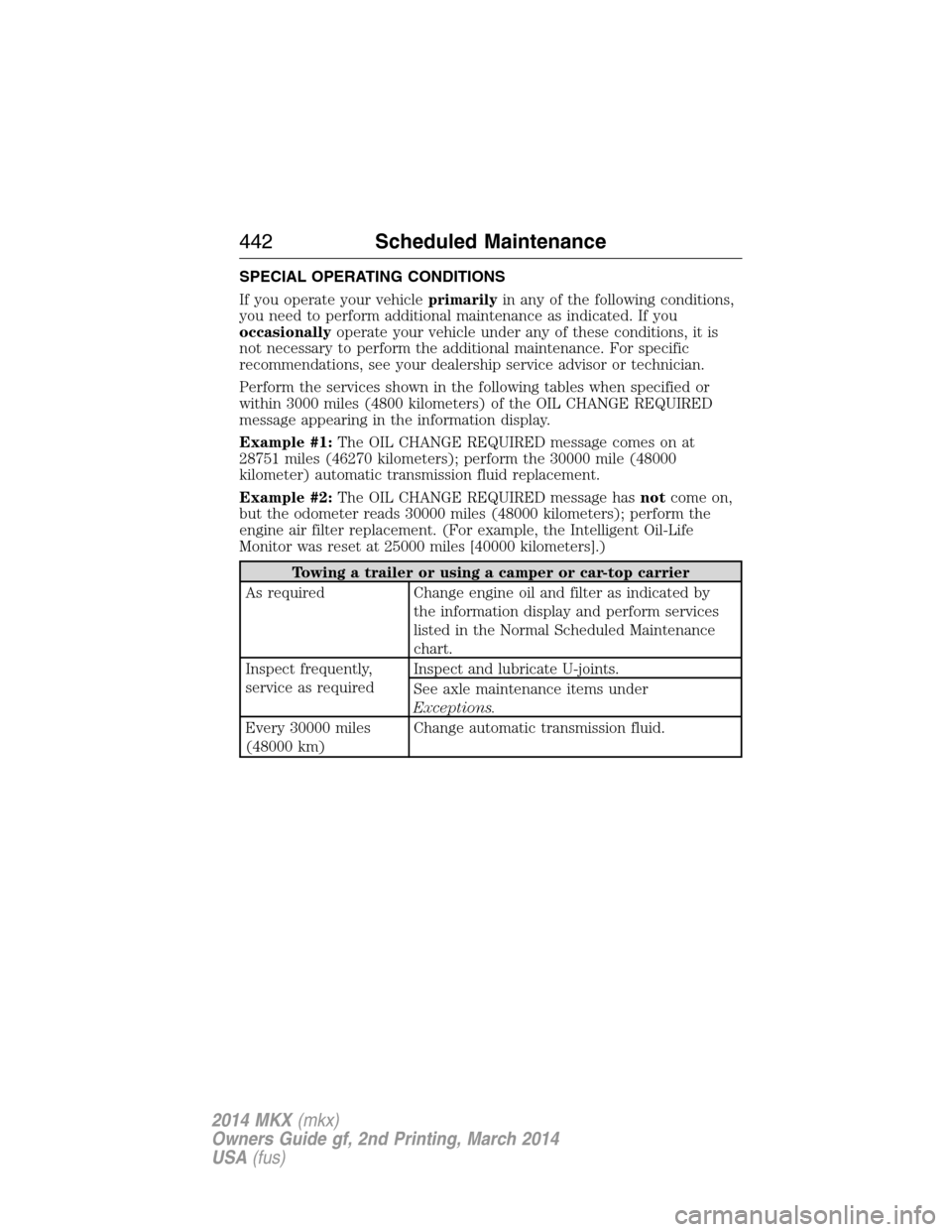

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Perform the services shown in the following tables when specified or
within 3000 miles (4800 kilometers) of the OIL CHANGE REQUIRED
message appearing in the information display.
Example #1:The OIL CHANGE REQUIRED message comes on at
28751 miles (46270 kilometers); perform the 30000 mile (48000
kilometer) automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on,
but the odometer reads 30000 miles (48000 kilometers); perform the
engine air filter replacement. (For example, the Intelligent Oil-Life
Monitor was reset at 25000 miles [40000 kilometers].)
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredInspect and lubricate U-joints.
See axle maintenance items under
Exceptions.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
442Scheduled Maintenance
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Extensive idling or low-speed driving for long distances as in
heavy commercial use (such as delivery, taxi, patrol car or
livery)
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
Every 60000 miles
(96000 km)Replace spark plugs.
Operating in dusty or sandy conditions such as unpaved or
dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Every 5000 miles
(8000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
Rotate tires, inspect tires for wear and
measure tread depth.
Every 5000 miles
(8000 km) or six
monthsChange engine oil and filter.
*
Perform multi-point inspection.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
*Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
Scheduled Maintenance443
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Cargo management system ......206
Cargo net ...................................205
CD ..............................................330
CD player ..........................328, 358
CD voice commands .................358
Cell phone use ............................15
Changing a tire .........................308
Child safety restraints ..........28, 30
Child safety seats
attaching with tether straps ....30
automatic locking mode
(retractor) .................................36
LATCH .......................................28
Child safety seats - booster
seats .............................................22
Cleaning the touchscreen ........335
Cleaning your vehicle ...............276
engine compartment ..............278
instrument panel ....................280
interior .....................................280
plastic parts ............................277
washing ....................................276
waxing .....................................278
wheels ......................................282
wiper blades ............................279
Climate voice commands .........399
Clock ..................................330, 385
Collision Warning System .........200
Console ......................................144
overhead ..................................144
Coolant ......................................256
checking and adding ..............256
refill capacities ........................317
specifications ..........................317
Cross Traffic Alert ....................195
Cruise control ...........................185Customer Assistance ................228
Ford Extended Service
Plan ..........................................325
Getting roadside assistance ...228
Getting the service you
need .........................................234
Ordering additional owner’s
literature .................................240
Utilizing the
Mediation/Arbitration
Program ...................................238
D
Defrost .......................................122
rear window ............................124
Dipstick
automatic transmission
fluid ..........................................261
engine oil .................................255
Display settings .........................386
Driving under special
conditions ..................165, 167, 170
sand .........................................168
snow and ice ...........................171
through water .................169, 226
Dual automatic temperature
control (DATC) .........................122
E
Electronic message center .......107
Electronic stability control ......178
Emergencies, roadside
jump-starting ..........................230
running out of fuel .................153
Emergency brake (see Parking
brake) ........................................174
Emission control system ..........157
End user license agreement ....412
Index449
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Engine ........................................316
cleaning ...................................278
coolant .....................................256
fail-safe cooling .......................258
idle speed control ...................263
lubrication specifications .......317
refill capacities ........................317
service points ..........................255
Engine block heater .................149
Engine oil
checking and adding ..............255
dipstick ....................................255
filter, specifications ................320
refill capacities ........................317
specifications ..........................317
Event data recording ..................12
Exhaust fumes ..........................148
F
Fail safe cooling ........................258
Fleet MyKey programming ........63
Floor mats .................................227
Fluid capacities .........................317
Four-Wheel Drive vehicles
driving off road .......................166
Fuel
cap ...........................................155
capacity ...................................317
choosing the right fuel ...152–153
filler funnel .............................153
filling your vehicle with fuel ..155
filter, specifications ................263
fuel pump shut-off ..................229
octane rating ...................153, 316
quality ......................................152
running out of fuel .................153
safety information relating to
automotive fuels .....................151Fuel - flex fuel vehicle
(FFV) .........................................153
Fuses ..........................242–243, 248
G
Garage door opener ..................138
Gas cap (see Fuel cap) ............155
Gauges .......................................101
H
Hazard flashers .........................229
HD Radio™ ...............................347
Headlamps
aiming ..............................268–269
bulb specifications ..................274
flash to pass ..............................87
high beam .................................87
replacing bulbs .......................270
Head restraints .........................128
Heated steering wheel ..............397
Heating ......................................122
Help ............................................396
Hill start assist ..........................174
Homelink wireless control
system ........................................138
Hood ..........................................253
How to use voice commands ...340
I
Ignition .......................................316
Illuminated visor mirror .............98
Information displays .................107
Inspection/maintenance (I/M)
testing ........................................159
450Index
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Pairing your phone for the first
time ............................................366
Parental MyKey programming ...63
Parking brake ............................174
Parts (see Motorcraft®
parts) .........................................320
Passenger Occupant
Classification Sensor ...................48
Phone settings ..................370, 392
Phone voice commands ............372
POI categories ...........................402
Point of Interest (POI) .............402
Power distribution box (see
Fuses) ........................................243
Power door locks ........................67
Power liftgate ..............................71
Power mirrors .............................95
Powerpoint ................................143
Power steering ..........................203
fluid, checking and adding ....262
fluid, refill capacity ................317
fluid, specifications .................317
Power Windows ...........................94
Privacy information ..................338
Push button start system .........145
Q
Quick touch buttons .................408
R
Radio ..........................................330
AM/FM .....................................346
Single CD ................................330
Radio reception .........................328Radio voice commands .............351
Rear heated seats .....................136
Rear view camera
display ................................180, 388
Rear window defroster .............122
Receiving a text message .........370
Recommendations for
attaching safety restraints for
children ........................................24
Relays ................................242–243
Remote entry system
illuminated entry ................70–71
locking/unlocking doors ...........67
opening the trunk .....................68
replacing the batteries .............58
Reverse sensing system ...........180
Roadside assistance ..................228
Roll stability control .................178
Roof rack ...................................207
Route preferences ....................404
S
Safety Belt Maintenance ............42
Safety belts (see Safety
restraints) ..............................35, 38
Safety defects, reporting ..........241
Safety information ....................336
Safety restraints ..............35–36, 38
Belt-Minder® ............................39
Belt-Minder®,
deactivating/activating .............41
extension assembly ..................38
for adults .............................35–36
for children ...............................24
Occupant Classification
Sensor ........................................48
452Index
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)
