Voice commands LINCOLN MKX 2014 Owner's Manual

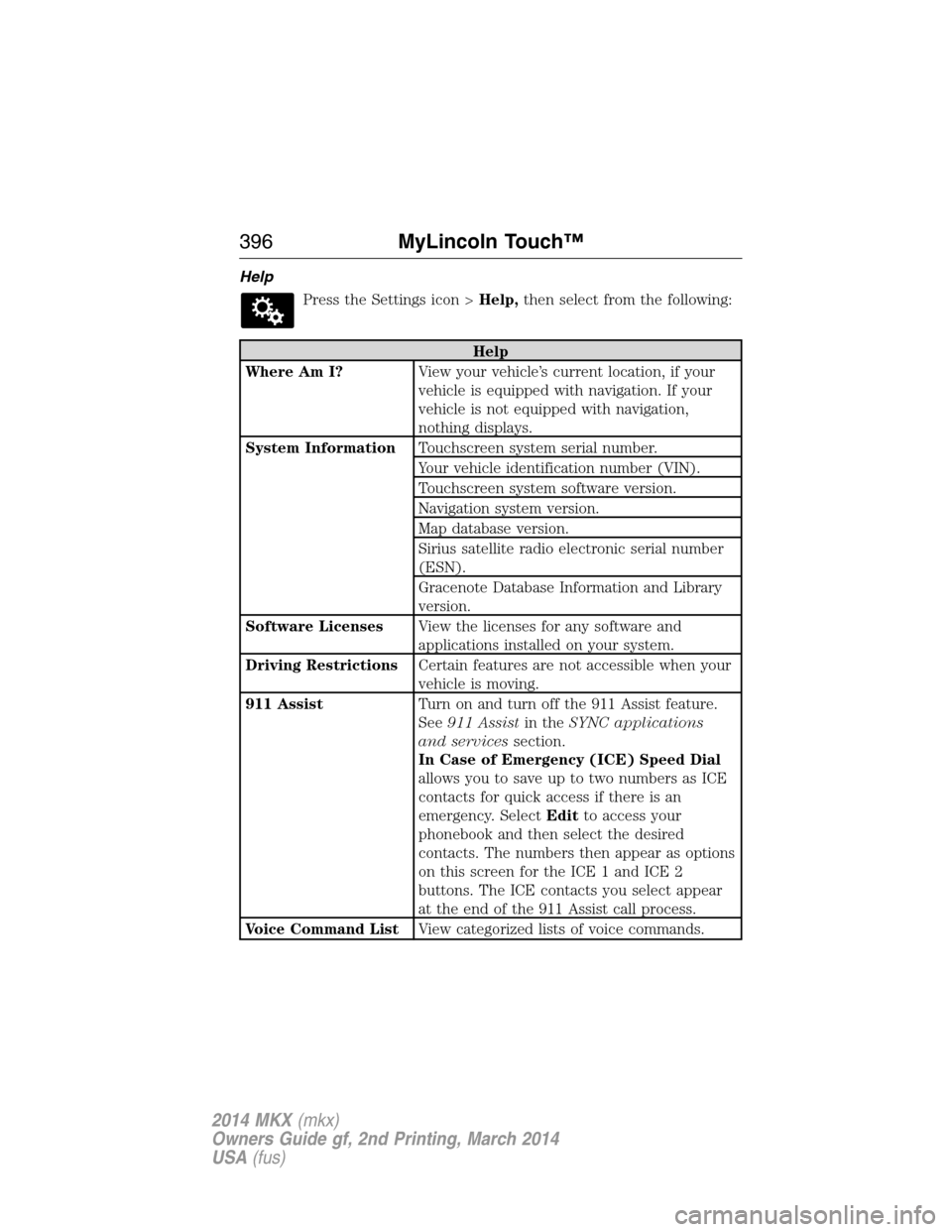

Help
Press the Settings icon >Help,then select from the following:
Help
Where Am I?View your vehicle’s current location, if your
vehicle is equipped with navigation. If your
vehicle is not equipped with navigation,
nothing displays.
System InformationTouchscreen system serial number.
Your vehicle identification number (VIN).
Touchscreen system software version.
Navigation system version.
Map database version.
Sirius satellite radio electronic serial number
(ESN).
Gracenote Database Information and Library
version.
Software LicensesView the licenses for any software and
applications installed on your system.
Driving RestrictionsCertain features are not accessible when your
vehicle is moving.
911 AssistTurn on and turn off the 911 Assist feature.
See911 Assistin theSYNC applications
and servicessection.
In Case of Emergency (ICE) Speed Dial
allows you to save up to two numbers as ICE
contacts for quick access if there is an
emergency. SelectEditto access your
phonebook and then select the desired
contacts. The numbers then appear as options
on this screen for the ICE 1 and ICE 2
buttons. The ICE contacts you select appear
at the end of the 911 Assist call process.
Voice Command ListView categorized lists of voice commands.
396MyLincoln Touch™
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

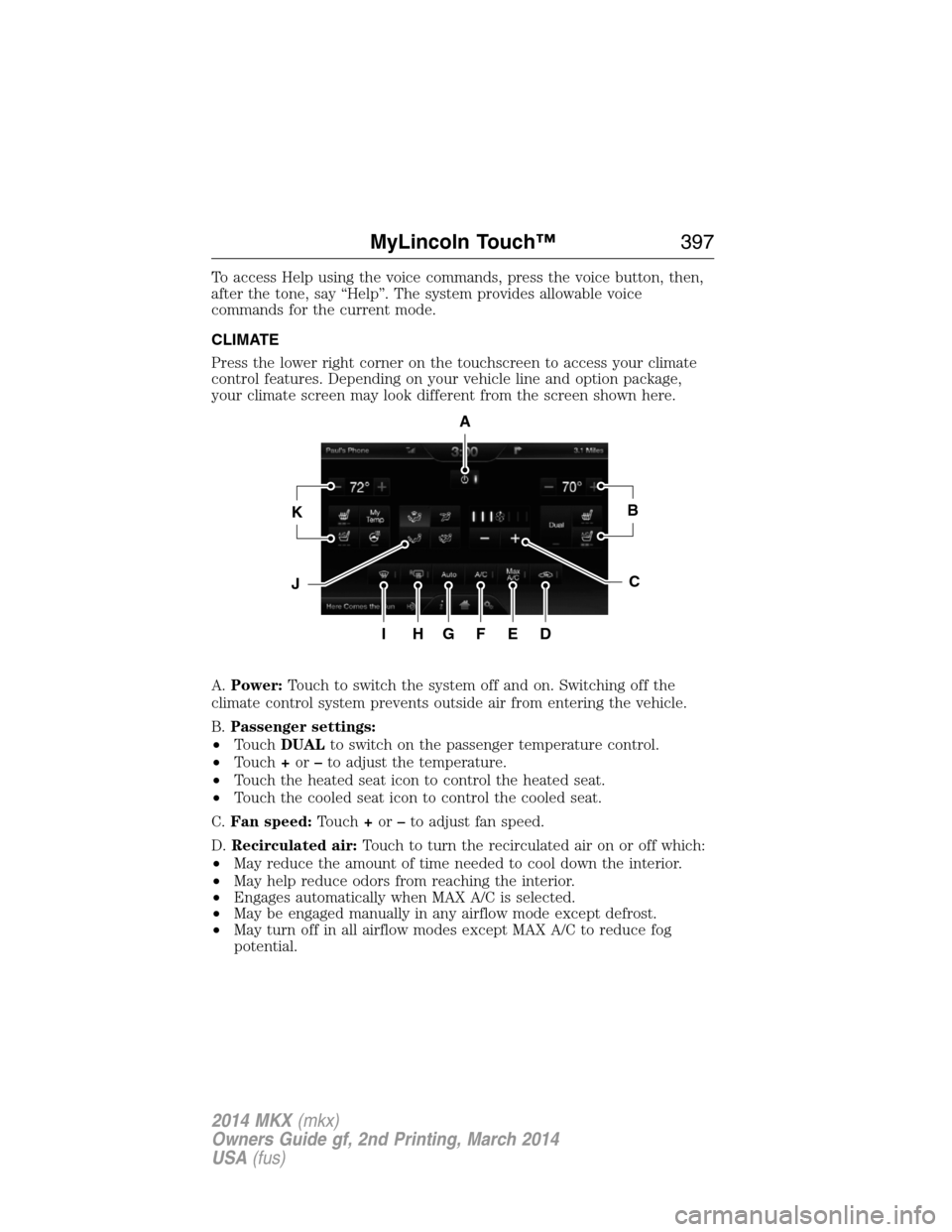

To access Help using the voice commands, press the voice button, then,
after the tone, say “Help”. The system provides allowable voice
commands for the current mode.
CLIMATE
Press the lower right corner on the touchscreen to access your climate
control features. Depending on your vehicle line and option package,
your climate screen may look different from the screen shown here.
A.Power:Touch to switch the system off and on. Switching off the
climate control system prevents outside air from entering the vehicle.
B.Passenger settings:
•TouchDUALto switch on the passenger temperature control.
•Touch+or–to adjust the temperature.
•Touch the heated seat icon to control the heated seat.
•Touch the cooled seat icon to control the cooled seat.
C.Fan speed:Touch+or–to adjust fan speed.
D.Recirculated air:Touch to turn the recirculated air on or off which:
•May reduce the amount of time needed to cool down the interior.
•May help reduce odors from reaching the interior.
•Engages automatically when MAX A/C is selected.
•May be engaged manually in any airflow mode except defrost.
•May turn off in all airflow modes except MAX A/C to reduce fog
potential.
A
KB
JC
IHGFED
MyLincoln Touch™397
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

•Touch and holdMyTempto select a temperature you would like your
vehicle to remember and maintain for you.
•If your vehicle is equipped with a heated steering wheel, touch the
heated steering wheel icon to warm the steering wheel.
Note:If your vehicle is equipped with a wood-trimmed steering wheel, it
does not heat between the 10 o’clock and 2 o’clock positions.
Climate Control Voice Commands
The following voice commands are available at the main menu
level of a voice session. For example, press the voice button
and after the prompt, “Say a command”; say any of the
following commands:
Climate control voice commands
“Climate automatic”
“Climate my temperature”
“Climate off”
“Climate on”
“Climate temperature <15.5–29.5> degrees”
“Climate temperature <60–85> degrees”
“Help”
There are additional climate control commands but in order to access
them, you have to say “Climate” first, then when the system is ready to
listen, you may say any of the following commands:
Additional climate control voice commands
“Automatic” “Panel on”
“A/C off” “Rear defrost off”
“A/C on” “Rear defrost on”
“Defrost off” “Recirc off”
“Defrost on” “Recirc on”
“Dual off” “Temperature”
*
“Fan decrease” “Temperature <15.5–29.5>
degrees”
“Fan increase” “Temperature <60–85> degrees”
“Floor on” “Temperature decrease”
“Max A/C off” “Temperature high”
MyLincoln Touch™399
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

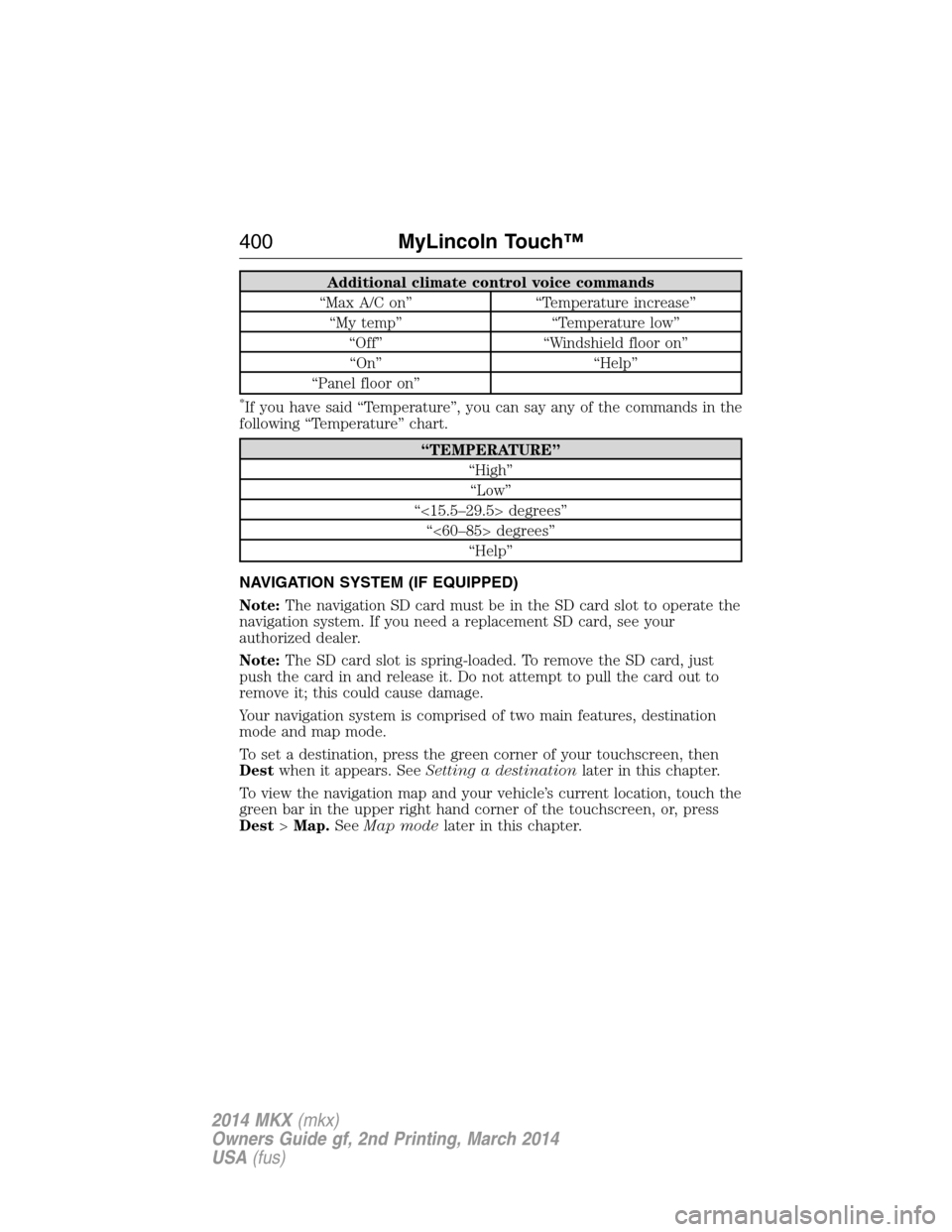

Additional climate control voice commands
“Max A/C on” “Temperature increase”
“My temp” “Temperature low”
“Off” “Windshield floor on”
“On” “Help”
“Panel floor on”
*If you have said “Temperature”, you can say any of the commands in the
following “Temperature” chart.
“TEMPERATURE”
“High”
“Low”
“<15.5–29.5> degrees”
“<60–85> degrees”
“Help”
NAVIGATION SYSTEM (IF EQUIPPED)
Note:The navigation SD card must be in the SD card slot to operate the
navigation system. If you need a replacement SD card, see your
authorized dealer.
Note:The SD card slot is spring-loaded. To remove the SD card, just
push the card in and release it. Do not attempt to pull the card out to
remove it; this could cause damage.
Your navigation system is comprised of two main features, destination
mode and map mode.
To set a destination, press the green corner of your touchscreen, then
Destwhen it appears. SeeSetting a destinationlater in this chapter.
To view the navigation map and your vehicle’s current location, touch the
green bar in the upper right hand corner of the touchscreen, or, press
Dest>Map.SeeMap modelater in this chapter.
400MyLincoln Touch™
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

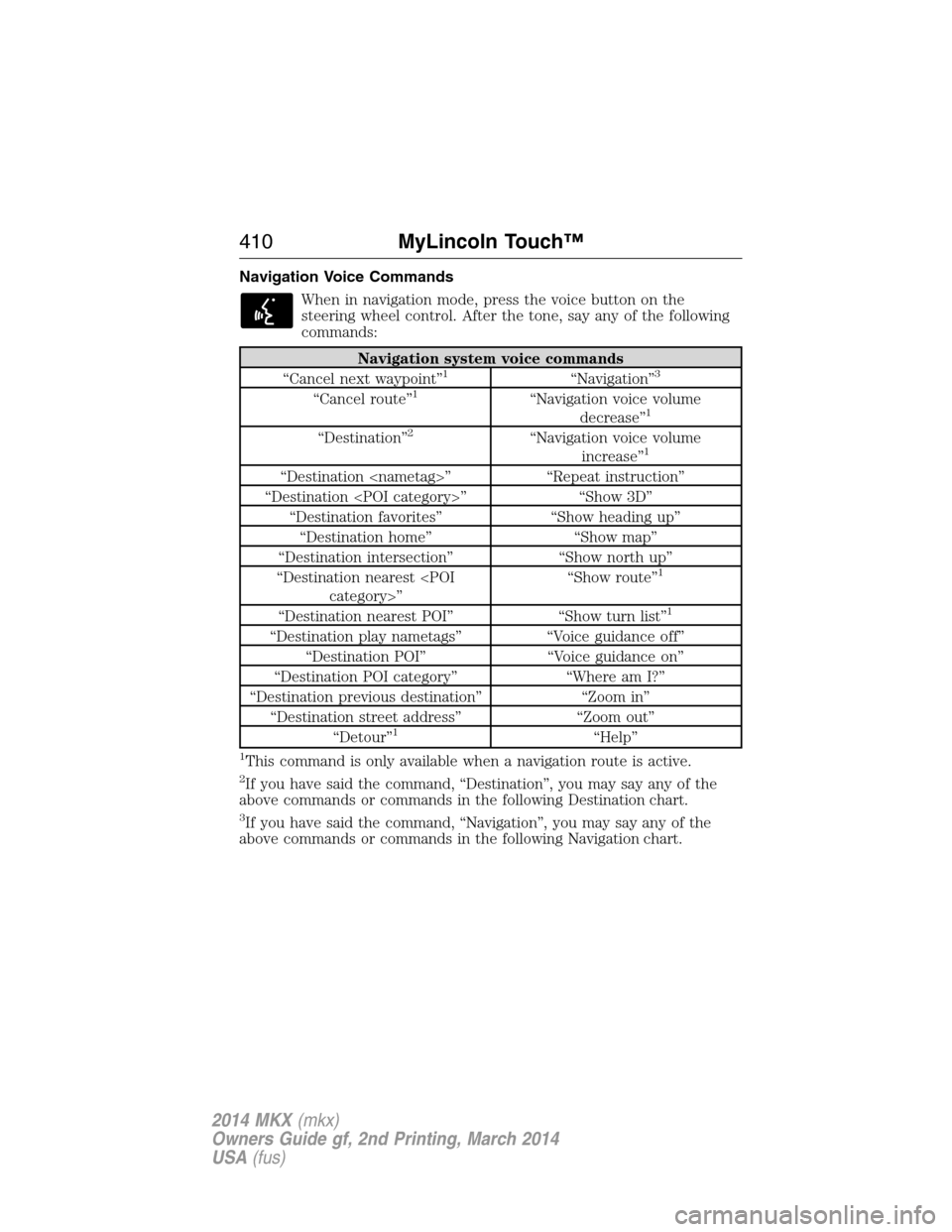

Navigation Voice Commands
When in navigation mode, press the voice button on the
steering wheel control. After the tone, say any of the following
commands:
Navigation system voice commands
“Cancel next waypoint”1“Navigation”3
“Cancel route”1“Navigation voice volume
decrease”1
“Destination”2“Navigation voice volume
increase”1
“Destination ” “Repeat instruction”
“Destination ” “Show 3D”
“Destination favorites” “Show heading up”
“Destination home” “Show map”
“Destination intersection” “Show north up”
“Destination nearest category>”“Show route”
1
“Destination nearest POI” “Show turn list”1
“Destination play nametags” “Voice guidance off”
“Destination POI” “Voice guidance on”
“Destination POI category” “Where am I?”
“Destination previous destination” “Zoom in”
“Destination street address” “Zoom out”
“Detour”
1“Help”
1This command is only available when a navigation route is active.
2If you have said the command, “Destination”, you may say any of the
above commands or commands in the following Destination chart.
3If you have said the command, “Navigation”, you may say any of the
above commands or commands in the following Navigation chart.
410MyLincoln Touch™
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

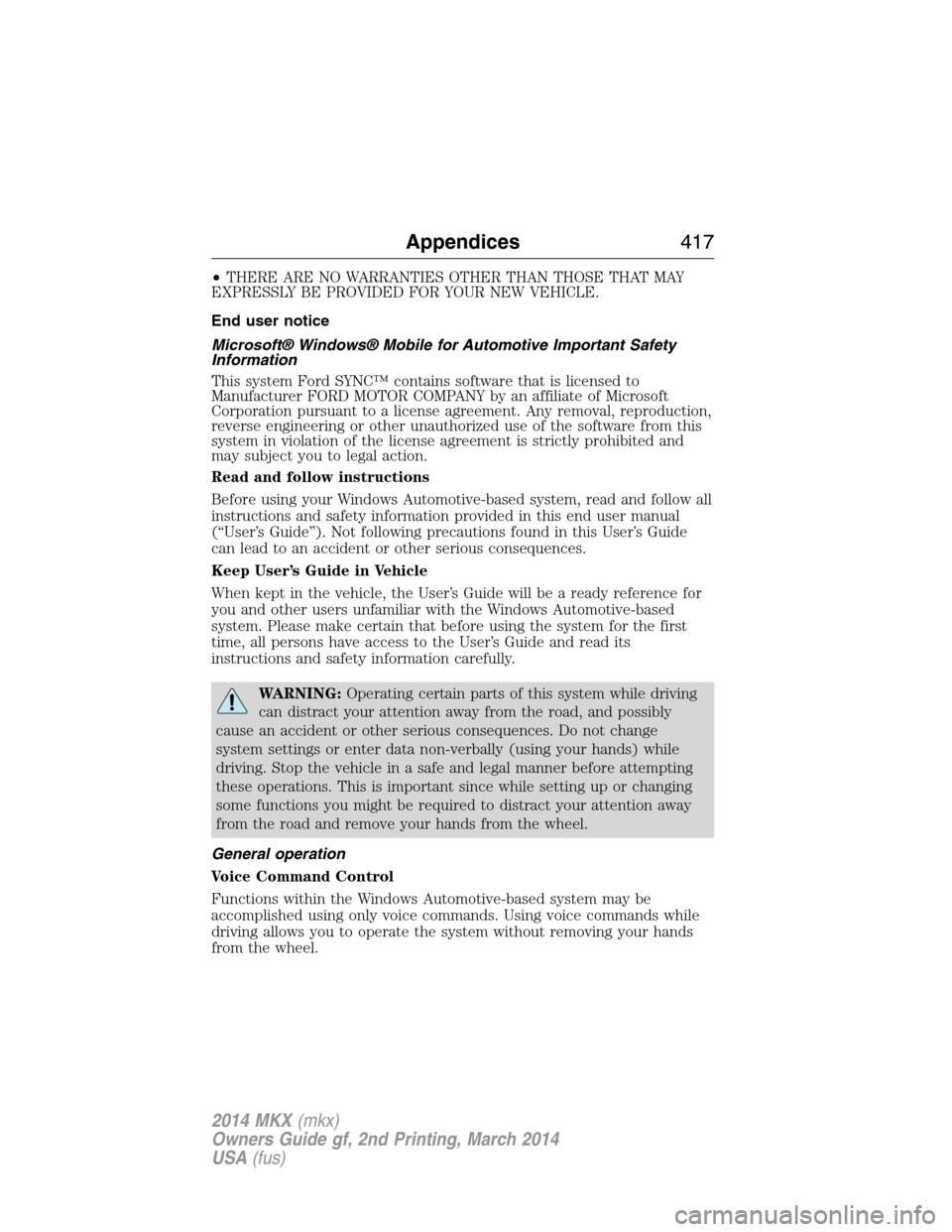

•THERE ARE NO WARRANTIES OTHER THAN THOSE THAT MAY
EXPRESSLY BE PROVIDED FOR YOUR NEW VEHICLE.
End user notice
Microsoft® Windows® Mobile for Automotive Important Safety
Information
This system Ford SYNC™ contains software that is licensed to
Manufacturer FORD MOTOR COMPANY by an affiliate of Microsoft
Corporation pursuant to a license agreement. Any removal, reproduction,
reverse engineering or other unauthorized use of the software from this
system in violation of the license agreement is strictly prohibited and
may subject you to legal action.
Read and follow instructions
Before using your Windows Automotive-based system, read and follow all
instructions and safety information provided in this end user manual
(“User’s Guide”). Not following precautions found in this User’s Guide
can lead to an accident or other serious consequences.
Keep User’s Guide in Vehicle
When kept in the vehicle, the User’s Guide will be a ready reference for
you and other users unfamiliar with the Windows Automotive-based
system. Please make certain that before using the system for the first
time, all persons have access to the User’s Guide and read its
instructions and safety information carefully.
WARNING:Operating certain parts of this system while driving
can distract your attention away from the road, and possibly
cause an accident or other serious consequences. Do not change
system settings or enter data non-verbally (using your hands) while
driving. Stop the vehicle in a safe and legal manner before attempting
these operations. This is important since while setting up or changing
some functions you might be required to distract your attention away
from the road and remove your hands from the wheel.
General operation
Voice Command Control
Functions within the Windows Automotive-based system may be
accomplished using only voice commands. Using voice commands while
driving allows you to operate the system without removing your hands
from the wheel.
Appendices417
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

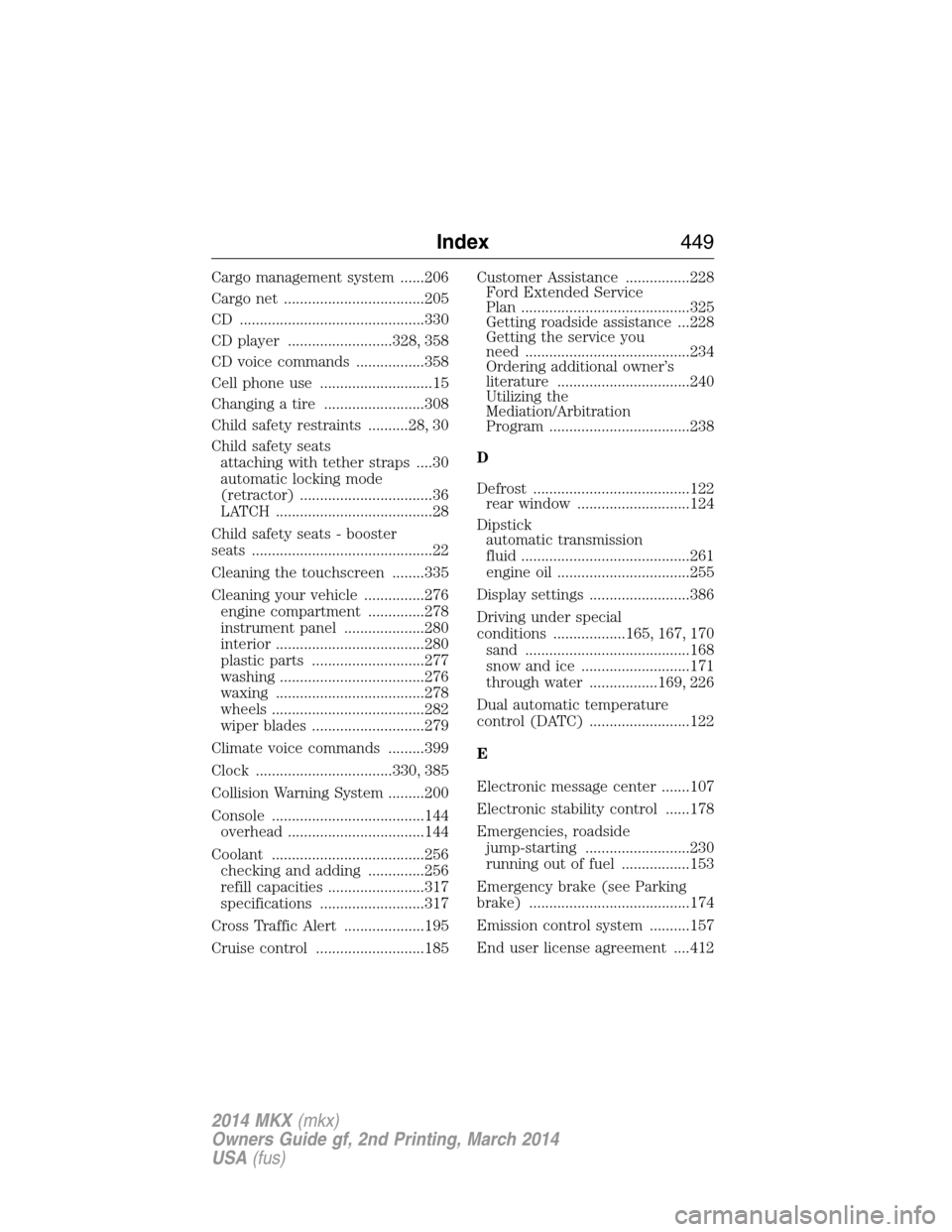

Cargo management system ......206
Cargo net ...................................205
CD ..............................................330
CD player ..........................328, 358
CD voice commands .................358
Cell phone use ............................15
Changing a tire .........................308
Child safety restraints ..........28, 30
Child safety seats
attaching with tether straps ....30
automatic locking mode
(retractor) .................................36
LATCH .......................................28
Child safety seats - booster
seats .............................................22
Cleaning the touchscreen ........335
Cleaning your vehicle ...............276
engine compartment ..............278
instrument panel ....................280
interior .....................................280
plastic parts ............................277
washing ....................................276
waxing .....................................278
wheels ......................................282
wiper blades ............................279
Climate voice commands .........399
Clock ..................................330, 385
Collision Warning System .........200
Console ......................................144
overhead ..................................144
Coolant ......................................256
checking and adding ..............256
refill capacities ........................317
specifications ..........................317
Cross Traffic Alert ....................195
Cruise control ...........................185Customer Assistance ................228
Ford Extended Service
Plan ..........................................325
Getting roadside assistance ...228
Getting the service you
need .........................................234
Ordering additional owner’s
literature .................................240
Utilizing the
Mediation/Arbitration
Program ...................................238
D
Defrost .......................................122
rear window ............................124
Dipstick
automatic transmission
fluid ..........................................261
engine oil .................................255
Display settings .........................386
Driving under special
conditions ..................165, 167, 170
sand .........................................168
snow and ice ...........................171
through water .................169, 226
Dual automatic temperature
control (DATC) .........................122
E
Electronic message center .......107
Electronic stability control ......178
Emergencies, roadside
jump-starting ..........................230
running out of fuel .................153
Emergency brake (see Parking
brake) ........................................174
Emission control system ..........157
End user license agreement ....412
Index449
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Engine ........................................316
cleaning ...................................278
coolant .....................................256
fail-safe cooling .......................258
idle speed control ...................263
lubrication specifications .......317
refill capacities ........................317
service points ..........................255
Engine block heater .................149
Engine oil
checking and adding ..............255
dipstick ....................................255
filter, specifications ................320
refill capacities ........................317
specifications ..........................317
Event data recording ..................12
Exhaust fumes ..........................148
F
Fail safe cooling ........................258
Fleet MyKey programming ........63
Floor mats .................................227
Fluid capacities .........................317
Four-Wheel Drive vehicles
driving off road .......................166
Fuel
cap ...........................................155
capacity ...................................317
choosing the right fuel ...152–153
filler funnel .............................153
filling your vehicle with fuel ..155
filter, specifications ................263
fuel pump shut-off ..................229
octane rating ...................153, 316
quality ......................................152
running out of fuel .................153
safety information relating to
automotive fuels .....................151Fuel - flex fuel vehicle
(FFV) .........................................153
Fuses ..........................242–243, 248
G
Garage door opener ..................138
Gas cap (see Fuel cap) ............155
Gauges .......................................101
H
Hazard flashers .........................229
HD Radio™ ...............................347
Headlamps
aiming ..............................268–269
bulb specifications ..................274
flash to pass ..............................87
high beam .................................87
replacing bulbs .......................270
Head restraints .........................128
Heated steering wheel ..............397
Heating ......................................122
Help ............................................396
Hill start assist ..........................174
Homelink wireless control
system ........................................138
Hood ..........................................253
How to use voice commands ...340
I
Ignition .......................................316
Illuminated visor mirror .............98
Information displays .................107
Inspection/maintenance (I/M)
testing ........................................159
450Index
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

Instrument panel
cleaning ...................................280
cluster ......................................101
Intelligent Access Key ................58
J
Jack ............................................308
positioning ...............................308
storage .....................................308
Jump-starting your vehicle ......230
K
Keyless entry system
autolock .....................................69
keypad .......................................75
locking and unlocking doors ....76
programming entry code .........75
Keys .............................................77
L
Lamps
bulb replacement
specifications chart ................274
headlamps, flash to pass ..........87
interior lamps .....................92–93
replacing bulbs .......................270
LATCH anchors ...........................28
Liftgate ..........................68, 71, 208
Lights, warning and indicator ..101
Listening to music ....................344
Load limits .................................208
Locks
autolock .....................................69
childproof ..................................32
doors ..........................................67
Lubricant specifications ...........317Lug nuts ....................................314
M
Making and receiving calls .......367
MAP DVD - Loading and
Unloading ..................................367
Map icons ..................................407
Map mode ..................................406
Map preferences .......................404
Map updates ..............................409
Message center .........................107
warning messages ...................113
Mirrors ...................................95, 97
fold away ...................................96
programmable memory ............59
side view mirrors (power) .......95
Moon roof ....................................99
Motorcraft® parts .............276, 320
MyFord Touch™ system ..........332
MyKey ..........................................63
MyLincoln Touch™ system ......330
N
Navigation features ...................400
Navigation voice commands ....410
Notifications ..............................380
O
Octane rating ............................153
P
Pairing other phones ................367
Pairing your phone ...................366
Index451
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)

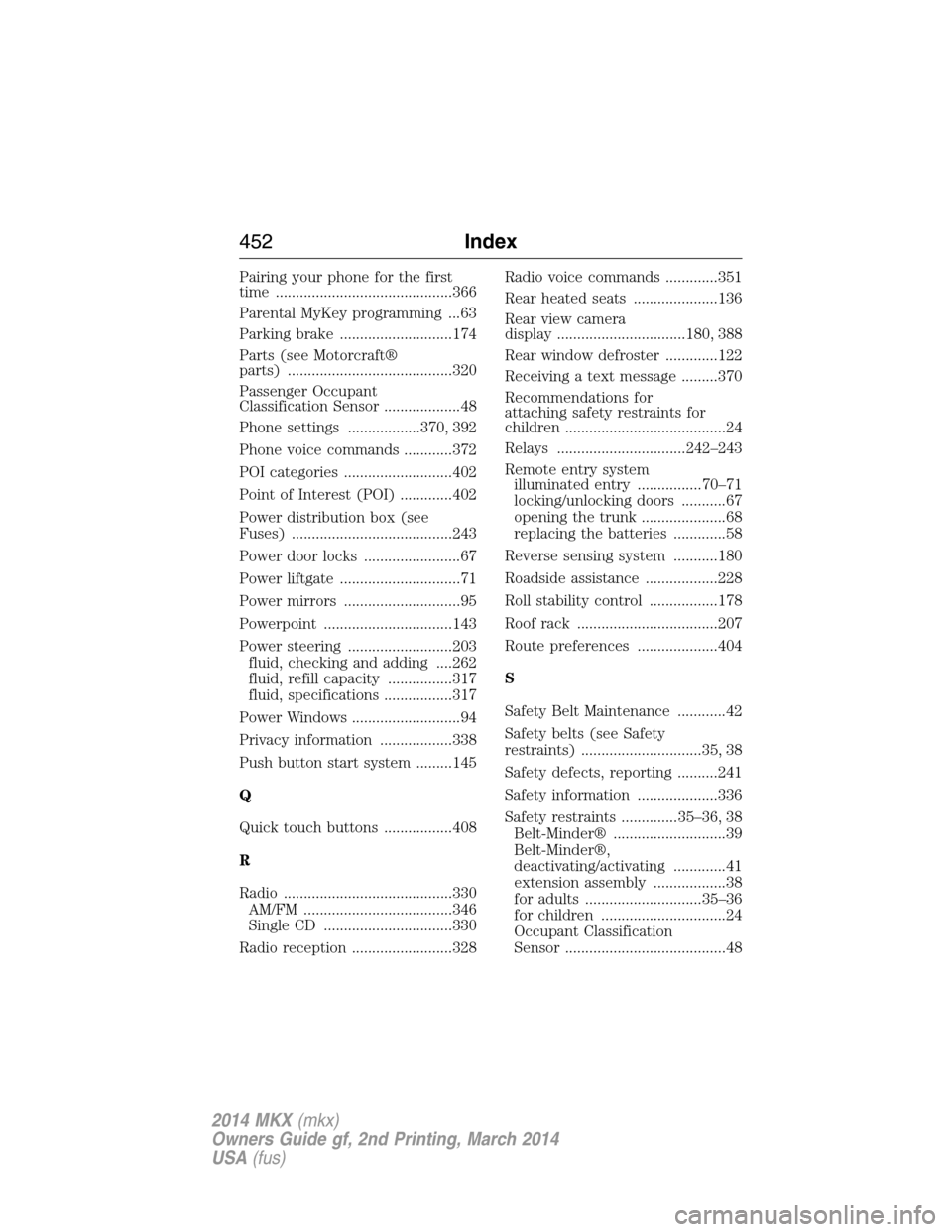

Pairing your phone for the first
time ............................................366
Parental MyKey programming ...63
Parking brake ............................174
Parts (see Motorcraft®
parts) .........................................320
Passenger Occupant
Classification Sensor ...................48
Phone settings ..................370, 392
Phone voice commands ............372
POI categories ...........................402
Point of Interest (POI) .............402
Power distribution box (see
Fuses) ........................................243
Power door locks ........................67
Power liftgate ..............................71
Power mirrors .............................95
Powerpoint ................................143
Power steering ..........................203
fluid, checking and adding ....262
fluid, refill capacity ................317
fluid, specifications .................317
Power Windows ...........................94
Privacy information ..................338
Push button start system .........145
Q
Quick touch buttons .................408
R
Radio ..........................................330
AM/FM .....................................346
Single CD ................................330
Radio reception .........................328Radio voice commands .............351
Rear heated seats .....................136
Rear view camera
display ................................180, 388
Rear window defroster .............122
Receiving a text message .........370
Recommendations for
attaching safety restraints for
children ........................................24
Relays ................................242–243
Remote entry system
illuminated entry ................70–71
locking/unlocking doors ...........67
opening the trunk .....................68
replacing the batteries .............58
Reverse sensing system ...........180
Roadside assistance ..................228
Roll stability control .................178
Roof rack ...................................207
Route preferences ....................404
S
Safety Belt Maintenance ............42
Safety belts (see Safety
restraints) ..............................35, 38
Safety defects, reporting ..........241
Safety information ....................336
Safety restraints ..............35–36, 38
Belt-Minder® ............................39
Belt-Minder®,
deactivating/activating .............41
extension assembly ..................38
for adults .............................35–36
for children ...............................24
Occupant Classification
Sensor ........................................48
452Index
2014 MKX(mkx)
Owners Guide gf, 2nd Printing, March 2014
USA(fus)
