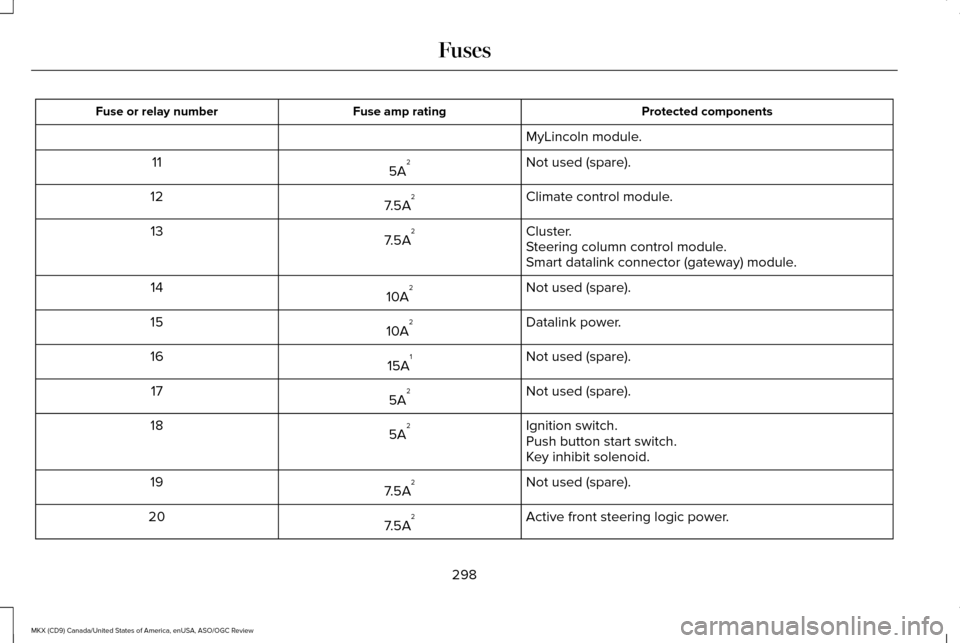

Protected components
Fuse amp rating
Fuse or relay number
MyLincoln module.
Not used (spare).
5A 2
11
Climate control module.
7.5A 2
12
Cluster.
7.5A 2
13
Steering column control module.
Smart datalink connector (gateway) module.
Not used (spare).
10A 2
14
Datalink power.
10A 2
15
Not used (spare).
15A 1
16
Not used (spare).
5A 2
17
Ignition switch.
5A 2
18
Push button start switch.
Key inhibit solenoid.
Not used (spare).
7.5A 2
19
Active front steering logic power.
7.5A 2
20
298
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected components
Fuse amp rating
Fuse or relay number

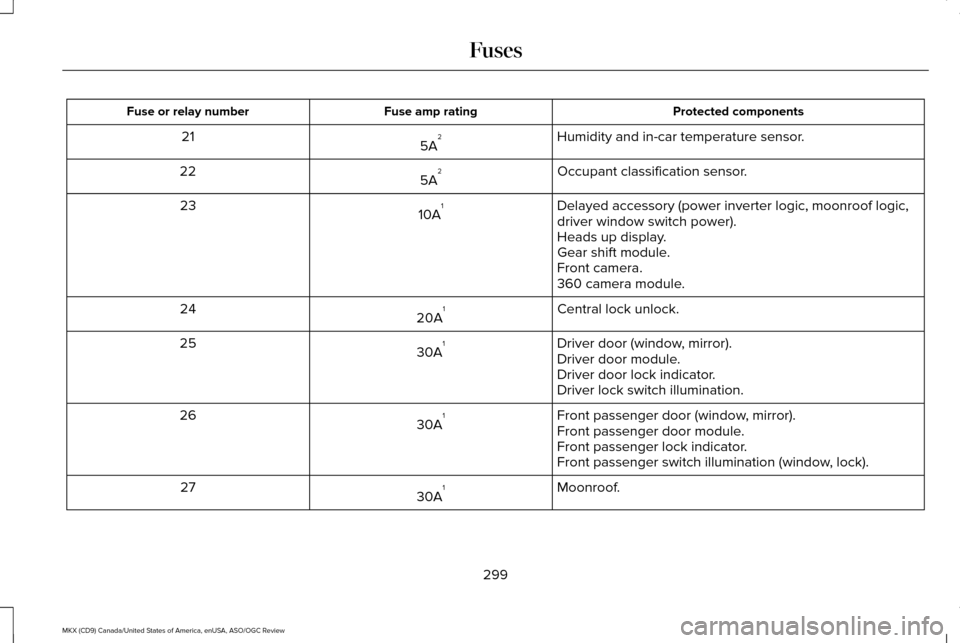

Humidity and in-car temperature sensor.
5A 2
21
Occupant classification sensor.
5A 2
22
Delayed accessory (power inverter logic, moonroof logic,
driver window switch power).
10A 1
23
Heads up display.
Gear shift module.
Front camera.
360 camera module.
Central lock unlock.
20A 1
24
Driver door (window, mirror).
30A 1
25
Driver door module.
Driver door lock indicator.
Driver lock switch illumination.
Front passenger door (window, mirror).
30A 1
26
Front passenger door module.
Front passenger lock indicator.
Front passenger switch illumination (window, lock).
Moonroof.
30A 1
27
299
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected components
Fuse amp rating
Fuse or relay number

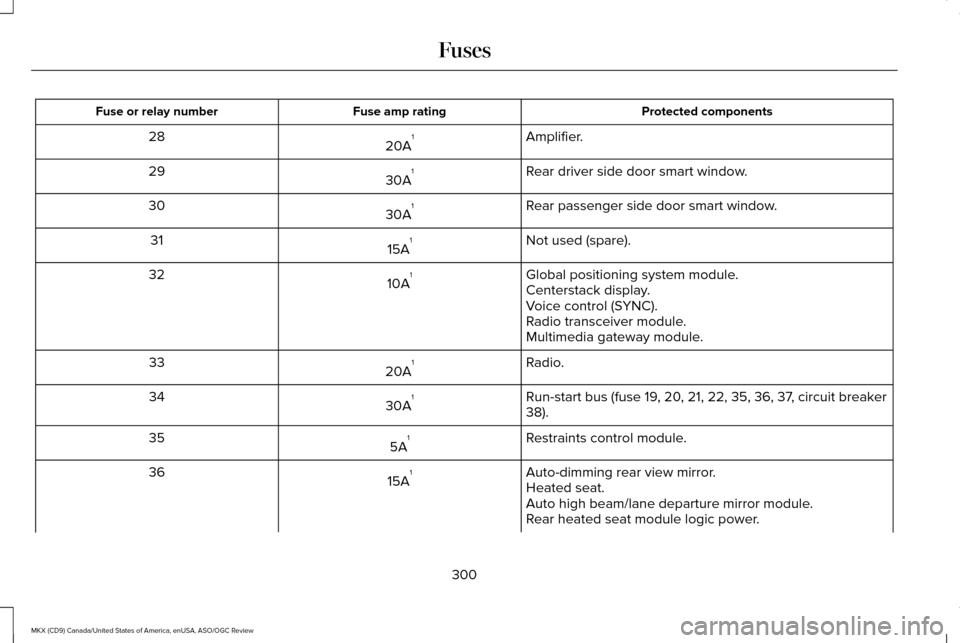

Amplifier.
20A 1
28
Rear driver side door smart window.
30A 1
29
Rear passenger side door smart window.
30A 1
30
Not used (spare).
15A 1
31
Global positioning system module.
10A 1
32
Centerstack display.
Voice control (SYNC).
Radio transceiver module.
Multimedia gateway module.
Radio.
20A 1
33
Run-start bus (fuse 19, 20, 21, 22, 35, 36, 37, circuit breaker
38).
30A 1
34
Restraints control module.
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
Heated seat.
Auto high beam/lane departure mirror module.
Rear heated seat module logic power.
300
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected components
Fuse amp rating
Fuse or relay number
Suspension module.
Heated steering wheel module (without active front steering).
20A 1
37
Rear power windows.
30A 3
38
Rear window switch illumination.
1 Micro fuse.
2 Dual micro fuse.
3 Circuit breaker.

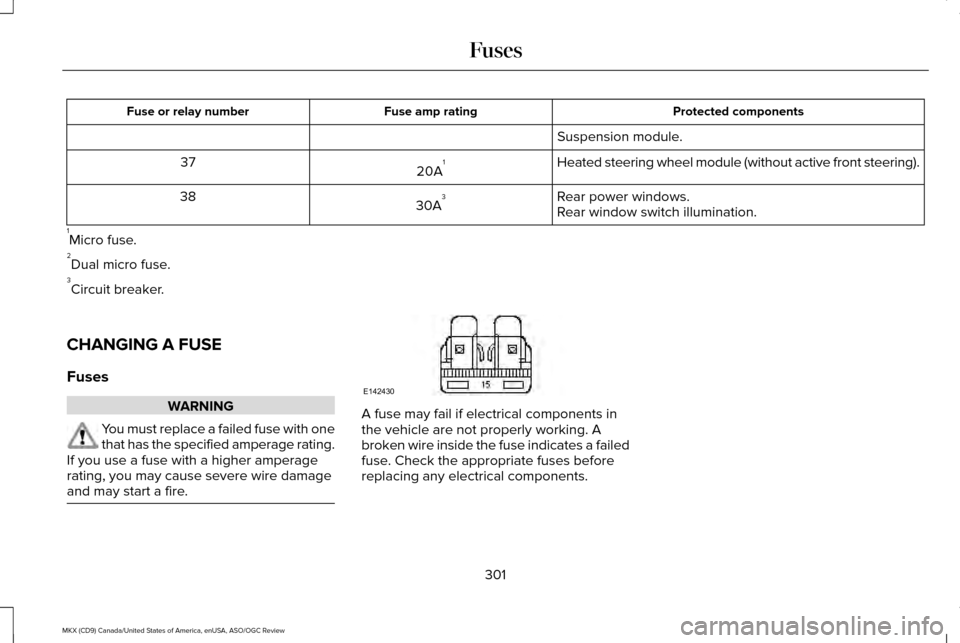

CHANGING A FUSE
Fuses WARNING
You must replace a failed fuse with one
that has the specified amperage rating.
If you use a fuse with a higher amperage
rating, you may cause severe wire damage
and may start a fire. A fuse may fail if electrical components in
the vehicle are not properly working. A
broken wire inside the fuse indicates a failed
fuse. Check the appropriate fuses before
replacing any electrical components.
301
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review FusesE142430

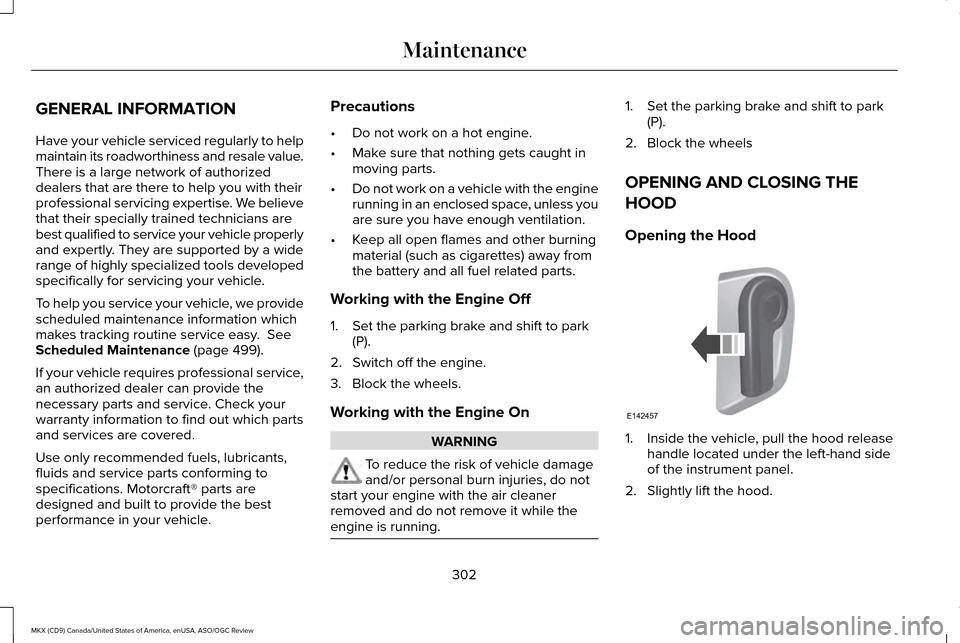

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.
To help you service your vehicle, we provide
scheduled maintenance information which
makes tracking routine service easy. See
Scheduled Maintenance (page 499).
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which parts
and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle. Precautions
•
Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.
Working with the Engine Off
1. Set the parking brake and shift to park (P).
2. Switch off the engine.
3. Block the wheels.
Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1. Set the parking brake and shift to park
(P).
2. Block the wheels
OPENING AND CLOSING THE
HOOD
Opening the Hood 1. Inside the vehicle, pull the hood release
handle located under the left-hand side
of the instrument panel.
2. Slightly lift the hood.
302
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review MaintenanceE142457

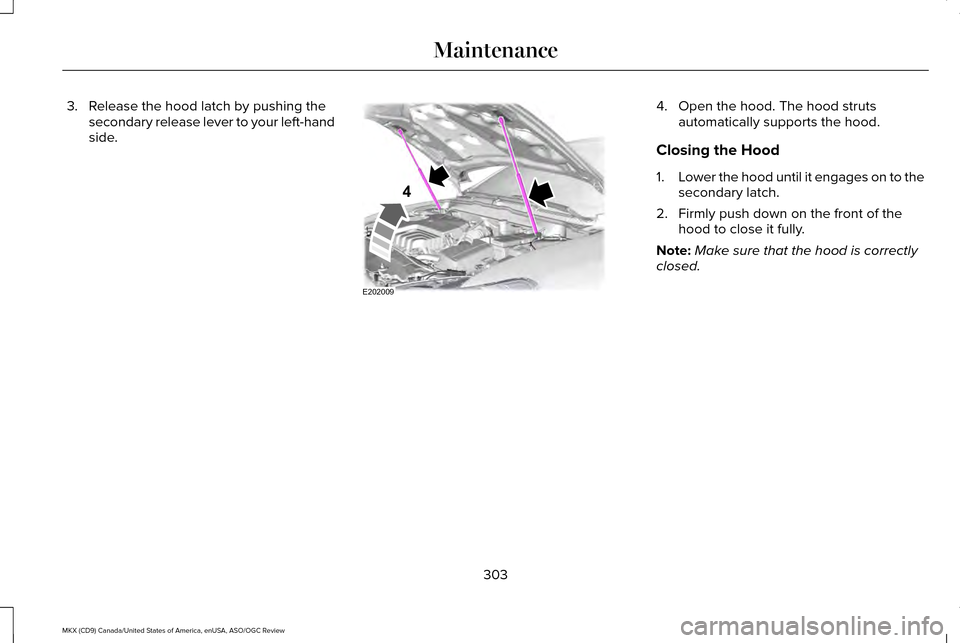

3. Release the hood latch by pushing the
secondary release lever to your left-hand
side. 4. Open the hood. The hood struts
automatically supports the hood.
Closing the Hood
1. Lower the hood until it engages on to the
secondary latch.
2. Firmly push down on the front of the hood to close it fully.
Note: Make sure that the hood is correctly
closed.
303
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review MaintenanceE202009
4

UNDER HOOD OVERVIEW - 2.7L ECOBOOST™
Engine coolant reservoir. See Engine Coolant Check (page 309).
A
Brake fluid reservoir.
See Brake Fluid Check (page 315).
B
Battery.
See Changing the 12V Battery (page 316).
C
Power distribution box.
See Fuses (page 284).
D
Air filter assembly.
See Changing the Engine Air Filter (page 324).
E
304
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review MaintenanceA
IEFGH
BCD
E188730

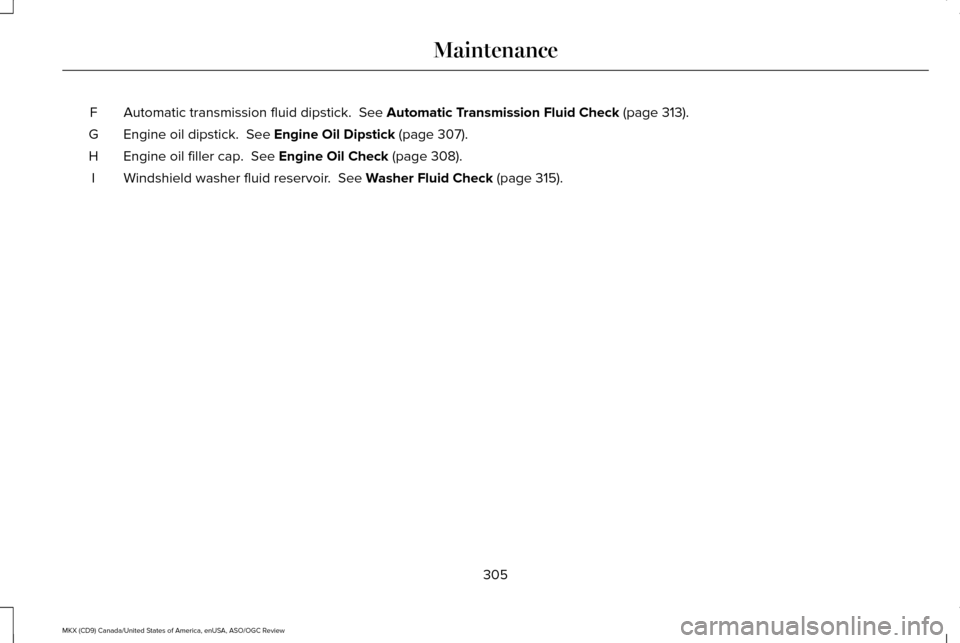

Automatic transmission fluid dipstick. See Automatic Transmission Fluid Check (page 313).
F
Engine oil dipstick.
See Engine Oil Dipstick (page 307).
G
Engine oil filler cap.
See Engine Oil Check (page 308).
H
Windshield washer fluid reservoir.
See Washer Fluid Check (page 315).
I
305
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Maintenance

UNDER HOOD OVERVIEW - 3.7L
Engine coolant reservoir. See Engine Coolant Check (page 309).
A.
Engine oil filler cap.
See Engine Oil Check (page 308).
B.
306
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review MaintenanceE173333

Engine oil dipstick. See Engine Oil Dipstick (page 307).
C.
Brake fluid reservoir.
See Brake Fluid Check (page 315).
D.
Battery.
See Changing the 12V Battery (page 316).
E.
Power distribution box.
See Fuses (page 284).
F.
Air filter assembly.
See Changing the Engine Air Filter (page 324).
G.
Automatic transmission dipstick (under air filter assembly).
See Automatic Transmission Fluid Check (page 313).
H.
Windshield washer fluid reservoir.
See Washer Fluid Check (page 315).
I.
Engine Shield Some vehicles may be equipped with an
aero-shield under the engine. This shield
needs to be removed for service, including
oil and filter changes. The shield has four
quick-release fasteners to secure it in place.
ENGINE OIL DIPSTICK - 2.7L
ECOBOOST™ Minimum.
A
Maximum.
B
307
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review MaintenanceE173374 E188072
AB
