LINCOLN MKX 2016 Owners Manual

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Voltage quality module (start/stop).
Front split view camera.
Front split view camera module.
Not used (spare).
10A 1
24
Run-start anti-lock brake system.
10A 2
25
Run-start powertrain control module.
10A 2
26
Not used.
—
27
Rear washer pump.
10A 1
28
Not used.
—
29
Not used.
—
30
Not used.
—
31
Electronic fan 1 relay.
—
32
A/C clutch relay.
—
33
Glove box release.
15A 1
34
Not used.
—
35
288
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Not used.
—
36
Power transfer unit fan.
10A 1
37
Electronic fan 2 relay.
—
38
Electric fan 3 relay.
—
39
Horn relay.
—
40
Not used.
—
41
Fuel pump relay.
—
42
2nd row easy fold seat release.
10A 1
43
LH HID headlamp.
20A 1
44
Not used.
—
45
Not used.
—
46
Not used.
—
47
Not used.
—
48
Not used.
—
49
289
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected Components
Fuse Amp Rating
Fuse or Relay Number
Horn.
20A 1
50
Not used.
—
51
Not used.
—
52
Not used.
—
53
Brake on off switch.
10A 2
54
ALT sensor.
10A 2
55
1 Micro fuse.
2 Dual micro fuse.
3 M-type fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom of the
fuse box. To access the bottom of the fuse
box, do the following:
290
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

1.
Release the two latches, located on both
sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
291
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review FusesE145983

292

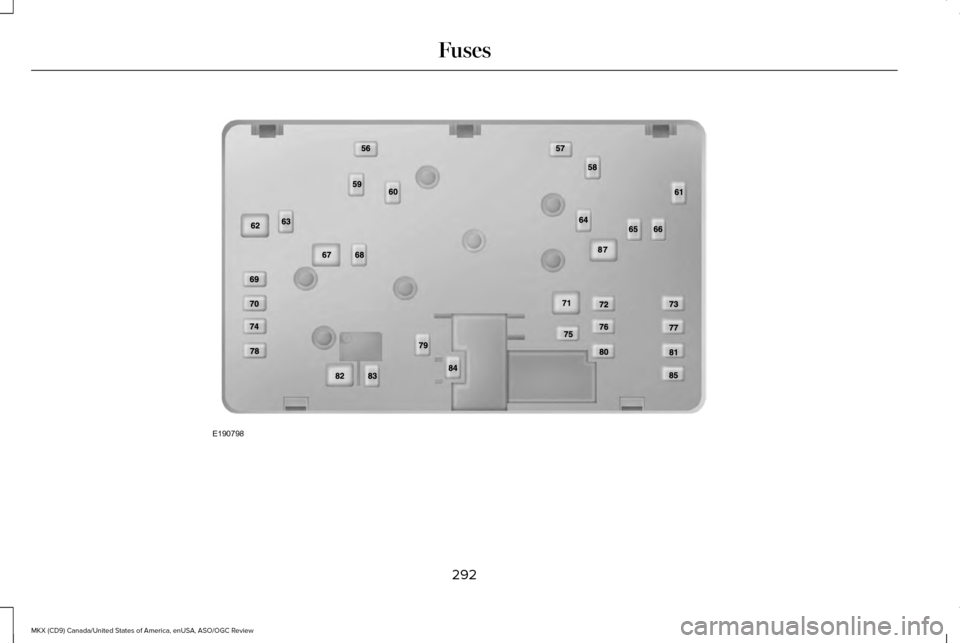

MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review FusesE190798

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
56
Not used.
—
57
Fuel pump feed.
30A *
58
Electronic fan 3.
40A **
59
Electronic fan 1.
40A **
60
Not used.
—
61
Body control module 1.
50A **
62
Electronic fan 2.
25A *
63
Not used.
—
64
Front heated seat.
20A *
65
Not used.
—
66
Body control module 2.
50A **
67
293
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected components
Fuse amp rating
Fuse or relay number
Heated rear window.
40A *
68
Anti-lock brake system valves.
30A *
69
Passenger seat.
30A *
70
Active front steering.
50A **
71
Transmission oil pump (start/stop).
20A *
72
Rear heated seats.
20A *
73
Driver seat module.
30A *
74
Wiper motor 1.
25A *
75
Power liftgate module.
30A *
76
Climate control seat module.
30A *
77
Trailer lighting module.
40A *
78
Blower motor.
40A **
79
294
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected components
Fuse amp rating
Fuse or relay number
Wiper motor 2.
25A *
80
110 volt inverter.
40A *
81
Not used.
–
82
TRCM (iShifter).
20A *
83
Starter solenoid.
30A *
84
Vista roof.
30A *
85
Not used.
–
86
Anti-lock brake system pump.
60A **
87
* M-type fuse.
** J-type fuse.
Passenger Compartment Fuse Panel
The fuse panel is located under the
instrument panel to the left of the steering
column. Note:
It may be easier to access the fuse
panel if you remove the finish trim piece.
295
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses

Protected components
Fuse amp rating
Fuse or relay number
Demand lighting (glove box, vanity, dome).
10A 1
1
Battery saver relay coil.
296
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review FusesE145984

Protected components
Fuse amp rating
Fuse or relay number
Second row easy fold relay coil.
Memory seats.
7.5A 1
2
Lumbar.
Power mirrors.
Driver seat module logic power.
Driver door unlock.
20A 1
3
Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
USB charger.
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Rear seat entertainment system module.
10A 2
9
360 camera badge.
Keypad.
5A 2
10
Power liftgate module logic power.
Hands free liftgate module.
297
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Fuses
