Security
Passive Anti-Theft System............................80
Anti-Theft Alarm...............................................81
Steering Wheel

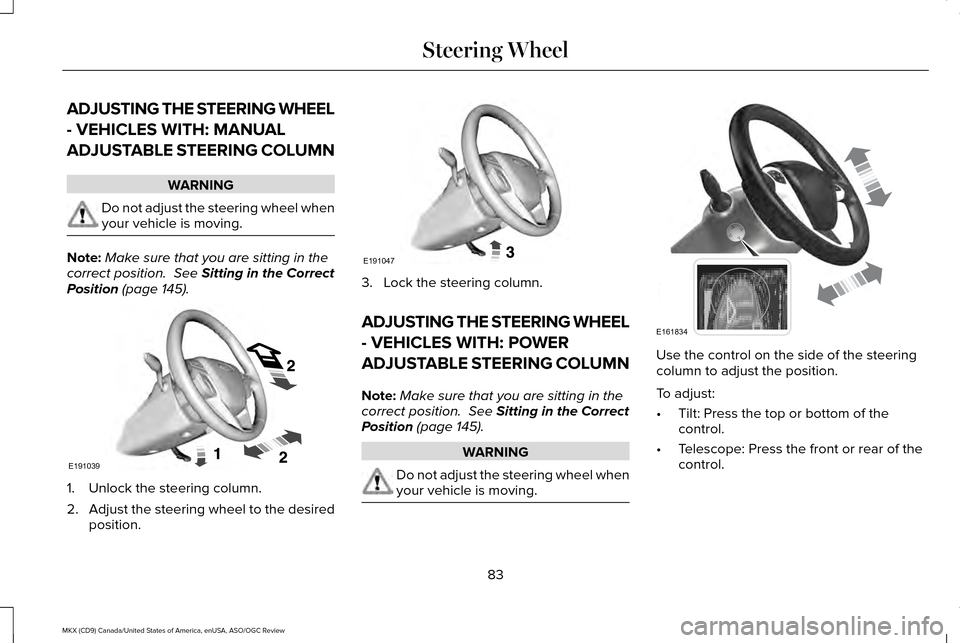

Adjusting the Steering Wheel -
Vehicles
With: Manual Adjustable Steering
Column..........................................................83
Adjusting the Steering Wheel -
Vehicles
With: Power Adjustable Steering
Column..........................................................83

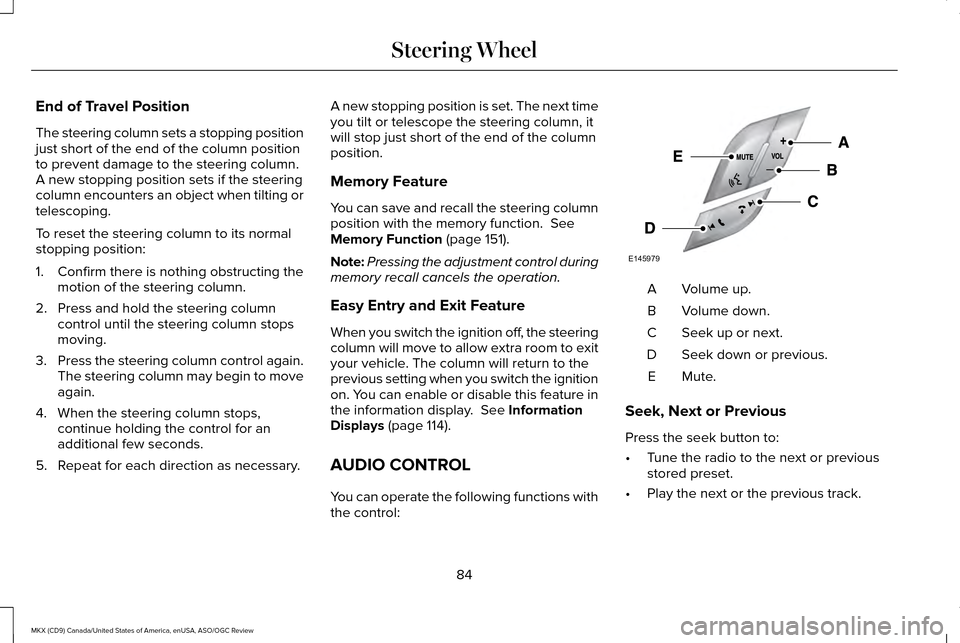

Audio Control
...................................................84

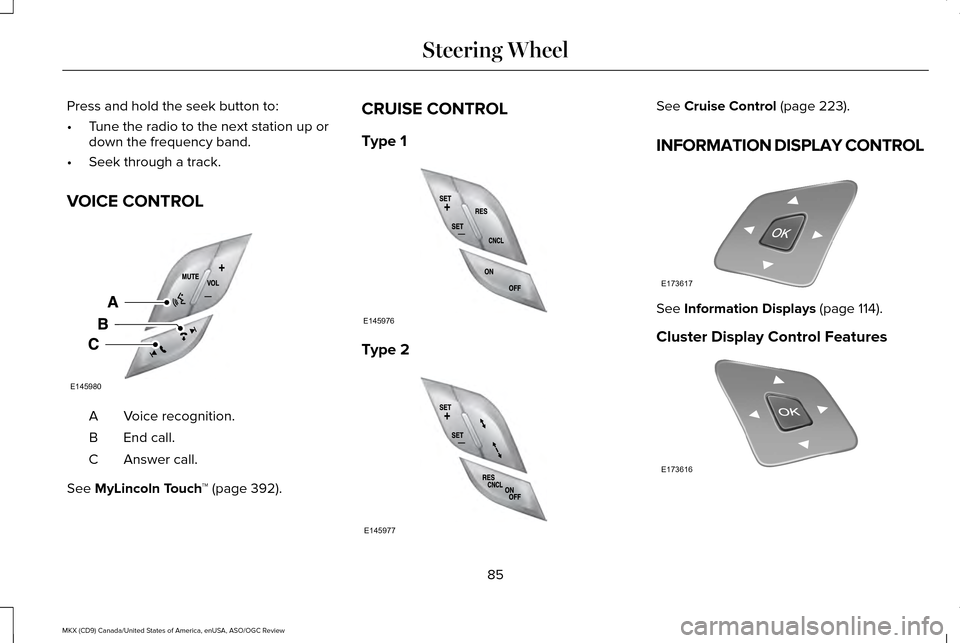

Voice Control
...................................................85
Cruise Control
.................................................85
Information Display Control
.........................85

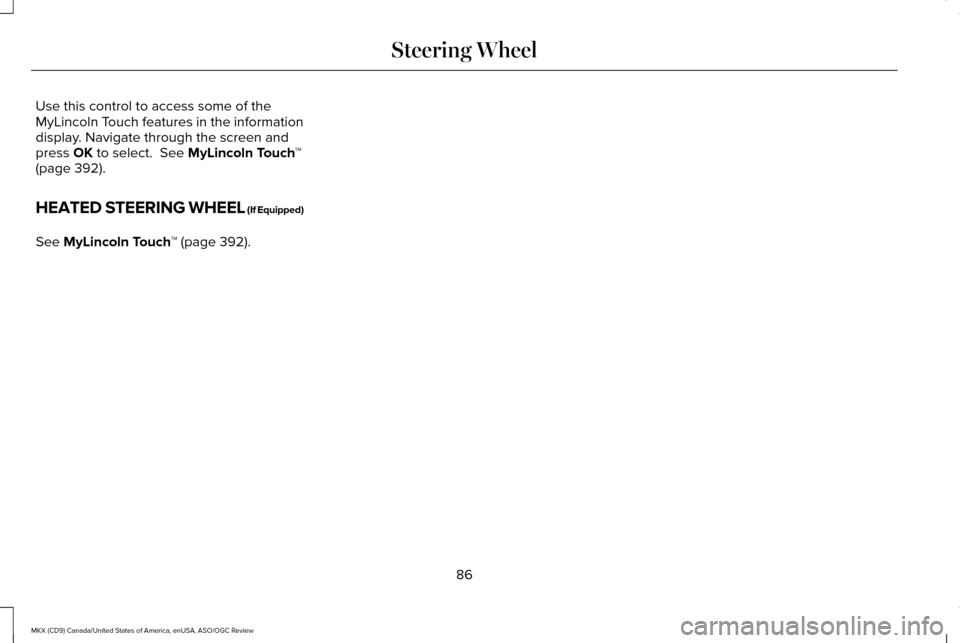

Heated Steering Wheel................................86
Wipers and Washers
Windshield Wipers..........................................87
Autowipers.......................................................88
Windshield Washers
......................................89
Rear Window Wiper and Washers..............89 Lighting
General Information........................................91
Lighting Control
................................................91
Autolamps........................................................92
Instrument Lighting Dimmer........................93
Headlamp Exit Delay.....................................94
Daytime Running Lamps
...............................94
Automatic High Beam Control....................95
Adaptive Headlamps
.....................................96
Direction Indicators
........................................97
Welcome Lighting
...........................................97
Interior Lamps..................................................97
Ambient Lighting............................................99
Windows and Mirrors
Power Windows.............................................100
Global Opening and Closing
.......................101
Exterior Mirrors
...............................................101
Interior Mirror
.................................................104
Sun Visors.......................................................105
Moonroof.........................................................105 Instrument Cluster
Gauges.............................................................107
Warning Lamps and Indicators..................109
Audible Warnings and Indicators...............113
Information Displays
General Information
.......................................114
Information Messages..................................121
Climate Control
Automatic Climate Control.........................140
Hints on Controlling the Interior Climate.........................................................142
Heated Windows and Mirrors....................143
Cabin Air Filter
...............................................143
Remote Start...................................................144
Seats
Sitting in the Correct Position....................145
Head Restraints
.............................................145
Power Seats....................................................148
Memory Function
...........................................151
Rear Seats
.......................................................153
2
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Table of Contents

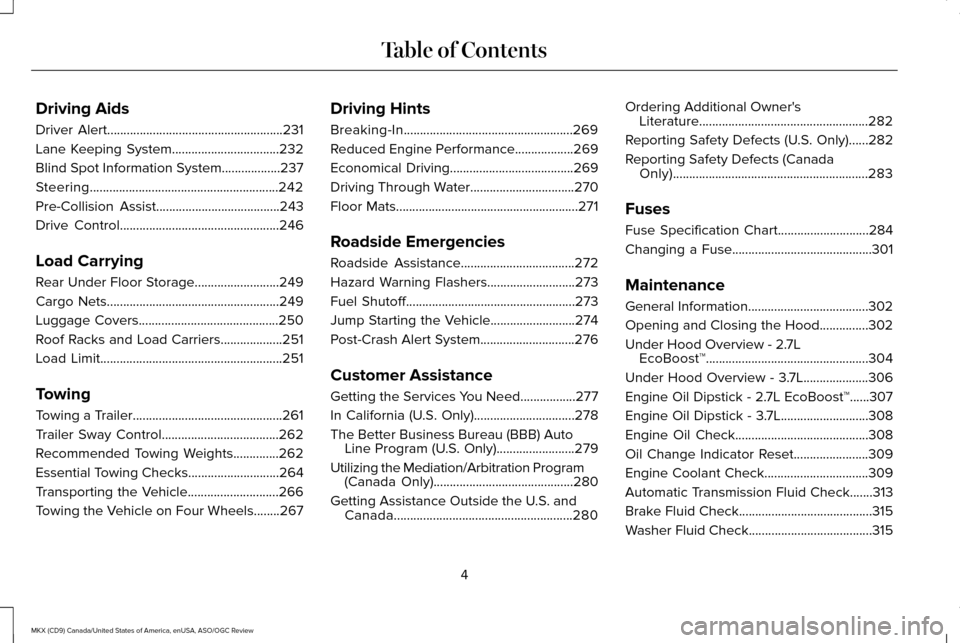

Driving Aids
Driver Alert......................................................231
Lane Keeping System.................................232
Blind Spot Information System..................237
Steering..........................................................242
Pre-Collision Assist......................................243
Drive Control
.................................................246
Load Carrying
Rear Under Floor Storage..........................249
Cargo Nets
.....................................................249
Luggage Covers
...........................................250
Roof Racks and Load Carriers
...................251
Load Limit........................................................251
Towing
Towing a Trailer
..............................................261
Trailer Sway Control
....................................262
Recommended Towing Weights..............262
Essential Towing Checks ............................
264
Transporting the Vehicle............................266
Towing the Vehicle on Four Wheels........267 Driving Hints
Breaking-In....................................................269
Reduced Engine Performance..................269
Economical Driving
......................................269
Driving Through Water................................270
Floor Mats
........................................................271
Roadside Emergencies
Roadside Assistance
...................................272
Hazard Warning Flashers...........................273
Fuel Shutoff
....................................................273
Jump Starting the Vehicle..........................274
Post-Crash Alert System
.............................276
Customer Assistance
Getting the Services You Need
.................277
In California (U.S. Only)...............................278
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)
........................279
Utilizing the Mediation/Arbitration Program (Canada Only)
...........................................280
Getting Assistance Outside the U.S. and Canada.......................................................280 Ordering Additional Owner's
Literature....................................................282
Reporting Safety Defects (U.S. Only)
......282
Reporting Safety Defects (Canada Only)............................................................283
Fuses
Fuse Specification Chart
............................284
Changing a Fuse...........................................301
Maintenance
General Information.....................................302
Opening and Closing the Hood...............302
Under Hood Overview -
2.7L
EcoBoost™..................................................304
Under Hood Overview - 3.7L....................306
Engine Oil Dipstick - 2.7L EcoBoost™......307
Engine Oil Dipstick -
3.7L...........................308
Engine Oil Check.........................................308
Oil Change Indicator Reset.......................309
Engine Coolant Check................................309
Automatic Transmission Fluid Check.......313
Brake Fluid Check
.........................................315
Washer Fluid Check......................................315
4
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Table of Contents

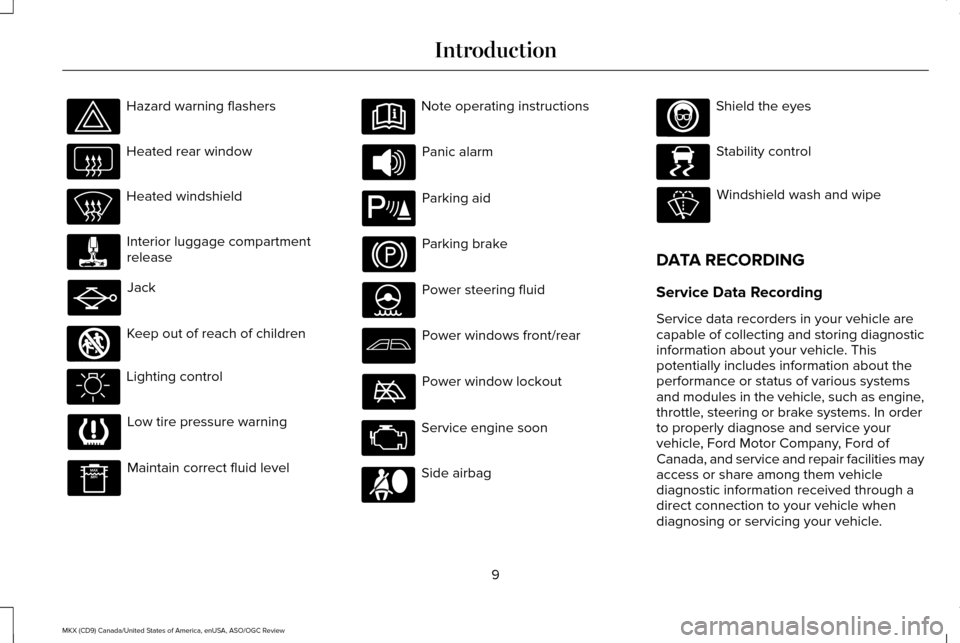

Hazard warning flashers
Heated rear window
Heated windshield
Interior luggage compartment
release
Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level Note operating instructions
Panic alarm
Parking aid
Parking brake
Power steering fluid
Power windows front/rear
Power window lockout
Service engine soon
Side airbag Shield the eyes
Stability control
Windshield wash and wipe
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are
capable of collecting and storing diagnostic
information about your vehicle. This
potentially includes information about the
performance or status of various systems
and modules in the vehicle, such as engine,
throttle, steering or brake systems. In order
to properly diagnose and service your
vehicle, Ford Motor Company, Ford of
Canada, and service and repair facilities may
access or share among them vehicle
diagnostic information received through a
direct connection to your vehicle when
diagnosing or servicing your vehicle.
9
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Introduction E161353 E139213 E167012 E138639

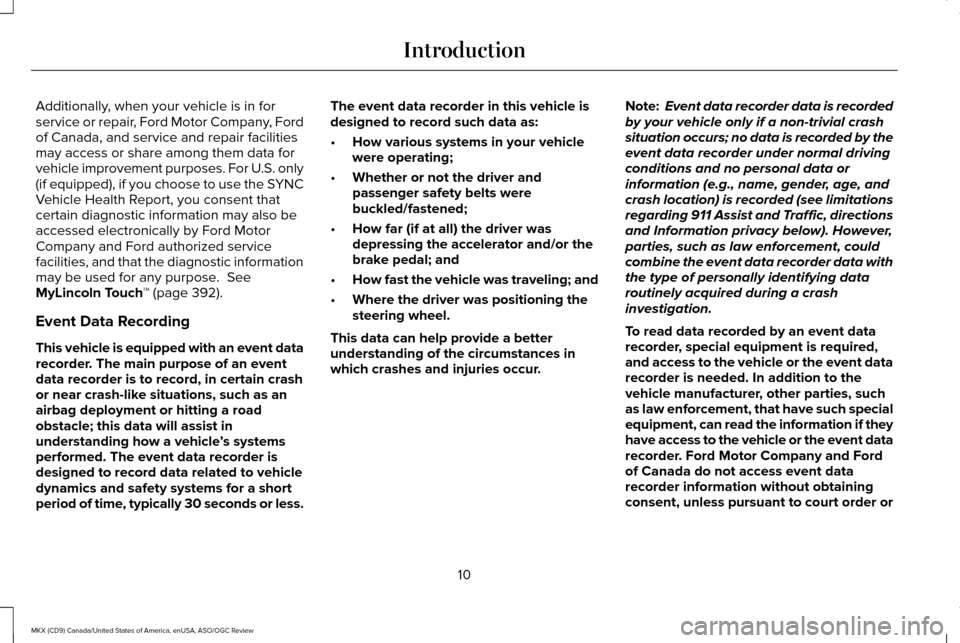

Additionally, when your vehicle is in for
service or repair, Ford Motor Company, Ford
of Canada, and service and repair facilities
may access or share among them data for
vehicle improvement purposes. For U.S. only
(if equipped), if you choose to use the SYNC
Vehicle Health Report, you consent that
certain diagnostic information may also be
accessed electronically by Ford Motor
Company and Ford authorized service
facilities, and that the diagnostic information
may be used for any purpose. See
MyLincoln Touch ™ (page 392).
Event Data Recording
This vehicle is equipped with an event data
recorder. The main purpose of an event
data recorder is to record, in certain crash
or near crash-like situations, such as an
airbag deployment or hitting a road
obstacle; this data will assist in
understanding how a vehicle ’s systems
performed. The event data recorder is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less. The event data recorder in this vehicle is
designed to record such data as:
•
How various systems in your vehicle
were operating;
• Whether or not the driver and
passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was
depressing the accelerator and/or the
brake pedal; and
• How fast the vehicle was traveling; and
• Where the driver was positioning the
steering wheel.
This data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. Note:
Event data recorder data is recorded
by your vehicle only if a non-trivial crash
situation occurs; no data is recorded by the
event data recorder under normal driving
conditions and no personal data or
information (e.g., name, gender, age, and
crash location) is recorded (see limitations
regarding 911 Assist and Traffic, directions
and Information privacy below). However,
parties, such as law enforcement, could
combine the event data recorder data with
the type of personally identifying data
routinely acquired during a crash
investigation.
To read data recorded by an event data
recorder, special equipment is required,
and access to the vehicle or the event data
recorder is needed. In addition to the
vehicle manufacturer, other parties, such
as law enforcement, that have such special
equipment, can read the information if they
have access to the vehicle or the event data
recorder. Ford Motor Company and Ford
of Canada do not access event data
recorder information without obtaining
consent, unless pursuant to court order or
10
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Introduction

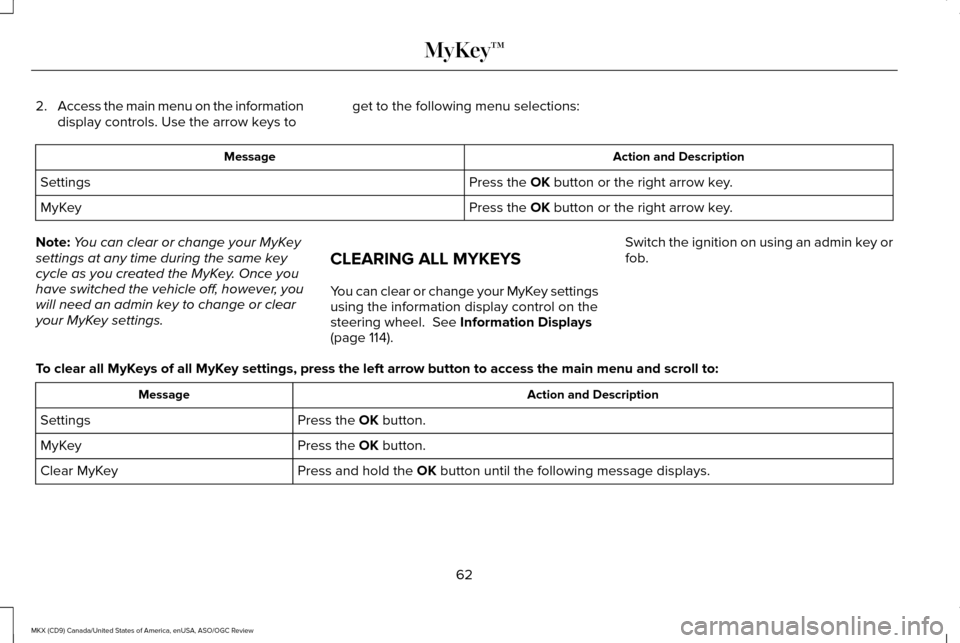

2.
Access the main menu on the information
display controls. Use the arrow keys to get to the following menu selections: Action and Description
Message
Press the OK button or the right arrow key.
Settings
Press the
OK button or the right arrow key.
MyKey
Note: You can clear or change your MyKey
settings at any time during the same key
cycle as you created the MyKey. Once you
have switched the vehicle off, however, you
will need an admin key to change or clear
your MyKey settings. CLEARING ALL MYKEYS
You can clear or change your MyKey settings
using the information display control on the
steering wheel.
See Information Displays
(page 114). Switch the ignition on using an admin key or
fob.
To clear all MyKeys of all MyKey settings, press the left arrow button to access the main menu and scr\
oll to: Action and Description
Message
Press the
OK button.
Settings
Press the
OK button.
MyKey
Press and hold the
OK button until the following message displays.
Clear MyKey
62
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review MyKey™

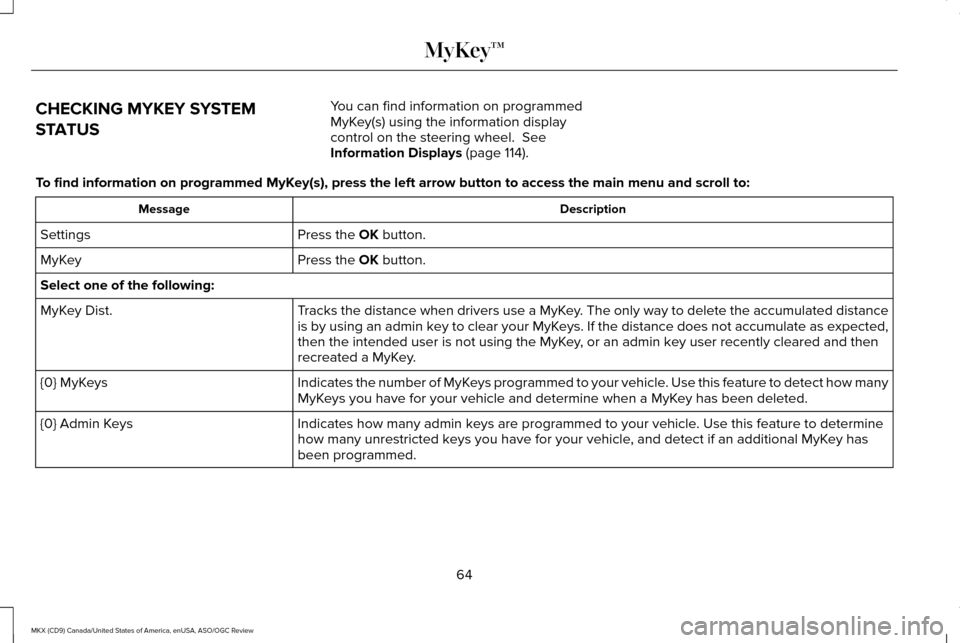

CHECKING MYKEY SYSTEM
STATUS
You can find information on programmed
MyKey(s) using the information display
control on the steering wheel. See
Information Displays (page 114).
To find information on programmed MyKey(s), press the left arrow button to access the main menu and scroll \
to: Description
Message
Press the
OK button.
Settings
Press the
OK button.
MyKey
Select one of the following:
Tracks the distance when drivers use a MyKey. The only way to delete the accumulated distance
is by using an admin key to clear your MyKeys. If the distance does not accumulate as expected,
then the intended user is not using the MyKey, or an admin key user recently cleared and then
recreated a MyKey.
MyKey Dist.
Indicates the number of MyKeys programmed to your vehicle. Use this feature to detect how many
MyKeys you have for your vehicle and determine when a MyKey has been deleted.
{0} MyKeys
Indicates how many admin keys are programmed to your vehicle. Use this feature to determine
how many unrestricted keys you have for your vehicle, and detect if an additional MyKey has
been programmed.
{0} Admin Keys
64
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review MyKey™

ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: MANUAL
ADJUSTABLE STEERING COLUMN
WARNING
Do not adjust the steering wheel when
your vehicle is moving.
Note:
Make sure that you are sitting in the
correct position. See Sitting in the Correct
Position (page 145). 1. Unlock the steering column.
2.
Adjust the steering wheel to the desired
position. 3. Lock the steering column.
ADJUSTING THE STEERING WHEEL
- VEHICLES WITH: POWER
ADJUSTABLE STEERING COLUMN
Note:
Make sure that you are sitting in the
correct position.
See Sitting in the Correct
Position (page 145). WARNING
Do not adjust the steering wheel when
your vehicle is moving. Use the control on the side of the steering
column to adjust the position.
To adjust:
•
Tilt: Press the top or bottom of the
control.
• Telescope: Press the front or rear of the
control.
83
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Steering WheelE191039 E191047 E161834

End of Travel Position
The steering column sets a stopping position
just short of the end of the column position
to prevent damage to the steering column.
A new stopping position sets if the steering
column encounters an object when tilting or
telescoping.
To reset the steering column to its normal
stopping position:
1. Confirm there is nothing obstructing the
motion of the steering column.
2. Press and hold the steering column control until the steering column stops
moving.
3. Press the steering column control again.
The steering column may begin to move
again.
4. When the steering column stops, continue holding the control for an
additional few seconds.
5. Repeat for each direction as necessary. A new stopping position is set. The next time
you tilt or telescope the steering column, it
will stop just short of the end of the column
position.
Memory Feature
You can save and recall the steering column
position with the memory function. See
Memory Function (page 151).
Note: Pressing the adjustment control during
memory recall cancels the operation.
Easy Entry and Exit Feature
When you switch the ignition off, the steering
column will move to allow extra room to exit
your vehicle. The column will return to the
previous setting when you switch the ignition
on. You can enable or disable this feature in
the information display.
See Information
Displays (page 114).
AUDIO CONTROL
You can operate the following functions with
the control: Volume up.
A
Volume down.
B
Seek up or next.
C
Seek down or previous.
D
Mute.E
Seek, Next or Previous
Press the seek button to:
• Tune the radio to the next or previous
stored preset.
• Play the next or the previous track.
84
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Steering WheelE145979

Press and hold the seek button to:
•
Tune the radio to the next station up or
down the frequency band.
• Seek through a track.
VOICE CONTROL Voice recognition.
A
End call.
B
Answer call.
C
See MyLincoln Touch ™ (page 392).CRUISE CONTROL
Type 1
Type 2 See
Cruise Control (page 223).
INFORMATION DISPLAY CONTROL See
Information Displays (page 114).
Cluster Display Control Features 85
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Steering WheelE145980 E145976 E145977 E173617 E173616

Use this control to access some of the
MyLincoln Touch features in the information
display. Navigate through the screen and
press OK to select. See MyLincoln Touch
™
(page 392).
HEATED STEERING WHEEL (If Equipped)
See
MyLincoln Touch ™ (page 392).
86
MKX (CD9) Canada/United States of America, enUSA, ASO/OGC Review Steering Wheel
