LINCOLN MKZ 2007 Quick Reference Guide

.1 Temperature Controls
To control the temperature
on the driver’s side in
single zone mode, select
any temperature between
60º F (16º C) and 90º F
(32º C) by pressing the
driver temperature control;
the climate system’s
display indicates the
selected temperature. The
passenger can also

select any temperature
between 60º F (16º C)

and 90º F (32º C) by
pressing the passenger
temperature control.
.2 Fan Speed – Press
to manually increase or
decrease the fan speed.
To return to automatic fan
operation, press AUTO.
.3 AUTO – Press to
activate automatic
temperature control. The
system will automatically
determine fan speed,
airflow location, A/C on
or off and outside or
recirculated air, to heat or
cool the vehicle to reach
the desired temperature.
Press again to deactivate.
.4 Driver/Passenger
Cooled Seats (if equipped)
Press to activate. Press
once for full cool (three lights), twice for medium
cool (two lights) and a third
time (one light) for low cool.
Press again to deactivate
(no lights).
.5 OFF
– Outside air is
shut out and the fan will not
operate.
.6 Driver/Passenger
Heated Seats – Press to
activate. Press once for full
heat (three lights), twice for
medium heat (two lights)
and a third time (one light)
for low heat. Press again to
deactivate (no lights).
.7 EXT – Press to display
the outside air temperature.
.8 Airflow Direction Control
Press to toggle through the
available air distribution
modes. The selected mode
will appear in the display.
To return to full automatic
control, press AUTO.
.9 Recirculation Control
Used to manually enable
or disable recirculated air
operation. When activated,
recirculates air in the
cabin thereby reducing the
amount of time to cool
down the interior of the
vehicle. May also help
reduce undesired odors from reaching the interior of
the vehicle. Will work in all
modes except defrost.
.10
Rear Window Defroster
Press to clear the rear
window and the outside
rearview mirrors of thin
ice and fog. Press again to
deactivate. The defroster
will turn off automatically
after 10 minutes.
.11 Defrost – Press to
distribute outside air
through the windshield
defroster and demister
vents. Can be used to clear
thin ice or fog from the
windshield. To exit defrost,
select another mode.
.12 DUAL Zone Selector
Allows the driver to have
full control of the cabin
temperature settings
(single zone) or allows
the passenger to have
control of their individual
temperature settings (dual
zone). Press to turn on dual
zone mode; press again to
return to single zone.
For Maximum Cooling
Performance
Press , , and set
the temperature to 60º
F (16º C) and the highest
blower setting.
Memory Feature
The memory feature enables the vehicle to
“remember” your driver’s seat and exterior
mirrors position. To set,
position the driver’s seat
and exterior mirrors where
you want them. Press SET
on the driver’s door panel.
Within five seconds, press any control on the
Integrated Keyhead/Keyfob Transmitter (IKT)
and then press 1 or 2 on the driver’s door
panel to save the settings under Driver 1 or
Driver 2. When you press
on the IKT to
get into the vehicle, the seat and mirrors will
automatically adjust to your desired positions.
Integrated Keyhead/Keyfob Transmitter
(IKT) and Remote Entry System Features
IKTs are both a programmed
ignition key and a remote
keyless entry transmitter.
Handle the IKT carefully
when starting the car to avoid
accidentally pressing any of the remote entry
buttons.
Press
once to unlock the driver’s door. The
interior lamps will illuminate.
Press
twice to unlock all the doors.
Press
once to lock all the doors and activate
the perimeter alarm system.
Press
twice to confirm all the doors and
trunk are closed. The horn will chirp and the
turn signal lamps will flash once if all the doors
and the trunk are closed.
Press and hold
for 1.5 seconds to activate
the panic alarm. (A short press and release can
be used to deactivate the panic alarm.) Press
twice within 3 seconds to open the trunk.
Ensure that you keep the IKT adhesive security
label in a safe place for future reference.
SecuriLock™
The SecuriLock™ passive anti-theft system
is an engine immobilization system. This
system is designed to help prevent the engine
from being started unless a coded Integrated Keyhead
Transmitter (IKT) programmed to
your vehicle is used. Using the wrong type of
coded key may lead to a “no start” condition.
The anti-theft indicator
in the instrument
cluster will flash to indicate the SecuriLock
system is functioning as a theft deterrent
when the ignition is turned off.
Autolock/Auto-Unlock
Autolock automatically locks all vehicle doors
when all the doors are closed, the ignition is in
the RUN position, you shift into any gear that
puts the vehicle into motion, and the vehicle is
moving above 12 mph (20 km/h). Auto-unlock
automatically unlocks all the doors when the
vehicle has been traveling above 12 mph (20
km/h), comes to a complete stop, and the
driver door is opened within 10 minutes of the
ignition being turned off.
Note: For instructions
on disabling autolock, please refer to your
Owner’s Guide or see your authorized dealer.
Rear Seat ReleaseBoth rear seats can be folded down for
additional cargo space. Pull the release
handle located inside the trunk to fold down
the seat.
Moon Roof (if equipped)
The moon roof is equipped with a
one-touch, express opening, closing, and
venting feature. To open the moon roof, press and release the rear
portion of the control. To close
the moon roof, press and
release the front portion of the
control. To stop motion at any
time during the one-touch operation, press
the control a second time.
Global Open Front Windows (if equipped)
You can open your front windows and moon
roof (if equipped) simultaneously using your
Integrated Keyhead/Keyfob Transmitter
(IKT). Press and hold
until the two front
windows and moon roof begin to open.
If any other remote entry transmitter
control is pressed during the opening
operation, both windows and the moon

roof will stop opening.
THX II – Your vehicle may
be equipped with the THX
II certified premium audio
system. This system creates
optimal acoustic quality for
all seating positions and road
conditions. The system offers
an advanced speaker system,
amplifiers, subwoofer,

and equalization.
.1 Load – Press LOAD and
a memory preset to load to a
specific slot. Press and hold
to auto load up to six CDs.
.2 ON/OFF/Volume
Press to turn ON/OFF.
Turn to increase/decrease
volume. If the volume is set
above a certain level and
the ignition is turned off,
the volume will come back
on at a “nominal” listening
level when the ignition
switch is turned back on.
SATELLITE RADIO CONTROLS
(if equipped)
.3 AUX – Press repeatedly to cycle through SAT1, SAT2, SAT3 (satellite radio mode if equipped) or LINE IN (auxiliar y audio mode). Once Satellite Radio mode is activated you may use the following functions:
Press MENU until CATEGORY MODE appears in the display. Press / to select from various categories of music (countr y, rock, etc.) and press and hold SEEK or TEXT/SCAN to search for channels playing that specific categor y of music.
Press SEEK to access the previous/next channels. Press and release TEXT/SCAN to display the current
song title. Press again to scroll through current song title, ar tist, channel categor y and the SIRIUS long channel name. Press and hold for a brief sampling of the next channels. Press again to stop.
.4 SHUFFLE – Press to play
all tracks on the current CD/
MP3 disc in random order.
.5 SEEK – Press to access
the previous/next strong
station or CD track.
.6 TEXT/SCAN – In radio
mode, when listening to a
RBDS-equipped station,
press and release to view the
text information of the radio
station, if available. Press
and hold for a brief sampling
of radio stations. In CD/MP3
mode, press and release
to view the track title, artist
name, disc title or file name, if
available. Press and hold for a
brief sampling of all tracks on
the current disc.
.7 MUTE – Press to mute
the playing media. Press
again to return to the
playing media.
.8 MENU – Press repeatedly
to toggle through:
Autoset – Allows you to set
the strongest local radio
stations without losing your
original stored stations in
AM/FM1/FM2. Use
to
turn on/off. When the six
strongest stations are filled,

the station stored in preset 1
will begin playing. If there are
less than six strong stations,
the system will store the last
one in the remaining presets. Occupancy
mode – Use
to
select and optimize sound for
ALL SEATS, DRIVERS SEAT or
REAR SEATS.
Speed sensitive volume

Radio volume automatically
changes slightly with vehicle
speed to compensate
for road and wind noise.
Recommended level is 1-3.
Level 0 turns the feature

off and level 7 is the
maximum setting. When the
vehicle is stopped, volume is
significantly lowered.
Compression – Brings soft and
loud CD passages together
for a more consistent listening
level when in CD mode. Press
MENU until compression
status is displayed. Press

to turn the feature on/off.
RBDS – Radio Broadcast Data
System (if equipped) – In FM
mode, this feature allows you
to search for certain categories
of music or announcements.
For more information, refer to
your Owner’s Guide.

.9 Tune – Turn to go up/
down the frequency band in
individual increments, or to
advance to the next/previous
MP3 folder.
Auxiliary Input Jack / AIJ (if
equipped) – Your vehicle may
be equipped with an Auxiliary
Input Jack (AIJ) located inside
the console bin. This allows
you to plug and play auxiliary
audio devices. Press AUX
repeatedly on your audio
system to access. When
LINE IN appears in the
display, plug in your auxiliary
audio device. For more
detailed information, please
refer to your Owner’s Guide.
About Your Leather Seats – Your leather seats
have a clear, protective coating over them which
requires special care. Use only Motorcraft Deluxe
Leather and Vinyl Cleaner (ZC-11-A).

Do not use any household cleaning products or
oil/petroleum-based conditioners as they may
cause premature ageing.
Location of Spare Tire and Tools – The spare
tire and jack are located in the trunk below the
carpeted floor panel. The necessary tools are
contained in the tool bag. For complete details
on how to change your tire, refer to the Roadside
Emergencies chapter in your Owner’s Guide.
Fuses – If the vehicle’s electrical components
are not operating, a fuse may have blown. The
fuse panel is located below the instrument
panel on the driver’s side; remove the cover
to view the fuses. Additional fuses are
located in the power distribution box in the
engine compartment. For more information
regarding changing fuses, refer to the Roadside
Emergencies chapter in your Owner’s Guide.
Fuel Type and Tank Capacity –
Your fuel tank can
accommodate approximately 17.5 gallons (66
L) of gasoline. Your vehicle is designed to use
unleaded gasoline with an (R+M)/2 octane rating
of 87. Using gasoline with a lower octane rating
may degrade performance.
Tire Pressure – Your vehicle’s tire pressure
specifications are found on the vehicle’s Safety
Compliance Certification Label located on the
driver’s door jamb. Check your tires for proper
air pressure monthly; Use a tire gauge to check
the tire inflation pressure, including the spare (if equipped), at least monthly and before long
trips. Always use an accurate tire pressure
gauge. Check the tire pressure when tires are
cold, after the vehicle has been parked for
at least three hours or has been driven less
than three miles (5 km). (As you drive, the
temperature in the tire warms up, increasing
the tire pressure.) Improperly inflated tires can
affect vehicle handling and can fail suddenly,
resulting in a possible loss of vehicle control.
Refer to the Tires, Wheels and Loading chapter
in your Owner’s Guide for further information.
Fuel
Pump Shut-Off Switch –
The fuel pump
shut-off switch stops the electric fuel pump from
sending fuel to your engine when your vehicle
has sustained a substantial jolt. The switch is
located in the passenger’s footwell, by the kick
panel. For more information regarding the fuel
pump shut-off switch, refer to the Roadside
Emergencies chapter in your Owner’s Guide.
Roadside Assistance – During your Lincoln
MKZ’s limited warranty period, the assurance
and support of a 24-hour emergency roadside
assistance program is included. Roadside
assistance includes such services as fuel
delivery, tire changes, jump starts, winch outs,
help when you are locked out of your vehicle,
and towing.
Complete your roadside assistance
identification card and keep it handy (such
as in your wallet) for quick reference. This
identification card is located in your Owner’s
Information portfolio.

To receive roadside assistance in the
United States, call (800) 521- 4140.
In Canada, call (800) 665 -2006.
Lincoln MKZ
May 2006
First Printing
Quick Reference
Guide
This Quick Reference Guide is not intended
to replace your vehicle Owner’s Guide which
contains more detailed information concerning
the features of your vehicle, as well as important
safety warnings designed to help reduce the
risk of injury to you and your passengers. Please
read your entire Owner’s Guide carefully as you begin
learning about your new vehicle and refer
to the appropriate sections when questions
arise. All information contained in this Quick
Reference Guide was accurate at the time of
duplication. We reserve the right to change
features, operation and/or functionality of any
vehicle specification at any time. Your Lincoln dealer
is the best source for the most current
information. For detailed operating and safety
information, please refer to your Owner’s Guide.
Ford Motor Company, Customer Relationship
Center, P.O. Box 6248, Dearborn, MI 48121
1-800-392-3673 (FORD), (TDD for the hearing
impaired: 1-800-232-5952)

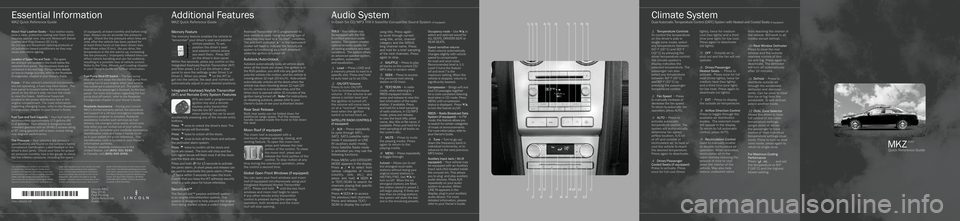

Climate System
Dual Automatic Temperature Control (DATC) System with Heated and Cooled Seats (if equipped)
Additional Features
MKZ Quick Reference Guide
Audio System
In-Dash Six CD/MP3 THX II Satellite Compatible Sound System (if equipped)
Essential Information
MKZ Quick Reference Guide
MKZ
2007
Quick Reference Guide
456579
135
46
7
84612
1
2
8
9
13
1011
2
*F7H6J19G217AB*
7H6J-19G217-AB

Sleek. Dynamic. Stylish. The Lincoln MKZ awaits you. From the luxurious
amenities to the quiet interior, Lincoln’s classic touch ensures that every drive is a
unique and comforting one. Experience your own sanctuary as the spirited engine
carries you effortlessly through the next curve, the MP3 sound system sets the
pace with your favorite music, and the luxurious leather seats enfold you. You may
never want to leave.
Take a few minutes to use this Quick Reference Guide to acquaint you with
many of the features you’ll use most. For more detailed information, refer to your
Owner’s Guide.
has detected a malfunction. Drive in a moderate fashion
and have your vehicle
serviced immediately by an

authorized dealer.
.10 Airbag Readiness Light
The Airbag Readiness light
illuminates briefly when
the ignition is turned on.
If this light
remains on
or continues
to flash after
the engine
is started, have the system
serviced immediately by your
authorized dealer. A chime
will sound if a malfunction in
the supplemental restraint
system is detected as well.
.11 Anti-Lock Brake
System (ABS)
The ABS light illuminates
briefly when
the ignition is
turned on. If
the ABS light
remains on
or flashes after the engine
is started, have the system
serviced immediately by your
authorized dealer. Normal
braking (less ABS) will still
be functional unless the
brake warning light is also illuminated.
Note: It is normal
to feel a pedal pulsation or
hear a slight noise when the
ABS system is activated.
.12 Brake System
Warning Light
The brake system warning
light illuminates briefly when
the ignition is turned on.
This light will
remain on
when the
parking brake
is applied and
the ignition is on. If this light
remains on after releasing the
parking brake, this indicates
a low brake fluid level or a
brake system malfunction.
Have the brake system
inspected immediately by an
authorized dealer.
.13 Check Fuel Cap Light
This icon
illuminates
when the fuel
cap may not
be properly
installed. If you continue
to drive with this light
illuminated, the Check Engine
Indicator light may come on.
HomeLink ® (if equipped)Located on the driver’s visor,
the HomeLink® Wireless Control
System is a convenient way to
replace up to three hand-held
transmitters
with a single
built-in device.
This system
learns the
radio frequency codes of most
transmitters to operate garage
doors, entry gates, security
systems, entry door locks, and
home or office lighting. Refer
to the Driver Controls chapter
in your Owner’s Guide for
more information including
programming instructions.
Auxiliary Power PointThe auxiliary power point
is located in the utility
compartment
in the center
console.
Note:
Do not use
the power
point over the capacity of
12VDC/180W.
Glove Box CD Storage Your vehicle is
equipped with
a special area
for your CD
storage. It is
located inside the glove box,
to the right of the main bin.

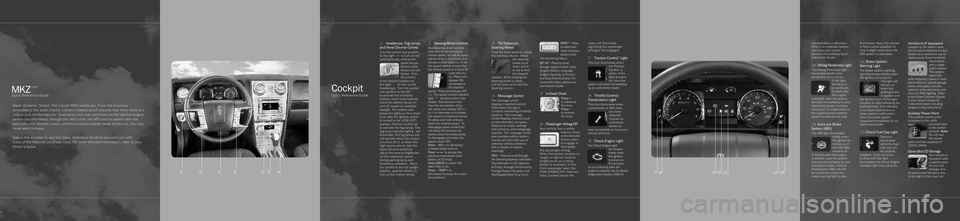

Cockpit
Quick Reference Guide
.1 Headlamps, Fog Lamps
and Panel Dimmer Control
Turn the control one position
to the right to
turn on the
parking lamps, instrument
panel lamps,
license plate
lamps and tail
lamps. Turn
the control
to the second position on
the right
to turn on the
headlamps. Turn the control
one position to the left

to activate the autolamp
feature, which automatically
turns the exterior lamps on
and off, based on available
daylight. The system also
keeps the lights on for a short
time after the ignition switch
is turned to the LOCK (OFF)
position. Pull the control out
to activate the fog lamps. The
fog lamp indicator light
will
illuminate. The fog lamps will
not operate when the control
is turned off
or when the
high beams are on. Use the
panel dimmer control to
adjust the level of brightness
on the instrument panel
during parking lamp and
headlamp operation. Move
the control to the full upright
position, past the detent, to
turn on the interior lamps.
.2 Steering Wheel Controls
Your steering wheel controls
allow you to set and adjust
vehicle speed, as well as make
adjustments in your audio and
climate control systems. To set
the speed control, ensure that
the vehicle speed is at least 30
mph (48 km/
h). Press and
release ON.
Accelerate to
the desired
speed. Press and release SET
(+). The speed control indicator
light
will illuminate in the
cluster. Remove your foot
from the accelerator. Once
set, press and release SET (-)
or (+) to decrease or increase
the speed in small increments.
Or, press and hold until you
reach the desired speed. To
disengage speed control but
not erase the previous set
speed, press the brake pedal.
To disengage and erase the
speed, press OFF.
Press – VOL + to decrease/
increase audio volume.
Press
to access the
previous/next preset radio
station or CD track.
Press MEDIA to select AM,
FM1, FM2 or CD.
Press – TEMP + to
decrease/increase the cabin temperature.
.3 Tilt/Telescopic
Steering Wheel
Push the lever down to unlock
the steering column. Move
the steering
wheel up or
down and in
or out to find
the desired
position. While holding the
steering wheel in place,
pull the lever up to lock the
steering column.
.4 Message Center
The message center
displays important vehicle
information through a
constant monitoring of vehicle
systems. The message
center displays features such
as trip odometer, compass,
distance to empty, average
fuel economy, and a language
selector. The message center
also provides vehicle system
checks and will notify you of
potential vehicle problems
with a display of system
warnings.
INFO – Press to scroll through
the following displays: Odometer,
Trip Odometer A or B, Distance
to Empty, Average Fuel Economy,
Average Speed, Compass, and
Trip Elapsed Drive Time 1 or 2.
RESET – Press
to select and
reset functions
shown in the
Info and Set Up Menu.
SET UP – Press to scroll
through: System Check, Units
(English/Metric), Language
(English, Spanish, or French),
and Easy Entry/Exit Seat. For
more information, please see
your Owner’s Guide.
.5 In-Dash Clock
Press +
to advance
the time.
Press –

to reverse
the time.
.6 Passenger Airbag Off
Your vehicle has a safety
feature which
automatically
knows when
to engage or
disengage
the passenger airbag.
When the system senses no
weight or light to medium
weight (such as a heavy
binder or suitcase), in the
front passenger seat, the
PASS AIRBAG OFF indicator
lamp (located above the radio) will illuminate,
signifying the passenger
airbag is not engaged.
.7
Traction Control™ Light
This icon illuminates when
the Traction
Control™ is
active. If the
light remains
on, have the
system serviced immediately
by an authorized dealer.
.8 Throttle Control/
Transmission Light
This icon illuminates when
a powertrain or AWD fault
has been
detected.
Contact an
authorized
dealer as
soon as possible to have your

vehicle serviced.
.9 Check Engine Light
The Check Engine light
illuminates
briefly when
the ignition
is turned on.
If it remains
on or is blinking after the
engine is started, the On Board
Diagnostics System (OBD-II)
MKZ
2007
Quick Reference Guide
132478910111213526
