Page 287 of 345

LINCOLN MKZ 2011 User Guide •NEVER increase the coolant concentration above 60%.
•A coolant concentration of 60% will provide freeze point
protection down to -62°F [-52°C]. Increased engine coolant
concentrations above 60%

Page 288 of 345

LINCOLN MKZ 2011 User Guide When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature

Page 300 of 345

LINCOLN MKZ 2011 User Guide The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cyc

Page 301 of 345

LINCOLN MKZ 2011 User Guide BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range;

Page 305 of 345

LINCOLN MKZ 2011 User Guide •Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contam

Page 306 of 345

LINCOLN MKZ 2011 User Guide Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts

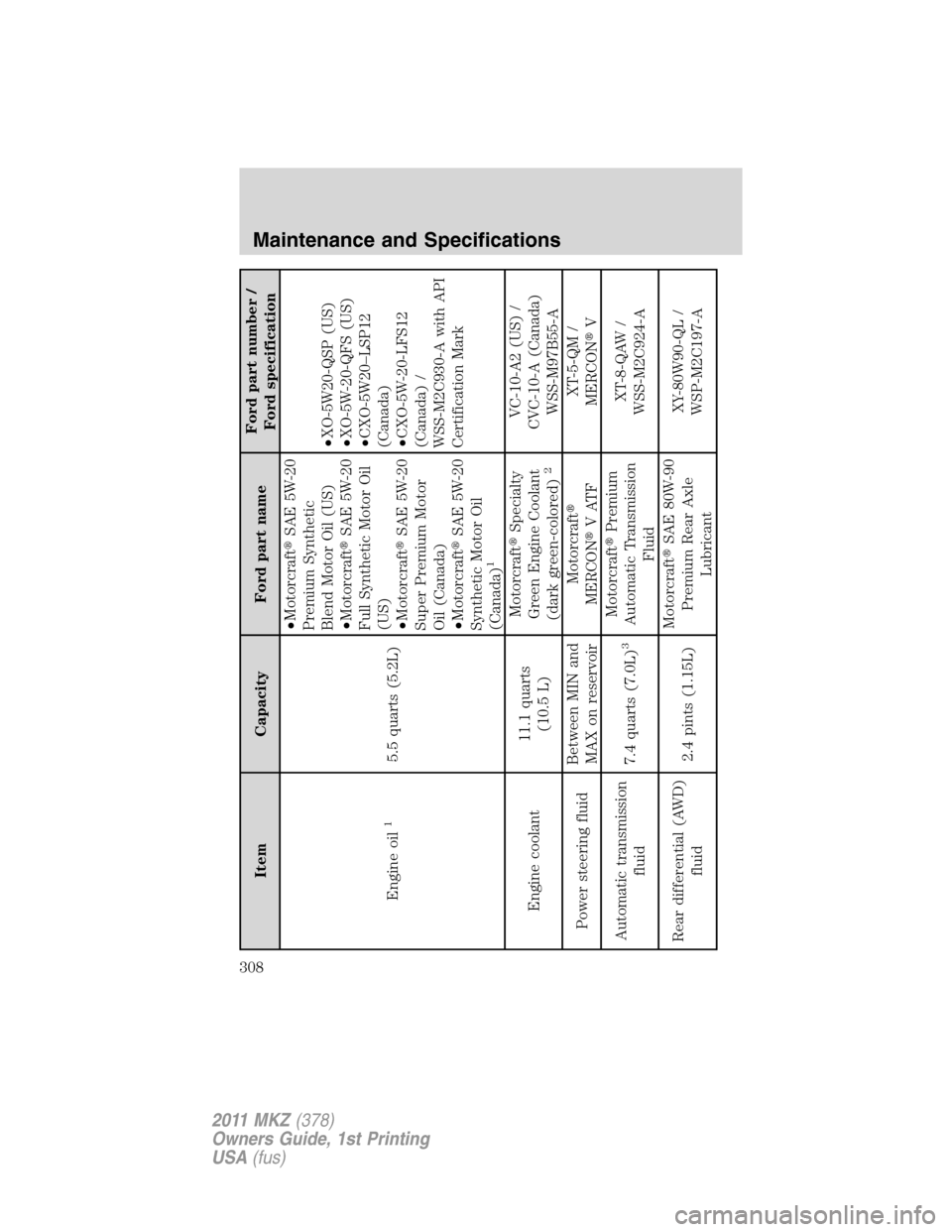

Page 308 of 345

LINCOLN MKZ 2011 User Guide Item Capacity Ford part nameFord part number /
Ford specification
Engine oil
1
5.5 quarts (5.2L)•MotorcraftSAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Mo

Page 309 of 345

LINCOLN MKZ 2011 User Guide Item Capacity Ford part nameFord part number /
Ford specification
Power Transfer Unit
(PTU) fluid (AWD)
4
12 ounces (0.35L)MotorcraftSAE
75W-140 Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192

Page 322 of 345

LINCOLN MKZ 2011 User Guide Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major pro

Page 323 of 345

LINCOLN MKZ 2011 User Guide Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehic
