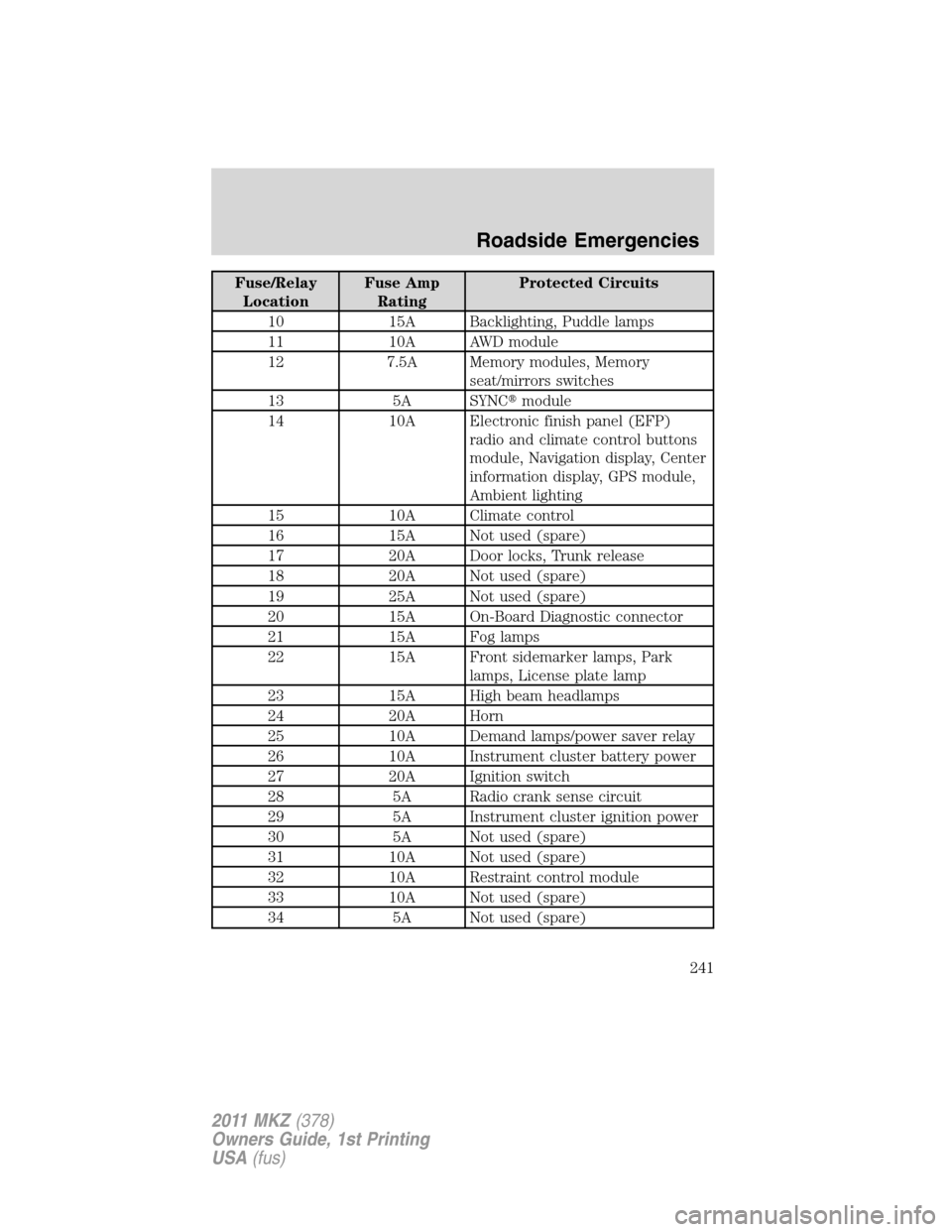

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
10 15A Backlighting, Puddle lamps
11 10A AWD module
12 7.5A Memory modules, Memory
seat/mirrors switches
13 5A SYNCmodule
14 10A Electronic finish panel (EFP)
radio and climate control buttons
module, Navigation display, Center
information display, GPS module,
Ambient lighting
15 10A Climate control
16 15A Not used (spare)
17 20A Door locks, Trunk release
18 20A Not used (spare)
19 25A Not used (spare)
20 15A On-Board Diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park
lamps, License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Not used (spare)
Roadside Emergencies
241
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

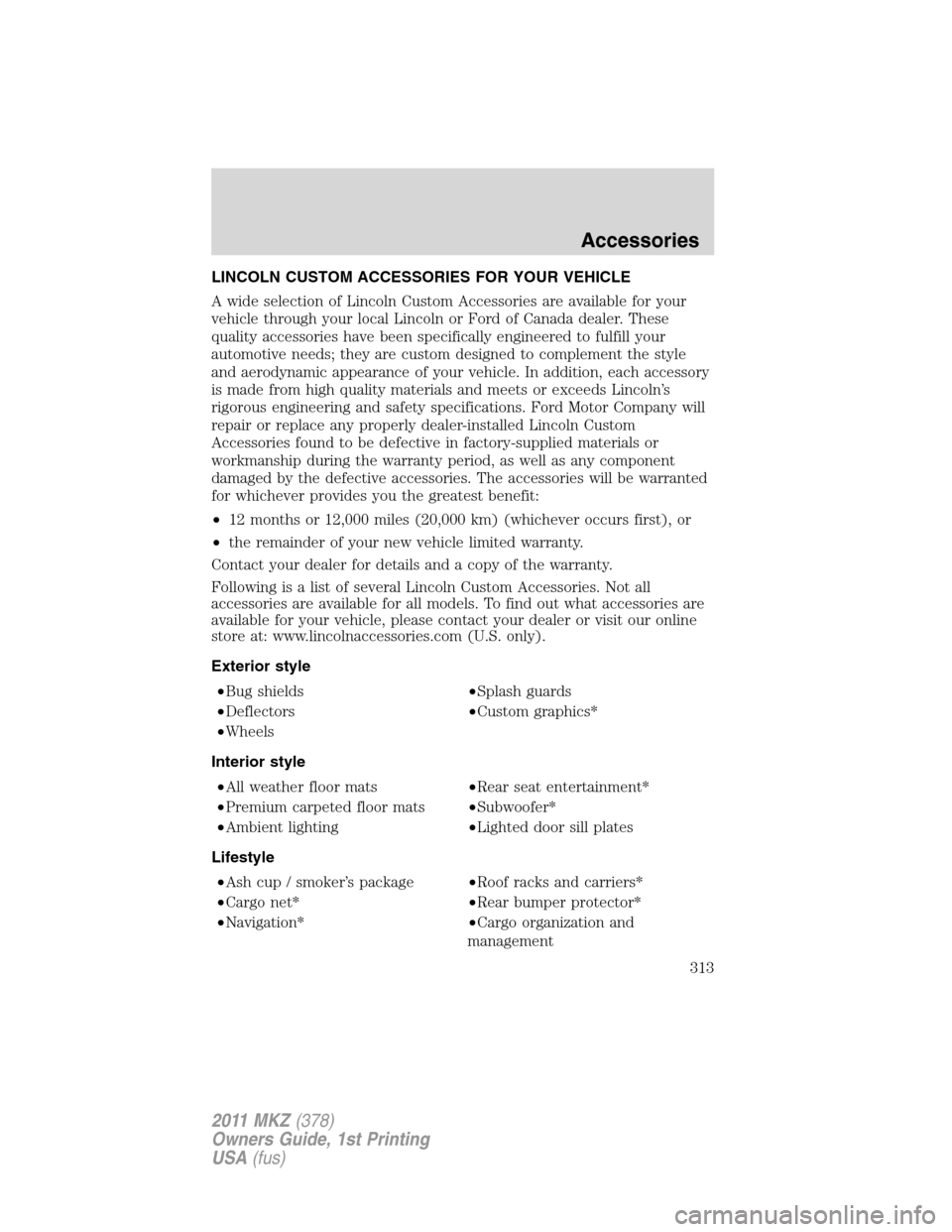

LINCOLN CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Lincoln Custom Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Lincoln Custom
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Lincoln Custom Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com (U.S. only).
Exterior style
•Bug shields•Splash guards
•Deflectors•Custom graphics*
•Wheels
Interior style
•All weather floor mats•Rear seat entertainment*
•Premium carpeted floor mats•Subwoofer*
•Ambient lighting•Lighted door sill plates
Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Cargo net*•Rear bumper protector*
•Navigation*•Cargo organization and
management
Accessories
313
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

I
Ignition ...............................202, 310
Illuminated visor mirror .............70
Infant seats
(see Safety seats) .....................162
Inspection/maintenance (I/M)
testing ........................................299
Instrument panel
cleaning ...................................269
cluster ........................................12
lighting up panel and
interior .......................................55
J
Jack ............................................245
positioning ...............................245
storage .....................................245
Jump-starting your vehicle ......253
K
Keyless entry system
autolock .....................................95
keypad .....................................107
locking and unlocking doors ..108
programming entry code .......107
Keys .....................................89, 110
positions of the ignition .........202
L
Lamps
autolamp system .......................53
bulb replacement
specifications chart ..................59
daytime running light ...............54
fog lamps ...................................54
headlamps .................................52headlamps, flash to pass ..........54
instrument panel, dimming .....55
interior lamps .....................57, 60
replacing bulbs .........................61
LATCH anchors .........................166
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........208
Load limits .................................194
Locks
autolock .....................................95
childproof ..................................99
doors ..........................................95
Lubricant specifications ...........307
Lug nuts ....................................251
Lumbar support, seats .............118
M
Message center .....................18–19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors ...................................76–77
automatic dimming rearview
mirror ........................................76
heated ..................................47, 77
programmable memory ..........103
side view mirrors (power) .......77
Moon roof ....................................81
Motorcraftparts ..............273, 306
MyKey ..........................................90
N
Navigation system .......................43
Index
342
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
