set clock LINCOLN MKZ 2011 Owners Manual

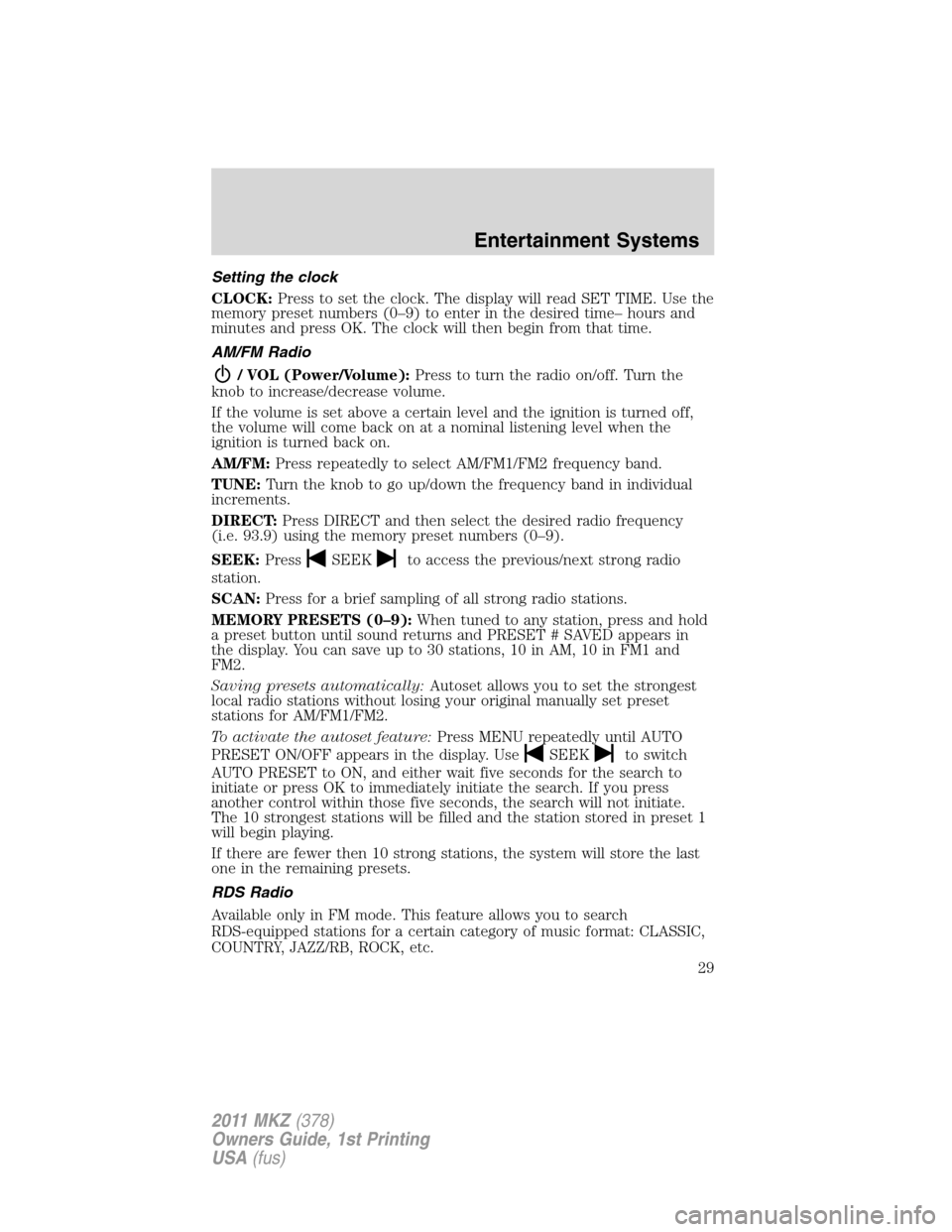

Setting the clock
CLOCK:Press to set the clock. The display will read SET TIME. Use the
memory preset numbers (0–9) to enter in the desired time– hours and
minutes and press OK. The clock will then begin from that time.
AM/FM Radio
/ VOL (Power/Volume):Press to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition is turned back on.
AM/FM:Press repeatedly to select AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go up/down the frequency band in individual
increments.
DIRECT:Press DIRECT and then select the desired radio frequency
(i.e. 93.9) using the memory preset numbers (0–9).
SEEK:Press
SEEKto access the previous/next strong radio
station.
SCAN:Press for a brief sampling of all strong radio stations.
MEMORY PRESETS (0–9):When tuned to any station, press and hold
a preset button until sound returns and PRESET # SAVED appears in
the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and
FM2.
Saving presets automatically:Autoset allows you to set the strongest
local radio stations without losing your original manually set preset
stations for AM/FM1/FM2.
To activate the autoset feature:Press MENU repeatedly until AUTO
PRESET ON/OFF appears in the display. Use
SEEKto switch
AUTO PRESET to ON, and either wait five seconds for the search to
initiate or press OK to immediately initiate the search. If you press
another control within those five seconds, the search will not initiate.
The 10 strongest stations will be filled and the station stored in preset 1
will begin playing.
If there are fewer then 10 strong stations, the system will store the last
one in the remaining presets.
RDS Radio
Available only in FM mode. This feature allows you to search
RDS-equipped stations for a certain category of music format: CLASSIC,
COUNTRY, JAZZ/RB, ROCK, etc.
Entertainment Systems
29
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory feature
The power side view mirror positions are saved when doing a memory
set and can be recalled using the memory feature. Refer toMemory seat
and mirrorsin theSeating and Safety Restraintschapter.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
Heated mirrors
Both mirrors are heated automatically to remove ice, mist and fog when
the rear window defrost is activated.
Note:With the auto dimming feature, the mirror glass is thicker and will
take longer to defrost.
Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.
Blind spot mirrors (if equipped)
Your vehicle may be equipped with blind spot mirrors or a blind spot
information system. Refer toBlind spot mirrorsorBlind spot
information system (BLIS) with cross traffic alert (CTA)in the
Drivingchapter.
Driver Controls
77
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

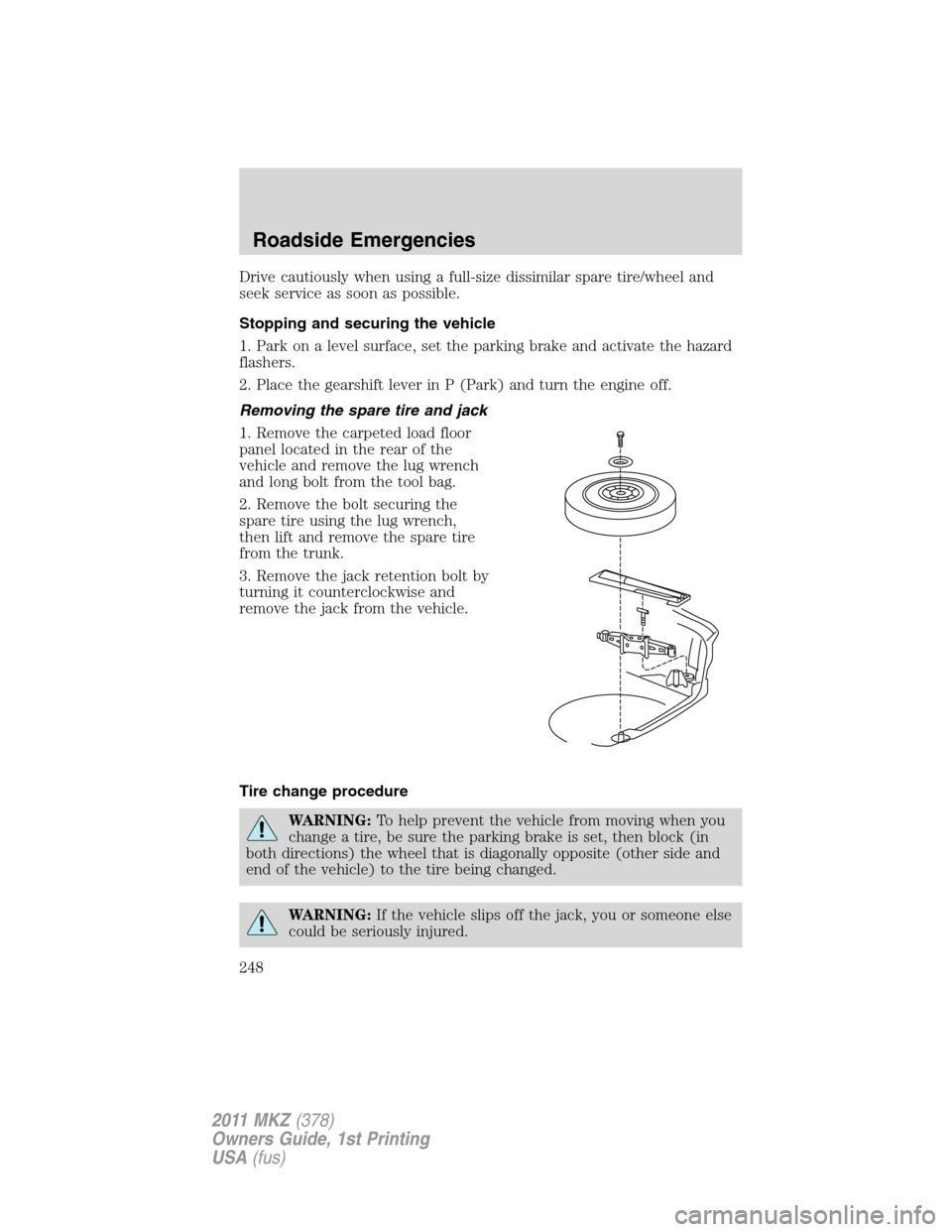

Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Stopping and securing the vehicle
1. Park on a level surface, set the parking brake and activate the hazard
flashers.
2. Place the gearshift lever in P (Park) and turn the engine off.
Removing the spare tire and jack
1. Remove the carpeted load floor
panel located in the rear of the
vehicle and remove the lug wrench
and long bolt from the tool bag.
2. Remove the bolt securing the
spare tire using the lug wrench,
then lift and remove the spare tire
from the trunk.
3. Remove the jack retention bolt by
turning it counterclockwise and
remove the jack from the vehicle.
Tire change procedure
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure the parking brake is set, then block (in
both directions) the wheel that is diagonally opposite (other side and
end of the vehicle) to the tire being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
Roadside Emergencies
248
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

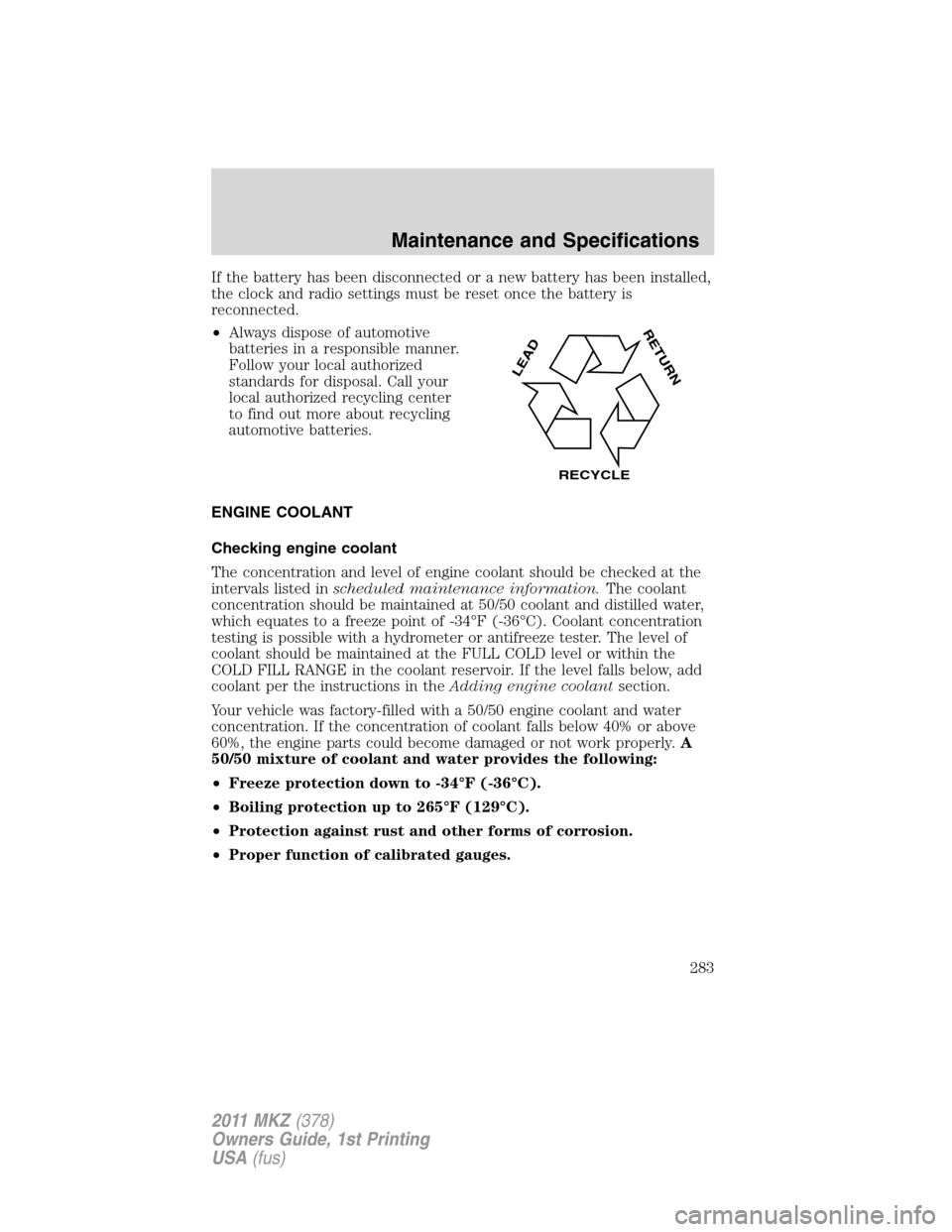

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester. The level of
coolant should be maintained at the FULL COLD level or within the
COLD FILL RANGE in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Proper function of calibrated gauges.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
283
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

Child safety seats ......................162
attaching with tether straps ..168
in front seat ............................162
in rear seat ..............................162
LATCH .....................................166
recommendations ...................160
Child safety seats - booster
seats ...........................................171
Cleaning your vehicle
engine compartment ..............267
instrument panel ....................269
interior .....................................270
plastic parts ............................268
washing ....................................266
waxing .....................................267
wheels ......................................267
wiper blades ............................268
Climate control (see Air
conditioning or Heating) ......44, 47
Clock ............................................28
Clock adjust
AM/FM/CD/MP3 ........................29
Compass, electronic ....................71
calibration .................................72
set zone adjustment .................71
Console
overhead ....................................70
Controls
power seat ...............................116
steering column ........................80
Coolant
checking and adding ..............283
refill capacities ................286, 307
specifications ..........................307
Cross Traffic Alert ....................223
Cruise control (see Speed
control) ........................................78
Cupholder(s) .............................127Customer Assistance ................236
Ford Extended Service
Plan ..................................315, 318
Getting assistance outside the
U.S. and Canada .....................262
Getting roadside assistance ...236
Getting the service you
need .........................................258
Ordering additional owner’s
literature .................................264
Utilizing the
Mediation/Arbitration
Program ...................................262
D
Daytime running lamps (see
Lamps) .........................................54
Defrost
rear window and rearview
mirrors .......................................47
windshield .................................47
Dipstick
automatic transmission
fluid ..........................................301
engine oil .................................278
Driving under special
conditions ..................217, 230, 232
sand .........................................231
snow and ice ...........................233
through water .................232, 235
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................253
running out of fuel .........252, 293
Emission control system ..........297
Engine ........................................310
Index
340
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)

What Maintenance Schedule
Should You Follow? ................321
Seats ..........................................114
child safety seats ....................162
cleaning ...................................271
climate control ..................47, 120
easy access/easyout feature ..121
front seats ...............................119
memory seat ...................103, 118
SecuriCode keyless entry
system ........................................107
SecuriLock passive anti-theft
system ........................................108
Servicing your vehicle ..............274
Setting the clock .........................29
Side air curtain .........................154
SOS Post Crash Alert ...............157
Spark plugs, specifications ......306,
310
Specification chart,
lubricants ...................................307
Speed control ..............................78
Starting your vehicle ........202–204
jump starting ..........................253
Steering wheel
controls ......................................80
tilting .........................................69
Stereo
6-CD in dash .............................28
CD-MP3 .....................................28
SYNC..........................................43
T
Tilt steering wheel ......................69Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....190
Tires ...........................175–176, 245
alignment ................................183
care ..........................................179
changing ..................................245
checking the pressure ............179
inflating ...................................177
label .........................................189
replacing ..................................181
rotating ....................................183
safety practices .......................182
sidewall information ...............184
snow tires and chains ............194
spare tire .................................246
terminology .............................176
tire grades ...............................176
treadwear ........................175, 180
Towing .......................................200
recreational towing .................200
trailer towing ..........................200
wrecker ....................................256
Transmission .............................215
brake-shift interlock (BSI) ....213
fluid, refill capacities ..............307
lubricant specifications ..........307
Trunk ...........................................99
remote release ..................88, 103
Turn signal ..................................57
U
Universal garage door opener ....83
USB port ......................................37
Index
344
2011 MKZ(378)
Owners Guide, 1st Printing
USA(fus)
