LINCOLN MKZ 2012 Navigation Manual

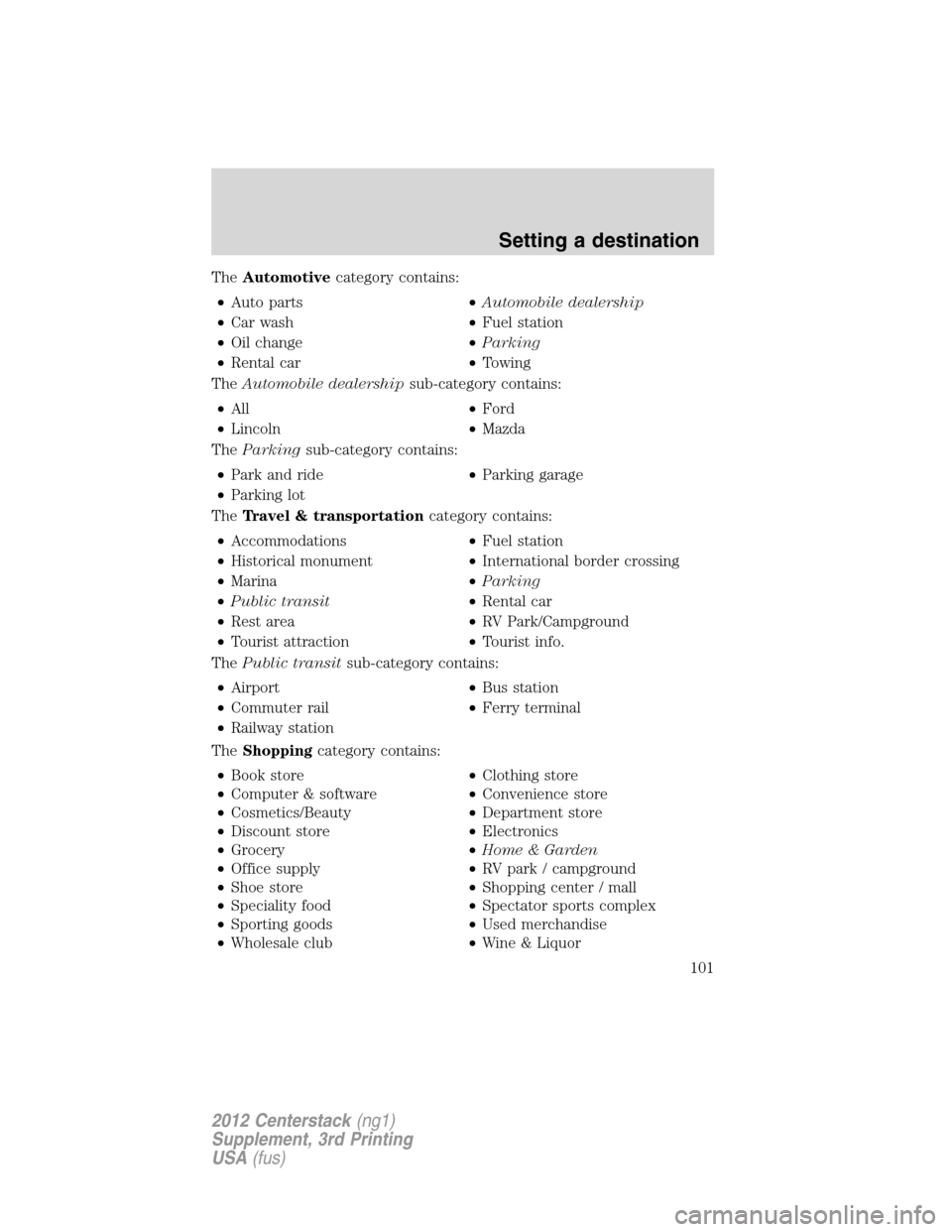

TheAutomotivecategory contains:
•Auto parts•Automobile dealership
•Car wash•Fuel station
•Oil change•Parking
•Rental car•Towing
TheAutomobile dealershipsub-category contains:
•All•Ford
•Lincoln•Mazda
TheParkingsub-category contains:
•Park and ride•Parking garage
•Parking lot
TheTravel & transportationcategory contains:
•Accommodations•Fuel station
•Historical monument•International border crossing
•Marina•Parking
•Public transit•Rental car
•Rest area•RV Park/Campground
•Tourist attraction•Tourist info.
ThePublic transitsub-category contains:
•Airport•Bus station
•Commuter rail•Ferry terminal
•Railway station
TheShoppingcategory contains:
•Book store•Clothing store
•Computer & software•Convenience store
•Cosmetics/Beauty•Department store
•Discount store•Electronics
•Grocery•
Home & Garden
•Office supply•RV park / campground
•Shoe store•Shopping center / mall
•Speciality food•Spectator sports complex
•Sporting goods•Used merchandise
•Wholesale club•Wine & Liquor
Setting a destination
101
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

TheHome & Gardensub-category contains:
•Floor covering•Furniture store
•Florist•Garden center
•Glass & window•Hardware store
•Home center•Paint
•Major appliances
TheFinancialcategory contains:
•AT M•Banking
TheEntertainment & Artscategory contains:
•Amusement / Theme Park•Night Club
•Casino•Exhibition / Conference Center
•Movie Theater•Museum
•Performing arts•Video & DVD rentals
•Zoo & Botanical gardens
TheEmergencycategory contains:
•Hospital•Police
TheRecreation & Sportscategory contains:
•Bowling•Fitness center
•Golf course•Ice arena
•Marina•Ski resort
•Parks•Race Track
•Recreation facility
TheCommunitycategory contains:
•Business facility•Community center
•Education•Fire department
•Library•Named place
•Parks•Police
•Religious facility
TheEducationsub-category contains:
•Higher education•K-12 school
Setting a destination
102
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

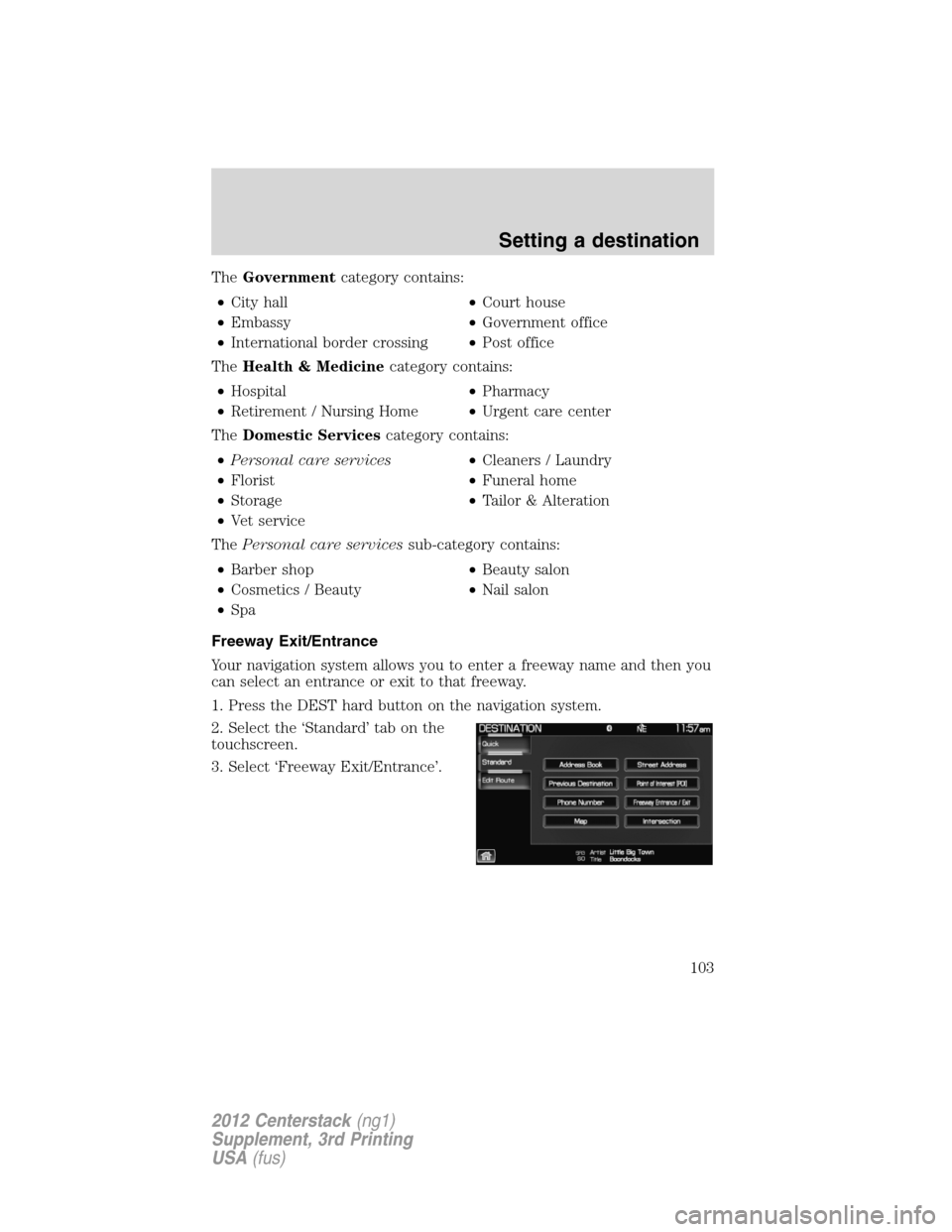

TheGovernmentcategory contains:
•City hall•Court house
•Embassy•Government office
•International border crossing•Post office
TheHealth & Medicinecategory contains:
•Hospital•Pharmacy
•Retirement / Nursing Home•Urgent care center
TheDomestic Servicescategory contains:
•Personal care services•Cleaners / Laundry
•Florist•Funeral home
•Storage•Tailor & Alteration
•Vet service
ThePersonal care servicessub-category contains:
•Barber shop•Beauty salon
•Cosmetics / Beauty•Nail salon
•Spa
Freeway Exit/Entrance
Your navigation system allows you to enter a freeway name and then you
can select an entrance or exit to that freeway.
1. Press the DEST hard button on the navigation system.
2. Select the ‘Standard’ tab on the
touchscreen.
3. Select ‘Freeway Exit/Entrance’.
Setting a destination
103
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

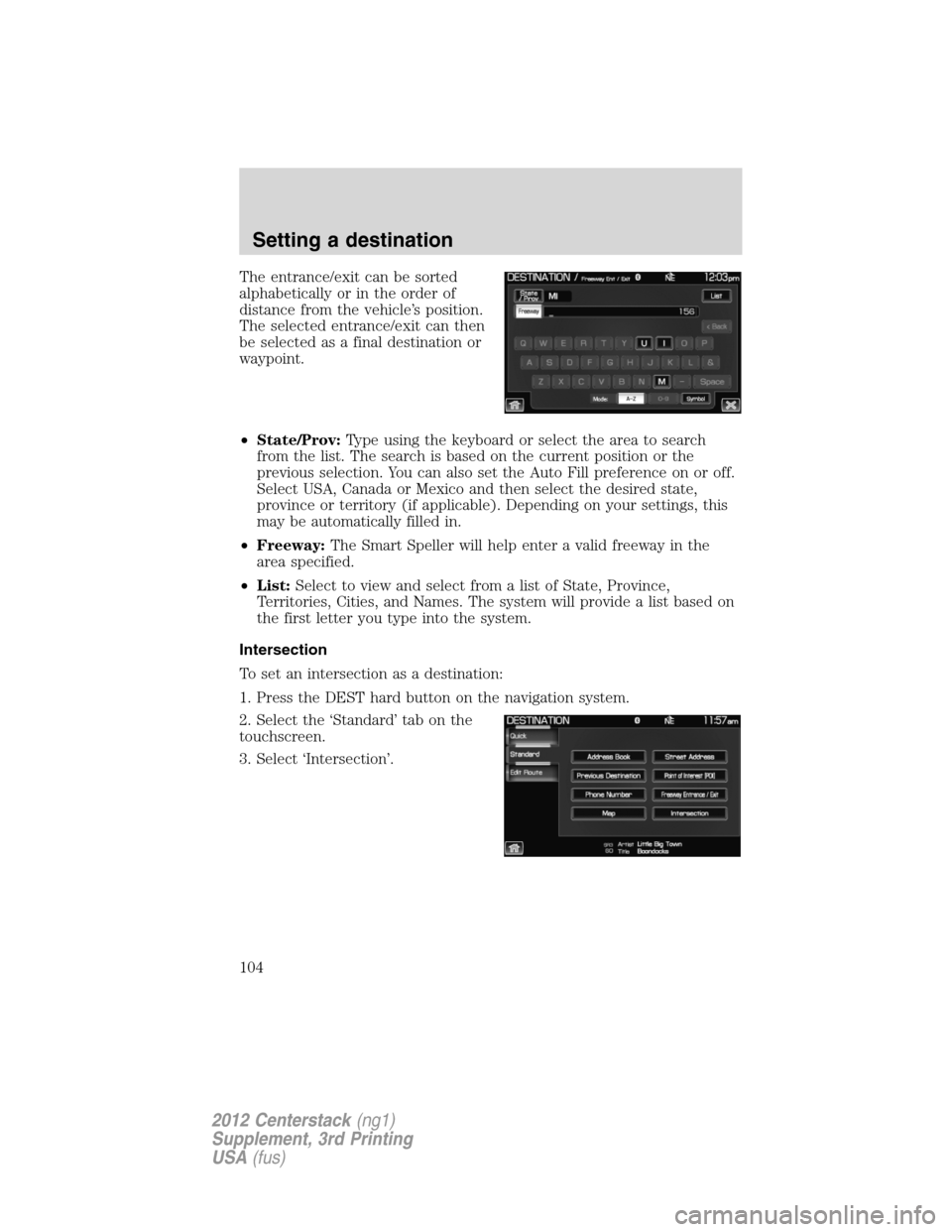

The entrance/exit can be sorted
alphabetically or in the order of
distance from the vehicle’s position.
The selected entrance/exit can then
be selected as a final destination or
waypoint.
•State/Prov:Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA, Canada or Mexico and then select the desired state,
province or territory (if applicable). Depending on your settings, this
may be automatically filled in.
•Freeway:The Smart Speller will help enter a valid freeway in the
area specified.
•List:Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
Intersection
To set an intersection as a destination:
1. Press the DEST hard button on the navigation system.
2. Select the ‘Standard’ tab on the
touchscreen.
3. Select ‘Intersection’.
Setting a destination
104
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

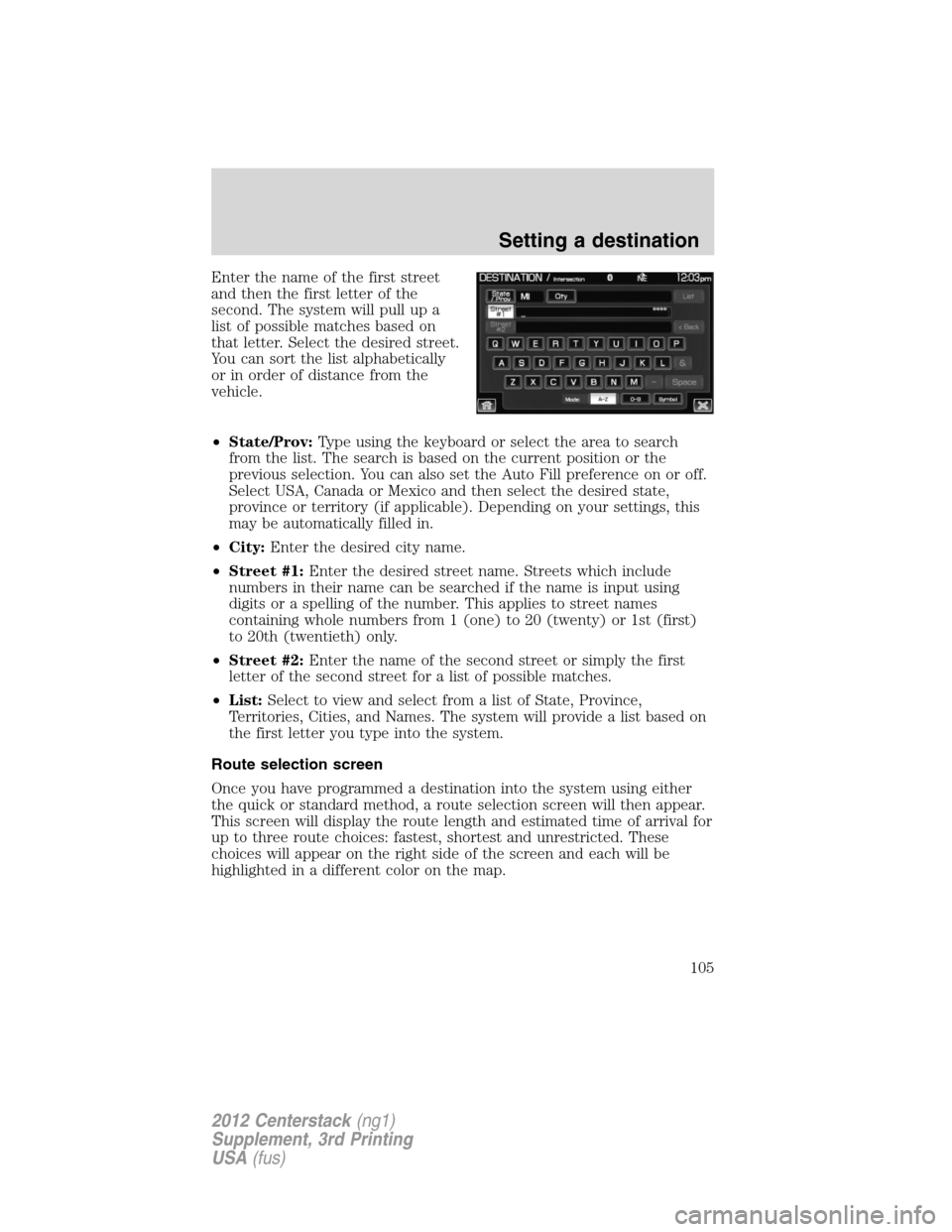

Enter the name of the first street
and then the first letter of the
second. The system will pull up a
list of possible matches based on
that letter. Select the desired street.
You can sort the list alphabetically
or in order of distance from the
vehicle.
•State/Prov:Type using the keyboard or select the area to search
from the list. The search is based on the current position or the
previous selection. You can also set the Auto Fill preference on or off.
Select USA, Canada or Mexico and then select the desired state,
province or territory (if applicable). Depending on your settings, this
may be automatically filled in.
•City:Enter the desired city name.
•Street #1:Enter the desired street name. Streets which include
numbers in their name can be searched if the name is input using
digits or a spelling of the number. This applies to street names
containing whole numbers from 1 (one) to 20 (twenty) or 1st (first)
to 20th (twentieth) only.
•Street #2:Enter the name of the second street or simply the first
letter of the second street for a list of possible matches.
•List:Select to view and select from a list of State, Province,
Territories, Cities, and Names. The system will provide a list based on
the first letter you type into the system.
Route selection screen
Once you have programmed a destination into the system using either
the quick or standard method, a route selection screen will then appear.
This screen will display the route length and estimated time of arrival for
up to three route choices: fastest, shortest and unrestricted. These
choices will appear on the right side of the screen and each will be
highlighted in a different color on the map.
Setting a destination
105
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

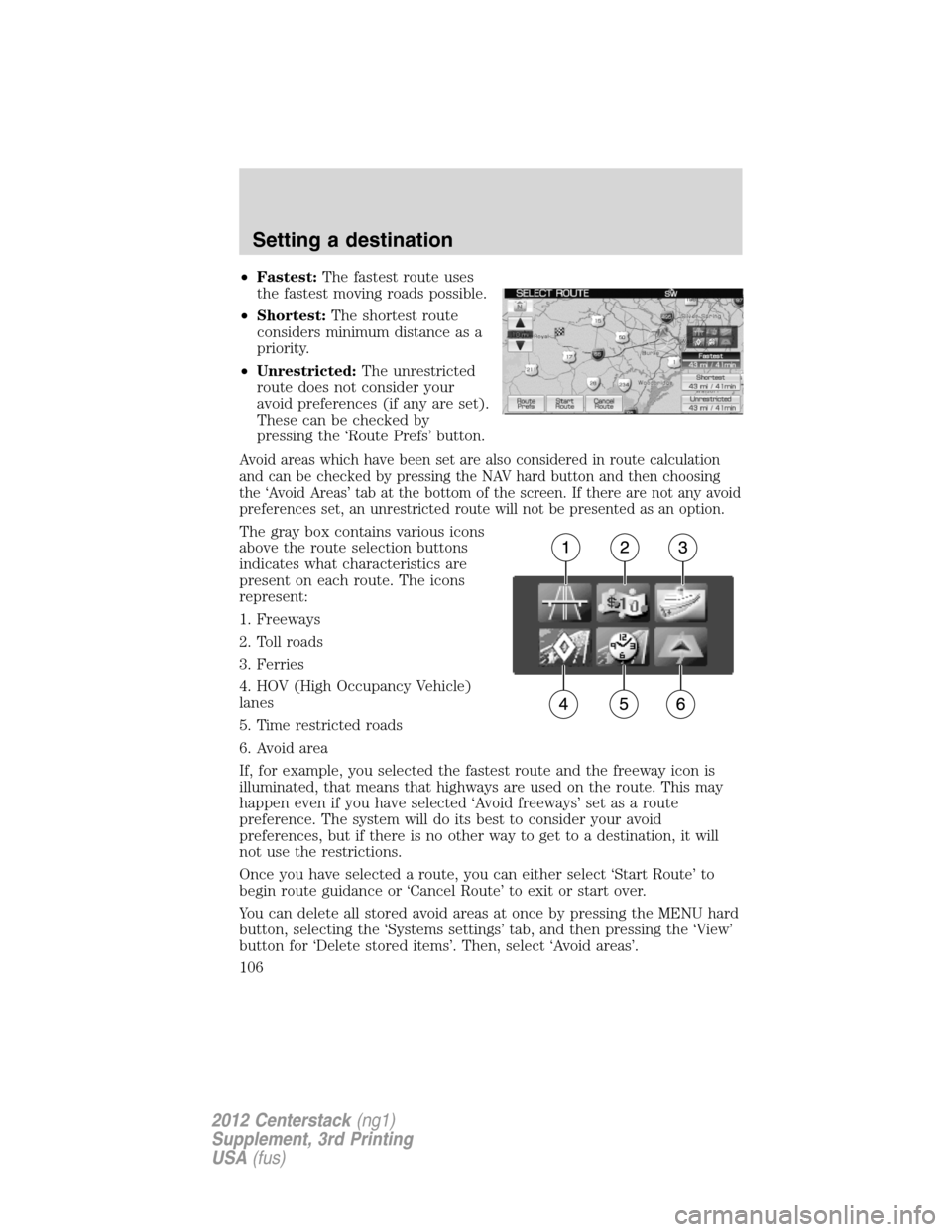

•Fastest:The fastest route uses
the fastest moving roads possible.
•Shortest:The shortest route
considers minimum distance as a
priority.
•Unrestricted:The unrestricted
route does not consider your
avoid preferences (if any are set).
These can be checked by
pressing the ‘Route Prefs’ button.
Avoid areas which have been set are also considered in route calculation
and can be checked by pressing the NAV hard button and then choosing
the ‘Avoid Areas’ tab at the bottom of the screen. If there are not any avoid
preferences set, an unrestricted route will not be presented as an option.
The gray box contains various icons
above the route selection buttons
indicates what characteristics are
present on each route. The icons
represent:
1. Freeways
2. Toll roads
3. Ferries
4. HOV (High Occupancy Vehicle)
lanes
5. Time restricted roads
6. Avoid area
If, for example, you selected the fastest route and the freeway icon is
illuminated, that means that highways are used on the route. This may
happen even if you have selected ‘Avoid freeways’ set as a route
preference. The system will do its best to consider your avoid
preferences, but if there is no other way to get to a destination, it will
not use the restrictions.
Once you have selected a route, you can either select ‘Start Route’ to
begin route guidance or ‘Cancel Route’ to exit or start over.
You can delete all stored avoid areas at once by pressing the MENU hard
button, selecting the ‘Systems settings’ tab, and then pressing the ‘View’
button for ‘Delete stored items’. Then, select ‘Avoid areas’.
Setting a destination
106
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

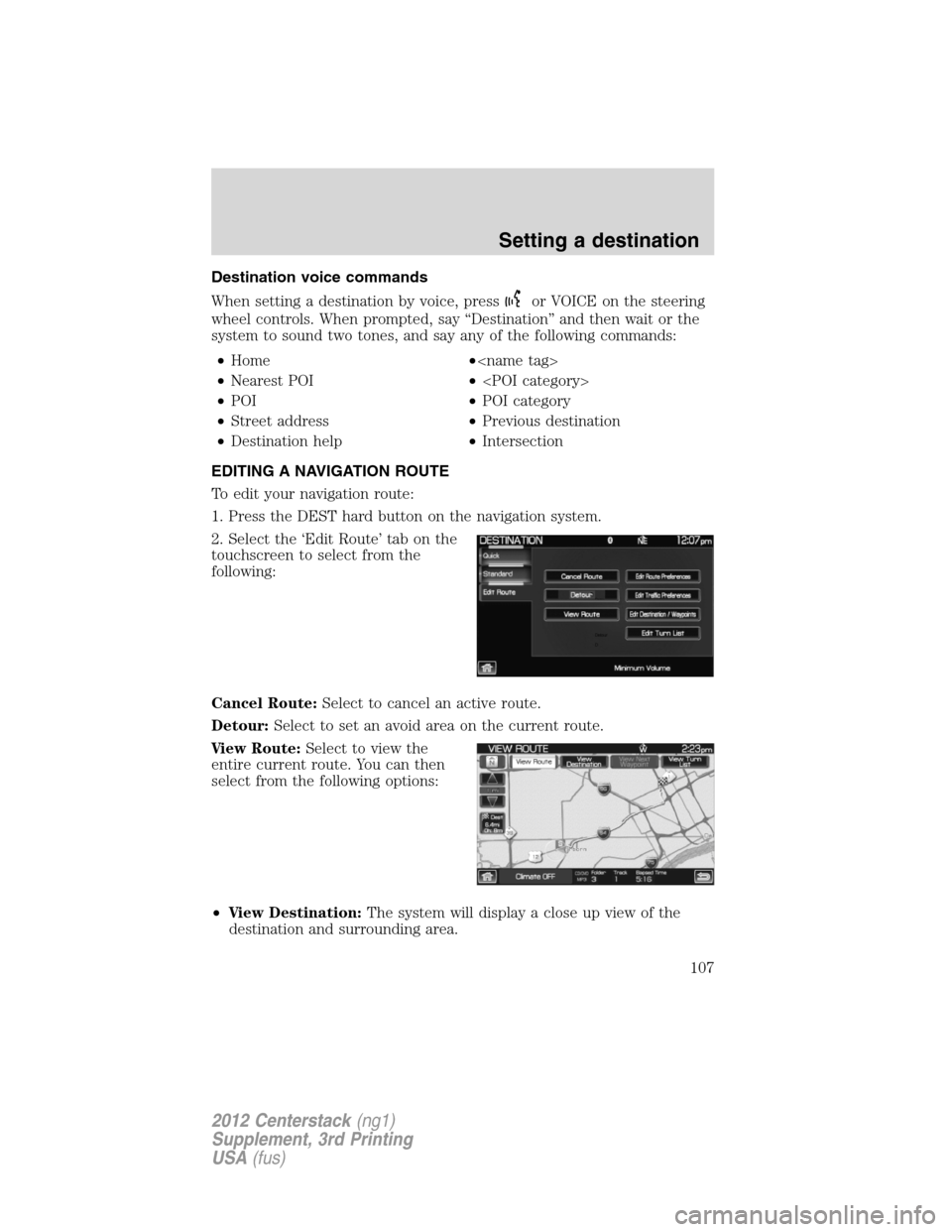

Destination voice commands
When setting a destination by voice, press
or VOICE on the steering
wheel controls. When prompted, say “Destination” and then wait or the
system to sound two tones, and say any of the following commands:
•Home•
•Nearest POI•
•POI•POI category
•Street address•Previous destination
•Destination help•Intersection
EDITING A NAVIGATION ROUTE
To edit your navigation route:
1. Press the DEST hard button on the navigation system.
2. Select the ‘Edit Route’ tab on the
touchscreen to select from the
following:
Cancel Route:Select to cancel an active route.
Detour:Select to set an avoid area on the current route.
View Route:Select to view the
entire current route. You can then
select from the following options:
•View Destination:The system will display a close up view of the
destination and surrounding area.
Setting a destination
107
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

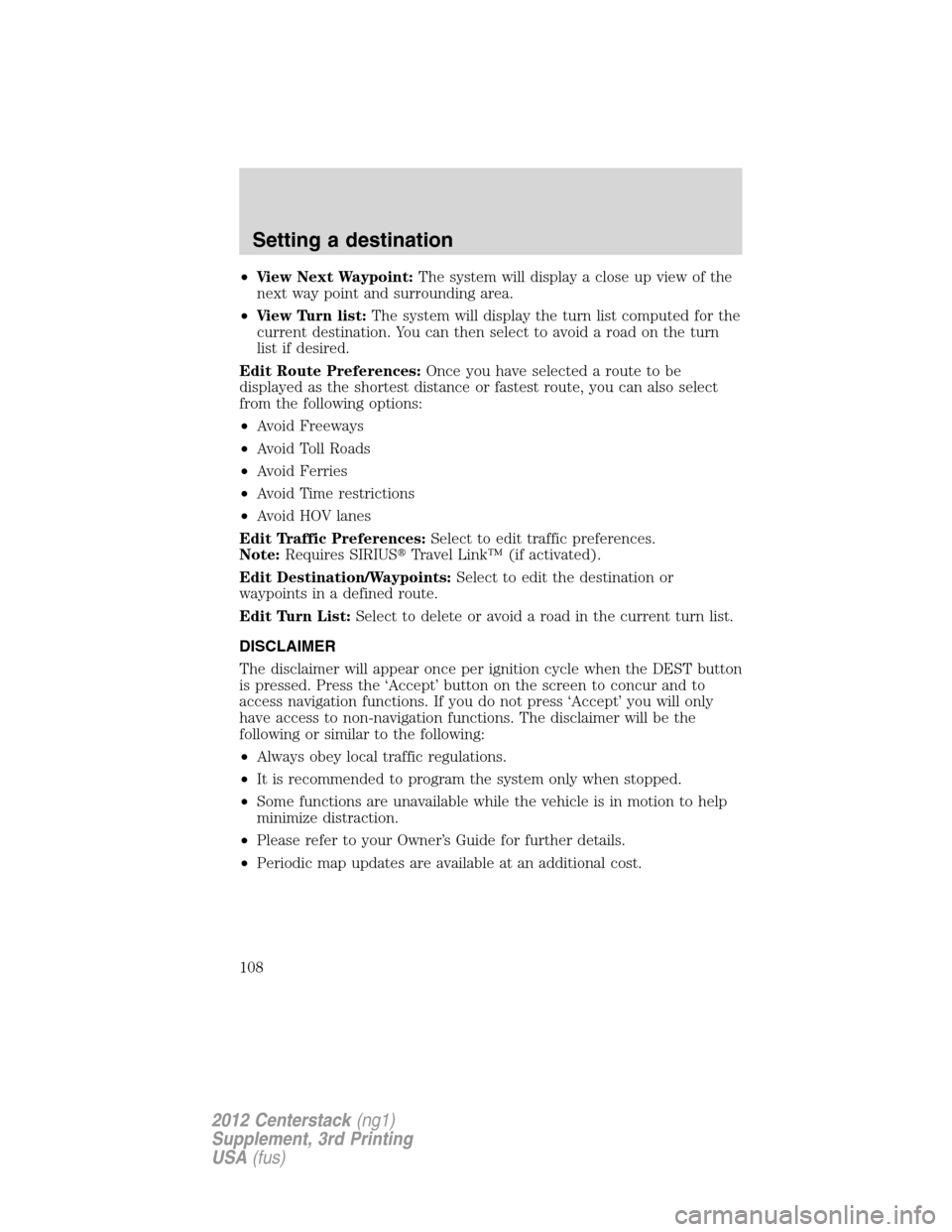

•View Next Waypoint:The system will display a close up view of the
next way point and surrounding area.
•View Turn list:The system will display the turn list computed for the
current destination. You can then select to avoid a road on the turn
list if desired.
Edit Route Preferences:Once you have selected a route to be
displayed as the shortest distance or fastest route, you can also select
from the following options:
•Avoid Freeways
•Avoid Toll Roads
•Avoid Ferries
•Avoid Time restrictions
•Avoid HOV lanes
Edit Traffic Preferences:Select to edit traffic preferences.
Note:Requires SIRIUSTravel Link™ (if activated).
Edit Destination/Waypoints:Select to edit the destination or
waypoints in a defined route.
Edit Turn List:Select to delete or avoid a road in the current turn list.
DISCLAIMER
The disclaimer will appear once per ignition cycle when the DEST button
is pressed. Press the ‘Accept’ button on the screen to concur and to
access navigation functions. If you do not press ‘Accept’ you will only
have access to non-navigation functions. The disclaimer will be the
following or similar to the following:
•Always obey local traffic regulations.
•It is recommended to program the system only when stopped.
•Some functions are unavailable while the vehicle is in motion to help
minimize distraction.
•Please refer to your Owner’s Guide for further details.
•Periodic map updates are available at an additional cost.
Setting a destination
108
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

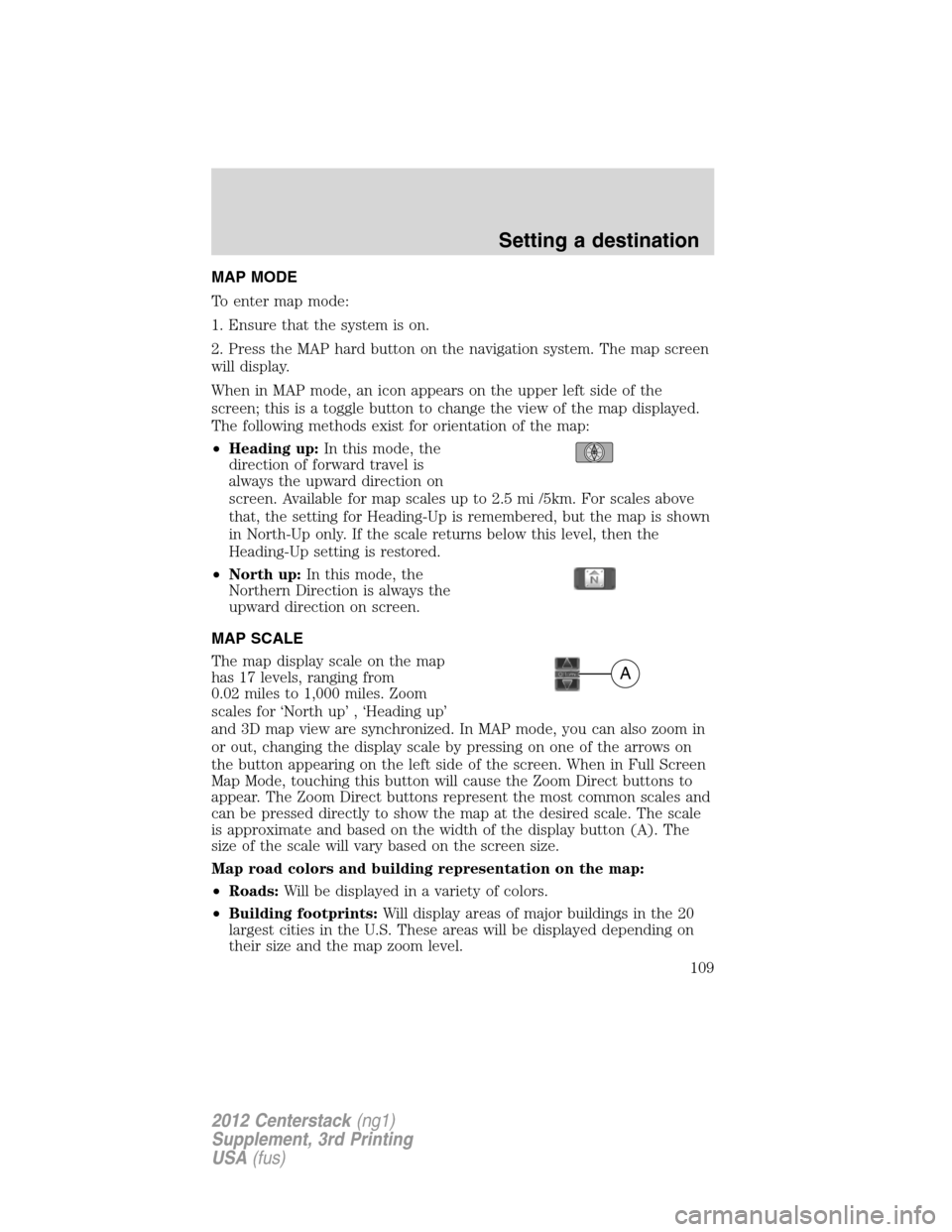

MAP MODE
To enter map mode:
1. Ensure that the system is on.
2. Press the MAP hard button on the navigation system. The map screen
will display.
When in MAP mode, an icon appears on the upper left side of the
screen; this is a toggle button to change the view of the map displayed.
The following methods exist for orientation of the map:
•Heading up:In this mode, the
direction of forward travel is
always the upward direction on
screen. Available for map scales up to 2.5 mi /5km. For scales above
that, the setting for Heading-Up is remembered, but the map is shown
in North-Up only. If the scale returns below this level, then the
Heading-Up setting is restored.
•North up:In this mode, the
Northern Direction is always the
upward direction on screen.
MAP SCALE
The map display scale on the map
has 17 levels, ranging from
0.02 miles to 1,000 miles. Zoom
scales for ‘North up’ , ‘Heading up’
and 3D map view are synchronized. In MAP mode, you can also zoom in
or out, changing the display scale by pressing on one of the arrows on
the button appearing on the left side of the screen. When in Full Screen
Map Mode, touching this button will cause the Zoom Direct buttons to
appear. The Zoom Direct buttons represent the most common scales and
can be pressed directly to show the map at the desired scale. The scale
is approximate and based on the width of the display button (A). The
size of the scale will vary based on the screen size.
Map road colors and building representation on the map:
•Roads:Will be displayed in a variety of colors.
•Building footprints:Will display areas of major buildings in the 20
largest cities in the U.S. These areas will be displayed depending on
their size and the map zoom level.
A
Setting a destination
109
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

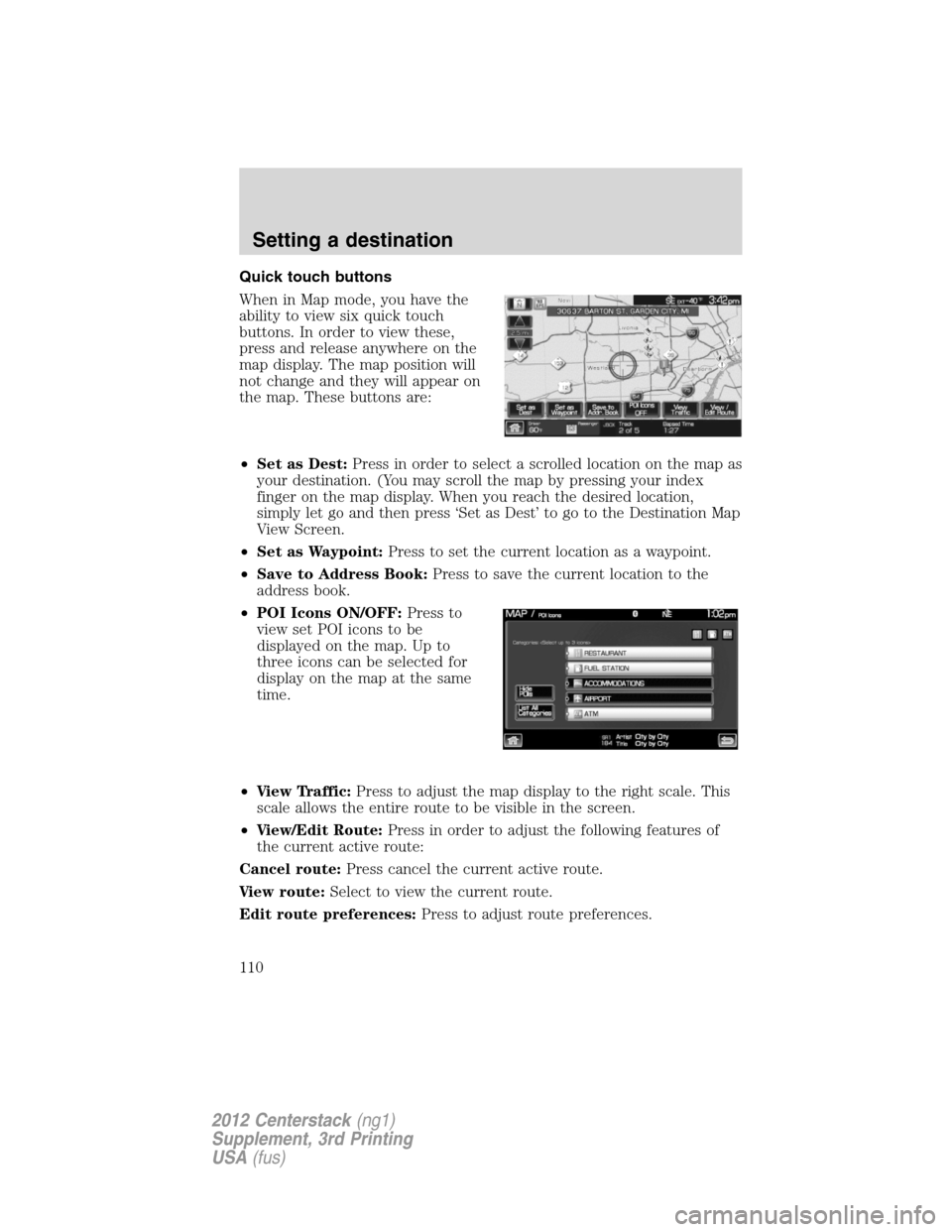

Quick touch buttons
When in Map mode, you have the
ability to view six quick touch
buttons. In order to view these,
press and release anywhere on the
map display. The map position will
not change and they will appear on
the map. These buttons are:
•Set as Dest:Press in order to select a scrolled location on the map as
your destination. (You may scroll the map by pressing your index
finger on the map display. When you reach the desired location,
simply let go and then press ‘Set as Dest’ to go to the Destination Map
View Screen.
•Set as Waypoint:Press to set the current location as a waypoint.
•Save to Address Book:Press to save the current location to the
address book.
•POI Icons ON/OFF:Press to
view set POI icons to be
displayed on the map. Up to
three icons can be selected for
display on the map at the same
time.
•View Traffic:Press to adjust the map display to the right scale. This
scale allows the entire route to be visible in the screen.
•View/Edit Route:Press in order to adjust the following features of
the current active route:
Cancel route:Press cancel the current active route.
View route:Select to view the current route.
Edit route preferences:Press to adjust route preferences.
Setting a destination
110
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
