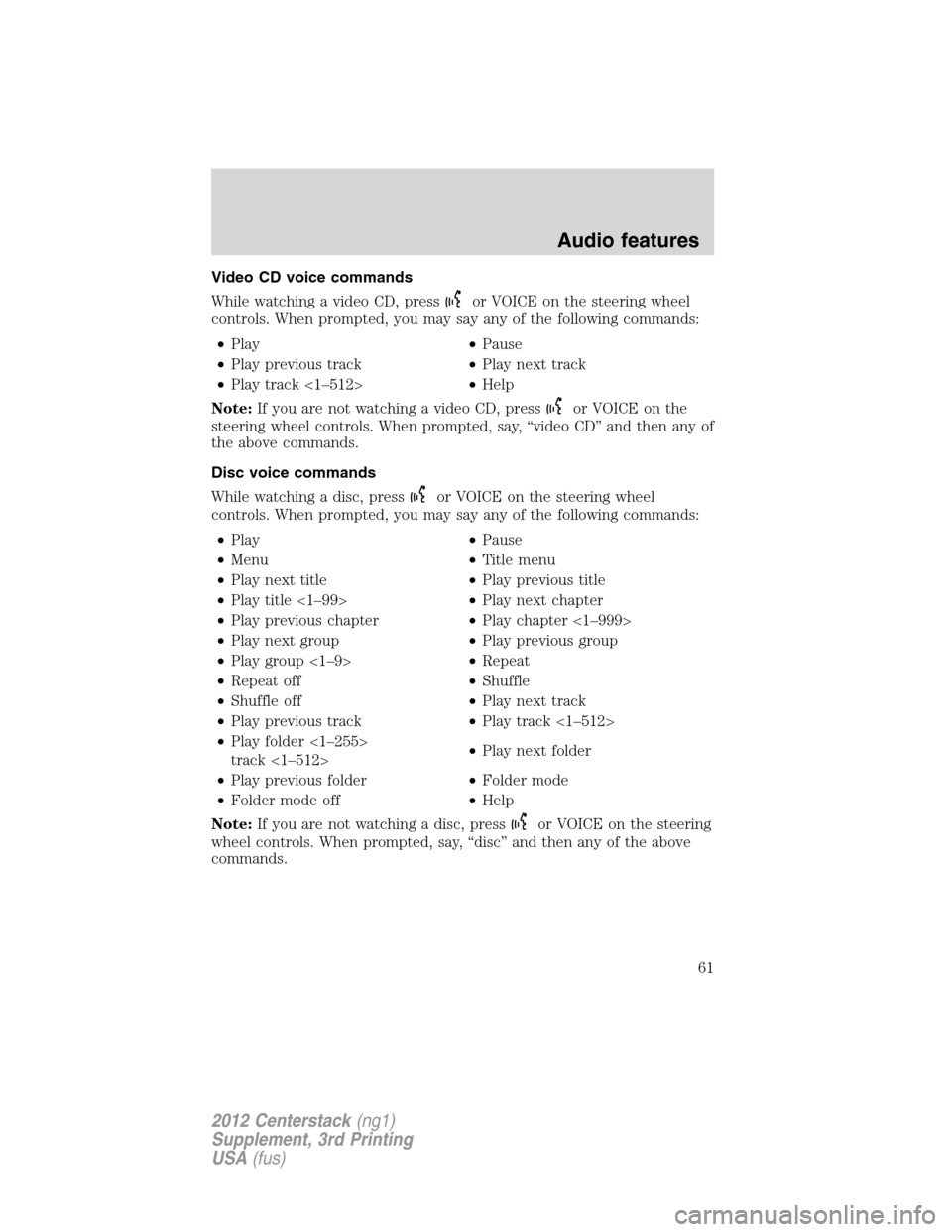

Video CD voice commands
While watching a video CD, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
•Play•Pause
•Play previous track•Play next track
•Play track <1–512>•Help
Note:If you are not watching a video CD, press
or VOICE on the
steering wheel controls. When prompted, say, “video CD” and then any of
the above commands.
Disc voice commands
While watching a disc, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
•Play•Pause
•Menu•Title menu
•Play next title•Play previous title
•Play title <1–99>•Play next chapter
•Play previous chapter•Play chapter <1–999>
•Play next group•Play previous group
•Play group <1–9>•Repeat
•Repeat off•Shuffle
•Shuffle off•Play next track
•Play previous track•Play track <1–512>
•Play folder <1–255>
track <1–512>•Play next folder
•Play previous folder•Folder mode
•Folder mode off•Help
Note:If you are not watching a disc, press
or VOICE on the steering
wheel controls. When prompted, say, “disc” and then any of the above
commands.
Audio features
61
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

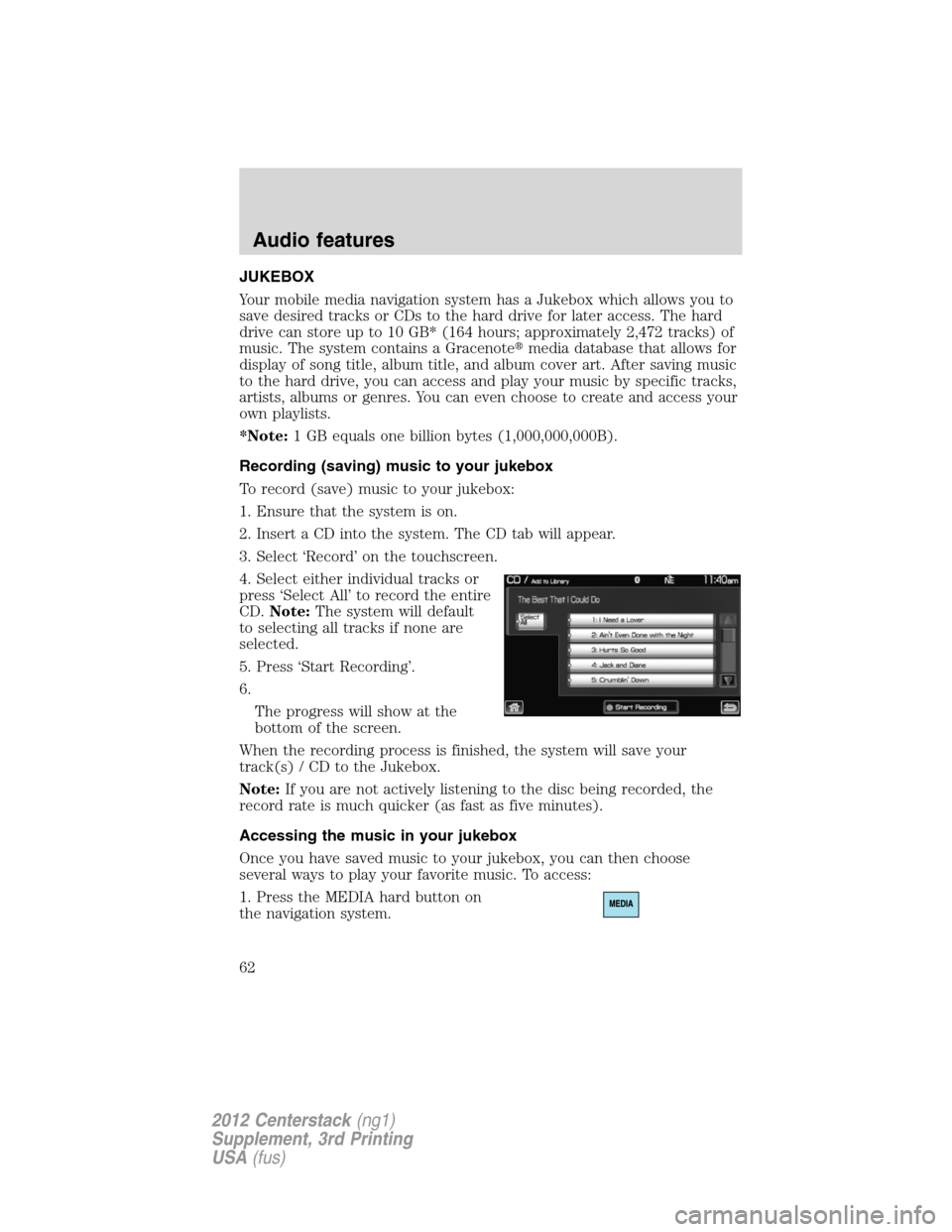

JUKEBOX
Your mobile media navigation system has a Jukebox which allows you to
save desired tracks or CDs to the hard drive for later access. The hard
drive can store up to 10 GB* (164 hours; approximately 2,472 tracks) of
music. The system contains a Gracenotemedia database that allows for
display of song title, album title, and album cover art. After saving music
to the hard drive, you can access and play your music by specific tracks,
artists, albums or genres. You can even choose to create and access your
own playlists.
*Note:1 GB equals one billion bytes (1,000,000,000B).
Recording (saving) music to your jukebox
To record (save) music to your jukebox:
1. Ensure that the system is on.
2. Insert a CD into the system. The CD tab will appear.
3. Select ‘Record’ on the touchscreen.
4. Select either individual tracks or
press ‘Select All’ to record the entire
CD.Note:The system will default
to selecting all tracks if none are
selected.
5. Press ‘Start Recording’.
6.
The progress will show at the
bottom of the screen.
When the recording process is finished, the system will save your
track(s) / CD to the Jukebox.
Note:If you are not actively listening to the disc being recorded, the
record rate is much quicker (as fast as five minutes).
Accessing the music in your jukebox
Once you have saved music to your jukebox, you can then choose
several ways to play your favorite music. To access:
1. Press the MEDIA hard button on
the navigation system.
Audio features
62
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

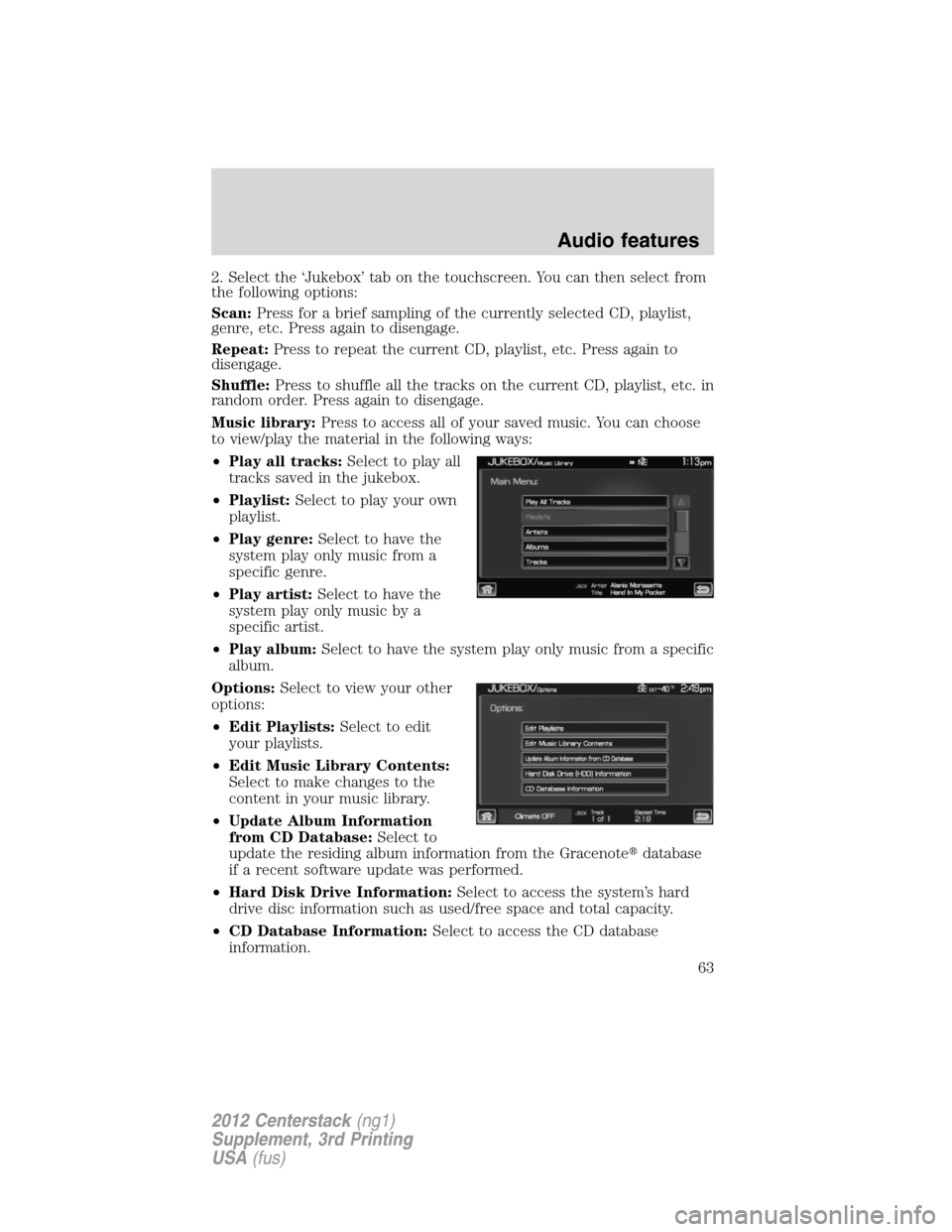

2. Select the ‘Jukebox’ tab on the touchscreen. You can then select from
the following options:
Scan:Press for a brief sampling of the currently selected CD, playlist,
genre, etc. Press again to disengage.
Repeat:Press to repeat the current CD, playlist, etc. Press again to
disengage.
Shuffle:Press to shuffle all the tracks on the current CD, playlist, etc. in
random order. Press again to disengage.
Music library:Press to access all of your saved music. You can choose
to view/play the material in the following ways:
•Play all tracks:Select to play all
tracks saved in the jukebox.
•Playlist:Select to play your own
playlist.
•Play genre:Select to have the
system play only music from a
specific genre.
•Play artist:Select to have the
system play only music by a
specific artist.
•Play album:Select to have the system play only music from a specific
album.
Options:Select to view your other
options:
•Edit Playlists:Select to edit
your playlists.
•Edit Music Library Contents:
Select to make changes to the
content in your music library.
•Update Album Information
from CD Database:Select to
update the residing album information from the Gracenotedatabase
if a recent software update was performed.
•Hard Disk Drive Information:Select to access the system’s hard
drive disc information such as used/free space and total capacity.
•CD Database Information:Select to access the CD database
information.
Audio features
63
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Creating a playlist
1. Press the MEDIA hard button.
2. Select the ‘Jukebox’ tab on the
touchscreen.
3. Select ‘Options’.
4. Select ‘Edit Playlists’.
5. Select which playlist you would
like to create.
6. Select which category you would
like to access from your saved
music.
Audio features
64
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

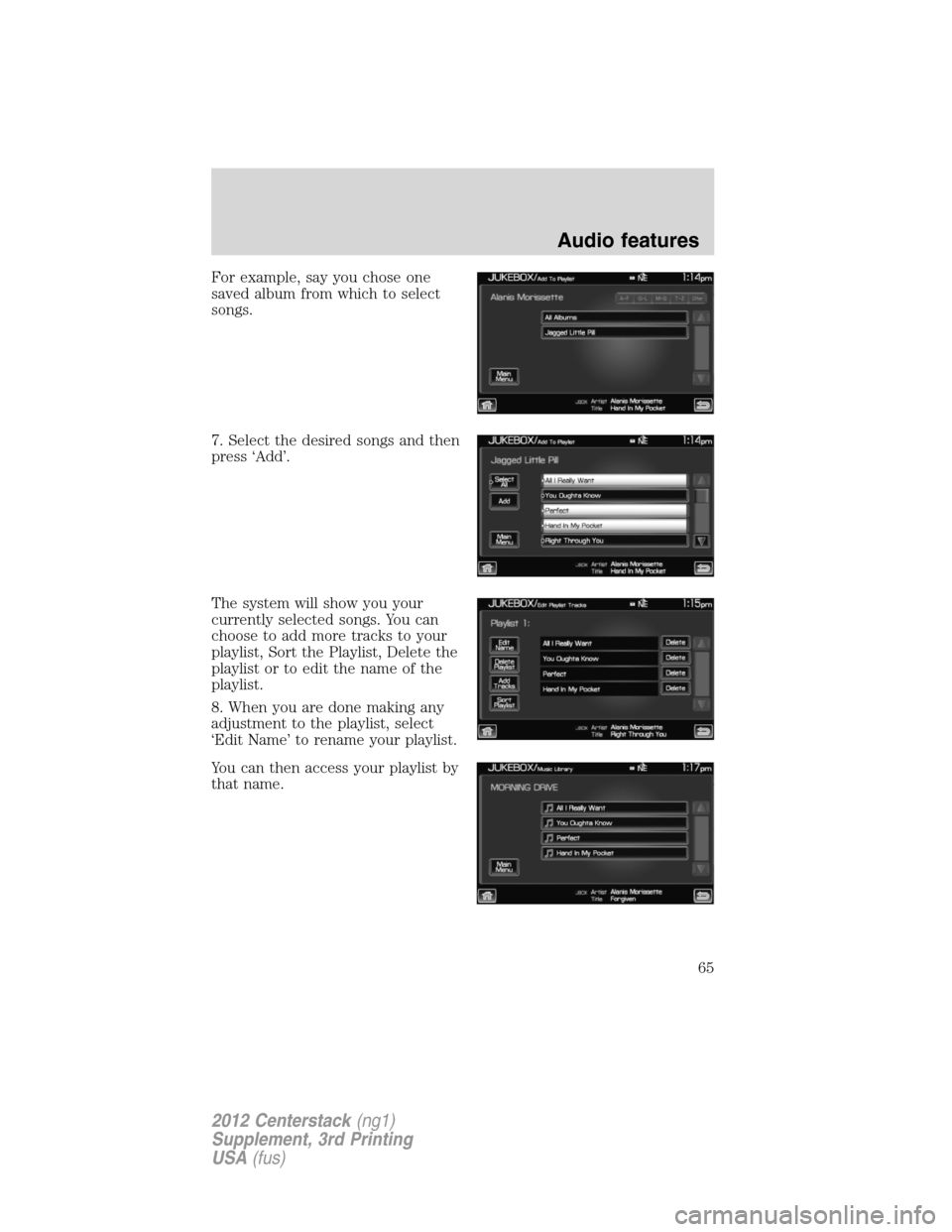

For example, say you chose one
saved album from which to select
songs.
7. Select the desired songs and then
press ‘Add’.
The system will show you your
currently selected songs. You can
choose to add more tracks to your
playlist, Sort the Playlist, Delete the
playlist or to edit the name of the
playlist.
8. When you are done making any
adjustment to the playlist, select
‘Edit Name’ to rename your playlist.
You can then access your playlist by
that name.
Audio features
65
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

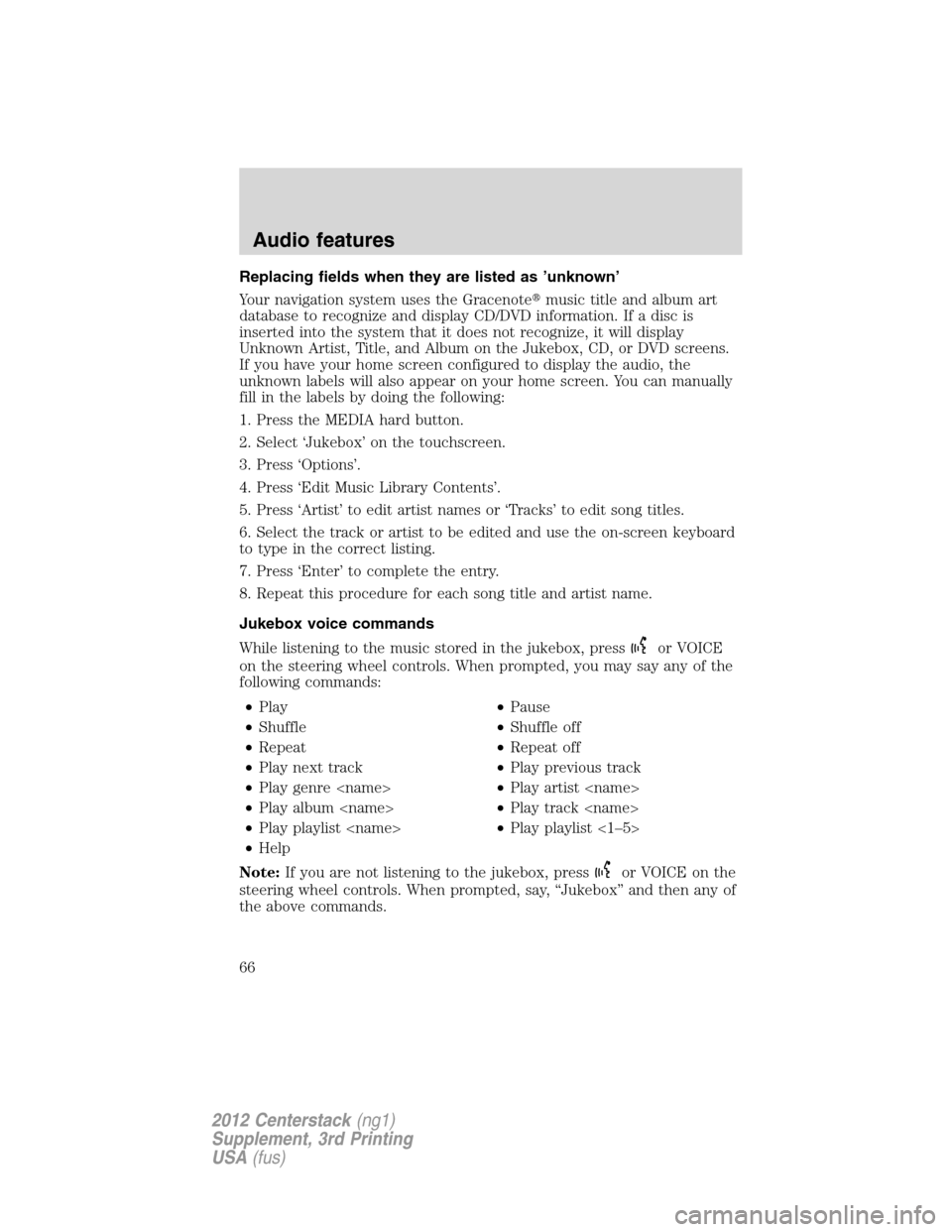

Replacing fields when they are listed as ’unknown’
Your navigation system uses the Gracenotemusic title and album art
database to recognize and display CD/DVD information. If a disc is
inserted into the system that it does not recognize, it will display
Unknown Artist, Title, and Album on the Jukebox, CD, or DVD screens.
If you have your home screen configured to display the audio, the
unknown labels will also appear on your home screen. You can manually
fill in the labels by doing the following:
1. Press the MEDIA hard button.
2. Select ‘Jukebox’ on the touchscreen.
3. Press ‘Options’.
4. Press ‘Edit Music Library Contents’.
5. Press ‘Artist’ to edit artist names or ‘Tracks’ to edit song titles.
6. Select the track or artist to be edited and use the on-screen keyboard
to type in the correct listing.
7. Press ‘Enter’ to complete the entry.
8. Repeat this procedure for each song title and artist name.
Jukebox voice commands
While listening to the music stored in the jukebox, press
or VOICE
on the steering wheel controls. When prompted, you may say any of the
following commands:
•Play•Pause
•Shuffle•Shuffle off
•Repeat•Repeat off
•Play next track•Play previous track
•Play genre •Play artist
•Play album •Play track
•Play playlist •Play playlist <1–5>
•Help
Note:If you are not listening to the jukebox, press
or VOICE on the
steering wheel controls. When prompted, say, “Jukebox” and then any of
the above commands.
Audio features
66
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

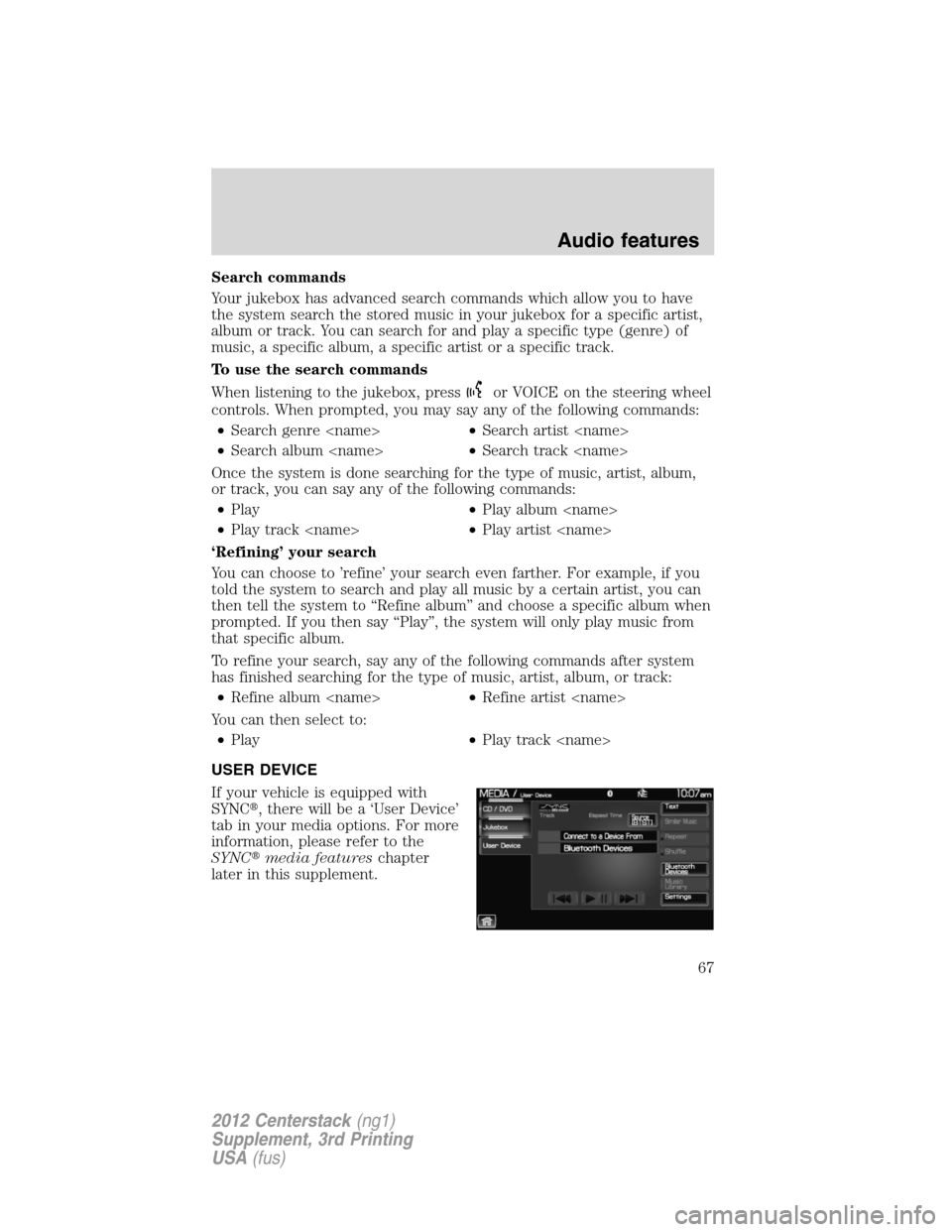

Search commands
Your jukebox has advanced search commands which allow you to have
the system search the stored music in your jukebox for a specific artist,
album or track. You can search for and play a specific type (genre) of
music, a specific album, a specific artist or a specific track.
To use the search commands
When listening to the jukebox, press
or VOICE on the steering wheel
controls. When prompted, you may say any of the following commands:
•Search genre •Search artist
•Search album •Search track
Once the system is done searching for the type of music, artist, album,
or track, you can say any of the following commands:
•Play•Play album
•Play track •Play artist
‘Refining’ your search
You can choose to ’refine’ your search even farther. For example, if you
told the system to search and play all music by a certain artist, you can
then tell the system to “Refine album” and choose a specific album when
prompted. If you then say “Play”, the system will only play music from
that specific album.
To refine your search, say any of the following commands after system
has finished searching for the type of music, artist, album, or track:
•Refine album •Refine artist
You can then select to:
•Play•Play track
USER DEVICE
If your vehicle is equipped with
SYNC, there will be a ‘User Device’
tab in your media options. For more
information, please refer to the
SYNCmedia featureschapter
later in this supplement.
Audio features
67
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

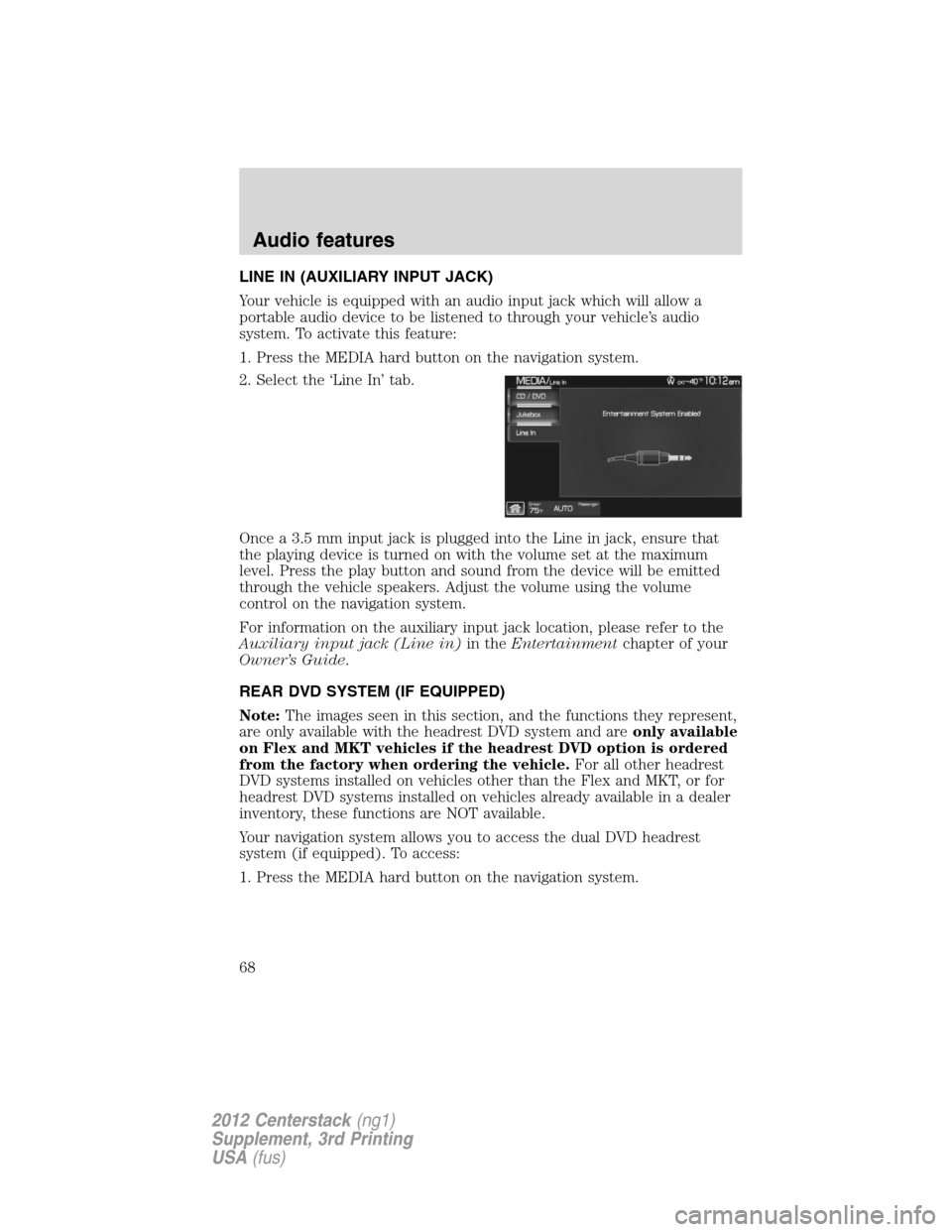

LINE IN (AUXILIARY INPUT JACK)
Your vehicle is equipped with an audio input jack which will allow a
portable audio device to be listened to through your vehicle’s audio
system. To activate this feature:
1. Press the MEDIA hard button on the navigation system.
2. Select the ‘Line In’ tab.
Once a 3.5 mm input jack is plugged into the Line in jack, ensure that
the playing device is turned on with the volume set at the maximum
level. Press the play button and sound from the device will be emitted
through the vehicle speakers. Adjust the volume using the volume
control on the navigation system.
For information on the auxiliary input jack location, please refer to the
Auxiliary input jack (Line in)in theEntertainmentchapter of your
Owner’s Guide.
REAR DVD SYSTEM (IF EQUIPPED)
Note:The images seen in this section, and the functions they represent,
are only available with the headrest DVD system and areonly available
on Flex and MKT vehicles if the headrest DVD option is ordered
from the factory when ordering the vehicle.For all other headrest
DVD systems installed on vehicles other than the Flex and MKT, or for
headrest DVD systems installed on vehicles already available in a dealer
inventory, these functions are NOT available.
Your navigation system allows you to access the dual DVD headrest
system (if equipped). To access:
1. Press the MEDIA hard button on the navigation system.
Audio features
68
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

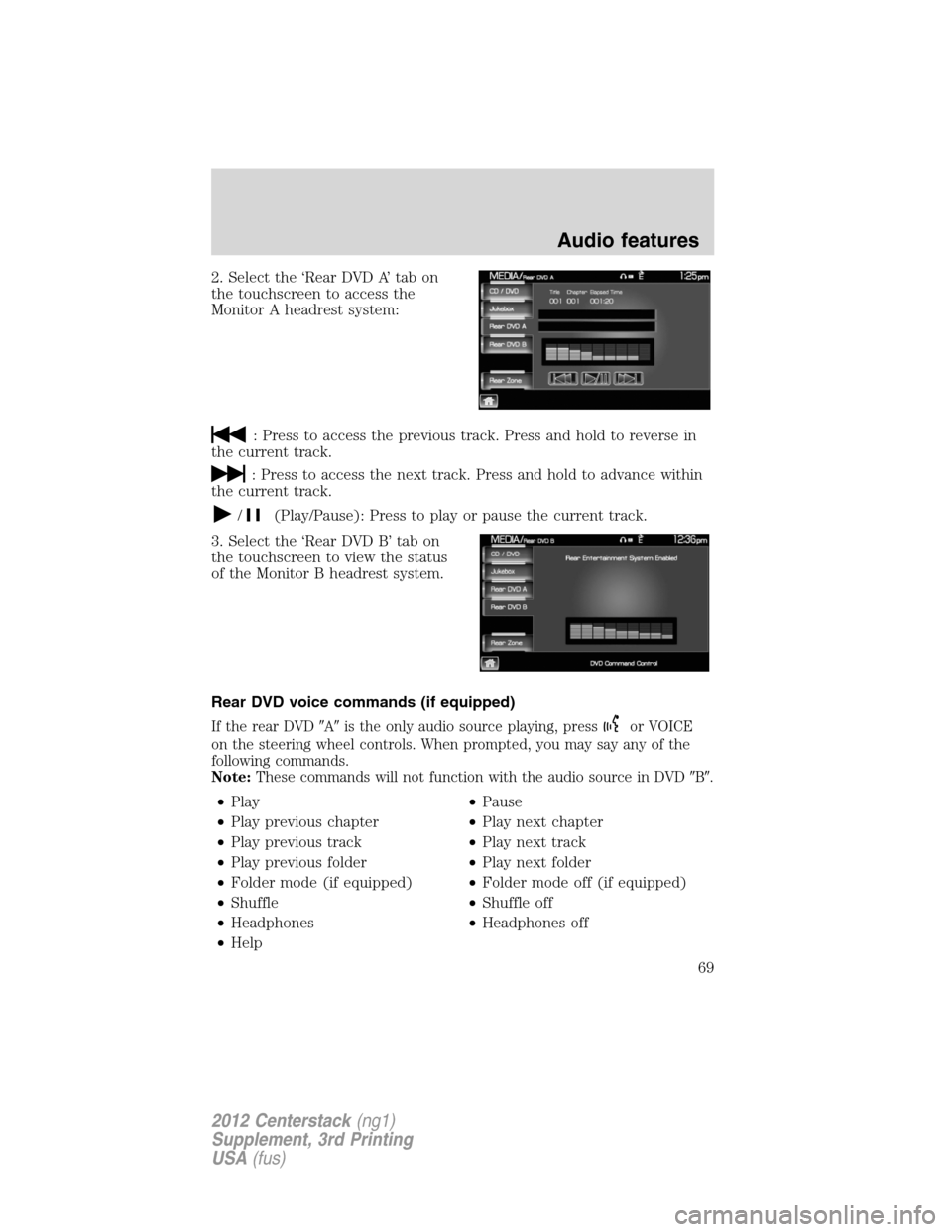

2. Select the ‘Rear DVD A’ tab on
the touchscreen to access the
Monitor A headrest system:
: Press to access the previous track. Press and hold to reverse in
the current track.
: Press to access the next track. Press and hold to advance within
the current track.
/(Play/Pause): Press to play or pause the current track.
3. Select the ‘Rear DVD B’ tab on
the touchscreen to view the status
of the Monitor B headrest system.
Rear DVD voice commands (if equipped)
If the rear DVDAis the only audio source playing, pressor VOICE
on the steering wheel controls. When prompted, you may say any of the
following commands.
Note:These commands will not function with the audio source in DVDB.
•Play•Pause
•Play previous chapter•Play next chapter
•Play previous track•Play next track
•Play previous folder•Play next folder
•Folder mode (if equipped)•Folder mode off (if equipped)
•Shuffle•Shuffle off
•Headphones•Headphones off
•Help
Audio features
69
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

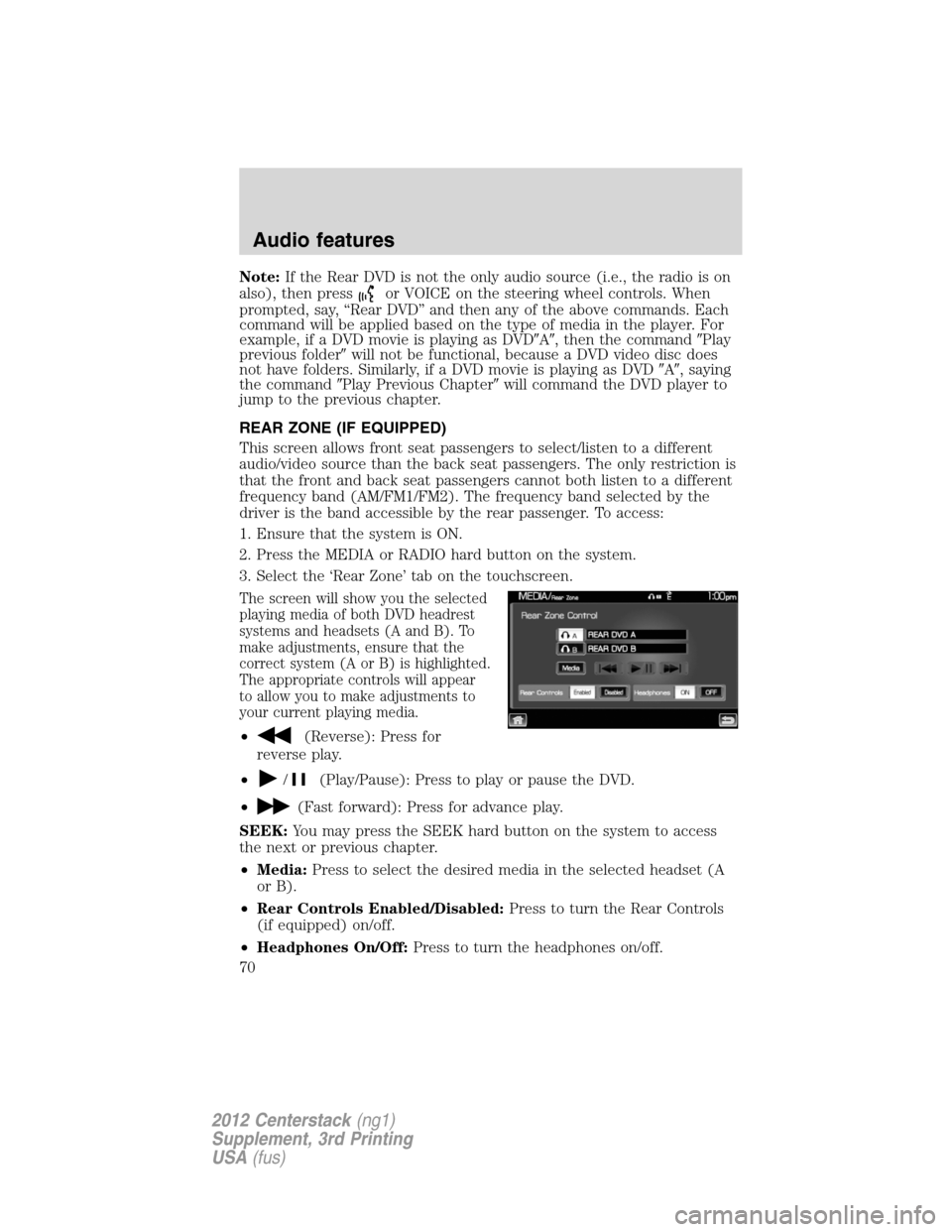

Note:If the Rear DVD is not the only audio source (i.e., the radio is on
also), then press
or VOICE on the steering wheel controls. When
prompted, say, “Rear DVD” and then any of the above commands. Each
command will be applied based on the type of media in the player. For
example, if a DVD movie is playing as DVDA, then the commandPlay
previous folderwill not be functional, because a DVD video disc does
not have folders. Similarly, if a DVD movie is playing as DVDA, saying
the commandPlay Previous Chapterwill command the DVD player to
jump to the previous chapter.
REAR ZONE (IF EQUIPPED)
This screen allows front seat passengers to select/listen to a different
audio/video source than the back seat passengers. The only restriction is
that the front and back seat passengers cannot both listen to a different
frequency band (AM/FM1/FM2). The frequency band selected by the
driver is the band accessible by the rear passenger. To access:
1. Ensure that the system is ON.
2. Press the MEDIA or RADIO hard button on the system.
3. Select the ‘Rear Zone’ tab on the touchscreen.
The screen will show you the selected
playing media of both DVD headrest
systems and headsets (A and B). To
make adjustments, ensure that the
correct system (A or B) is highlighted.
The appropriate controls will appear
to allow you to make adjustments to
your current playing media.
•(Reverse): Press for
reverse play.
•
/(Play/Pause): Press to play or pause the DVD.
•
(Fast forward): Press for advance play.
SEEK:You may press the SEEK hard button on the system to access
the next or previous chapter.
•Media:Press to select the desired media in the selected headset (A
or B).
•Rear Controls Enabled/Disabled:Press to turn the Rear Controls
(if equipped) on/off.
•Headphones On/Off:Press to turn the headphones on/off.
Audio features
70
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
