INFORMATION MENU
Your navigation system has an Information menu which allows you access
to features such as: Where am I, HEV (Hybrid screen information, if
equipped), SIRIUSTravel Link™ (if activated), Calendar, System
Information and Help. These can be accessed by pressing the I hard
button (
) on the navigation system.
WHERE AM I ?
Your navigation system is able to tell you your vehicle’s current location.
To use the ’Where am I?’ feature:
•Press the I button and select the
‘Where am I?’ tab.
The system will give you your current GPS location (latitude and
longitude), the current street you are on as well as the street in front
and behind the vehicle position along with distance information.
Note:Not all tab selections shown here will be available in all markets.
Check with your authorized dealer for availability.
HYBRID INFORMATION (IF EQUIPPED)
If you have a hybrid vehicle, your
navigation system has special hybrid
screens which display Energy Flow
and Fuel Economy information. To
access these screens, press the I
button (
) on the navigation
system, and then select the ‘HEV’
tab on the touchscreen.
Information menu
74
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Note:If you have an Escape Hybrid,
your screen will also have a Power
and Efficiency button. For more
information, refer toPower and
Efficiencylater in this section.
ENERGY FLOW SCREEN
The energy flow screen is a graphical representation of how power is
transferred within the hybrid system to accelerate the vehicle or
recharge the battery. These screens are informational and do not require
any input from you.
Note:Due to the screen updates and simplification of the graphics, the
display may not show the actual vehicle status.
1.Engine Power:This line represents how much power is being
transferred from the engine to the wheels.
2.Engine:This icon represents the Internal Combustion Engine (ICE).
It will be highlighted only when the ICE is running.
Information menu
75
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

FUEL ECONOMY SCREEN
If you have a Fusion Hybrid or MKZ Hybrid, the fuel economy screen
displays instantaneous fuel consumption, overall average fuel economy
and also a graph of fuel economy achieved in the last 10, 20 or
60 minutes of driving. (Refer to Average Fuel Economy in the
Instrument Cluster chapter in your Owner’s Guide.) To view this screen,
select ‘Show Fuel Economy’ on the ‘HEV’ tab screen.
If you have an Escape Hybrid, the
fuel economy screen will display fuel
economy achieved in the last
10 minutes of driving. (Refer to
Average Fuel Economy in the
Instrument Cluster chapter in your
Owner’s Guide.) To view this screen,
select ’Fuel Economy’ on the ‘HEV’
tab screen.
•Instantaneous Fuel Economy (Inst Econ):This is displayed on
the vertical bar on the left of the screen ranging from 0–60 mpg.
When the vehicle is not moving, the Ins Econ function will display no
bar on the Inst Cons graph indicating 0 mpg. Conversely, if you are
driving in electric mode (engine off), this function will display 60+
mpg. Instantaneous Economy cannot be reset.
•Overall Average Fuel Economy (AVG MPG):The AVG MPG is
displayed on the upper left hand corner of the screen. The AVG MPG
will be retained when the key is turned off and will continue averaging
when driving resumes. Pressing RESET will reset the AVG MPG to
zero. This will also reset the Average Fuel Economy on the Instrument
Cluster.
Note:If you have an Escape Hybrid, the average fuel economy
information will not appear in the instrument cluster.
•Fuel Economy History graph:Depending on your vehicle, this
graph will indicate average fuel economy in 10, 20 or 60 minute
intervals. If you have a Fusion Hybrid or MKZ Hybrid, you can choose
the interval using the message center. If you have an Escape Hybrid,
the display will appear in 10 minute intervals. The graph is updated
each minute with the fuel economy that was achieved during the prior
10, 20 or 60 minutes of driving. Each new average will be added to the
left side of the graph, shifting the past data to the right. When the
graph area is full, the right most point will be deleted, keeping a
Information menu
78
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

running scroll with the bar on the left being the most recent.
For the Fusion Hybrid and MKZ Hybrid, the previous values will
remain when the vehicle is shut off and restarted, but values from a
previous drive cycle will be grayed out.
For the Escape Hybrid, you will start with an empty fuel economy
history with every ignition cycle.
If the navigation system has been set to units of Kilometer, the Fuel
Economy screen will display the equivalent Consumption Graph in units
of L/100 KM. In Consumption (L/100 KM) mode, the IFE function will
display MAX until the vehicle is moving. For more information on
Average Fuel Economy, refer toMessage centerin theInstrument
Clusterchapter in yourOwner’s Guide.
Power and efficiency (if equipped)
If you have an Escape Hybrid, your
vehicle is equipped with a Power &
Efficiency screen which provides
additional information about brake
efficiency, vehicle power, air
conditioning power and efficiency
information.
Brake (brake gauge):The narrow band indicates brake power demand.
(The more you press on the brake pedal, the more braking power you
demand of the vehicle). The wide band remains stationary to show the
area in which braking is more efficient (beneath the line) and the
approximate point where the limit of regenerative braking is reached (at
the top of the line) and where conventional friction braking is applied
(over the line).
•When possible, anticipate braking. Moderate braking will help you stay
within the efficient braking zone (keeping the narrow band below the
wide band) thereby improving the regenerative braking energy
recovery.
•Brake demand may be present when coasting (without your foot on
the brake pedal), particularly in low gear as the powertrain is
contributing to slowing the vehicle.
Note:At zero vehicle speed, the narrow band indicator will show zero.
Information menu
79
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Vehicle (vehicle gauge):The narrow band indicates vehicle power
demand. (The more you press on the accelerator pedal, the more power
you demand of the vehicle.) When the transmission is in D (Drive), the
wide band indicates the gasoline engine on/off transition point. If the
narrow band is above the wide band, the gasoline engine is on. If the
narrow band is below the wide band, the gasoline engine is off and the
vehicle is in electric mode. If you are in electric mode and you press the
accelerator such that the narrow band exceeds the wide band, the
gasoline engine will turn on.
•Reduction in vehicle power to
below the wide band will result in
the engine turning off. In this
case, the hybrid’s system is
operating in electric mode and
“EV” is displayed under the
gauge.
•If the power demand is smaller than what is required to turn the
engine on, it will be indicated with the narrow band below the wide
band. Increase in vehicle power to above the wide band will result in
the engine turning on and the “EV” will disappear.
•When the gasoline engine is on for reasons outside of your control
(such as warming up the system or charging a low battery), the
gasoline engine on/off threshold indicator (wide band) disappears.
When the wide band is not displayed, the gasoline engine will not turn
off regardless of how little power you demand (even lifting your foot
off the accelerator).
A/C power gauge:The air conditioning power gauge indicates electrical
power demand from your vehicle’s air conditioning system. Air
conditioning uses power but does not contribute to propelling the
vehicle. The higher the level indication on this gauge, the more air
conditioning power is being used. You can see the level of this gauge
change by turning air conditioning on and off or changing the climate
control set point.
•Some air conditioning power may be used when in the AUTO
(Automatic) climate control mode. See the Climate control chapter of
your Owner’s Guide for more information.
•In colder ambient temperatures when the air conditioning is used less
frequently, the A/C power will often display at zero.
Information menu
80
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Eff (efficiency gauge):The efficiency gauge indicates short term
driving efficiency, measured over the last few minutes. Higher efficiency
is indicated by an increase in the level indication.
•This display can be impacted by your use of brakes, accelerator and
accessories as well as environmental conditions such as terrain and
weather.
•The efficiency display does not reset with the ’Reset’ economy button.
Engine on:This gauge provides you with the reason why the engine is
running. When the gasoline engine is on, the buttons will show the
reason why. When the gasoline engine is off, ’EV’ will appear in the
display. When the gasoline engine is on, one or two of the following
reasons will appear. For a more complete description of the reason,
simply press the desired button on the touchscreen.
•Engine cold: The engine is on to warm-up. The vehicle will return to
electric mode when the engine is warm. This reason may re-appear
during a drive or after shutting the vehicle down for a short period.
This is normal operation.
•Heater setting: The engine is on because of the heater setting. Reduce
or turn off the heater setting to return to electric mode.
•High speed: The engine is on because the vehicle speed exceeds the
level for electric mode operation. Reduce the speed to return to
electric mode.
•Acceleration: The engine is on because of pressure applied to the
accelerator pedal. Reduce the pressure on the accelerator pedal to
return to full electric mode.
•Neutral Gear: The engine is on because the vehicle is in neutral gear.
Shift out of neutral gear to return to electric mode.
•Low Gear: The engine is on because the vehicle is in low gear. Shift
out of low gear to return to electric mode.
•Batt charging (battery charging): The engine is on to charge the
hybrid battery. The vehicle will return to electric mode once the
battery is charged.
•Normal operation: The engine is on to optimize vehicle operation. The
vehicle will return to electric mode when possible.
Information menu
81
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

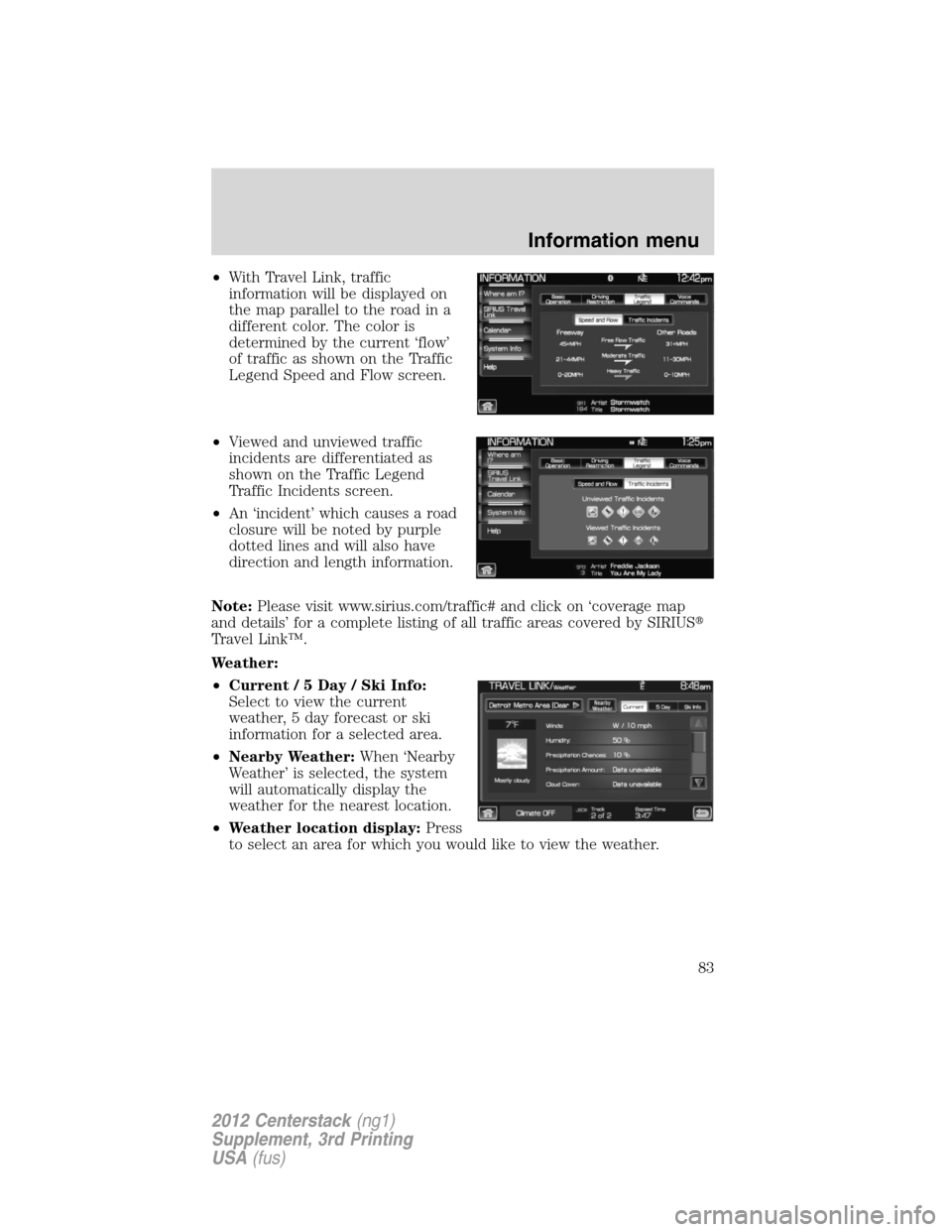

•With Travel Link, traffic
information will be displayed on
the map parallel to the road in a
different color. The color is
determined by the current ‘flow’
of traffic as shown on the Traffic
Legend Speed and Flow screen.
•Viewed and unviewed traffic
incidents are differentiated as
shown on the Traffic Legend
Traffic Incidents screen.
•An ‘incident’ which causes a road
closure will be noted by purple
dotted lines and will also have
direction and length information.
Note:Please visit www.sirius.com/traffic# and click on ‘coverage map
and details’ for a complete listing of all traffic areas covered by SIRIUS
Travel Link™.
Weather:
•Current / 5 Day / Ski Info:
Select to view the current
weather, 5 day forecast or ski
information for a selected area.
•Nearby Weather:When ‘Nearby
Weather’ is selected, the system
will automatically display the
weather for the nearest location.
•Weather location display:Press
to select an area for which you would like to view the weather.
Information menu
83
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

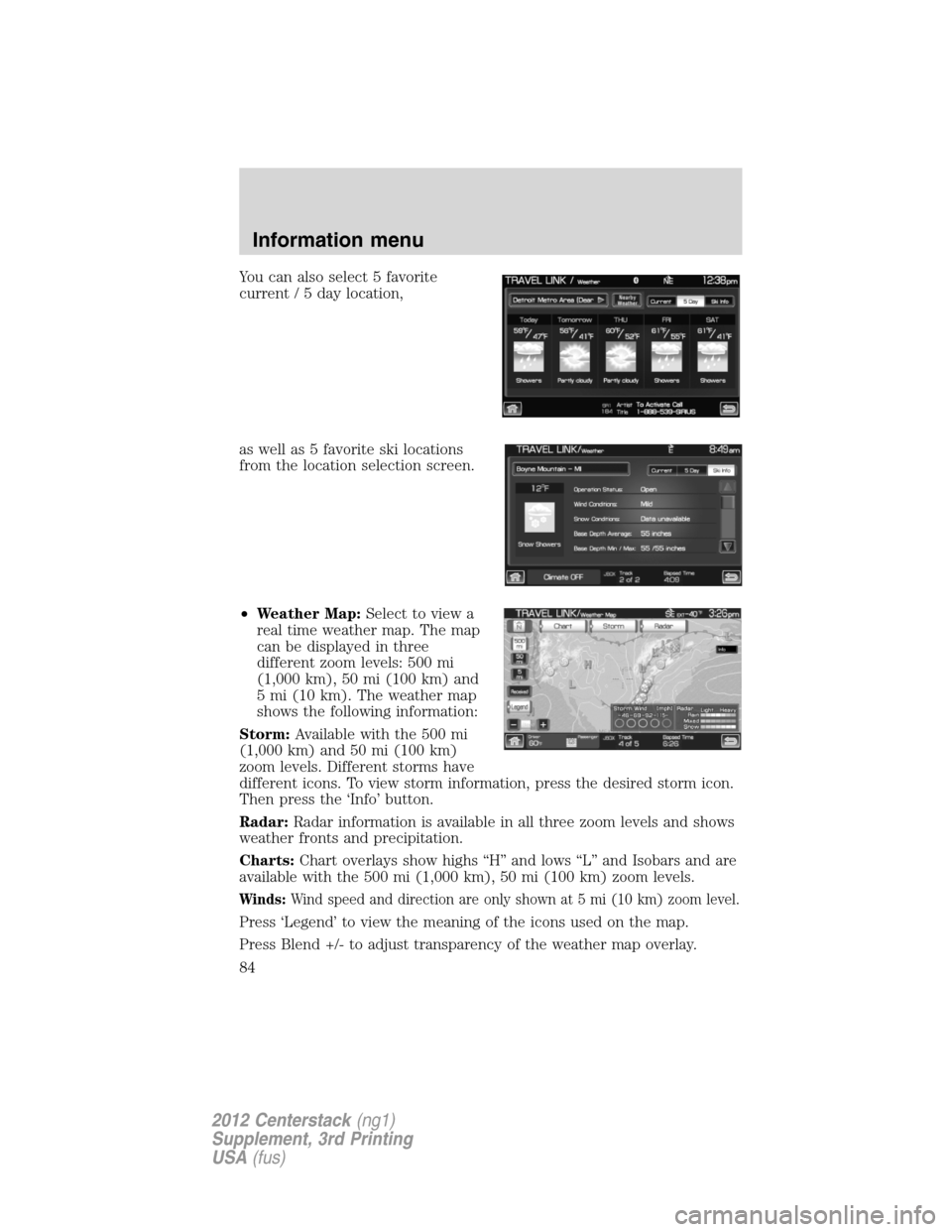

You can also select 5 favorite
current / 5 day location,
as well as 5 favorite ski locations
from the location selection screen.
•Weather Map:Select to view a
real time weather map. The map
can be displayed in three
different zoom levels: 500 mi
(1,000 km), 50 mi (100 km) and
5 mi (10 km). The weather map
shows the following information:
Storm:Available with the 500 mi
(1,000 km) and 50 mi (100 km)
zoom levels. Different storms have
different icons. To view storm information, press the desired storm icon.
Then press the ‘Info’ button.
Radar:Radar information is available in all three zoom levels and shows
weather fronts and precipitation.
Charts:Chart overlays show highs “H” and lows “L” and Isobars and are
available with the 500 mi (1,000 km), 50 mi (100 km) zoom levels.
Winds:Wind speed and direction are only shown at 5 mi (10 km) zoom level.
Press ‘Legend’ to view the meaning of the icons used on the map.
Press Blend +/- to adjust transparency of the weather map overlay.
Information menu
84
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Other Services:
•Fuel Prices:Select to show gas
prices at stations close to your
vehicle’s location or gas stations
on an active navigation route. You
can choose to sort the list by
distance, price or alphabetical
order.
You can also select to view Unleaded or Diesel fuel prices from the
‘Navigation Prefs’ (Preferences) tab under the NAV menu features. If you
select ‘Unleaded’, the navigation system will only show list items with
Unleaded fuel prices and if you select ‘Diesel’, the navigation system will
only show diesel prices. List items with ‘NA’ represent stations where
fuel prices are either not available or has a fuel price that is not selected
under ‘Navigation Prefs’ screen. The different hour glass icons indicate
the age of the collected data.
•Movie Listings:Select to display
movie theaters located nearby the
vehicle’s current location. Select
the clock icon to view the show
times. Show times are only
available for the list items which
have a clock next to them.
•
Sports Information:Select to
display scores and schedules for a
variety of sports. You can even save
up to 10 favorite teams for easier
access. The score screen
automatically refreshes when a
game or event is in progress. On
the score screen, a TUNE button is
shown next to the list item when a
live radio broadcast is in process.
Note:Neither SIRIUSnor Ford is responsible for any errors or
inaccuracies in the SIRIUSTravel Link™ services or its use in vehicles.
Fuel Station
Movie Theater
Information menu
85
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

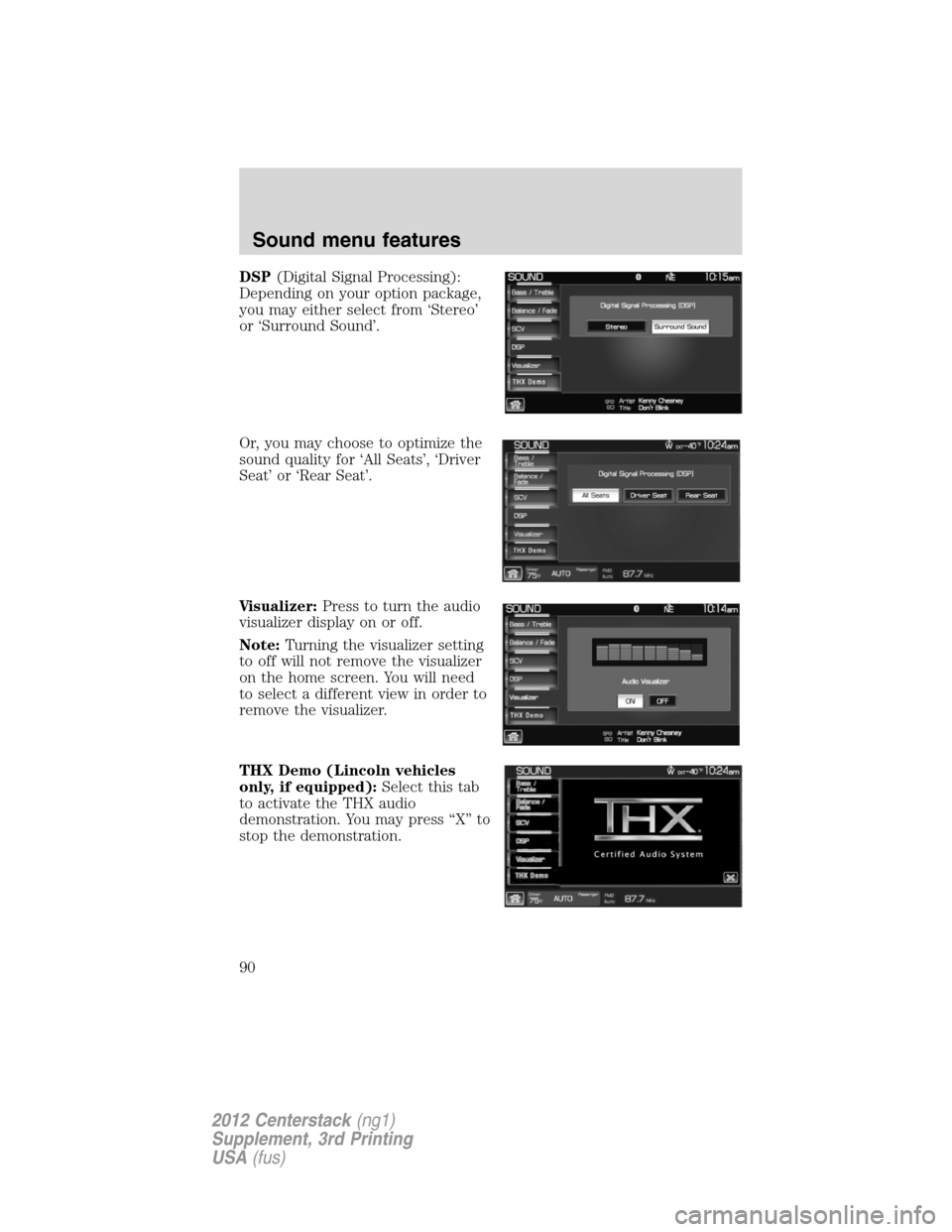

DSP(Digital Signal Processing):
Depending on your option package,
you may either select from ‘Stereo’
or ‘Surround Sound’.
Or, you may choose to optimize the
sound quality for ‘All Seats’, ‘Driver
Seat’ or ‘Rear Seat’.
Visualizer:Press to turn the audio
visualizer display on or off.
Note:Turning the visualizer setting
to off will not remove the visualizer
on the home screen. You will need
to select a different view in order to
remove the visualizer.
THX Demo (Lincoln vehicles
only, if equipped):Select this tab
to activate the THX audio
demonstration. You may press “X” to
stop the demonstration.
Sound menu features
90
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
