Page 68 of 200
LINE IN (AUXILIARY INPUT JACK)
Your vehicle is equipped with an audio input jack which will allow a
portable audio device to be listened to through your vehicle’s audio
system. To activate this feature:
1. Press the MEDIA hard button on the navigation system.
2. Select the ‘Line In’ tab.
Once a 3.5 mm input jack is plugged into the Line in jack, ensure that
the playing device is turned on with the volume set at the maximum
level. Press the play button and sound from the device will be emitted
through the vehicle speakers. Adjust the volume using the volume
control on the navigation system.
For information on the auxiliary input jack location, please refer to the
Auxiliary input jack (Line in)in theEntertainmentchapter of your
Owner’s Guide.
REAR DVD SYSTEM (IF EQUIPPED)
Note:The images seen in this section, and the functions they represent,
are only available with the headrest DVD system and areonly available
on Flex and MKT vehicles if the headrest DVD option is ordered
from the factory when ordering the vehicle.For all other headrest
DVD systems installed on vehicles other than the Flex and MKT, or for
headrest DVD systems installed on vehicles already available in a dealer
inventory, these functions are NOT available.
Your navigation system allows you to access the dual DVD headrest
system (if equipped). To access:
1. Press the MEDIA hard button on the navigation system.
Audio features
68
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

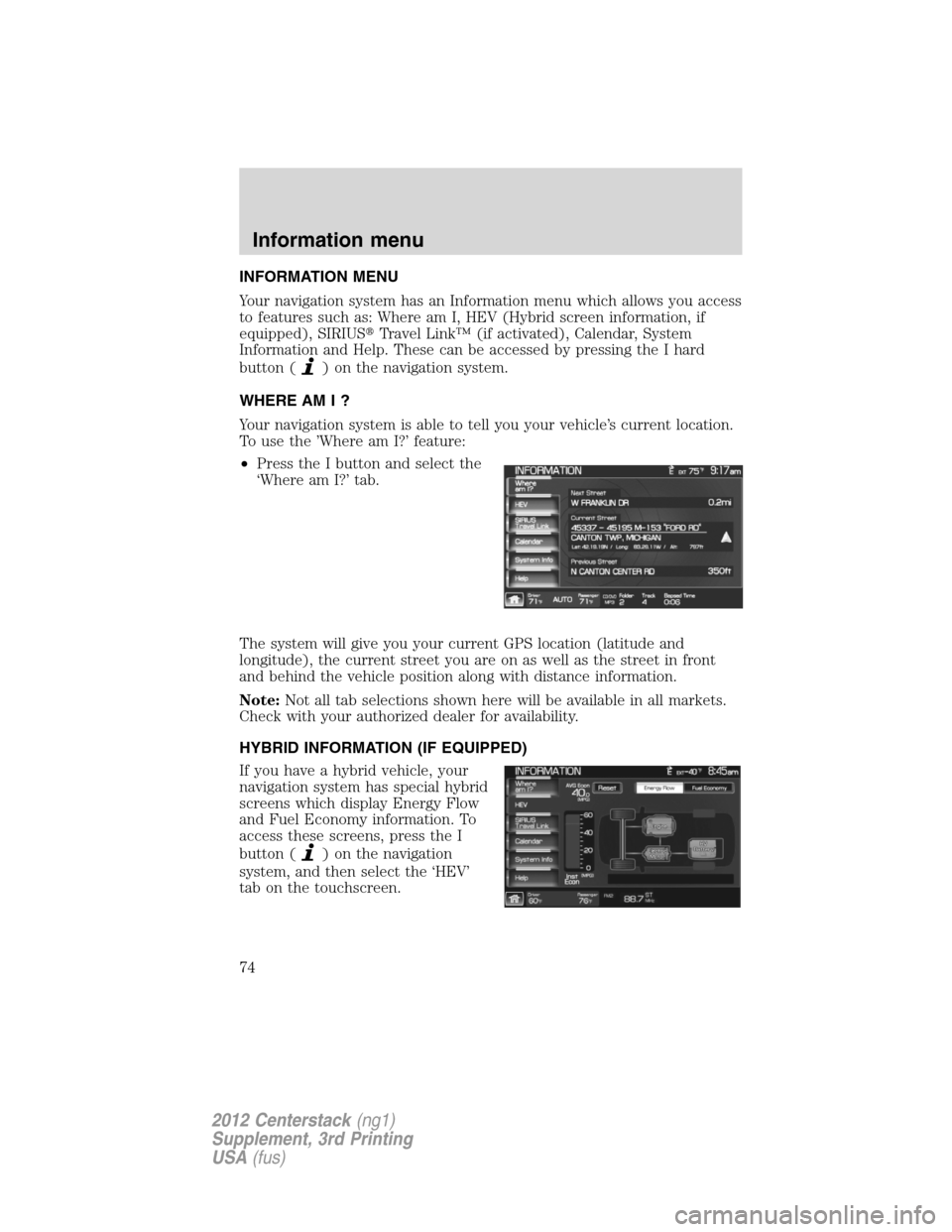

Page 74 of 200
INFORMATION MENU
Your navigation system has an Information menu which allows you access
to features such as: Where am I, HEV (Hybrid screen information, if
equipped), SIRIUSTravel Link™ (if activated), Calendar, System
Information and Help. These can be accessed by pressing the I hard
button (
) on the navigation system.
WHERE AM I ?
Your navigation system is able to tell you your vehicle’s current location.
To use the ’Where am I?’ feature:
•Press the I button and select the
‘Where am I?’ tab.
The system will give you your current GPS location (latitude and
longitude), the current street you are on as well as the street in front
and behind the vehicle position along with distance information.
Note:Not all tab selections shown here will be available in all markets.
Check with your authorized dealer for availability.
HYBRID INFORMATION (IF EQUIPPED)
If you have a hybrid vehicle, your
navigation system has special hybrid
screens which display Energy Flow
and Fuel Economy information. To
access these screens, press the I
button (
) on the navigation
system, and then select the ‘HEV’
tab on the touchscreen.
Information menu
74
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 79 of 200

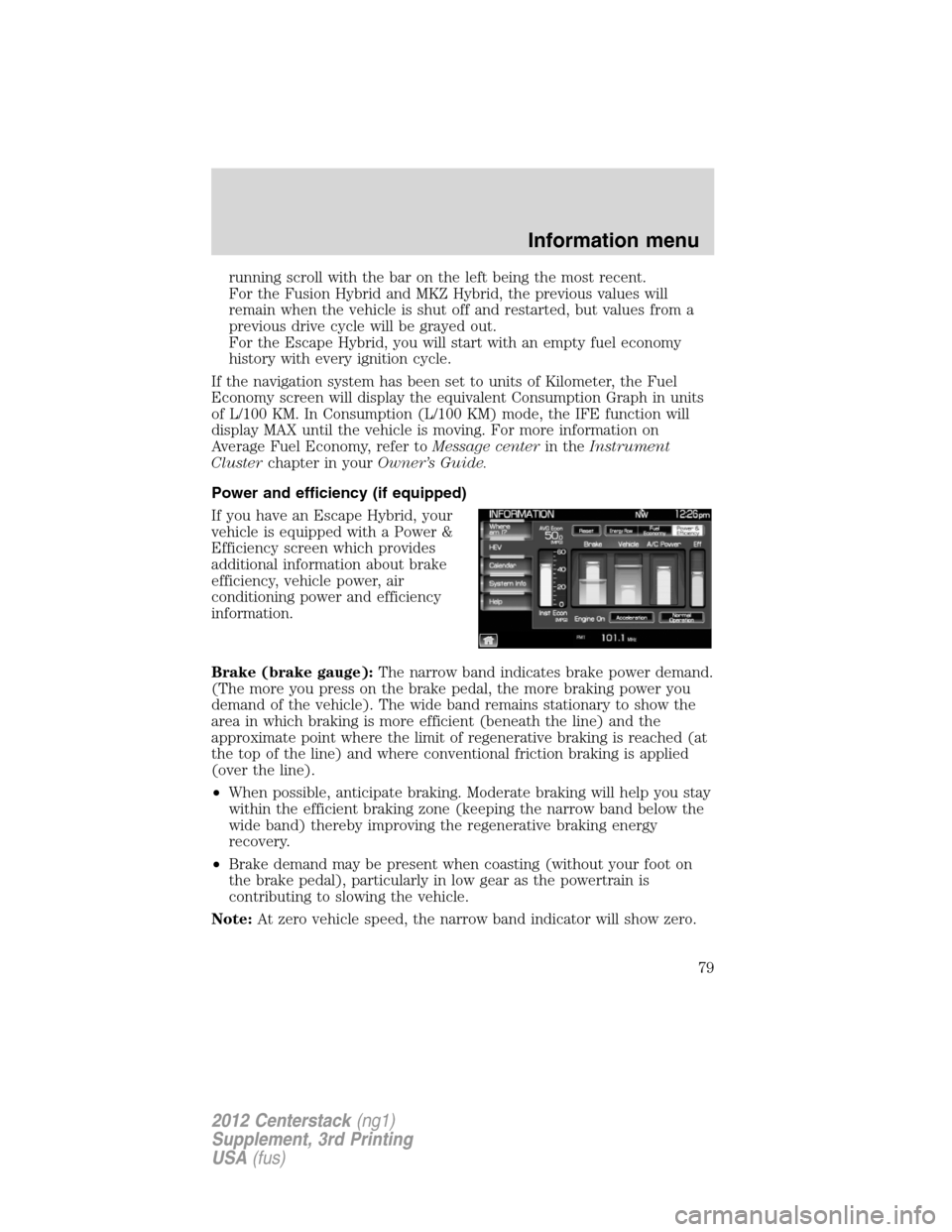

running scroll with the bar on the left being the most recent.
For the Fusion Hybrid and MKZ Hybrid, the previous values will
remain when the vehicle is shut off and restarted, but values from a
previous drive cycle will be grayed out.
For the Escape Hybrid, you will start with an empty fuel economy
history with every ignition cycle.
If the navigation system has been set to units of Kilometer, the Fuel
Economy screen will display the equivalent Consumption Graph in units
of L/100 KM. In Consumption (L/100 KM) mode, the IFE function will
display MAX until the vehicle is moving. For more information on
Average Fuel Economy, refer toMessage centerin theInstrument
Clusterchapter in yourOwner’s Guide.
Power and efficiency (if equipped)
If you have an Escape Hybrid, your
vehicle is equipped with a Power &
Efficiency screen which provides
additional information about brake
efficiency, vehicle power, air
conditioning power and efficiency
information.
Brake (brake gauge):The narrow band indicates brake power demand.
(The more you press on the brake pedal, the more braking power you
demand of the vehicle). The wide band remains stationary to show the
area in which braking is more efficient (beneath the line) and the
approximate point where the limit of regenerative braking is reached (at
the top of the line) and where conventional friction braking is applied
(over the line).
•When possible, anticipate braking. Moderate braking will help you stay
within the efficient braking zone (keeping the narrow band below the
wide band) thereby improving the regenerative braking energy
recovery.
•Brake demand may be present when coasting (without your foot on
the brake pedal), particularly in low gear as the powertrain is
contributing to slowing the vehicle.
Note:At zero vehicle speed, the narrow band indicator will show zero.
Information menu
79
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 82 of 200

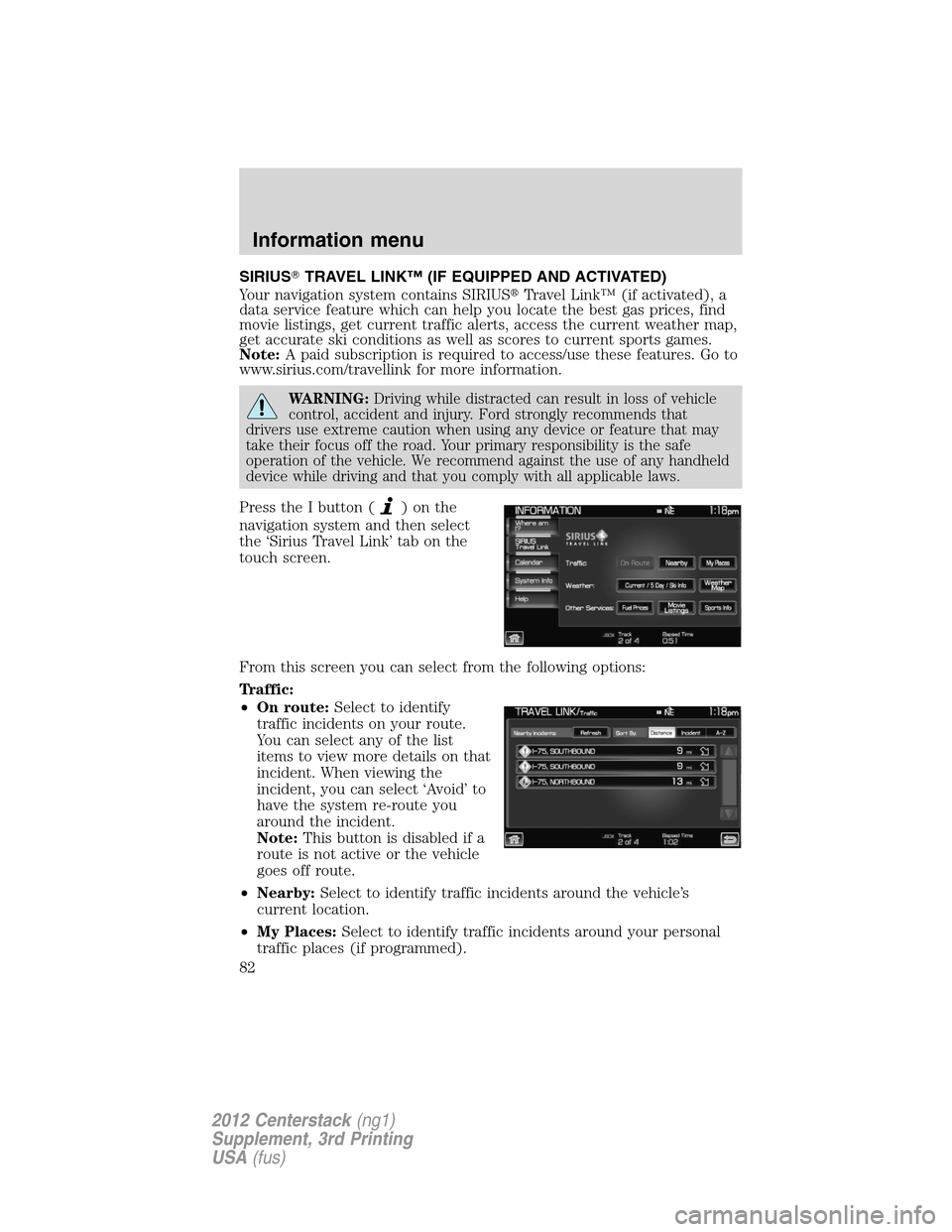

SIRIUSTRAVEL LINK™ (IF EQUIPPED AND ACTIVATED)
Your navigation system contains SIRIUSTravel Link™ (if activated), a
data service feature which can help you locate the best gas prices, find
movie listings, get current traffic alerts, access the current weather map,
get accurate ski conditions as well as scores to current sports games.
Note:A paid subscription is required to access/use these features. Go to
www.sirius.com/travellink for more information.
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any handheld
device while driving and that you comply with all applicable laws.
Press the I button ()onthe
navigation system and then select
the ‘Sirius Travel Link’ tab on the
touch screen.
From this screen you can select from the following options:
Traffic:
•On route:Select to identify
traffic incidents on your route.
You can select any of the list
items to view more details on that
incident. When viewing the
incident, you can select ‘Avoid’ to
have the system re-route you
around the incident.
Note:This button is disabled if a
route is not active or the vehicle
goes off route.
•Nearby:Select to identify traffic incidents around the vehicle’s
current location.
•My Places:Select to identify traffic incidents around your personal
traffic places (if programmed).
Information menu
82
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 85 of 200

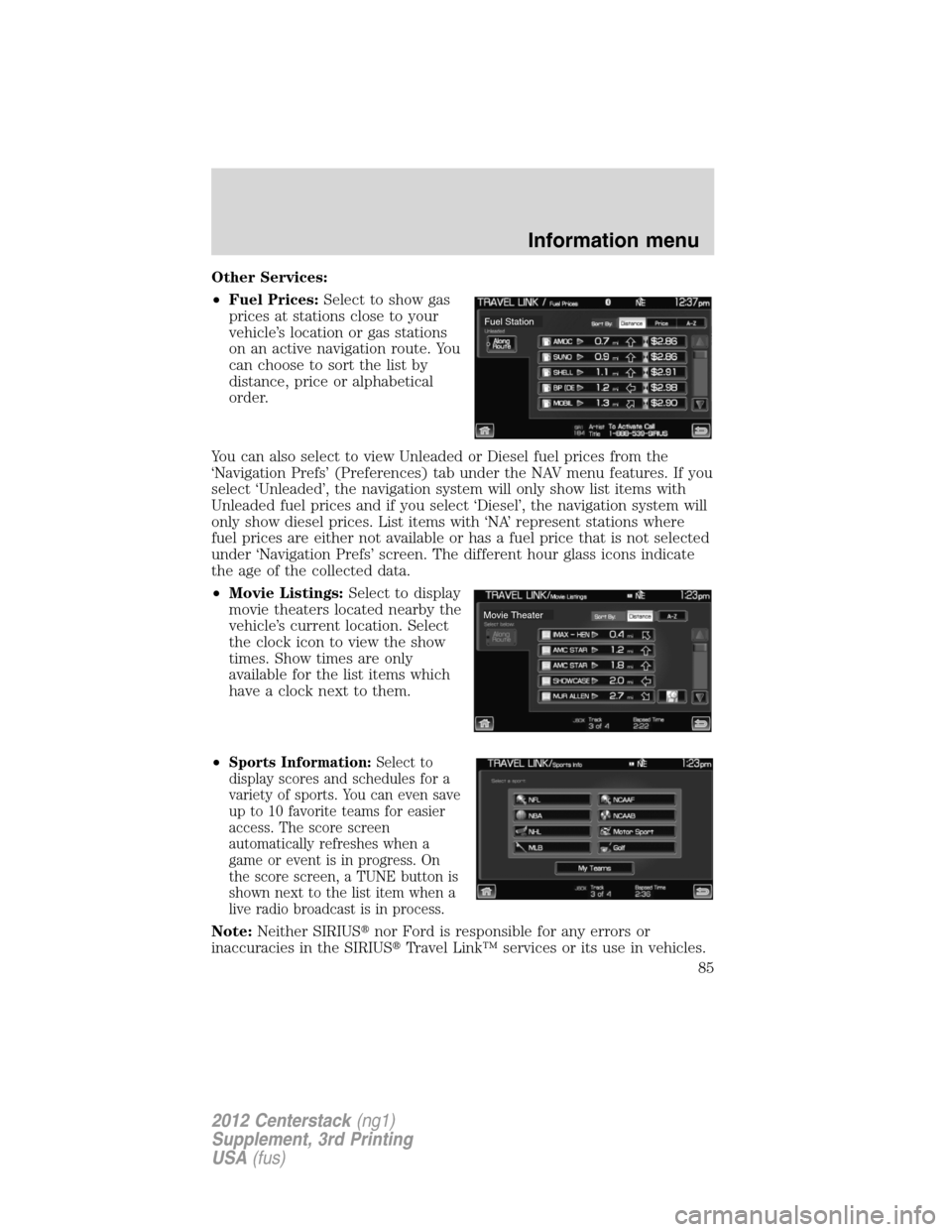

Other Services:
•Fuel Prices:Select to show gas
prices at stations close to your
vehicle’s location or gas stations
on an active navigation route. You
can choose to sort the list by
distance, price or alphabetical
order.
You can also select to view Unleaded or Diesel fuel prices from the
‘Navigation Prefs’ (Preferences) tab under the NAV menu features. If you
select ‘Unleaded’, the navigation system will only show list items with
Unleaded fuel prices and if you select ‘Diesel’, the navigation system will
only show diesel prices. List items with ‘NA’ represent stations where
fuel prices are either not available or has a fuel price that is not selected
under ‘Navigation Prefs’ screen. The different hour glass icons indicate
the age of the collected data.
•Movie Listings:Select to display
movie theaters located nearby the
vehicle’s current location. Select
the clock icon to view the show
times. Show times are only
available for the list items which
have a clock next to them.
•
Sports Information:Select to
display scores and schedules for a
variety of sports. You can even save
up to 10 favorite teams for easier
access. The score screen
automatically refreshes when a
game or event is in progress. On
the score screen, a TUNE button is
shown next to the list item when a
live radio broadcast is in process.
Note:Neither SIRIUSnor Ford is responsible for any errors or
inaccuracies in the SIRIUSTravel Link™ services or its use in vehicles.
Fuel Station
Movie Theater
Information menu
85
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 87 of 200

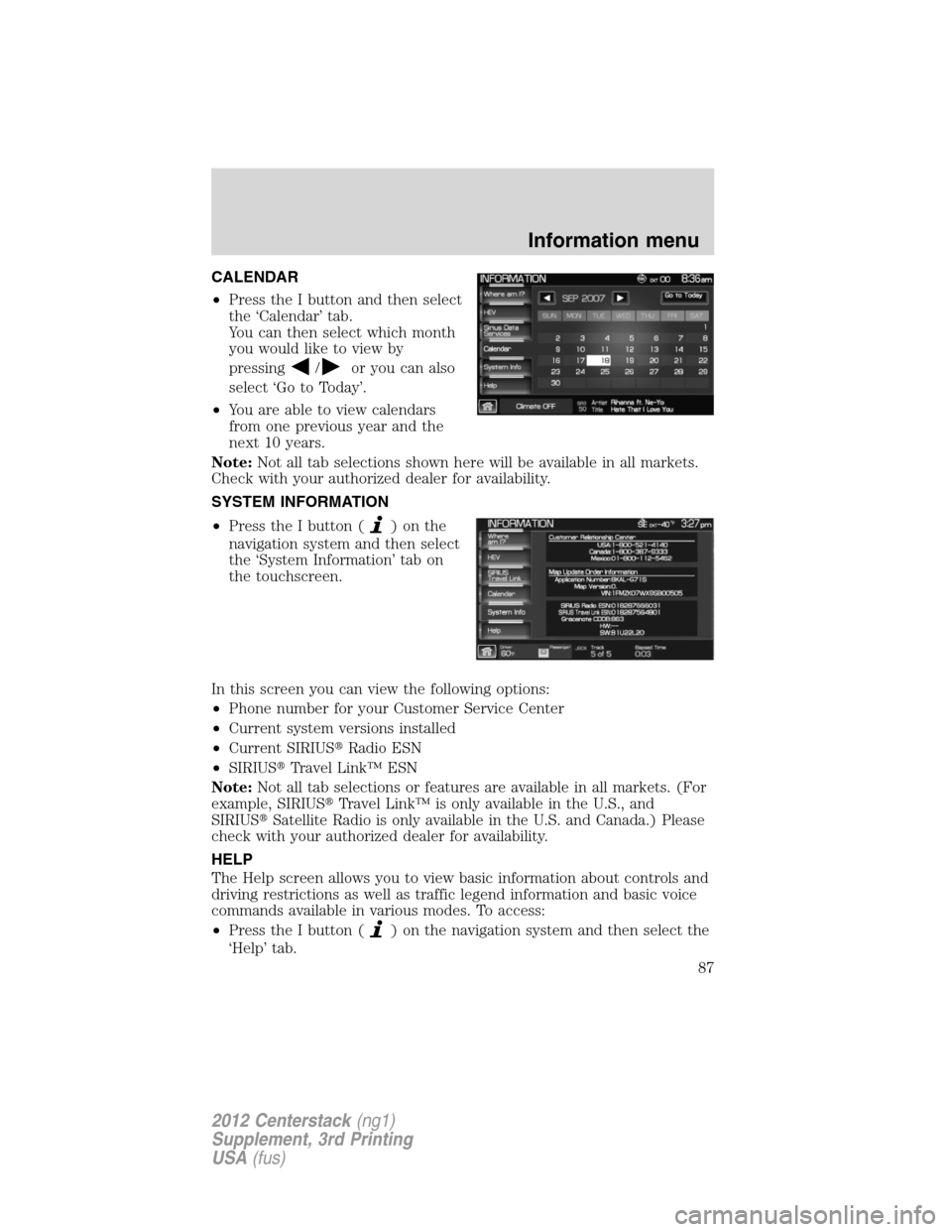

CALENDAR
•Press the I button and then select
the ‘Calendar’ tab.
You can then select which month
you would like to view by
pressing
/or you can also
select ‘Go to Today’.
•You are able to view calendars
from one previous year and the
next 10 years.
Note:Not all tab selections shown here will be available in all markets.
Check with your authorized dealer for availability.
SYSTEM INFORMATION
•Press the I button (
)onthe
navigation system and then select
the ‘System Information’ tab on
the touchscreen.
In this screen you can view the following options:
•Phone number for your Customer Service Center
•Current system versions installed
•Current SIRIUSRadio ESN
•SIRIUSTravel Link™ ESN
Note:Not all tab selections or features are available in all markets. (For
example, SIRIUSTravel Link™ is only available in the U.S., and
SIRIUSSatellite Radio is only available in the U.S. and Canada.) Please
check with your authorized dealer for availability.
HELP
The Help screen allows you to view basic information about controls and
driving restrictions as well as traffic legend information and basic voice
commands available in various modes. To access:
•Press the I button (
) on the navigation system and then select the
‘Help’ tab.
Information menu
87
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 88 of 200

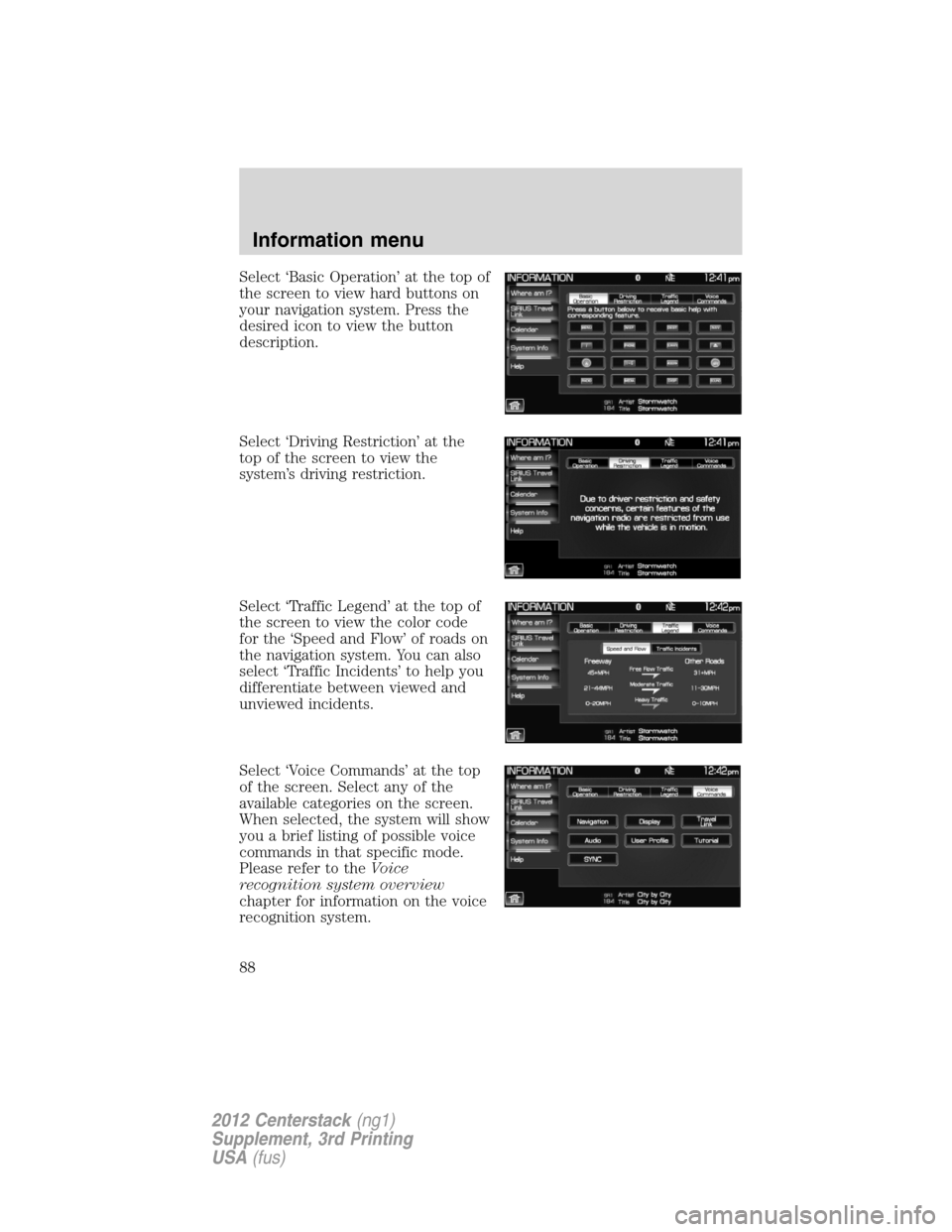

Select ‘Basic Operation’ at the top of
the screen to view hard buttons on
your navigation system. Press the
desired icon to view the button
description.
Select ‘Driving Restriction’ at the
top of the screen to view the
system’s driving restriction.
Select ‘Traffic Legend’ at the top of
the screen to view the color code
for the ‘Speed and Flow’ of roads on
the navigation system. You can also
select ‘Traffic Incidents’ to help you
differentiate between viewed and
unviewed incidents.
Select ‘Voice Commands’ at the top
of the screen. Select any of the
available categories on the screen.
When selected, the system will show
you a brief listing of possible voice
commands in that specific mode.
Please refer to theVoice
recognition system overview
chapter for information on the voice
recognition system.
Information menu
88
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 91 of 200

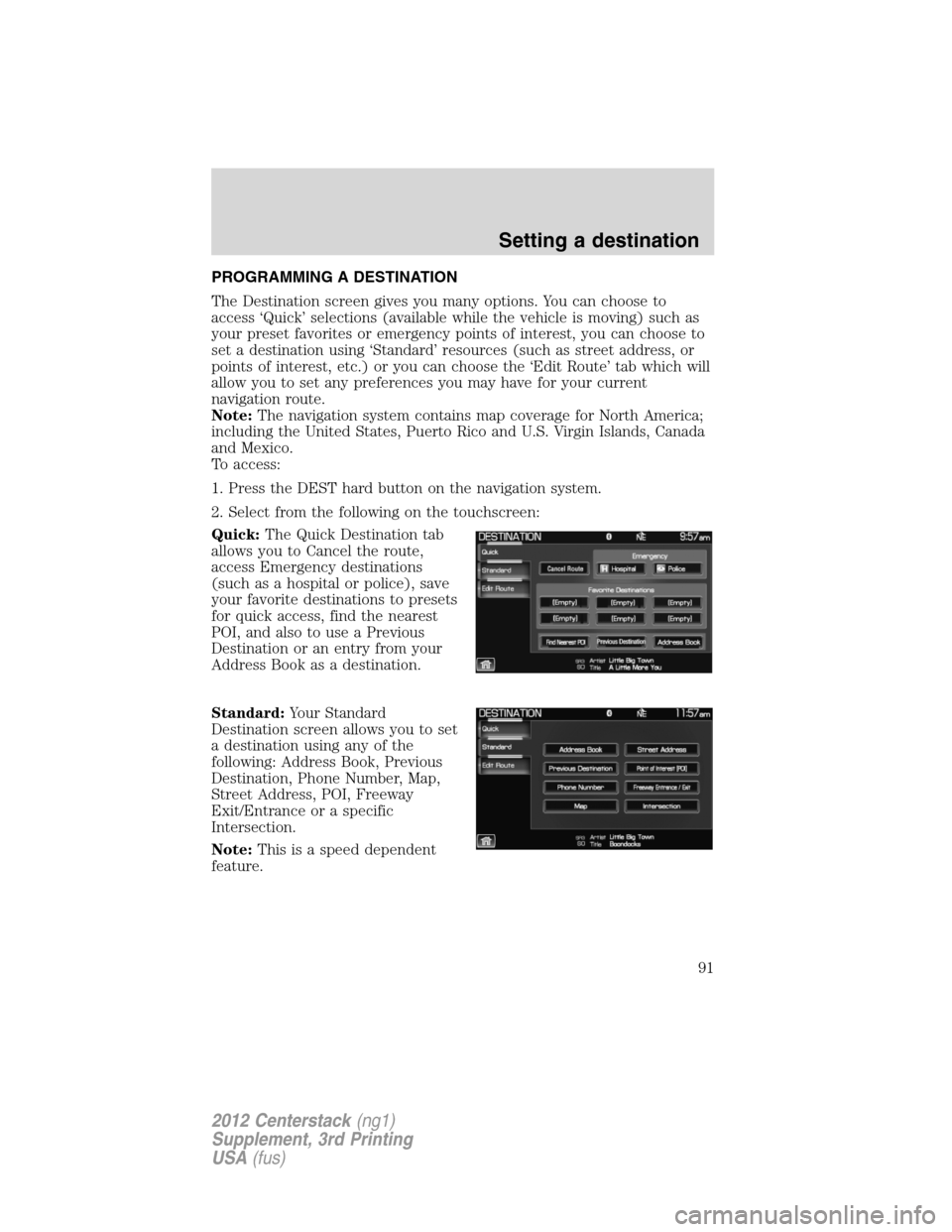

PROGRAMMING A DESTINATION
The Destination screen gives you many options. You can choose to
access ‘Quick’ selections (available while the vehicle is moving) such as
your preset favorites or emergency points of interest, you can choose to
set a destination using ‘Standard’ resources (such as street address, or
points of interest, etc.) or you can choose the ‘Edit Route’ tab which will
allow you to set any preferences you may have for your current
navigation route.
Note:The navigation system contains map coverage for North America;
including the United States, Puerto Rico and U.S. Virgin Islands, Canada
and Mexico.
To access:
1. Press the DEST hard button on the navigation system.
2. Select from the following on the touchscreen:
Quick:The Quick Destination tab
allows you to Cancel the route,
access Emergency destinations
(such as a hospital or police), save
your favorite destinations to presets
for quick access, find the nearest
POI, and also to use a Previous
Destination or an entry from your
Address Book as a destination.
Standard:Your Standard
Destination screen allows you to set
a destination using any of the
following: Address Book, Previous
Destination, Phone Number, Map,
Street Address, POI, Freeway
Exit/Entrance or a specific
Intersection.
Note:This is a speed dependent
feature.
Setting a destination
91
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 92 of 200

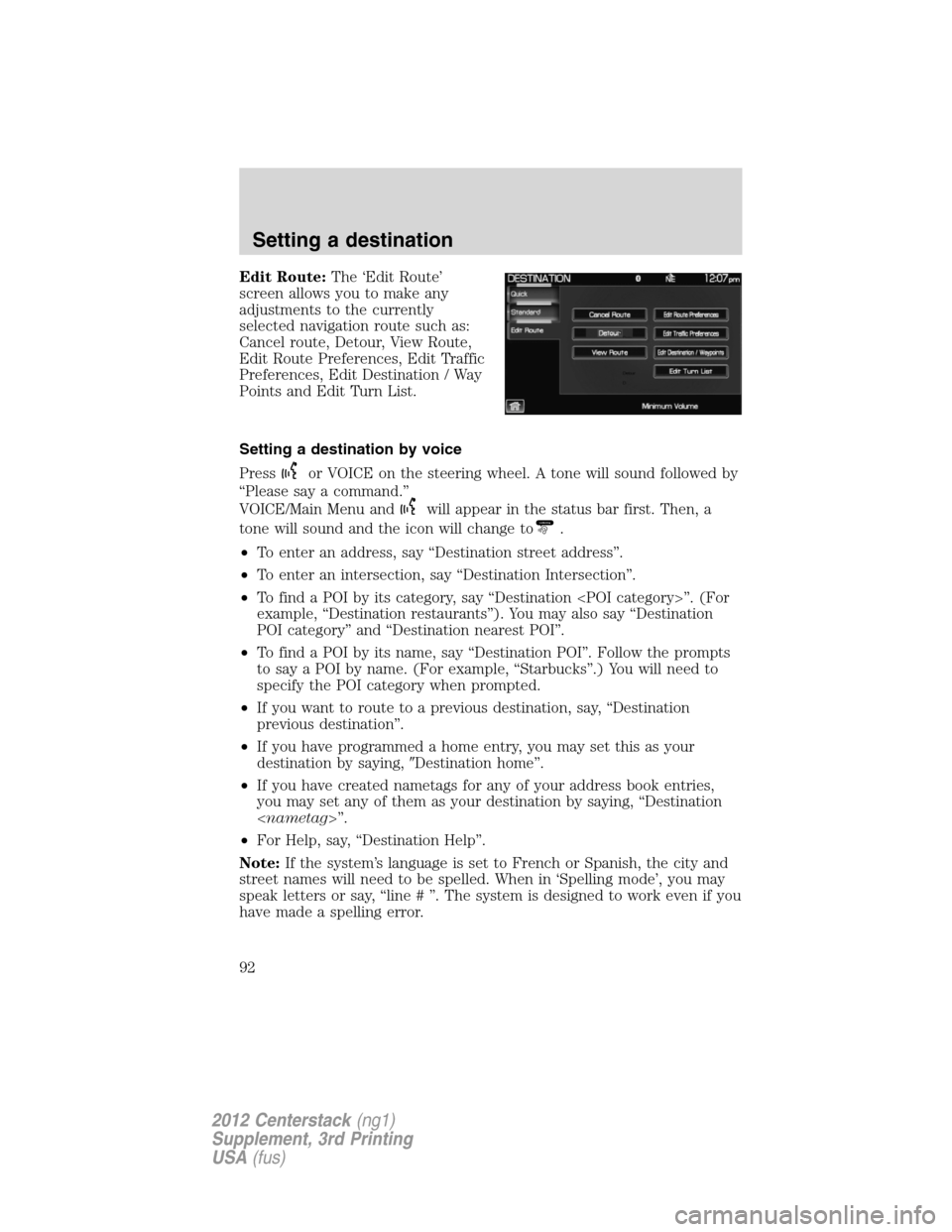

Edit Route:The ‘Edit Route’
screen allows you to make any
adjustments to the currently
selected navigation route such as:
Cancel route, Detour, View Route,
Edit Route Preferences, Edit Traffic
Preferences, Edit Destination / Way
Points and Edit Turn List.
Setting a destination by voice
Press
or VOICE on the steering wheel. A tone will sound followed by
“Please say a command.”
VOICE/Main Menu and
will appear in the status bar first. Then, a
tone will sound and the icon will change toListening.
•To enter an address, say “Destination street address”.
•To enter an intersection, say “Destination Intersection”.
•To find a POI by its category, say “Destination
example, “Destination restaurants”). You may also say “Destination
POI category” and “Destination nearest POI”.
•To find a POI by its name, say “Destination POI”. Follow the prompts
to say a POI by name. (For example, “Starbucks”.) You will need to
specify the POI category when prompted.
•If you want to route to a previous destination, say, “Destination
previous destination”.
•If you have programmed a home entry, you may set this as your
destination by saying,Destination home”.
•If you have created nametags for any of your address book entries,
you may set any of them as your destination by saying, “Destination
•For Help, say, “Destination Help”.
Note:If the system’s language is set to French or Spanish, the city and
street names will need to be spelled. When in ‘Spelling mode’, you may
speak letters or say, “line # ”. The system is designed to work even if you
have made a spelling error.
Setting a destination
92
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
Page 93 of 200

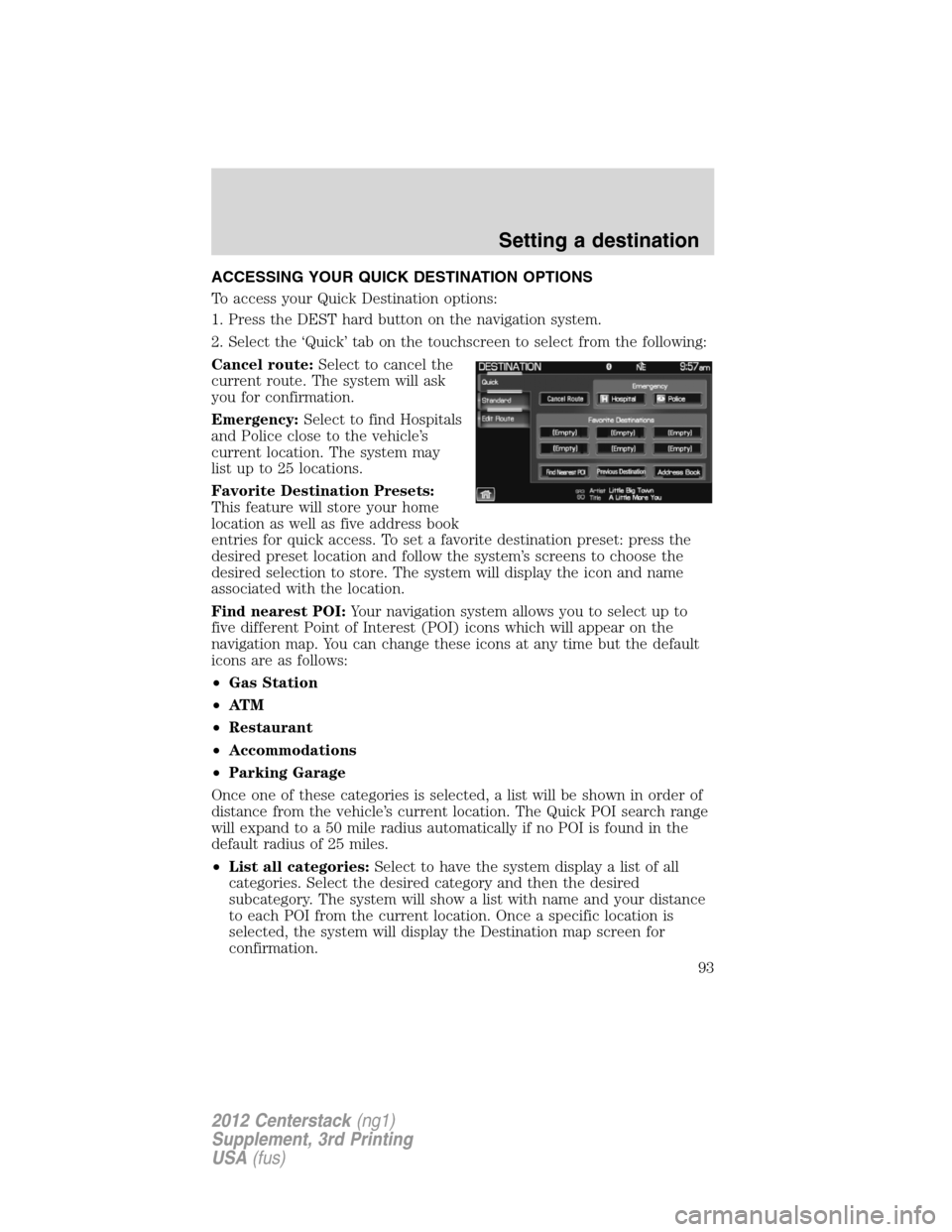

ACCESSING YOUR QUICK DESTINATION OPTIONS
To access your Quick Destination options:
1. Press the DEST hard button on the navigation system.
2. Select the ‘Quick’ tab on the touchscreen to select from the following:
Cancel route:Select to cancel the
current route. The system will ask
you for confirmation.
Emergency:Select to find Hospitals
and Police close to the vehicle’s
current location. The system may
list up to 25 locations.
Favorite Destination Presets:
This feature will store your home
location as well as five address book
entries for quick access. To set a favorite destination preset: press the
desired preset location and follow the system’s screens to choose the
desired selection to store. The system will display the icon and name
associated with the location.
Find nearest POI:Your navigation system allows you to select up to
five different Point of Interest (POI) icons which will appear on the
navigation map. You can change these icons at any time but the default
icons are as follows:
•Gas Station
•AT M
•Restaurant
•Accommodations
•Parking Garage
Once one of these categories is selected, a list will be shown in order of
distance from the vehicle’s current location. The Quick POI search range
will expand to a 50 mile radius automatically if no POI is found in the
default radius of 25 miles.
•List all categories:Select to have the system display a list of all
categories. Select the desired category and then the desired
subcategory. The system will show a list with name and your distance
to each POI from the current location. Once a specific location is
selected, the system will display the Destination map screen for
confirmation.
Setting a destination
93
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
