adding oil LINCOLN MKZ 2014 Owners Manual

BREAKING-IN
You need to break in new tires for
approximately 300 miles (480
kilometers). During this time, your
vehicle may exhibit some unusual
driving characteristics.
Avoid driving too fast during the first
1000 miles (1600 kilometers). Vary
your speed frequently and change up
through the gears early. Do not labor
the engine.
Do not tow during the first 1000 miles
(1600 kilometers).
ECONOMICAL DRIVING
Fuel economy is affected by several
things such as how you drive, the
conditions you drive under and how
you maintain your vehicle.
There are some things to keep in mind
that may improve your fuel economy:
• Accelerate and slow down in asmooth, moderate fashion.
• Drive at steady speeds.
• Anticipate stops; slowing down may eliminate the need to stop.
• Combine errands and minimize stop-and-go driving.
• When running errands, go tothe furthest destination first
and then work your way back
home.
• Close the windows for high-speed driving. • Drive at reasonable speeds.
(Traveling at 65 mph/105 kph uses
about 15% less fuel than traveling
at 75 mph/121 kph).
• Keep the tires properly inflated and use only the recommended size.
• Use the recommended engine oil.
• Perform all regularly scheduled maintenance.
There are also some things you may
want to avoid doing because they
reduce your fuel economy:
• Avoid sudden or hard accelerations.
• Avoid revving the engine before turning off the car.
• Avoid long idle periods.
• Do not warm up your vehicle on cold mornings.
• Reduce the use of air conditioning and heat.
• Avoid using speed control in hilly terrain.
• Do not rest your foot on the brake pedal while driving.
• Avoid carrying unnecessary weight (approximately 1 mpg [0.4
kilometers/liter] is lost for every
400 lbs [180 kilograms] of weight
carried).
• Avoid adding particular accessories to your vehicle (e.g.
bug deflectors, rollbars/light bars,
running boards, ski racks).
• Avoid driving with the wheels out of alignment.
240
Driving Hints

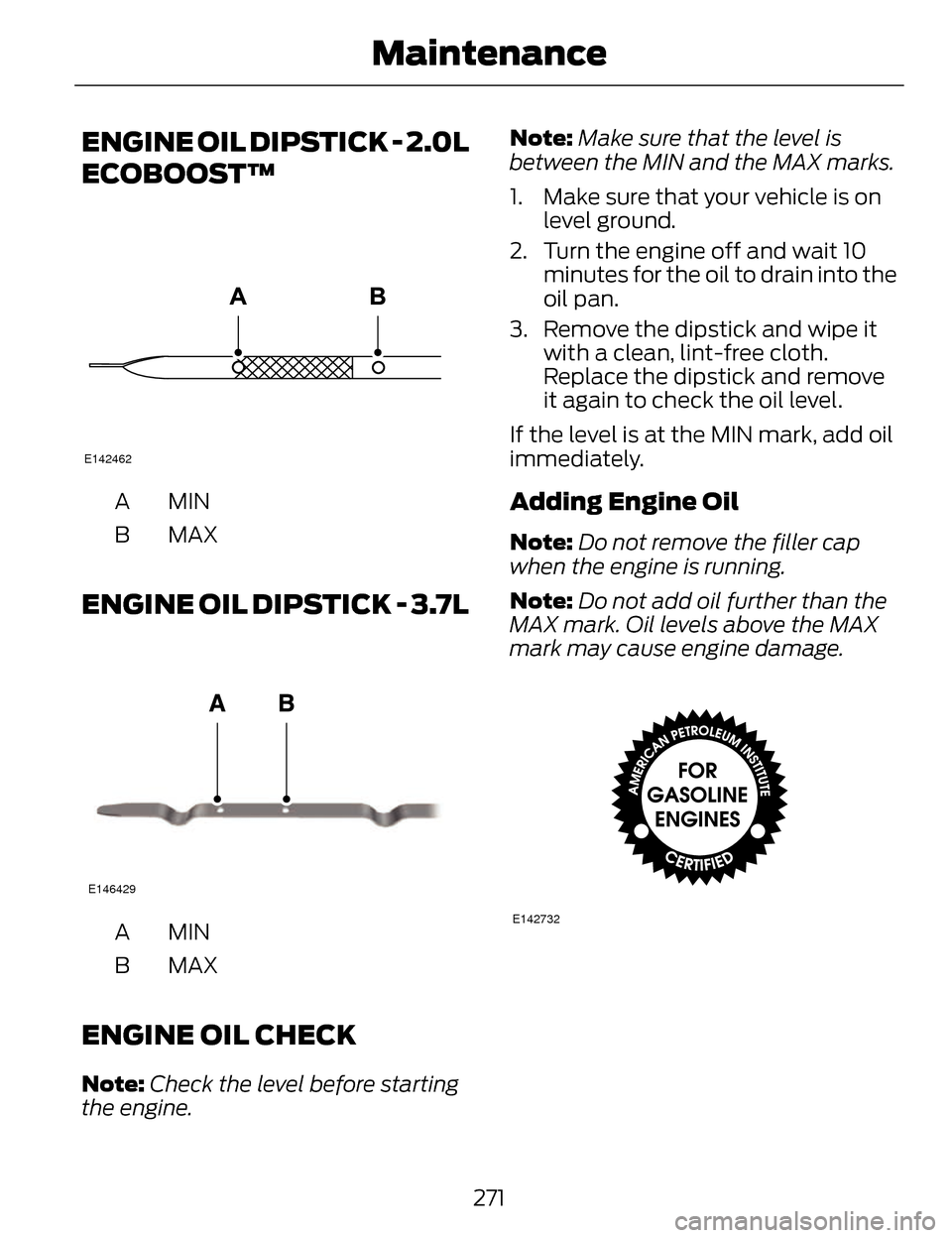

ENGINE OIL DIPSTICK - 2.0L
ECOBOOST™
E142462
MINA
MAXB
ENGINE OIL DIPSTICK - 3.7L
E146429
MINA
MAXB
ENGINE OIL CHECK
Note:Check the level before starting
the engine. Note:
Make sure that the level is
between the MIN and the MAX marks.
1. Make sure that your vehicle is on level ground.
2. Turn the engine off and wait 10 minutes for the oil to drain into the
oil pan.
3. Remove the dipstick and wipe it with a clean, lint-free cloth.
Replace the dipstick and remove
it again to check the oil level.
If the level is at the MIN mark, add oil
immediately.
Adding Engine Oil
Note: Do not remove the filler cap
when the engine is running.
Note: Do not add oil further than the
MAX mark. Oil levels above the MAX
mark may cause engine damage.
E142732
271
Maintenance

Only use oils certified for gasoline
engines by the American Petroleum
Institute (API). An oil with this
trademark symbol conforms to the
current engine and emission system
protection standards and fuel
economy requirements of the
International Lubricants Specification
Advisory Council (ILSAC), comprised
of U.S. and Japanese automobile
manufacturers.
1. Remove the filler cap.
2. Add engine oil that meets the Fordspecifications. See Capacities
and Specifications (page 329).
3. Replace the filler cap. Turn it until you feel a strong resistance.
OIL CHANGE INDICATOR
RESET
To reset the oil monitoring system
after an oil change, See General
Information (page 101).
ENGINE COOLANT CHECK
Checking the Engine Coolant
When the engine is cold, check the
concentration and level of the engine
coolant at the intervals listed in the
scheduled maintenance information.
See Scheduled Maintenance (page
436).
Note: Make sure that the level is
between the MIN and MAX marks on
the coolant reservoir. Note:
Coolant expands when it is hot.
The level may extend beyond the MAX
mark
Note: If the level is at the MIN mark,
below the MIN mark, or empty, add
coolant immediately. See Adding
Engine Coolant in this chapter.
The coolant concentration should be
maintained within 48% to 50%,
which equates to a freeze point
between -30°F degrees (-34ºC) and
-34ºF (-37ºC).
Note: For best results, coolant
concentration should be tested with a
refractometer such as Rotunda tool
300-ROB75240 available from your
authorized dealer. Ford does not
recommend the use of hydrometers or
coolant test strips for measuring
coolant concentrations.
Note: Automotive fluids are not
interchangeable. Do not use engine
coolant or antifreeze or windshield
washer fluid outside of its specified
function and vehicle location.
Adding Engine Coolant
WARNINGS
Do not add engine coolant when
the engine is hot. Steam and
scalding liquids released from a hot
cooling system can burn you badly.
Also, you can be burned if you spill
coolant on hot engine parts.
272
Maintenance

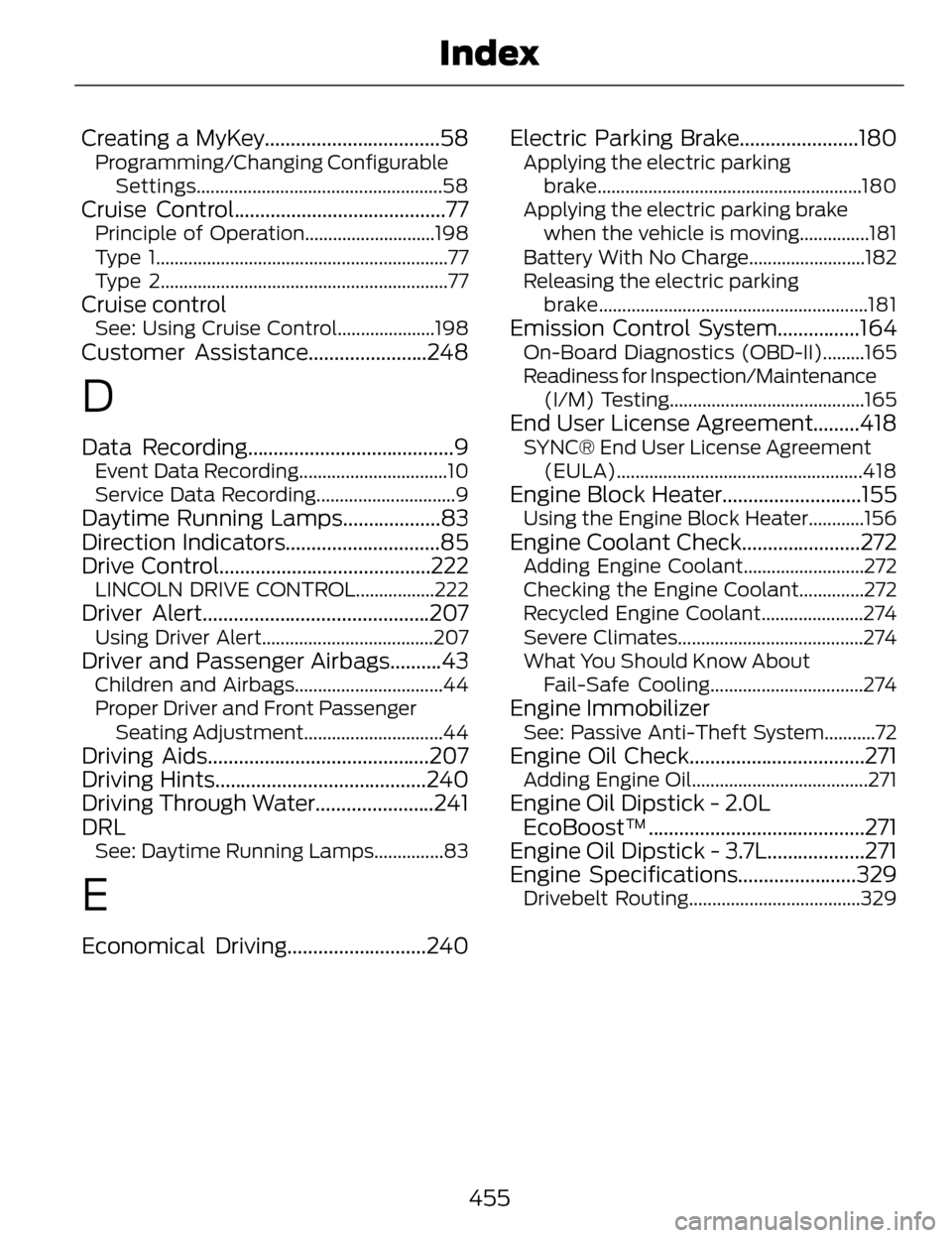

Creating a MyKey..................................58Programming/Changing ConfigurableSettings.....................................................58
Cruise Control.........................................77Principle of Operation............................198
Type 1...............................................................77
Type 2..............................................................77
Cruise controlSee: Using Cruise Control.....................198
Customer Assistance.......................248
D
Data Recording........................................9Event Data Recording................................10
Service Data Recording..............................9
Daytime Running Lamps...................83
Direction Indicators..............................85
Drive Control.........................................222
LINCOLN DRIVE CONTROL.................222
Driver Alert............................................207Using Driver Alert.....................................207
Driver and Passenger Airbags..........43Children and Airbags................................44
Proper Driver and Front PassengerSeating Adjustment..............................44
Driving Aids...........................................207
Driving Hints.........................................240
Driving Through Water.......................241
DRL
See: Daytime Running Lamps...............83
E
Economical Driving...........................240 Electric Parking Brake.......................180
Applying the electric parking
brake.........................................................180
Applying the electric parking brake when the vehicle is moving...............181
Battery With No Charge.........................182
Releasing the electric parking brake..........................................................181
Emission Control System................164On-Board Diagnostics (OBD-II).........165
Readiness for Inspection/Maintenance(I/M) Testing..........................................165
End User License Agreement.........418SYNC® End User License Agreement(EULA).....................................................418
Engine Block Heater...........................155Using the Engine Block Heater............156
Engine Coolant Check.......................272Adding Engine Coolant..........................272
Checking the Engine Coolant..............272
Recycled Engine Coolant......................274
Severe Climates........................................274
What You Should Know AboutFail-Safe Cooling.................................274
Engine ImmobilizerSee: Passive Anti-Theft System...........72
Engine Oil Check..................................271Adding Engine Oil......................................271
Engine Oil Dipstick - 2.0LEcoBoost™..........................................271
Engine Oil Dipstick - 3.7L...................271
Engine Specifications.......................329
Drivebelt Routing.....................................329
455
Index
