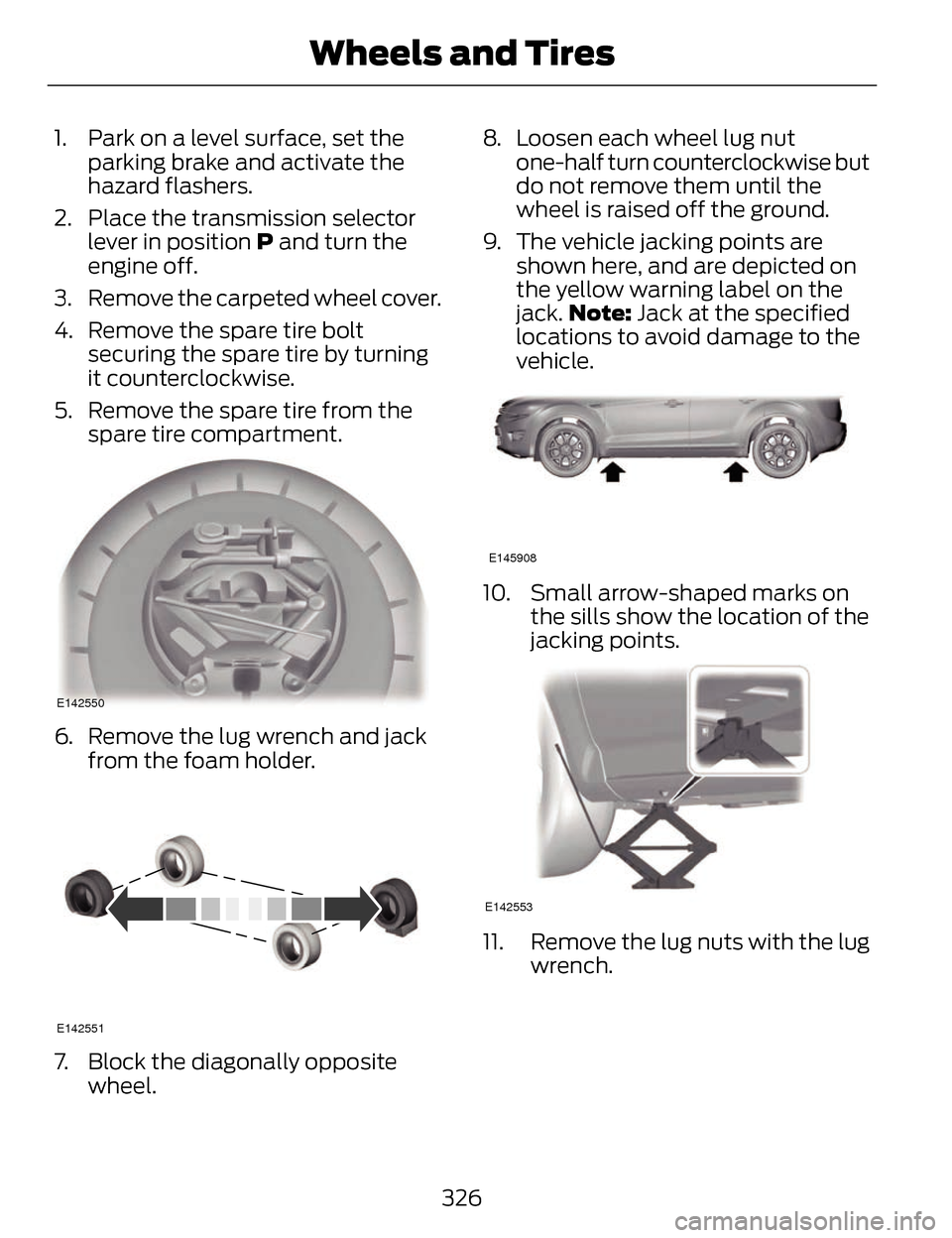

jacking points LINCOLN MKZ 2014 Owners Manual

1. Park on a level surface, set theparking brake and activate the
hazard flashers.
2. Place the transmission selector lever in position P and turn the
engine off.
3. Remove the carpeted wheel cover.
4. Remove the spare tire bolt securing the spare tire by turning
it counterclockwise.
5. Remove the spare tire from the spare tire compartment.
E142550
6. Remove the lug wrench and jackfrom the foam holder.
E142551
7. Block the diagonally oppositewheel. 8. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the
wheel is raised off the ground.
9. The vehicle jacking points are shown here, and are depicted on
the yellow warning label on the
jack. Note: Jack at the specified
locations to avoid damage to the
vehicle.
E145908
10. Small arrow-shaped marks on the sills show the location of the
jacking points.
E142553
11. Remove the lug nuts with the lugwrench.
326
Wheels and Tires
