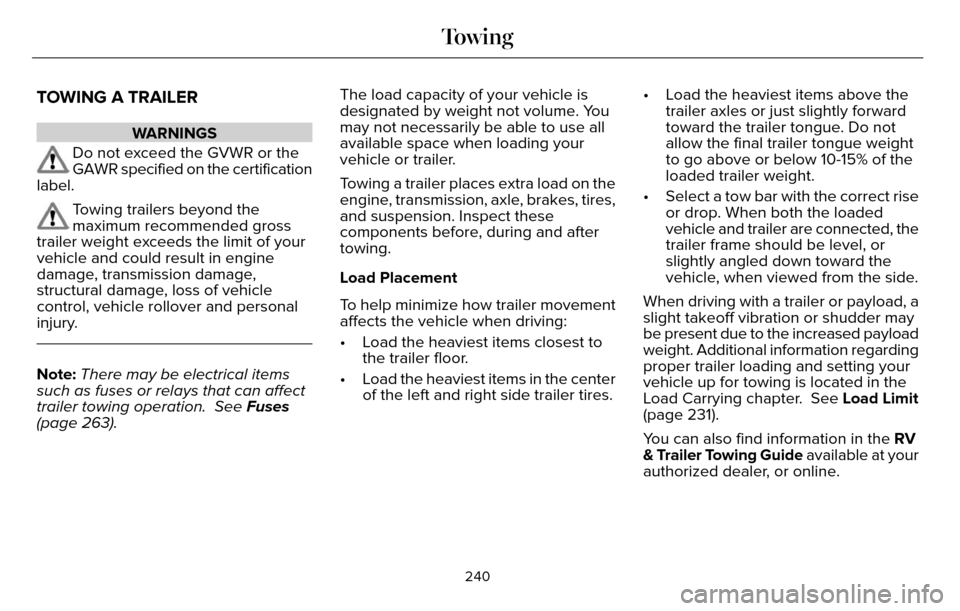

TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or the
GAWR specified on the certification
label.
Towing trailers beyond the
maximum recommended gross
trailer weight exceeds the limit of your
vehicle and could result in engine
damage, transmission damage,
structural damage, loss of vehicle
control, vehicle rollover and personal
injury.
Note: There may be electrical items
such as fuses or relays that can affect
trailer towing operation. See Fuses
(page 263). The load capacity of your vehicle is
designated by weight not volume. You
may not necessarily be able to use all
available space when loading your
vehicle or trailer.
Towing a trailer places extra load on the
engine, transmission, axle, brakes, tires,
and suspension. Inspect these
components before, during and after
towing.
Load Placement
To help minimize how trailer movement
affects the vehicle when driving:
• Load the heaviest items closest to
the trailer floor.
• Load the heaviest items in the center of the left and right side trailer tires. • Load the heaviest items above the
trailer axles or just slightly forward
toward the trailer tongue. Do not
allow the final trailer tongue weight
to go above or below 10-15% of the
loaded trailer weight.
• Select a tow bar with the correct rise or drop. When both the loaded
vehicle and trailer are connected, the
trailer frame should be level, or
slightly angled down toward the
vehicle, when viewed from the side.
When driving with a trailer or payload, a
slight takeoff vibration or shudder may
be present due to the increased payload
weight. Additional information regarding
proper trailer loading and setting your
vehicle up for towing is located in the
Load Carrying chapter. See Load Limit
(page 231).
You can also find information in the RV
& Trailer Towing Guide available at your
authorized dealer, or online.
240
Towing

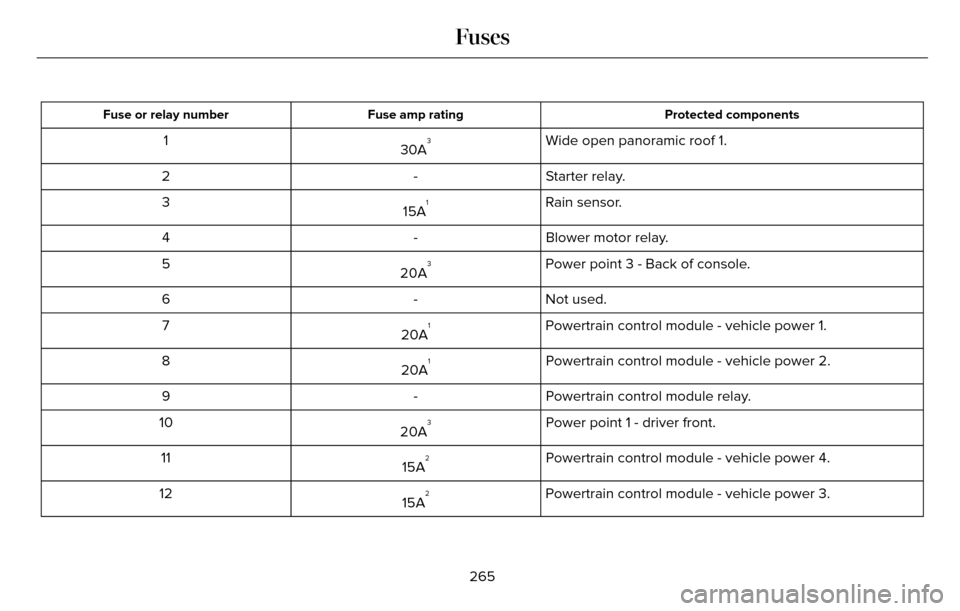

Protected components
Fuse amp rating
Fuse or relay number
Wide open panoramic roof 1.
30A31
Starter relay.
-
2
Rain sensor.
15A
13
Blower motor relay.
-
4
Power point 3 - Back of console.
20A
35
Not used.
-
6
Powertrain control module - vehicle power 1.
20A
17
Powertrain control module - vehicle power 2.
20A
18
Powertrain control module relay.
-
9
Power point 1 - driver front.
20A
310
Powertrain control module - vehicle power 4.
15A
211
Powertrain control module - vehicle power 3.
15A
212
265
Fuses

Protected components
Fuse amp rating
Fuse or relay number

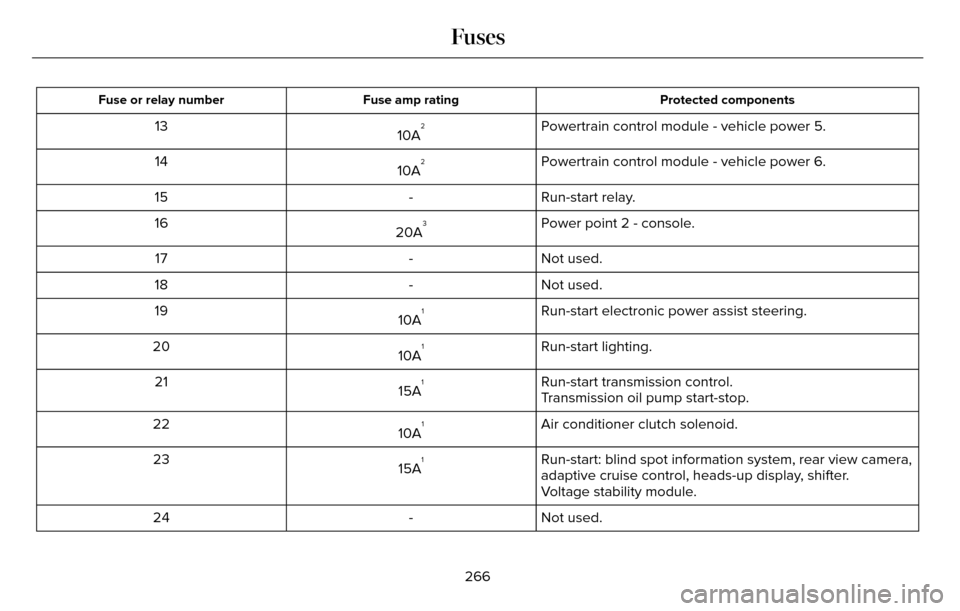

Powertrain control module - vehicle power 5.
10A213
Powertrain control module - vehicle power 6.
10A
214
Run-start relay.
-
15
Power point 2 - console.
20A
316
Not used.
-
17
Not used.
-
18
Run-start electronic power assist steering.
10A
119
Run-start lighting.
10A
120
Run-start transmission control.
15A
121
Transmission oil pump start-stop.
Air conditioner clutch solenoid.
10A
122
Run-start: blind spot information system, rear view camera,
adaptive cruise control, heads-up display, shifter.
15A
123
Voltage stability module.
Not used.
-
24
266
Fuses

Protected components
Fuse amp rating
Fuse or relay number

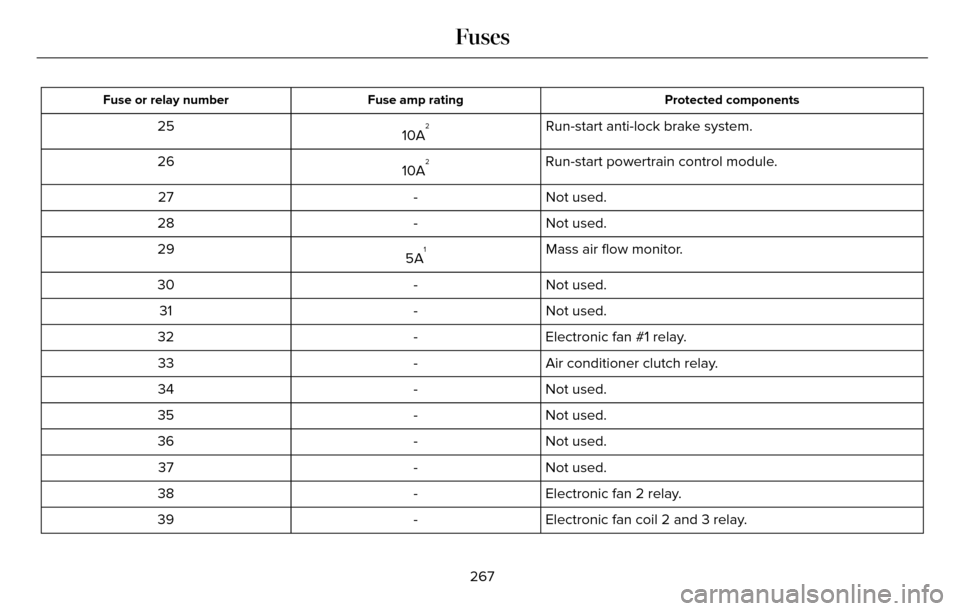

Run-start anti-lock brake system.
10A225
Run-start powertrain control module.
10A
226
Not used.
-
27
Not used.
-
28
Mass air flow monitor.
5A
129
Not used.
-
30
Not used.
-
31
Electronic fan #1 relay.
-
32
Air conditioner clutch relay.
-
33
Not used.
-
34
Not used.
-
35
Not used.
-
36
Not used.
-
37
Electronic fan 2 relay.
-
38
Electronic fan coil 2 and 3 relay.
-
39
267
Fuses

Protected components
Fuse amp rating
Fuse or relay number

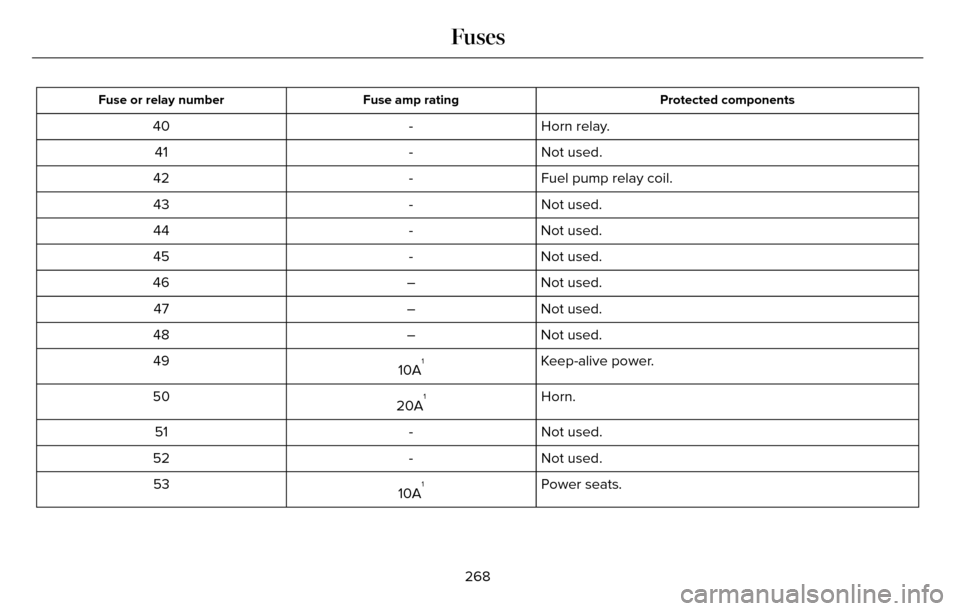

Horn relay.
-
40
Not used.
-
41
Fuel pump relay coil.
-
42
Not used.
-
43
Not used.
-
44
Not used.
-
45
Not used.
–
46
Not used.
–
47
Not used.
–
48
Keep-alive power.
10A
149
Horn.
20A
150
Not used.
-
51
Not used.
-
52
Power seats.
10A
153
268
Fuses

Protected components
Fuse amp rating
Fuse or relay number
Brake on-off switch.
10A254
Alt sensor.
10A
255
1Micro fuse.2 Dual micro fuse.3M-type fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom of the
fuse box. To access the bottom of the fuse
box, do the following:
269
Fuses

Protected components
Fuse amp rating
Fuse or relay number

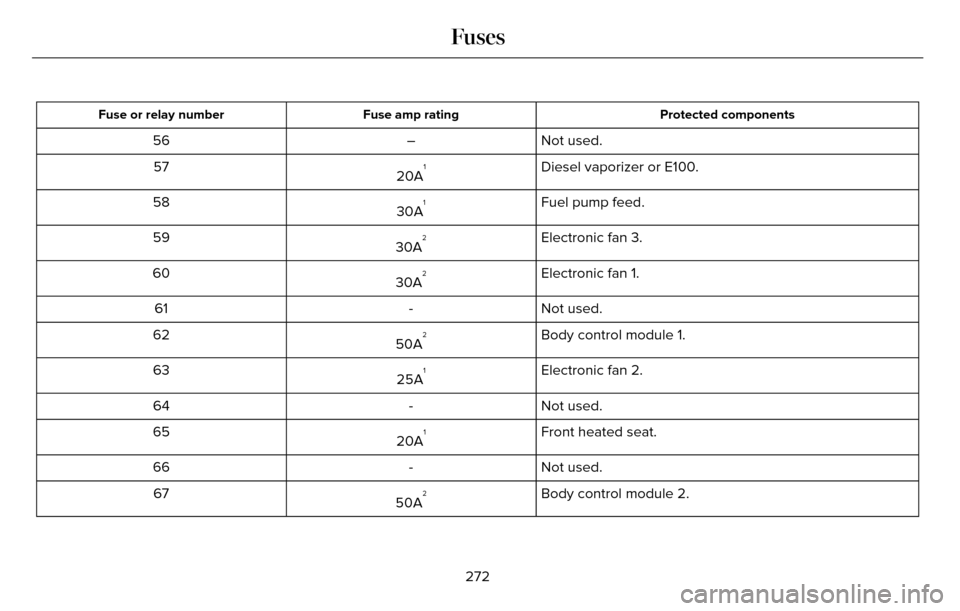

Not used.
–
56
Diesel vaporizer or E100.
20A
157
Fuel pump feed.
30A
158
Electronic fan 3.
30A
259
Electronic fan 1.
30A
260
Not used.
-
61
Body control module 1.
50A
262
Electronic fan 2.
25A
163
Not used.
-
64
Front heated seat.
20A
165
Not used.
-
66
Body control module 2.
50A
267
272
Fuses

Protected components
Fuse amp rating
Fuse or relay number

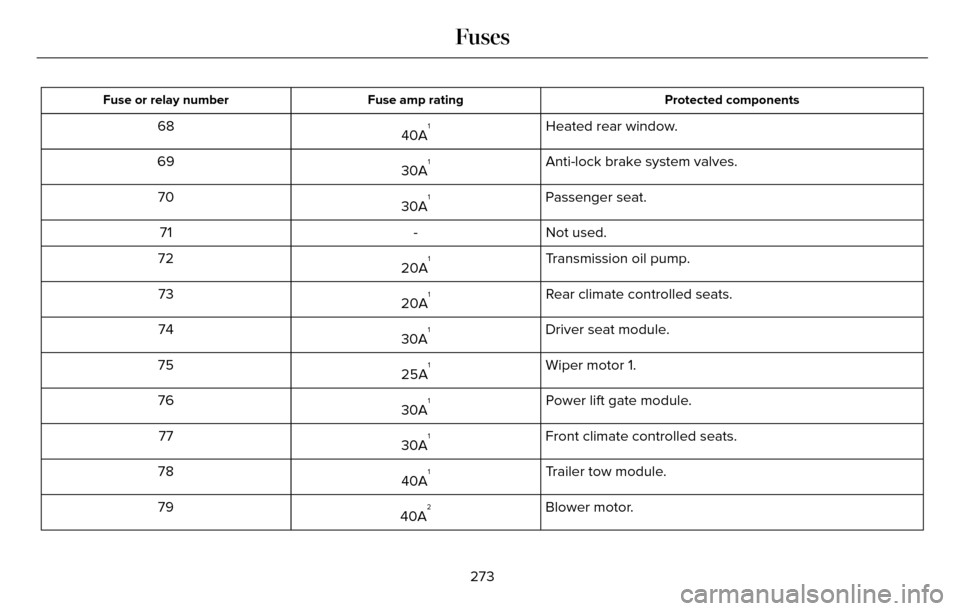

Heated rear window.
40A168
Anti-lock brake system valves.
30A
169
Passenger seat.
30A
170
Not used.
-
71
Transmission oil pump.
20A
172
Rear climate controlled seats.
20A
173
Driver seat module.
30A
174
Wiper motor 1.
25A
175
Power lift gate module.
30A
176
Front climate controlled seats.
30A
177
Trailer tow module.
40A
178
Blower motor.
40A
279
273
Fuses

Protected components
Fuse amp rating
Fuse or relay number

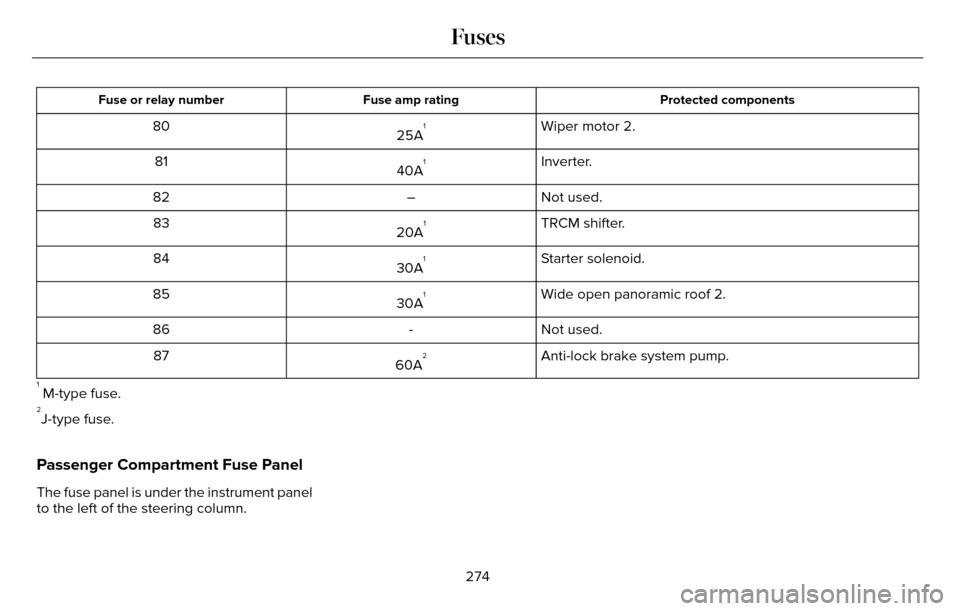

Wiper motor 2.
25A180
Inverter.
40A
181
Not used.
–
82
TRCM shifter.
20A
183
Starter solenoid.
30A
184
Wide open panoramic roof 2.
30A
185
Not used.
-
86
Anti-lock brake system pump.
60A
287
1 M-type fuse.2J-type fuse.
Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
274
Fuses

Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glove box, vanity, dome, trunk).
10A11
Memory seats, Lumbar, Power mirror.
7.5A
12
Driver door unlock.
20A
13
Not used (spare).
5A
14
Subwoofer amplifier.
20A
15
Heated seat relay coil.
10A
26
Not used (spare).
10A
27
Not used (spare).
10A
28
Not used (spare).
10A
29
Power trunk logic.
5A
210
Keypad.
Cellphone passport module.
276
