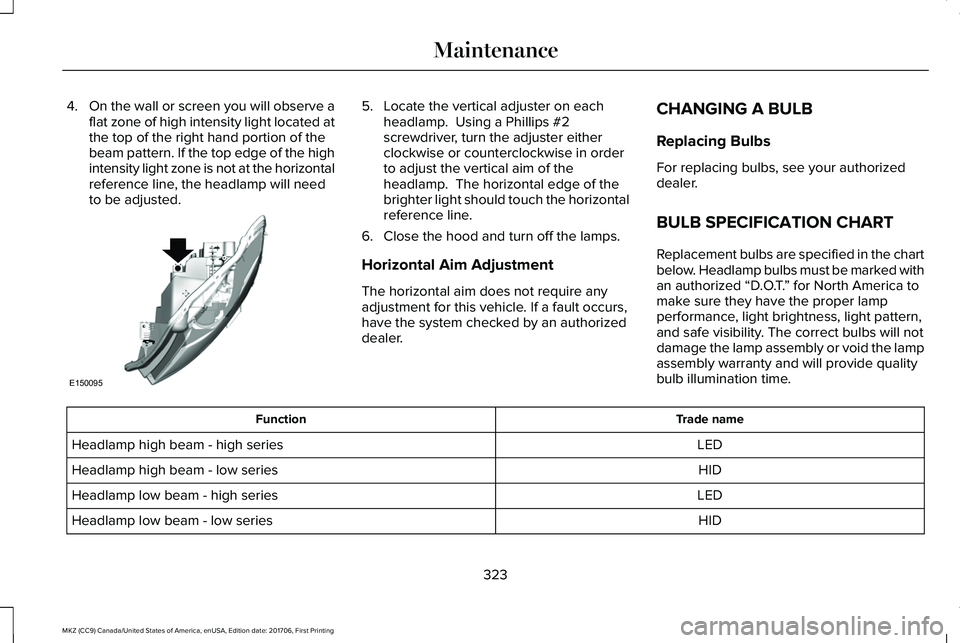

headlamp LINCOLN MKZ 2018 Owner's Manual

4.On the wall or screen you will observe aflat zone of high intensity light located atthe top of the right hand portion of thebeam pattern. If the top edge of the highintensity light zone is not at the horizontalreference line, the headlamp will needto be adjusted.
5. Locate the vertical adjuster on eachheadlamp. Using a Phillips #2screwdriver, turn the adjuster eitherclockwise or counterclockwise in orderto adjust the vertical aim of theheadlamp. The horizontal edge of thebrighter light should touch the horizontalreference line.
6. Close the hood and turn off the lamps.
Horizontal Aim Adjustment
The horizontal aim does not require anyadjustment for this vehicle. If a fault occurs,have the system checked by an authorizeddealer.
CHANGING A BULB
Replacing Bulbs
For replacing bulbs, see your authorizeddealer.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chartbelow. Headlamp bulbs must be marked withan authorized “D.O.T.” for North America tomake sure they have the proper lampperformance, light brightness, light pattern,and safe visibility. The correct bulbs will notdamage the lamp assembly or void the lampassembly warranty and will provide qualitybulb illumination time.
Trade nameFunction
LEDHeadlamp high beam - high series
HIDHeadlamp high beam - low series
LEDHeadlamp low beam - high series
HIDHeadlamp low beam - low series
323
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing

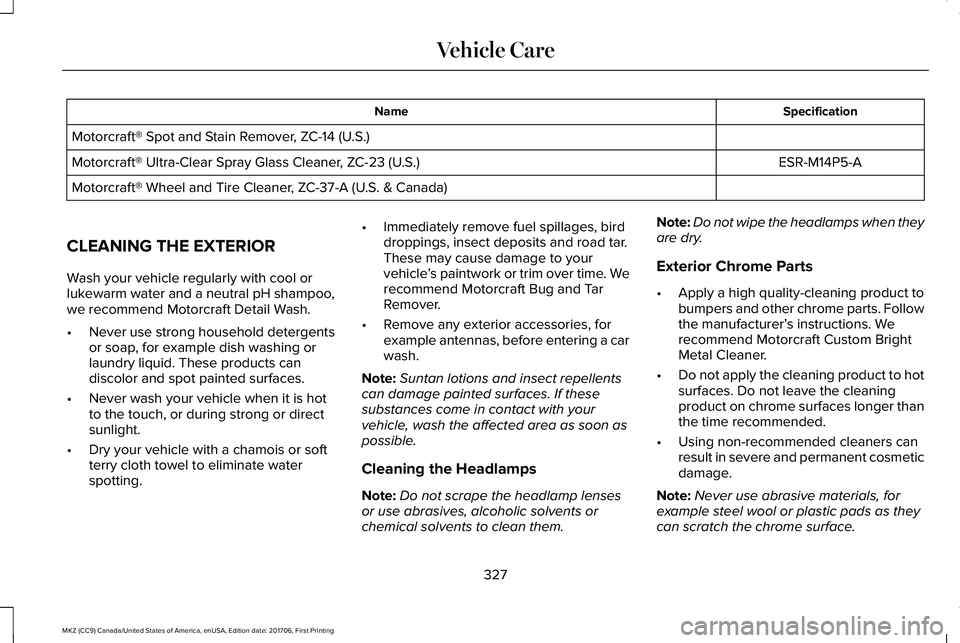

MaintenanceE150095

SpecificationName
Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)
ESR-M14P5-AMotorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)
Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)
CLEANING THE EXTERIOR
Wash your vehicle regularly with cool orlukewarm water and a neutral pH shampoo,we recommend Motorcraft Detail Wash.
•Never use strong household detergentsor soap, for example dish washing orlaundry liquid. These products candiscolor and spot painted surfaces.
•Never wash your vehicle when it is hotto the touch, or during strong or directsunlight.
•Dry your vehicle with a chamois or softterry cloth towel to eliminate waterspotting.
•Immediately remove fuel spillages, birddroppings, insect deposits and road tar.These may cause damage to yourvehicle’s paintwork or trim over time. Werecommend Motorcraft Bug and TarRemover.
•Remove any exterior accessories, forexample antennas, before entering a carwash.
Note:Suntan lotions and insect repellentscan damage painted surfaces. If thesesubstances come in contact with yourvehicle, wash the affected area as soon aspossible.
Cleaning the Headlamps
Note:Do not scrape the headlamp lensesor use abrasives, alcoholic solvents orchemical solvents to clean them.
Note:Do not wipe the headlamps when theyare dry.
Exterior Chrome Parts
•Apply a high quality-cleaning product tobumpers and other chrome parts. Followthe manufacturer’s instructions. Werecommend Motorcraft Custom BrightMetal Cleaner.
•Do not apply the cleaning product to hotsurfaces. Do not leave the cleaningproduct on chrome surfaces longer thanthe time recommended.
•Using non-recommended cleaners canresult in severe and permanent cosmeticdamage.
Note:Never use abrasive materials, forexample steel wool or plastic pads as theycan scratch the chrome surface.
327
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Vehicle Care

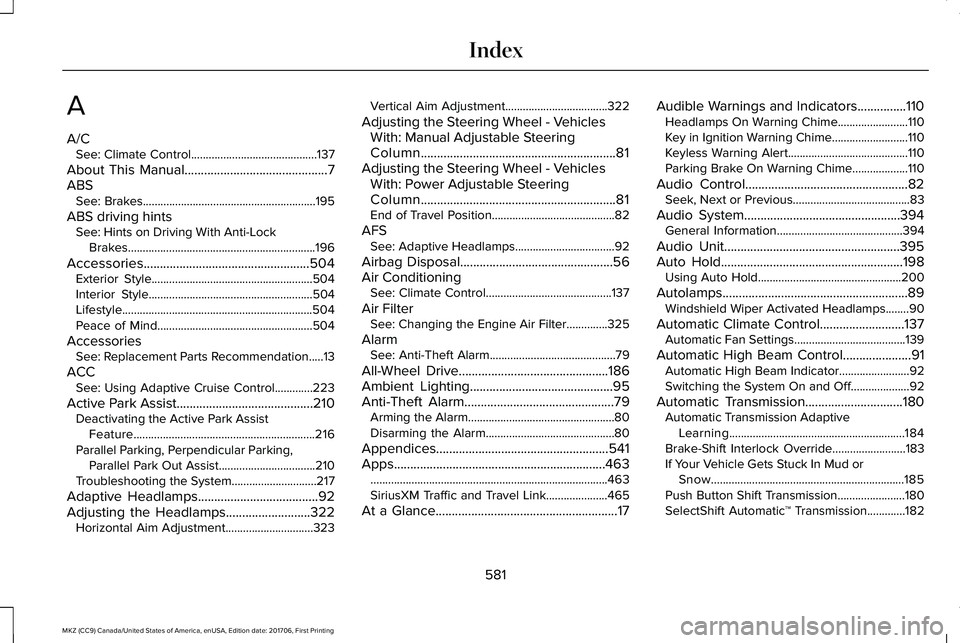

A
A/CSee: Climate Control...........................................137
About This Manual............................................7ABSSee: Brakes...........................................................195
ABS driving hintsSee: Hints on Driving With Anti-LockBrakes................................................................196
Accessories...................................................504Exterior Style.......................................................504Interior Style........................................................504Lifestyle.................................................................504Peace of Mind.....................................................504
AccessoriesSee: Replacement Parts Recommendation.....13
ACCSee: Using Adaptive Cruise Control.............223
Active Park Assist..........................................210Deactivating the Active Park AssistFeature..............................................................216Parallel Parking, Perpendicular Parking,Parallel Park Out Assist.................................210Troubleshooting the System.............................217
Adaptive Headlamps.....................................92Adjusting the Headlamps..........................322Horizontal Aim Adjustment..............................323
Vertical Aim Adjustment...................................322
Adjusting the Steering Wheel - VehiclesWith: Manual Adjustable SteeringColumn............................................................81Adjusting the Steering Wheel - VehiclesWith: Power Adjustable SteeringColumn............................................................81End of Travel Position..........................................82
AFSSee: Adaptive Headlamps..................................92
Airbag Disposal...............................................56Air ConditioningSee: Climate Control...........................................137
Air FilterSee: Changing the Engine Air Filter..............325
AlarmSee: Anti-Theft Alarm...........................................79
All-Wheel Drive..............................................186Ambient Lighting............................................95Anti-Theft Alarm..............................................79Arming the Alarm..................................................80Disarming the Alarm............................................80
Appendices.....................................................541Apps.................................................................463.................................................................................463SiriusXM Traffic and Travel Link.....................465
At a Glance........................................................17
Audible Warnings and Indicators...............110Headlamps On Warning Chime........................110Key in Ignition Warning Chime..........................110Keyless Warning Alert.........................................110Parking Brake On Warning Chime...................110
Audio Control..................................................82Seek, Next or Previous........................................83
Audio System................................................394General Information...........................................394
Audio Unit......................................................395Auto Hold........................................................198Using Auto Hold.................................................200
Autolamps.........................................................89Windshield Wiper Activated Headlamps........90
Automatic Climate Control..........................137Automatic Fan Settings......................................139
Automatic High Beam Control.....................91Automatic High Beam Indicator........................92Switching the System On and Off....................92
Automatic Transmission..............................180Automatic Transmission AdaptiveLearning............................................................184Brake-Shift Interlock Override.........................183If Your Vehicle Gets Stuck In Mud orSnow..................................................................185Push Button Shift Transmission.......................180SelectShift Automatic™ Transmission.............182
581
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Index

Cleaning Products........................................326Materials...............................................................326
Cleaning the Engine....................................328Cleaning the Exterior...................................327Cleaning the Headlamps..................................327Exterior Chrome Parts.......................................327Exterior Plastic Parts..........................................328Stripes or Graphics............................................328Underbody...........................................................328Under Hood.........................................................328
Cleaning the Instrument Panel andInstrument Cluster Lens............................331Cleaning the Interior....................................329Cleaning Alcantara Microfiber ClothFabric................................................................330
Cleaning the Wheels...................................333Cleaning the Windows and WiperBlades...........................................................329Clearing All MyKeys.......................................65Climate............................................................440Climate Control..............................................137Climate Controlled Seats............................152Cooled Seats........................................................153
Coolant CheckSee: Engine Coolant Check.............................310
Crash Sensors and Airbag Indicator..........55
Creating a MyKey...........................................63Programming/Changing ConfigurableSettings...............................................................64
Cross Traffic Alert.........................................240Blocked Sensors.................................................243Switching the System Off and On..................243System Errors......................................................243System Lights, Messages and AudibleAlerts.................................................................243System Limitations.............................................243Using the Cross Traffic Alert System............240
Cruise Control..................................................83Principle of Operation.......................................222Type One................................................................83Type Two.................................................................84
Cruise controlSee: Using Cruise Control...............................222
Customer Assistance...................................274
D
Data Recording..................................................9Event Data Recording...........................................10Service Data Recording.........................................9
Daytime Running Lamps...............................90Type One - Conventional(Non-Configurable)...........................................91Type Two - Configurable......................................91
Direction Indicators........................................93Lane Change..........................................................93
Doors and Locks.............................................68Drive Control.................................................249LINCOLN DRIVE CONTROL............................249
Driver Alert......................................................231PRINCIPLE OF OPERATION.............................231USING DRIVER ALERT.......................................231
Driver and Passenger Airbags....................48Children and Airbags...........................................49Proper Driver and Front Passenger SeatingAdjustment.........................................................49
Driver and Passenger Knee Airbags.........53Driving Aids.....................................................231Driving Hints..................................................263Driving Through Water...............................263DRLSee: Daytime Running Lamps...........................90
E
Economical Driving......................................263Electric Parking Brake..................................196Applying the electric parking brake...............196Applying the electric parking brake when thevehicle is moving............................................197Battery With No Charge....................................198Releasing the electric parking brake.............197
583
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Index

Fuel Filter.........................................................3192.0L Engines and 3.0L Engines withFWD....................................................................3193.0L Engines with AWD.....................................319
Fuel Quality.....................................................168Choosing the Right Fuel....................................168
Fuel Shutoff....................................................267Fuses...............................................................282Fuse Specification Chart............................282Passenger Compartment Fuse Panel...........294Power Distribution Box.....................................282
G
Garage Door OpenerSee: Universal Garage Door Opener.............155
Gauges.............................................................104Engine Coolant Temperature Gauge.............106Fuel Gauge...........................................................105Information Display.............................................105
GearboxSee: Transmission...............................................180
General Information on RadioFrequencies...................................................57Intelligent Access..................................................57
General Maintenance Information...........509Multi-Point Inspection.........................................512Owner Checks and Services............................510
Protecting Your Investment.............................509Why Maintain Your Vehicle?............................509Why Maintain Your Vehicle at YourDealership?.....................................................509
Getting Assistance Outside the U.S. andCanada.........................................................278Getting the Services You Need................274Away From Home...............................................274
Global Opening and Closing.......................97Closing the Windows...........................................97Opening the Windows.........................................97
H
Hazard Flashers............................................267Headlamp AdjustingSee: Adjusting the Headlamps.......................322
Headlamp Exit Delay.....................................90HeadrestSee: Head Restraints..........................................143
Head Restraints.............................................143Adjusting the Head Restraint...........................144Tilting Head Restraints ......................................145
Heated Seats...................................................151Front Seats.............................................................151Rear Seats.............................................................152
Heated Windows and Mirrors....................140Heated Exterior Mirrors.....................................140
Heated Rear Window.........................................140Windshield Wiper De-icer..................................141
HeatingSee: Climate Control...........................................137
Hints on Controlling the InteriorClimate..........................................................139Defogging the Side Windows in ColdWeather.............................................................140General Hints........................................................139Quickly Cooling the Interior..............................140Quickly Heating the Interior.............................140Recommended Settings for Cooling..............140Recommended Settings for Heating..............140
Hints on Driving With Anti-LockBrakes...........................................................196Home Screen.................................................415Hood LockSee: Opening and Closing the Hood............302
I
In California (U.S. Only)...............................275Information Display Control.........................84Information Displays.......................................111General Information..............................................111
Information Messages...................................117Active Park.............................................................117Adaptive Cruise Control.....................................118
585
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Index

Adaptive Headlamps...........................................119AdvanceTrac™........................................................119Airbag......................................................................119Alarm......................................................................120Automatic Engine Shutdown...........................120AWD.........................................................................121Battery and Charging System..........................122Blind Spot Information and Cross Traffic AlertSystem...............................................................123Doors and Locks..................................................123Driver Alert............................................................124Fuel.........................................................................124Hill Start Assist.....................................................125Keys and Intelligent Access.............................125Lane Keeping System........................................126Maintenance.........................................................127MyKey.....................................................................128Park Aid..................................................................129Park Brake.............................................................129Power Steering....................................................130Pre-Collision Assist..............................................131Remote Start..........................................................131Seats.......................................................................132Starting System ...................................................132Tire Pressure Monitoring System....................133Traction Control...................................................133Transmission.........................................................134
Installing Child Restraints..............................21Child Seats..............................................................21Using Lap and Shoulder Belts............................21Using Lower Anchors and Tethers forCHildren (LATCH).............................................27Using Tether Straps..............................................29
Instrument Cluster.........................................104Instrument Lighting Dimmer........................90Instrument Panel Overview...........................17Interior Lamps..................................................94Front Interior Lamp...............................................94Rear Interior Lamp................................................95
Interior Luggage CompartmentRelease...........................................................76Interior Mirror.................................................100Auto-Dimming Mirror..........................................100
Introduction.........................................................7
J
Jump Starting the Vehicle..........................268Connecting the Jumper Cables.....................269Jump Starting......................................................270Preparing Your Vehicle.....................................268Removing the Jumper Cables.........................270
K
Keyless Entry....................................................74SECURICODE™ KEYLESS ENTRYKEYPAD...............................................................74
Keyless Starting.............................................163Ignition Modes.....................................................163
Keys and Remote Controls...........................57
L
Lane Keeping System.................................233Switching the System On and Off..................234
Lighting Control...............................................88Headlamp Flasher................................................89Headlamp High Beam.........................................89
Lighting..............................................................88General Information.............................................88
Lincoln Automotive Financial Services......12Lincoln Protect..............................................506Lincoln Protect (CANADA ONLY)....................507Lincoln Protect Extended Service Plans (U.S.Only)..................................................................506
Load Carrying.................................................251Load Limit........................................................251Special Loading Instructions for Owners ofPick-up Trucks and Utility-typeVehicles............................................................255
586
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Index

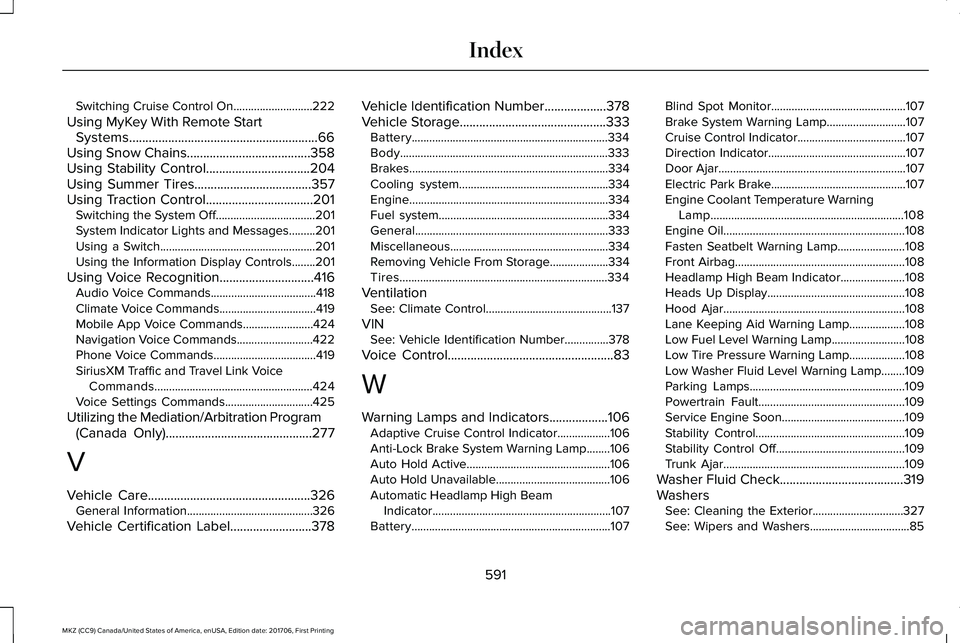

Switching Cruise Control On...........................222
Using MyKey With Remote StartSystems..........................................................66Using Snow Chains......................................358Using Stability Control................................204Using Summer Tires....................................357Using Traction Control.................................201Switching the System Off..................................201System Indicator Lights and Messages.........201Using a Switch.....................................................201Using the Information Display Controls........201
Using Voice Recognition.............................416Audio Voice Commands....................................418Climate Voice Commands.................................419Mobile App Voice Commands........................424Navigation Voice Commands..........................422Phone Voice Commands...................................419SiriusXM Traffic and Travel Link VoiceCommands......................................................424Voice Settings Commands..............................425
Utilizing the Mediation/Arbitration Program(Canada Only).............................................277
V
Vehicle Care..................................................326General Information...........................................326
Vehicle Certification Label.........................378
Vehicle Identification Number...................378Vehicle Storage.............................................333Battery...................................................................334Body.......................................................................333Brakes....................................................................334Cooling system...................................................334Engine....................................................................334Fuel system..........................................................334General..................................................................333Miscellaneous......................................................334Removing Vehicle From Storage....................334Tires.......................................................................334
VentilationSee: Climate Control...........................................137
VINSee: Vehicle Identification Number...............378
Voice Control...................................................83
W
Warning Lamps and Indicators..................106Adaptive Cruise Control Indicator..................106Anti-Lock Brake System Warning Lamp........106Auto Hold Active.................................................106Auto Hold Unavailable.......................................106Automatic Headlamp High BeamIndicator.............................................................107Battery....................................................................107
Blind Spot Monitor..............................................107Brake System Warning Lamp...........................107Cruise Control Indicator.....................................107Direction Indicator...............................................107Door Ajar................................................................107Electric Park Brake..............................................107Engine Coolant Temperature WarningLamp..................................................................108Engine Oil..............................................................108Fasten Seatbelt Warning Lamp.......................108Front Airbag..........................................................108Headlamp High Beam Indicator......................108Heads Up Display...............................................108Hood Ajar..............................................................108Lane Keeping Aid Warning Lamp...................108Low Fuel Level Warning Lamp.........................108Low Tire Pressure Warning Lamp...................108Low Washer Fluid Level Warning Lamp........109Parking Lamps.....................................................109Powertrain Fault..................................................109Service Engine Soon..........................................109Stability Control...................................................109Stability Control Off............................................109Trunk Ajar..............................................................109
Washer Fluid Check......................................319WashersSee: Cleaning the Exterior...............................327See: Wipers and Washers..................................85
591
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Index
